Planning, design and manufacture of turnkey painting, powder coating and KTL dip coating systems incl. conveyor technology and exhaust air purification.
AFOTEK Anlagen für Oberflächentechnik GmbH
36251 Bad HersfeldNew on Amplifa
About AFOTEK
AFOTEK Anlagen für Oberflächentechnik GmbH, based in Bad Hersfeld, has been planning, developing and manufacturing turnkey, fully automated surface technology systems for over 30 years. The portfolio includes wet painting systems, plastics and metal painting systems, powder coating systems, KTL and ATL electro dip coating systems, pretreatment systems, drying systems, biological exhaust air purification systems, as well as AFOTEK's own Shuttle conveyor system (ASF). A large proportion of the system components, such as units, booth housings, flash-off zones, dryers and pretreatment systems, are manufactured in-house and delivered as prefabricated modules, which shortens assembly time at the customer's site. System control is implemented via Siemens S7 with TIA Portal, complemented by a digital twin, real-time 3D simulation (AFOTEK Paint), dashboards and ERP and MES integration. Customers include companies from the automotive and agricultural machinery industries, engine and casting manufacturing, medical technology as well as the plastics and chemical industries. To date, around 600 systems have been realized and customers supplied in 20 countries.
- Site
- Bad Hersfeld
- Processes
- Wet painting systems, Plastics painting systems (solvent-based or water-based paints), Metal painting systems, Spray booths with dry separation or wet separation, Powder coating systems (automatic and manual powder booths, powder curing ovens 180-240 °C), KTL dip coating systems (cathodic electro dip coating), ATL dip coating systems (anodic electro dip coating), Pretreatment systems (cleaning, degreasing, phosphating, pickling, conversion treatment)
- Materials
- Steel, Aluminium, Plastics, Metal, Wood, Anodized aluminium profiles (ASF transport rails), AFOTEK Shuttle Conveyor System
- Employees
- 100
- Industries
- Automotive, Agricultural machinery, Construction machinery, Engine/casting manufacturing, Wheels/axles, Medical technology
- 01
System planning and process optimization incl. real-time simulation (AFOTEK
- 02
Design and engineering
- 03
In-house manufacture of system components (units, booths, dryers etc.)
- 04
System programming (Siemens S7, TIA Portal)
- 05
Delivery of prefabricated modules
- 06
Assembly and commissioning
- 07
Remote support, maintenance and spare parts service
System Technology & Processes
Metal
Workpieces for KTL/ATL dip coating, pretreatment and metal painting systems.
Steel
Substrate for pretreatment systems and powder coating systems.
Aluminium
Substrate for pretreatment and powder coating; anodized aluminium profiles as transport rails in the ASF.
Plastics
Substrate for plastics painting systems, pretreatment (flame treatment, CO2 cleaning) and powder coating.
Wood
Finishing of wood in the context of exhaust air purification systems.

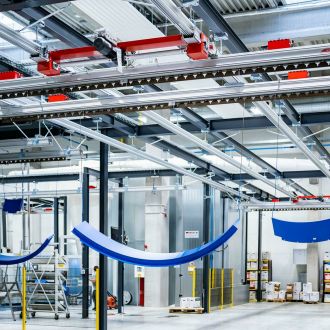

AFOTEK Shuttle Conveyor System
Modular transport system with individually controllable shuttles (1–8 m length, 250 mm gap bridging).
Locations
Bad Hersfeld
DEHeadquarters and manufacturing; in-house manufacture of system components
- Materials
- Steel, Aluminium, Plastics
- Wet painting systems
- Powder coating systems
- KTL dip coating systems
- Pretreatment systems

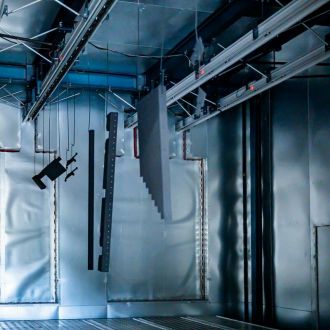

- Drying systems (powder curing oven, dehydration oven, paint dryer, low-temperature dryer, infrared dryer, chamber dryer)
- Biological exhaust air purification systems
- AFOTEK Shuttle Conveyor System (ASF)
Product Portfolio
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|

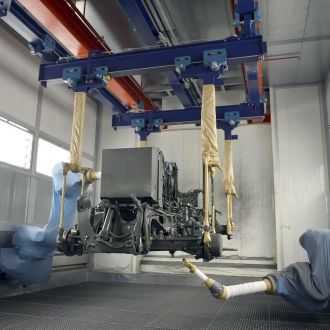

| Wet painting systemsSurface | – | – | – | – | Metal, Plastics |
| Plastics painting systems (solvent-based or water-based paints)Surface | – | – | – | – | Plastics |
| Metal painting systemsSurface | – | – | – | – | Metal |
| Spray booths with dry separation or wet separationSurface | – | – | – | – | – |

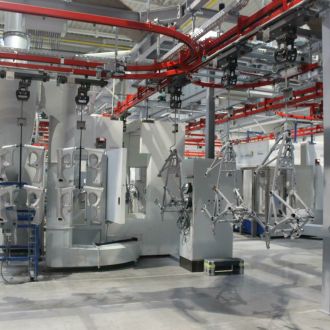

| Powder coating systems (automatic and manual powder booths, powder curing ovens 180-240 °C)Surface | – | – | – | – | Steel, Aluminium, Plastics |

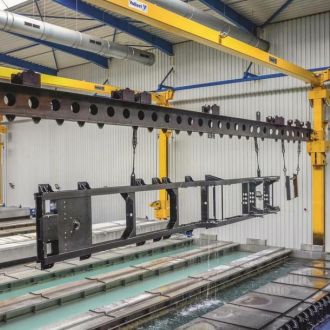

| KTL dip coating systems (cathodic electro dip coating)Surface | – | – | – | – | Metal |
| ATL dip coating systems (anodic electro dip coating)Surface | – | – | – | – | Metal |

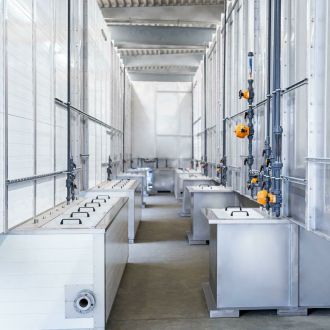

| Pretreatment systems (cleaning, degreasing, phosphating, pickling, conversion treatment)Surface | – | – | – | – | Steel, Aluminium, Plastics |
| Through-feed pretreatment systems/through-feed spray systemsSurface | – | – | – | – | Metal |
| Chamber spray systemsSurface | – | – | – | – | Metal |
| Immersion cleaning systemsSurface | – | – | – | – | Metal |
| Ionization systems, flame treatment systems, CO2 cleaning systems, dry ice blasting systemsSurface | – | – | – | – | Plastics |
| Powder curing ovens (curing temperatures 180-240 °C)Surface | – | – | – | – | – |
| Dehydration ovensSurface | – | – | – | – | – |
| Paint dryers (circulating air process)Surface | – | – | – | – | – |
| Low-temperature dryers (30-60 °C)Surface | – | – | – | – | – |
| Infrared and UV dryersSurface | – | – | – | – | – |
| Chamber dryers/core dryers (shelf trolley dryers)Surface | – | – | – | – | – |

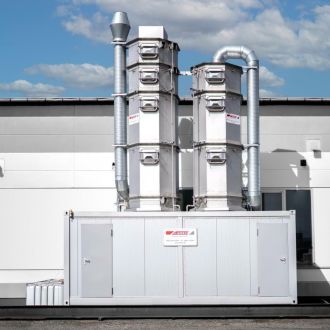

| Biological exhaust air purification systems (biofilter with aerobic microorganisms)Surface | – | – | – | – | – |
| AFOTEK Shuttle Conveyor System (ASF)Surface | – | – | – | – | – |

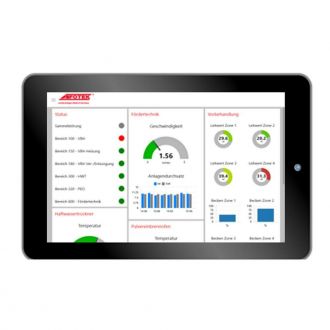

| Automation technology (Siemens S7, TIA Portal, ERP/MES integration, dashboards, robotics)Engineering | – | – | – | – | – |
| System planning, process optimization, retrofits, real-time 3D simulation (AFOTEK Paint)Engineering | – | – | – | – | – |
| Spare parts service, maintenance, consignment warehouse, customer trainingEngineering | – | – | – | – | – |
| Paint sludge discharge system RODAPSurface | – | – | – | – | – |
7 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Wet painting system | AFOTEK | – | – | – | Bad Hersfeld (manufacturing) |
| Powder coating system | AFOTEK | – | – | – | Bad Hersfeld (manufacturing) |
| KTL dip coating system | AFOTEK | – | – | – | Bad Hersfeld (manufacturing) |
| Pretreatment system | AFOTEK | – | – | – | Bad Hersfeld (manufacturing) |
| Drying system (powder curing oven, dehydration oven, paint dryer, low-temperature dryer etc.) | AFOTEK | – | – | – | Bad Hersfeld (manufacturing) |
| Biological exhaust air purification system | AFOTEK | – | – | – | Bad Hersfeld (manufacturing) |
| AFOTEK Shuttle Conveyor System (ASF), transport rails 1-8 m shuttle length, 250 mm gap bridging | AFOTEK ASF | – | Shuttle lengths 1-8 m | – | Bad Hersfeld (manufacturing) |
Additional services
Reference customers
History
Over 30 years (33 years according to the website) of experience in surface technology with around 600 systems realized in 20 countries supplied.
