Manufacture of grinding wheels in resinoid, ceramic and rubber bonds up to 1.280 mm diameter
Carborundum Schleifmittelwerk GmbH
WuppertalNew on Amplifa
About Carborundum
Carborundum Schleifmittelwerk GmbH, based in Wuppertal, has been active in the production of abrasives for over 100 years. The company manufactures grinding wheels in resinoid (Bakelite), ceramic and rubber bonds with diameters up to 1.280 mm and maximum operating speeds of up to 100 m/s. The abrasive grains used include corundum, Fused Corundum, silicon carbide (SiC), zirconia alumina and regular aluminium oxide. The product range includes, among other things, snagging and swing-frame wheels, centerless grinding wheels, roll grinding wheels, hot-pressed slab grinding wheels, cutting wheels as well as hand-operated dressers and grinding segments. In addition to the standard programme, the company develops custom special fabrications for specific grinding applications on request and manufactures them "Made in Germany"; OEM production is available for distributors. The products are distributed directly or via exclusive partners in over 150 countries and are used, among other applications, in foundries, steel mills, forging technology, the aluminium foil and paper industries as well as by grinding machine manufacturers.
- Site
- Wuppertal
- Processes
- Manufacture of grinding wheels in resinoid bond (Bakelite), Manufacture of grinding wheels in ceramic bond, Manufacture of grinding wheels in rubber bond, Custom manufacture of individual grinding tools (Custom Products), Snagging and swing-frame wheels in resinoid bond, Centerless through-feed grinding in resinoid bond, Roll grinding wheels in resinoid bond, Hot-pressed slab grinding wheels in resinoid bond
- Materials
- Silicon carbide (SiC), Corundum / aluminium oxide (Al2O3), Fused Corundum, Zirconia Alumina, Regular aluminium oxide (regular aluminium), Resinoid bond (Bakelite), Ceramic bond, Rubber bond
- Certificates
- DIN EN ISO 9001:2015, ISO 9001
- Industries
- Foundries, Steel mills and semiconductor industry, Forging technology, Aluminium foil industry, Paper industry, Mechanical engineering (grinding machine manufacturers)
- 01
Development and consulting by application engineers
- 02
Manufacture of the abrasive bodies (pressing/heat treatment)
- 03
Quality inspection (balancing and stability tests)
- 04
Direct sales and OEM sales via exclusive partners
Abrasive Grains and Bonds
Silicon Carbide (Carborundum)
This synthetic abrasive developed by E. G. Acheson is used for abrasive bodies in all bond types.
Corundum / Aluminium Oxide
Artificially produced abrasive grain for precision applications in ceramic, resinoid and rubber bonds.
Fused Corundum
Fused corundum for highly stressed grinding tools.
Zirconia Alumina

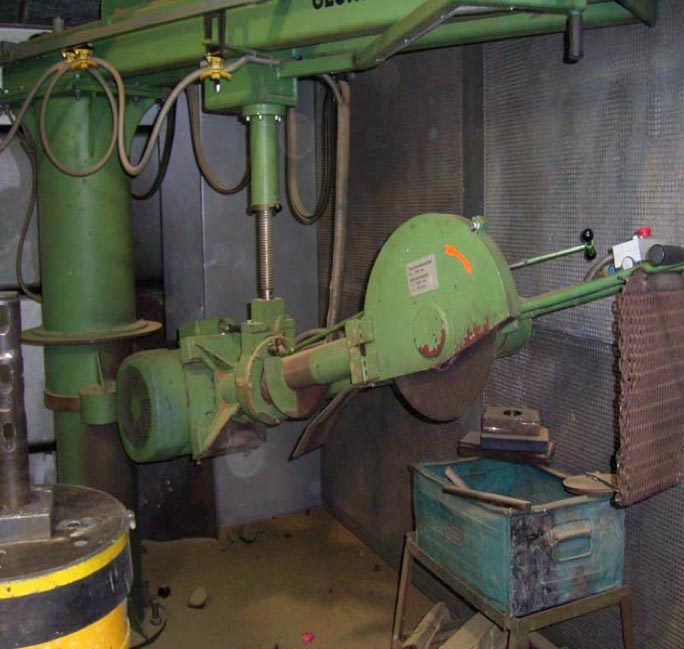

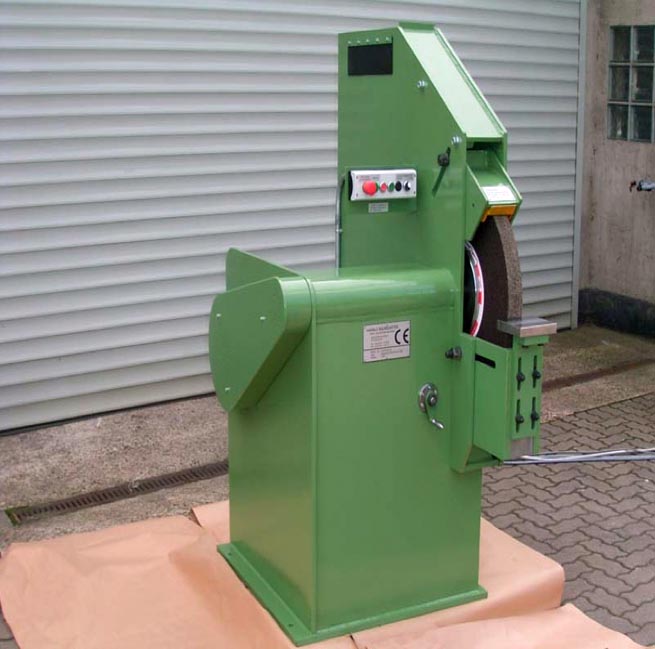

Abrasive grain for snagging and swing-frame wheels with high stock removal rates.
Regular Aluminium Oxide
Standard abrasive grain for snagging and swing-frame wheels.
Resinoid Bond

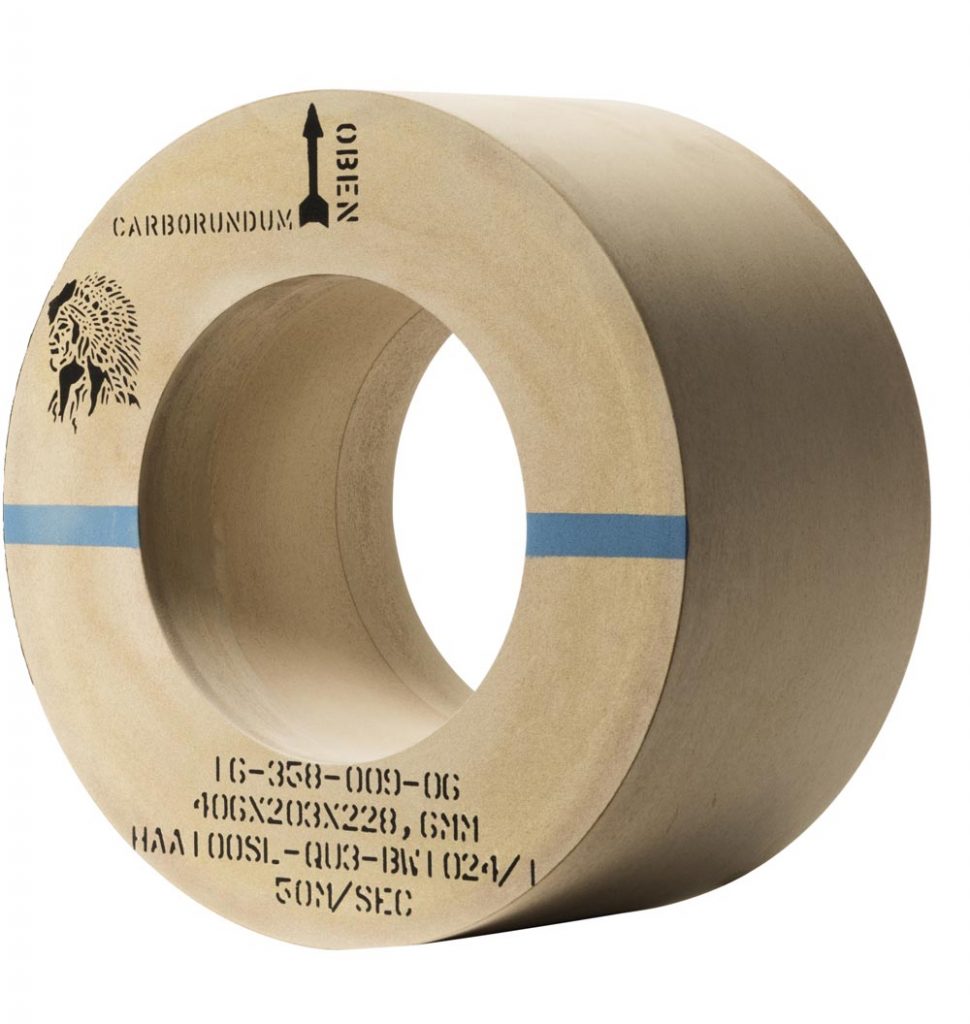

Bond for grinding wheels up to 1.280 mm diameter, among other applications for centerless and roll grinding.
Ceramic Bond
Bond for precision grinding wheels and grinding segments, among other applications for surface and cylindrical grinding.
Rubber Bond
Bond for grinding wheels, especially for cylindrical and centerless grinding.

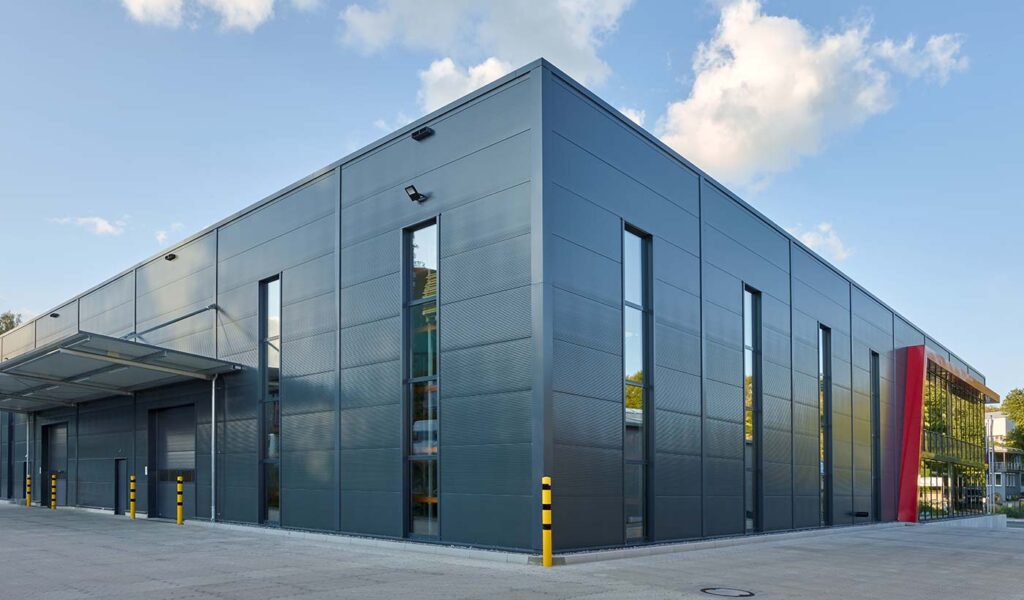

Location
Wuppertal
DEHeadquarters, production and sales
- Part weight / size
- Grinding wheels up to 1.280 mm diameter
- Materials
- Corundum, silicon carbide, zirconia alumina; resinoid, ceramic and rubber bonds
- Production facilities for grinding wheels up to 1.280 mm diameter and 100 m/s operating speed

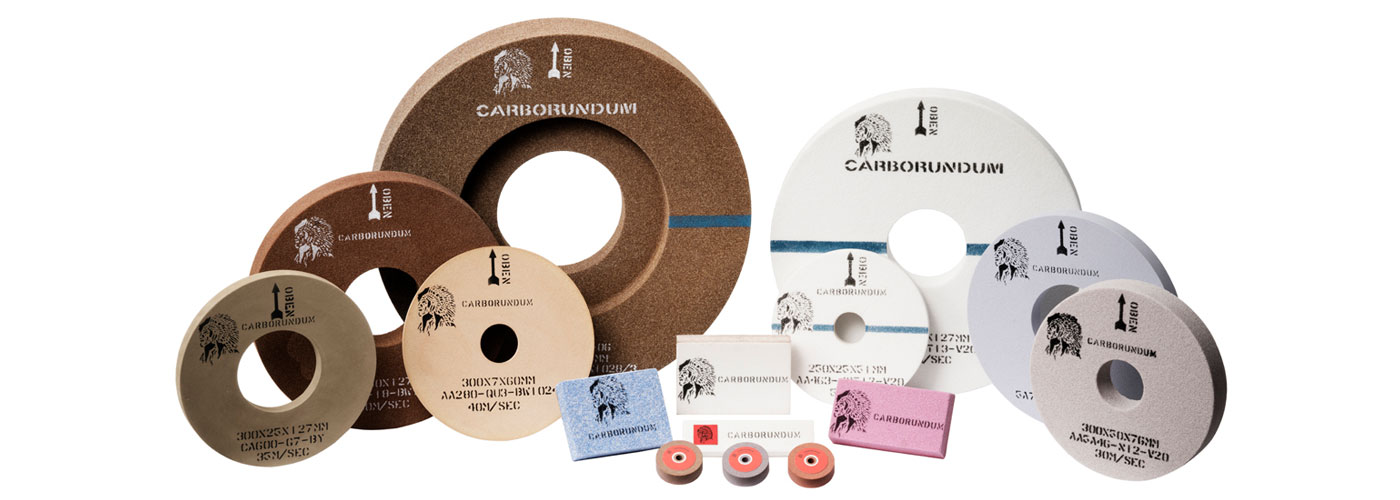

Products
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Manufacture of grinding wheels in resinoid bond (Bakelite)Abrasive manufacturing | – | 1280 mm diameter | – | – | Corundum, Fused Corundum, Silicon carbide (SiC), zirconia alumina, regular aluminium oxide |
| Manufacture of grinding wheels in ceramic bondAbrasive manufacturing | – | 1280 mm diameter | – | – | Corundum, Fused Corundum, Silicon carbide (SiC) |
| Manufacture of grinding wheels in rubber bondAbrasive manufacturing | – | – | – | – | Corundum, Silicon carbide (SiC) |
| Custom manufacture of individual grinding tools (Custom Products)Engineering | – | – | – | – | Corundum, Fused Corundum, Silicon carbide (SiC) |

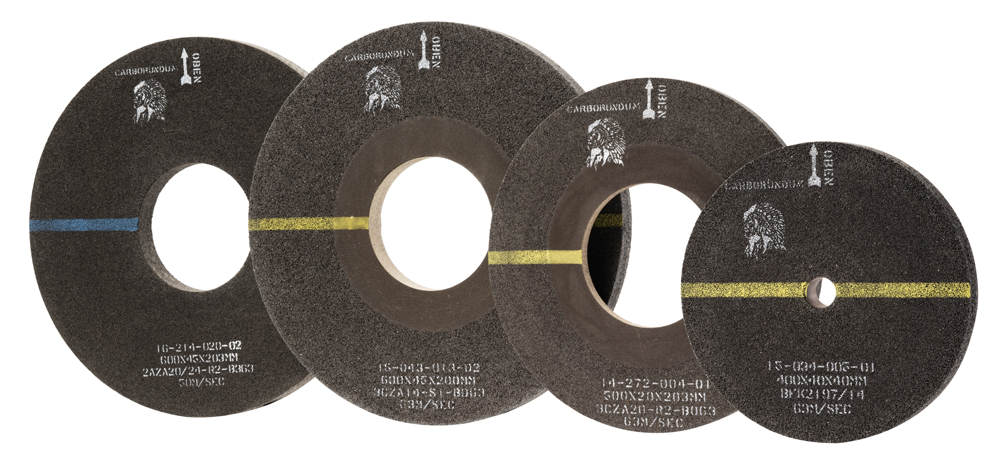

| Snagging and swing-frame wheels in resinoid bondAbrasive manufacturing | – | 350 – 610 mm diameter × up to 80 mm | – | – | Zirconia Alumina, regular aluminium oxide, C (silicon carbide), RA |

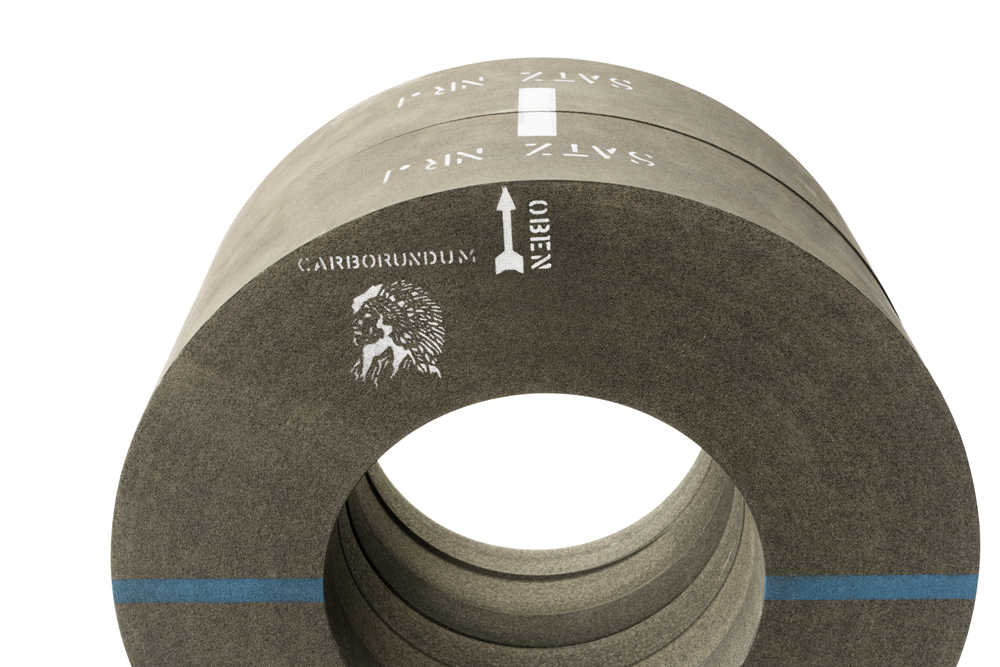

| Centerless through-feed grinding in resinoid bondAbrasive manufacturing | – | – | – | – | – |
| Roll grinding wheels in resinoid bondAbrasive manufacturing | – | – | – | – | – |
| Hot-pressed slab grinding wheels in resinoid bondAbrasive manufacturing | – | – | – | – | – |

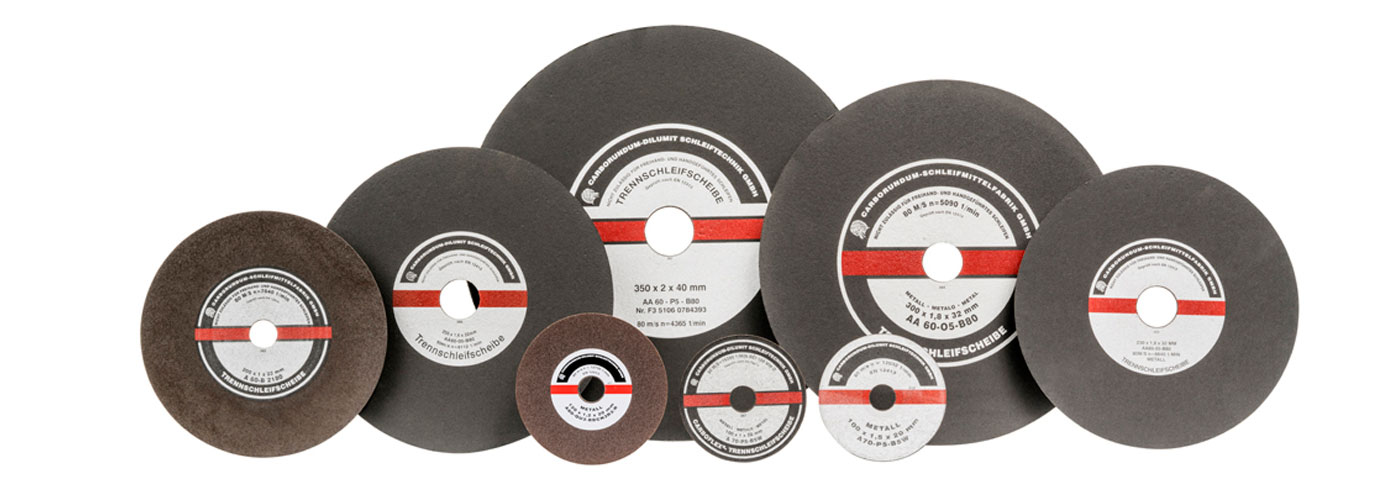

| Cutting wheels unreinforcedAbrasive manufacturing | – | – | – | – | – |
| Cutting wheels fibre-reinforcedAbrasive manufacturing | – | – | – | – | – |

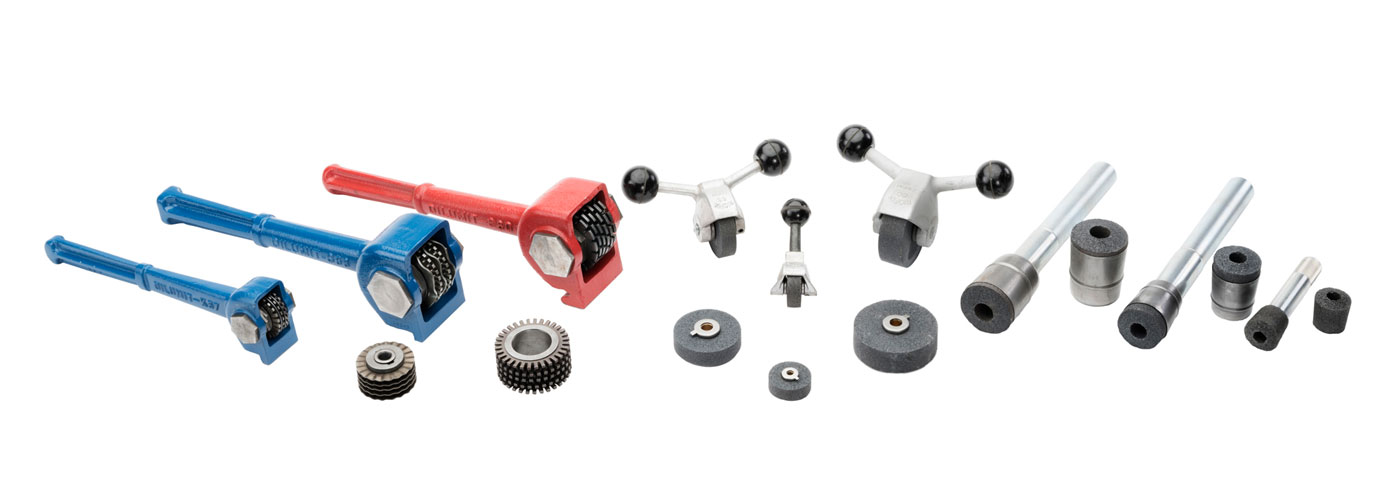

| Dressers, hand-operatedAbrasive manufacturing | – | – | – | – | – |
| Grinding segments in ceramic and resinoid bondsAbrasive manufacturing | – | – | – | – | Ceramic, Resinoid |
| Manufacture of stainless steel burrsAbrasive manufacturing | – | – | – | – | Stainless steel |
| Tool grinding (products for tool grinding)Abrasive manufacturing | – | – | – | – | – |
| Surface grinding / flat grinding (products for flat grinding)Abrasive manufacturing | – | – | – | – | – |
| Cylindrical grinding incl. centerless grinding (products for circular/centerless grinding)Abrasive manufacturing | – | – | – | – | – |
1 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Production facilities for grinding wheels up to 1280 mm diameter and 100 m/s | – | – | – | – | Wuppertal |
Additional services
Reference customers
Quality
All products undergo continuous quality control from incoming goods inspection through process monitoring to balancing and stability tests; regular internal audits ensure product quality. A certified quality management system in accordance with DIN EN ISO 9001:2015 is in place (certificate of CARBORUNDUM Schleifmittelfabrik GmbH, Düsseldorf).
| Evidence | Wuppertal |
|---|---|
| ISO 9001 |
History
- ca. 1890
Invention of the first synthetic abrasive Carborundum (silicon carbide) by the engineer E. G. Acheson
- ca. 1890er
Development of aluminium oxide (Al2O3) as a further artificially produced abrasive grain
Active in abrasive production for over 100 years
