Measuring concepts for production-integrated quality inspection: bore, depth, thread and gear measurement including automation
Diatest Schober GmbH
Wolfschlugen (DE) · Head OfficeNew on Amplifa
About Diatest Schober
Diatest Schober GmbH, based in Wolfschlugen, develops intelligent measuring concepts for production-integrated environments. The portfolio includes solutions for internal measurement (bores, chamfers, thread depths), external measurement, depth measurement including thread depths, gear measurement, as well as gauges and display devices for measurement data evaluation. A key focus is in-process measurement with DIATEST bore gauges directly in CNC machines as well as robot-assisted, automated measuring solutions for the autonomous measurement of bores, chamfers and depths. For thread inspection, the company offers motorized thread testing systems with easily interchangeable inserts and wireless data transmission by radio. As a distribution partner, the company works with manufacturers such as IBR, Feinmess Suhl, Horst Benzing, TB-Messtechnik, Sylvac and Käfer. The products are aimed at mechanical engineering and production-integrated metrology.
- Site
- Wolfschlugen
- Processes
- Measuring benches / measuring concepts in production-integrated environments, Internal measurement (bores, chamfers, thread depths), External measurement, Depth measurement (plain depths and thread depths), Gear measurement, Gauges, Display devices / measurement data evaluation, Robot-assisted automatic measurement
- Materials
- Bore Gauges, Internal Measurement, External Measurement, Depth Measurement, Gear Measurement, Gauges, Motorized Thread Testing, Automation
- Certificates
- ISO 9001
- Industries
- Mechanical Engineering, Production-Integrated Metrology
- 01
Application analysis and measuring concept
- 02

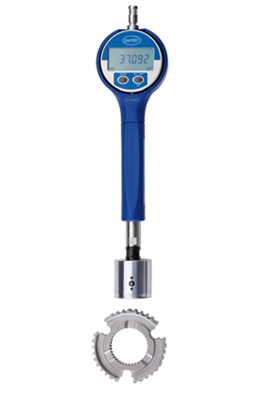

Selection or development of measuring inserts and measuring devices
- 03
Setup of measuring equipment incl. automation
- 04
Integration into the manufacturing process (CNC, robots)
- 05

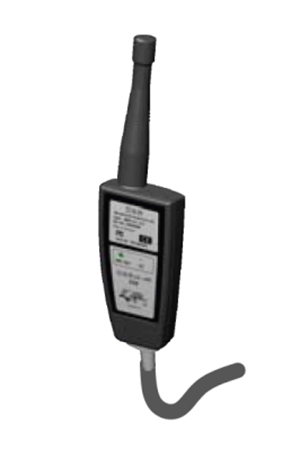

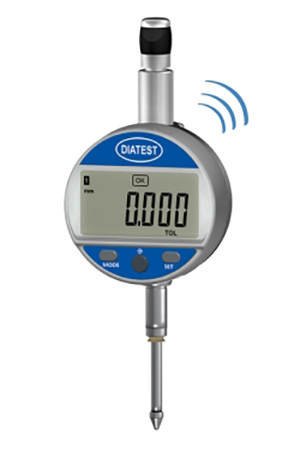

Measurement data evaluation with display devices and wireless data transmission
Measuring Methods

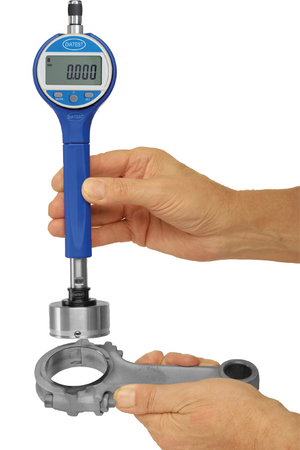

Bore Gauges

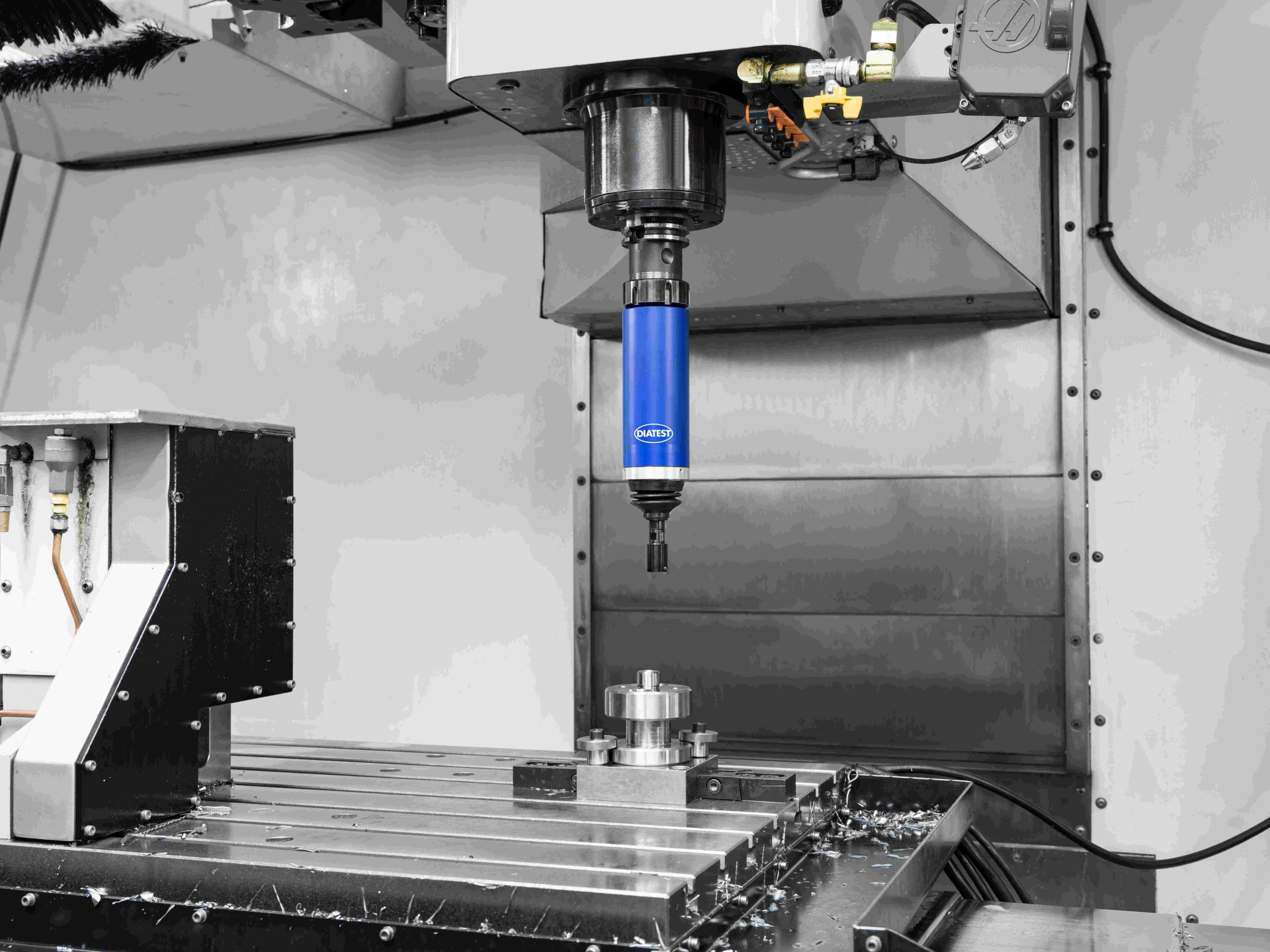

In-process measurement directly in the CNC machine.
Internal Measurement
Measurement of bores, chamfers and thread depths.

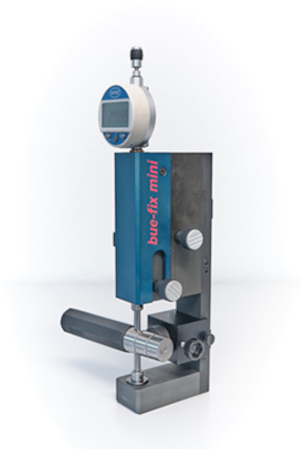

External Measurement
Measurement tasks on external contours.
Depth Measurement
Plain depths and thread depths.
Gear Measurement
Inspection of gear teeth.

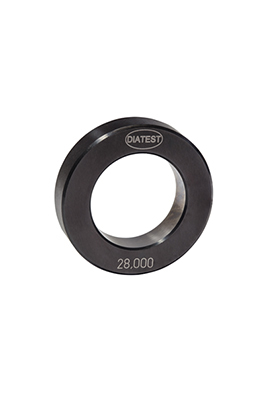

Gauges
Limit dimensions for production-integrated inspection.

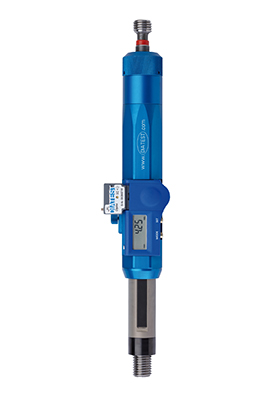

Motorized Thread Testing
Easy change of inserts, data transmission by radio.

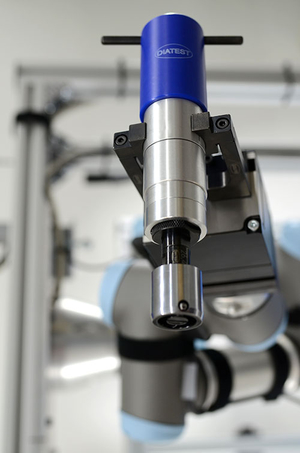

Automation
Robot-assisted, autonomous measurement of bores, chamfers and depths.
Locations
Wolfschlugen
DEHead Office
Measuring Instruments

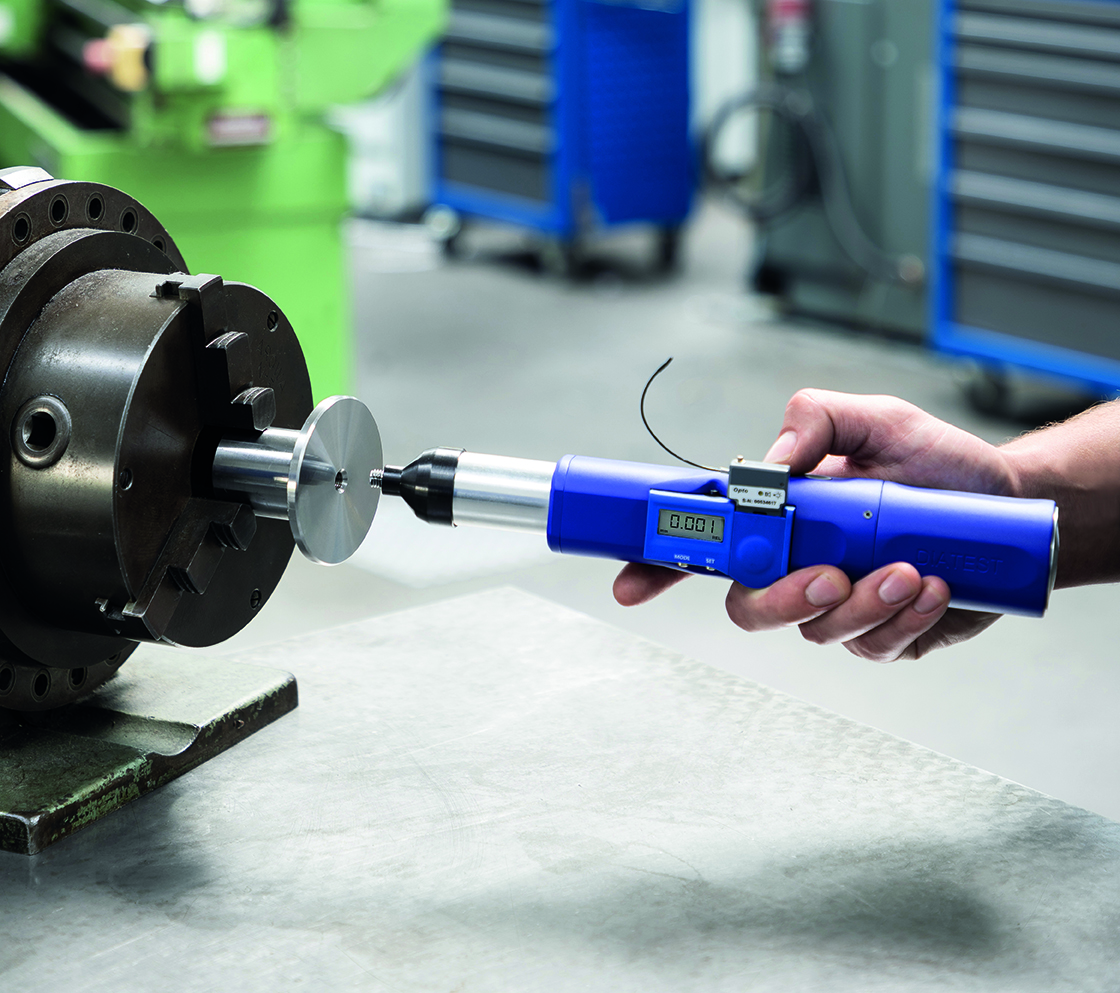

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Measuring benches / measuring concepts in production-integrated environmentsInspection | – | – | – | – | – |
| Internal measurement (bores, chamfers, thread depths)Inspection | – | – | – | – | – |
| External measurementInspection | – | – | – | – | – |
| Depth measurement (plain depths and thread depths)Inspection | – | – | – | – | – |
| Gear measurementInspection | – | – | – | – | – |
| GaugesInspection | – | – | – | – | – |
| Display devices / measurement data evaluationInspection | – | – | – | – | – |
| Robot-assisted automatic measurementInspection | – | – | – | – | – |
| In-process measurement (bore gauges in CNC machines)Inspection | – | – | – | – | – |
| Motorized thread testing with wireless data transmissionInspection | – | – | – | – | – |
Additional services
Quality
The products themselves serve production-integrated quality assurance; no information is available on the company's own QM certifications.
| Evidence | Wolfschlugen |
|---|---|
| ISO 9001 |
