PVD and DLC hard coatings for tools, components and parts – including pre- and post-treatment from a single source.
Eifeler Plasma Beschichtungs GmbH
1220 Vienna (Rudolf-Hausner-Gasse 7)New on Amplifa
Excellent PVD and DLC coatings since 1993

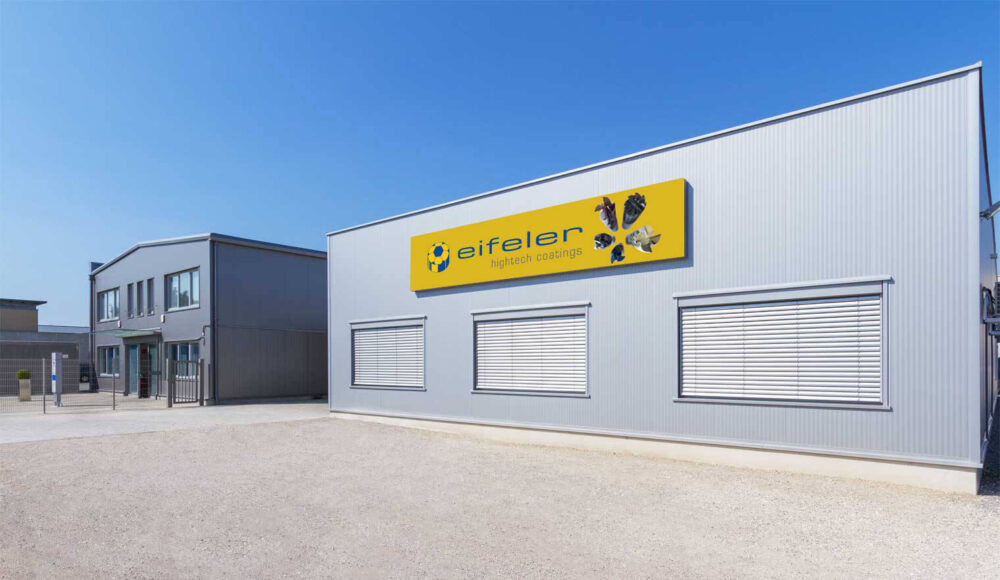

Eifeler Plasma Beschichtungs GmbH has been an Austrian provider of high-tech hard coatings since 1993. From its site in northern Vienna (1,250 m² of production space), the company applies PVD and DLC coatings to tools, components and parts with 25 employees – for customers throughout Austria and the eastern neighbouring countries. The process spectrum includes PVD coating via arc evaporation on the company's own Eifeler systems, low-temperature coating (approx. 250–350 °C), DLC and Ta:C coatings below 200 °C as well as the DUPLEX process, which combines thermochemical plasma nitriding and PVD coating in a single work cycle. Coated materials include high-speed steels, hot-work, cold-work and tempered steels, stainless steels, cemented carbides and cermets. In addition, the TECH+ service offers in-house pre- and post-treatments such as decoating, deburring, blasting, polishing, edge preparation and superfinish. The broad portfolio of standard coatings and custom coating solutions serves, among others, toolmaking, mould making, mechanical engineering, automotive, aerospace, the plastics industry, and medical and food technology.
- Site
- Vienna
- Processes
- PVD hard coating (Physical Vapour Deposition, arc evaporation), PVD low-temperature coating (approx. 250–350 °C), DLC coating (Diamond-Like Carbon, a-C:H, DLC SLICOs, <200°C), Ta:C coating (Tetra Amorphous Carbon / Hard Carbon), DUPLEX process (thermochemical plasma nitriding + PVD coating in one process), Decoating (chemical stripping), Deburring (fully automatic blasting system with ceramic beads), Fine blasting (blasting with aluminium oxide mixed blasting medium)
- Materials
- TiN titanium nitride (coating system), TiCN titanium carbo-nitride (coating system), VARIANTIC titanium aluminium carbo-nitride (coating system), CrCN chromium carbo-nitride (coating system), WCC tungsten carbide carbon (coating system), ZrN zirconium nitride (coating system), SUPRAL titanium aluminium nitride (coating system), SISTRAL aluminium titanium nitride (coating system)
- Certificates
- ISO 9001:2015, ISO 9001
- Founded
- 1993
- Employees
- 25
- Industries
- Toolmaking, Mould making, Mechanical engineering, Automotive, Aerospace, Plastics industry
- 01
Coating selection consulting
- 02
Pickup service / delivery
- 03
Pre-treatment (decoating, deburring, blasting, polishing)
- 04
PVD/DLC/DUPLEX coating
- 05
Post-treatment (superfinish, GLISS, edge preparation)
- 06
QCP inspection technology (coating thickness, adhesion and hardness testing)
- 07
Delivery / return shipment
Site
Vienna
ATProduction and administration
- Lot size
- various lot and tool sizes (different chamber sizes)
- Materials
- high-speed, hot-work, cold-work and tempered steels, stainless steels, cemented carbide, cermets
- PVD coating systems (arc evaporation, Eifeler)
- TRONIX series coating systems with HIPIES technology
- fully automatic blasting system (deburring with ceramic beads)

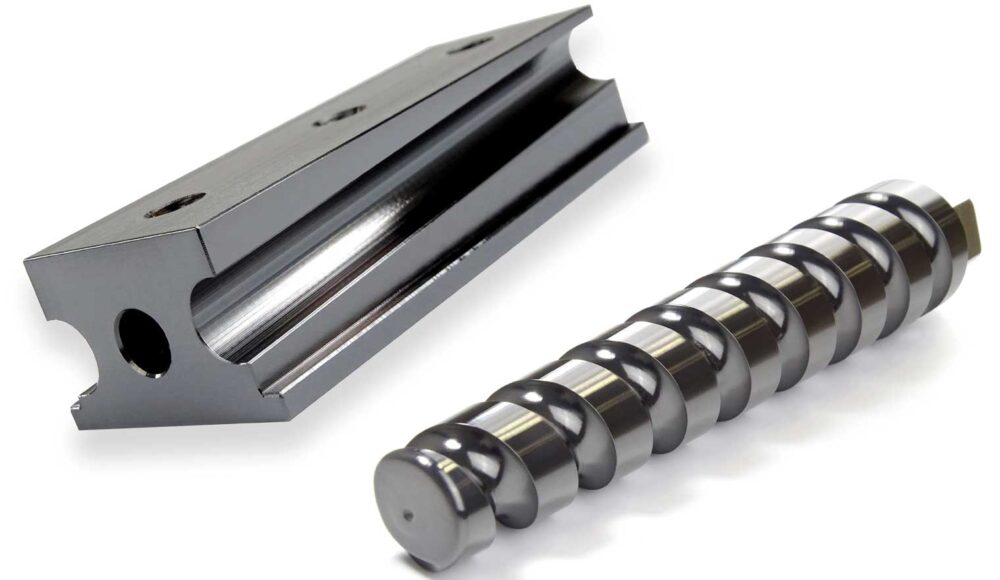

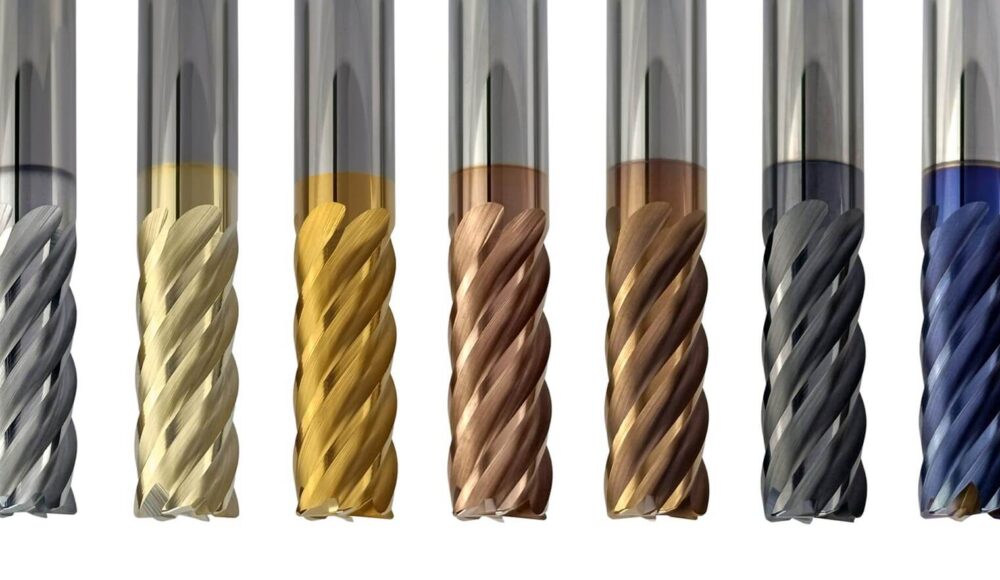

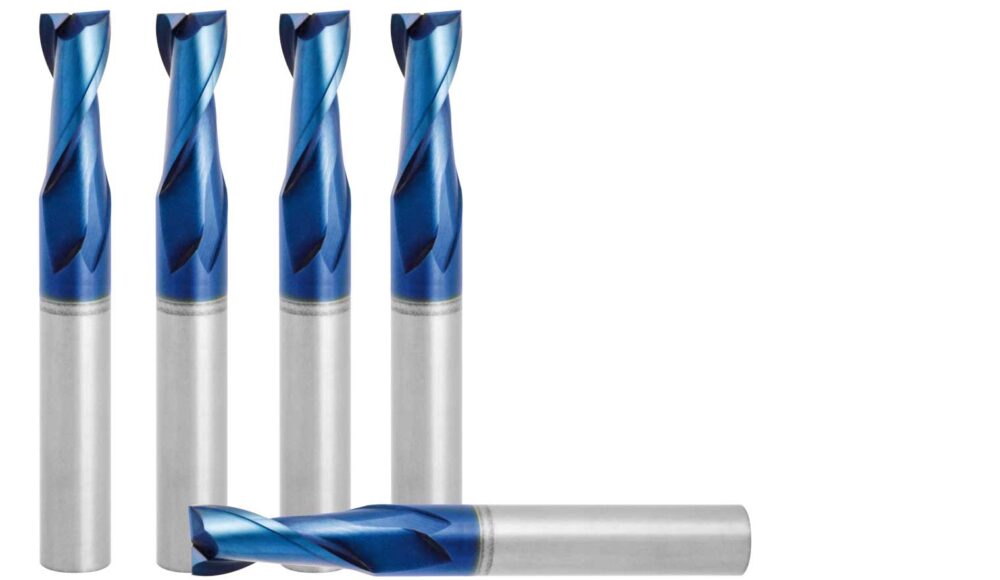

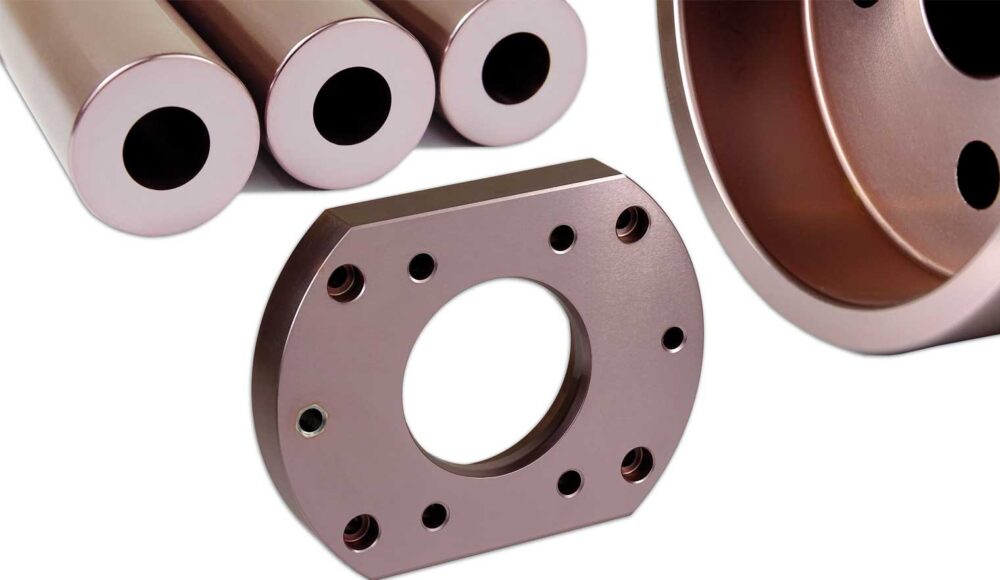

Coated tools and components

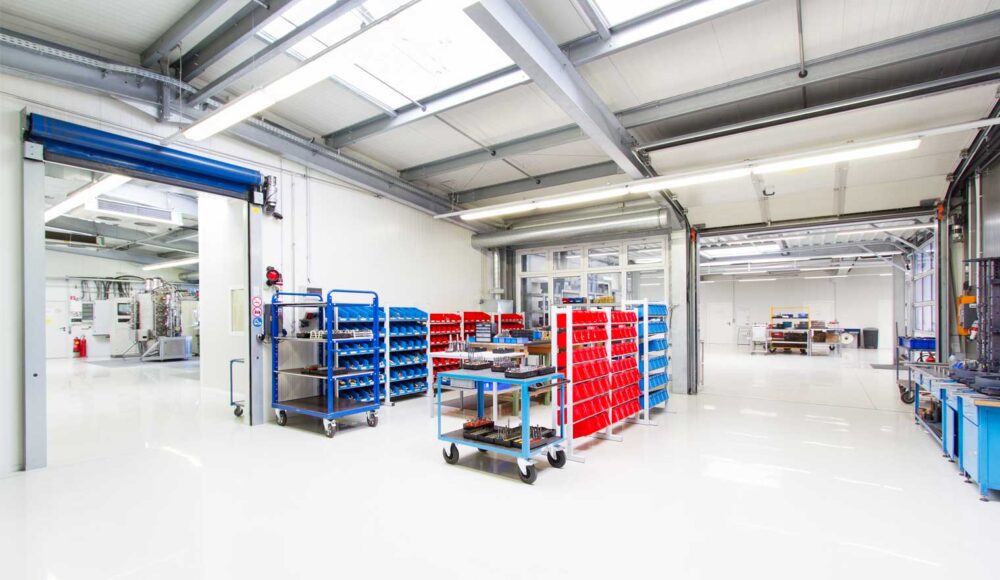

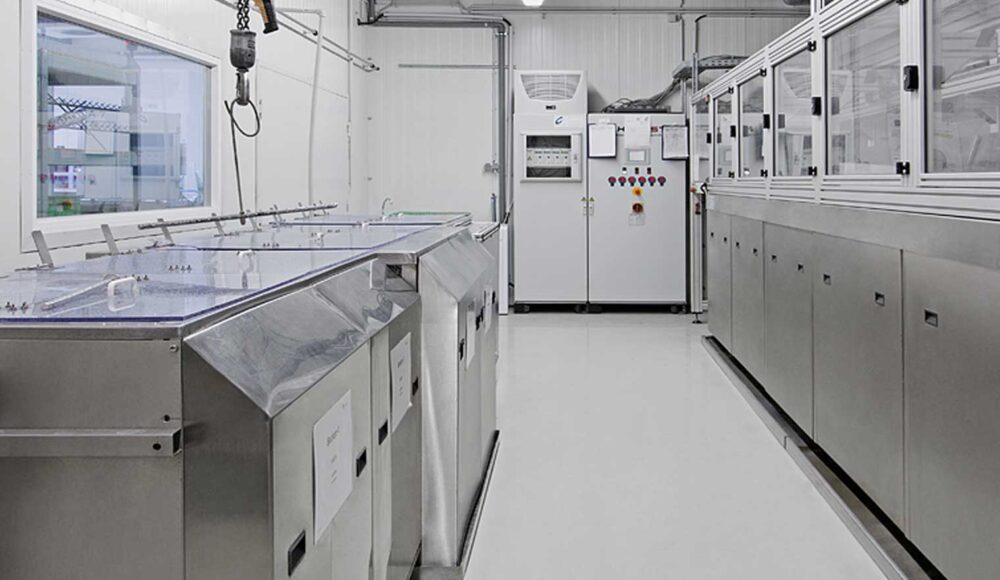

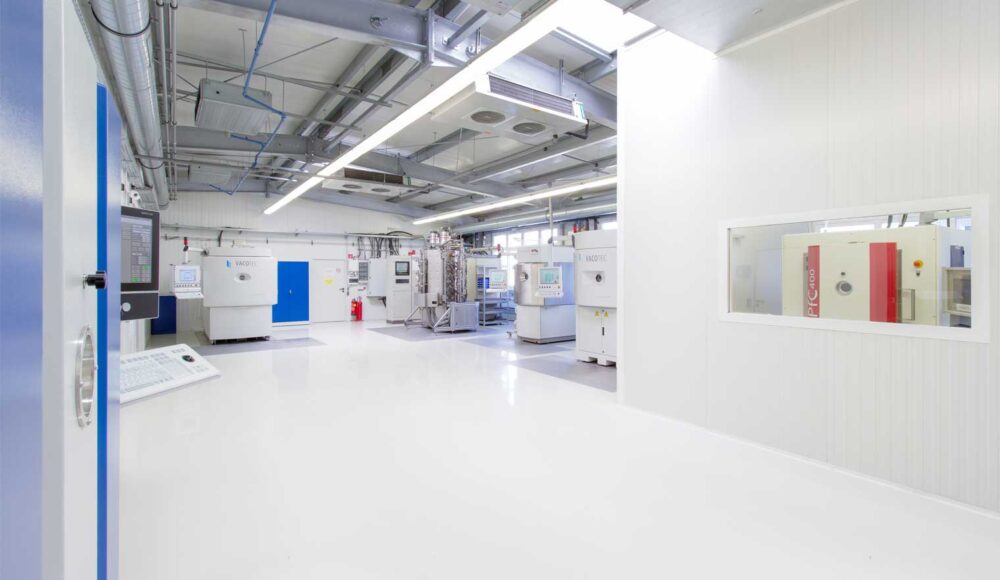

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| PVD hard coating (Physical Vapour Deposition, arc evaporation)Surface | – | – | – | – | high-speed steels, hot-work steels, cold-work steels, stainless steels, tempered steels, cemented carbides, cermets |
| PVD low-temperature coating (approx. 250–350 °C)Surface | – | – | – | – | steels with low tempering temperature, high-speed steels, hot- and cold-work steels |
| DLC coating (Diamond-Like Carbon, a-C:H, DLC SLICOs, <200°C)Surface | – | – | – | – | metals, tool steels |
| Ta:C coating (Tetra Amorphous Carbon / Hard Carbon)Surface | – | – | – | – | metals, tool steels |
| DUPLEX process (thermochemical plasma nitriding + PVD coating in one process)Heat treatment | – | – | – | – | coating- and nitriding-capable steel materials, high-alloy tool steels |
| Decoating (chemical stripping)Surface | – | – | – | – | metallic materials |
| Deburring (fully automatic blasting system with ceramic beads)Surface | – | – | – | – | HSS tools, gear-cutting tools |
| Fine blasting (blasting with aluminium oxide mixed blasting medium)Surface | – | – | – | – | – |
| Micro blasting (fine blasting process / shot peening / micro blasting)Surface | – | – | – | – | – |
| Polishing (surface polishing / special surface polishing)Surface | Rz < 2 µm (for forming tools) | – | – | – | – |
| Edge refining (homogenising of cutting edges)Surface | – | – | – | – | – |
| Edge preparationSurface | – | – | – | – | – |
| SuperfinishSurface | – | – | – | – | – |
| GLISS (post-treatment)Surface | – | – | – | – | – |

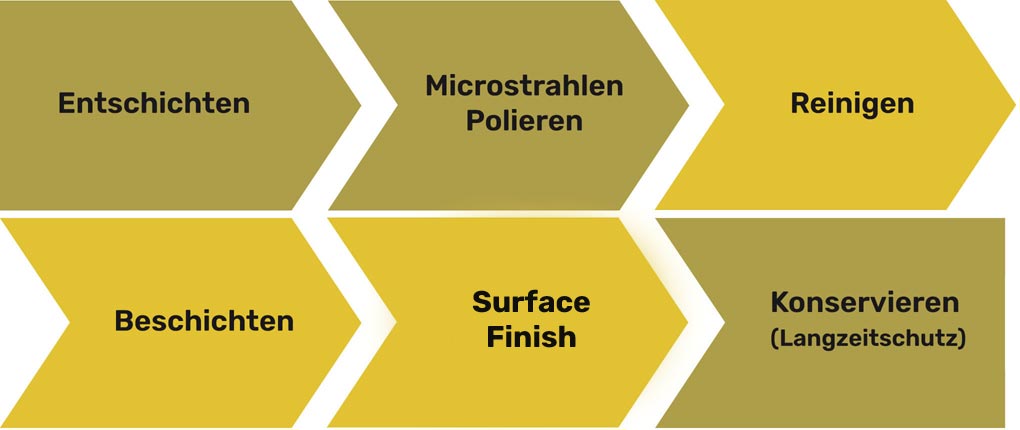

| Re-coating (stripping, cleaning, coating, conditioning)Surface | – | – | – | – | – |
| QCP inspection technology (coating thickness/structure measurement, surface and adhesion testing,Testing | – | – | – | – | – |
3 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| PVD coating systems (arc evaporation, own Eifeler systems) | Eifeler | – | various chamber sizes and different capacities | – | Vienna (Rudolf-Hausner-Gasse 7, 1220) |
| Coating systems with HIPIES technology (High Performance Ion Etching System, TRONIX series) | Eifeler TRONIX series | – | – | – | Vienna |
| fully automatic blasting system (deburring with ceramic beads) | – | – | – | – | Vienna |
Additional services
Quality management
Since 2016, Eifeler Plasma Beschichtungs GmbH has been certified according to EN ISO 9001:2015. The QCP inspection technology covers coating thickness and coating structure measurement, testing of surface, coating adhesion and cutting edges, hardness testing as well as the preparation of measurement reports.
| Evidence | Vienna |
|---|---|
| ISO 9001 |
Company history
- 1993
Foundation of Eifeler Plasma Beschichtungs GmbH
- 2010
Initial certification according to EN ISO 9001:2008
- 2016
Certification according to EN ISO 9001:2015
- 2023
30 years of Eifeler Austria – anniversary year
