About KARG Industrietechnik
Since 1971, Emmeram Karg Industrietechnik has been a provider of products and services in the field of material and materials testing. The company develops, produces and distributes testing and measuring devices as well as machines and equipment for the plastics industry – from raw material testing, through the production of standardized specimens, to mechanical testing devices. The portfolio includes universal testing machines (up to 250 kN), pendulum impact testers, notching machines, CNC specimen milling machines, melt index testers, density, moisture and viscosity measuring devices as well as injection molding specimen tools. In addition, tempering ovens, heating, cooling and climate chambers from renowned manufacturers are distributed, which are also used in the electronics industry, the automotive industry and at universities. Customers include the plastics processing industry, raw material manufacturers, compounders and universities. The company's own products can be individually modified for customer applications. The company is based in Krailling near Munich.
- Site
- Krailling
- Processes
- Material and materials testing, Raw material testing (bulk density), Flowability testing, Angle of repose testing, Melting point determination, Melt index testing (MFR/MVR), Density measurement (hydrostatic), Moisture measurement (calcium hydride method)
- Materials
- Plastics, Thermoplastics, Elastomers, Polyethylene, PET, Foams, Rubber, Metals
- Certificates
- Calibration according to DIN EN ISO 7500-1 / ASTM E4
- Founded
- 1971
- Industries
- Plastics processing industry, Plastics raw material manufacturers, Compounders, Electronics, Automotive industry, Universities
- 01
Raw material testing
- 02
Specimen production (injection molding or machining)
- 03
Mechanical testing
- 04
Evaluation and documentation
- 05
Distribution of tempering and climate equipment
Tested Materials and Testing Methods
Plastics (thermoplastics)
Target materials for raw material testing, specimen production and mechanical testing.
Elastomers/rubber
Hardness testing (Shore, Micro IRHD) and compression/deformation set tests.
PET
Melt index and IV value determination on granules and flakes.
Polyethylene (PE)
Testing of stress cracking resistance (Stress Cracking/ESCR).
Films and paper
Strip cutting, tear strength, puncture resistance and hot-tack testing.
Metals and non-ferrous materials
Strength tests on universal testing machines.

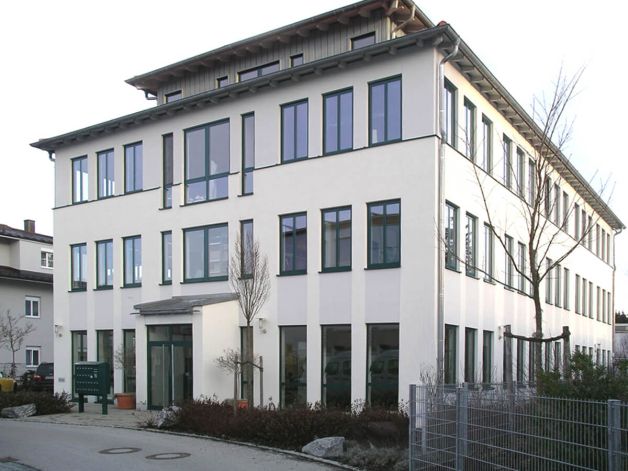

Location
Krailling
DEHeadquarters with development, production and distribution
- Materials
- Plastics, elastomers, films, paper, metals
- Universal testing machines smarTens/proTens
- Pendulum impact testers IMPact
- Notching machines MAK/MOK/AKM
- CNC specimen milling machine C4U/C2U
- Melt index testers MeltFloW
- Density measuring device MVS2pro
- Viscometers AVS 370/470
Testing Devices and Machines
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Material and materials testingTesting | – | – | – | – | Plastics, Elastomers, Paper, Metals, Non-ferrous materials |
| Raw material testing (bulk density)Testing | – | – | – | – | Plastics (powdered, granular, short-fiber) |
| Flowability testingTesting | – | – | – | – | Plastics (powder, granules) |
| Angle of repose testingTesting | – | – | – | – | Plastics, bulk goods |
| Melting point determinationTesting | – | – | – | – | organic substances |
| Melt index testing (MFR/MVR)Testing | – | – | – | – | Plastics, PET |
| Density measurement (hydrostatic)Testing | – | – | – | – | Plastics, Polymers |
| Moisture measurement (calcium hydride method)Testing | – | – | – | – | engineering plastics (granular solids) |
| Viscosity measurementTesting | – | – | – | – | Liquids |
| Specimen production by injection molding (AIM ISO mold)Plastics | – | – | – | – | Plastics (thermoplastics) |
| Specimen production by machining (CNC milling)Machining | – | – | – | – | Plastics, glass-fiber reinforced materials |
| Notching of specimens (V/U notches)Machining | Notching cutter better than 0.01 mm | approx. 200 mm (AKM machining length) × Max. clamping height 30 mm | – | – | Plastics, abrasive materials, glass-fiber reinforced materials |
| Specimen punchingForming | – | – | – | – | soft to medium-hard materials |
| Strip cutting (films/paper)Machining | – | – | – | – | Films, Paper |
| Tensile, compression and flexural testing (universal testing machine)Testing | – | – | – | – | Plastics, Elastomers, Metals, Non-ferrous materials, Paper, Wires, Cords, Foams, Textiles |
| Impact/notched impact strength testing (pendulum impact tester)Testing | – | – | – | – | Plastics |
| Tear resistance testing (Elmendorf)Testing | – | – | – | – | Films, Textiles, Paper |
| Shore hardness testingTesting | – | – | – | – | Plastics, Elastomers |
| Ball indentation hardness testing (Micro IRHD)Testing | – | – | – | – | Rubber, Plastics |
| Rebound elasticity testing (ball rebound)Testing | – | – | – | – | Foams |
| Compression/tension set testing (compression/tension set)Testing | – | – | – | – | Elastomers |
| Stress cracking resistance testing (Stress Cracking/ESCR)Testing | – | – | – | – | Polyethylene (PE) |
| Puncture resistance testing (falling dart)Testing | – | – | – | – | Films |
| Hot-tack testing (seal/hot seam strength)Testing | – | – | – | – | Films |
| Coefficient of friction determinationTesting | – | – | – | – | Plastic films |
| Dimensional measurement (thickness measurement)Testing | – | – | – | – | Plastics, Films |
| Distribution of tempering ovens, heating/cooling/climate chambers, industrial ovensTesting | – | – | – | – | – |
26 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Universal testing machine (single spindle) | KARG smarTens 2.5 IS | – | Load range max. 2.5 kN; test speed 0.0015-1200 mm/min; working space height 475/1075/1375 mm | – | Krailling |
| Universal testing machine (dual spindle) | KARG smarTens 5/10 ID | – | Load range up to 5 or 10 kN; test speed up to 1200 mm/min (10 kN version: 0.0008-600) | – | Krailling |
| Universal testing machine (dual spindle) | KARG smarTens 20/30 | – | Load range max. 30 kN; speed up to 400 mm/min | – | Krailling |
| Universal testing machine (dual spindle) | KARG proTens | – | Load range up to 250 kN | – | Krailling |

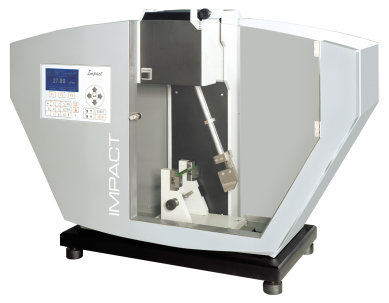

| Pendulum impact tester | KARG IMPact 5 / 5.5 / 25 / 50 | – | Energy range 0.5 to 50 J | – | Krailling |
| Elmendorf pendulum impact tester | KARG ProTear | – | – | – | Krailling |
| Notching machine (manual) | KARG MAK | – | Max. clamping height 30 mm; width 470 mm, height 215 mm, depth 220 mm; 16 kg | – | Krailling |
| Notching machine (motorized) | KARG MOK | – | Max. clamping height 30 mm; 470x450x470 mm; 43 kg; 0.4 kW | – | Krailling |

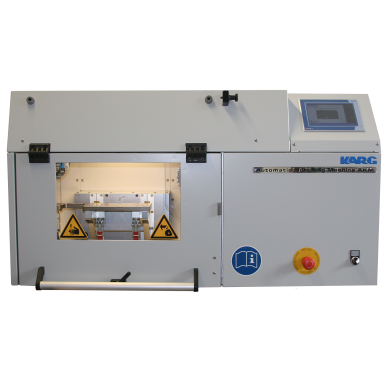

| Fully automatic notching machine | KARG AKM | – | Machining length approx. 200 mm; max. 51 specimens (4 mm thickness); 1200x700x540 mm; approx. 250 | – | Krailling |
| CNC specimen milling machine (3-axis) | KARG C4U / C2U | – | 3-axis (X,Y,Z) milling table with large working space | – | Krailling |

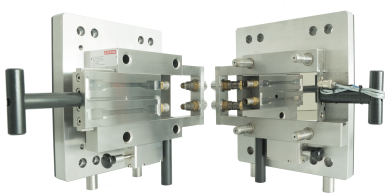

| ISO specimen mold (quick-change system) | Axxicon AIM | – | Mold temperatures up to 100°C/140°C/250°C; types XL and XXL | – | Krailling |
| Melt index tester | KARG MeltFloW basic / @on / @on plus / PETFloW | – | Temperature range up to 400°C (optional 450°C); load up to 21.6 kg | – | Krailling |
| Density measuring device (fully automatic) | MVS2pro Density | – | Autosampler max. 16 samples; measuring time approx. 120 s | – | Krailling |
| Moisture measuring device | Aquatrac V | – | Resolution 0.01 mg / 1 ppm / 0.0001% H₂O | – | Krailling |
| Viscometer | ViscoClock plus / AVS 370 / AVS 470 | – | – | – | Krailling |
| Bulk density tester | KARG ADP | – | – | – | Krailling |
| Flowability tester | KARG PM | – | Discharge nozzles 10, 15, 25 mm | – | Krailling |
| Angle of repose tester | KARG PAM | – | – | – | Krailling |
| Melting point measuring device (Kofler hot bench) | KARG Kofler Heizbank | – | Temperature range up to +260°C; bench 360x40 mm | – | Krailling |
| Thickness measuring device | KARG TG / TGC | – | Granite measuring table Ø200 x 40 mm | – | Krailling |

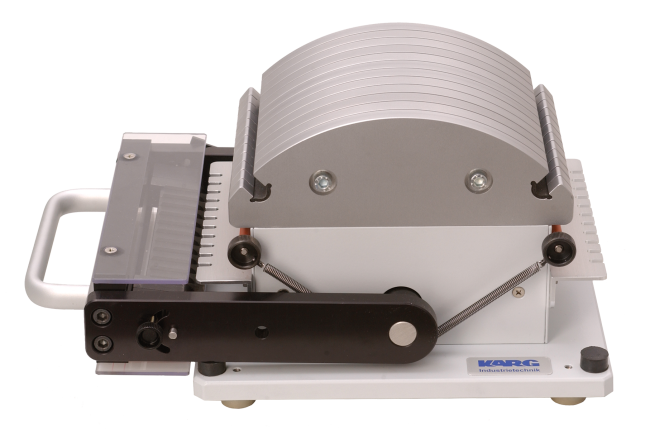

| Strip cutter | KARG SingleCut / StripCutter | – | DIN A4 sheets; up to 12 parallel strips; narrow cut 1-10 mm | – | Krailling |
| Specimen punching press | KARG | – | – | – | Krailling |
| Shore hardness tester | HD 3000 / HDD2 | – | Accuracy 0.5 Shore units | – | Krailling |
| Micro IRHD hardness tester | MICRO IRHD SYSTEM | – | Specimen thickness 1 to 5 mm; measuring screw 0-25 mm, resolution 0.001 mm | – | Krailling |
| Ball rebound tester | Ball Rebound Tester | – | – | – | Krailling |

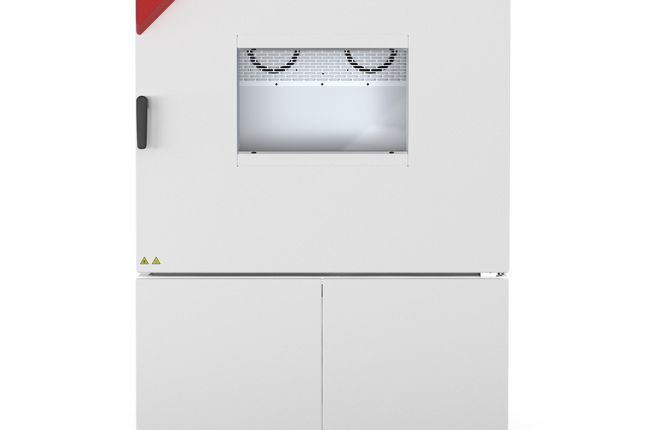

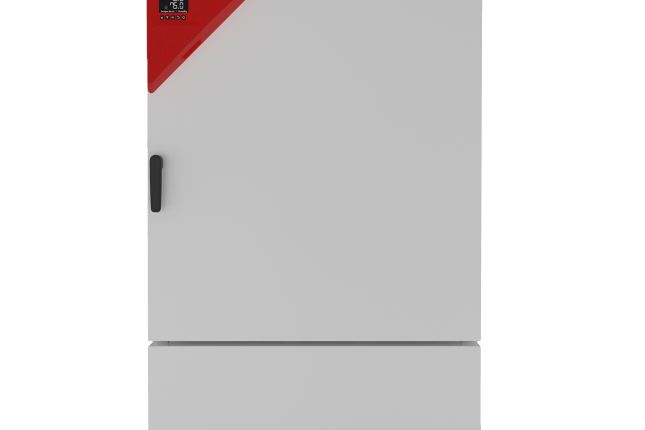

| Tempering/climate chambers (distribution) | Binder MK / MKF 400, 1020; KB ECO | – | Temperature range 0°C to +70°C (KB ECO) | – | Krailling |
Additional services
Quality and Standards
The testing devices are designed in accordance with national and international standards (ISO, DIN, ASTM); force measurement of the universal testing machines is carried out according to DIN EN ISO 7500-1 or ASTM E4 (class 1, optionally class 0.5). For thickness measuring devices, factory and DAkkS calibration certificates are optionally available.
| Evidence | Krailling |
|---|---|
| Calibration according to DIN EN ISO 7500-1 / ASTM E4 |
Company History
- 1971
Foundation of the company; development, production and distribution of testing and measuring devices as well as machines and equipment for the plastics industry
