Development and manufacture of inductive wheel sensors, axle counters and systems for train detection, point control and data transmission in railway operations.
Frauscher Sensortechnik GmbH
Locations in 15 countries · Princeton (NJ), USANew on Amplifa
About Frauscher Sensortechnik
Frauscher Sensortechnik develops and manufactures field devices and systems for railway signalling technology. The portfolio includes inductive wheel sensors (including RSR123, RSR180, RSR110, RSR360, RSR310), axle counting systems such as ACS2000 and Frauscher Advanced Counter FAdC®, the FAdP Point object controller system for point control, as well as solutions for data transmission (FAdT) and secure communication (Frauscher Connect) in accordance with EULYNX and System Pillar standards. The wheel sensors are manufactured and assembled with an annual production capacity of 65,000 units; the systems are delivered in preconfigured, tested cabinets and used in applications up to SIL 4. Sensor mounting is carried out without drilling the rail using patented rail claws. In addition, Frauscher offers life-cycle services, condition monitoring, commissioning and installation support as well as training. The systems are used worldwide in mainlines, metro, tram, freight, industrial and mining applications as well as heritage railways; installation projects exist in more than 100 countries.
- Site
- Princeton
- Processes
- Assembly and manufacture of wheel sensors (inductive wheel sensors, production), Assembly of preconfigured, tested cabinets for axle counting systems, Development and system integration of railway sensor systems (train detection, point control,, Life-cycle services, Diagnostics and data visualisation (Frauscher Insights), Condition monitoring, Commissioning support, Installation support
- Materials
- Wheel Sensor RSR123, Wheel Sensor RSR180, Axle Counter Frauscher Advanced Counter FAdC®, FAdP Point Object Controller, Frauscher Advanced Data Transmission FAdT
- Certificates
- Applications up to SIL 4, Protection class IP68 (Wheel Sensor RSR123)
- Employees
- 750+
- Industries
- Railway infrastructure (mainlines), Urban rail transport (metro/subway), Tram, Freight transport, Industry & mining, Heritage Railways
- 01
Development and system integration of railway sensor systems
- 02
Manufacture and assembly of the inductive wheel sensors
- 03
Assembly and testing of preconfigured cabinets for axle counting systems
- 04
Installation support and on-site commissioning
- 05
Life-cycle services, diagnostics and condition monitoring (Frauscher Insights)
Products & Technologies

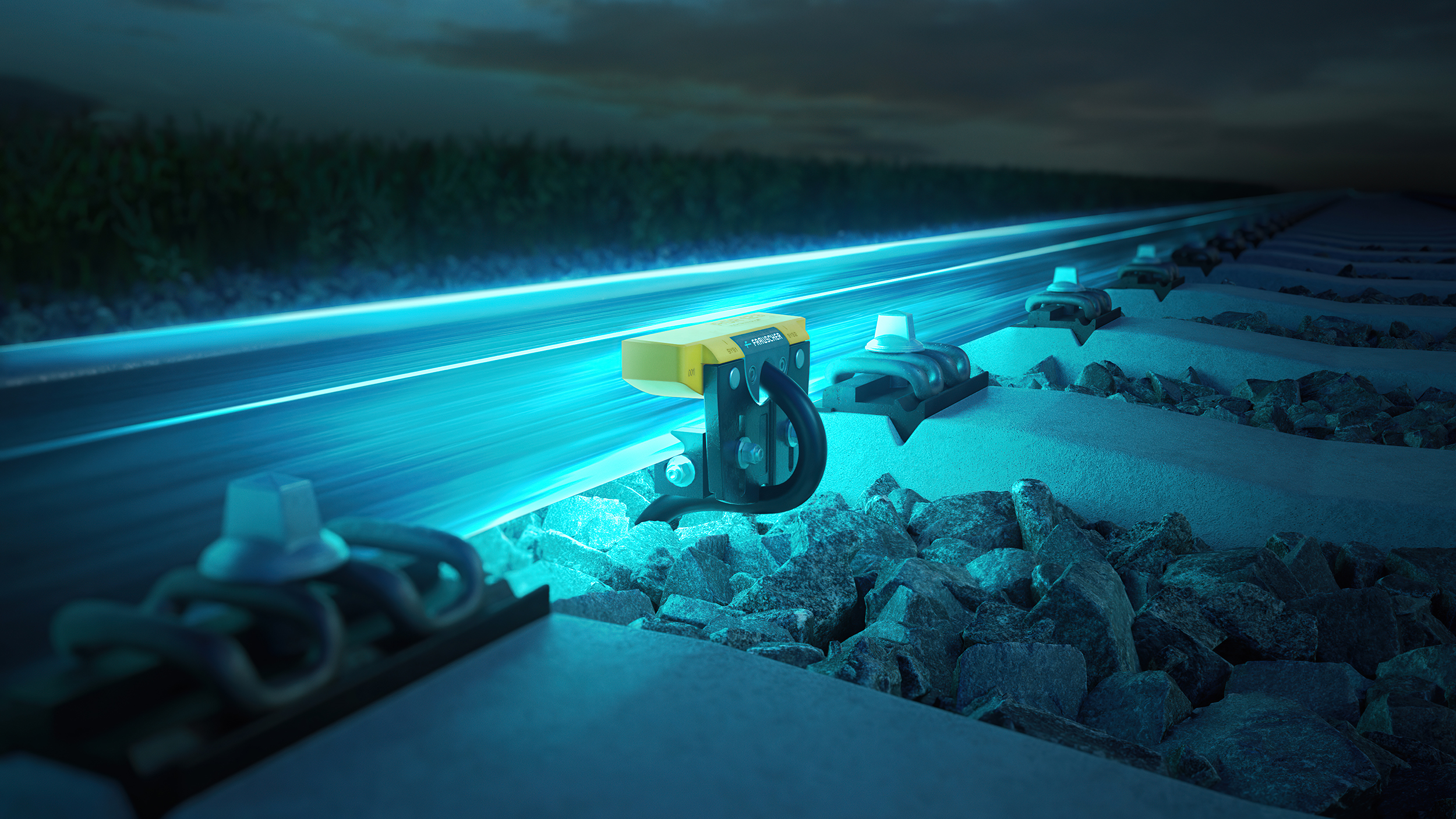

Wheel Sensor RSR123
Inductive all-rounder for wheel detection and track occupancy detection, protection class IP68, resistant to water ingress and environmental influences.
Wheel Sensor RSR180
Proven wheel sensor for axle counting systems such as ACS2000 and FAdC®, used among other things in CBTC fallback and level crossing protection.

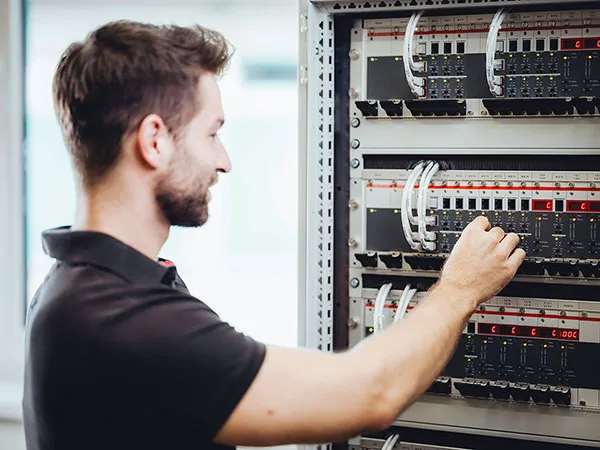

Axle Counter Frauscher Advanced Counter FAdC®
Modular axle counting system with SIL-4-certified communication module for track occupancy detection and intelligent functions such as STS and CHC.
FAdP Point Object Controller
EULYNX-compliant object controller for controlling and monitoring various point machines with integrated condition monitoring, operating temperature range -40 to +70 °C.

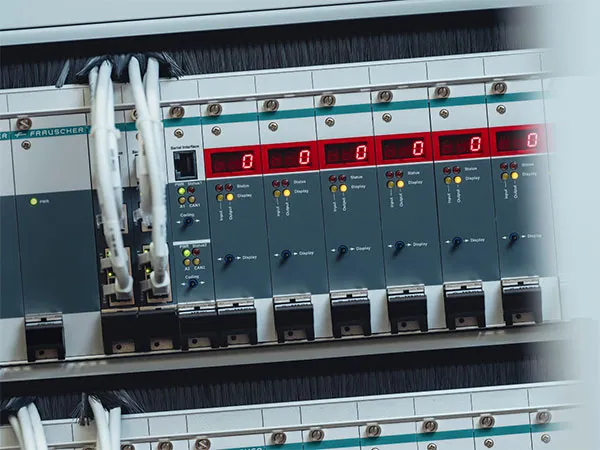

Frauscher Advanced Data Transmission FAdT
Ethernet-based transmission of digital input and output data between stations for applications from SIL 1 to SIL 4.
Locations
Princeton
USUS branch (Frauscher Sensor Technology USA Inc.)
Systems & Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Assembly and manufacture of wheel sensors (inductive wheel sensors, production)Assembly | – | – | – | – | – |
| Assembly of preconfigured, tested cabinets for axle counting systemsAssembly | – | – | – | – | – |
| Development and system integration of railway sensor systems (train detection, point control,Engineering | – | – | – | – | – |
Additional services
Reference customers
Quality
The systems are designed for safety-relevant applications up to SIL 4; the communication module of the FAdC® is certified to SIL 4. Cabinets are delivered preconfigured and tested; diagnostic and condition monitoring data are available via Frauscher Insights and standardized interfaces (EULYNX SDI/SMI).
| Evidence | Princeton |
|---|---|
| Applications up to SIL 4 | |
| Protection class IP68 (Wheel Sensor RSR123) |
Reference Projects & History
- 2009
CBTC fallback system for the Beijing Metro lines: ACS2000 with RSR180, approx. 763 wheel sensors in 645 track sections.
- 2012
Axle counter FAdC®i with wheel sensor RSR180 and Frauscher Diagnostic System FDS at Dillinger Hütte (34 counting heads).
- 2016
Resignalling of the Churnet Valley Heritage Railway (UK) with FAdC® and RSR123.
- 2018
Chengdu Tram Line 2 commissioned as the first line in China with the new FAdC® generation.
- 2019
Axle counting supplementary system in London (St. Pancras–Farringdon, Network Rail, 45 counting heads) and Borders Railway project (UK, 29 RSR123).
- 2022
FAdC® as a replacement for audio-frequency track circuits at the Charlotte Area Transit System (USA).
- 2023
Data transmission project Headbolt Lane–Rainford for Merseyrail (UK).
- 2024
Beijing Metro Line 12 as the first metro line with FAdC® and RSSP-I; introduction of FAdT, FAdP Point and Frauscher Connect.
- 2025
Axle counting for fail-safe control of a laser diagnostic system in the Eurotunnel in partnership with MERMEC (FAdC®, RSR123).
