Development and production of powder coatings for industry, architecture and contract coaters

Ganzlin Beschichtungspulver GmbH

GanzlinNew on Amplifa

1993Founded

2,500 tPowder coating production 2023

1,200+Customers in Europe

700RAL colors in stock

10,000+Formulations

About Ganzlin

Ganzlin Beschichtungspulver GmbH, based in Ganzlin (Mecklenburg-Vorpommern), has been developing and producing powder coatings for contract coating and industry since 1993. The product range comprises polyester, epoxy, epoxy-polyester and polyurethane powder coatings for facades, steel, industry, furniture and marine interior fit-out – including low-temperature powder coatings that cure from 120 °C or 130 °C. The products are suitable for substrates such as steel, stainless steel, aluminium, cast as well as hot-dip galvanized, sendzimir-galvanized and Zincor sheets. Custom color production to sample is possible from 15 kg; a 14-strong laboratory team creates formulations to RAL, NCS, Pantone and customer samples, with more than 10,000 existing formulations and delivery within 14 working days. In 2023, more than 2,500 tonnes of powder coating were produced; the company serves over 1,200 customers throughout Europe and, since a strategic alliance with the Dutch Zandleven Coatings Group, increasingly serves the Benelux market as well.

Site: Ganzlin
Processes: Powder coating production (coating powder manufacture, custom color production to sample from 15 kg), Low-temperature powder coatings (curing from 120°C or 130°C/140°C), Custom color production (RAL, NCS, RAL-Design, Pantone, Munsell, customer sample, delivery in 14, Facade polyester (FA) powder coatings, GSB/Qualicoat approved, Polyester powder coatings for steel/heavy parts (ST) and industry (AU/AP), Epoxy powder coatings as primer (GR), Polyurethane powder coatings for industry (AC) and anti-graffiti (AG), Epoxy-polyester powder for marine interior fit-out (SI) and furniture (ML)
Materials: Steel, Stainless steel, Aluminium, Cast, Galvanized (hot-dip galvanized), Sendzimir-galvanized, Zincor, Epoxy powder
Certificates: DIN EN ISO 9001:2015, GSB material approval, Qualicoat approval, Qualisteelcoat approval, QIB approval, Deutsche Bahn product qualification (PQ deko tech interior/exterior,, Official building material testing fire protection (DIN EN ISO 1716, SBI test), Anti-slip DIN 51131:2014-02 (R12), Module B/D marine interior fit-out, ISO 9001, Qualicoat, Qualisteelcoat, QIB, Deutsche Bahn PQ
Founded: 1993
Industries: Architecture & construction industry, Mechanical and plant engineering, Contract coating/manufacturing, Furniture industry, Means of transport (commercial vehicles, agricultural machinery, rail,, Bicycle industry

01
Raw material procurement
02
Formulation development in the laboratory
03
Production of the coating powder
04
Quality testing and approvals
05
Warehousing (700 RAL colors)
06
Delivery from 15 kg throughout Europe

Materials & Processes

Epoxy powder

Highly reactive primer (GR) for corrosion protection, since 2020 with curing from 120 °C.

EP-PE

Epoxy-polyester powder (ML, SI)

Modified combination resins for furniture and marine interior fit-out, curing from 130 °C.

Polyester powder (FA, ST, AU, AP)

Weather-resistant powder coatings for facades, heavy steel parts and industry, curing from 140 °C.

Polyurethane powder coating (AC, AG)

Weather- and chemical-resistant grades for industrial coatings and anti-graffiti applications.

Stahl

Steel

Main substrate for corrosion protection systems up to corrosion protection class C4-medium.

Edelstahl

Stainless steel

Coatable substrate for contract coaters, including automotive components and architectural elements.

Alu

Aluminium

Substrate for facade polyester with Qualicoat approval.

Guss

Cast

Coatable workpiece substrate according to product enquiry.

FeVerz

Hot-dip galvanized

Substrate with QIB approval (QIB-0002) for double corrosion protection.

Sendzimir

Sendzimir-galvanized

Continuously galvanized strip substrate with Qualisteelcoat approval (PE-0001).

Zincor

Zinc alloy-coated substrate for powder coating.

Locations

Ganzlin

Headquarters, production and warehouse

Lot size: from 15 kg (custom colors)
Materials: Epoxy, epoxy-polyester, polyester, polyurethane

14-strong laboratory team
Stock range with 700 RAL colors

Components & Applications

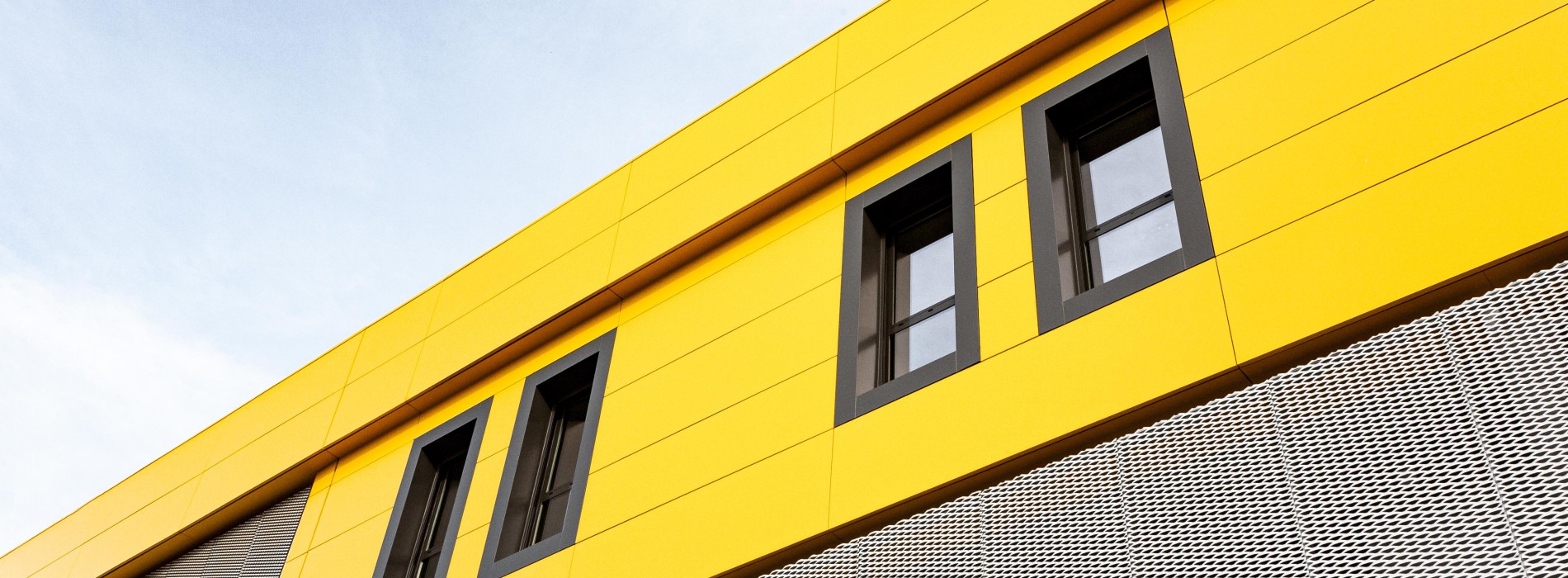

**Facade and architectural elements**Facade polyester (FA) · Architecture & construction industry

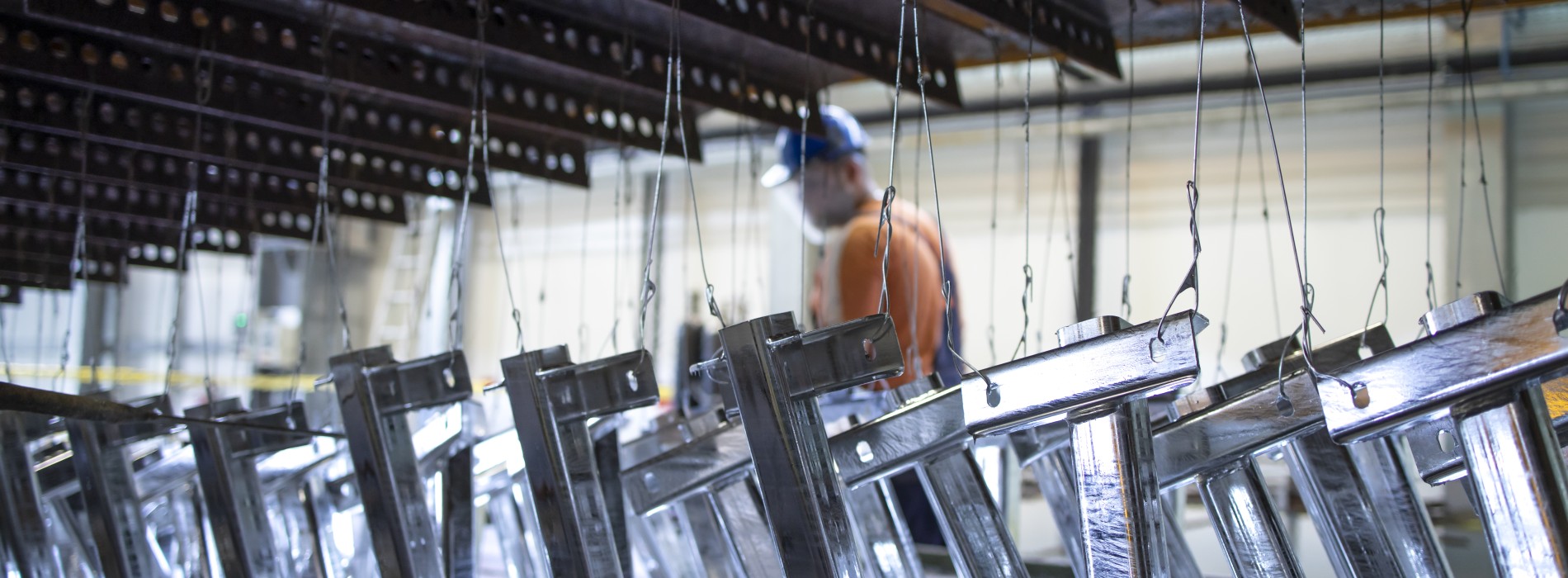

**Contract-coated metal components**Powder coating from 15 kg · Contract manufacturing

**Office and leisure furniture**Epoxy-polyester (ML) · Furniture industry

**Commercial vehicles, agricultural and construction machinery**Polyester/polyurethane · Means of transport

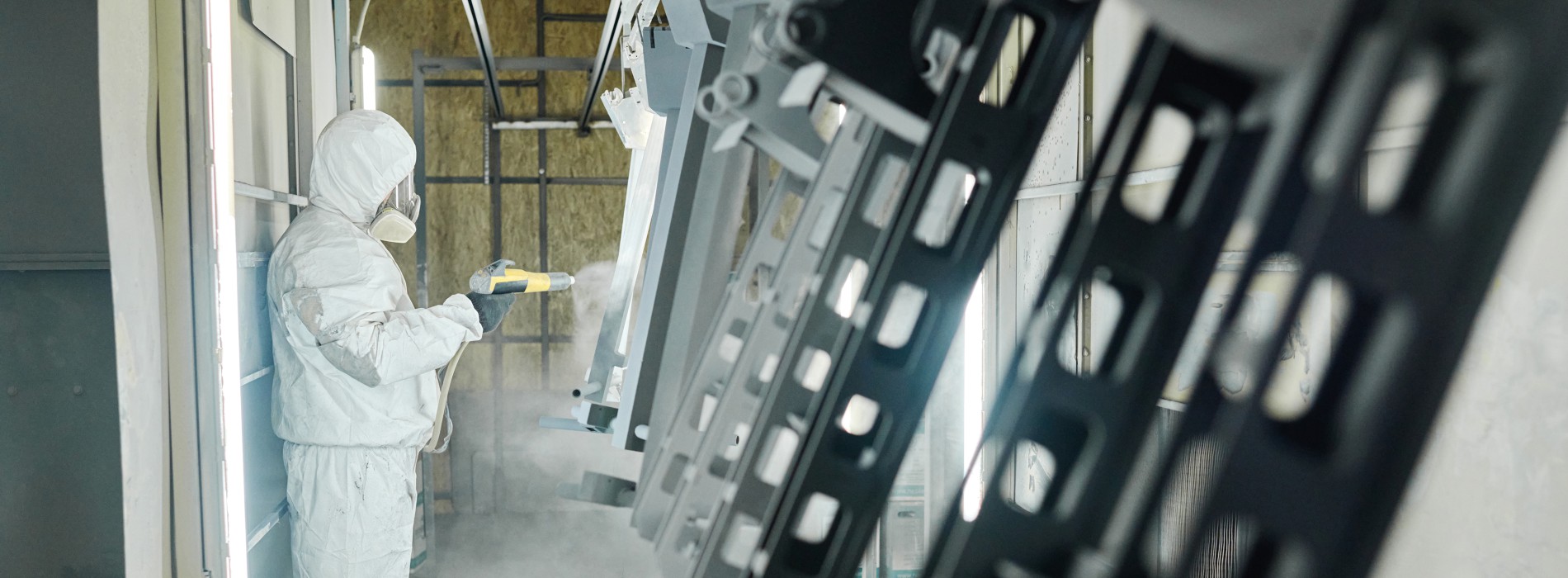

**Machine and plant components**Polyurethane (AC) · Industry

Inside the production

Low-temperature powder coatings: curing from 120 °C

Industries

Architecture & construction industryMechanical and plant engineeringContract coating/manufacturingFurniture industryMeans of transport (commercial vehicles, agricultural machinery, rail,Bicycle industryEnclosure constructionGas cylindersGalvanizingLighting industryPump and turbine industryFence constructionMarine interior fit-outIndustry (bicycle industry, enclosure construction, mechanical and plantContract manufacturing

Processes & technical limits

Processes	Tolerance	Max. part	Weight	Lot size	Materials
Powder coating production (coating powder manufacture, custom color production to sample from 15 kg)Surface	–	–	–	15 kg	Epoxy powder, Epoxy-polyester powder, Polyester powder, Polyurethane powder coating
Low-temperature powder coatings (curing from 120°C or 130°C/140°C)Surface	–	–	–	–	Epoxy powder, Epoxy-polyester powder, Polyester powder
Custom color production (RAL, NCS, RAL-Design, Pantone, Munsell, customer sample, delivery in 14Surface	–	–	–	15 kg	–
Facade polyester (FA) powder coatings, GSB/Qualicoat approvedSurface	–	–	–	–	Polyester powder
Polyester powder coatings for steel/heavy parts (ST) and industry (AU/AP)Surface	–	–	–	–	Steel, Polyester powder
Epoxy powder coatings as primer (GR)Surface	–	–	–	–	Steel, Epoxy powder
Polyurethane powder coatings for industry (AC) and anti-graffiti (AG)Surface	–	–	–	–	Polyurethane powder coating
Epoxy-polyester powder for marine interior fit-out (SI) and furniture (ML)Surface	–	–	–	–	Epoxy-polyester powder
Corrosion protection systems up to corrosion protection class C4-medium (single coating)Surface	–	–	–	–	–
Anti-slip powder coatings (DIN 51131:2014-02, R12)Surface	–	–	–	–	–
Sliding coatings for the furniture industrySurface	–	–	–	–	–
Anti-squeak products (roller/sectional doors, >10,000 strokes noise-free)Surface	–	–	–	–	–
Oven measurements for plant optimization and technical consultingTesting	–	–	–	–	–

Additional services

Custom color production to sample from 15 kgProduction and delivery of custom colors within 14 working daysSample provision in advanceCustomer trainingTechnical advice and oven measurementsCustomer consulting (regional customer advisors)Delivery service for small quantities from 15 kg700 RAL colors in stockBuilding material/material approval consulting

Quality & Approvals

Ganzlin works according to DIN EN ISO 9001:2015 and holds numerous approvals such as GSB, Qualicoat, Qualisteelcoat, QIB, product qualifications of Deutsche Bahn as well as marine interior fit-out Modules B/D. A 14-strong laboratory team tests formulations and individually adapts surfaces, gloss levels and structures.

Evidence	Ganzlin
ISO 9001
GSB material approval
Qualicoat
Qualisteelcoat
QIB
Deutsche Bahn PQ
Module B/D marine interior fit-out

History

1993
Foundation of Ganzlin Beschichtungspulver GmbH
2020
Introduction of highly reactive low-temperature powder coatings (epoxy from 120 °C, epoxy-polyester from 130 °C, polyester from 140 °C)
2023
Production of more than 2,500 tonnes of powder coating
Strategic alliance with the Dutch Zandleven Coatings Group (principal shareholder)
