Hydraulic press-in machines for low-noise, low-vibration installation of sheet piles and tubular piles.
Giken Europe B.V.
Almere (NL) · Berlin (DE)New on Amplifa
About Giken Europe
Giken Europe B.V. is the European branch of the GIKEN Group, headquartered in Almere (Netherlands) with an office in Berlin. The company sells, rents and provides support for hydraulic press-in machines for the low-noise, low-vibration installation of steel sheet piles and steel tubular piles. The product range includes the SILENT PILER press-in machines (including F301-Z700, F401-1400, the watertight CLW100), the GYRO PILER rotary press-in machines for tubular piles (F301-G1000, F401-G1200, GRV0611e), the Electric Power Unit MU200 as well as GRB System equipment such as Clamp Cranes, Pile Runner and Unit Runner including auxiliary equipment. The press-in method uses the reaction force of piles already installed, allowing excavation pits to be constructed without impact or vibration noise – especially in urban locations and near sensitive existing buildings. Since 2003, GIKEN has offered GTOSS (GIKEN Total Support System), a support program with training, technical consulting, maintenance and spare parts. Customers come primarily from construction, civil engineering/infrastructure and foundation engineering.
- Site
- EA Almere
- Processes
- Press-in Method (pressing-in of sheet piles and piles without impact/vibration noise), Gyropress Method (combines rotation and press force to install tubular piles in, GRB System (pitching and pressing of piles in a closed process, working from already, Implant Method (pile installation), Machine sales/rental, Technical planning and execution, Maintenance/spare parts, GTOSS support (GIKEN Total Support System)
- Materials
- Steel sheet piles (U profiles), Steel sheet piles (Z profiles), Steel sheet piles (HAT profiles), Steel tubes, Press-in Method, Gyropress Method, GRB System, Steel sheet piles (U, Z and HAT profiles)
- Industries
- Construction, Civil engineering/infrastructure, Foundation engineering (sheet pile/tubular pile installation)
- 01
Consulting and technical planning
- 02
Sale or rental of press-in machines
- 03
Pressing-in of sheet piles/tubular piles (Press-in/Gyropress/GRB System)
- 04
Maintenance and spare parts supply
- 05
GTOSS support and training
Components and Processes
Press-in Method
Reaction-based hydraulic press-in of sheet piles without impact or vibration noise.
Gyropress Method
Combination of rotation and press force for installing tubular piles in hard or rocky ground.

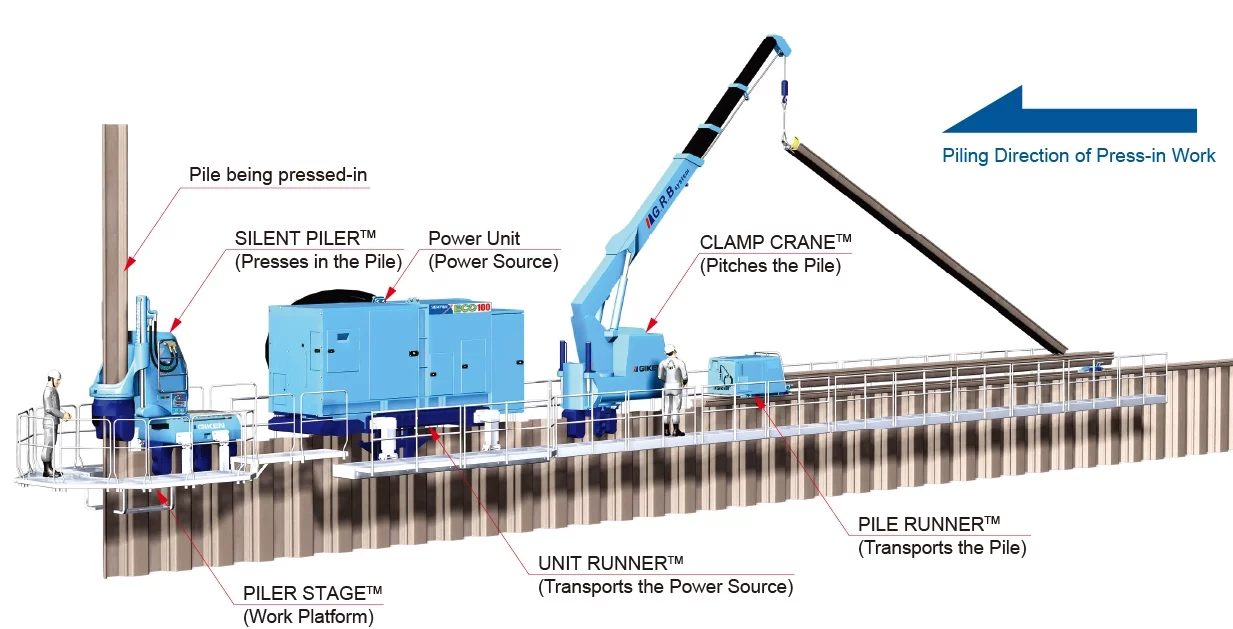

GRB System
Pitching and pressing of piles in a closed process, working from already installed piles without risk of tilting.
Steel sheet piles (U, Z and HAT profiles)
Press-in-capable profiles with widths of 400 to 900 mm depending on the machine model.
Steel tubes
Tubular piles with diameters of φ500 to φ1500 mm depending on the press-in and crane model.
Locations
Almere
NLHeadquarters / office
Berlin
DEOffice
Machines and Systems
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Press-in Method (pressing-in of sheet piles and piles without impact/vibration noise)Forming | – | – | – | – | Steel sheet piles, Steel tubular piles |
| Gyropress Method (combines rotation and press force to install tubular piles inForming | – | – | – | – | Steel tubes |
| GRB System (pitching and pressing of piles in a closed process, working from alreadyForming | – | – | – | – | Steel tubes, Sheet piles |
| Implant Method (pile installation)Forming | – | – | – | – | – |
18 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|

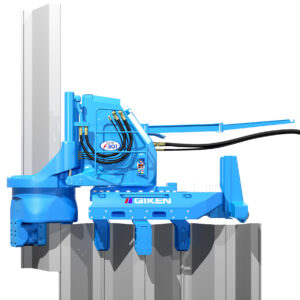

| Hydraulic sheet pile press-in machine (SILENT PILER) | GIKEN F301-Z700 | – | Single U profiles 600–750 mm; single Z profiles 575–708 mm | – | – |
| Hydraulic sheet pile press-in machine (SILENT PILER) | GIKEN F401-1400 | – | Double U profile 600, 700 mm; double Z profile 575–708 mm | – | – |

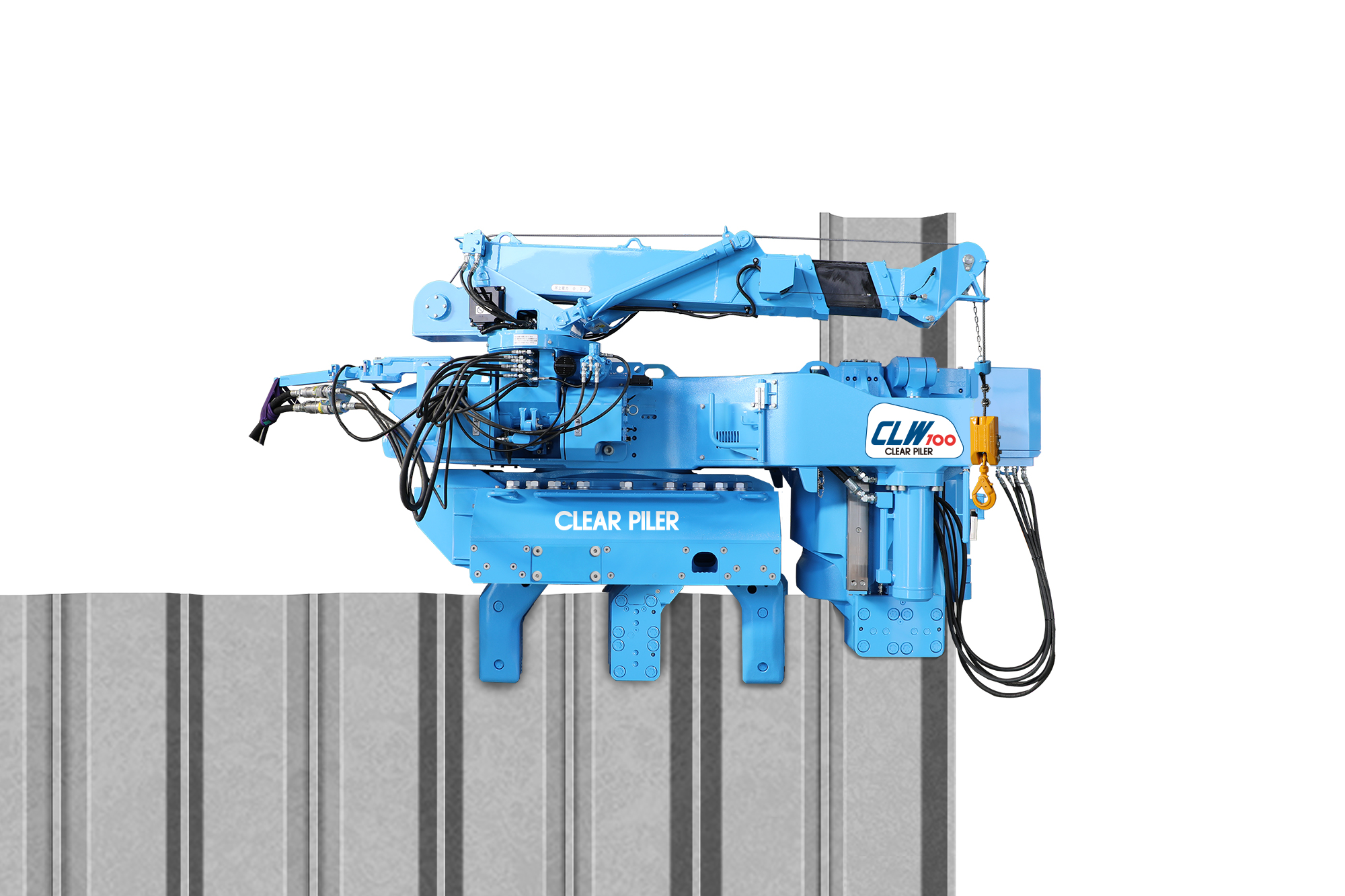

| Watertight press-in machine (SILENT PILER) | GIKEN CLW100 | – | U sheet pile 500–600 mm | – | – |
| Gyro Piler (rotary press-in machine for tubular piles) | GIKEN F301-G1000 | – | Steel tubes φ600–1000 | – | – |
| Gyro Piler (rotary press-in machine for tubular piles) | GIKEN F401-G1200 | – | Steel tubes φ800–1200 | – | – |
| Gyro Piler (rotary press-in machine for tubular piles) | GIKEN GRV0611e (SP16) | – | Steel tubes φ500–600 | – | – |

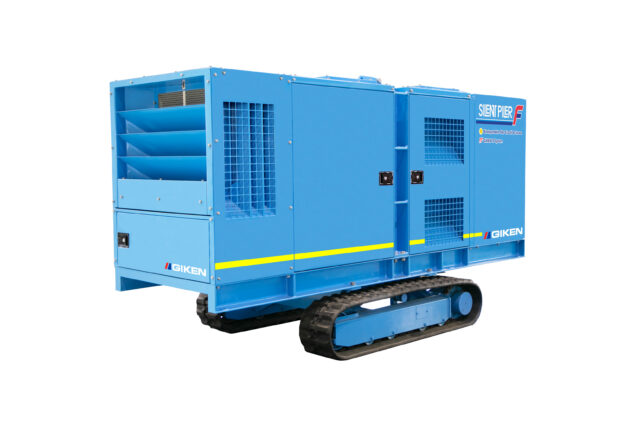

| Electric Power Unit | GIKEN MU200 | – | Applicable models: F201, F301-700, F301-G1000, F401-1400 | – | – |

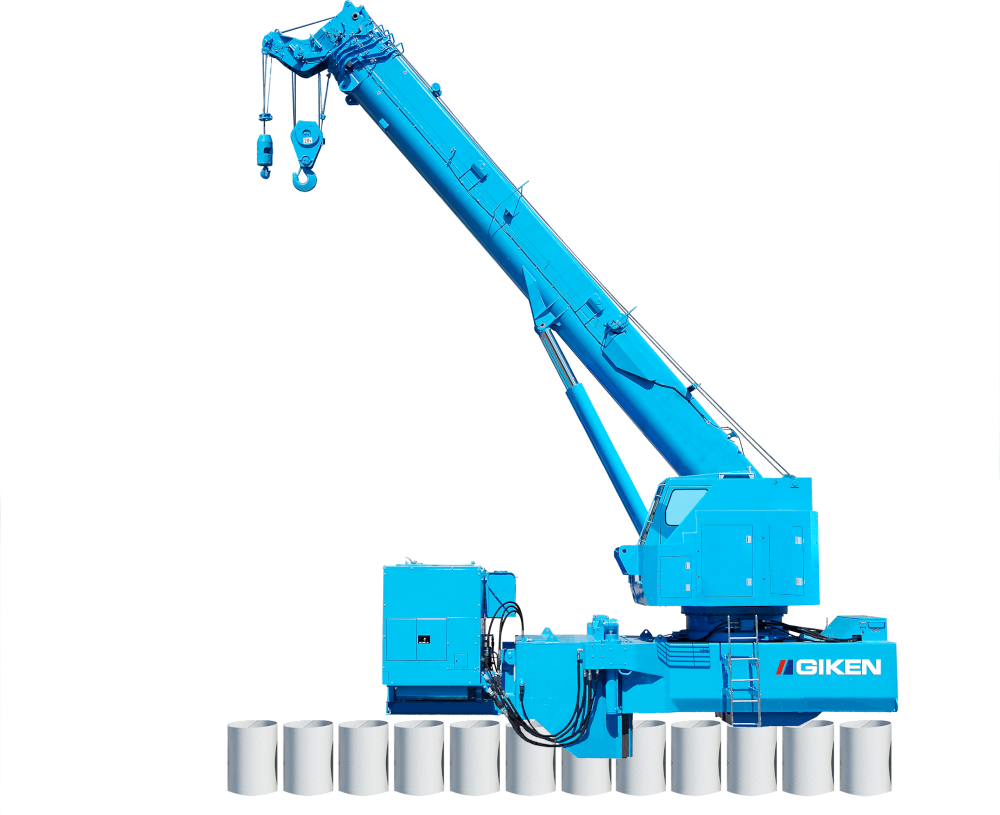

| Clamp Crane (GRB System) | GIKEN CB2-11 | – | Steel tubes φ500–600; max. lifting force 2.95 t at R=8.0 m | – | – |
| Clamp Crane (GRB System) | GIKEN CB3-6 | – | Single U profiles 400–750 mm; single Z profiles 575–708 mm; HAT profile 900 mm; max. lifting force | – | – |
| Clamp Crane (GRB System) | GIKEN CB4-2 | – | Steel tubes φ800–1500; max. lifting force 20 t at R=8.0 m | – | – |

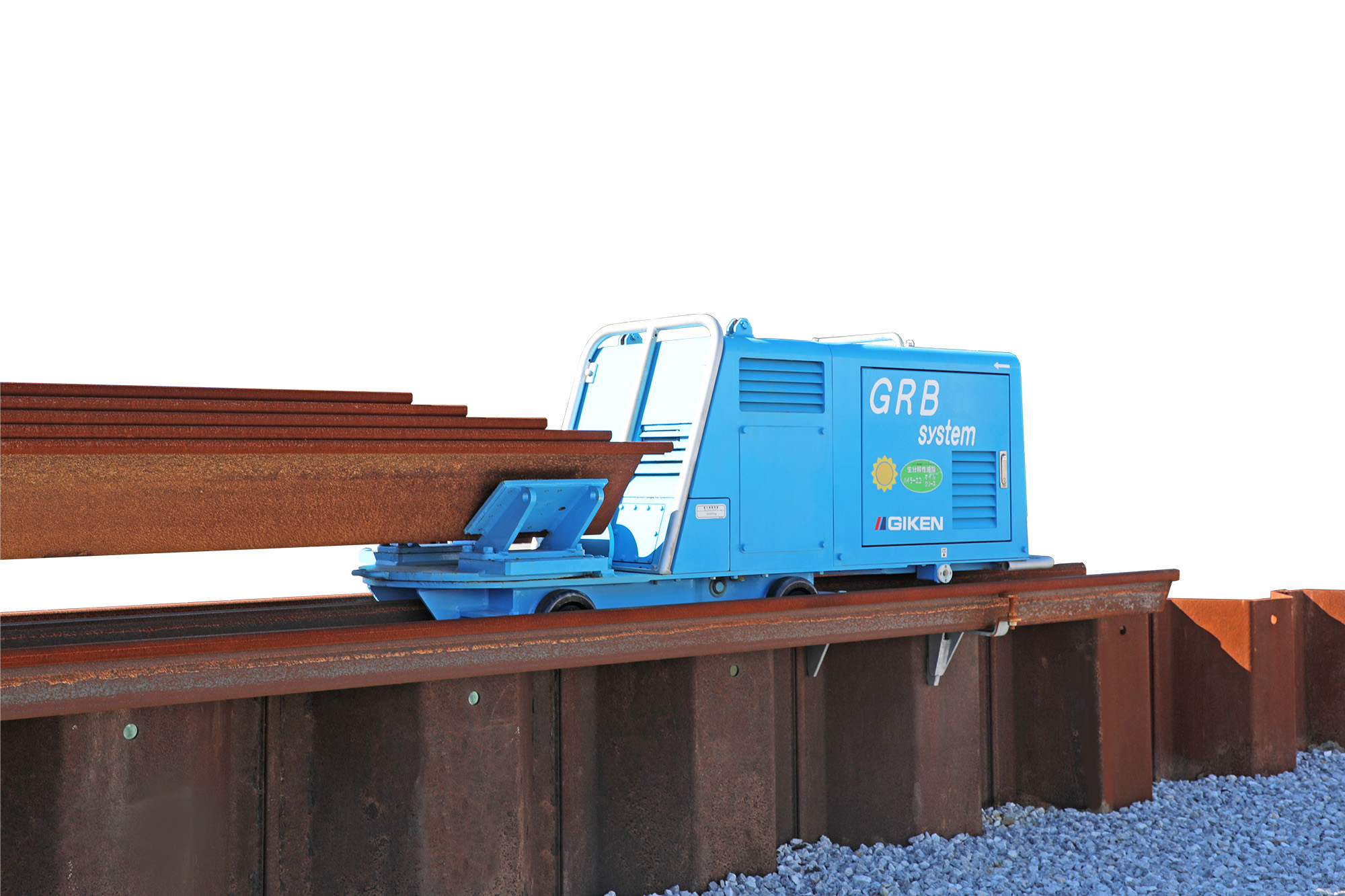

| Pile Runner (GRB System) | GIKEN PR4 (TB18) | – | Single Z profiles 575–708 mm | – | – |

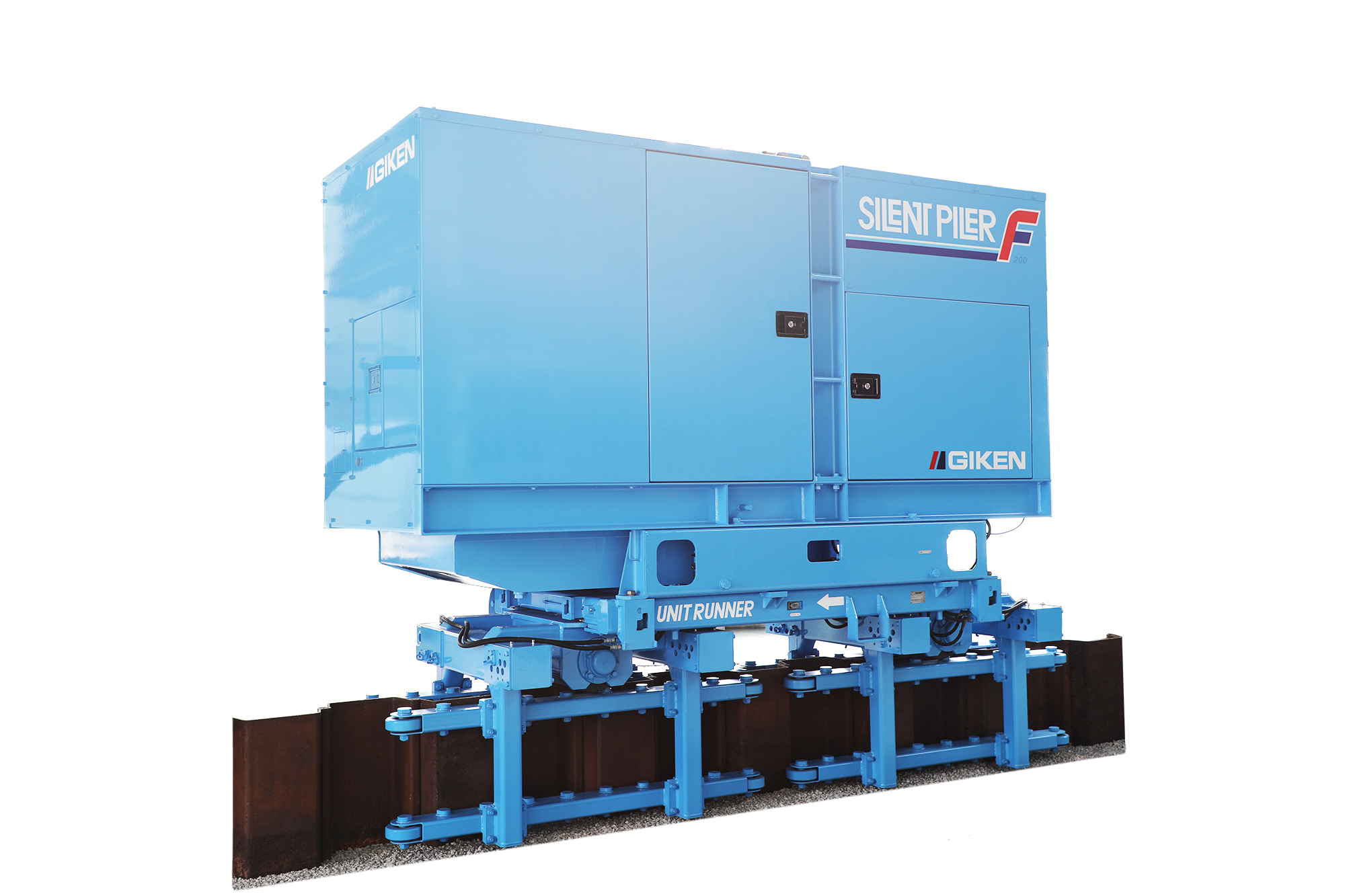

| Unit Runner (GRB System) | GIKEN UR3 | – | Applicable power units: EU200, EU300, MU200 | – | – |

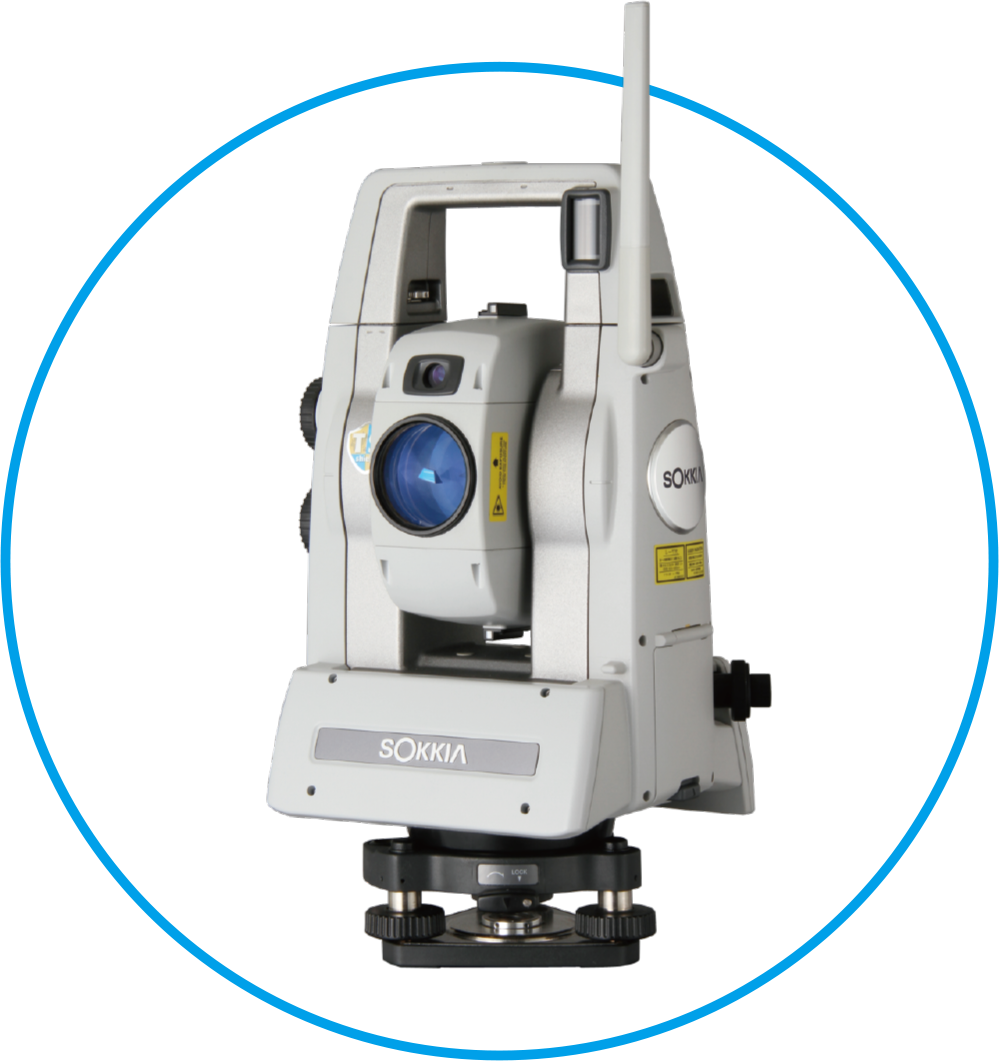

| Auxiliary equipment | GIKEN Implant NAVI | – | – | – | – |
| Auxiliary equipment | GIKEN PPT System | – | – | – | – |

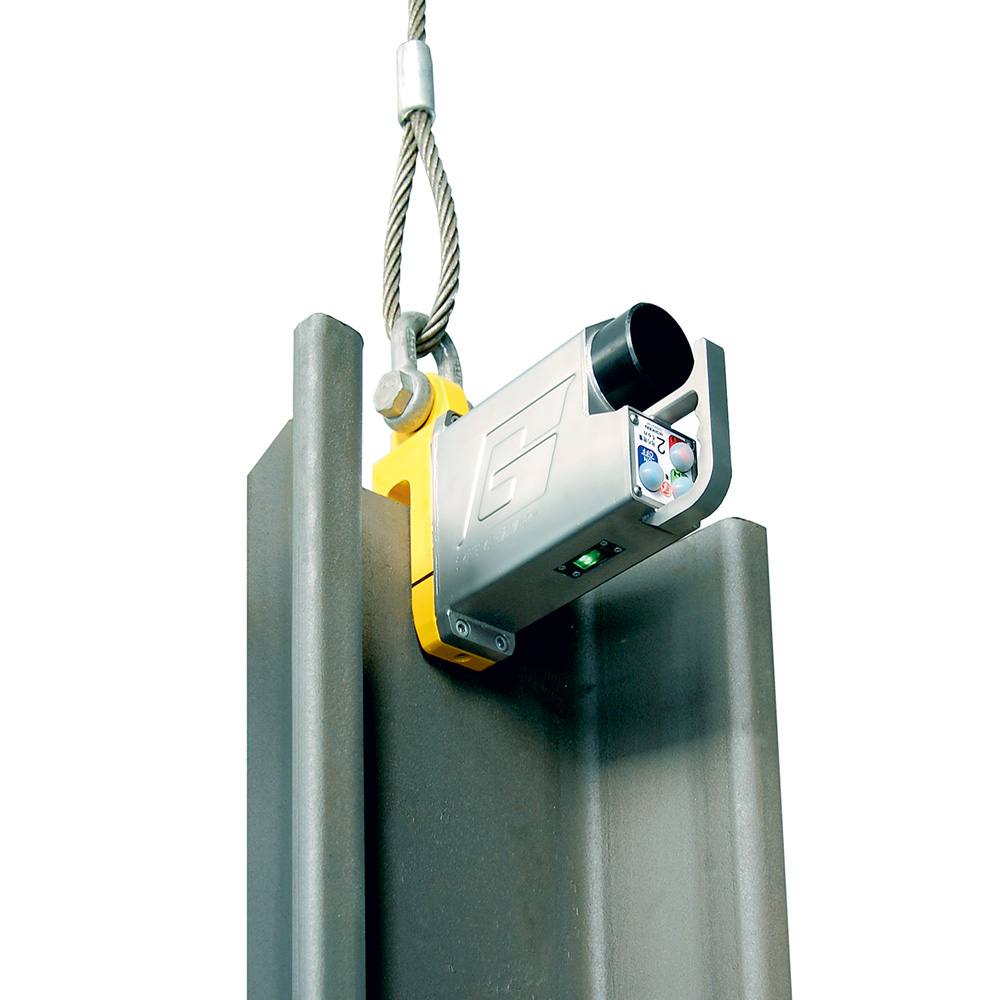

| Auxiliary equipment | GIKEN RadiHol | – | – | – | – |
| Auxiliary equipment | GIKEN PILER STAGE | – | – | – | – |
| Auxiliary equipment | GIKEN JET LOCK & flushing nozzle | – | – | – | – |
| Auxiliary equipment | GIKEN PILER ECO hose (for Jet) | – | – | – | – |
Additional services
History
- 2003
Introduction of GTOSS (GIKEN Total Support System) to support customers' business activities.
