CNC-milled and turned parts, assemblies and special machinery made from steel, aluminium, stainless steel and special materials
H & N Maschinenbau OHG
74336 Brackenheim · GermanyNew on Amplifa
Company
H & N Maschinenbau OHG in Brackenheim is a machining operation for CNC-milled parts, CNC-turned parts, complete assemblies and smaller special-purpose machines. Milling is performed on modern CNC milling machines in the 2–5-axis range, including 3D and 5-axis simultaneous machining; on a 5-axis machining center G350 with the PSS-R15 pallet round storage system, parts are produced automatically. In turning, chuck parts up to Ø 340 mm, bar parts up to Ø 70 mm and parts between centers are produced on machines with up to 4 axes (C+Y) and driven tools. Production covers raw part procurement, coordination of external processes such as hardening, grinding, EDM and surface finishing, as well as assembly of assemblies, jig and apparatus construction. Customers come from toolmaking, mechanical and plant engineering, automation technology, automotive supply industry, medical technology, printing industry and sewer cleaning. Prototypes, small series and series runs are produced in common materials and special materials such as Inconel, titanium and composite materials.
- Site
- Brackenheim
- Processes
- CNC milling, 5-axis simultaneous milling / 3D machining, CNC turning, Bar turning, Assembly, Special machinery construction, Jig and apparatus construction, Hardening (external)
- Materials
- Steel, Cast, Aluminium, Stainless steel, Special materials, Inconel Alloy, Titanium, Composite materials
- Certificates
- Internal quality management
- Industries
- Toolmaking, General mechanical engineering, Automation technology, Special machinery construction, Automotive supply industry, Medical technology
- 01
Raw part procurement
- 02
CNC milling (2–5 axes, 3D, simultaneous)
- 03
CNC turning
- 04
External processes (hardening, grinding, EDM, surface finishing)
- 05

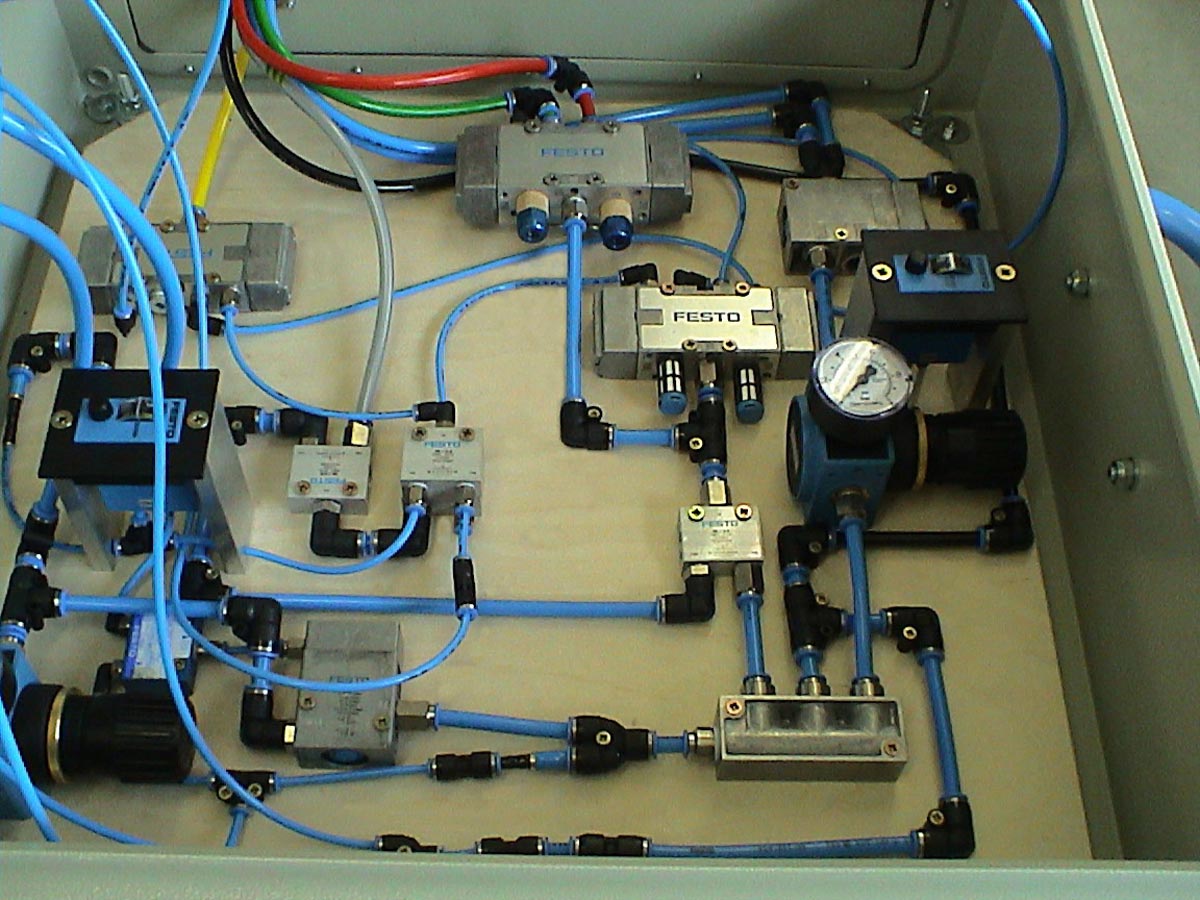

Assembly / special machinery construction
Locations
Brackenheim
DEHeadquarters / Production
- Part weight / size
- Chuck parts up to Ø 340 mm, bar up to Ø 70 mm
- Lot size
- Prototypes, small series, series runs
- Materials
- Steel, cast, aluminium, stainless steel, special materials
- CNC milling machines 2–5 axes simultaneous
- 5-axis machining center G350 with PSS-R15 pallet round storage system
- CNC lathes up to 4 axes (C+Y) with driven tools

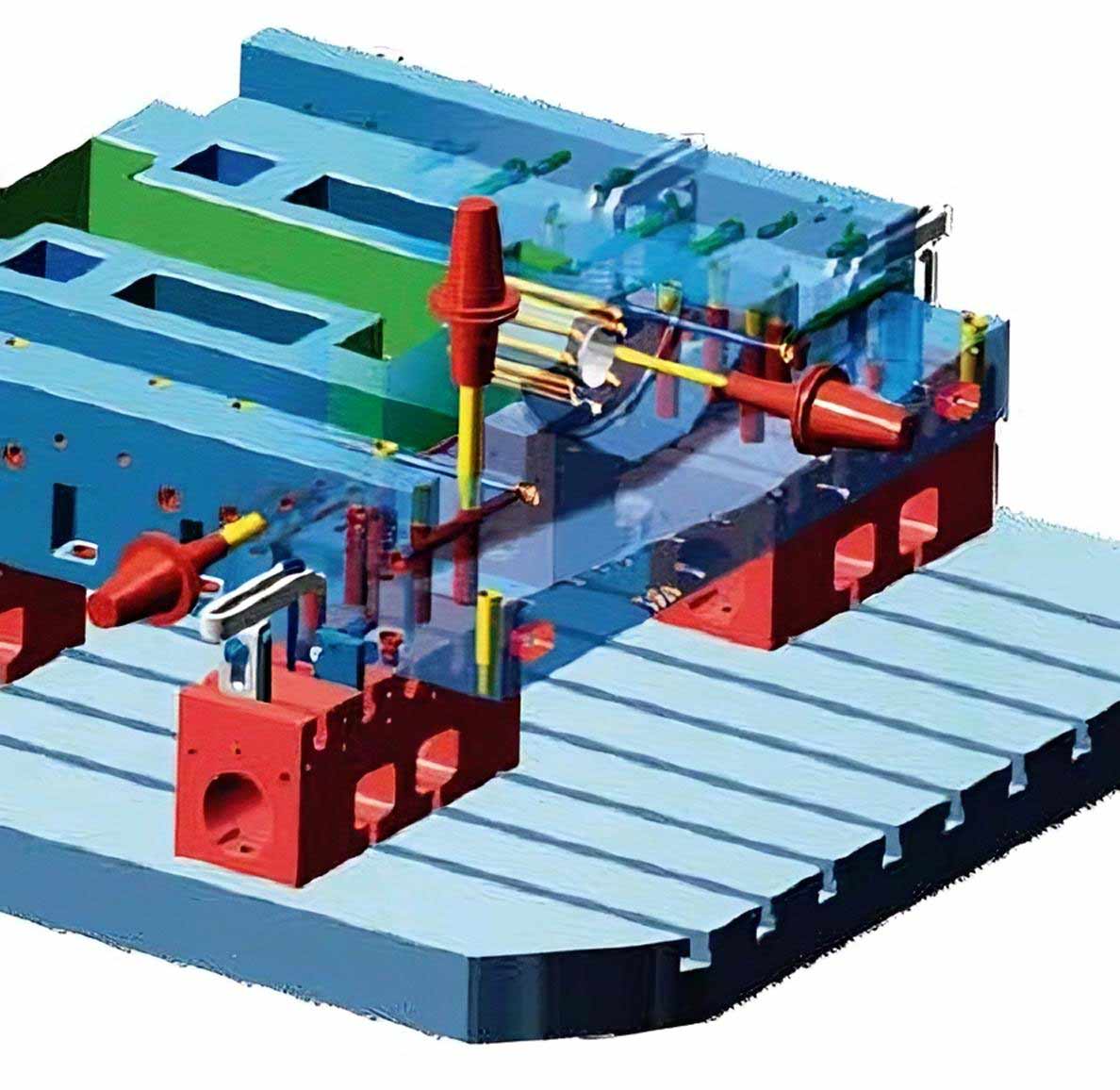

- CAM software Open Mind hyper MILL

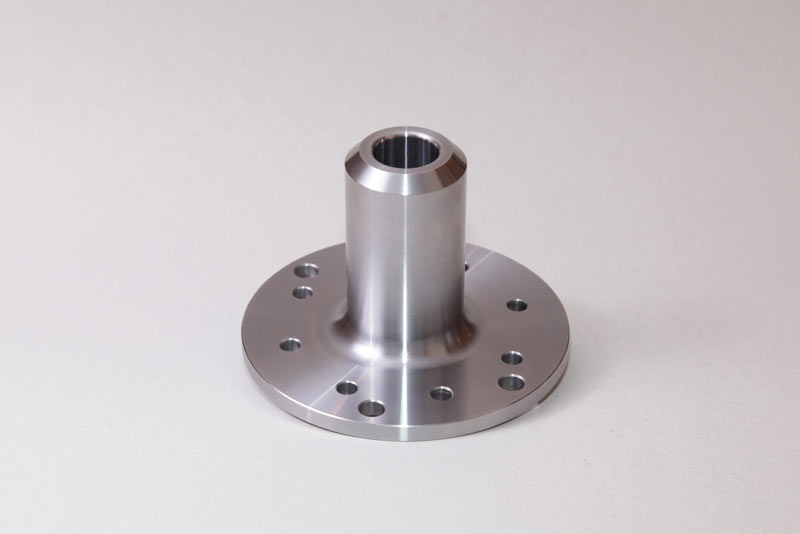

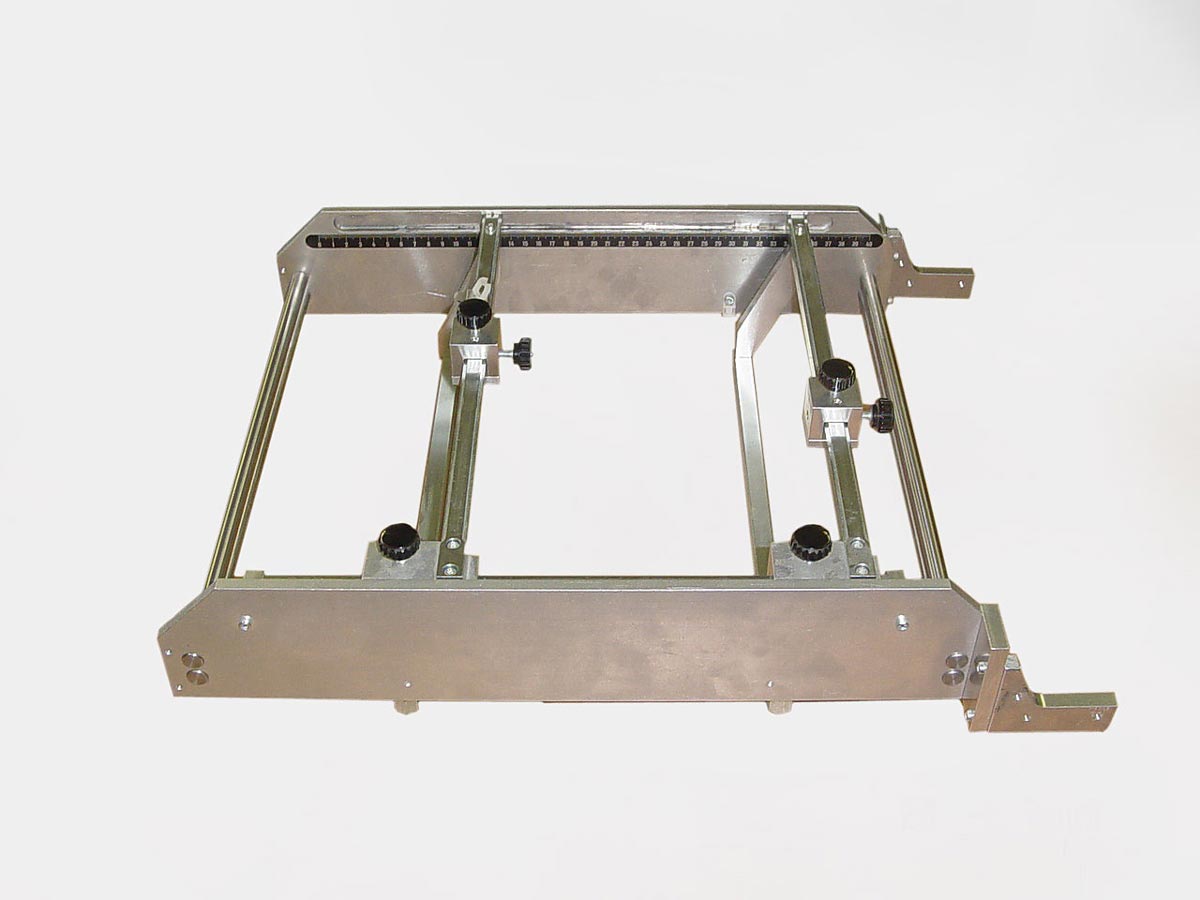

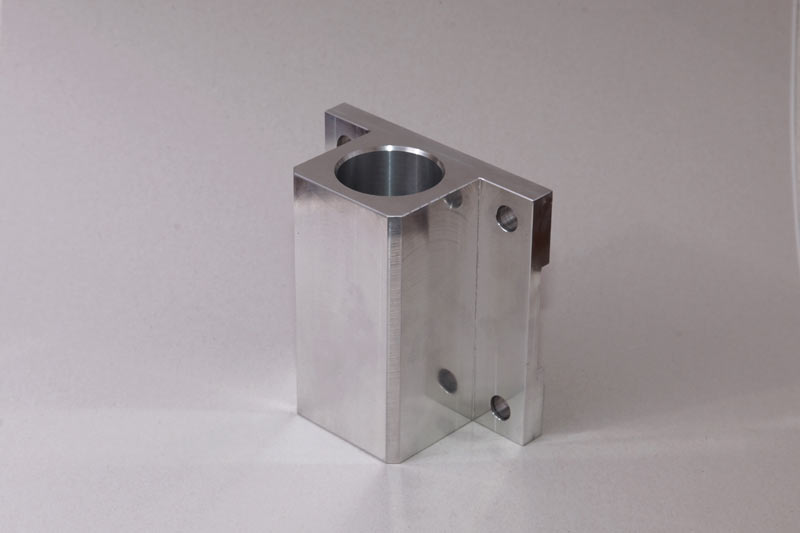

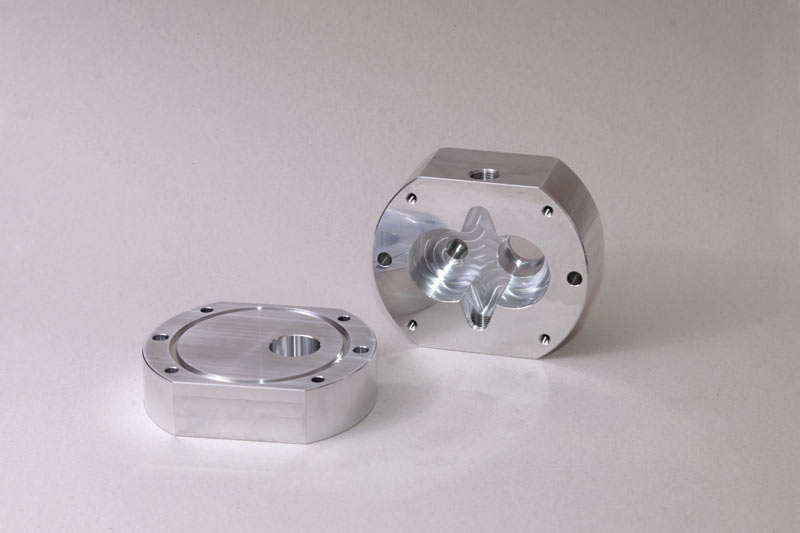

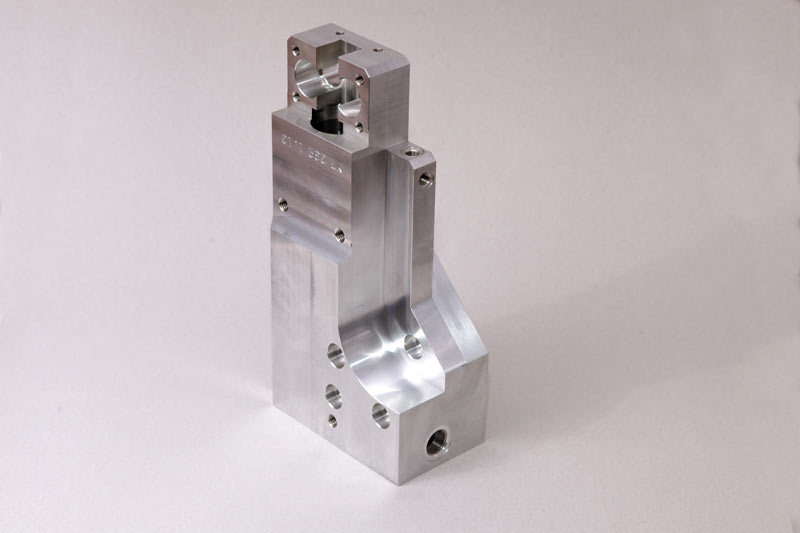

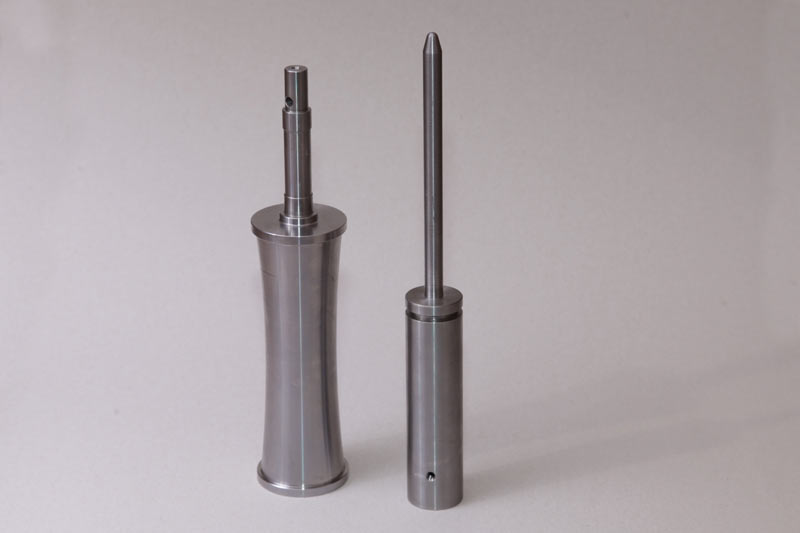

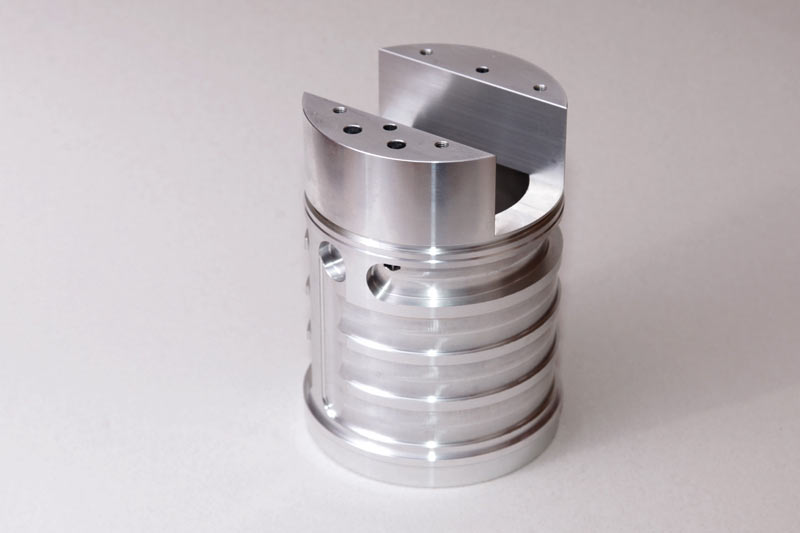

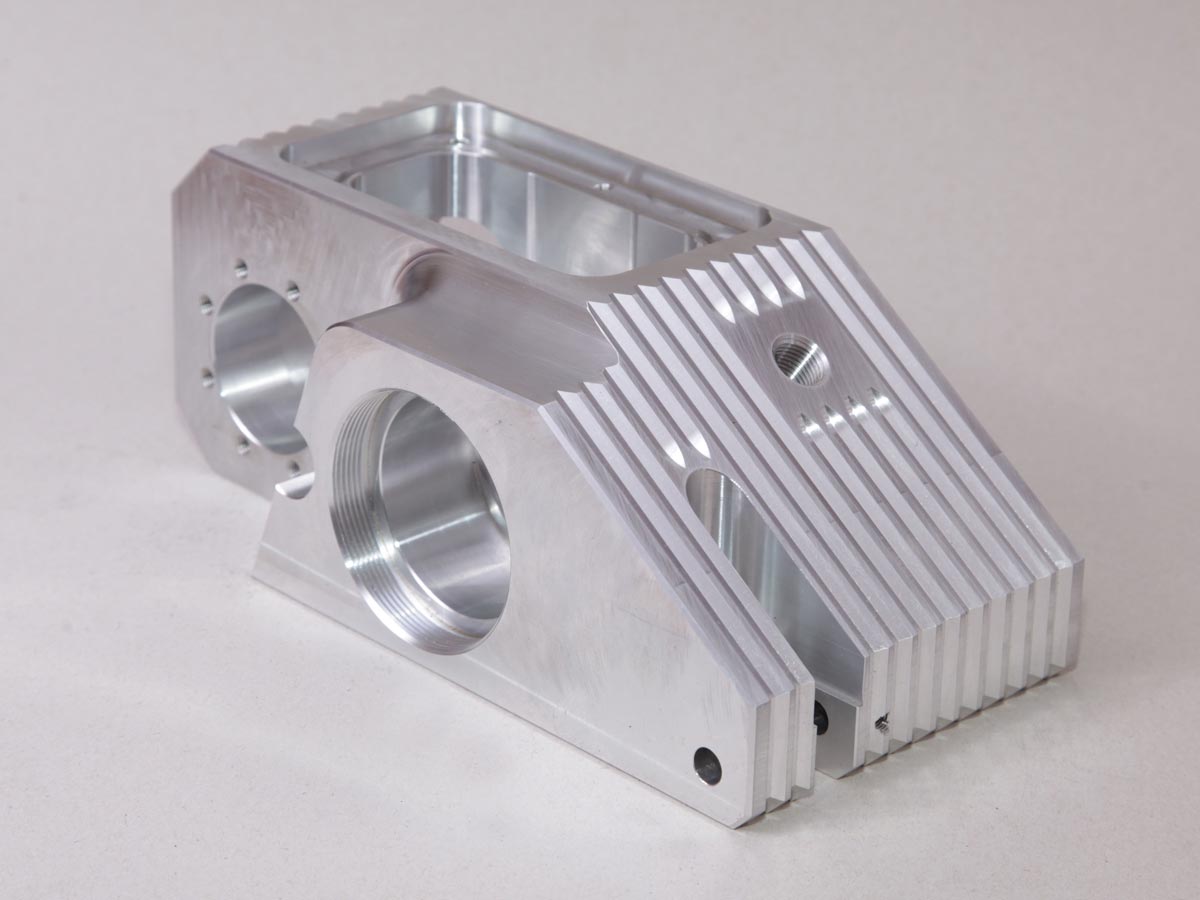

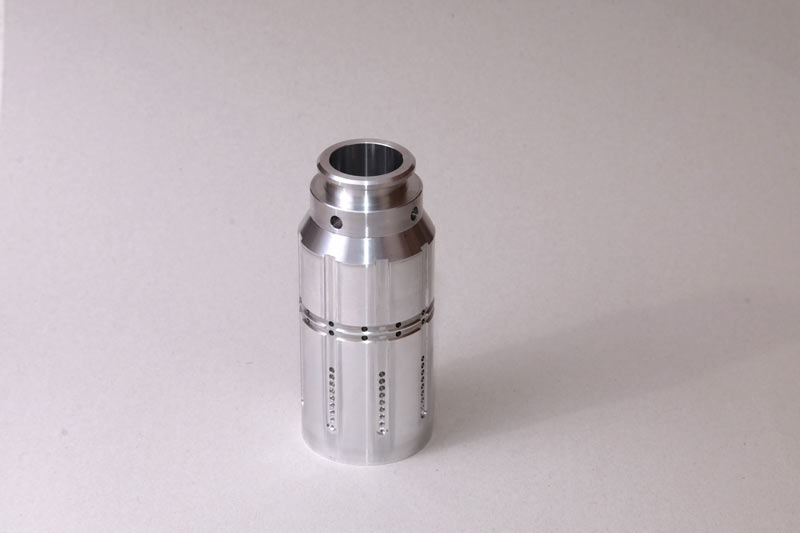

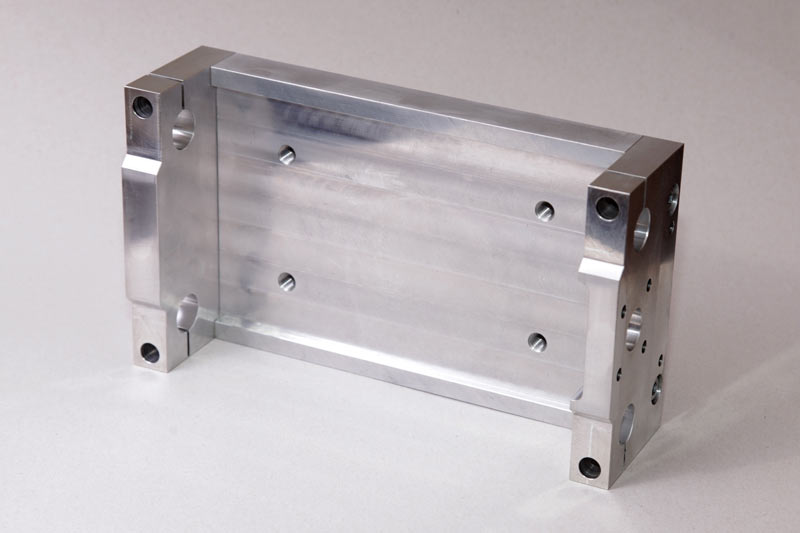

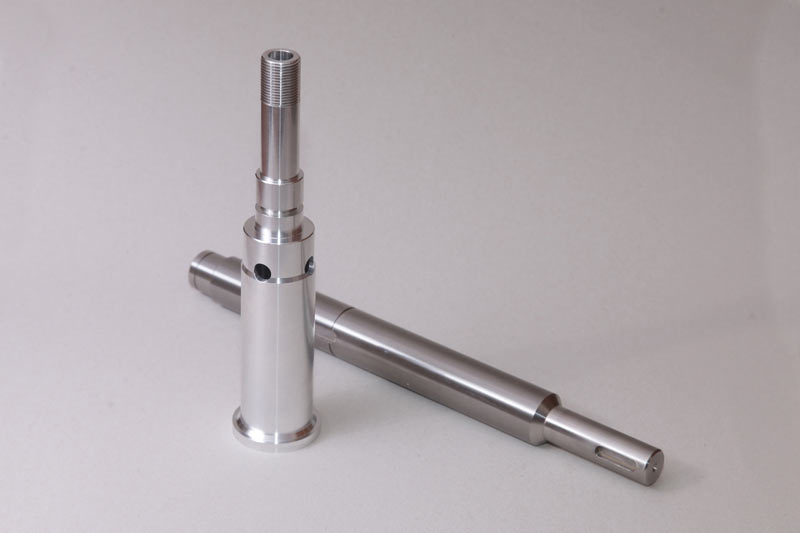

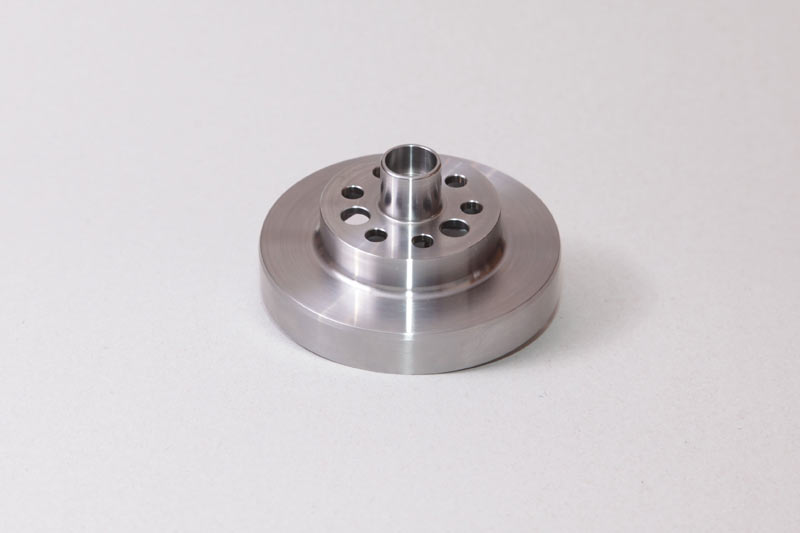

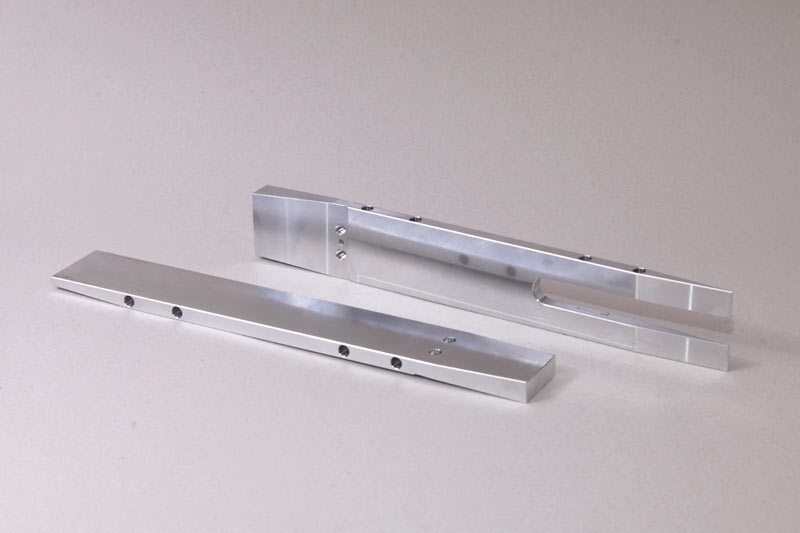

Components

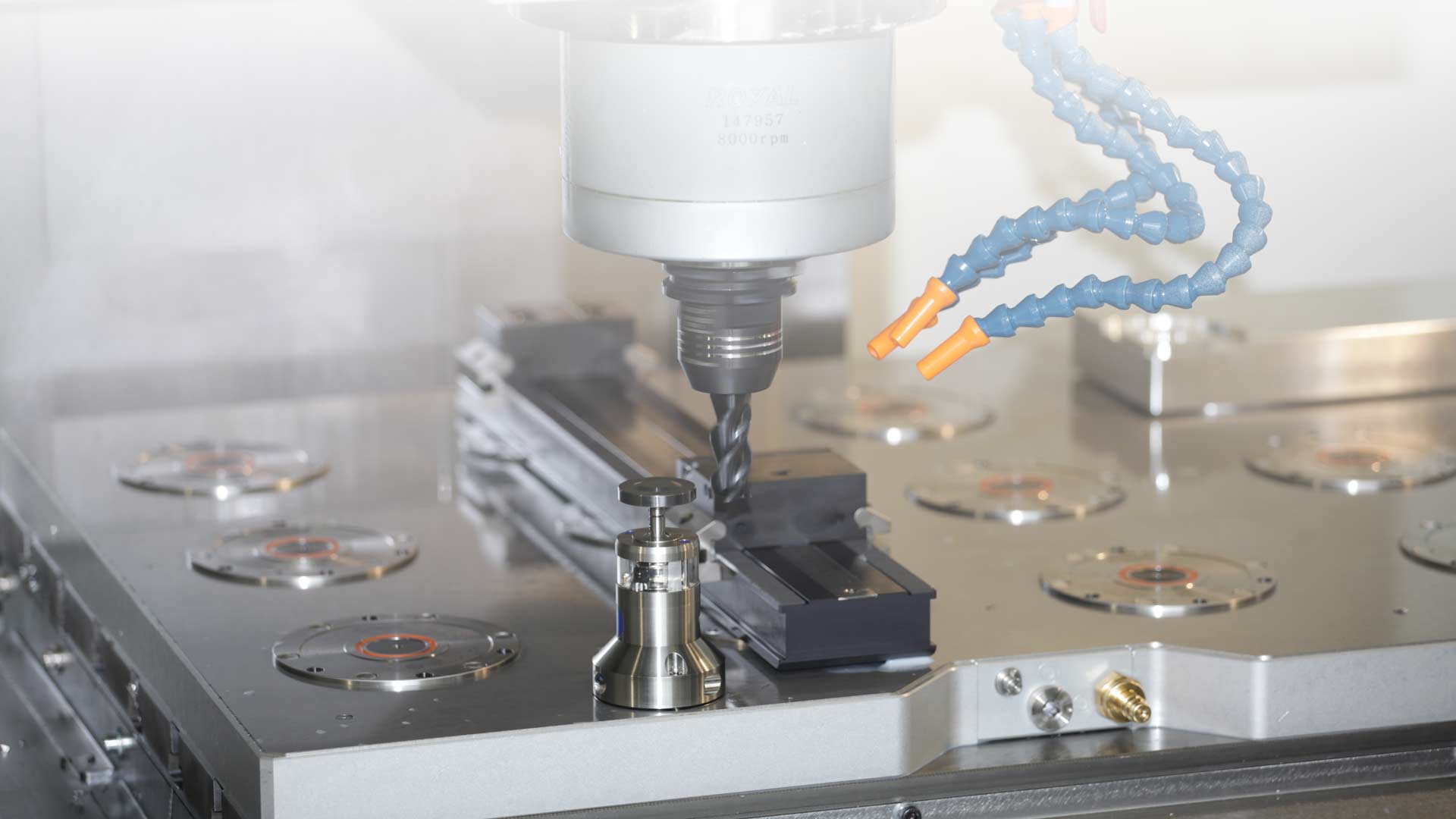

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| CNC millingMachining | – | – | – | – | Steel, Cast, Aluminium, Stainless steel, Special materials, Inconel, Titanium, Composite materials, high-strength and corrosion-resistant steels |
| 5-axis simultaneous milling / 3D machiningMachining | – | – | – | – | – |
| CNC turningMachining | – | Ø 340 mm (chuck parts) | – | – | – |
| Bar turningMachining | – | Ø 70 mm | – | – | – |
| AssemblyAssembly | – | – | – | – | – |
| Special machinery constructionAssembly | – | – | – | – | – |
| Jig and apparatus constructionAssembly | – | – | – | – | – |
| Hardening (external)Heat treatment | – | – | – | – | – |
| Grinding (external)Machining | – | – | – | – | – |
| EDM (external)Machining | – | – | – | – | – |
| Surface finishing (external)Surface | – | – | – | – | – |
4 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| CNC milling machine (2-5 axes simultaneous) | – | – | – | – | Brackenheim |
| 5-axis machining center with pallet round storage system | G350 with PSS-R15 | – | – | – | Brackenheim |
| CNC lathe (up to 4 axes, C+Y, driven tools) | – | – | Chuck parts up to Ø 340, bar up to Ø 70, between centers | – | Brackenheim |
| CAM software | Open Mind hyper MILL | – | – | – | – |
Additional services

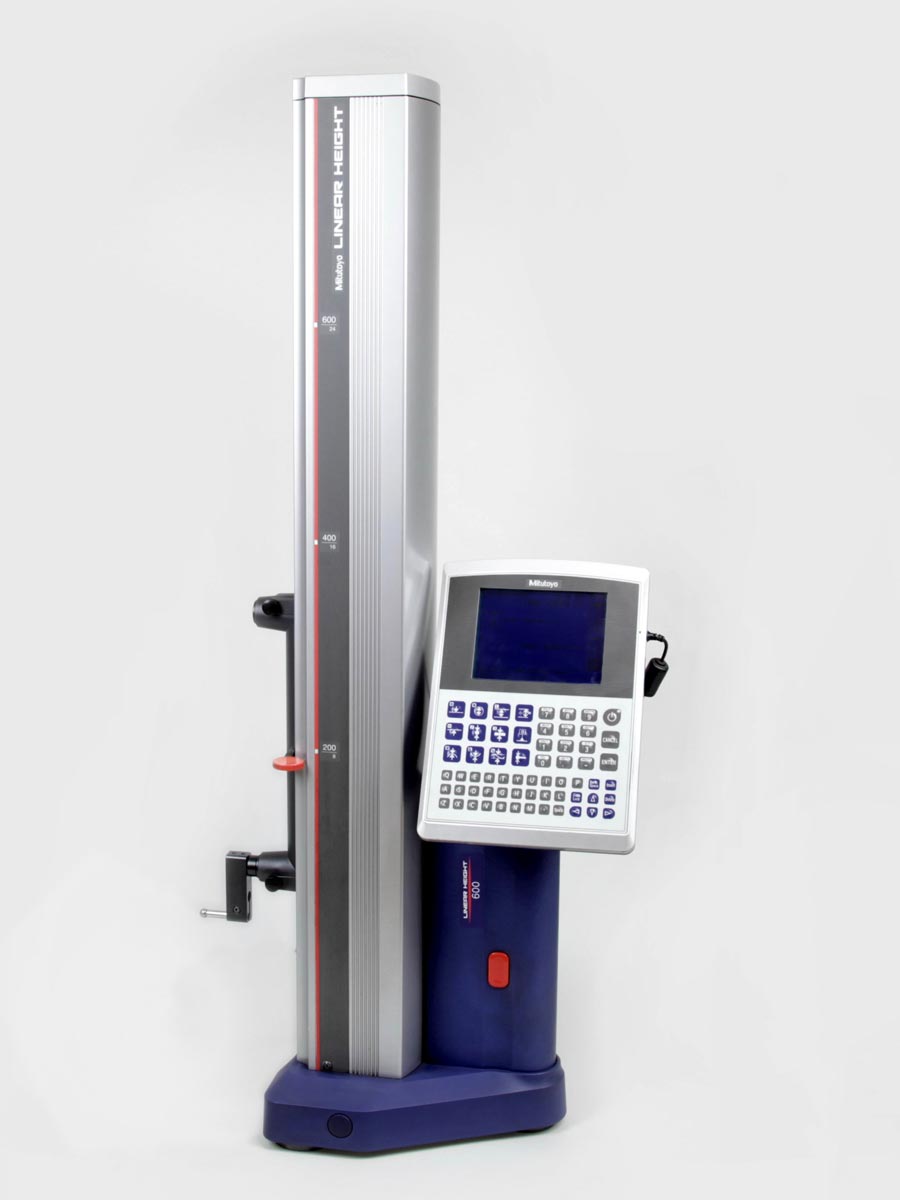

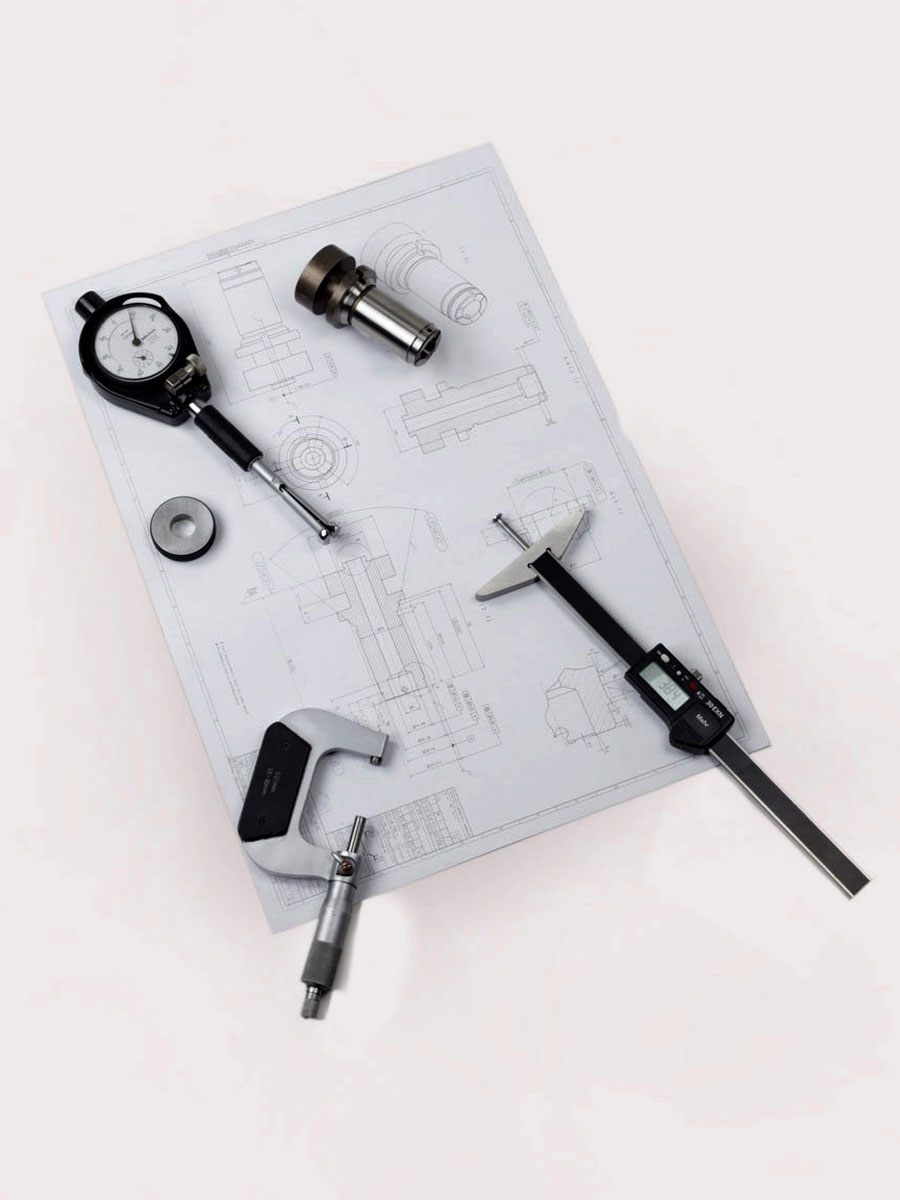

Quality
An internal quality management system and tested quality throughout the entire production process up to delivery ensure reproducible, precise components. Qualified employees shape order handling in a customer-oriented and process-optimized manner.
| Evidence | Brackenheim |
|---|---|
| Internal quality management |
