Precision processing of glass and mirrors 1–5 mm: cutting, grinding, drilling, milling, sandblasting and mirror manufacturing
Herbert Wirnshofer – Glas & Spiegel Bearbeitung
92557 Weiding · GermanyNew on Amplifa
About WirGlas
WirGlas (Herbert Wirnshofer – Glas & Spiegel Bearbeitung) has been manufacturing and processing glass and mirrors since 1984 for customers from industry, trade and the private sector. The product range includes small-format cuts in thicknesses of 1 to 5 mm – rectangular from approx. 3×3 mm, round from approx. 8 mm diameter, as well as freeform shapes, segment arcs and cut-outs. Processing services include grinding, drilling and countersinking, milling as well as sandblasting/satin finishing, plus edge processing from deburring to beveling and polishing. Materials processed include float glass, flat mirrors, optically anti-reflective glass (SIFLEX AR T98, CONTURAN Magic) and chrome-coated front-surface mirrors; furthermore concave and convex mirrors (magnifying and reducing mirrors) with silver or chrome coatings. Production ranges from one-off pieces to small and large series, including mirror mosaics and mirror objects from in-house production. The site is located at Am Graben 2 in Weiding in the Upper Palatinate.
- Site
- Weiding
- Processes
- Glass & mirror cuts (rectangular, round, freeform, segment arcs, cut-outs), Glass & mirror grinding, Glass & mirror drilling & countersinking, Glass & mirror milling, Glass sandblasting / satin finishing, Edge processing (deburring, beveling, grinding, polishing), Concave mirror (magnifying mirror) manufacturing, Convex mirror (reducing mirror) manufacturing
- Materials
- Float glass, Flat mirror, Optically anti-reflective glass SIFLEX AR T98, Optically anti-reflective glass CONTURAN Magic, Chrome-vaporized front-surface mirror, Concave caps with silver coating (radius 400/600/800 mm), Convex caps with chrome coating (radius 315 mm), Convex caps with silver coating (radius 1100/1400/2000 mm)
- Founded
- 1984
- Industries
- Industry, Trade/craft, Private customers
- 01

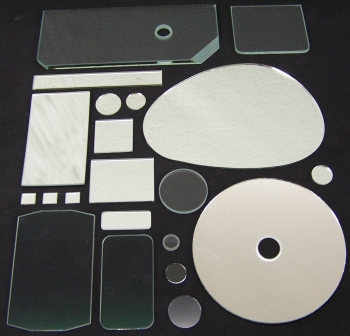

Glass/mirror cutting (rectangular, round, freeform)
- 02
Drilling & countersinking
- 03
Milling
- 04
Grinding
- 05

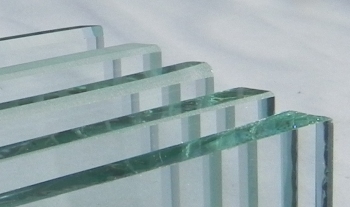

Edge processing (deburring, beveling, polishing)
- 06

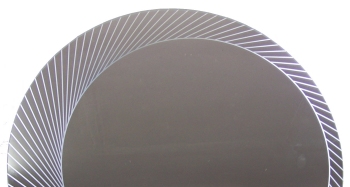

Sandblasting/satin finishing
- 07
Coating (chrome front-surface mirrors)
Materials & Processing Methods
Float glass 1–5 mm
Base material for rectangular, round and freeform cuts.
Flat mirror 2–5 mm
Flat mirror for small-format cuts and mosaic surfaces.
Optically anti-reflective glass, 3 mm
For applications without disturbing double reflections.
Optically anti-reflective glass, 3 mm
Anti-reflective glass for displays and technical applications.

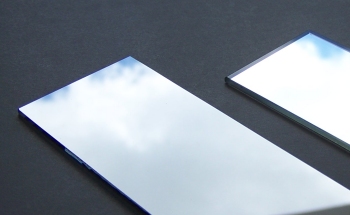

Chrome-vaporized front-surface mirror, 2 mm
99.5% chrome, reflectance 55–60%, partially light-transmissive, also suitable for light tunnels.

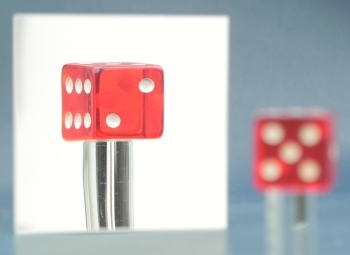

Concave caps with silver coating
Magnifying mirrors with curvature radii of 400, 600 and 800 mm.
Convex caps with chrome or silver coating
Reducing mirrors with curvature radius of 315 mm (chrome) or 1100, 1400, 2000 mm (silver).
Site
Weiding
DEProduction and administration, glass and mirror processing
- Lot size
- One-off production to large series
- Materials
- Float glass, flat mirrors, anti-reflective glass, front-surface mirrors, concave/convex caps
Components & Products
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Glass & mirror cuts (rectangular, round, freeform, segment arcs, cut-outs)Machining | – | from approx. 3*3 mm (rectangular, | – | One-off production – Large series production | Float glass, Flat mirror, Anti-reflective glass, Front-surface mirror (chrome) |
| Glass & mirror grindingSurface | – | – | – | – | Glass, Mirror |
| Glass & mirror drilling & countersinkingMachining | – | – | – | – | Glass, Mirror |
| Glass & mirror millingMachining | – | – | – | – | Glass, Mirror |
| Glass sandblasting / satin finishingSurface | – | – | – | – | Glass, Mirror |
| Edge processing (deburring, beveling, grinding, polishing)Surface | – | – | – | – | Glass, Mirror |
| Concave mirror (magnifying mirror) manufacturingMachining | – | – | – | – | Concave caps with silver coating |
| Convex mirror (reducing mirror) manufacturingMachining | – | – | – | – | Convex caps with chrome/silver coating |
Additional services
History
- 1984
Start of production; since 1984 the company has been manufacturing for companies from industry and trade.
- 2023

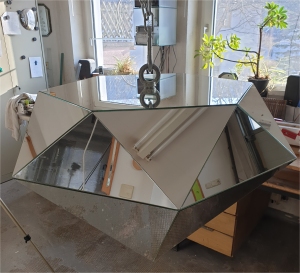

Mirror DIAMANT for the IDS 2023 in Cologne, mirror sphere with 2300 mm diameter (approx. 333,000 mirrors of 7×7 mm) and a wrecking ball with 1200 mm height from our production.
