Machines for chemical process engineering unit operations: mixing, kneading and stirring – manufactured in-house
Hermann Linden Maschinenfabrik GmbH & Co. KG
MarienheideNew on Amplifa
Company
Hermann Linden Maschinenfabrik GmbH & Co. KG is a manufacturer based in Marienheide specializing in machines for chemical process engineering unit operations. For over 75 years, now in its third generation, the company has produced double-blade mixing and kneading machines (double-Z kneaders), dry mixers, planetary mixers and dissolvers – from laboratory and pilot-scale machines up to production machines with usable volumes of up to 500 liters (K IV B 5000) and up to 10,000 liters for ribbon blenders. The machines are supplied in full stainless steel construction as well as in various special materials and are adapted in-house to customers' operating conditions. The portfolio includes versions with heating and cooling systems, high vacuum, ATEX, bottom discharge, tilting drive or discharge screw. Customers include, among others, chemical process engineering, the food industry (chewing gum and protein bar production), silicone manufacturing, the hard metal and ceramics industries, medical adhesives, and the dental and abrasives industries. Data sheets are available in German, English and French.
- Site
- Marienheide
- Processes
- Mixing, kneading and stirring (chemical process engineering unit operations), Kneading with double-Z kneader (tilting kneader, discharge kneader, kneader with bottom discharge), Dry mixing (screw mixer/screw ribbon mixer), Planetary mixing and kneading, Dissolving with rotating wiper, In-house manufacturing and adaptation of machines (mechanical engineering), Custom solutions and special materials for all machine types, Adaptation of machines to customers' operating conditions (in-house manufacturing)
- Materials
- Stainless steel, Special materials, Stainless steel (full stainless steel construction)
- Certificates
- ATEX versions, High-vacuum versions
- Industries
- Chewing gum and protein bar production, Chemical process engineering, Food industry, Silicone manufacturing, Hard metal, Technical ceramics
- 01
Engineering and design
- 02
In-house manufacturing
- 03
Adaptation to customers' operating conditions
- 04
Service and spare parts
Materials & Versions
Stainless steel (full stainless steel construction)
Full stainless steel construction as standard for tilting kneaders, planetary mixers and laboratory discharge kneaders.
Special materials
Available for all machine types, adapted to the requirements of the respective mix.
Location
Marienheide
DEHeadquarters / machine factory
- Materials
- Stainless steel, special materials

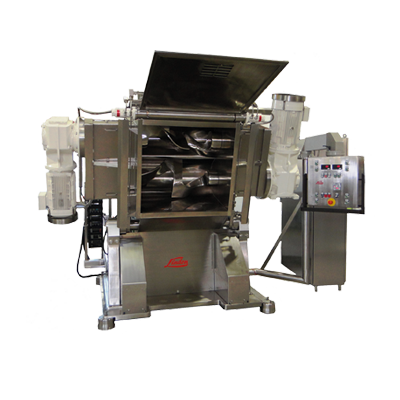

- Double-Z tilting kneader type K II N 450 (620 l usable)
- Double-Z tilting kneader type K IV 1000 (75–132 l usable, 160 kW)
- Discharge kneader type K III 100 A / 1000 A
- Kneader with bottom discharge type K IV 3000 B

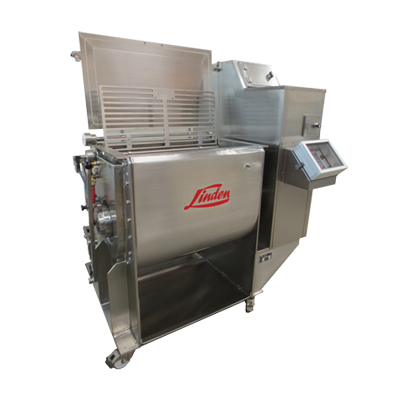

- Screw mixer type SM 100
- Planetary mixer type LPM
- Dissolver type D
- Ribbon blender type M/SM
Machine Types
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Mixing, kneading and stirring (chemical process engineering unit operations)Engineering | – | – | – | – | – |
| Kneading with double-Z kneader (tilting kneader, discharge kneader, kneader with bottom discharge)Assembly | – | – | – | – | Stainless steel (full stainless steel construction), Special materials |
| Dry mixing (screw mixer/screw ribbon mixer)Assembly | – | – | – | – | – |
| Planetary mixing and kneadingAssembly | – | – | – | – | Stainless steel (full stainless steel construction), Special materials |
| Dissolving with rotating wiperAssembly | – | – | – | – | – |
| In-house manufacturing and adaptation of machines (mechanical engineering)Engineering | – | – | – | – | – |
23 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Double-Z tilting kneader | Hermann Linden Maschinenfabrik TYPE K II N 450 | – | 620 l usable / 930 l total | – | Marienheide |
| Double-Z tilting kneader | Hermann Linden Maschinenfabrik TYPE K II N 10 | – | 3.0–10.0 l usable | – | Marienheide |
| Double-Z kneader with bottom discharge | Hermann Linden Maschinenfabrik TYPE K II 600 B | – | 55.0–90.0 l usable | – | Marienheide |
| Double-Z tilting kneader | Hermann Linden Maschinenfabrik TYPE K IV 1000 | – | 75.0–132.0 l usable, 160 kW | – | Marienheide |
| Double-Z discharge kneader (with discharge screw) | Hermann Linden Maschinenfabrik TYPE K III 100 A | – | 11.0–22.0 l usable | – | Marienheide |
| Double-Z discharge kneader | Hermann Linden Maschinenfabrik TYPE K III 1000 A | – | 90.0–180.0 l usable | – | Marienheide |
| Laboratory discharge kneader | Hermann Linden Maschinenfabrik TYPE K III 2 A | – | – | – | Marienheide |
| Kneader with bottom discharge | Hermann Linden Maschinenfabrik TYPE K IV 3000 B | – | 90.0–400.0 l usable | – | Marienheide |
| Kneader with bottom discharge (tilting kneader with bottom discharge) | Hermann Linden Maschinenfabrik TYPE K IV 3000 | – | 132.0–250.0 l usable | – | Marienheide |
| Screw mixer | Hermann Linden Maschinenfabrik TYPE SM 100 | – | 100 l usable / 37.5 l total | – | Marienheide |
| Planetary mixer (3-arm) | Hermann Linden Maschinenfabrik TYPE LPM 1 SP | – | 1 l total | – | Marienheide |
| Planetary mixer | Hermann Linden Maschinenfabrik TYPE LPM 50 | – | 30 l total | – | Marienheide |
| Double-Z tilting kneader (universal double-blade mixing and kneading machine) | Hermann Linden Maschinenfabrik TYPE K II N 10 to 1000 | – | 3.0–200.0 l usable | – | Marienheide |
| Double-Z kneader with bottom discharge | Hermann Linden Maschinenfabrik TYPE K II B 10 to 1000 | – | 3.0–200.0 l usable | – | Marienheide |
| Double-blade mixing and kneading machine | Hermann Linden Maschinenfabrik TYPE K IV 600 to 3000 | – | 30.0–250.0 l usable | – | Marienheide |
| Double-blade mixing and kneading machine with discharge screw | Hermann Linden Maschinenfabrik TYPE K III A 20 to 1500 | – | 3.0–200.0 l usable | – | Marienheide |
| Double-blade mixing and kneading machine with bottom discharge | Hermann Linden Maschinenfabrik TYPE K IV B 1000 to 5000 | – | 55.0–500.0 l usable | – | Marienheide |
| Laboratory mixing machine with counter-rotating screw ribbon mixing tool | Hermann Linden Maschinenfabrik TYPE M/SM 1.5 to 10 | – | 0.25–1.1 l usable | – | Marienheide |
| Ribbon blender (screw ribbon mixer) | Hermann Linden Maschinenfabrik TYPE M/SM 20 to 10000 | – | 20–10000 l usable | – | Marienheide |
| Laboratory planetary mixing and kneading machine | Hermann Linden Maschinenfabrik TYPE LPM 0.5 to 10 | – | 0.6–12 l total | – | Marienheide |
| Planetary mixing and kneading machine | Hermann Linden Maschinenfabrik TYPE LPM 25 to 1500 | – | 27–1495 l total | – | Marienheide |
| Double-Z kneader | Hermann Linden Maschinenfabrik KIIN 10 to 2000 | – | 1.1–75.0 l usable | – | Marienheide |
| Dissolver with rotating wiper | Hermann Linden Maschinenfabrik TYPE D 25 to 100 | – | 27–128 l total | – | Marienheide |
Additional services
Reference customers
Quality
The machines are adapted in-house to customers' operating conditions. For the safety of employees, service flaps only open once the mixing tools and chopper shafts have come to a complete standstill; cleaning components are available electro-pneumatically on request.
| Evidence | Marienheide |
|---|---|
| ATEX versions | |
| High-vacuum versions |
History
For over 75 years, leading industry has trusted machines from Maschinenfabrik Hermann Linden for mixing, kneading and stirring; today run by the third generation.
