About HEUER & SOHN
HEUER & SOHN Spezialmaschinenbau is an owner-managed mechanical engineering company based in Tespe/Avendorf with roots dating back to 1924. The company develops and manufactures semi- and fully automatic stretch wrappers, complete winding systems with conveying technology, special-purpose machines such as palletizers, pallet magazines and transport systems, as well as needle-felt machines ranging from pre-needle-punching to high-performance duplex versions. Mechanical design, manufacturing, electrical engineering and programming are all carried out in-house, enabling practical implementation of customer-specific adaptations to packaging goods, material flow, operation and safety technology. Customers come primarily from the packaging industry, the nonwoven/textile industry and the food sector with stainless steel (VA) versions. In the 1970s, the company built a pilot plant for needle-felt investigations developed by RWTH Aachen. The site is located at Elbuferstraße 41 in 21395 Tespe/Avendorf (Local Court Lüneburg, HRA 110127).
- Site
- Tespe/Avendorf
- Processes

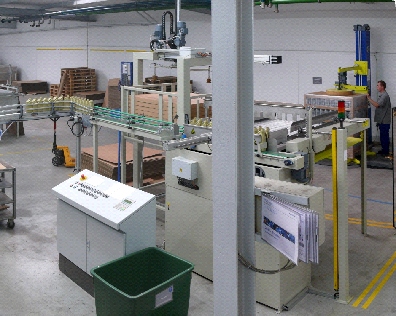

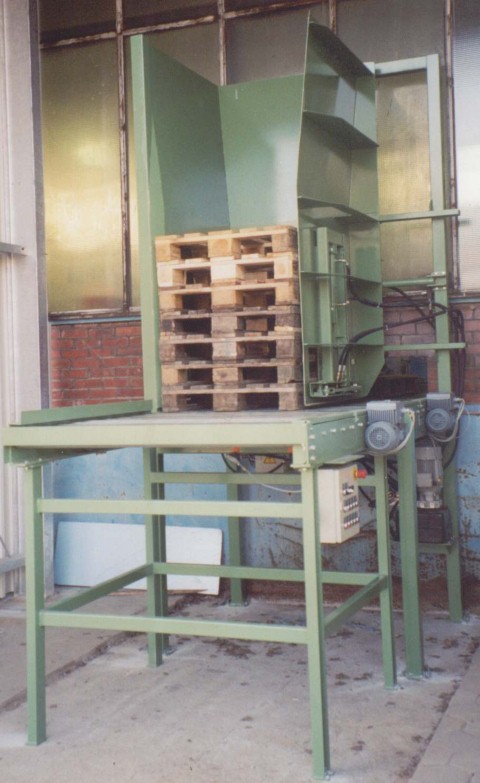

- Special machinery (design, mechanical manufacturing, electrical engineering and programming from a, Semi-automatic stretch wrappers / pallet wrapping machines, Fully automatic winding systems with conveying technology, top-sheet dispensers, lifting stations,, Special machinery (palletizers, pallet magazines, transport technology), Needle-felt machine manufacturing (pre-needle machines, main needle machines, duplex and, Transport technology (chain conveyors, roller conveyors, lifting tables), In-house design and mechanical manufacturing, Own electrical engineering and control/programming technology
- Materials
- Fiber materials (for needle-felt machines), Nonwoven (for needle-felt machines), Stainless steel (VA versions), Steel construction
- Certificates
- Safety technology in systems engineering
- Founded
- 1924
- Industries
- Packaging industry / pallet securing, Textile industry / nonwoven (needle felt), Food sector (stainless steel versions), Automation / material flow, Production processes with material flow/automation
- 01
Idea/Consulting
- 02
Design
- 03
Mechanical Manufacturing
- 04
Electrical/Control Technology
- 05
Programming
- 06
Assembly/Commissioning
Processes and Materials
Stainless steel (VA versions)

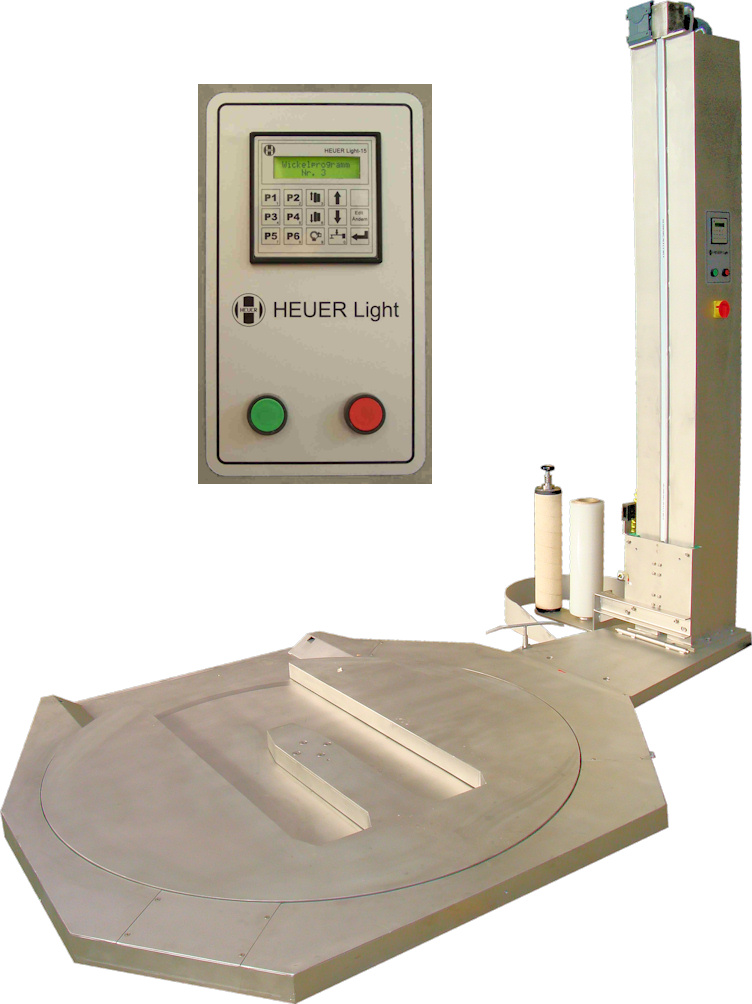

Version of the Light 15 SE VA for hygienic environments, for example in the food sector.
Steel construction
Robust steel constructions for machine frames, turntables, columns and conveying technology from our own manufacturing.
Locations
Tespe/Avendorf
DEHeadquarters, design, manufacturing, electrical engineering and programming
- Lot size
- Single-unit production and series machines (Touch and Light series)
- Materials
- Steel, stainless steel (VA versions)
- Turntable manufacturing
- Control cabinet construction
- Control and programming technology

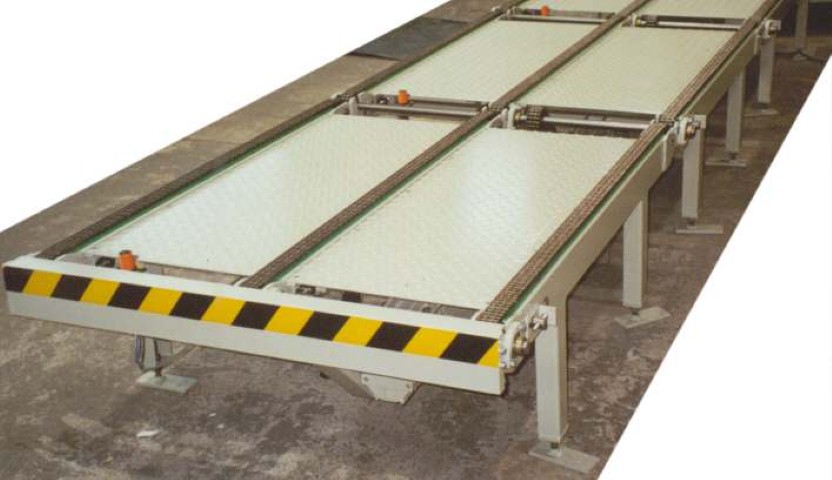

- Conveying technology manufacturing (roller conveyors, chain conveyors, lifting tables)
Machines and Systems
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Special machinery (design, mechanical manufacturing, electrical engineering and programming from aEngineering | – | – | – | – | – |
| Semi-automatic stretch wrappers / pallet wrapping machinesEngineering | – | – | 1,500 kg | – | – |

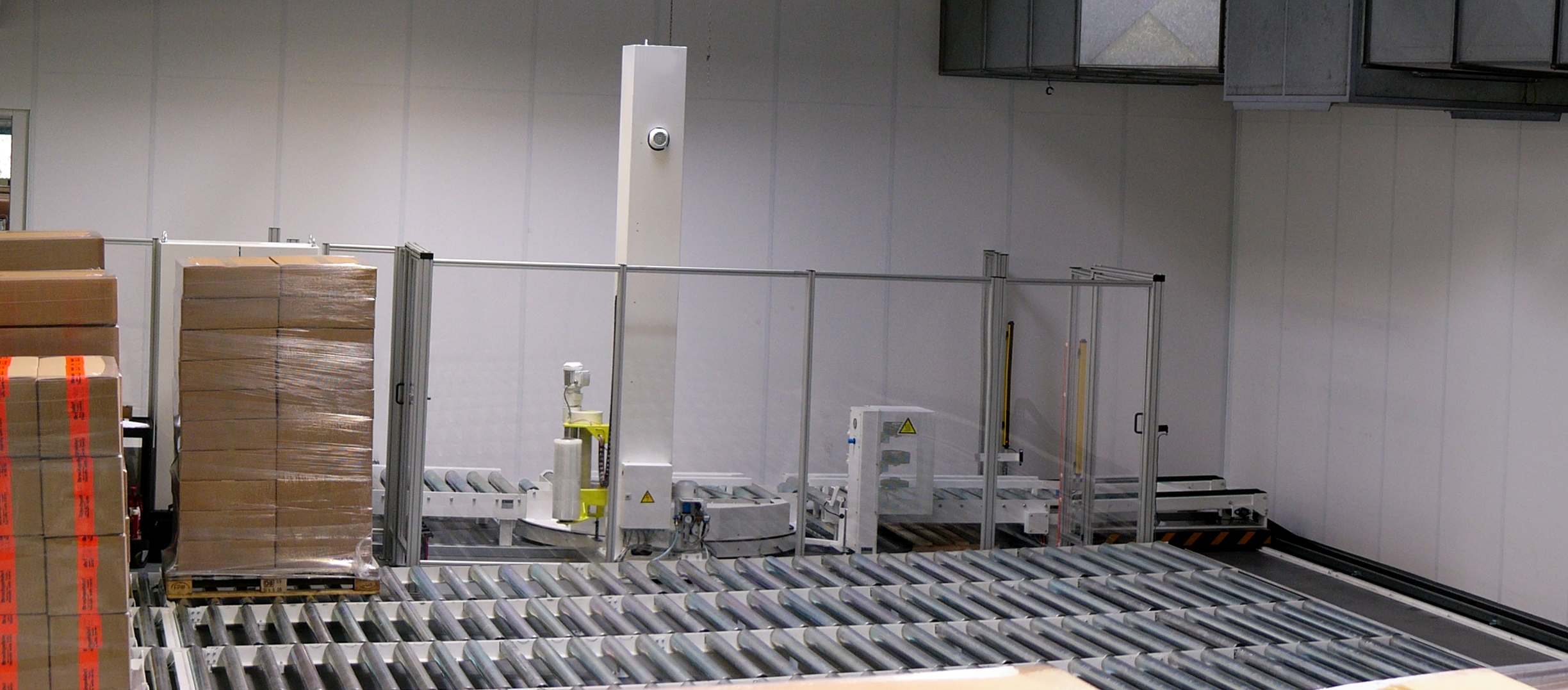

| Fully automatic winding systems with conveying technology, top-sheet dispensers, lifting stations,Engineering | – | – | – | – | – |

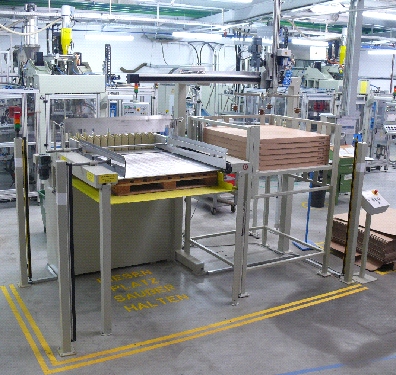

| Special machinery (palletizers, pallet magazines, transport technology)Engineering | – | – | – | – | – |
| Needle-felt machine manufacturing (pre-needle machines, main needle machines, duplex andEngineering | – | – | – | – | Fiber materials, Nonwoven |
| Transport technology (chain conveyors, roller conveyors, lifting tables)Engineering | – | – | – | – | – |
18 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|

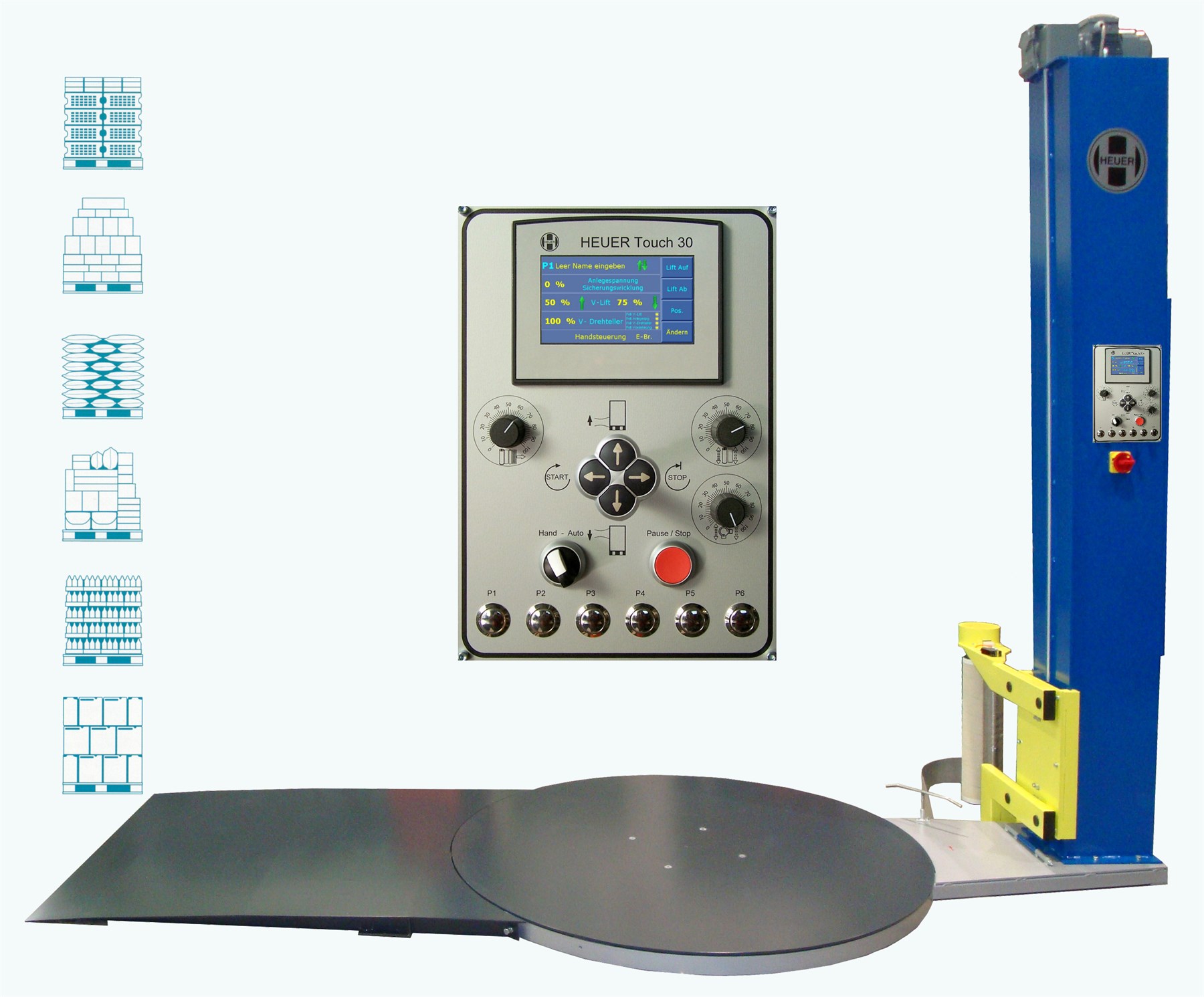

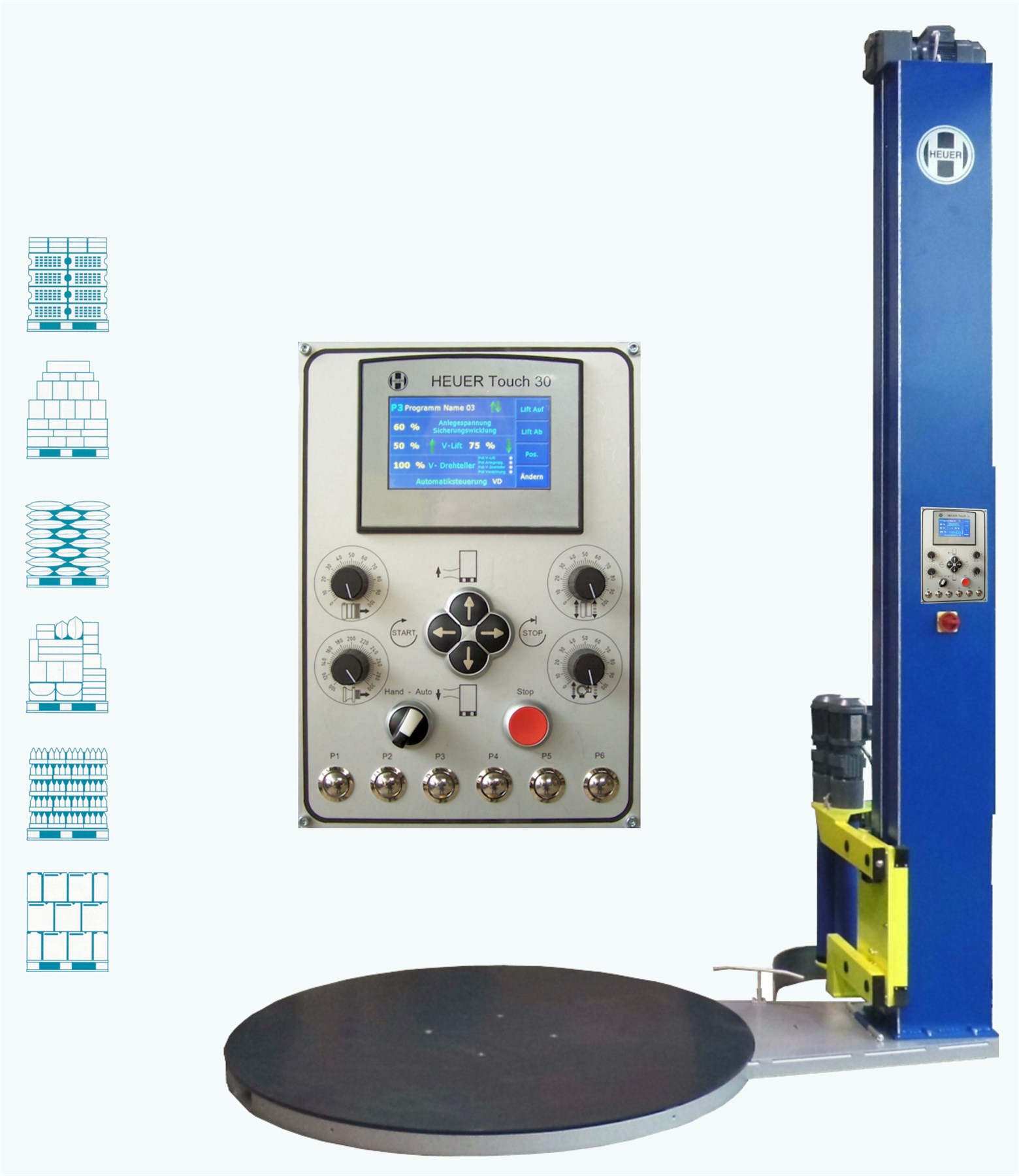

| Semi-automatic stretch wrapper (turntable) | HEUER & SOHN Touch 30 | – | Ø 1,650 mm turntable, max. pallet dimensions 1,000 × 1,200 mm, max. pallet height 2,400 mm, 1,500 kg | – | Tespe/Avendorf |

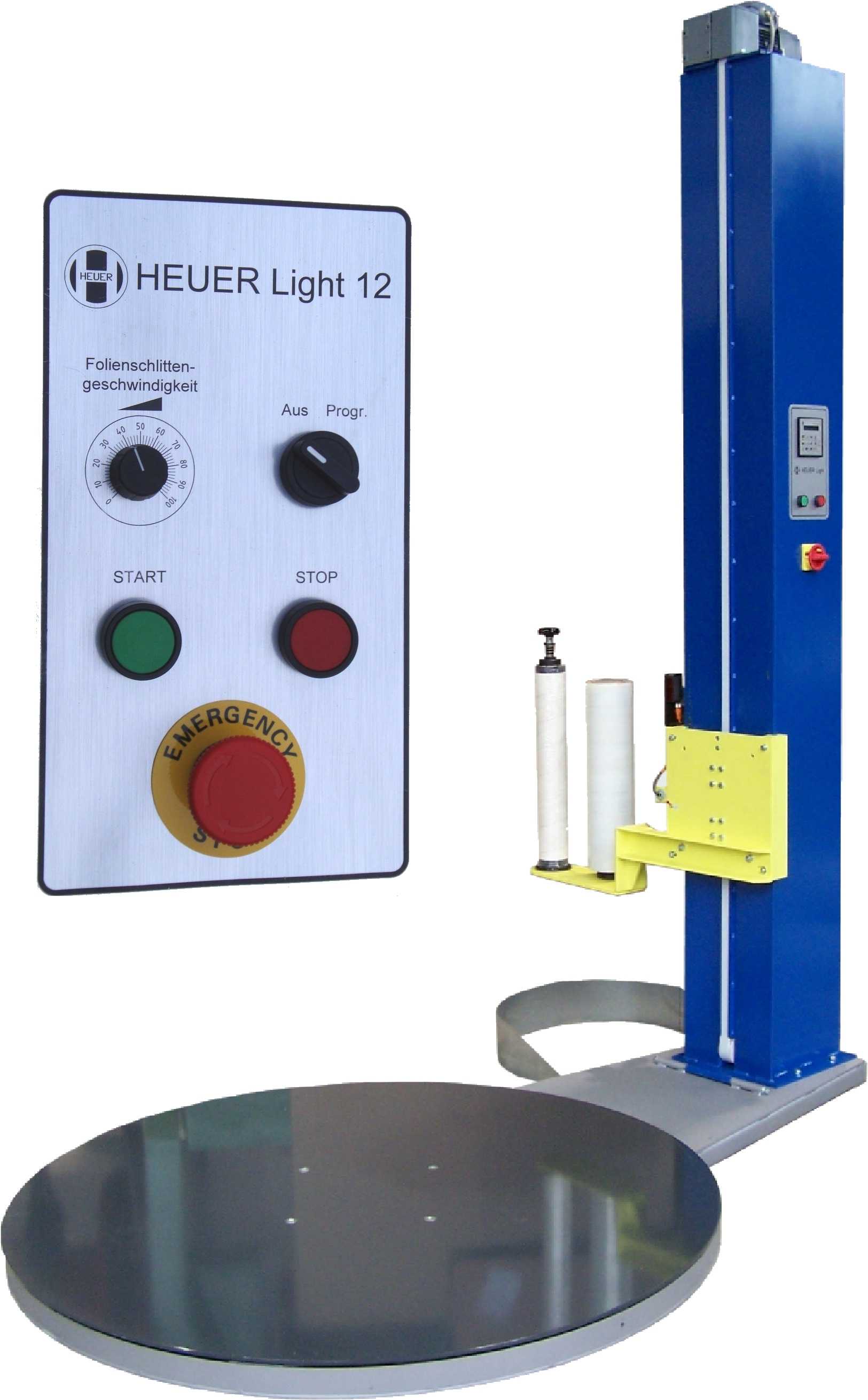

| Semi-automatic stretch wrapper (turntable) | HEUER & SOHN Light 12 | – | Ø 1,500 mm turntable, max. pallet dimensions 1,000 × 1,200 mm, max. pallet height 2,400 mm, max. | – | Tespe/Avendorf |

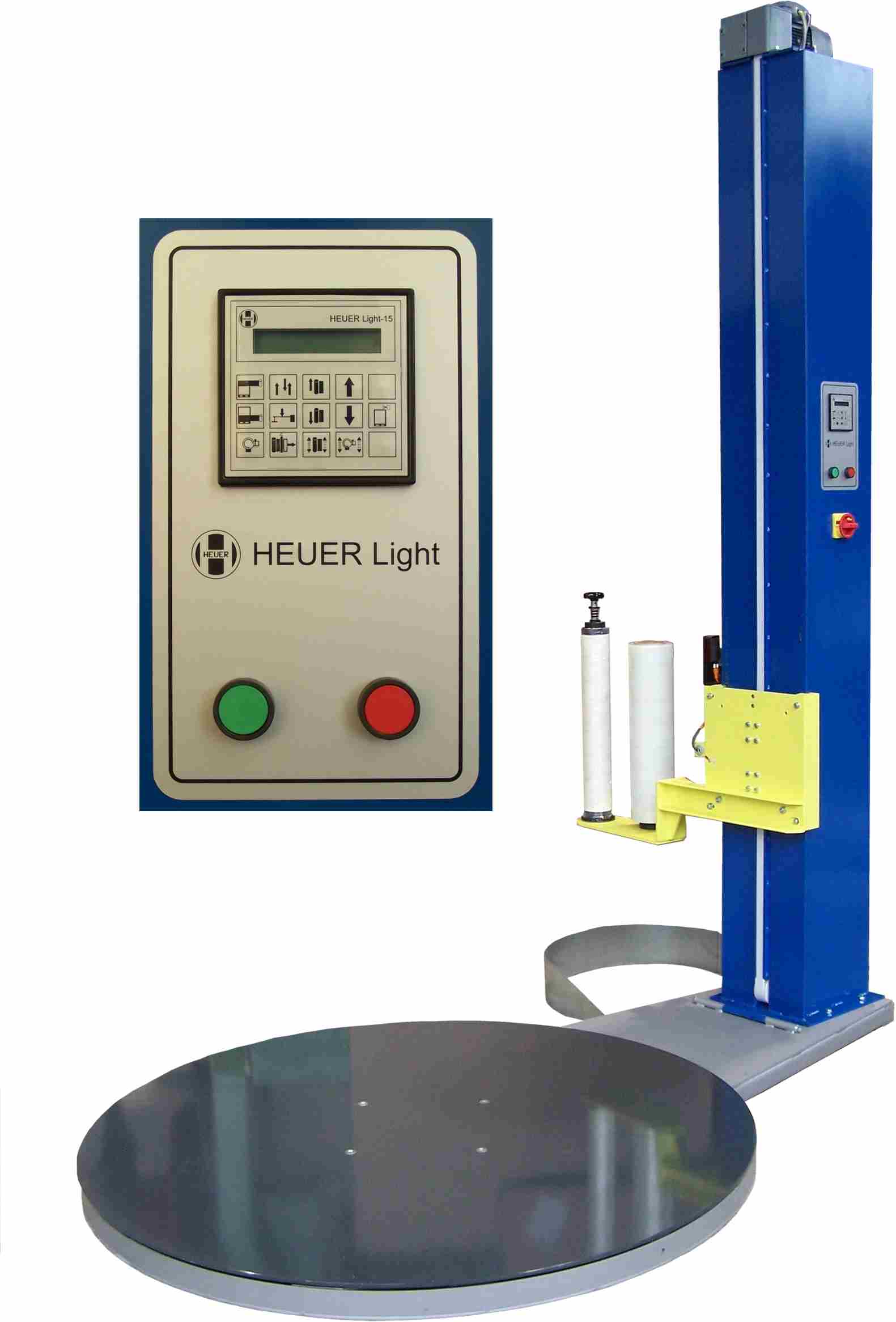

| Semi-automatic stretch wrapper (turntable) | HEUER & SOHN Light 15 | – | Ø 1,500 mm turntable, max. pallet dimensions 1,000 × 1,200 mm, max. pallet height 2,400 mm, max. | – | Tespe/Avendorf |

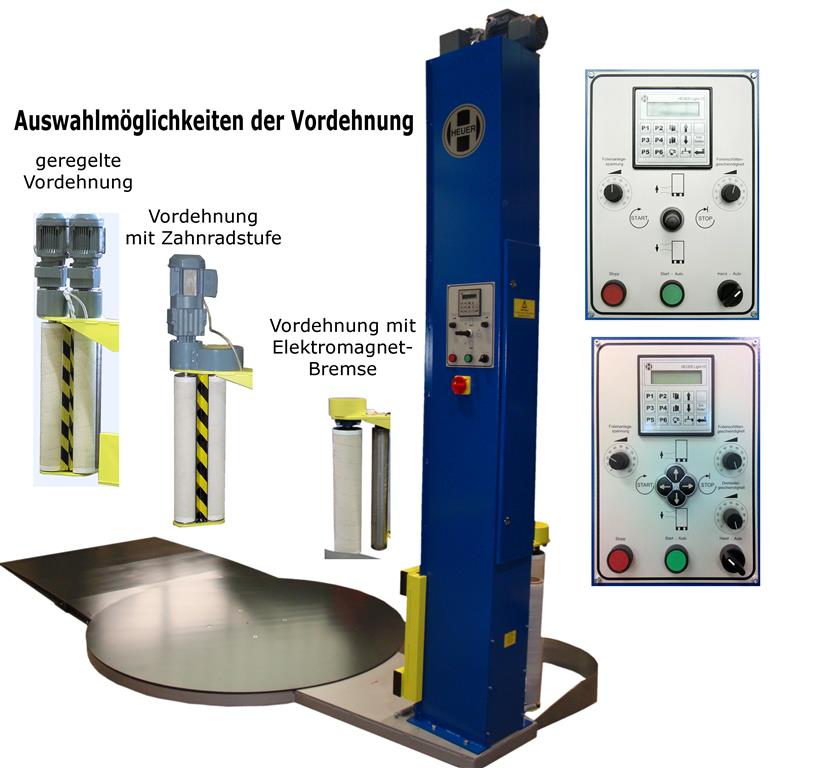

| Semi-automatic stretch wrapper with program memories | HEUER & SOHN Light 15 Joy | – | Ø 1,650 mm turntable, max. pallet dimensions 1,000 × 1,200 mm, max. pallet height 2,400 mm, 1,500 kg | – | Tespe/Avendorf |

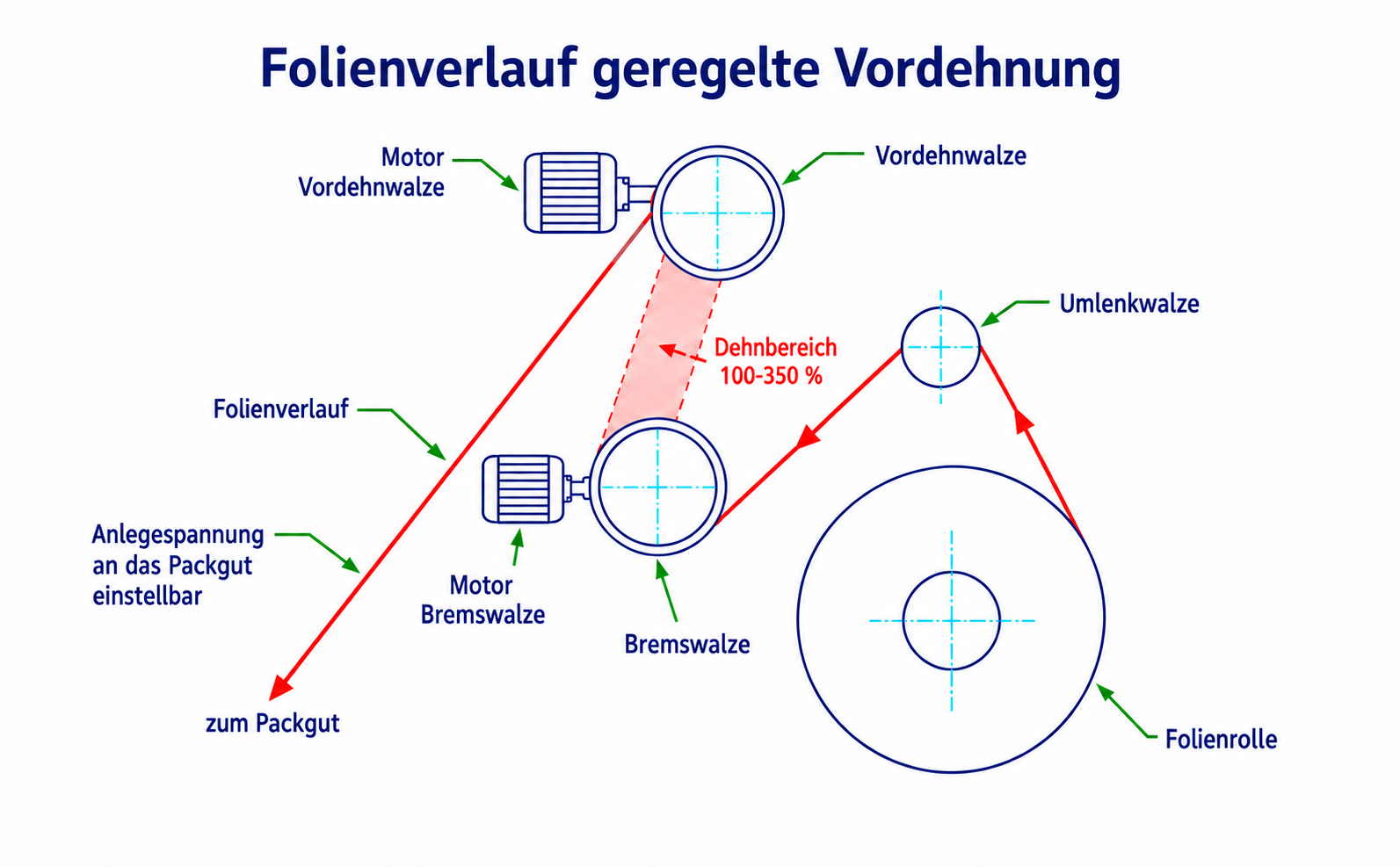

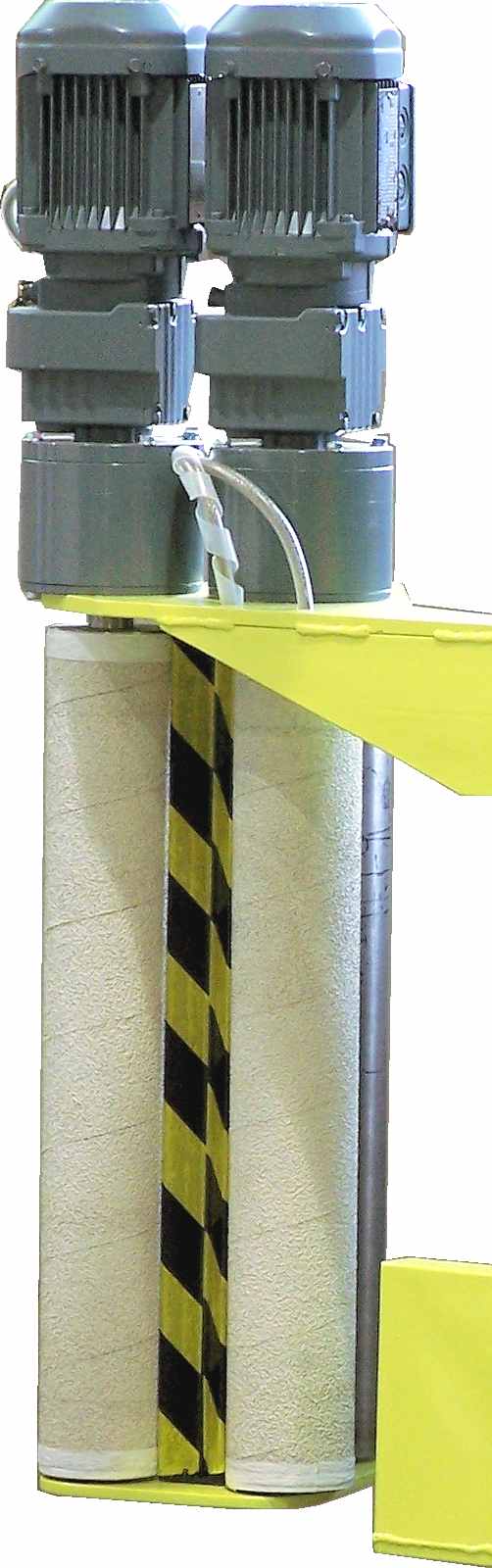

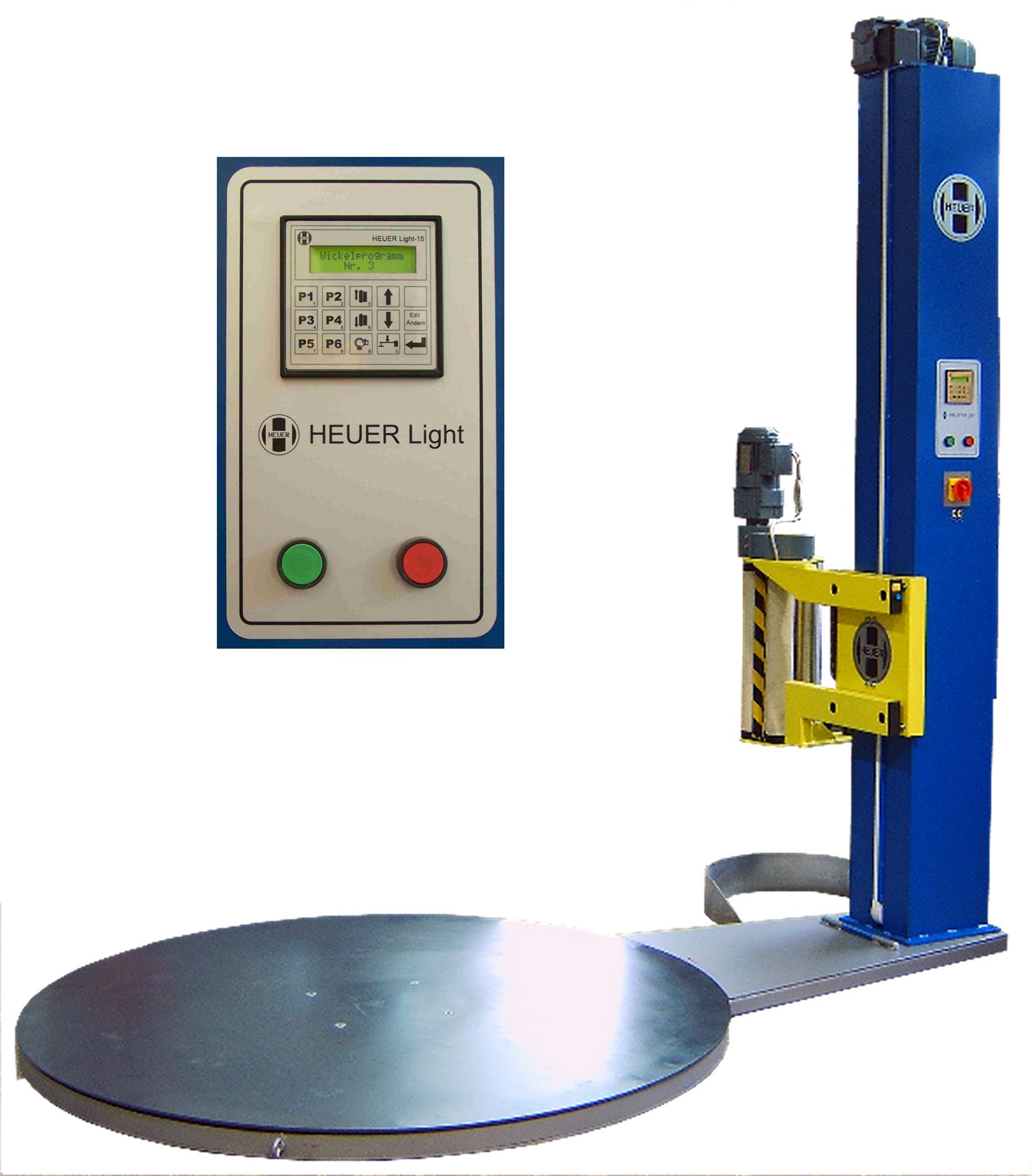

| Semi-automatic stretch wrapper with controlled pre-stretch | HEUER & SOHN Light 15 VD | – | Ø 1,500 mm turntable, max. pallet height 2,400 mm, max. pallet weight 1,500 kg, film stretch | – | Tespe/Avendorf |

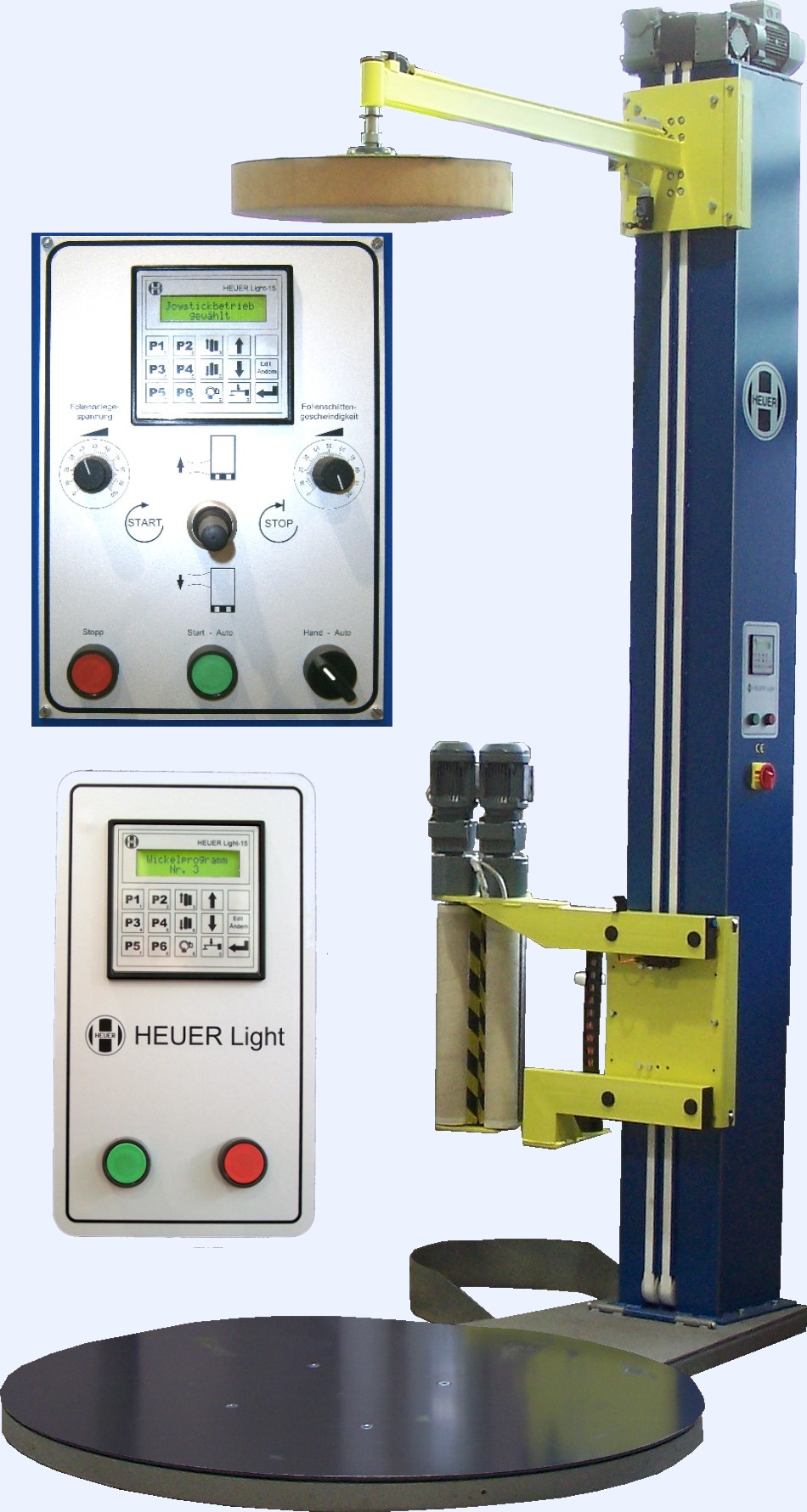

| Semi-automatic stretch wrapper with pre-stretch and hold-down device | HEUER & SOHN Light 15 VD NH | – | Ø 1,650 mm turntable, max. pallet height 2,400 mm, max. pallet weight 1,500 kg | – | Tespe/Avendorf |

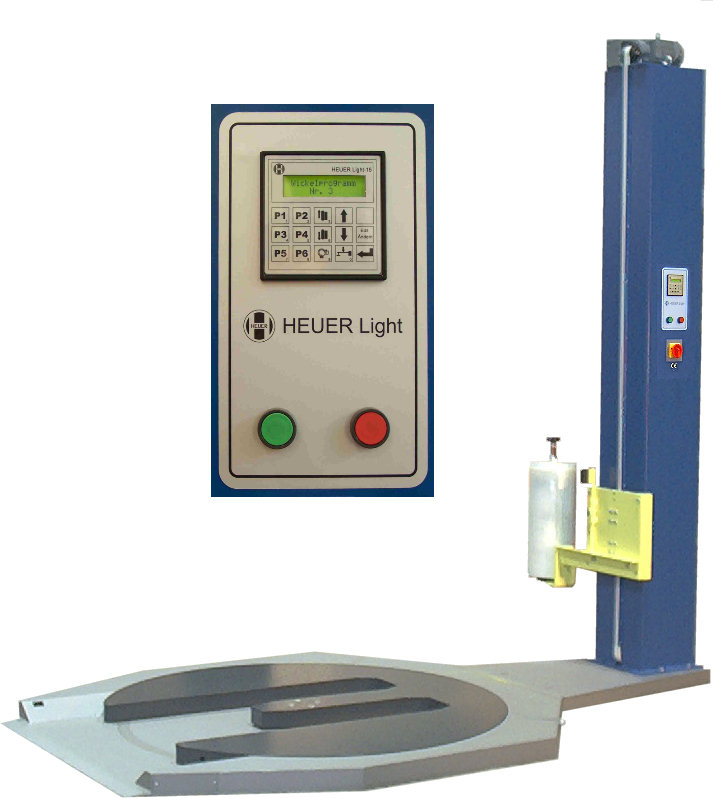

| Semi-automatic stretch wrapper SE version (recessed turntable) | HEUER & SOHN Light 15 SE | – | Ø 1,500 mm turntable, turntable height 75 mm, max. pallet height 2,400 mm, max. pallet weight 1,500 | – | Tespe/Avendorf |
| Semi-automatic stretch wrapper SE VA version (hygienic environments) | HEUER & SOHN Light 15 SE VA | – | Ø 1,500 mm turntable, turntable height 70 mm, max. pallet height 2,400 mm, max. pallet weight 1,500 | – | Tespe/Avendorf |

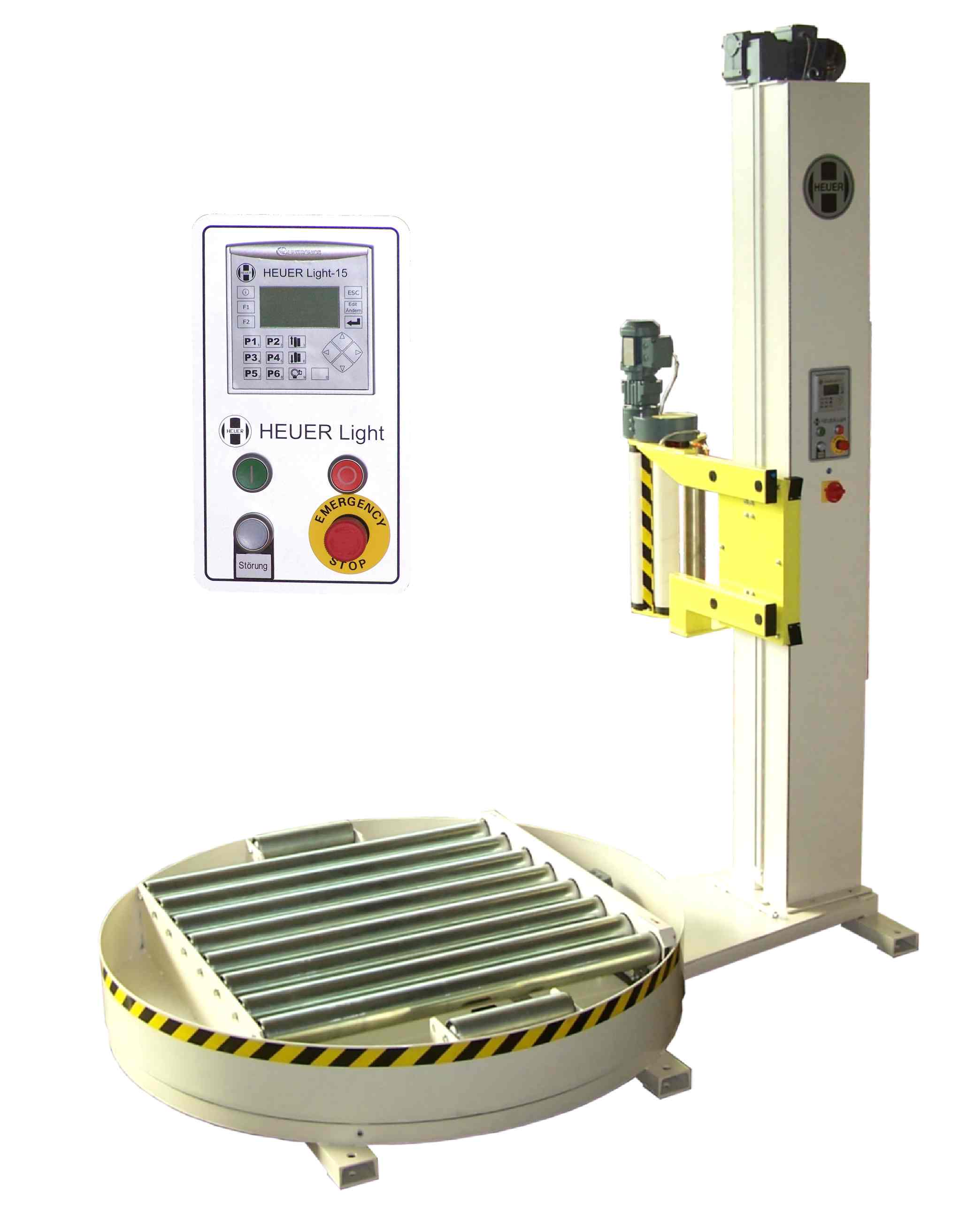

| Stretch wrapper with powered roller conveyor | HEUER & SOHN Light 15 Rollenbahn | – | Ø 1,650 mm turntable, turntable height 390-450 mm, max. pallet height 2,200 mm, max. pallet weight | – | Tespe/Avendorf |

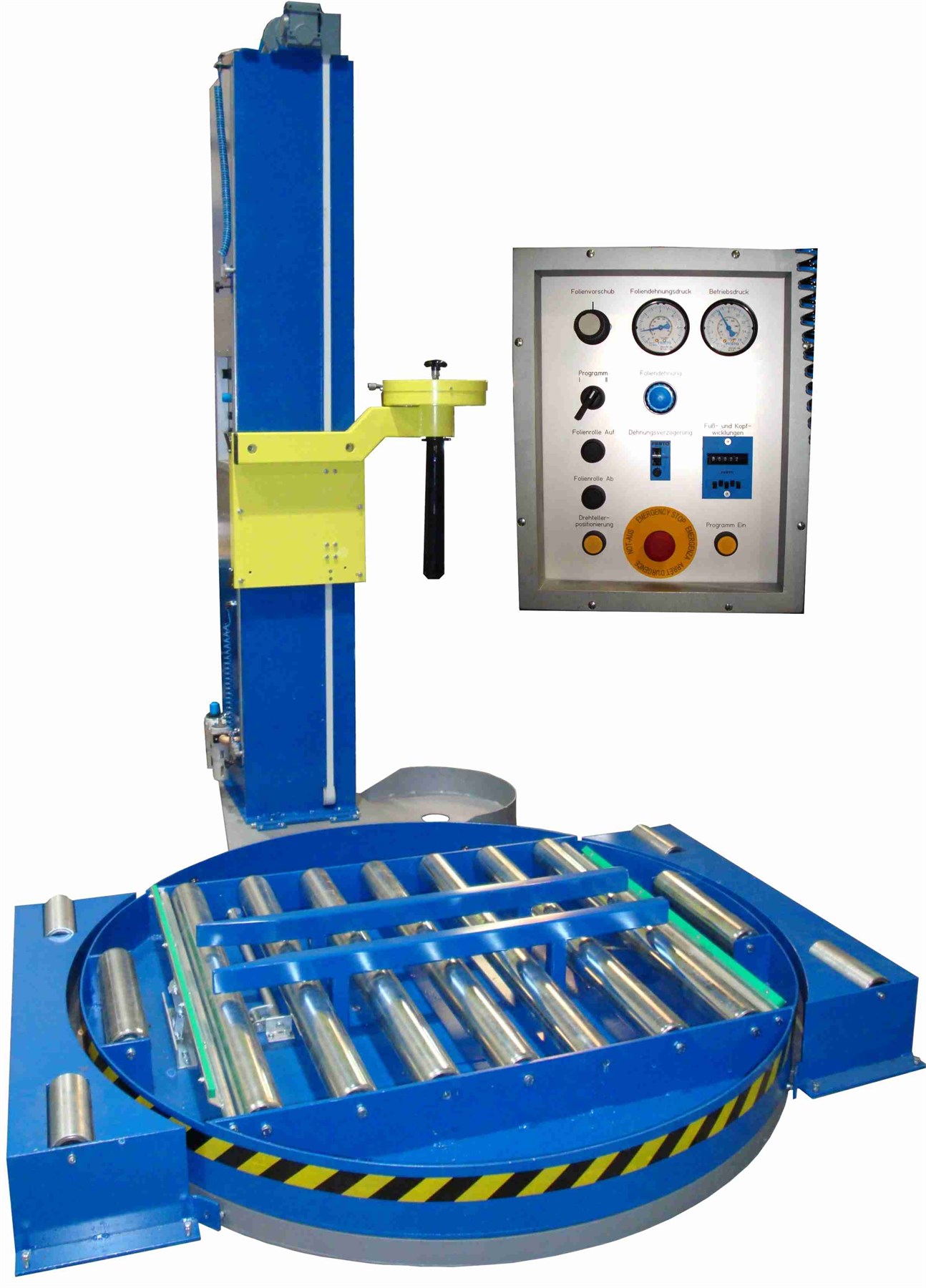

| Stretch wrapper with pneumatically controlled wrapping program and roller conveyor | HEUER & SOHN Light 15 Pneu | – | Ø 1,650 mm turntable, max. pallet height 2,200 mm, max. pallet weight 1,500 kg, 0.8 kW, approx. 30 | – | Tespe/Avendorf |
| Rotary arm wrapper | HEUER & SOHN DAV 40 | – | Rotary arm radius 1,300 mm, EURO pallets 800 × 1,200 mm, load height min. 450 mm / max. 2,000 mm, | – | Tespe/Avendorf |
| Rotary arm wrapper with hold-down device | HEUER & SOHN DNV 40 | – | Rotary arm radius 1,300 mm, EURO pallets 800 × 1,200 mm, load height min. 450 mm / max. 2,000 mm, | – | Tespe/Avendorf |

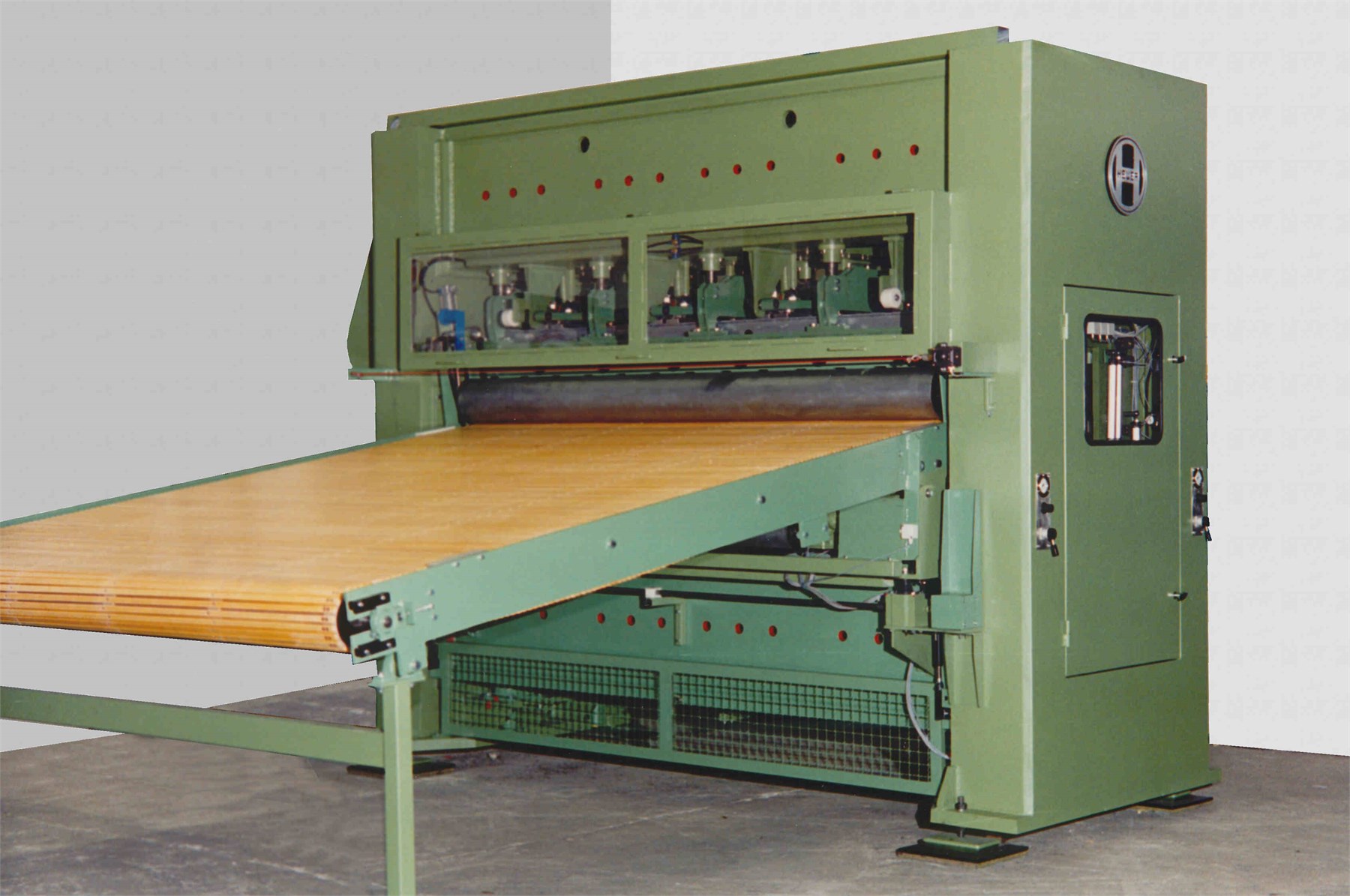

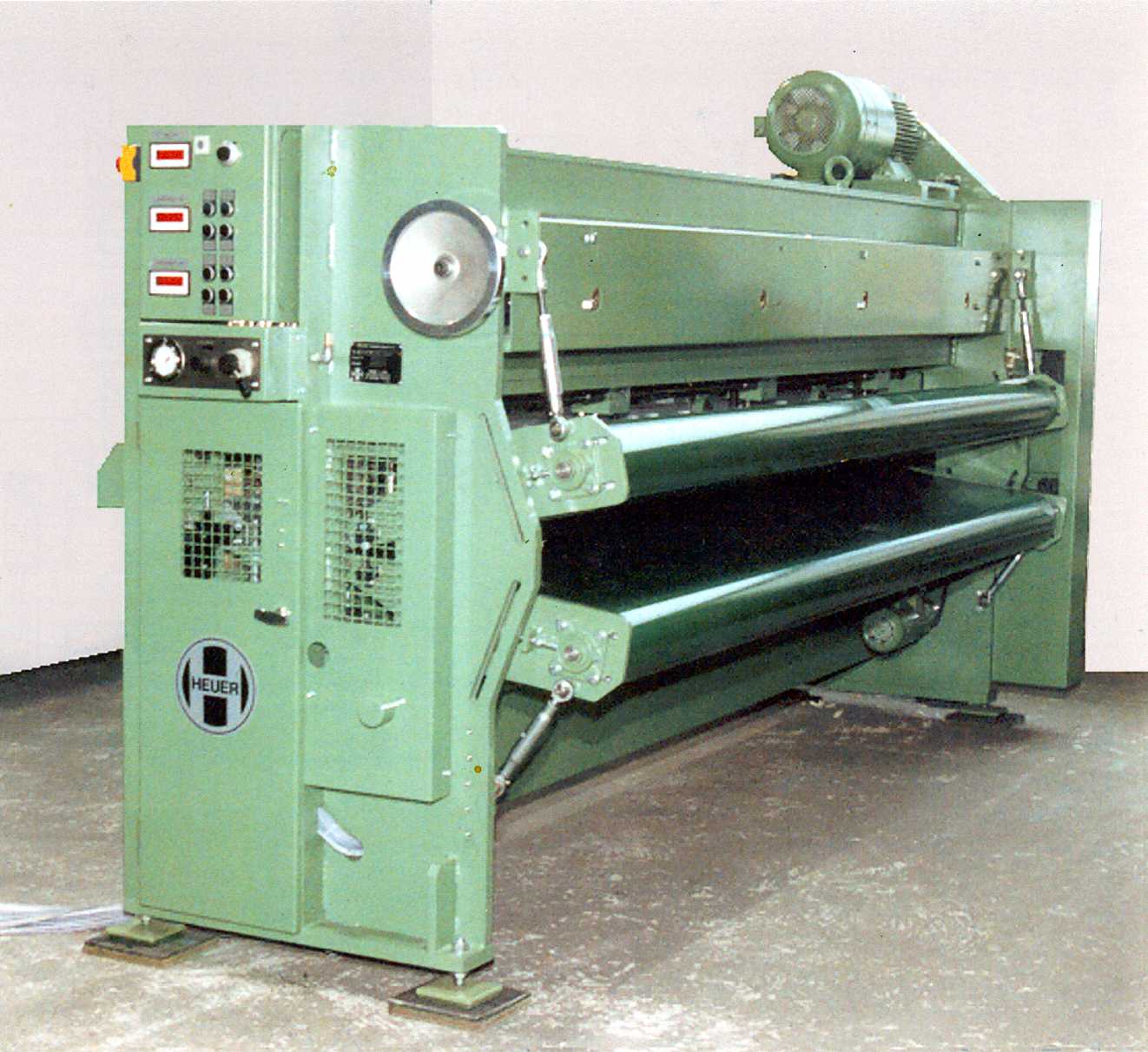

| Pre-needle machine | HEUER & SOHN V12 | – | large material feed height, for pre-consolidating bulky fiber materials | – | Tespe/Avendorf |
| Main needle machine | HEUER & SOHN Baureihe 24 | – | – | – | Tespe/Avendorf |

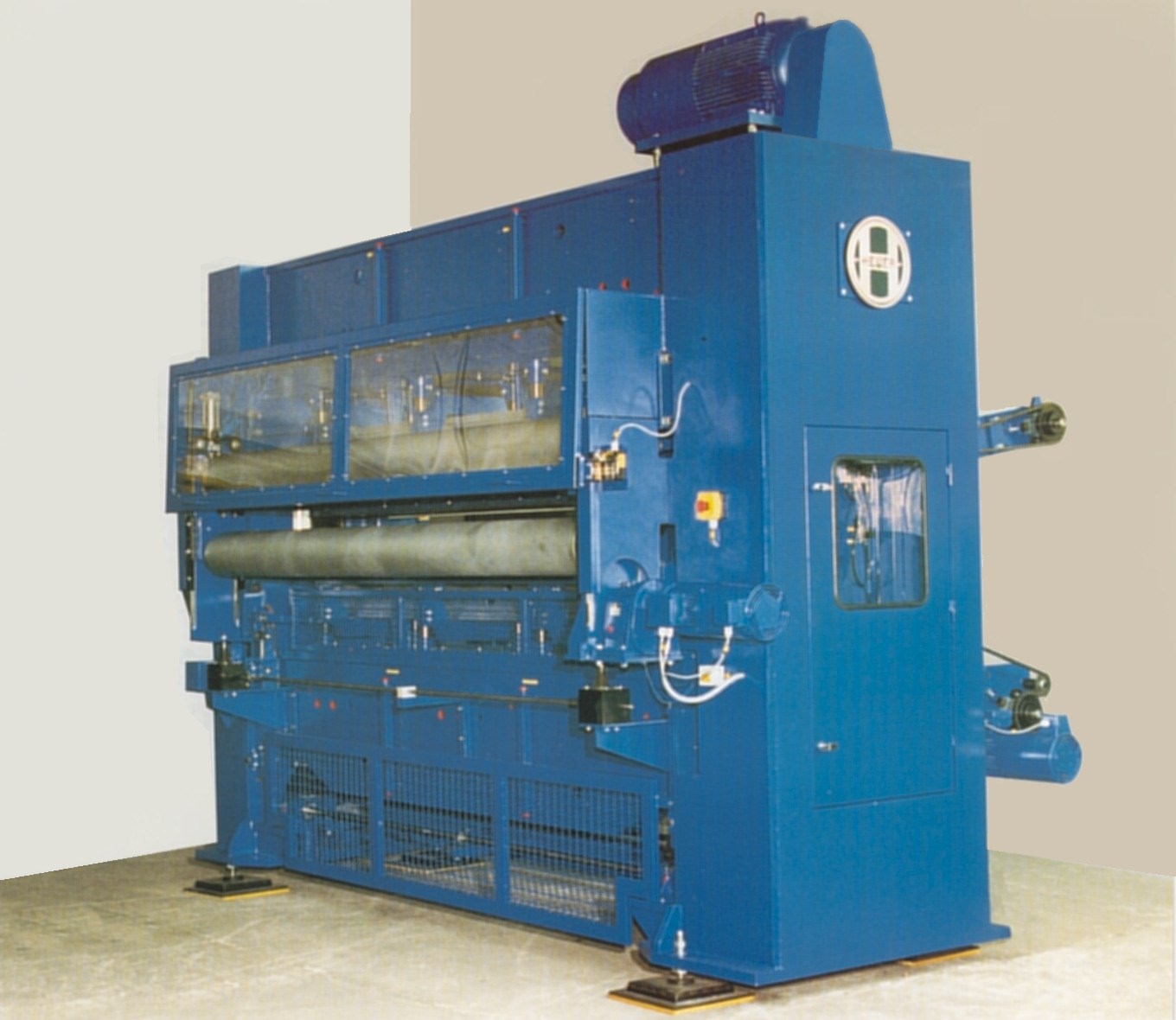

| Duplex needle machine | HEUER & SOHN Duplex 30DU | – | double-sided or alternating needle punching in needle beams | – | Tespe/Avendorf |
| Needle machine series | HEUER & SOHN Baureihe 36 | – | Nonwoven applications | – | Tespe/Avendorf |
| High-performance needle machine | HEUER & SOHN 48 | – | two needle beams, high needle-punching density | – | Tespe/Avendorf |
| High-performance duplex needle machine | HEUER & SOHN 48DU | – | two needle beams in one needle zone | – | Tespe/Avendorf |
Additional services
Quality
Systems are designed with safety technology; operating and control technology (touch panel/PLC) is developed in-house. No information on certificates is available.
| Evidence | Tespe/Avendorf |
|---|---|
| Safety technology in systems engineering |
History
- 1924
The company's roots in mechanical engineering go back to 1924.
- 1970er
Construction of a pilot plant for needle-felt investigations developed by RWTH Aachen in Tespe/Avendorf.
- Heute
Owner-managed company; machine solutions from idea through design, manufacturing, electrical engineering and programming from a single source; focus on winding technology, special machinery and needle-felt machines.
