Piping, wear protection and engineering for gravel plants and wet processing plants
HF Rohrleitungs- und Anlagenbau GmbH & Co. KG
Forstinning (headquarters) · Probstzella (manufacturing workshop)New on Amplifa
About us
HF Rohrleitungs- und Anlagenbau GmbH & Co. KG is an owner-managed family business with more than 50 years of experience in piping for gravel plants and other wet processing plants. Its range of services covers engineering, manufacturing and installation: the company plans the complete water circuit of a plant from fresh water through process water to wastewater, designs and models pipework in 3D AutoCAD, and manufactures pipes, pipe bends, T-pieces, reducers, distributors, fittings, pontoon systems and installation-ready pipework in steel, HDPE or rubber-lined versions. The workshops in Forstinning and Probstzella also perform rubber lining, hot and cold vulcanization and the lining of components with rubber, polyurethane or ceramics. The offering is complemented by valves, compensators, conveying hoses, pumps, wear protection as well as maintenance, repair and national and international installation.
- Site
- Forstinning
- Processes

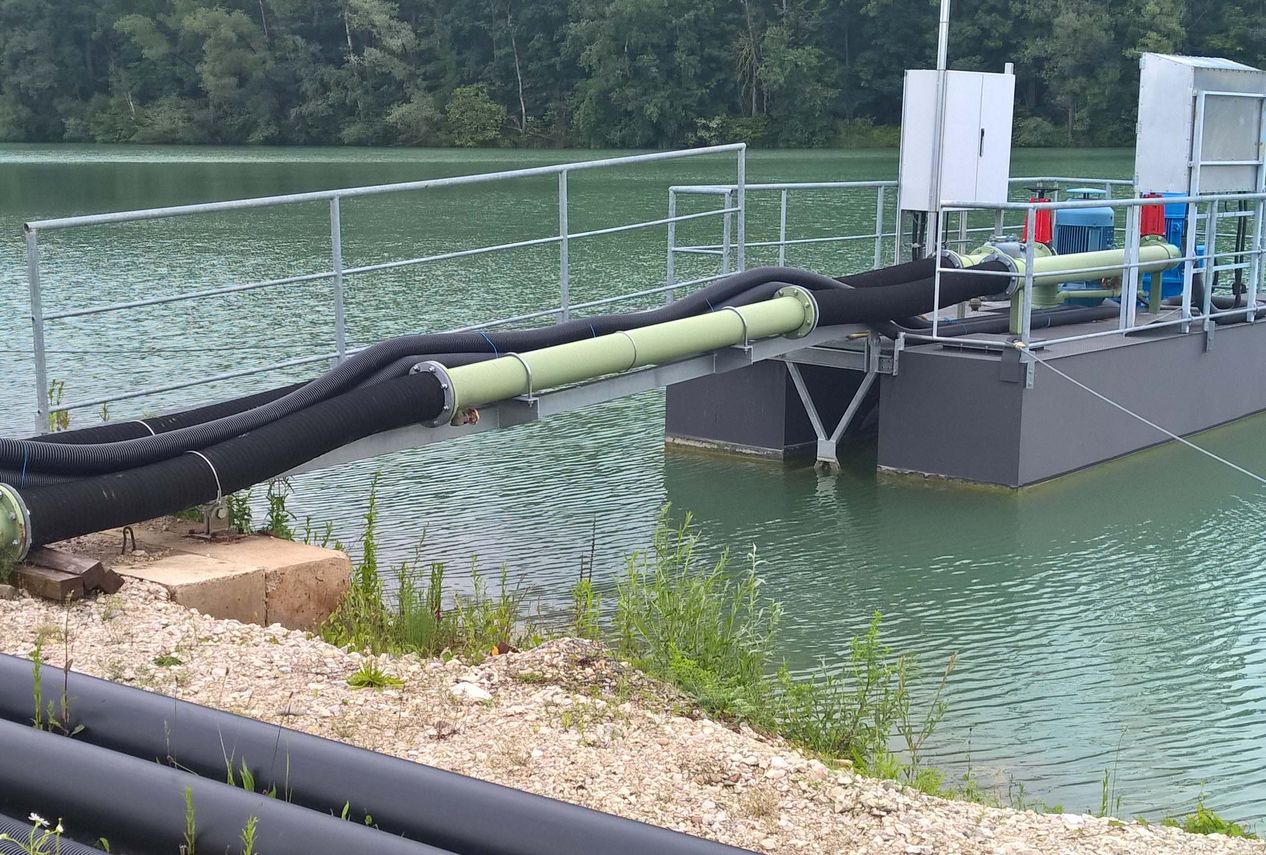

- Pipe manufacturing (pipes, pipe bends, T-pieces, reducers, distributors, fittings), Rubber lining of pipes and fittings with wear-resistant rubber, Hot and cold vulcanization of components, PU spray coating, Production of components by casting process, Wear protection lining (rubber, PU and ceramic plates, lining of containers, hoppers), Installation of piping systems (steel, PE plastic, various connection methods),, Painting of pipelines in RAL colors
- Materials
- Steel pipe P235 according to EN 10217-1, HDPE pipes SDR 11/SDR17, Wear-resistant rubber (various grades, e.g. 35° Shore A), Natural rubber T40 (Metso Trellex), SBR rubber T60 (Metso Trellex), EPDM (compensator bellows), NBR (seals, compensator bellows), PTFE (compensator coating)
- Certificates
- Welding qualification DIN EN 287, Piping standard DIN EN 13480, ISO 9001
- Founded
- 1998
- Industries
- Gravel plants, Wet processing plants, Concrete plants, Mining, Water treatment, Sewage treatment plants
- 01
Engineering (water circuit, 3D AutoCAD, manufacturing drawings)
- 02
Pipe prefabrication in the workshop
- 03
Rubber lining, vulcanization, wear protection lining
- 04
Painting according to RAL
- 05
Delivery and national/international installation
- 06
Maintenance, repair and spare parts management
Materials and processes
Steel pipe P235 (EN 10217-1)
Pipes from DN 20 to DN 1000 for the pipework of wet processing plants.

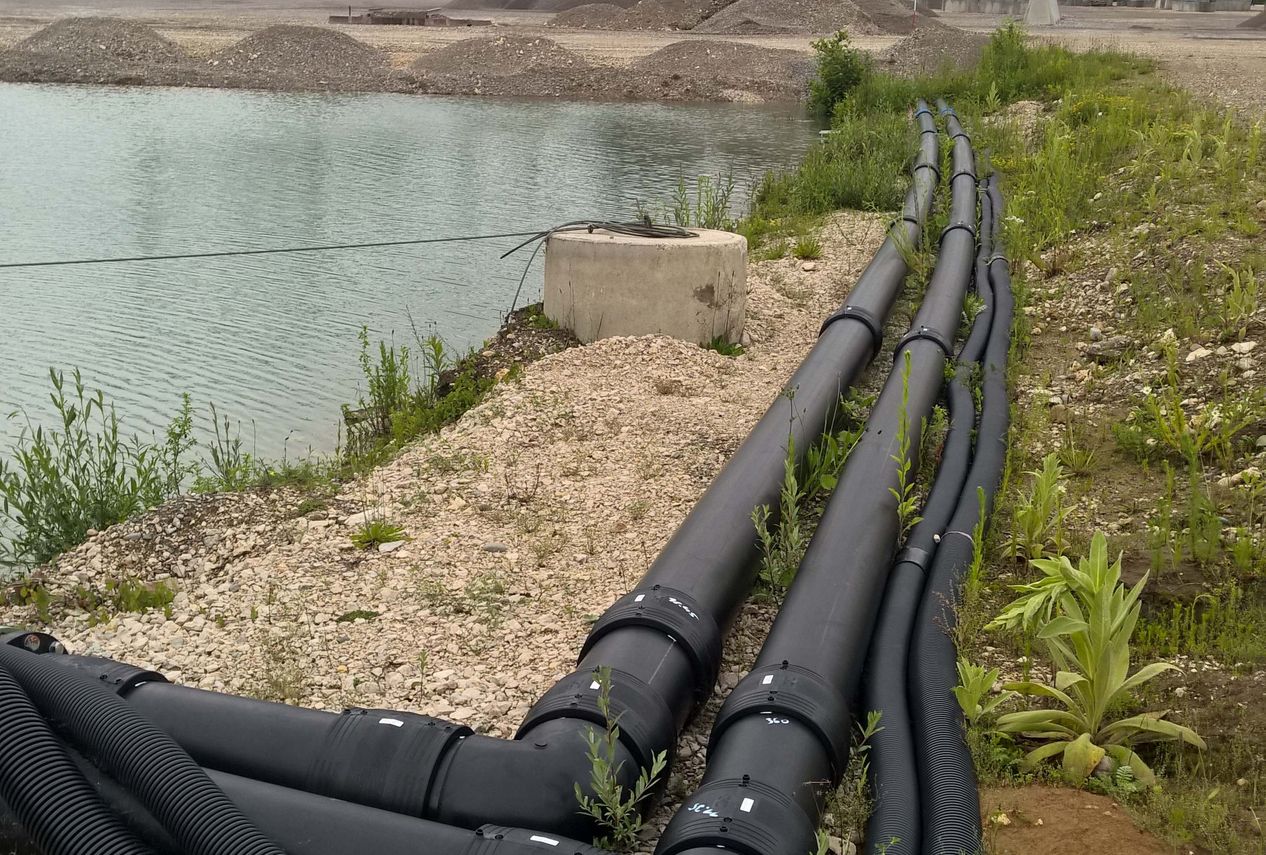

HDPE pipes SDR 11/SDR 17
Plastic pipes from DN 20 to DN 1000 for fresh water and wastewater pipework.
Wear-resistant rubber (among others 35° Shore A)

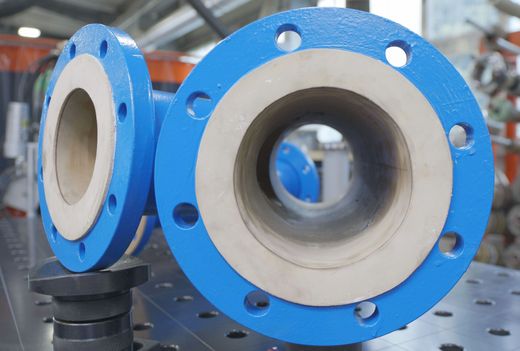

Lining of pipes, fittings, pump housings and cyclones against abrasive wear.
Metso Trellex natural rubber T40 / SBR T60
Highly abrasion-resistant rubber spiral hoses for hydraulic and pneumatic slurry hose systems.
EPDM
Bellows for rubber compensators for vibration and thermal expansion compensation.
NBR
Seals and compensator bellows for abrasive media.
PTFE and Hypalon coating
Coated compensators with stainless steel flanges for the chemical industry.
Polyurethane
Spray coating of small, complex components as well as wear protection plates.
Ceramics
Linings for highly stressed plant components.
Stainless steel, grey cast iron
Materials for valves such as knife gate valves, DN 25 to DN 300, 0–16 bar.
Aluminium
Couplings for Metso Trellex hose systems.
Sites

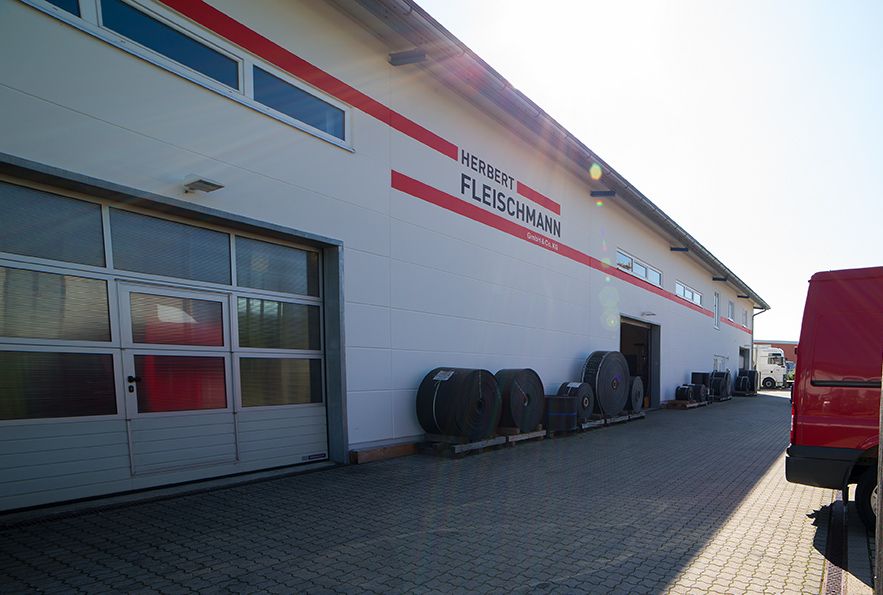

Forstinning
DEHeadquarters, workshop for rubber lining/vulcanization, valve warehouse
- Materials
- Rubber, polyurethane, ceramics
- Workshop for rubber lining/vulcanization
- Valve and pipe warehouse

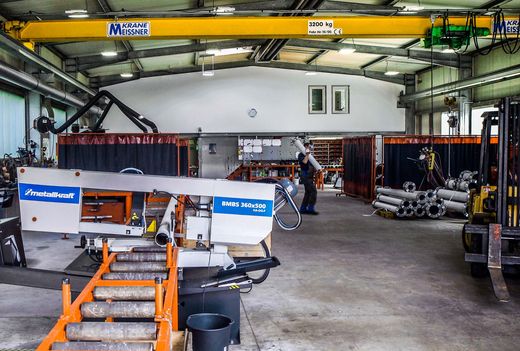

Probstzella
DEWorkshop for pipe prefabrication, valve warehouse
- Lot size
- Individual parts up to complete piping systems
- Materials
- Steel, HDPE, wear-resistant rubber
- Workshop for pipe prefabrication (pipes, bends, T-pieces, reducers, distributors, fittings)
- Valve and pipe warehouse
Components and products
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Pipe manufacturing (pipes, pipe bends, T-pieces, reducers, distributors, fittings)Joining | – | – | – | – | Steel (P235), HDPE, Steel with rubber lining |
| Rubber lining of pipes and fittings with wear-resistant rubberSurface | – | – | – | – | Steel, Wear-resistant rubber (various grades, e.g. 35° Shore A) |
| Hot and cold vulcanization of componentsSurface | – | – | – | – | Rubber |
| PU spray coatingSurface | – | – | – | – | Polyurethane |
| Production of components by casting processCasting | – | – | – | – | Rubber/plastic |
| Wear protection lining (rubber, PU and ceramic plates, lining of containers, hoppers)Surface | – | – | – | – | Rubber, Polyurethane, Ceramics |

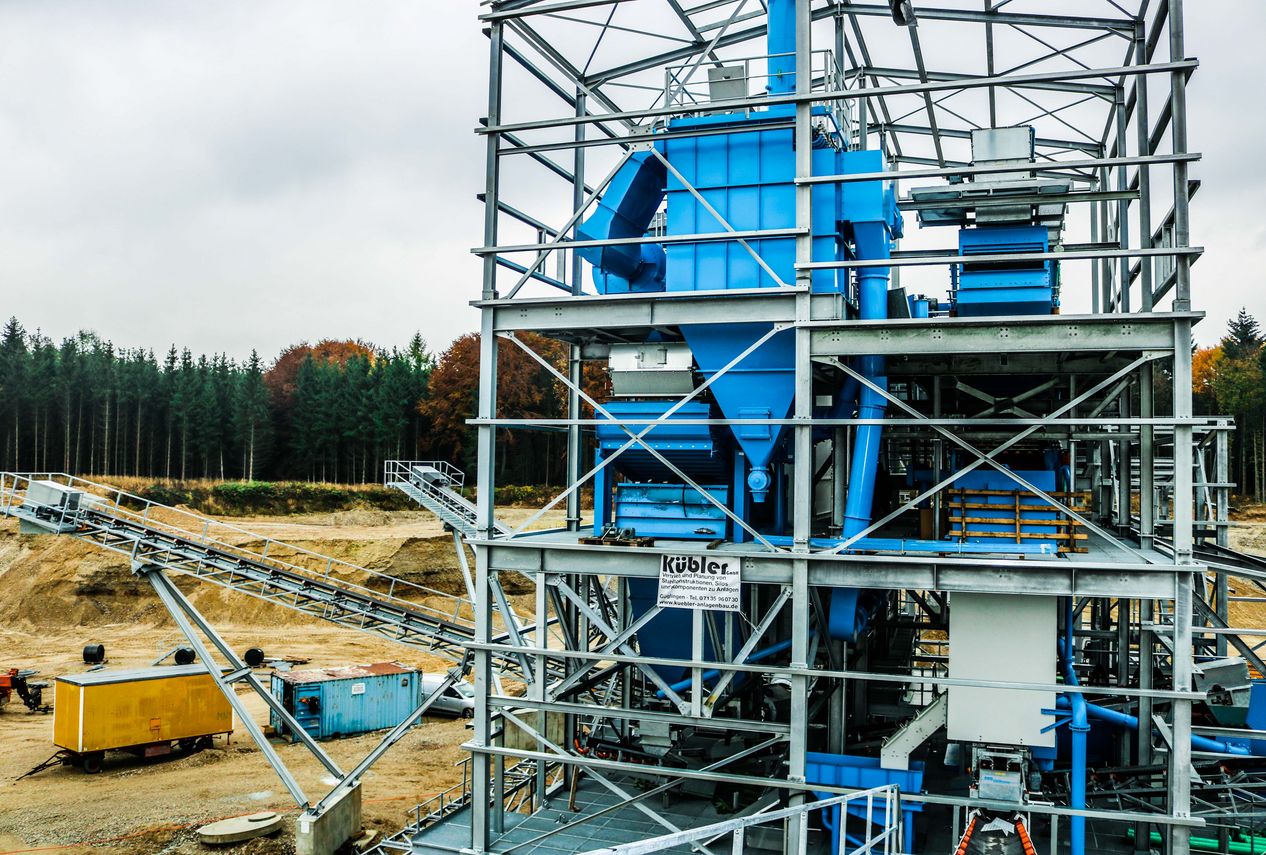

| Installation of piping systems (steel, PE plastic, various connection methods),Assembly | – | – | – | – | Steel, HDPE |
| Painting of pipelines in RAL colorsSurface | – | – | – | – | Steel |
| Engineering: planning of water circuit, pipe cross-section dimensioningEngineering | – | – | – | – | – |

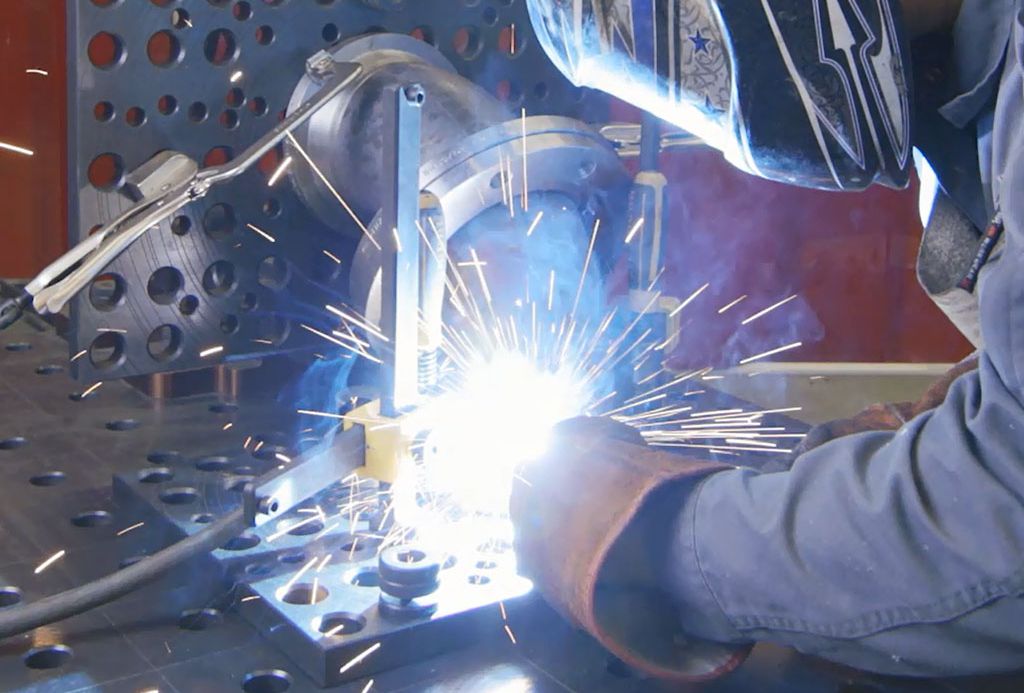

| Welding (trained welders in piping construction)Joining | – | – | – | – | Steel |
| Repair/reconditioning of pump housings, impellers, pipelinesAssembly | – | – | – | – | Steel, Rubber |
| Manufacture of seals to customer specificationsPlastics | – | – | – | – | Rubber |
2 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Workshop (pipe prefabrication) | – | – | – | – | Probstzella, Ludwigsstädter Str. 3 |
| Workshop (rubber lining/vulcanization) | – | – | – | – | Forstinning, Römerstraße 28 |
Additional services
Reference customers
Quality
Installation managers, welders and fitters receive continuous training; welding is carried out according to DIN EN 287 and DIN EN 15609. Pipelines are manufactured according to DIN EN 13480, flanges according to DIN 2501 and ANSI B16.5, painting according to DIN EN ISO 12944.
| Evidence | Forstinning | Probstzella |
|---|---|---|
| Welding qualification DIN EN 287 | ||
| Piping standard DIN EN 13480 | ||
| ISO 9001 |
History
- 1970
Company founded by Herbert Fleischmann sen. in Haar; piping for gravel plants
- 1976
Start of the vulcanization and wear protection technology divisions
- 1982
Herbert Fleischmann jun. joins the company; founding of Herbert Fleischmann GmbH
- 1983
Helmut Fleischmann starts as a fitter in the piping division
- 1991
Opening of the branch in Unterwellenborn, Thuringia
- 1993
Gabriele Fleischmann begins her work
- 1994
Management handed over to the brothers Herbert and Helmut Fleischmann
- 1998
Spin-off of the piping and plant construction division; founding of HF Rohrleitungs- und Anlagenbau GmbH based in Unterwellenborn
- 2001
New building in Forstinning
- 2002
Relocation of operations from Haar to Forstinning
- 2004
Death of company founder Herbert Fleischmann sen.
- 2013
Conversion of both companies into a GmbH & Co. KG
- 2014
Wolfgang-Andreas Fleischmann joins the company; relocation from Unterwellenborn to Probstzella
- 2016
Florian Fleischmann starts in piping and plant construction
- 2022
Handover of the company to the third generation (Florian and Andreas Fleischmann)
