Manufacturer of cast-iron sectional boilers (wood gasification, pellet boilers) as well as nostalgic cast-iron radiators.
IBC Heiztechnik & Nostalgie Wohnprodukte
Sondershausen (Thuringia)New on Amplifa
About IBC Heiztechnik

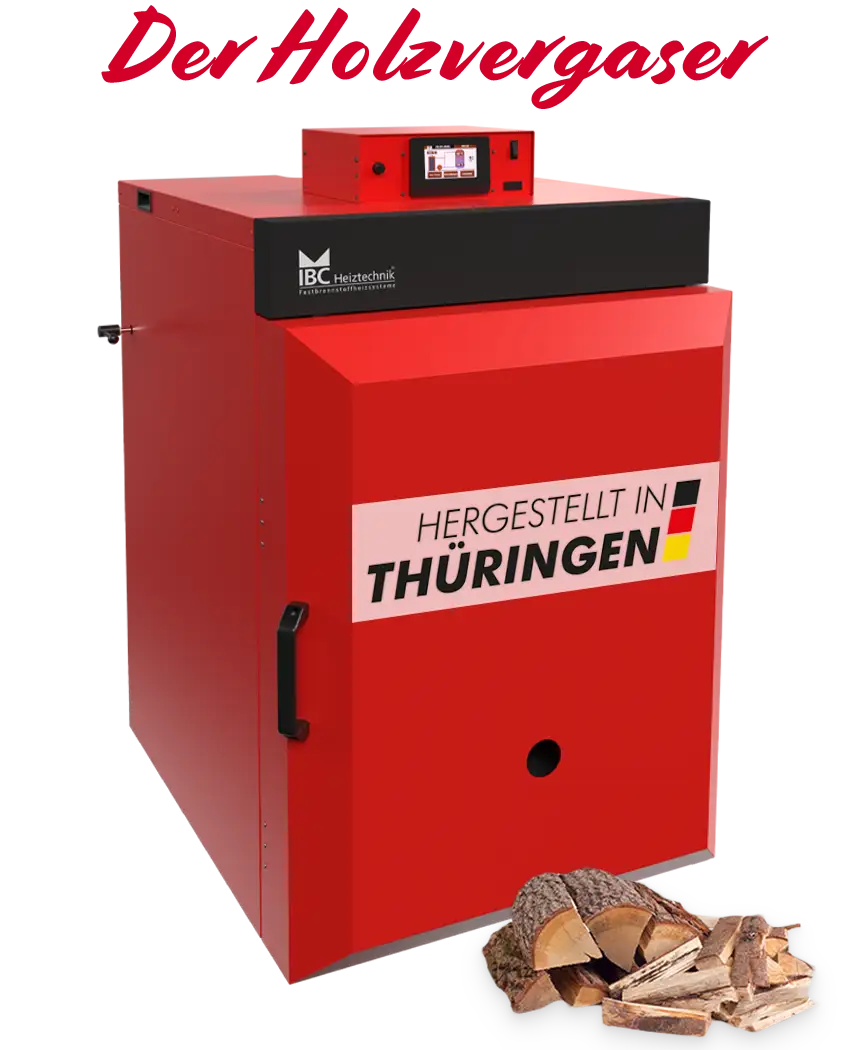

IBC Heiztechnik & Nostalgie Wohnprodukte is a medium-sized family business based in Sondershausen (Thuringia) and a manufacturer of cast-iron boilers as well as nostalgic cast-iron radiators. The product range includes wood gasification boilers (IBC GK-7K öko, 24.5/30/36 kW), pellet heating boilers (IBC GK-8K öko, 13/22/32 kW), buffer tanks, solar thermal packages, chimney systems and installation accessories. The boilers are manufactured according to the cast-iron sectional principle: the cast iron for boiler sections and radiator sections is cast in cooperation with the WESO Aurorahütte foundry in Gladenbach; final assembly of the sectional cast-iron boilers takes place in Sondershausen. The cast-iron radiators are offered as models CLASSICO, FLOREAL, RETRO and DK Classic in any desired number of sections. In addition to manufacturing, IBC offers individual heating consultation, KfW funding support, telephone support, remote maintenance and nationwide shipping. The company continues the tradition of the Harzer Werke, where radiators and boilers made of cast iron have been produced since 1909.
- Site
- Sondershausen
- Processes
- Casting of cast-iron boiler sections (sectional cast-iron boilers, sectional construction), Production of cast radiator sections (radiators, models CLASSICO, FLOREAL, RETRO, DK Classic), Production of cast staircase elements, Pressure testing of cast sections (at least 8 bar, burst pressure up to 21 bar), Development and design of cast boiler sections, boilers and controls, Production of solar thermal flat-plate collectors (FKF 200V/240V/270V) in partnership (STI, Saxony), Individual heating consultation, KfW funding service (support with applications)
- Materials
- Cast iron (lamellar graphite min. GJL-200), Grey cast iron, Sheet steel, Stainless steel (heat exchangers in hygienic storage tanks), Copper, Brass, Cast iron (lamellar graphite, min. GJL-200), Stainless steel
- Certificates
- Test standard DIN EN 442-1,2,3 (cast-iron radiator Classico), Test standard DIN EN 303-5 and BImSchV (boilers), Ecodesign Directive 2009/125/EC, Class A+ (boilers), DIN EN 442-1,2,3 (cast-iron radiators), DIN EN 303-5 / BImSchV (boilers), Ecodesign Directive 2009/125/EC, Class A+
- Industries
- Heating construction/heating technology, Construction trade (heating specialist contractors), Heating specialist wholesale, Renovation of historical/heritage-listed buildings
- 01
Development and design of cast sections, boilers and controls
- 02
Casting of cast-iron sections (foundry partner WESO Aurorahütte, Gladenbach)
- 03
Pressure testing of the cast sections
- 04
Assembly of boiler subassemblies (final assembly line)
- 05
Distribution via specialist contractors, wholesale and factory outlet
- 06
Service, remote maintenance and customer service
Materials & Processes

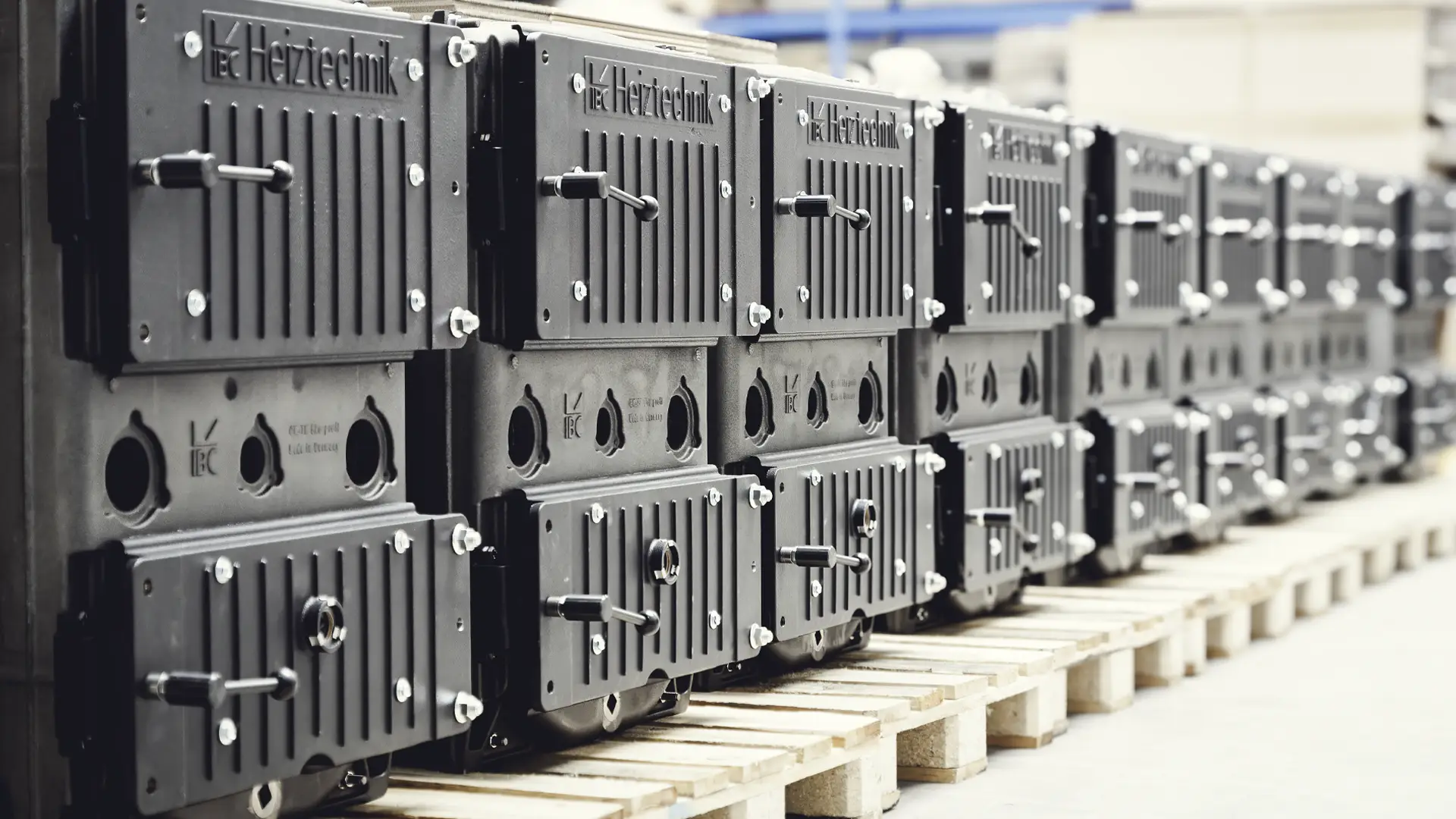

Cast iron (lamellar graphite, min. GJL-200)
Material for sectional cast-iron boilers and cast-iron radiators with high heat storage and long service life.

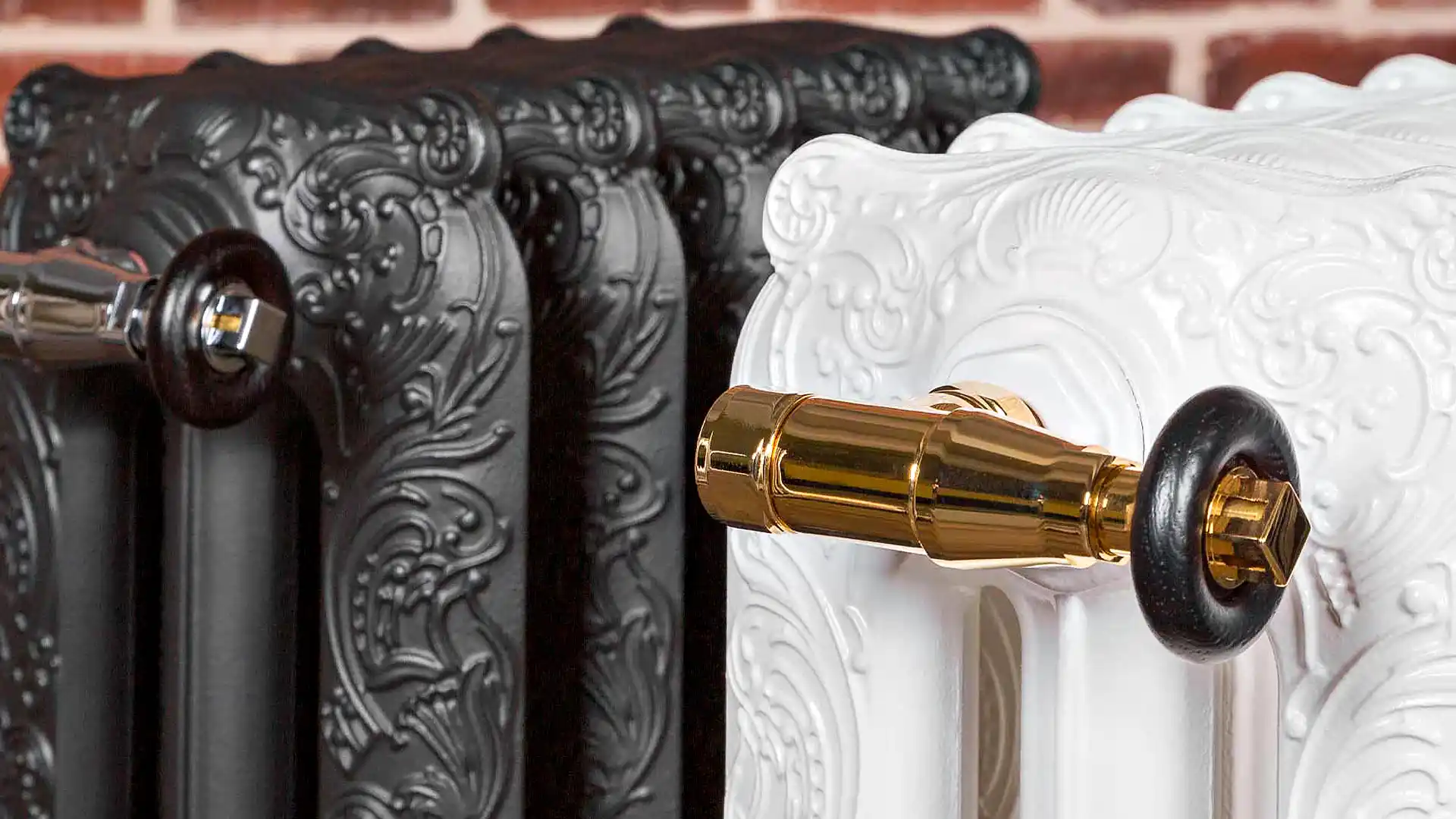

Grey cast iron
Material of the nostalgic cast-iron radiator series CLASSICO, FLOREAL, RETRO and DK Classic.
Sheet steel
Used for cladding and boiler construction components.
Stainless steel
Material of the heat exchangers in hygienic storage tanks.
Locations
Sondershausen
DECompany headquarters, customer center, showroom, factory outlet, development and final assembly
- Part weight / size
- Cast sections 4.2–14 kg per section
- Materials
- Cast iron (GJL-200), sheet steel, stainless steel
- Final assembly line for sectional cast-iron boilers
Gladenbach (foundry partner WESO Aurorahütte)
DECasting of cast-iron boiler sections and radiator sections
- Part weight / size
- Cast sections 4.2–14 kg per section
- Materials
- Cast iron (GJL-200)
- Cupola furnace
Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Casting of cast-iron boiler sections (sectional cast-iron boilers, sectional construction)Casting | – | – | – | – | Cast iron (lamellar graphite min. GJL-200) |
| Production of cast radiator sections (radiators, models CLASSICO, FLOREAL, RETRO, DK Classic)Casting | Construction length +/- 2 mm per section | 970 mm (construction height) | 4.2 kg – 14 kg (per section) | – | Cast iron (lamellar graphite min. GJL-200) |
| Production of cast staircase elementsCasting | – | – | – | – | Cast iron |
| Pressure testing of cast sections (at least 8 bar, burst pressure up to 21 bar)Testing | – | – | – | – | Cast iron |
| Assembly | – | – | – | – | Cast iron, Sheet steel |
| Development and design of cast boiler sections, boilers and controlsEngineering | – | – | – | – | – |
| Production of solar thermal flat-plate collectors (FKF 200V/240V/270V) in partnership (STI, Saxony)Engineering | – | – | – | – | – |
2 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Cupola furnace (at foundry partner WESO Aurorahütte) | WESO Aurorahütte GmbH | – | – | – | Gladenbach/Hesse |
| Final assembly line for sectional cast-iron boilers | IBC Heiztechnik / foundry WESO Aurorahütte | – | – | – | Gladenbach (foundry) / Sondershausen (plant) |
Additional services
Reference customers
Quality
Every cast section undergoes a pressure test (at least 8 bar, burst pressure up to 21 bar). The boilers comply with DIN EN 303-5 and the BImSchV; the cast-iron radiators are tested according to DIN EN 442-1,2,3; a 10-year warranty is granted on cast boiler sections.
| Evidence | Sondershausen | Gladenbach (WESO Aurorahütte) |
|---|---|---|
| DIN EN 442-1,2,3 (cast-iron radiators) | ||
| DIN EN 303-5 / BImSchV (boilers) | ||
| Ecodesign Directive 2009/125/EC, Class A+ |
History
- 1867
Banking house J. L. Eltzbacher & Co. (Cologne) acquires iron ore mines, smelters, foundries and rolling mills in the Harz from the Duchy of Brunswick-Lüneburg.
- 1870
Merger of the plants into the joint-stock company "Harzer Werke zu Rübeland und Zorge".
- 1909
Consolidation of the Blankenburg, Rübeland and Zorge foundries; start of production of radiators and heating boilers.
- 1948
The Harzer Werke become a state-owned enterprise (VEB).
- 1990
Renamed SKET Harzer Werke GmbH; privatization in 1991, followed shortly afterwards by insolvency.
- 1990
After the collapse of the GDR, IBC Heiztechnik further develops the cast sectional technology in a modern design and produces sectional cast-iron boilers.
- 2023
Market launch of the new wood heating generation IBC GK-7K öko; production at the WESO foundry (Aurorahütte) in Gladenbach.
