Cable assemblies for flat, data and round cables – from component purchasing to tested delivery
Kabelkonfektion Kurtaran GmbH
Steinhausen (Zug), Switzerland · Zugerstrasse 14, 6312 SteinhausenNew on Amplifa
Family business with over 30 years of experience in cable assembly
Kabelkonfektion Kurtaran GmbH is a family business in Steinhausen in the canton of Zug, specialising in custom cable and wire assembly. The offering includes flat ribbon cables (standard and halogen-free, pitches 0.635–2.54 mm), data cables shielded and unshielded, round cables (power, patch, control and drag chain cables), round-flat and laminated cables as well as wires with cross-sections from 0.05 to 12.5 mm². The processing steps range from cutting to length with semi- and fully automatic machines to crimping, lead-free soldering and tinning, insulation displacement technology, pressing, shrink-wrapping, twisting for EMC optimisation through to assembly and marking. The company handles the entire service from component purchasing to delivery of tested assemblies, or processes supplied products as contract work. Work is done from prototypes to small series to large orders, exclusively in its own workshop in Steinhausen. Customers come from mechanical engineering, logistics, medical technology, industrial electronics, household appliances and climate technology; partnerships exist with 3M and Würth Elektronik (Schweiz) AG.
- Site
- Steinhausen
- Processes
- Cutting to length, Crimping, Marking, Soldering (soldering and tinning processes, 100% lead-free), Assembly (screw connections and other assembly work), Insulation displacement (solder-free connection technology, focus on flat ribbon cables), Shrink-wrapping, Pressing (conductor cross-sections up to 12.5 mm²)
- Materials
- Flat ribbon cables, Halogen-free flat ribbon cables, Data cable, Round cables, Round-flat cables / flat-round cables, Wires (cross-sections 0.05–12.5 mm²), UL cables, Wires (copper)
- Certificates
- 100% testing (short circuit/interruption), Tools/measuring devices from 3M, ISO 9001
- Founded
- 2002
- Industries
- Mechanical engineering, Logistics, Medical technology, Industrial electronics, Household appliances, Climate technology
- 01
Component purchasing
- 02

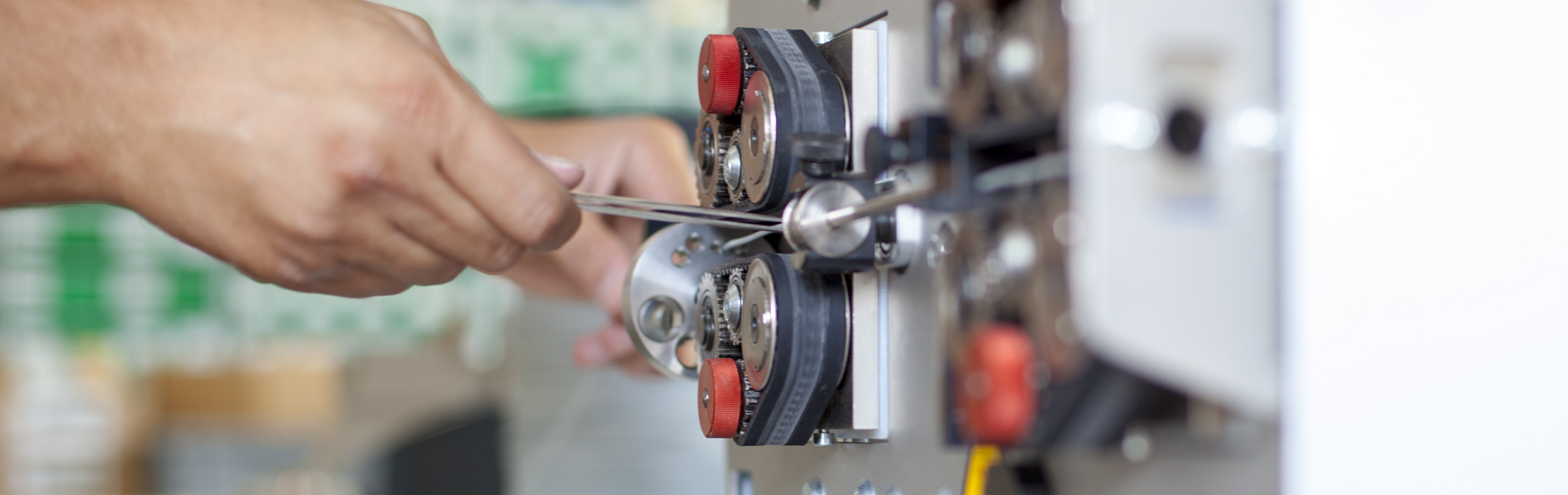

Cutting wires to length (semi-/fully automatic)
- 03
Crimping (manual presses / fully automatic machines)
- 04
Soldering/tinning (100% lead-free) or insulation displacement technology
- 05

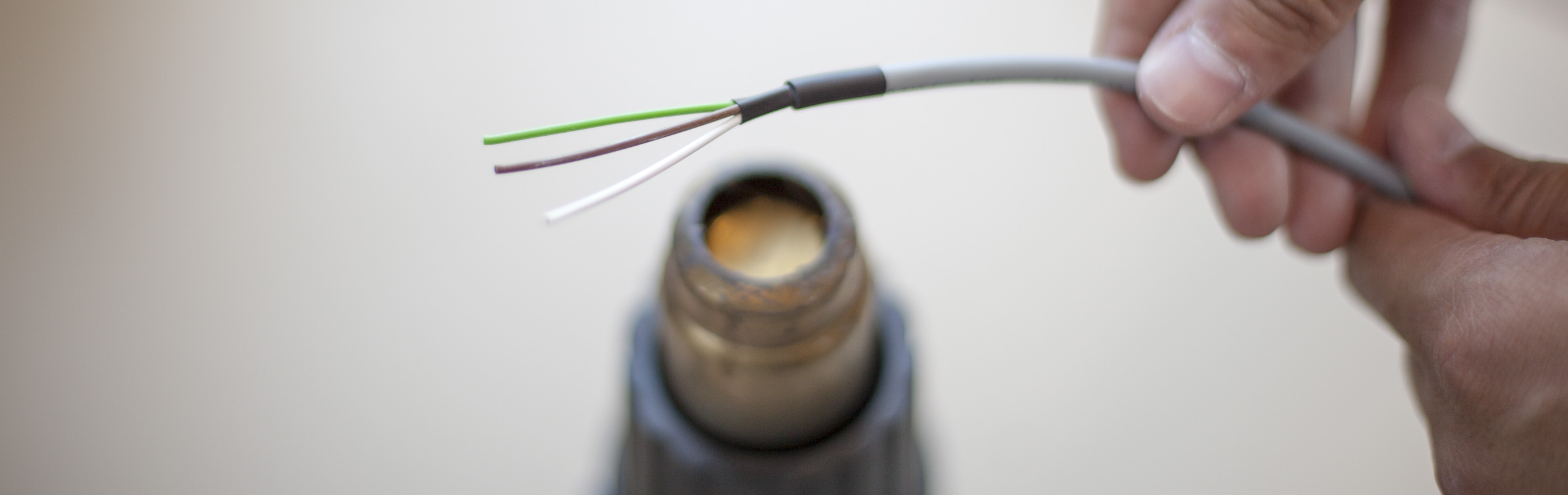

Pressing, shrink-wrapping, twisting (EMC)
- 06
Assembly and marking
- 07
Testing for short circuit and interruption (100% testing)
- 08
Delivery
Cable types and processing techniques

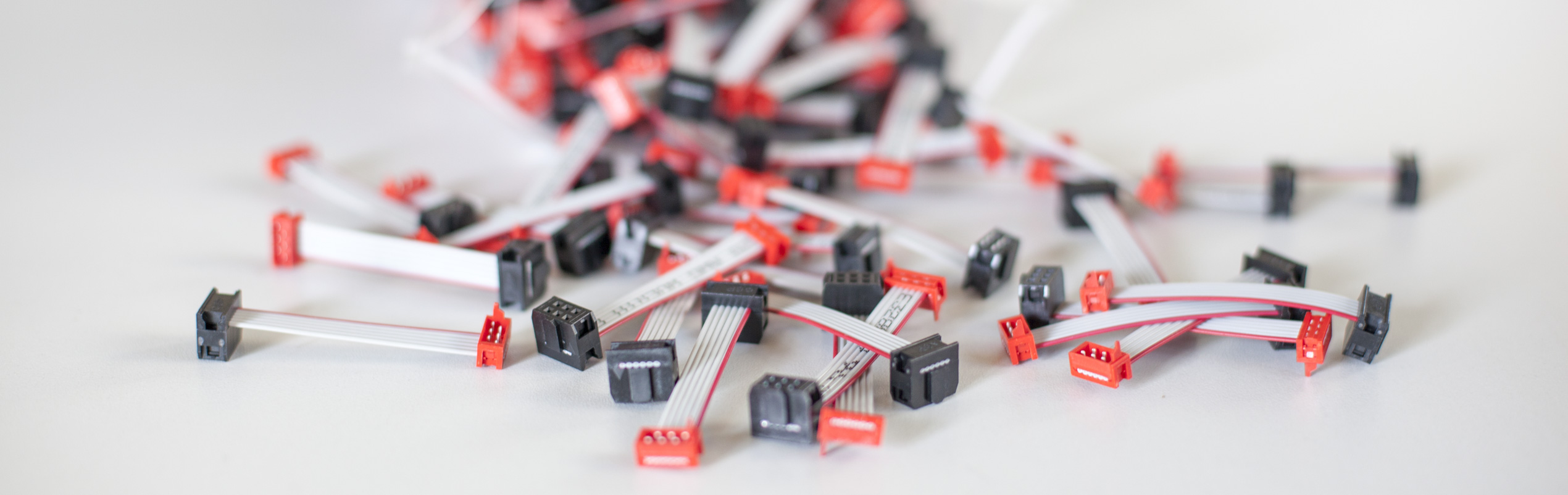

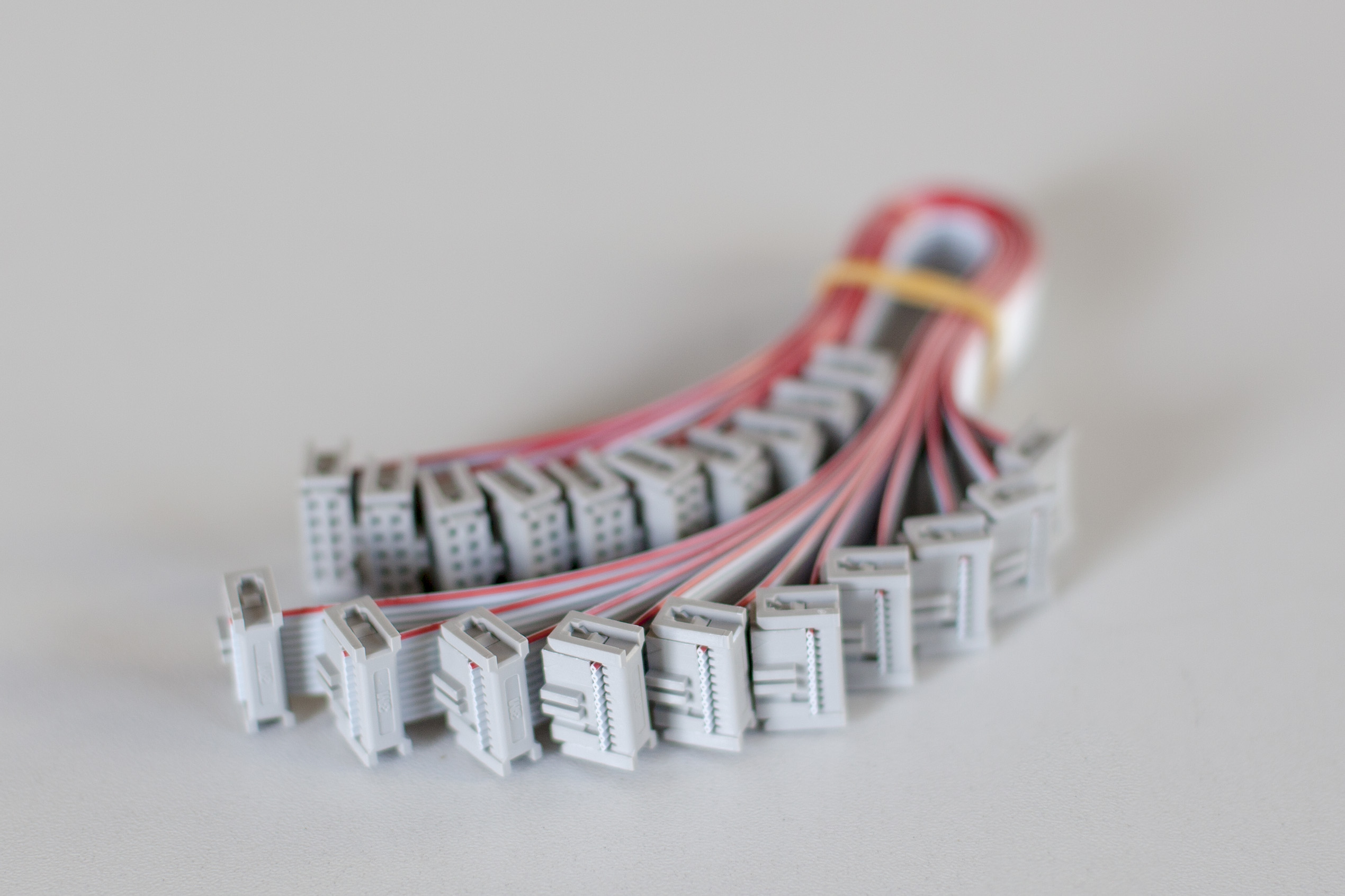

Flat ribbon cables
Assembly of standard and halogen-free flat ribbon cables with pitches 0.635/1.00/1.27/2.00/2.54 mm for Micro-Match/Picoflex and IDC connectors.
Data cable
Shielded and unshielded, pair-twisted data cables also for robust use, connector systems customised.

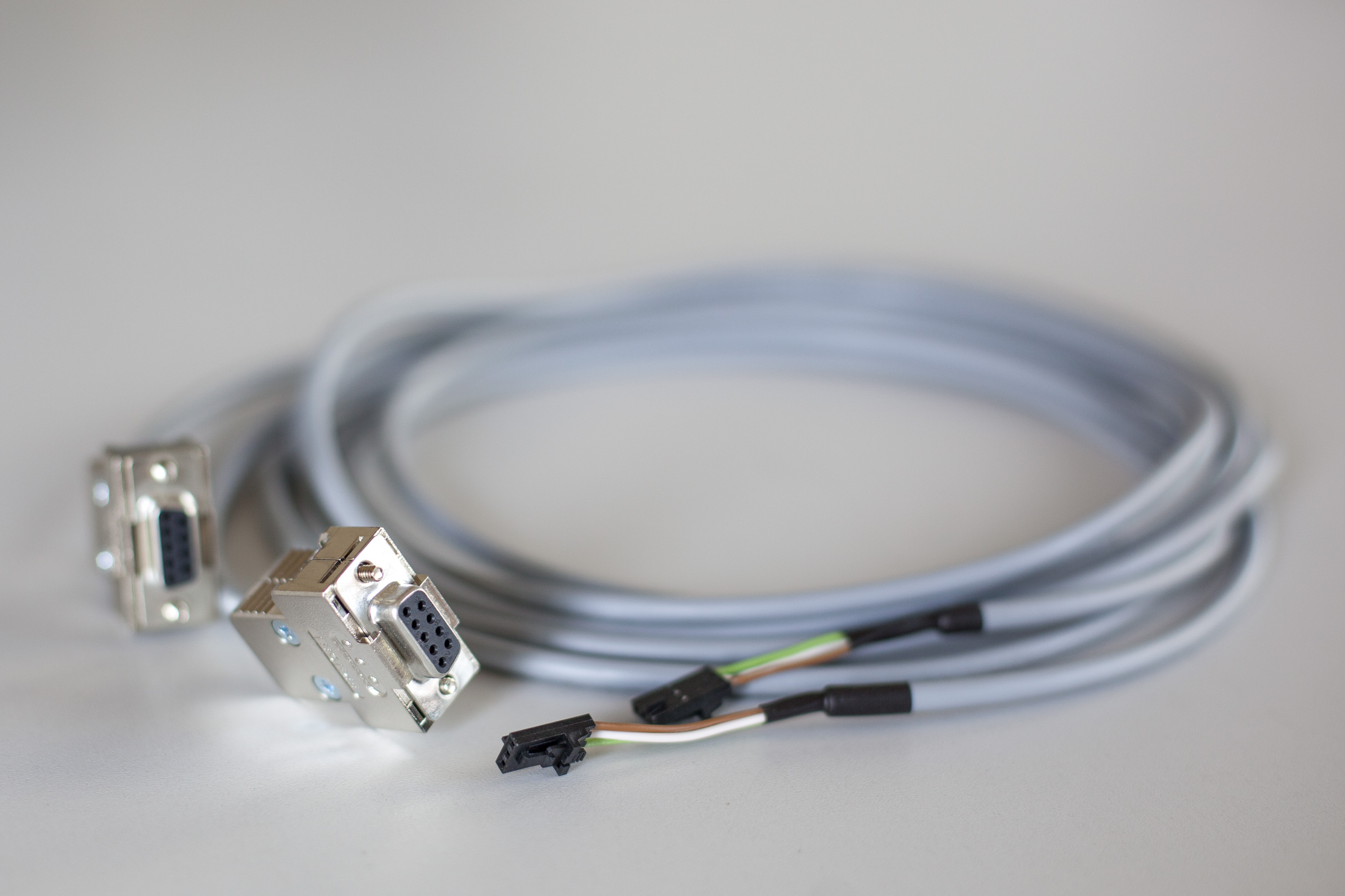

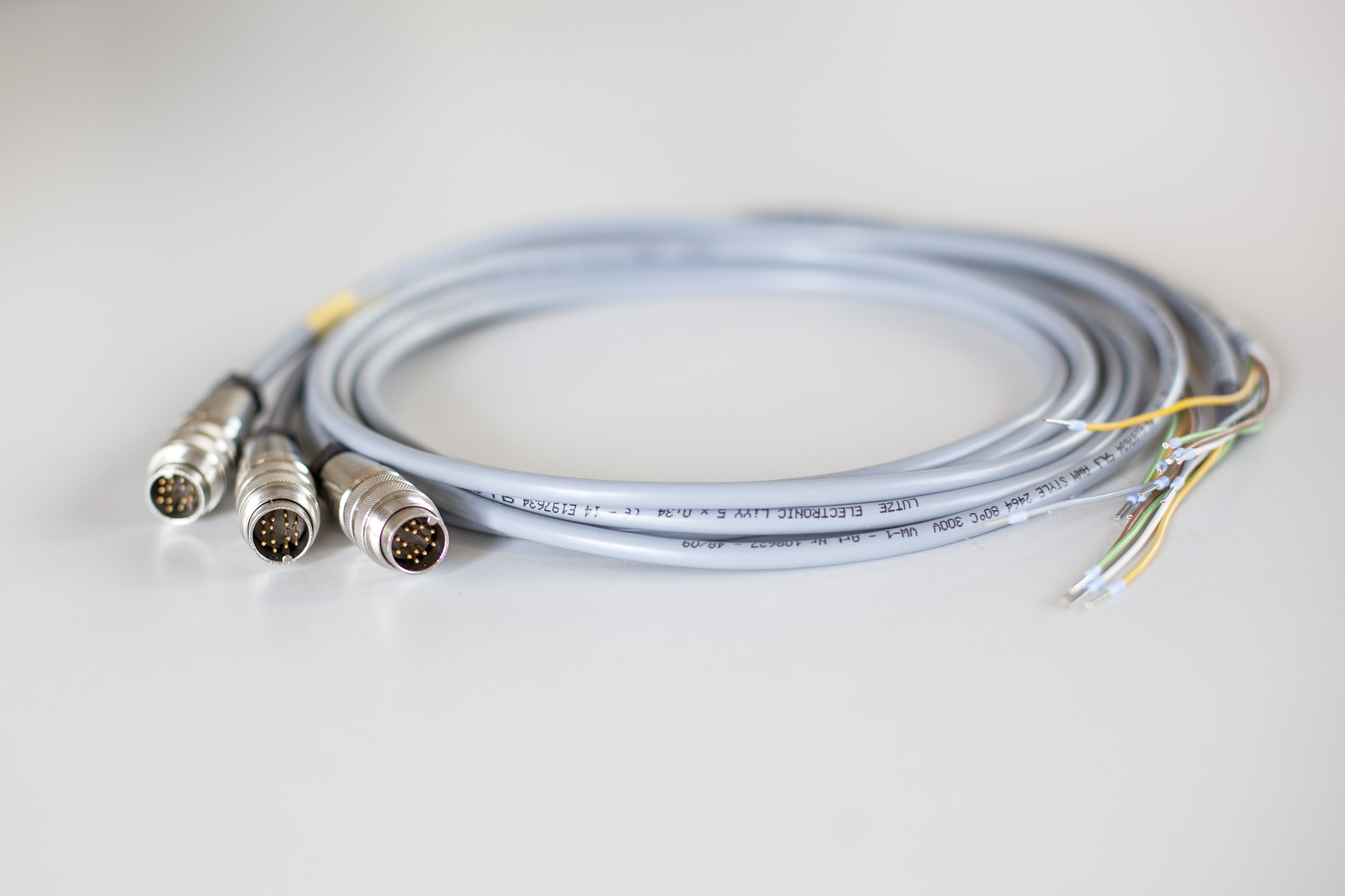

Round cables
Power, patch, control and drag chain cables exactly to customer specifications.
Round-flat cables / flat-round cables
Flat, flat-round and laminated cables for various applications.

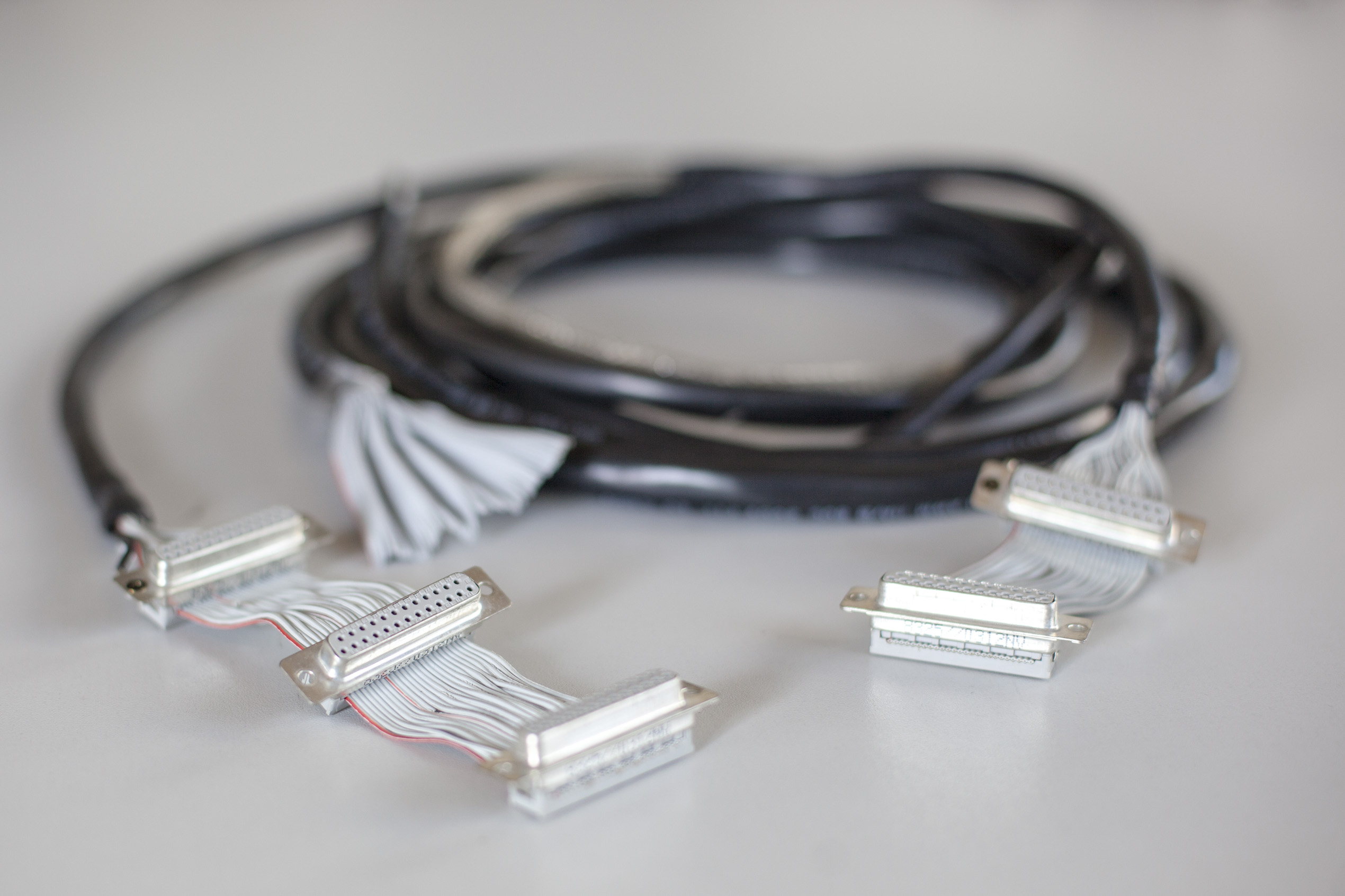

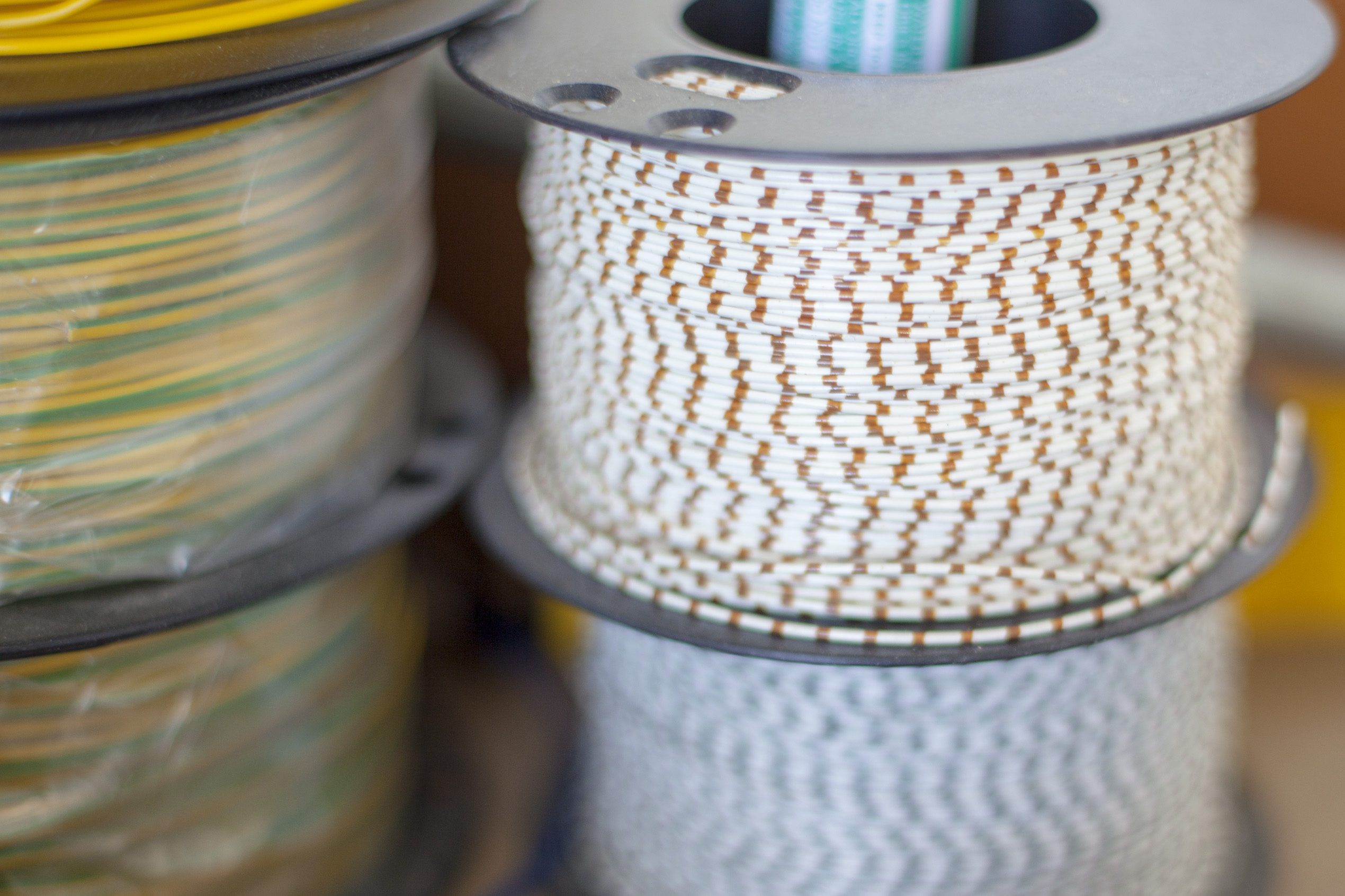

Wires (copper)
Wires of various cross-sections (0.05–12.5 mm²) are cut to length, crimped, tinned and soldered.
UL cables
UL-approved products as a specification option alongside halogen-free and shielded variants.

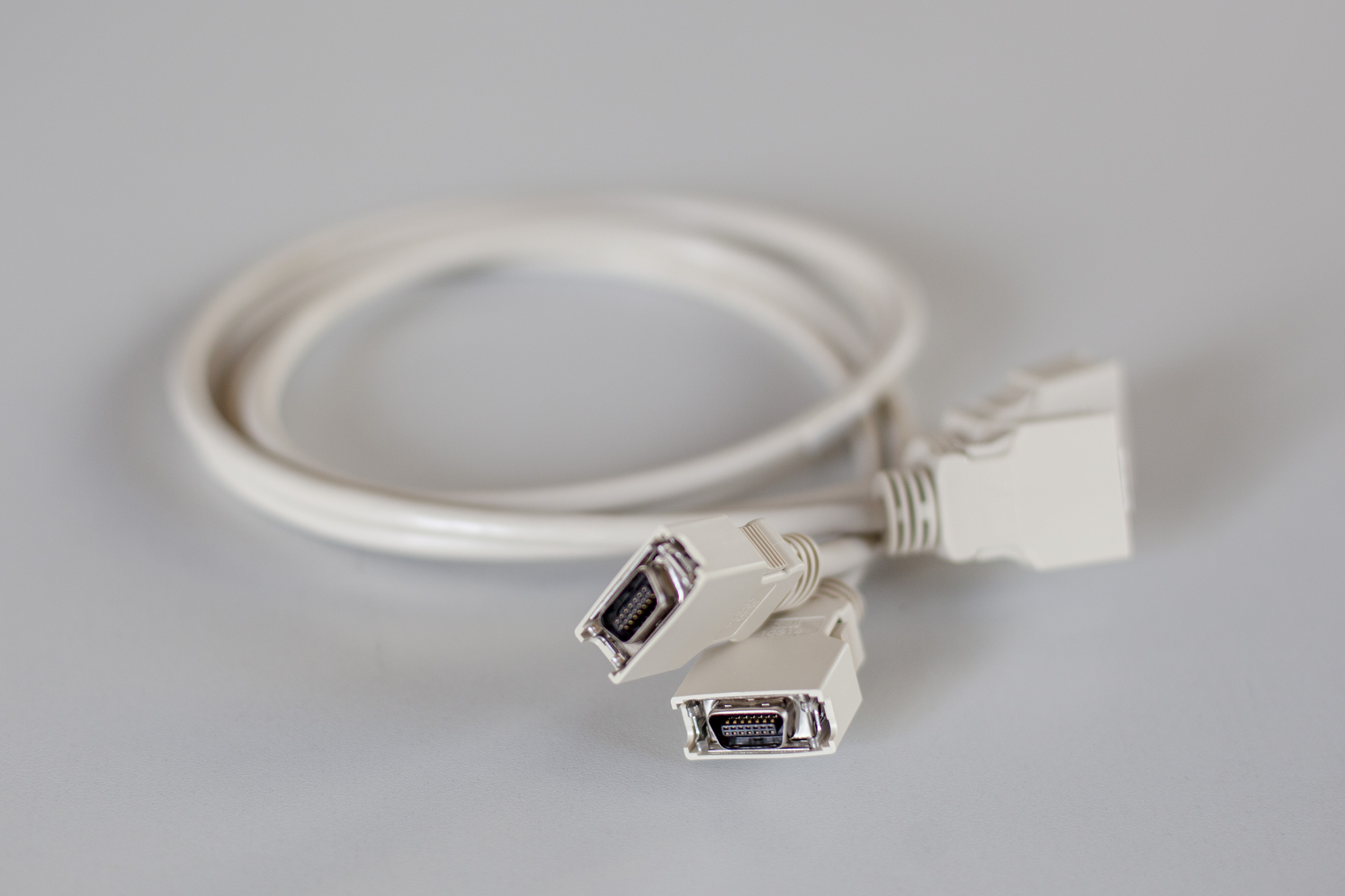

Mini Delta Ribbon (MDR)
High-speed transmission system with 14–68 poles.

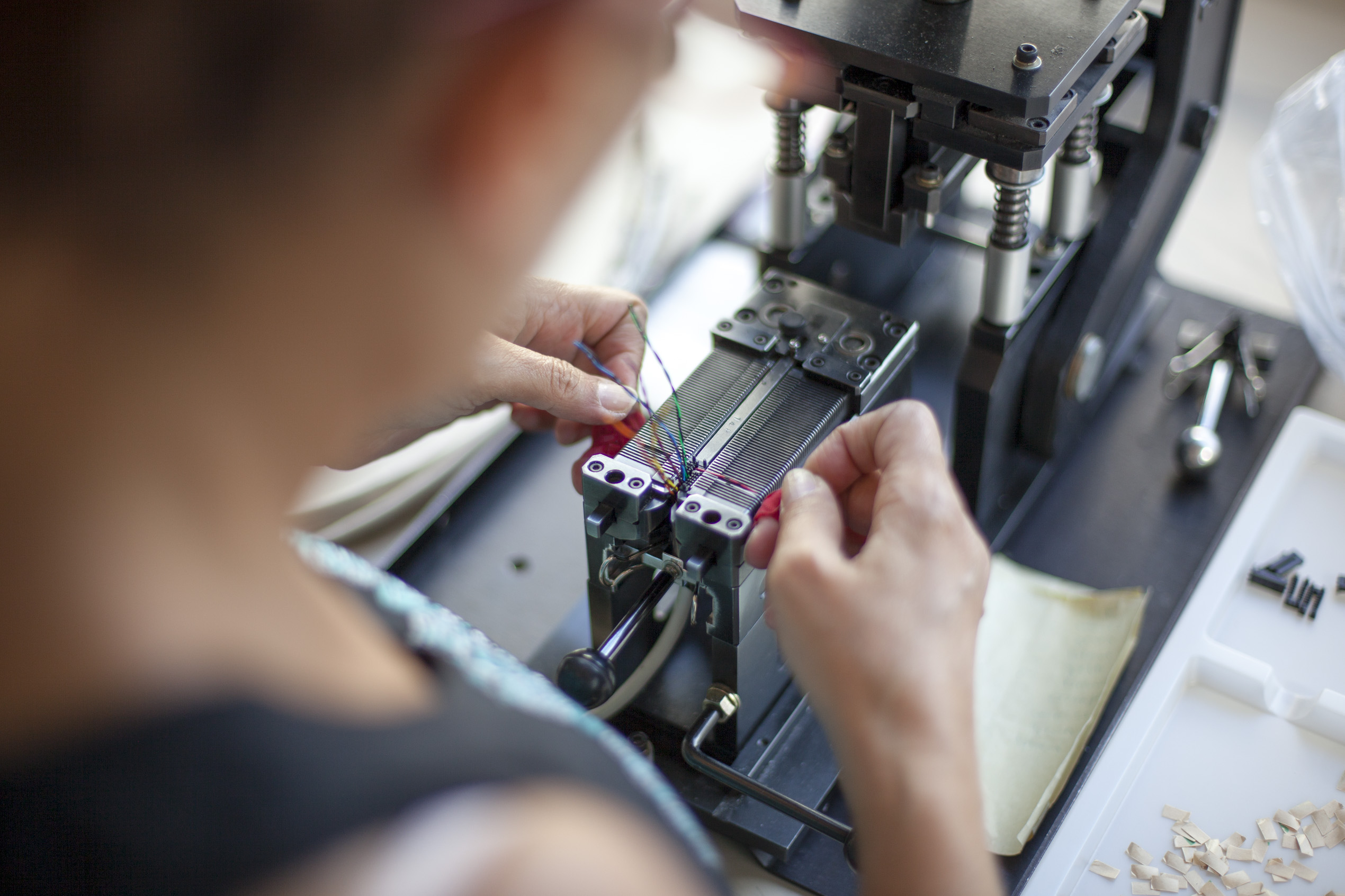

Insulation displacement technology
Solder-free connection technology with a focus on flat ribbon cables.
Soldering and tinning processes
100% lead-free soldering and tinning processes.
Steinhausen site
Steinhausen
CHProduction & administration – all work is carried out exclusively in the company's own workshop in Steinhausen in the
- Lot size
- Prototypes, small series, large orders
- Materials
- Flat ribbon cables, data cables, round cables, round-flat cables, wires, UL cables
- Semi-automatic machine (cutting wires to length)
- Fully automatic machine (cutting wires to length)
- Manual presses (crimping)
- Fully automatic machines (crimping)
- Tools and measuring devices from 3M
Cable assemblies

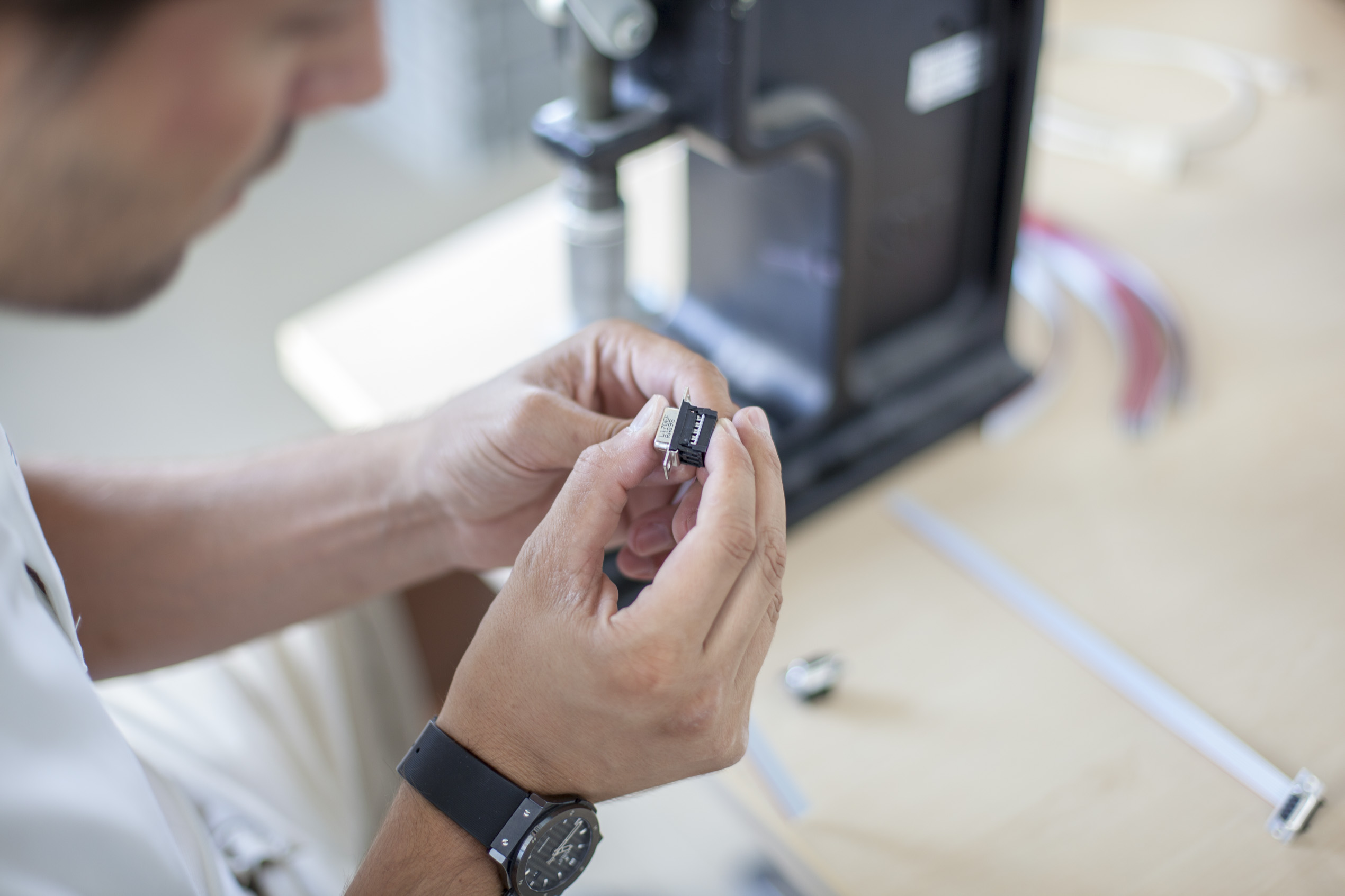

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Cutting to lengthAssembly | – | – | Cross-sections from 0.05 mm² to 12.5 mm² | Prototypes – Large orders | Wires, Cables |
| CrimpingAssembly | – | – | – | – | Wires |
| MarkingAssembly | – | – | – | – | – |
| Soldering (soldering and tinning processes, 100% lead-free)Joining | – | – | – | – | Wires |
| Assembly (screw connections and other assembly work)Assembly | – | – | – | – | – |
| Insulation displacement (solder-free connection technology, focus on flat ribbon cables)Joining | – | – | – | – | Flat ribbon cables |
| Shrink-wrappingAssembly | – | – | – | – | – |
| Pressing (conductor cross-sections up to 12.5 mm²)Assembly | – | – | Conductor cross-sections up to 12.5 mm² | – | Wires |
| Twisting (for optimising EMC properties)Assembly | – | – | – | – | – |
| Testing (testing for short circuits and interruptions)Testing | – | – | – | – | – |
| Assembly | – | – | – | – | Flat ribbon cables (standard/halogen-free) |
| Data cable assembly (shielded/unshielded, pair-twisted)Assembly | – | – | – | – | Data cable |
| Assembly of Mini Delta Ribbon (MDR) 14–68 polesAssembly | – | – | – | – | MDR connector |
| Round cable assembly (power cables, patch cables, control cables, drag chain cables)Assembly | – | – | – | – | Round cables |
| Assembly of round-flat cables / flat-round cables / laminated cablesAssembly | – | – | – | – | Flat cables, Round-flat cables |

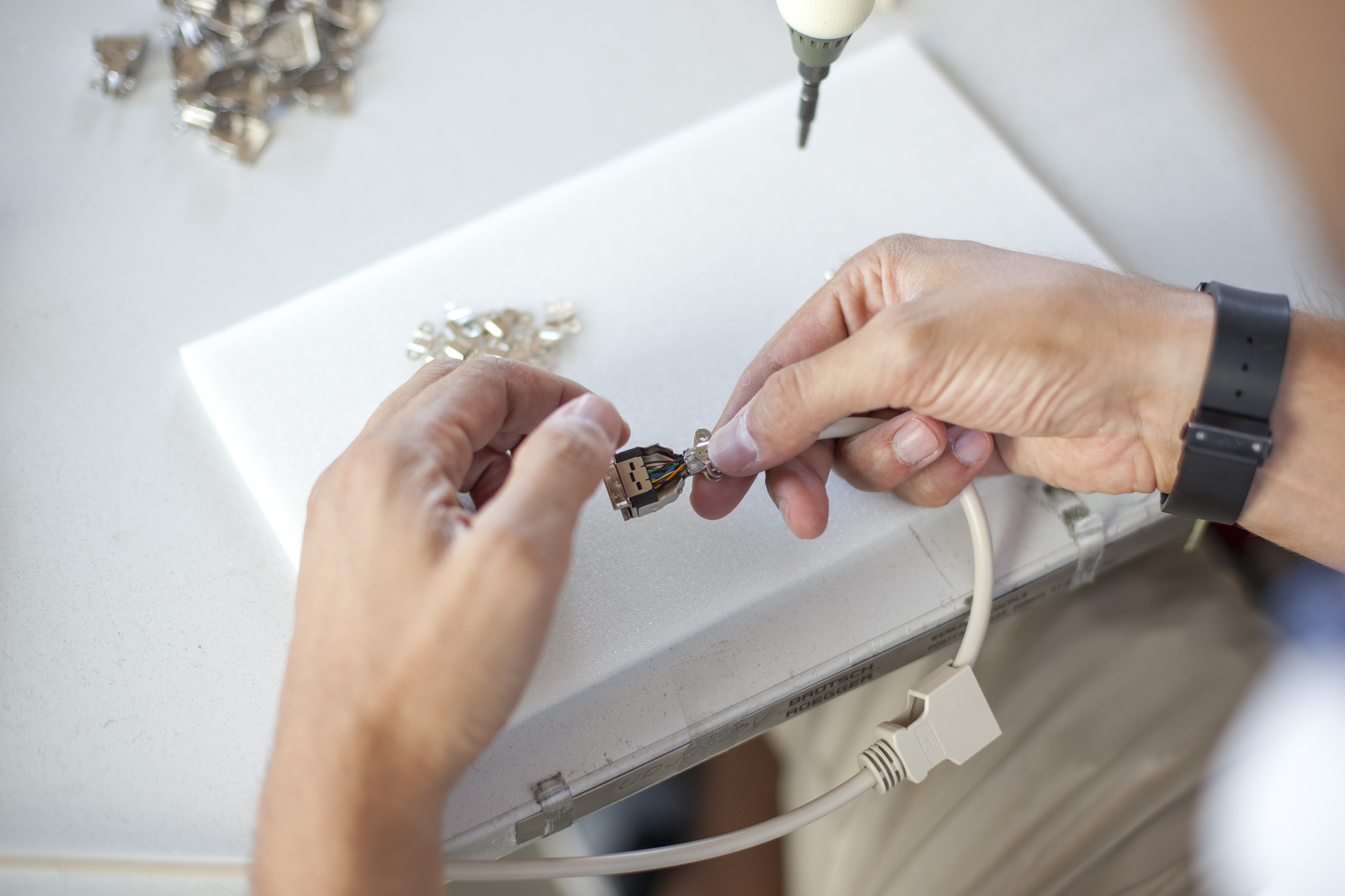

| RJ plug connectionsAssembly | – | – | – | – | – |
| Single wire connectionsAssembly | – | – | – | – | – |
5 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Semi-automatic machine (cutting wires to length) | – | – | – | – | Steinhausen |
| Fully automatic machine (cutting wires to length) | – | – | – | – | Steinhausen |
| Manual press (crimping) | – | – | – | – | Steinhausen |
| Fully automatic machine (crimping) | – | – | – | – | Steinhausen |
| Tools and measuring devices from 3M | 3M | – | – | – | Steinhausen |
Additional services
Reference customers
100% testing before delivery
No order leaves the workshop in Steinhausen without being tested first. Every cable is tested for short circuits and interruptions according to product type; work is carried out with tools and measuring devices from 3M, preferably with connectors and cables in the 3M quality standard.
| Evidence | Steinhausen |
|---|---|
| 100% testing (short circuit/interruption) | |
| Tools/measuring devices from 3M | |
| ISO 9001 |
History
- 2002
Founding of Kabelkonfektion Kurtaran GmbH by Burhan Kurtaran after 11 years as head of the cable assembly department at 3M.
- 2018
Erhan Kurtaran works for the family business: administration, purchasing, sales, customer service and production.
