About Kaindl Schleiftechnik
Kaindl Schleiftechnik Reiling GmbH is a family-owned company based in Königsbach-Stein (Baden-Württemberg) that has been developing and manufacturing grinding technology products since 1968. From its beginnings with simple abrasive files, the range has grown to include hand-held grinding tools for trade and DIY users, professional sharpening and grinding machines, and a 4-axis CNC universal grinding machine. The machines are not produced as standard off the assembly line, but are designed to customer requirements and manufactured at the Königsbach site. Applications include resharpening and grinding of spiral, step, sheet-metal and wood drill bits made of HSS or carbide, core drills from Ø 12 to 100 mm, taper countersinks, carbide-tipped saw blades from Ø 100 to 600 mm, circular knives from Ø 100 to 400 mm, and TIG tungsten electrodes. The grinding wheels feature CBN (boron nitride) and diamond grains. Customers include industry, trades, DIY users, locking technology and woodworking. The offering is complemented by consulting, commissioning, maintenance, repair, spare parts, a factory outlet and a resharpening service for saw blades.
- Site
- Königsbach-Stein
- Processes
- Drill bit grinding/resharpening (spiral, step, sheet-metal and wood drill bits, carbide drill bits,, Core drill grinding, Countersink grinding (taper, cross-hole and countersink chamfer tools) and cutter grinding, Saw blade grinding/resharpening (carbide saw blades, alternating, flat, step and trapezoidal tooth), Circular knife grinding (circular, ring, film and paper cutting knives, slicer/slitter knives), Electrode grinding (TIG tungsten electrodes, longitudinal taper), CNC tool and universal grinding (flute and face grinding on helix, end face, gullet), Cut-off grinding, diameter grinding, groove grinding, face surface grinding
- Materials
- HSS, Carbide (HM), PCD, Tungsten (TIG electrodes), CBN boron nitride (grinding wheels), Diamond (grinding wheel coating), Aluminium (grinding/milling applications), Wood & wood-based materials
- Founded
- 1968 (Prod
- Industries
- Industry, Trades, DIY, Locking technology, Woodworking, Welding technology
- 01
Design and development according to customer requirements
- 02
In-house production at the Königsbach-Stein site
- 03
Assembly and testing
- 04
Consulting, demonstration and commissioning
- 05
Maintenance, repair and spare parts supply
- 06
Factory outlet and online shop
Materials and Abrasives
HSS
Material of the resharpened spiral, step, sheet-metal and wood drill bits as well as milling cutters.
Carbide
Machining of carbide-tipped drill bits, saw blades, knives and indexable inserts.

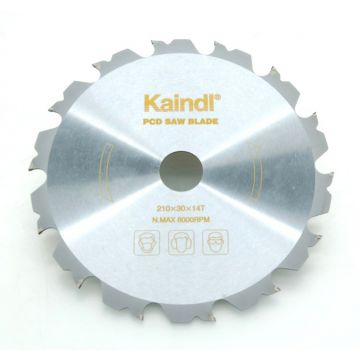

PCD
Machining of PCD saw blades Ø 160–300 mm.
Tungsten
Material of the TIG electrodes, which are ground with a longitudinal taper on the WIG 4.
CBN (boron nitride)
Grinding wheel coating of the drill bit, core drill and circular knife grinding machines.

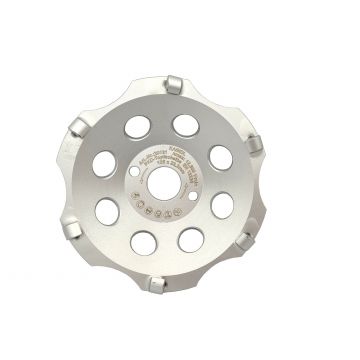

Diamond
Grinding wheel coating for carbide, freehand grinding and electrode grinding.
Aluminium
Material for milling and grinding applications in the tool program.
Wood & wood-based materials
Application area of the milling discs and routing cutters in the tool program.
Location
Königsbach-Stein
DEHeadquarters, design, production, sales, factory outlet
- Part weight / size
- Machines for tools up to Ø 600 mm
- Lot size
- Custom single machines, standard production machines and spare parts
- Materials
- Steel, aluminium, CBN, diamond
- Drill bit grinding device BSG 20/2
- Drill bit grinding machine BSM 20
- Drill bit grinding machine BSG 60
- Core drill grinding machine KBS/2
- Drill and core drill grinding machine BKS
- Freehand grinding machine SM 180
- Sharpening centre SZ
- Saw blade grinding machine SSG 600-M-LF
- Saw blade grinding machine SSG 600-A-DC
- Circular knife grinding machines RMS Manual / NC / CNC
- Tool & universal grinding machine FSM-CNC (4-axis)
- Electrode grinding machine WIG 4
- Cut-off grinding machine TSM-16
- Countersink grinding fixtures SVR 20 / SVR 31 / SZVR
Components and Machines
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Drill bit grinding/resharpening (spiral, step, sheet-metal and wood drill bits, carbide drill bits,Machining | – | – | – | – | HSS, Carbide |
| Core drill grindingMachining | – | – | Ø 12 mm – Ø 100 mm | – | Carbide, HSS |
| Countersink grinding (taper, cross-hole and countersink chamfer tools) and cutter grindingMachining | – | – | Ø 31 mm (taper countersink) | – | HSS, Carbide |
| Saw blade grinding/resharpening (carbide saw blades, alternating, flat, step and trapezoidal tooth)Machining | – | – | Ø 100 mm – Ø 600 mm | – | Carbide, HSS |
| Circular knife grinding (circular, ring, film and paper cutting knives, slicer/slitter knives)Machining | – | – | Ø 100 mm – Ø 400 mm | – | Steel, Carbide |
| Electrode grinding (TIG tungsten electrodes, longitudinal taper)Machining | – | – | Ø 1,0 mm – Ø 4,0 mm | – | Tungsten |
| CNC tool and universal grinding (flute and face grinding on helix, end face, gullet)Machining | – | – | Cutters up to Ø 150 mm | – | HSS, Carbide |
| Cut-off grinding, diameter grinding, groove grinding, face surface grindingMachining | – | – | Ø 3 mm – Ø 30 mm (chuck), through-feed Ø 16 | – | Carbide, HSS |
| Freehand grindingMachining | – | – | – | – | Steel, Carbide |
| Service: consulting, demonstration, commissioning, maintenance, repair, spare parts, resharpening ofEngineering | – | – | – | – | – |
19 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Drill bit grinding device | Kaindl BSG 20/2 | – | Drill bits Ø 2-20 mm? (BSG 20 for drill bits up to Ø 20 mm according to history) | – | Königsbach-Stein |
| Drill bit grinding machine | Kaindl BSM 20 | – | Drill bits Ø 2-20 mm, CBN grinding wheel Ø 125 mm B76, motor 230V/50Hz 0,12 KW | – | Königsbach-Stein |

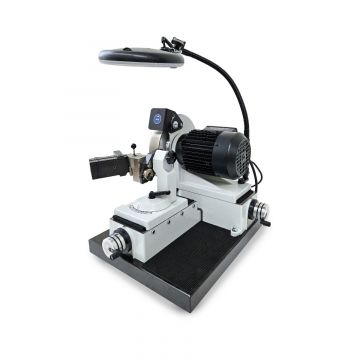

| Drill bit grinding machine | Kaindl BSG 60 | – | Clamping range Ø 3-40 mm, expandable to Ø 60 mm (additional prism); CBN grinding wheel B126; | – | Königsbach-Stein |

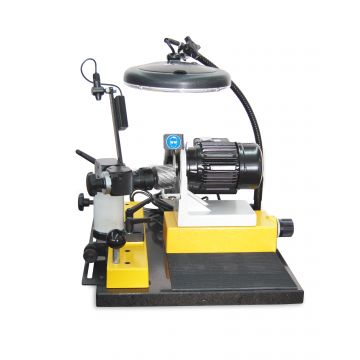

| Core drill grinding machine | Kaindl KBS/2 | – | Core drills Ø 12-100 mm, 4/5/8/10 cutting edges; ER32 collet system; CBN wheels Ø 125 mm | – | Königsbach-Stein |
| Drill and core drill grinding machine | Kaindl BKS | – | Core drills Ø 12-100 mm, 19mm Weldon shaft | – | Königsbach-Stein |

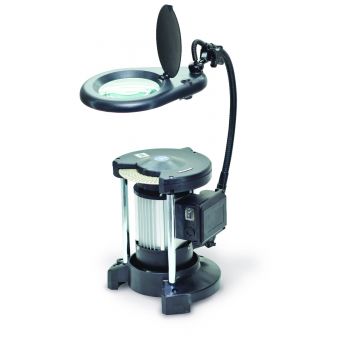

| Freehand grinding machine | Kaindl SM 180 | – | Double-sided coated diamond freehand grinding wheel Ø 180 mm, low-speed motor | – | Königsbach-Stein |

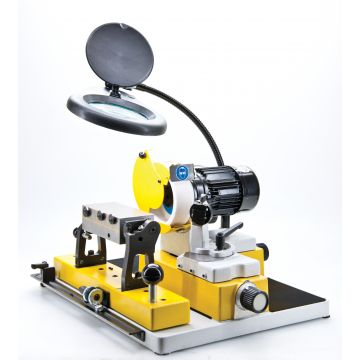

| Sharpening centre | Kaindl SZ | – | – | – | Königsbach-Stein |
| Saw blade grinding machine, manual | Kaindl SSG 600-M-LF | – | Saw blades Ø 100-600 mm; diamond grinding wheel Ø 150 mm D64; bench machine | – | Königsbach-Stein |
| Saw blade grinding machine, semi-automatic | Kaindl SSG 600-A-DC | – | Saw blades Ø 100-600 mm; electro-pneumatic digital control, alternating tooth feed | – | Königsbach-Stein |
| Circular knife grinding machine, manual | Kaindl RMS Manuell | – | Circular knives Ø 100-350 mm; CBN wheel Ø 125 mm B126; pump cooling | – | Königsbach-Stein |
| Circular knife grinding machine NC | Kaindl RMS-NC | – | Circular knives Ø 100-400 mm; touchscreen control, boron nitride wheel B126 | – | Königsbach-Stein |
| Circular knife grinding machine CNC | Kaindl RMS-CNC | – | Profile and circular knives; G-code programmable, touchscreen | – | Königsbach-Stein |
| Circular knife grinding machine RMS I | Kaindl RMS I | – | – | – | Königsbach-Stein |
| Electrode grinding machine | Kaindl WIG 4 | – | Electrodes Ø 1,0/1,6/2,0/2,4/3,2/4,0 mm; angles 15°-180°; diamond grinding wheel Ø 125 mm D107 | – | Königsbach-Stein |
| Tool & universal grinding machine CNC, 4-axis | Kaindl FSM-CNC | – | 4 axes (X,Y,Z,A); travel paths X=300 mm, Y=135 mm, Z=192 mm, A=rotary axis; cutters up to Ø 150 mm; | – | Königsbach-Stein |
| Cut-off grinding machine | Kaindl TSM-16 | – | Three-jaw chuck Ø 3-30 mm, through-feed Ø 16 mm; diamond and CBN cut-off wheels Ø 100 mm | – | Königsbach-Stein |
| Countersink grinding fixture | Kaindl SVR 20 | – | Taper countersinks up to Ø 20 mm, on BSM 20 | – | Königsbach-Stein |
| Countersink grinding fixture | Kaindl SVR 31 | – | Taper countersinks up to Ø 31 mm, on BSG 60 | – | Königsbach-Stein |
| Cutter and countersink grinding fixture | Kaindl SZVR | – | ER-32 clamping head up to Ø 20 mm, MK3 mount, laser setting device, index divider for | – | Königsbach-Stein |
Additional services
Company History
- 1968
Production and manufacture of simple abrasive files in Reinhold Reiling's private garage
- 1974
Development and production of the Uni-Schleifer – the first practical grinding attachment for drills
- 1975
Partnership with his brother Karl Reiling and founding of Reiling GdbR
- 1978
Development and production of the drill bit grinding device BSG 20
- 1979
Conversion of the company into a GmbH headquartered in Ersingen; managing directors Reinhold and Karl Reiling
- 1981
Purchase of the factory hall including the land in Königsbach, relocation to Königsbach
- 1983
Development and production of the drill bit grinding device BSG 60 for drill bits up to Ø 60 mm
- 1986
"Kaindl" registered as a trademark; expansion of the production facility
- 1991
Expansion and extension of the factory building including new offices
- 1994
Federal Prize for outstanding innovative achievements in the trades
- 2005
Henrik and Reinhard Reiling appointed as additional managing directors; development of RMS (1st generation), SZVR and SSM-NCT
- 2007
Development of RMS-NC; own homepage and online shop; construction of the warehouse begins
- 2008
Expansion of the production facility by 700 m²
- 2010
Entry into CNC grinding machines (RMS-CNC, FSM-CNC); Karl and Reinhold Reiling depart
- 2011
Open day, introduction of the factory outlet, further development of the FSM-CNC into a universal grinding machine
- 2012
Complete modernisation of the production facilities; new website and Magento online shop
- 2014
Expansion of the photovoltaic systems by a further 79 kWp; as a result CO2-neutral
- 2018
Relaunch of the website and online shop on Magento 2.0
