Contract coating of electronics: protective lacquering, potting, cleaning, plus in-house coating system and tool engineering.
KC – Kunststoff-Chemische Produkte GmbH
Friolzheim (DE)New on Amplifa
About KC-Produkte
KC – Kunststoff-Chemische Produkte GmbH was founded in 1977 and specializes in the protection of electronic assemblies. Its range of services includes contract coating with protective lacquers (selective CNC spraying Stream-Coat®, partial form-cup dip coating Milli-Coat®, dip coating, spray coating with masks, dispensing, thick-film coating, fluoropolymer coating), potting with polyurethane, silicone, epoxy and hotmelt resins as well as dam-and-fill potting, cleaning of assemblies by spray and immersion processes with or without ultrasonics, surface analyses, lacquer stripping and assembly. In addition, the company develops and manufactures coating systems in its own plant engineering division and, in its tool engineering division, coating form cups, CNC holders, cover masks and potting tools made of rubber or metal. Innovative developments include the world's first form-cup coating process, the world's thinnest coating needle and the first solvent-free thick-film lacquers. The approximately 45 to 50 employees work in the specialist departments of contract coating, plant engineering, design, software development and the chemistry laboratory at the headquarters in Friolzheim (Baden-Württemberg), a few kilometers from the A8 motorway Heimsheim junction.
- Site
- Friolzheim
- Processes
- Selective CNC spraying (Stream-Coat®), Selective process Milli-Coat® (partial form-cup dip coating), Dip coating, Vertical dipping/flooding, Spray coating with stencils/masks, Machine dispensing, Dipping with fluoropolymers, Manual coating of prototypes
- Materials
- Polyurethane (thick-film lacquer PUR 35251), Hotmelt resin (hotmelt), Silicone resin, Epoxy resin, Fluoropolymer, Rubber, Selective CNC spraying, Form-cup dip coating
- Certificates
- ISO 9001, ISO 9001 (DEKRA-certified QM system)
- Founded
- 1977
- Employees
- 45–50
- Industries
- Electronics industry, Electronics industry (protective coating of electronic assemblies)
- 01
Consulting and sample phase
- 02
Cleaning of assemblies (spray/immersion cleaning)
- 03
Surface analysis
- 04
Protective lacquering or potting
- 05
Quality control and inspection documentation
- 06
Assembly and delivery
Processes and Materials

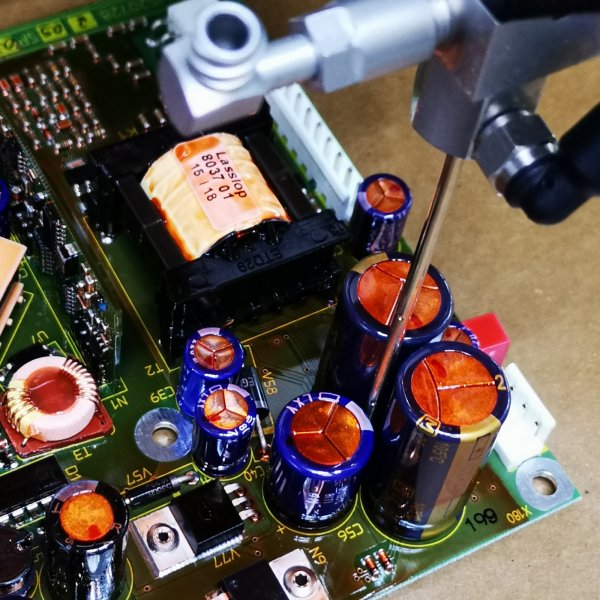

Selective CNC spraying

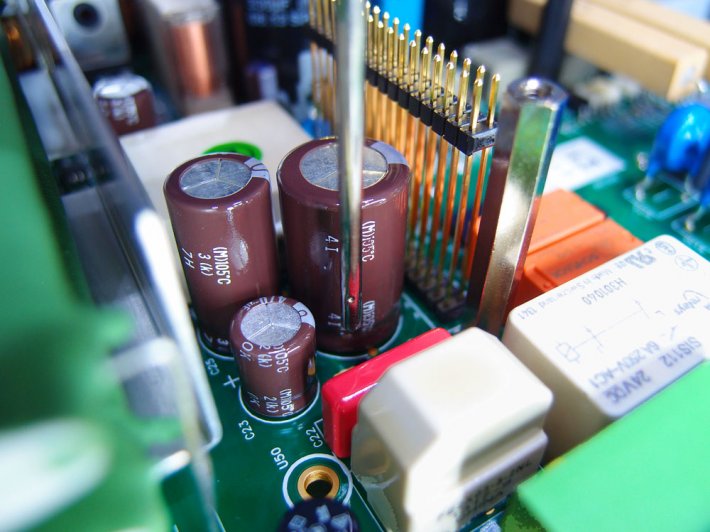

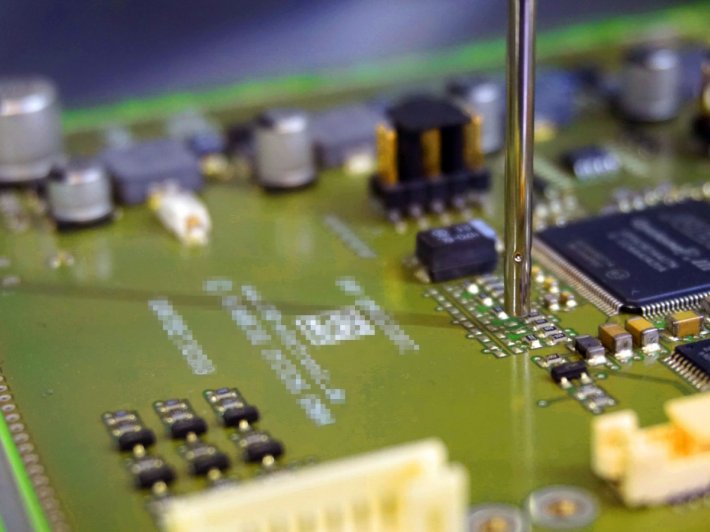

Selective CNC spraying with an extremely slim nozzle for spray-shadow-free coating between densely populated, tall components; can coat, dispense and jet.

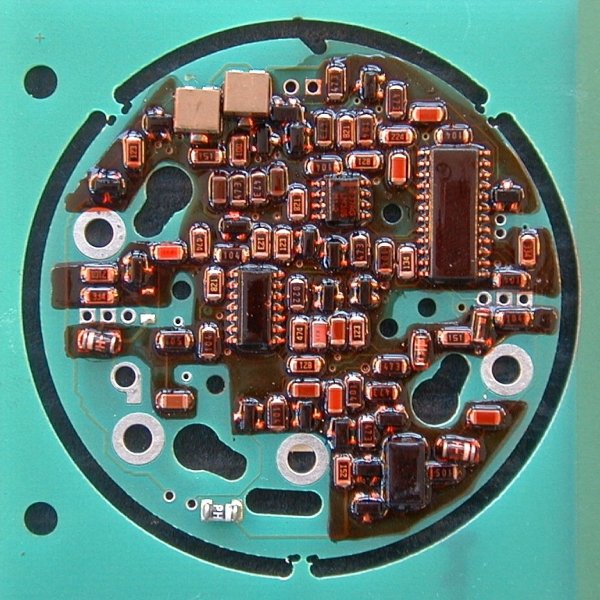

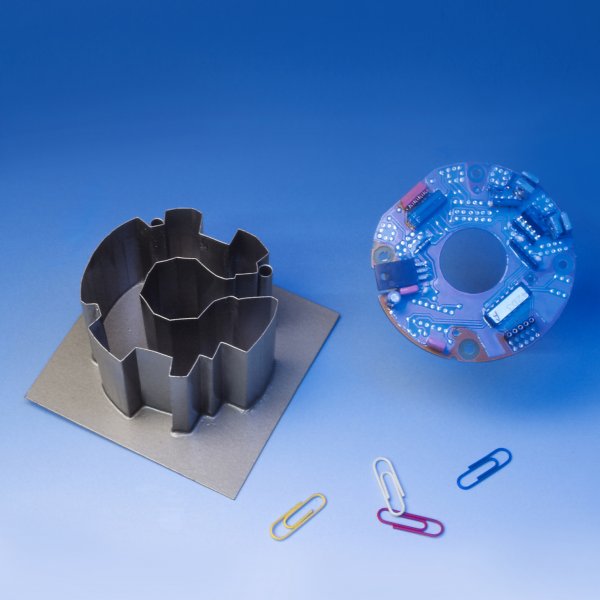

Form-cup dip coating
Precise partial dip coating, exactly limited down to 0.8 mm, free of spatter and mist, suitable for thick-film and conventional lacquers.

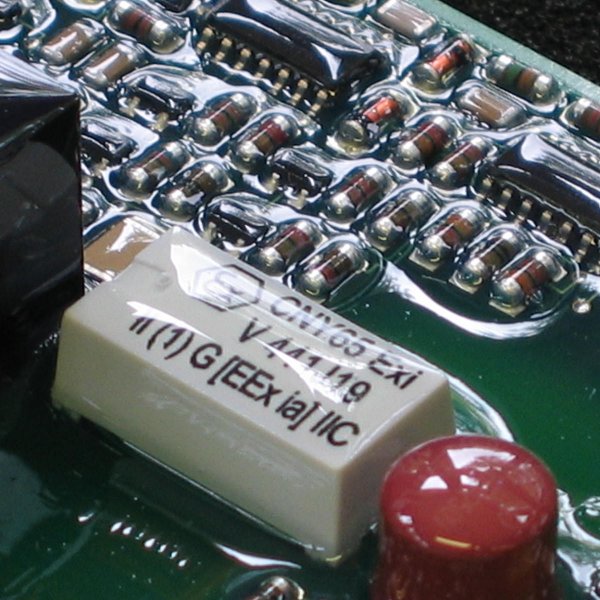

Polyurethane thick-film lacquer
Thick-film lacquer with high layer thickness for particularly high protection against environmental influences, curing at room temperature or by UV.
Polyurethane resin (potting)
Two-component, elastic casting resin with a wide Shore hardness range, low shrinkage and little reaction heat; machine-applied for large series, manually for small series.

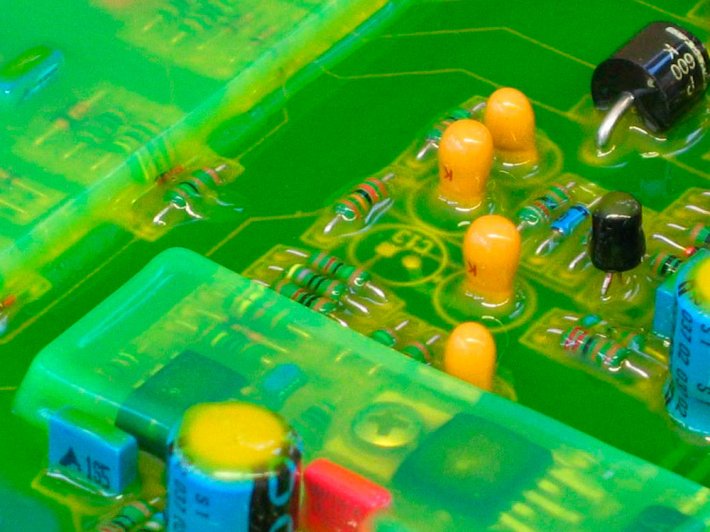

Hotmelt resin (potting)
Single-component resin applied hot with fast curing and excellent moisture protection, in some cases particularly repair-friendly.
Silicone resin (potting)
One- or two-component resin for high temperature resistance and elasticity, processed separately from silicone-free materials.
Epoxy resin (potting)
Two-component, highly filled resin for housing-forming potting with minimized shrinkage.
Fluoropolymer
Fluoropolymer lacquers for dip coating of assemblies.
Locations

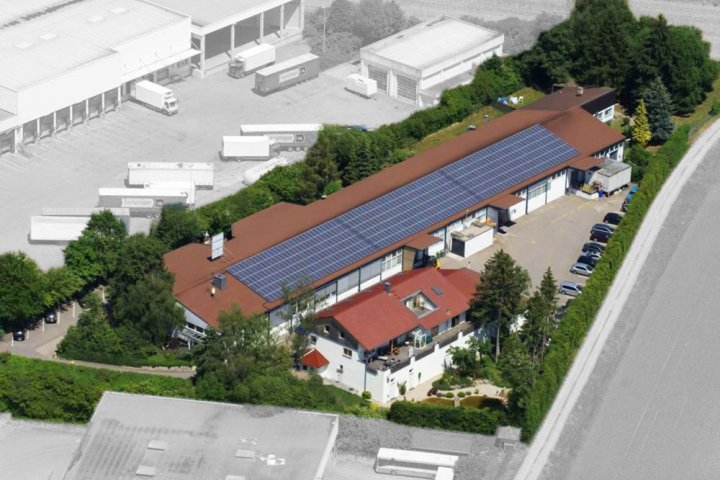

Friolzheim
DEHeadquarters, contract coating, plant engineering, tool engineering, laboratory
- Lot size
- Small series to large series (potting machine/manual depending on lot size)
- Materials
- Protective lacquers, thick-film lacquers, polyurethane, silicone, epoxy and hotmelt resins, fluoropolymer

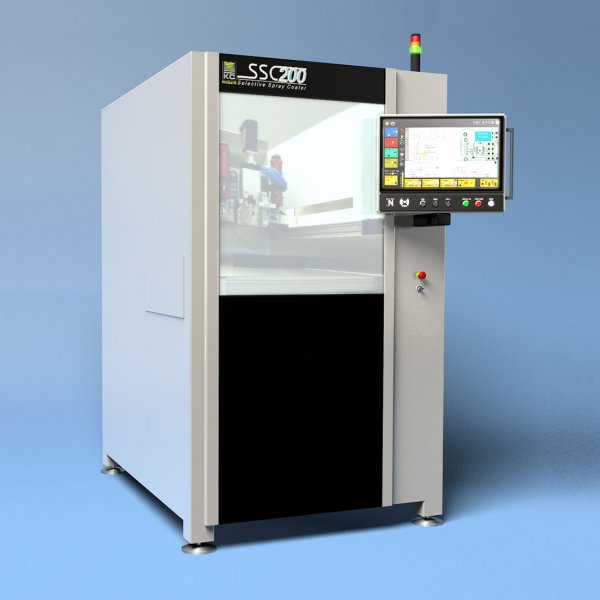

- Coating system SSC 200 (selective CNC spraying)
- CNC coating system Stream-Coat®
- Form-cup dip coating system Milli-Coat®
- Spray cleaning system
- Immersion cleaning system (with/without ultrasonics)
- CNC machines (tool engineering)
Components

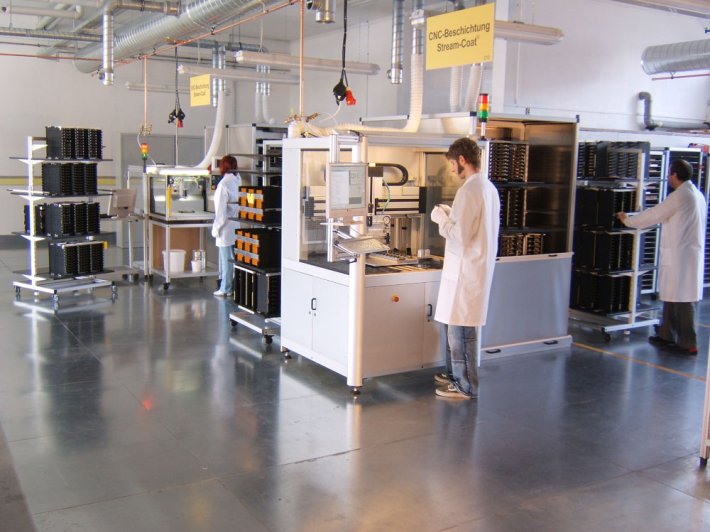

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Selective CNC spraying (Stream-Coat®)Surface | – | – | – | – | Protective lacquers, Thick-film lacquers |
| Selective process Milli-Coat® (partial form-cup dip coating)Surface | 0.8 mm | – | – | – | Protective lacquers, Thick-film lacquers, viscous lacquers |
| Dip coatingSurface | – | – | – | – | solvent-based lacquers, water-thinnable lacquers |
| Vertical dipping/floodingSurface | – | – | – | – | Protective lacquers |
| Spray coating with stencils/masksSurface | – | – | – | – | Protective lacquers, UV lacquer |
| Machine dispensingSurface | – | – | – | – | Lacquers, Casting resins |
| Dipping with fluoropolymersSurface | – | – | – | – | Fluoropolymer lacquers |
| Manual coating of prototypesSurface | – | – | – | – | Protective lacquers |
| Thick-film coating (room-temperature or UV curing)Surface | – | – | – | – | Thick-film lacquers (e.g. PUR 35251) |
| Lacquer stripping of assembliesSurface | – | – | – | – | Protective lacquers |
| Potting with polyurethane resin (two-component, machine/manual)Plastics | – | – | – | Small series (manual) – Large series (machine) | Polyurethane resin |
| Potting with hotmelt resinPlastics | – | – | – | – | Hotmelt resin |
| Potting with silicone resin (one-/two-component)Plastics | – | – | – | – | Silicone resin |
| Potting with epoxy resin (two-component, housing-forming)Plastics | – | – | – | – | Epoxy resin (highly filled) |
| Dam-and-fill pottingPlastics | – | – | – | – | thixotropic polyurethane lacquers, hotmelt resin, casting resins, thick-film lacquers |
| Spray cleaning of assembliesSurface | – | – | – | – | – |
| Immersion cleaning (with/without ultrasonics)Surface | – | – | – | – | – |
| Surface analyses (ionic contamination measurement, flux and resin test)Testing | – | – | – | – | – |
| Bonding, sealingJoining | – | – | – | – | – |
| AssemblyAssembly | – | – | – | – | – |
| Plant engineering (coating systems)Engineering | – | – | – | – | – |
| Tool engineering (coating tools, tool carriers, cover masks, potting tools)Engineering | millimeter-accurate | – | – | – | Rubber, Metal |
7 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Coating system SSC 200 (selective CNC spraying) | KC-Produkte SSC 200 | – | – | – | Friolzheim |
| CNC coating system (Stream-Coat®) | KC-Produkte | – | – | – | Friolzheim |
| Form-cup dip coating system (Milli-Coat®) | KC-Produkte | – | – | – | Friolzheim |
| Spray cleaning system | – | – | – | – | Friolzheim |
| Immersion cleaning system (with/without ultrasonics) | – | – | – | – | Friolzheim |
| CNC machines (tool engineering) | – | – | – | – | Friolzheim |
| Robotic coating | – | – | – | – | Friolzheim |
Additional services
Quality
Contract coating is monitored by a multiply audited quality management system certified by DEKRA. Works test certificates, first-article inspection reports, 8D reports and quality assurance agreements are standard.
| Evidence | Friolzheim |
|---|---|
| ISO 9001 (DEKRA-certified QM system) |
History
- 1977
Founding of KC – Kunststoff-Chemische Produkte GmbH
Development of the world's first form-cup coating process, the world's thinnest coating needle and the first solvent-free thick-film lacquers
