Steel processing and welded assemblies for agricultural technology and mechanical engineering – from cutting to the finished assembly.
Landtechnik und Maschinenbau Schüring GmbH
Beesten (main plant, approx. 11,500 m²) · Spelle (second plant, approx. 2,000 m²)New on Amplifa
About us
Landtechnik und Maschinenbau Schüring GmbH is a medium-sized mechanical engineering company based in Beesten in the Emsland region of Lower Saxony, specializing in the processing of steel. Since 1998, steel parts have been produced in single-part and series production; the focus is on the manufacture of large, complex welded assemblies, CNC laser and plasma cutting, and steel shot blasting. The range of services also includes forming technology such as bending, rolling, tube bending and pressing, machining (CNC milling, turning, sawing), surface treatment including edge rounding, as well as assembly and transport. Coating is carried out by partner companies, to which the parts are supplied after preparation. The company is certified to DIN EN ISO 9001 and supplies well-known agricultural machinery manufacturers and international large corporations as a supplier; metalworking shops, very small customers and private farmers also belong to its customer base. With more than 200 employees and around 13,500 m² of production and storage space at two sites, the company realizes lot sizes from one-off parts to series production with short lead times.
- Site
- Beesten
- Processes
- CNC laser cutting, CNC plasma cutting, Shear cutting, Bending (bending of sheet metal cutouts), Rolling, Tube bending, Punching, Pressing (bending/pressing into desired shape)
- Materials
- Steel, Structural steels, Stainless steels, Hardened steels, Bar stock
- Certificates
- DIN EN ISO 9001, DIN EN 3834-2
- Founded
- 1998
- Employees
- 200+
- Industries
- Agricultural technology, Agricultural machinery manufacturing, Mechanical engineering, Metalworking shops
- 01
CNC laser and plasma cutting
- 02
Shear cutting, sawing
- 03
Bending, rolling, tube bending, punching, pressing
- 04

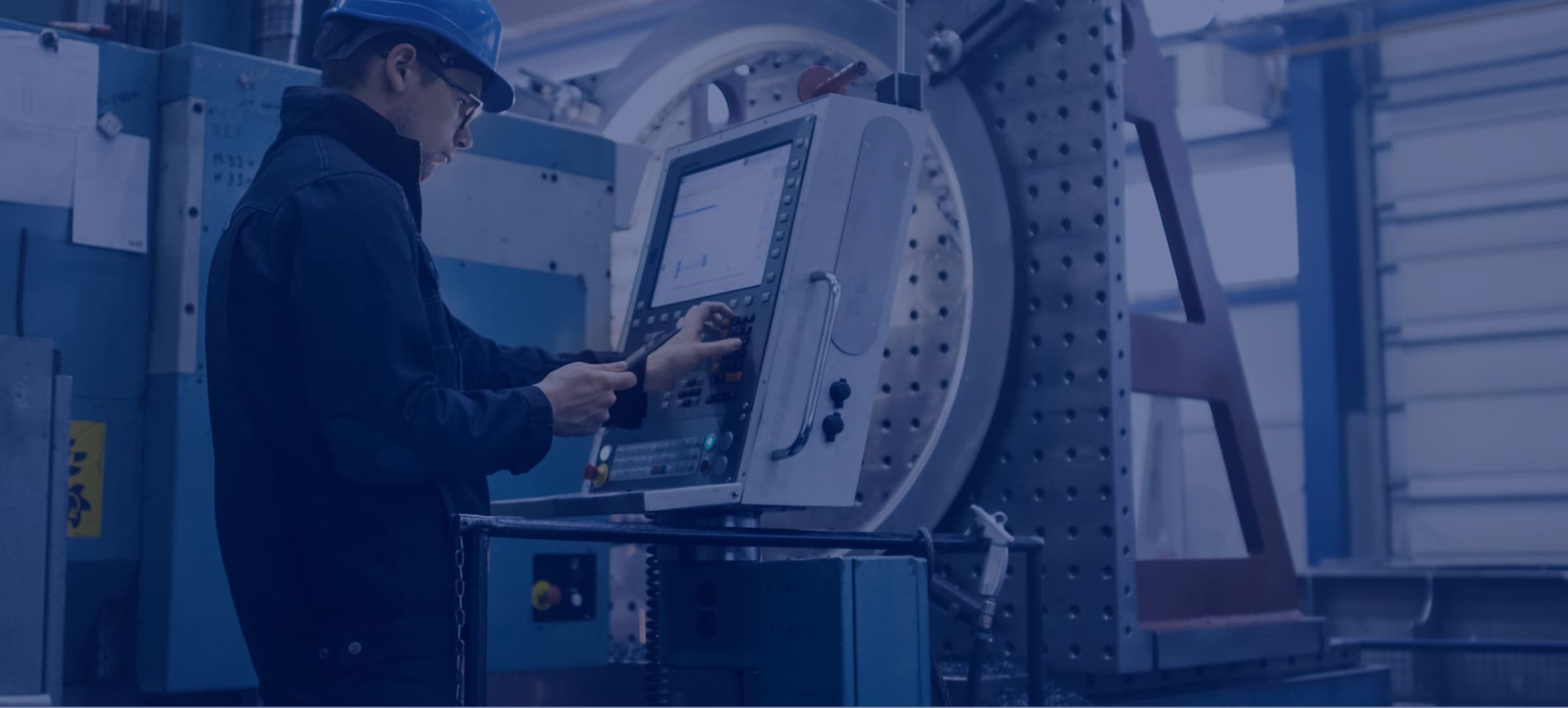

CNC milling, drilling, turning
- 05
Shot blasting, edge rounding
- 06
Welding (MAG, manual and robotic)
- 07
Cleaning, assembly, preparation for painting
- 08
Coating (partner companies)
- 09
Metrology, transport
Materials and Processes
Steel
The company's core material, processed in single-part and series production.
Structural steels
Sheet metal cutouts up to 25 mm by laser cutting, up to 50 mm by plasma cutting.
Stainless steels
Cutouts by CNC laser cutting up to 25 mm sheet thickness.
Hardened steels
Material group processable by laser cutting for high-strength applications.
Bar stock
Cutting on saws up to 12 m length, cross-section up to 560 x 600 mm.
Sites

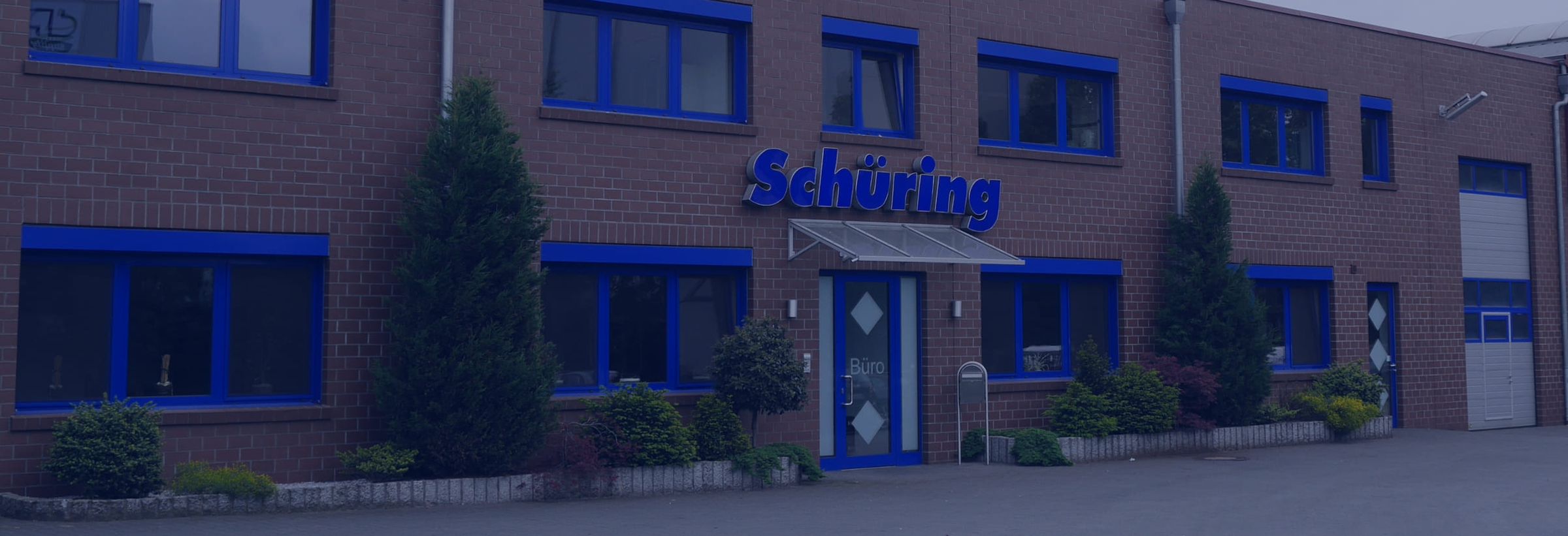

Beesten
DEMain plant
- Lot size
- One-off parts to series production
- Materials
- Steel, structural steels, stainless steel
- CNC laser cutting machine (2 x 4 m, up to 25 mm)
- Plasma cutting machine (2 x 6 m, up to 50 mm)
- Press brakes (bending length up to 4,000 mm)
- Rolling machine (width 1.8 m, radii from 120 mm)
- Press (max. 400 t)
- CNC machining center (3,200 x 750 x 500 mm)
- Lathe (up to Ø 200 x 1,000 mm)
- Saw (up to 12 m length)
- Through-feed shot blasting system (6 x 2 x 1 m)
- Welding robots (approx. 2,400 x 4,700 mm)
- Pin welding tables
- 2 Faro 3D measuring arms
- Edge rounding machine
Spelle
DESecond plant
- Materials
- Steel
Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| CNC laser cuttingMachining | – | 4 m × 2 m | – | One-off part – Series production | Structural steels, stainless steels, hardened steels, other metals |
| CNC plasma cuttingMachining | – | 6 m × 2 m | – | – | various steels, metals |
| Shear cuttingMachining | – | 4 m | – | – | Steel |
| Bending (bending of sheet metal cutouts)Forming | – | 4 m bending length | – | – | Steel |
| RollingForming | – | 1.8 m width | – | – | Steel, bar stock |
| Tube bendingForming | – | 2.5 inch diameter | – | – | tubes/steel |
| PunchingForming | – | 70 mm diameter | – | – | Steel |
| Pressing (bending/pressing into desired shape)Forming | – | – | – | – | Steel, sheet metal cutouts, tubes, shafts |
| Sawing / cutting of bar stockMachining | – | 12 m × 560 x 600 mm cross-section | – | – | Bar stock, Steel |
| CNC drilling / CNC millingMachining | – | 3200 mm × 750 mm × 500 mm | – | One-off part – Series production | Steel, workpieces |
| TurningMachining | – | 1000 mm × ∅ 200 mm | – | – | Steel |
| Shot blasting (steel shot blasting)Surface treatment | – | 8000 mm × 2000 mm × 1000 mm | – | – | Steel, sheets, tubes, assemblies |
| Edge roundingSurface treatment | – | 3000 mm × 1500 mm | – | – | Sheets (steel) |
| Welding (MAG / manual welding)Joining | – | – | 5 t | One-off part – Series production | Steel |
| CNC robotic weldingJoining | – | 4700 mm × 2400 mm × 2400 mm | – | – | Steel |
| Welded assembly manufacturing (complex welded assemblies)Joining | – | – | – | One-off part/small quantities – higher lot sizes | Steel |
| Single-part and assembly manufacturing (incl. cleaning and preparation for painting)Assembly | – | – | – | One-off part – Series production | Steel |
| Assembly (assembly according to customer requirements)Assembly | – | – | – | – | – |
| Metrology / measurement and inspection reports (3D measuring arms)Inspection | – | – | – | – | – |
| Coating (powder coating, wet priming/wet painting, thick-coat passivation – bySurface treatment | – | – | – | – | Steel |
| Transport (3 own trucks, 40 t up to 13.50 m)Other | – | 13.50 m | 40 t | – | – |
14 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| CNC laser cutting machine | – | – | 2 x 4 m, sheet thickness up to 25 mm | – | Beesten |
| Plasma cutting machine | – | – | 2 x 6 m, sheet thickness up to 50 mm | – | Beesten |
| Shear (shear cutting) | – | – | up to 4 m, sheet thickness up to 8 mm | – | Beesten |
| Press brake | – | – | Bending length up to 4000 mm, sheet thickness up to 25 mm | – | Beesten |
| Rolling machine | – | – | Width 1.8 m, radii from 120 mm, sheet thickness up to 15 mm | – | Beesten |
| Press | – | – | Max. press force 400 t | – | Beesten |
| Saw | – | – | up to 12 m length, cross-section 560 x 600 mm (straight) / 320 x 520 mm (miter up to 30°) | – | Beesten |
| CNC machining center (milling) | – | – | 3200 x 750 x 500 mm | – | Beesten |
| Lathe | – | – | up to ∅ 200 mm and 1000 mm length | – | Beesten |
| Through-feed shot blasting system | – | – | 2000 mm width, 1000 mm height, 8000 mm length (6 x 2 x 1 m) | – | Beesten |
| Welding robot (CNC robotic welding) | – | – | approx. 2400 x 4700 mm | – | Beesten |
| Pin welding table | – | – | – | – | Beesten |
| 3D measuring arm (Faro) | Faro | 2 | – | – | Beesten |
| Edge rounding machine | – | – | Sheet thickness up to 40 mm, dimensions up to 1500 x 3000 mm | – | Beesten |
Additional services
Reference customers
Quality

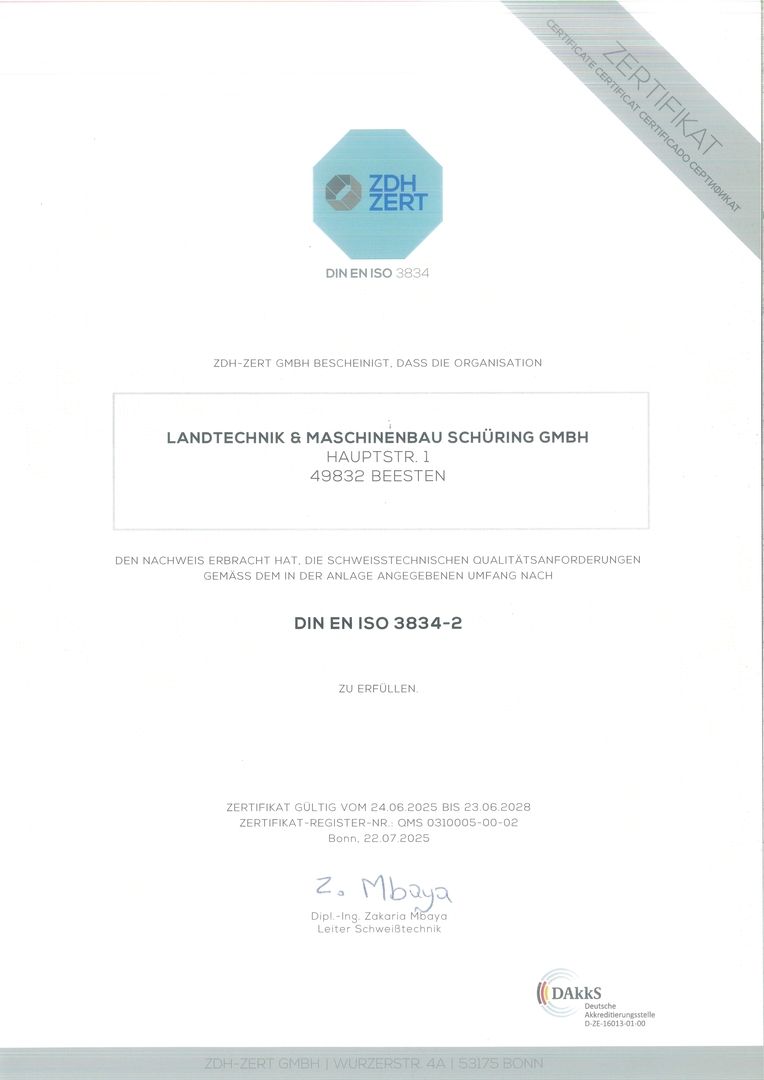

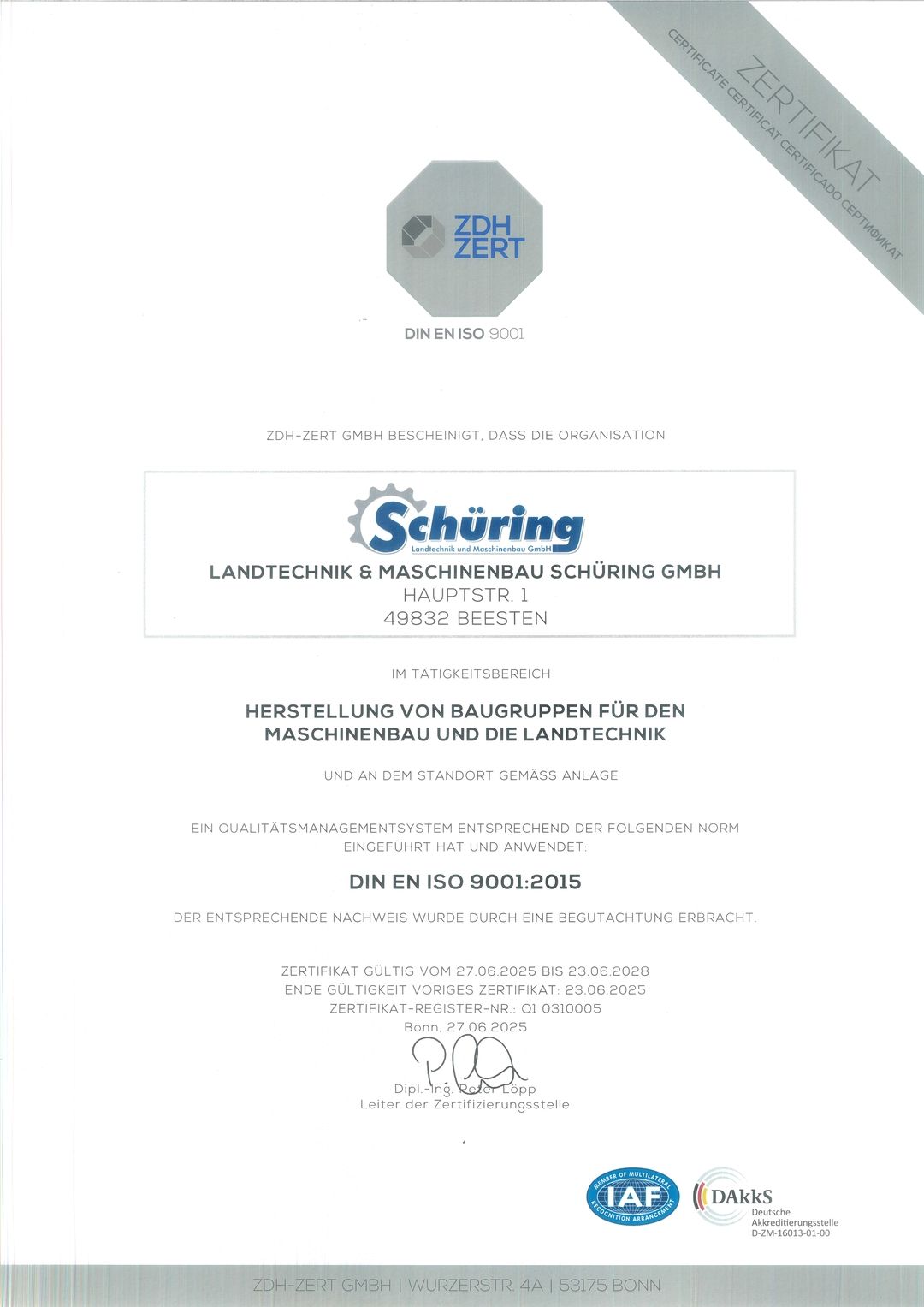

Dimensional accuracy is checked using two computer-assisted Faro 3D measuring arms; extensive measurement and inspection reports are created for this purpose. The company is certified to DIN EN ISO 9001 and DIN EN 3834-2.
| Evidence | Beesten |
|---|---|
| DIN EN ISO 9001 | |
| DIN EN 3834-2 |
History
- 1998
Start of production of steel parts in single-part and series production.
- 2018
Expansion: enlargement of the main plant in Beesten by several production halls and a three-storey office wing.
