Development, production and distribution of custom LED modules including in-house mechanical manufacturing
m.a.l. Effekt-Technik
New on Amplifa
About m.a.l. Effekt-Technik
m.a.l. Effekt-Technik (modern art of light) develops, produces and distributes custom LED modules – from the sketch through prototypes and sample production to the series-ready product. In addition to LED manufacturing with its own SMD assembly lines, the company operates a mechanical manufacturing facility with 5-axis simultaneous CNC milling machines (working area up to 1500x700 mm), CNC sheet metal working, laser cutting and CNC turning. Materials processed include aluminium, stainless steel, copper, plastics and ESD-safe foam; tool and mould making as well as in-house packaging production from corrugated board and cardboard are also carried out in-house. Under the product brand iX-led, the company additionally offers a broad standard range of white, HCL, color and RGBW LED modules. Customers come primarily from the LED and luminaire industry.
- Processes
- CNC milling (2D, 2.5D and 5-axis simultaneous milling), CNC sheet metal working, CNC laser cutting, CNC turning, Tool & mould making, Processing of corrugated board and cardboard for packaging production, SMD assembly, Development of custom LED modules (prototypes through series product)
- Materials
- Aluminium, Stainless steel, Copper, Plastics, ESD-safe foam
- Industries
- LED/luminaire industry
- 01
Development of custom LED modules
- 02
Prototyping and sample production
- 03
Tool and mould making
- 04

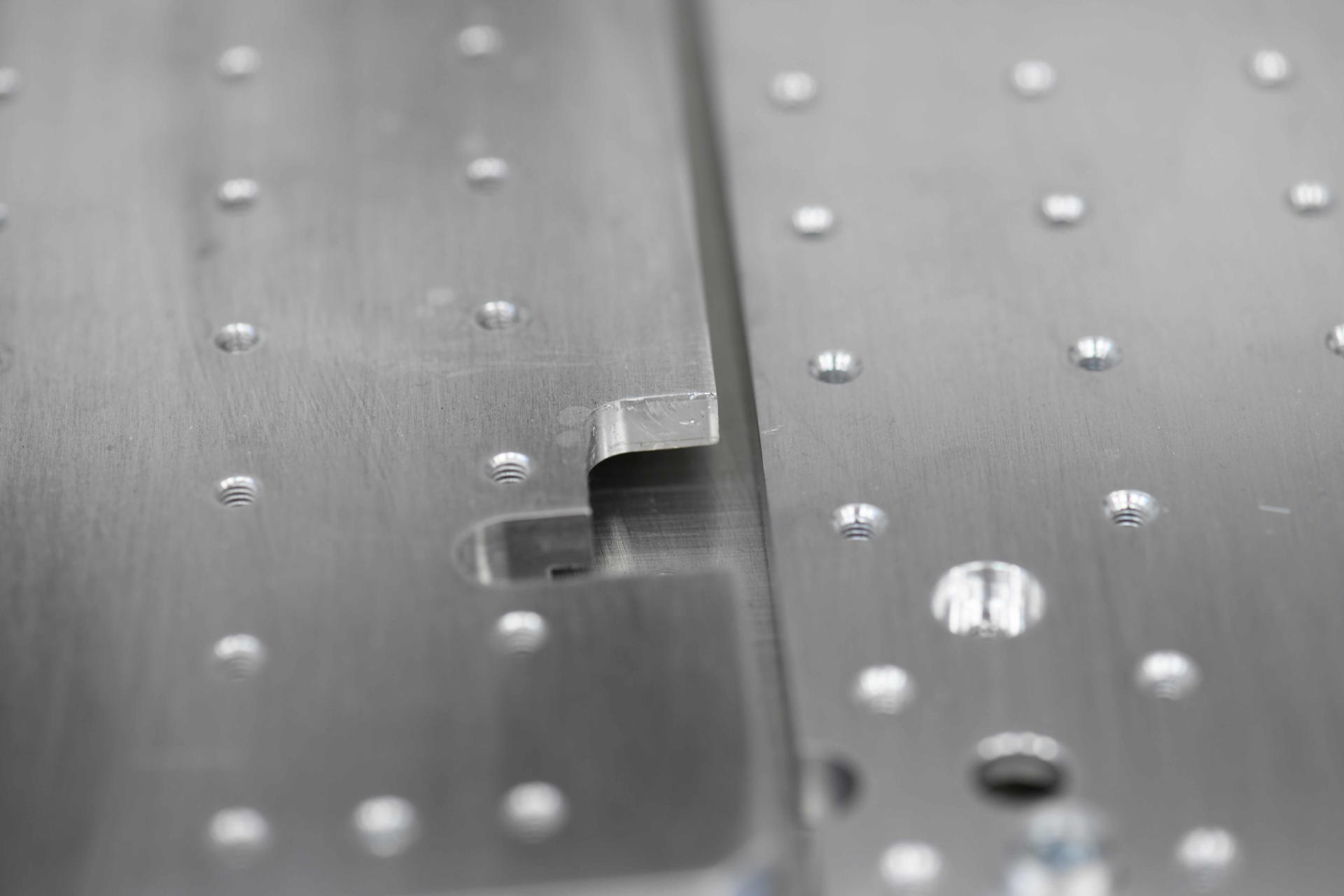

CNC milling (2D, 2.5D, 5-axis)
- 05
CNC sheet metal working
- 06
Laser cutting
- 07
CNC turning
- 08

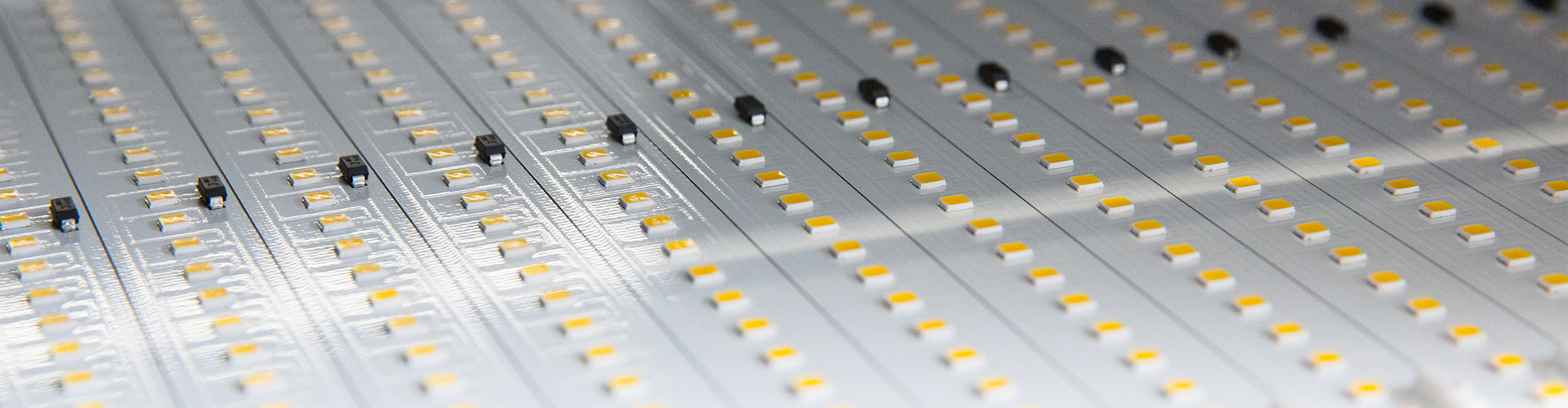

SMD assembly
- 09
In-house packaging production (corrugated board/cardboard)
Materials and Processes

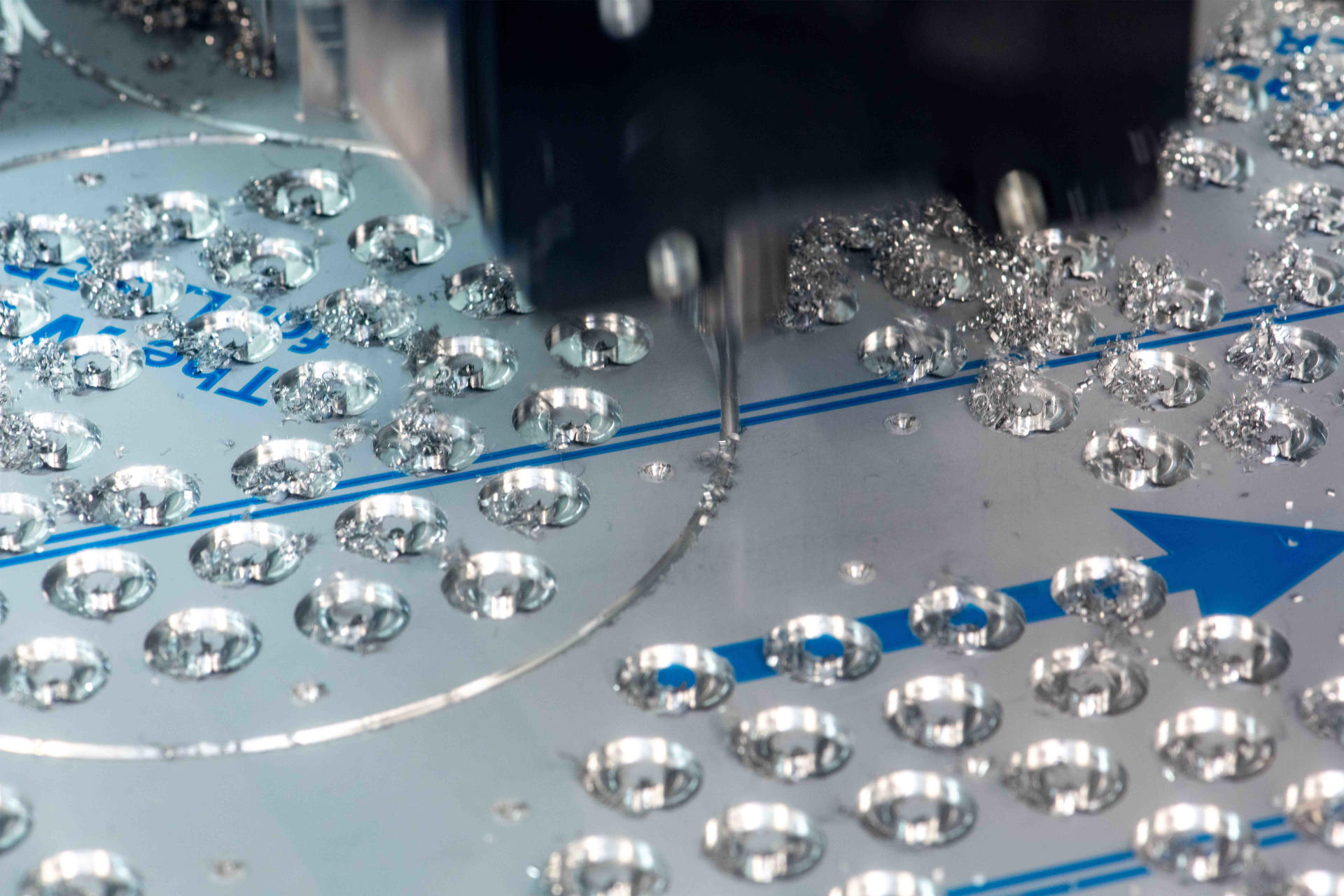

Aluminium

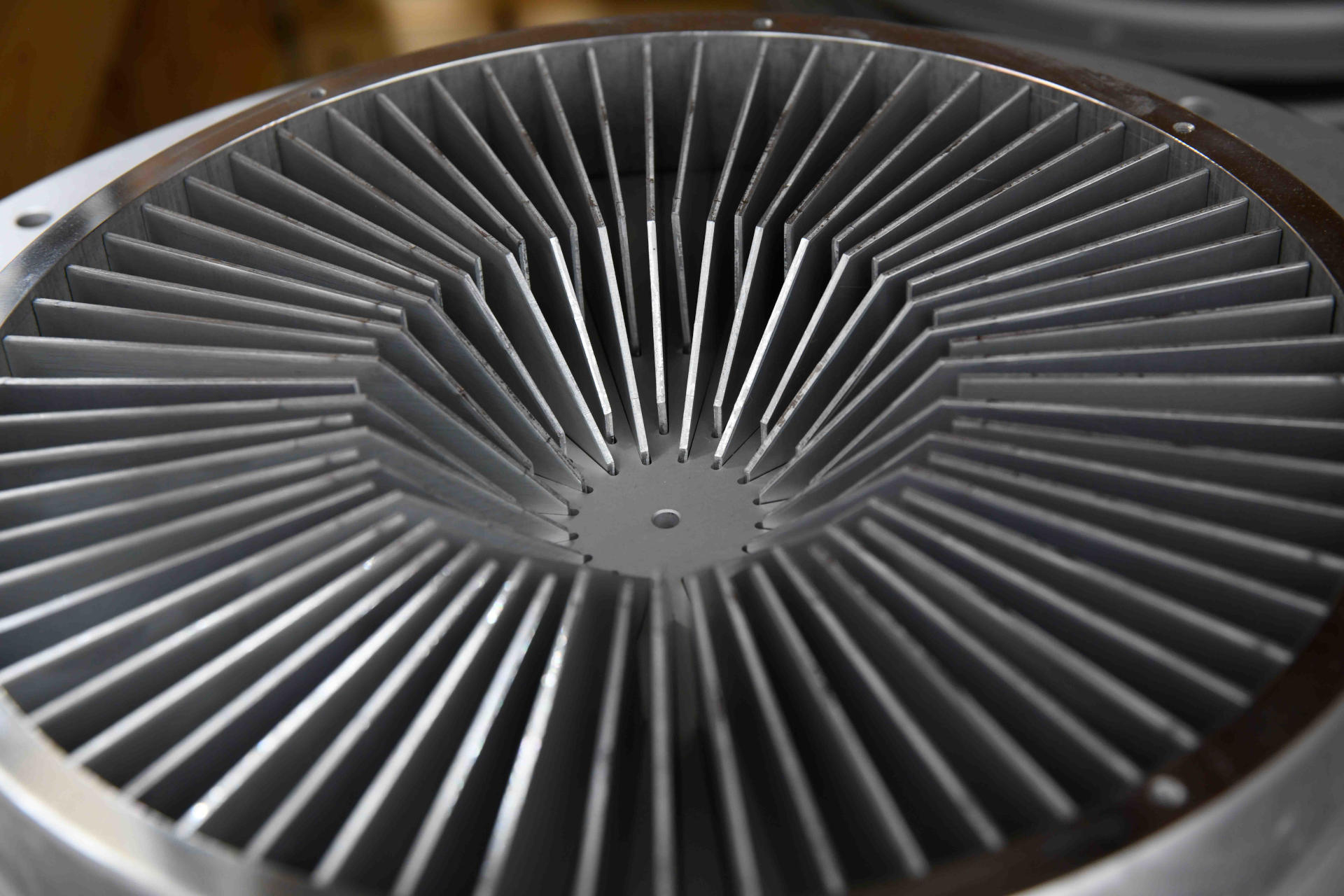

Milled heat sinks and luminaire components made from aluminium plates.

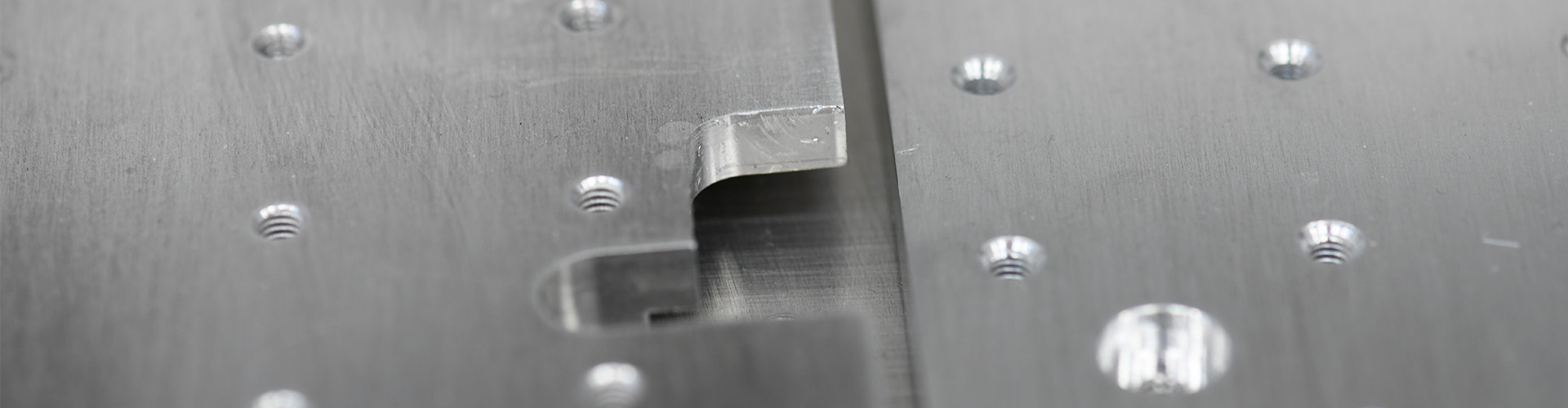

Stainless steel
Machining by milling, sheet metal, laser cutting and turning processes.
Copper
Used in machining for luminaire components.

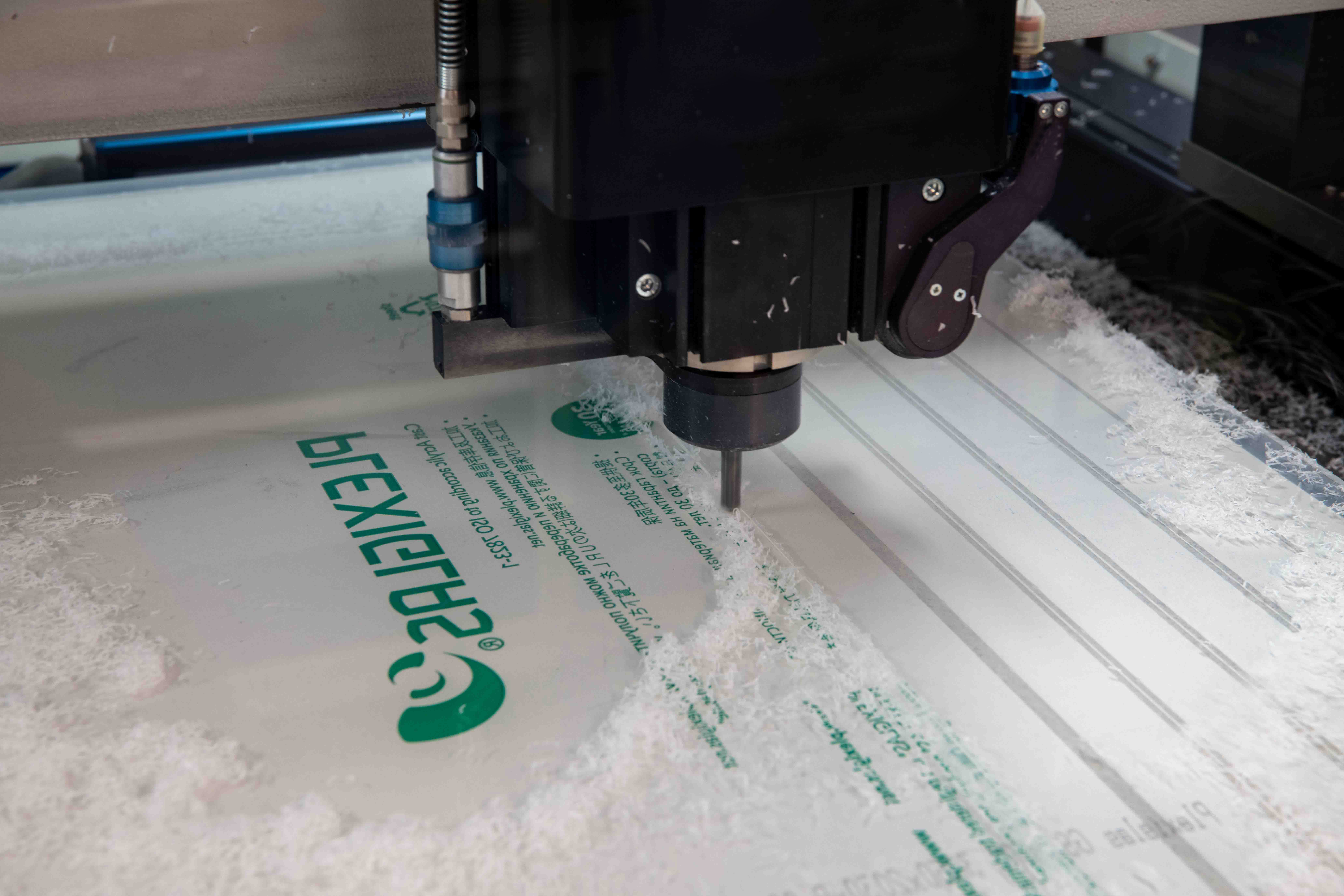

Plastics
Milling processes, for example of acrylic glass (Plexiglas).

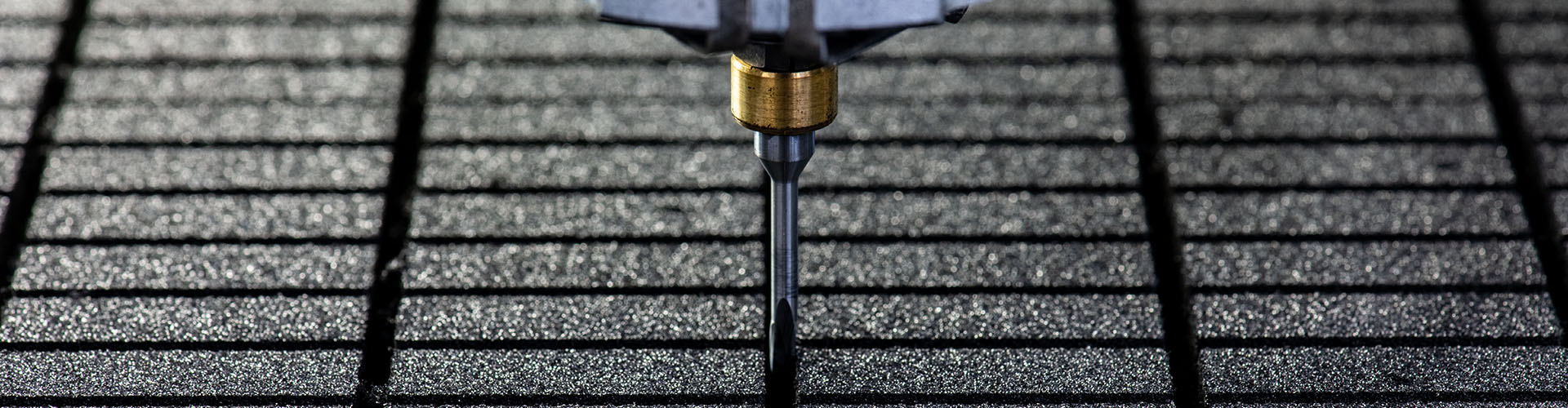

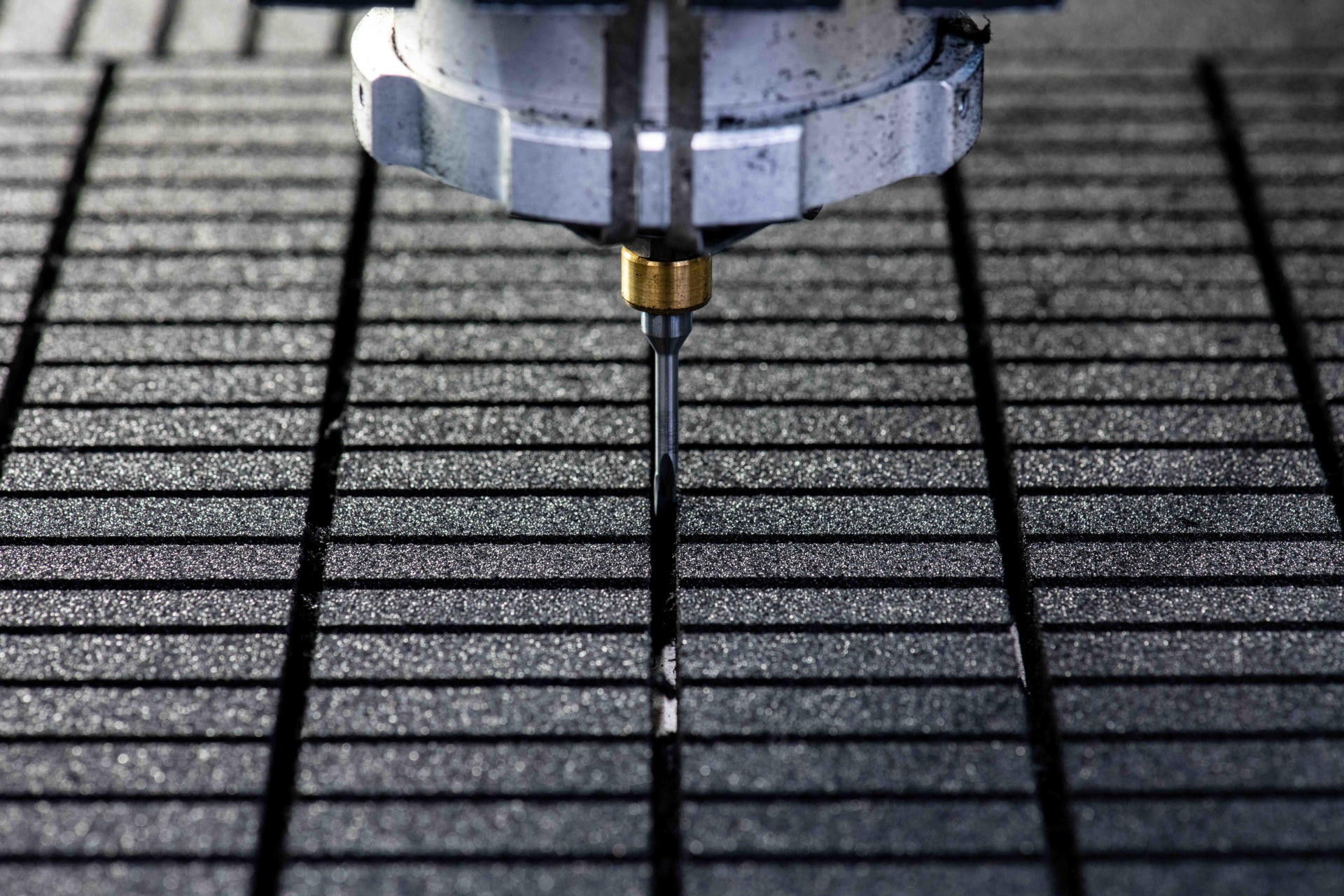

ESD-safe foam
Milling of ESD foam for packaging of LED modules.

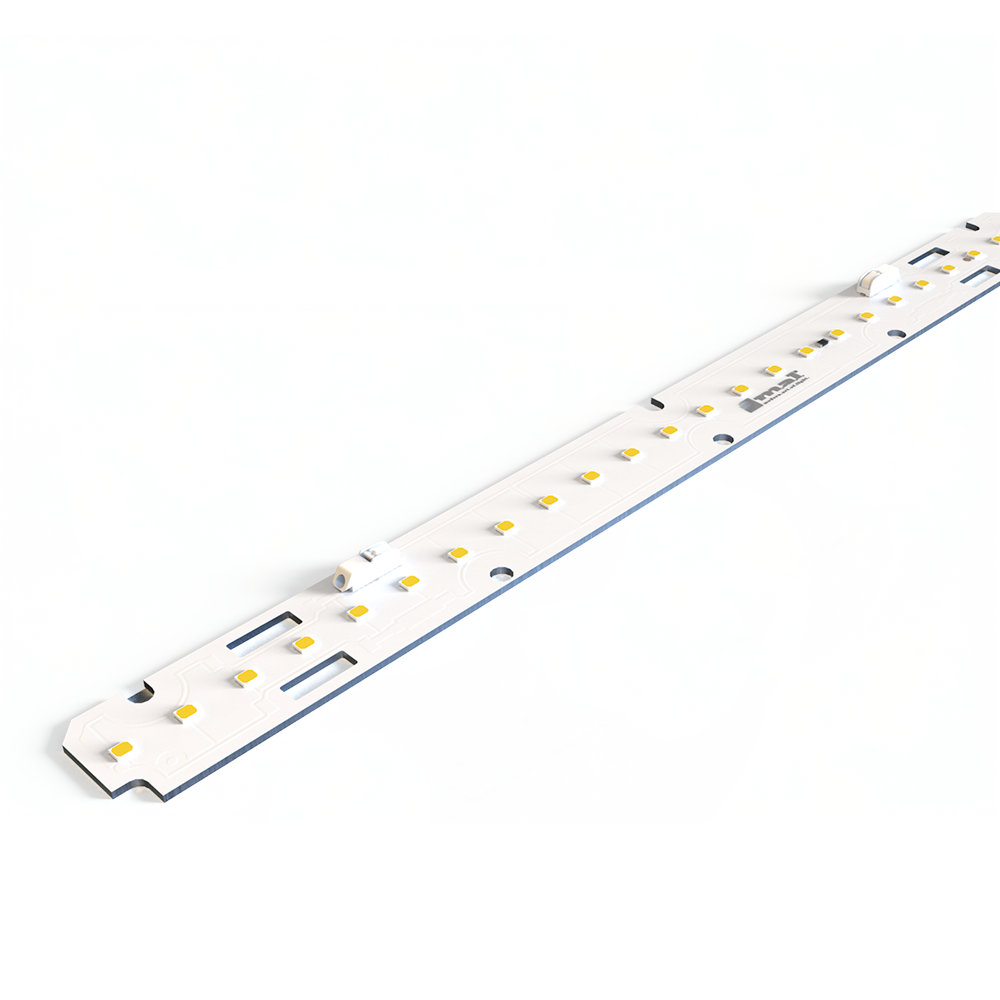

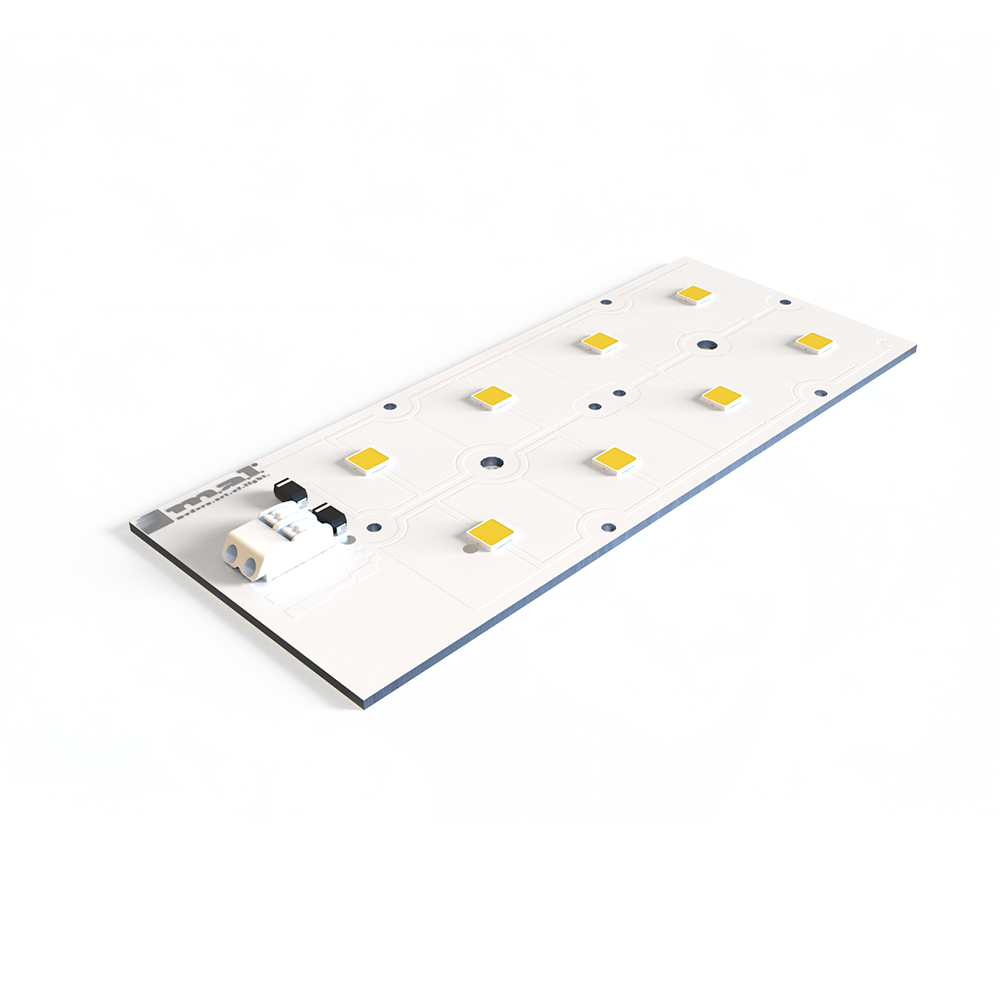

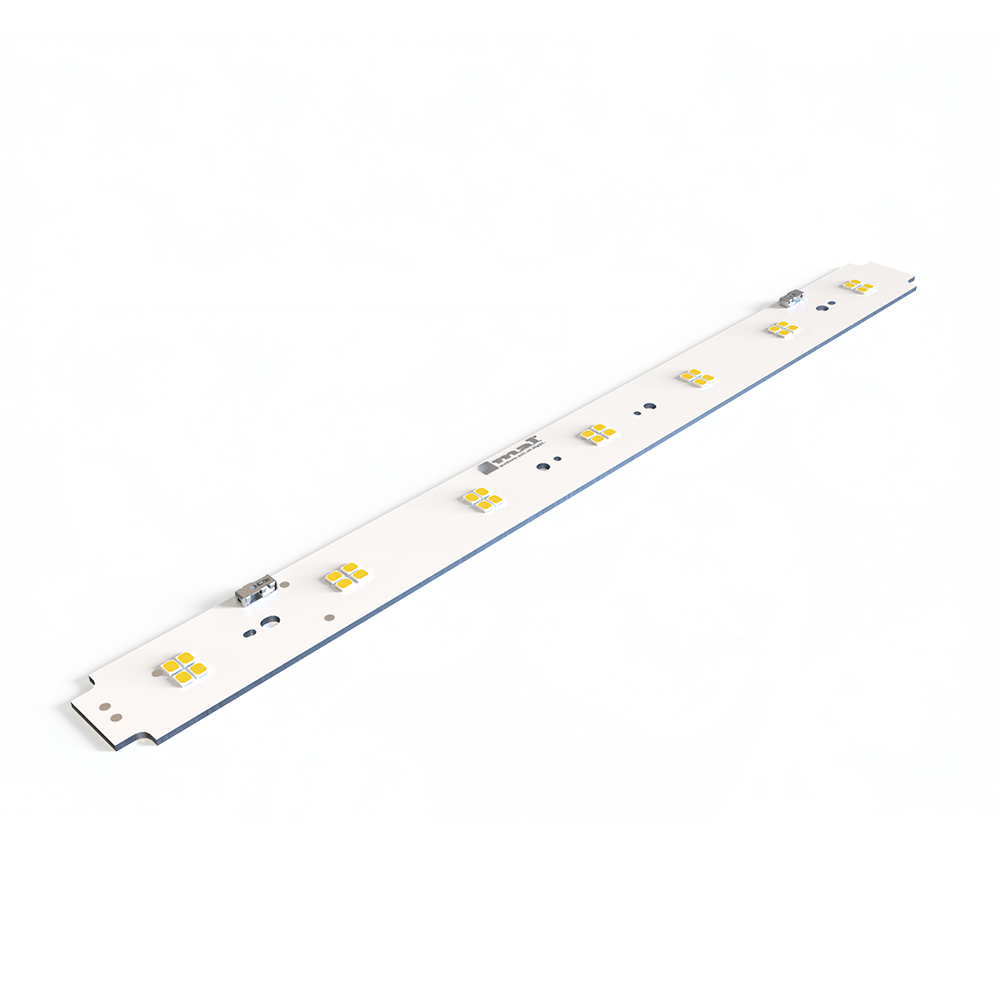

Components and Products

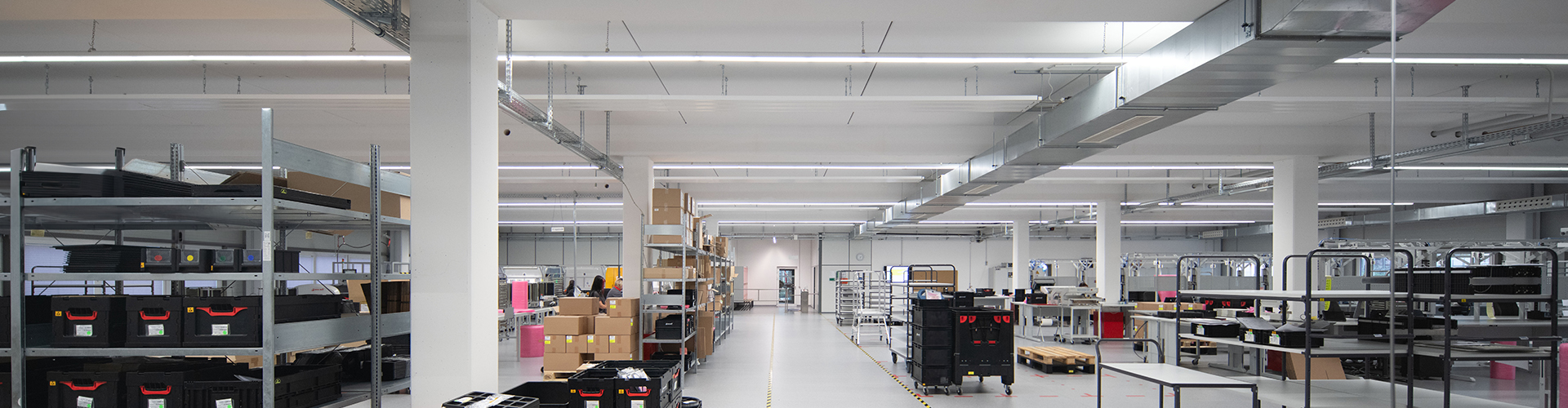

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| CNC milling (2D, 2.5D and 5-axis simultaneous milling)Machining | – | 700 mm × 1500 mm | – | – | Aluminium, Stainless steel, Copper, Plastics, ESD-safe foam |
| CNC sheet metal workingForming | – | – | – | – | Aluminium, Stainless steel, Copper |
| CNC laser cuttingMachining | – | – | – | – | Aluminium, Stainless steel, Copper |
| CNC turningMachining | – | – | – | – | Aluminium, Stainless steel, Copper |
| Tool & mould makingEngineering | – | – | – | – | – |
| Processing of corrugated board and cardboard for packaging productionOther | – | – | – | – | Corrugated board, Cardboard |
| SMD assemblyAssembly | – | – | – | – | – |
| Development of custom LED modules (prototypes through series product)Engineering | – | – | – | – | – |
2 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|

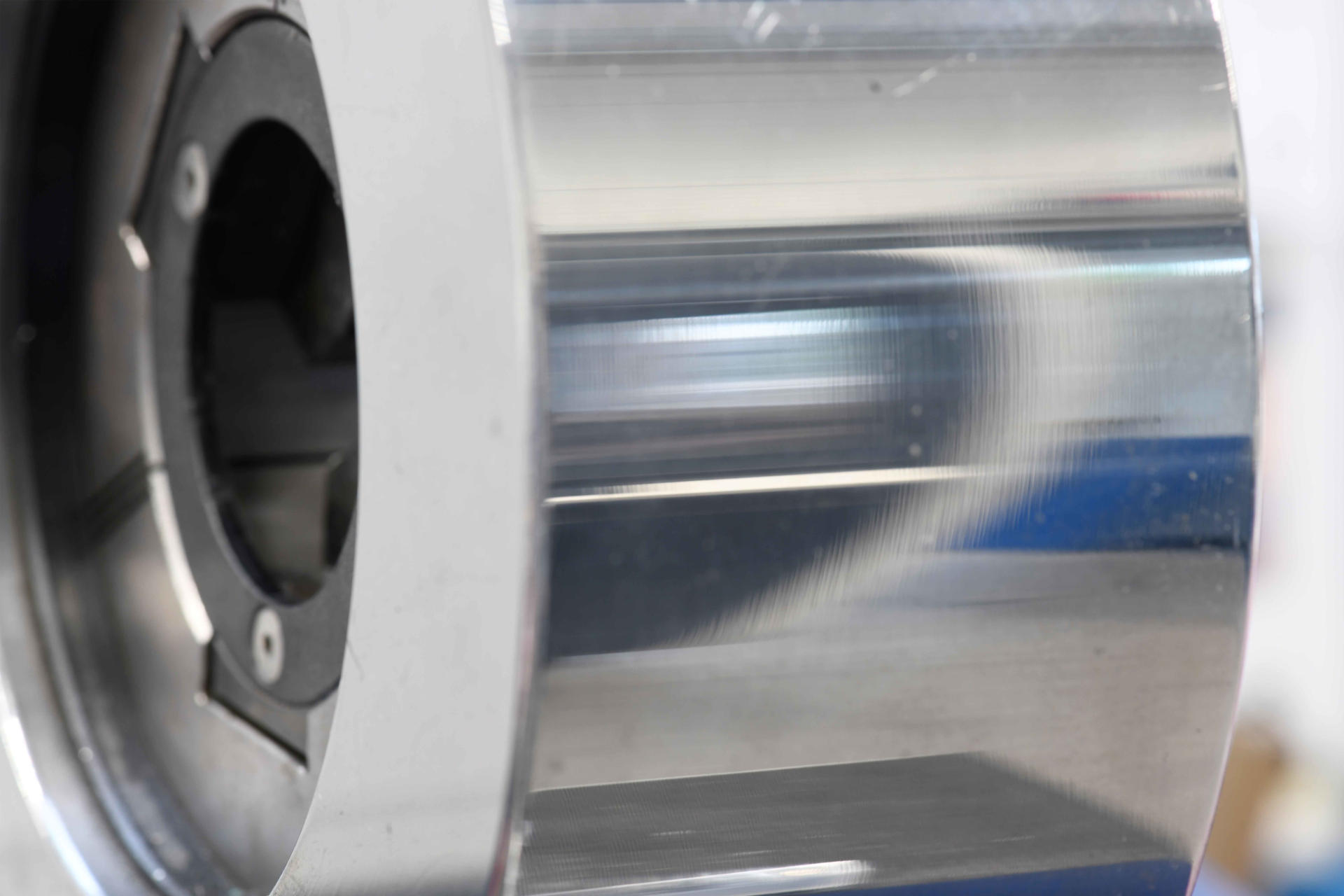

| 5-axis simultaneous CNC milling machines | – | – | up to 1500x700 mm | – | – |

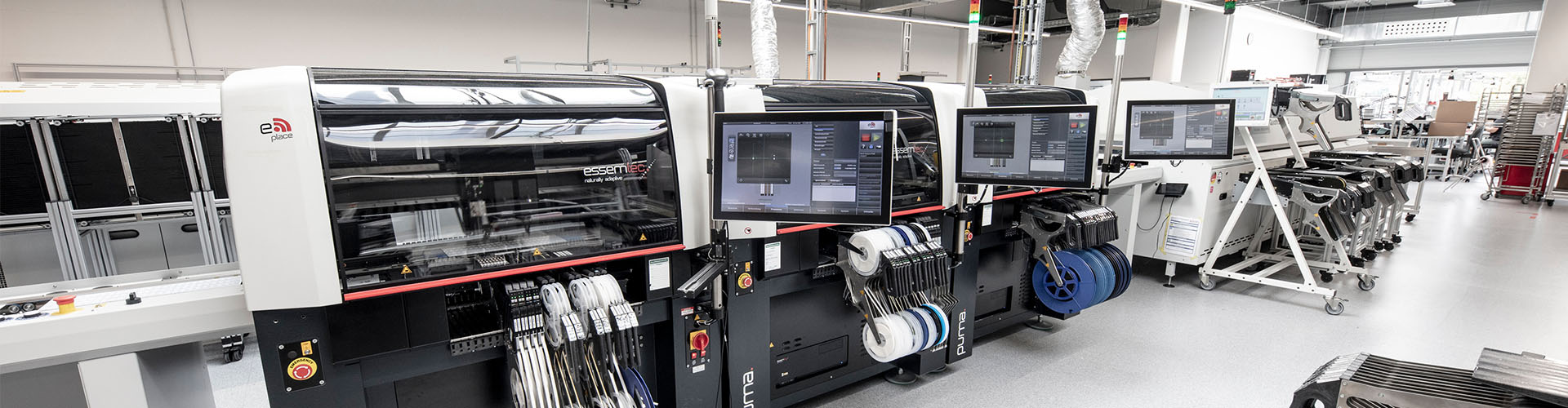

| SMD assembly lines | – | – | – | – | – |
