Contract machining with CNC turning, CNC milling, grinding and welding of precision components in steel, cast, stainless steel, aluminium and brass
MBE Maschinenbau GmbH Eibau
Kottmar (OT Eibau) · ZittauNew on Amplifa
About MBE Maschinenbau GmbH Eibau
MBE Maschinenbau GmbH Eibau is a metal processing company based in Kottmar (district of Eibau) in Saxony and part of the Scholz Group. Founded in 2003 as a contract machining shop, the company manufactures precision components with a high depth of production; its core services are CNC turning, CNC milling, CNC grinding and welding (MIG/MAG and TIG). The range of services also includes toolmaking, engineering design, prototype production, welded assemblies, assembly as well as research and development. Materials processed include steel in all specifications, cast, stainless steel, aluminium and brass; surface treatments such as electroplated coating, heat treatment or anodising are carried out in cooperation. Production ranges from individual parts to large series, with turning diameters up to 700 mm, milling sizes up to 2,400 mm and lengths up to 2,000 mm. Customers include, among others, the commercial vehicle industry, power plant and wind power engineering, shipbuilding, rail transport, mining, gearbox technology, the semiconductor industry and general mechanical engineering. In addition to its headquarters with production and logistics centre in Eibau, MBE operates a production site in Zittau.
- Site
- Kottmar (OT Eibau)
- Processes
- CNC turning, CNC milling, CNC grinding, Welding, Electroplating, Hardening, tempering, plasma nitriding, Burnishing, Phosphating
- Materials
- Steel (all specifications), Cast (all specifications), Stainless steel, Aluminium, Brass, Plastics
- Certificates
- ISO 9001:2015, ISO 50001:2018, DIN EN ISO 3834-3:2021-08, DIN EN ISO 9712:2022-09 (NDT), DIN EN 1090-2 (welding certificate), DIN EN ISO 3834-3, DIN EN ISO 9712 (NDT), DIN EN 1090-2
- Founded
- 2003
- Industries
- Commercial vehicle industry, Power plant engineering, Wind power engineering, Shipbuilding, Rail vehicles, Mining
- 01
Engineering design
- 02

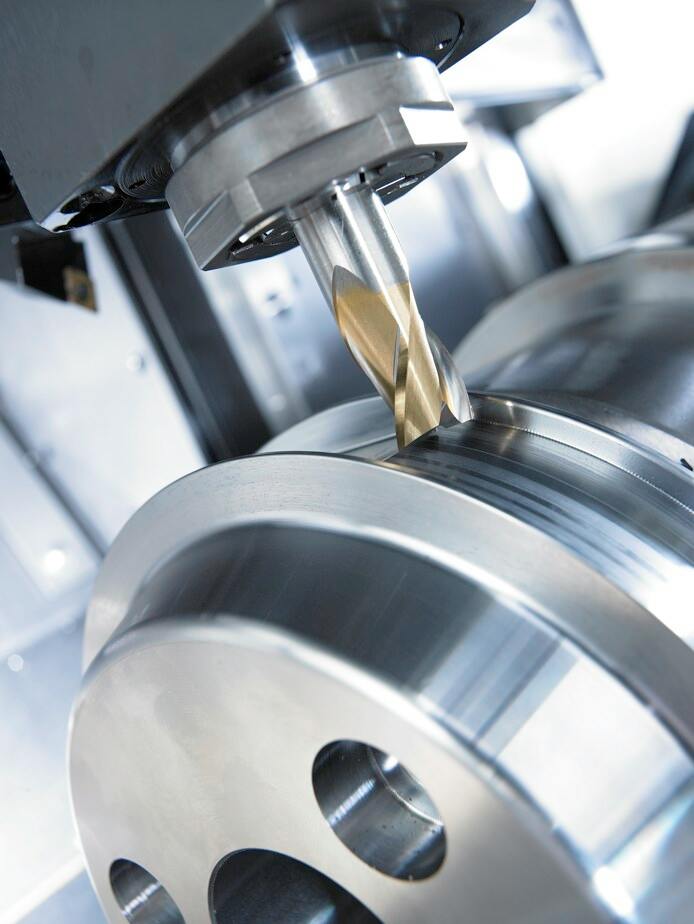

CNC turning
- 03
CNC milling
- 04
CNC grinding
- 05
Welding
- 06
Assembly
- 07
Quality inspection
- 08
Surface treatment (in cooperation)
Materials and Processes
Steel (all specifications)
Machining in all specifications for turned, milled and welded parts across various industries.
Cast (all specifications)
Machining of cast components, among others for gearbox and mechanical engineering.
Stainless steel
Corrosion-resistant components for demanding applications.
Aluminium
Lightweight components; anodising also possible in cooperation.
Brass
Machining of brass components with high dimensional accuracy.
Plastics
Processing and machining of plastics according to the certificate scope.
Sites

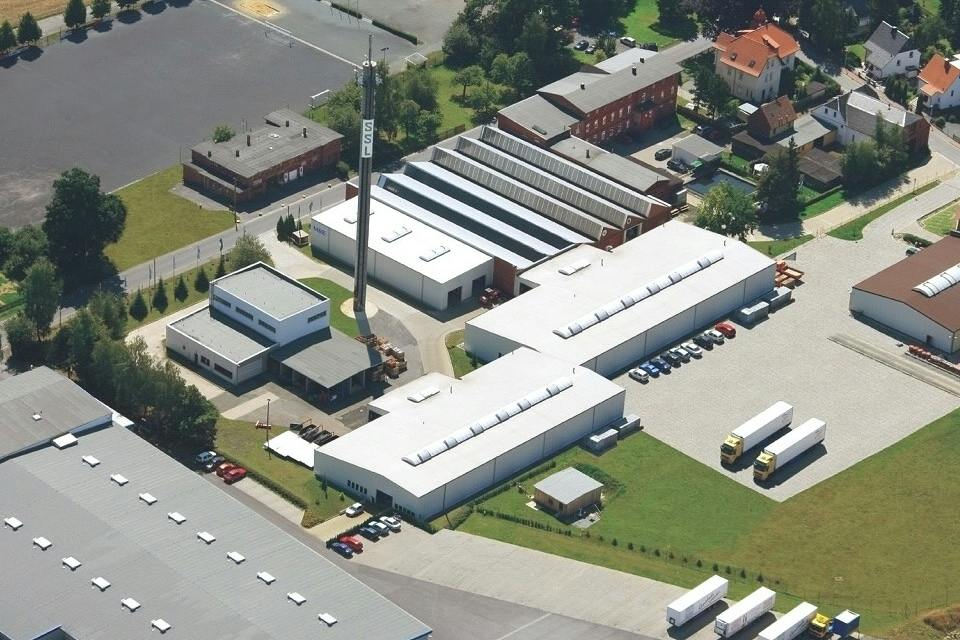

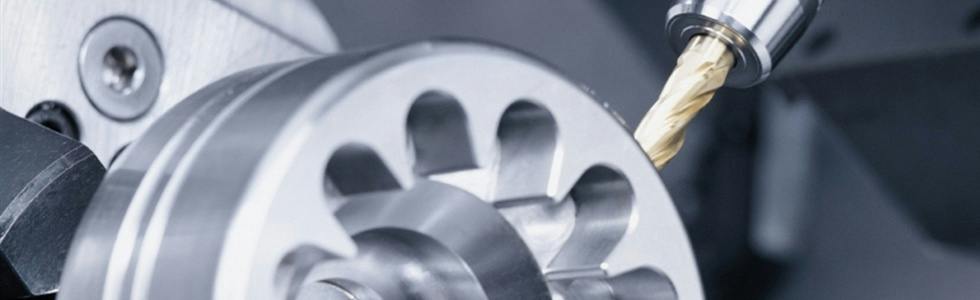

Kottmar (OT Eibau)
DEHeadquarters / Production and logistics centre
- Part weight / size
- up to Ø 700 mm × 2,000 mm (turning); Ø 2,400 mm (milling)
- Lot size
- Individual part to large series
- Materials
- Steel, cast, stainless steel, aluminium, brass
- Gildemeister/DMG MORI CNC lathes (including CTX Gamma, NEF 720)
- EMAG VSC 400 vertical lathes

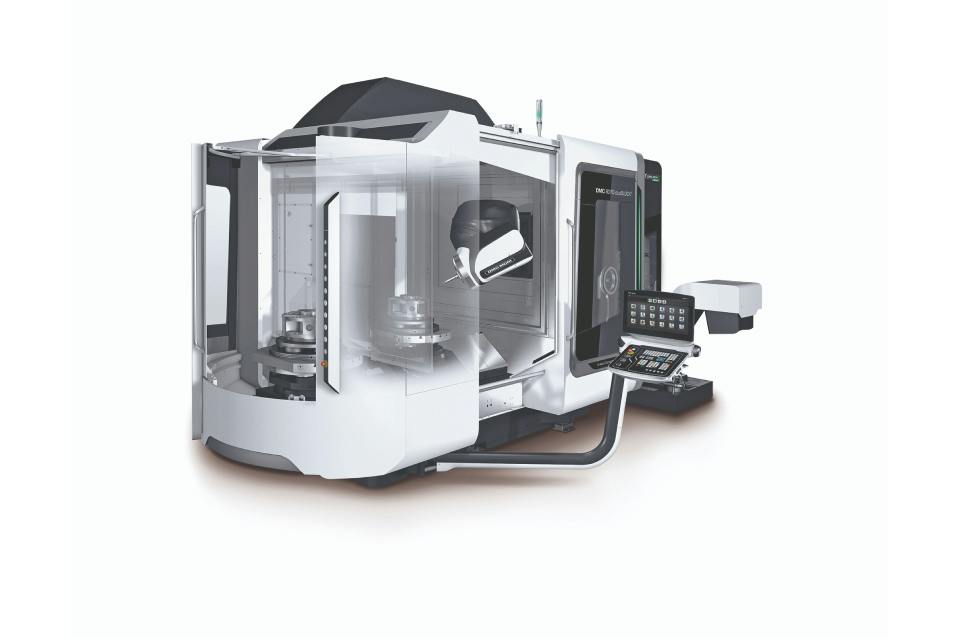

- DMG MORI CNC milling machines (including DMU340 FD, DMF 200)
- Ziersch Z 715 surface grinding machine
- Kellenberger UR 175/1000 cylindrical grinding machine

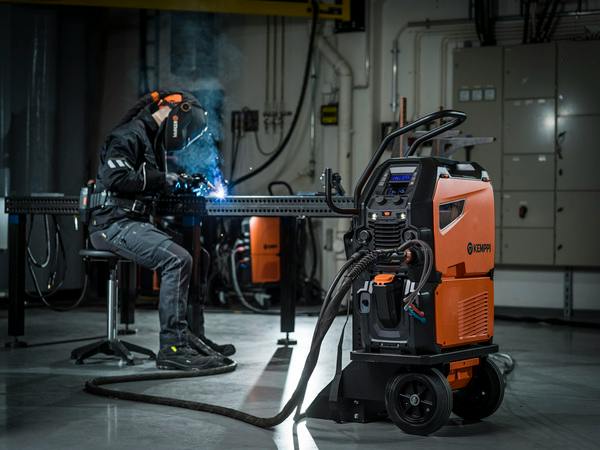

- Kemppi MIG/MAG and TIG welding equipment
- 3D coordinate measuring machines (Mitutoyo, Wenzel, Coord 3D)
Zittau
DEProduction (TIZ Techno-Innovation Zittau GmbH)
Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| CNC turningMachining | – | 2,000 mm | – | Individual part – Large series | Steel, Cast, Stainless steel, Aluminium, Brass |
| CNC millingMachining | – | 2,400 mm | – | Individual part – Large series | Steel, Cast, Stainless steel, Aluminium, Brass |
| CNC grindingMachining | – | 1,500 mm | – | – | Steel, Stainless steel |
| WeldingJoining | – | – | – | – | Steel, Stainless steel, Aluminium |
| ElectroplatingSurface | – | – | – | – | – |
| Hardening, tempering, plasma nitridingHeat treatment | – | – | – | – | Steel |
| BurnishingSurface | – | – | – | – | Steel |
| PhosphatingSurface | – | – | – | – | – |
| AnodisingSurface | – | – | – | – | Aluminium |
| Ultrasonic cleaningSurface | – | – | – | – | – |
| Conservation/preservationSurface | – | – | – | – | – |
| Welded assembly mountingAssembly | – | – | – | – | – |
| ToolmakingEngineering | – | – | – | – | – |
| Engineering designEngineering | – | – | – | – | – |
| Research and development / prototype productionEngineering | – | – | – | – | – |
| 3D metrology, hand measuring tools, roughness measurement, contour measurement, length metrology,Testing | – | – | – | – | – |
40 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| CNC lathe | Gildemeister CTX Twin | 2 | Ø 320 mm, length 250 mm | – | Eibau |
| CNC lathe | Gildemeister CTX 400 | 3 | Ø 320 mm, length 1,000 mm | – | Eibau |
| CNC lathe | Gildemeister CTX 420 | 2 | Ø 350 mm, length 1,000 mm | – | Eibau |
| CNC lathe | Gildemeister CTX 520 | 2 | Ø 420 mm, length 1,000 mm | – | Eibau |
| CNC lathe | Gildemeister CTX 600 | 1 | Ø 500 mm, length 1,000 mm | – | Eibau |

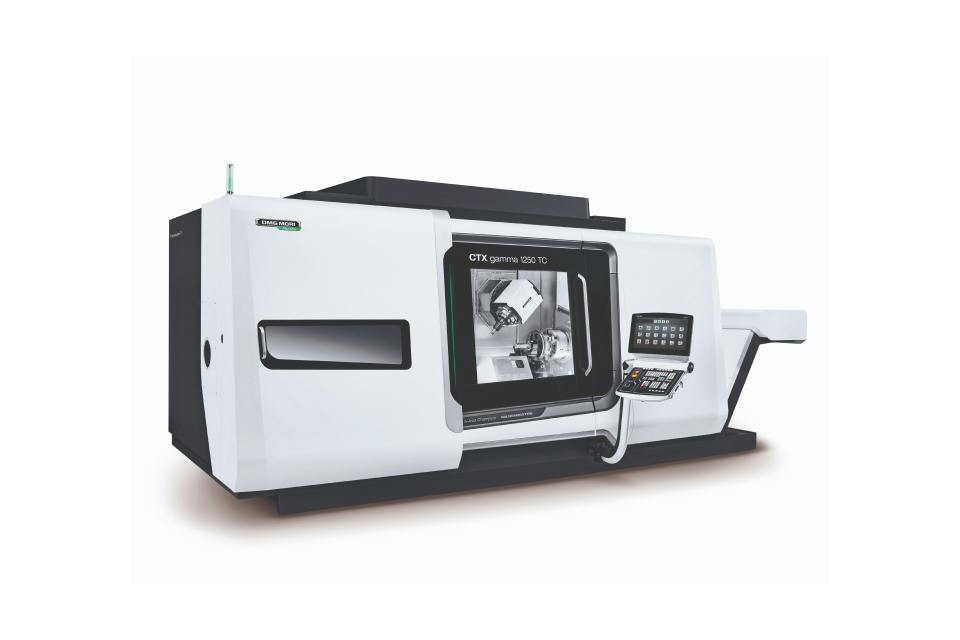

| CNC lathe | DMG MORI CTX Gamma | 2 | Ø 600 mm, length 1,000 mm | – | Eibau |
| CNC lathe | Gildemeister NEF 400 | 1 | Ø 350 mm, length 500 mm | – | Eibau |
| CNC lathe | Gildemeister NEF 720 | 1 | Ø 700 mm, length 2,000 mm | – | Eibau |
| Vertical lathe | Gildemeister CTV 250 | 2 | Ø 250 mm, length 250 mm | – | Eibau |
| Vertical lathe | EMAG VSC 400 | 9 | Ø 380 mm, length 200 mm | – | Eibau |
| CNC lathe | Mazak Multiplex 6300 | 2 | Ø 350 mm, length 200 mm | – | Eibau |
| CNC milling machine (5-axis, rotary table) | DMG MORI DMU80 FD | 2 | Ø 800 mm | – | Eibau |
| CNC milling machine (rotary table + exchange table) | DMG MORI DMC80 FD | 5 | Ø 800 mm | – | Eibau |
| CNC milling machine (rotary table) | DMG MORI DMU125 FD | 3 | Ø 1,250 mm, Z 900 mm | – | Eibau |
| CNC milling machine (rotary table + exchange table) | DMG MORI DMC125 FD | 2 | Ø 1,250 mm, Z 900 mm | – | Eibau |
| CNC milling machine (rotary table) | DMG MORI DMU160 P | 1 | Ø 1,600 mm, Z 1,000 mm | – | Eibau |
| CNC milling machine (rotary table) | DMG MORI DMU200 FD | 1 | Ø 1,800 mm, Z 1,000 mm | – | Eibau |
| CNC milling machine (rotary table) | DMG MORI DMU340 FD | 1 | Ø 2,400 mm, Z 1,200 mm | – | Eibau |
| CNC milling machine (swivel table) | DMG MORI DMU 80 evo | 2 | Ø 800 mm, Z 600 mm | – | Eibau |
| CNC milling machine (swivel table) | DMG MORI DMU 70 | 2 | Ø 700 mm, Z 500 mm | – | Eibau |

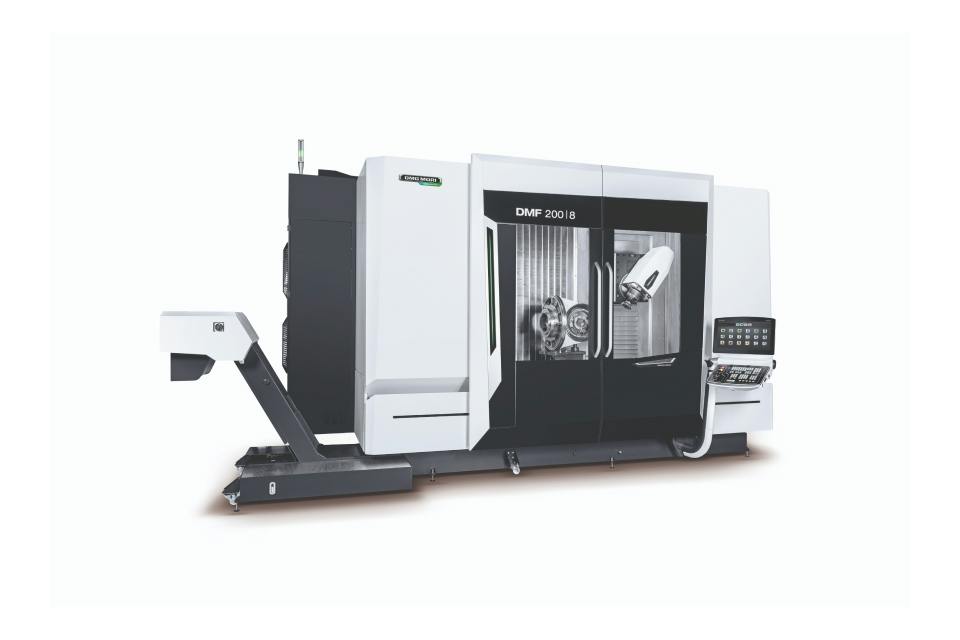

| CNC milling machine | DMG MORI DMF 200 | 1 | X 2,000 mm, Y 800 mm, Z 800 mm | – | Eibau |
| CNC milling machine | Emco FB 600 MC | 1 | X 600 mm, Y 300 mm, Z 600 mm | – | Eibau |

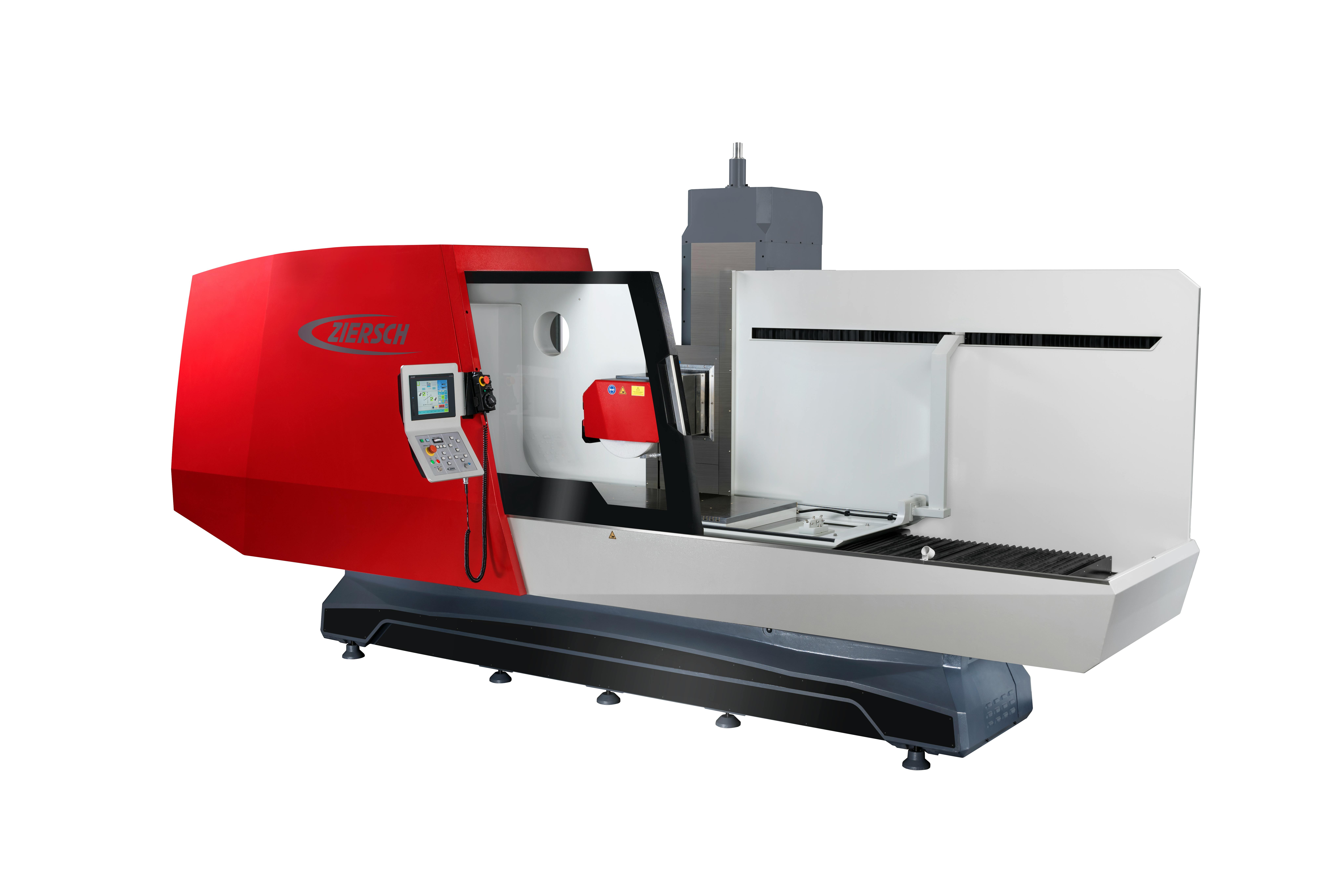

| Surface grinding machine | Ziersch Z 715 | 1 | X 1,500 mm, Y 700 mm, Z 1,500 mm | – | Eibau |
| Cylindrical grinding machine | Kellenberger UR 175/1000 | 1 | Ø 350 mm, length 1,000 mm | – | Eibau |
| MIG/MAG welding machine | Kemppi Fastmigx450 | 1 | – | – | Eibau |
| MIG/MAG welding machine | Kemppi Pro 4000 | 1 | – | – | Eibau |
| Multi-process welding machine | Kemppi Pro 3000 | 1 | – | – | Eibau |
| TIG welding machine | Kemppi Minarctig EVO 200 MLP | 1 | – | – | Eibau |
| TIG welding machine | Kemppi Mastertig 235 AC/DC | 1 | – | – | Eibau |
| 3D CNC coordinate measuring machine | Mitutoyo Crysta Plus 544 | 1 | X 500 mm, Y 400 mm, Z 500 mm | – | Eibau |

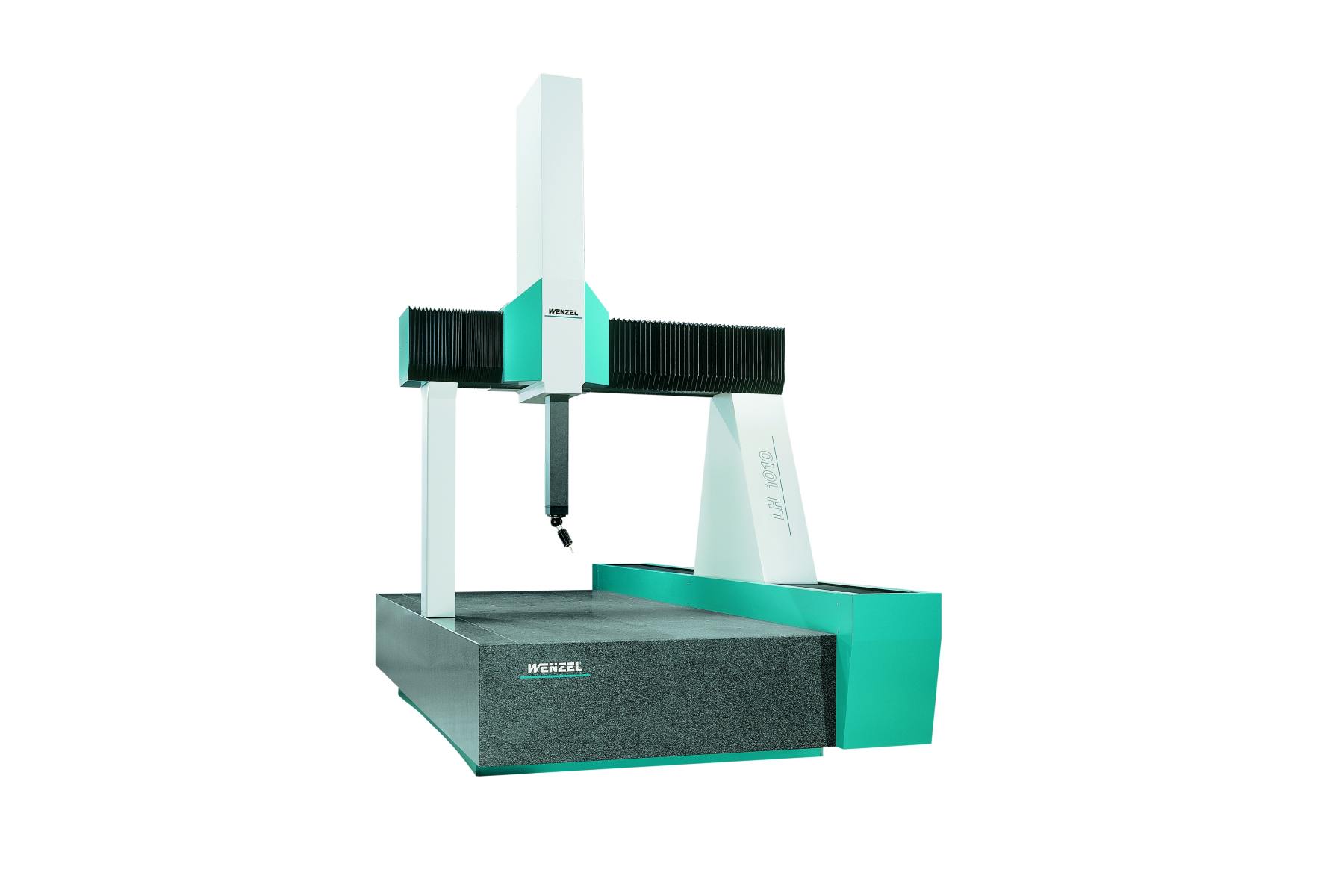

| 3D CNC coordinate measuring machine | Wenzel LH 1010 | 1 | X 1,000 mm, Y 1,600 mm, Z 1,000 mm | – | Eibau |
| 3D CNC coordinate measuring machine | Coord 3D MCT plus 603520 | 1 | X 6,000 mm, Y 3,500 mm, Z 6,000 mm | – | Eibau |
| 3D coordinate measuring device | Carl Zeiss ScanMax | 5 | X 750 mm, Y 500 mm | – | Eibau |
| 3D measuring arm | FARO Faro Gage Max | 2 | 1,500 mm | – | Eibau |
| Height gauge | TESA Micro-HITE plus M600 | 1 | – | – | Eibau |
| Height gauge | TESA HITE 700 | 1 | – | – | Eibau |
| Height gauge | TESA HITE 400 | 2 | – | – | Eibau |
| Contour measuring station | MAHR MarSurf XC 20 with PCV 200 | 2 | 200 mm | – | Eibau |
| Length comparator | Trimos LABC 500-B Premium | 1 | 550 mm | – | Eibau |
| Roughness measuring devices | various | – | – | – | Eibau |
Additional services
Quality

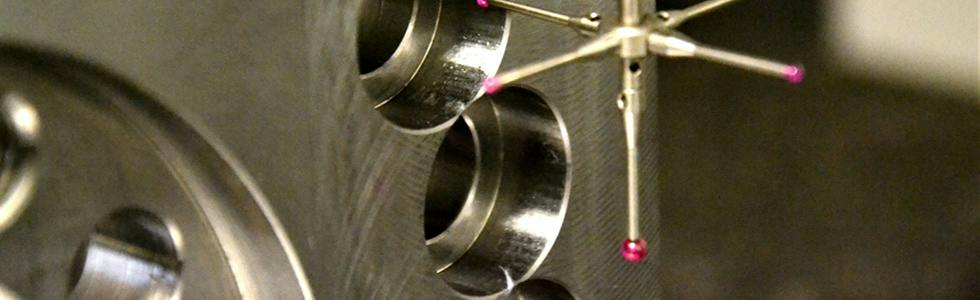

All manufactured components undergo rigorous quality inspections. The inspection equipment includes 3D CNC coordinate measuring machines, hand measuring tools, roughness, contour and length measurement as well as crack and hardness testing.
| Evidence | Kottmar (OT Eibau) |
|---|---|
| ISO 9001:2015 | |
| ISO 50001:2018 | |
| DIN EN ISO 3834-3 | |
| DIN EN ISO 9712 (NDT) | |
| DIN EN 1090-2 |
History
- 1991
Foundation of SSL Maschinenbau GmbH in Eibau, rental of the production hall on Obercunnersdorfer Straße
- 1992
Purchase of a number of new machines
- 1994
Acquisition of the entire production facility
- 1996
Complete reconstruction of the production hall, start of operations with CNC machines
- 2003
Foundation of MBE Maschinenbau GmbH Eibau as a contract machining shop
- 2004
SSL: acquisition and operation of a second hall for R&D projects
- 2005
Foundation of TIZ Techno-Innovation Zittau GmbH, reconstruction of two production halls
- 2007
Construction of a logistics centre at the Eibau site
- 2008
Construction of a second MBE production hall in Eibau
- 2015
Takeover of TIZ production at the Zittau site by MBE
- 2019
Expansion of the logistics centre at the Eibau site
- 2021
Takeover of SSL production at the Eibau site by MBE
