Manufacturer of sandwich panels for roof, wall and sound protection with PIR/PUR and mineral wool cores
Metecno Bausysteme GmbH
Blankenhain (Headquarters/Production)New on Amplifa
About Metecno Bausysteme

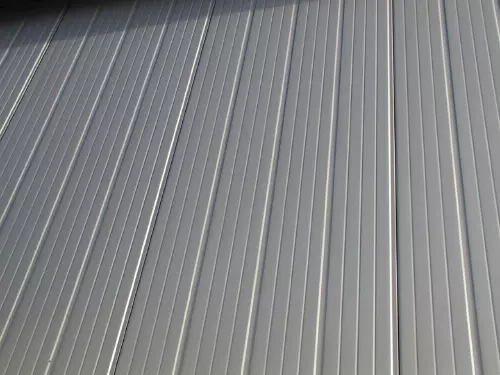

Metecno Bausysteme GmbH, headquartered in Blankenhain (Thuringia), is a manufacturer of sandwich panels for roof, wall and ceiling structures in lightweight steel construction. The product range includes steel-faced sandwich panels with insulating cores of PIR/PUR rigid foam or mineral wool, including products such as G4, HIPERTEC DACH/WAND, SUPERWALL, MONOWALL, THERMOWALL KOMBI, H-WALL 8P and METFIBER ECO WAND. The programme is complemented by acoustic panels with perforated face sheets for airborne sound insulation and sound absorption, panels with concealed fastening, and accessories such as trim profiles, pilaster strips, trapezoidal profiles 38/333/1000 and corrugated profiles 20/125/875. The panels are manufactured in a continuous production process in lengths up to 25 m and delivered to the construction site ready for installation. For steel face sheets, coating systems such as polyester, PVDF and PUR-PA (METCOLOR) are available. In addition, Metecno offers technical manuals, EPDs, BIM objects and training under the company programme Metecno Way.
- Site
- Blankenhain
- Processes
- Manufacture of sandwich panels (continuous production process, sandwich construction), Coating of steel face sheets (strip coating/coil coating), Manufacture of trapezoidal profiles (38/333/1000), Manufacture of corrugated profiles (20/125/875), Manufacture of trim profiles, Manufacture of aluminium pilaster strips (extruded profiles), Powder coating of pilaster strips, Delivery ready for installation to the construction site (lengths up to 25 m)
- Materials
- Galvanized steel, Steel sheet, Stainless steel, Aluminium (anodized), AluZinc, Aluminium extruded profile, Polyurethane rigid foam, Mineral wool
- Certificates
- EC certificate of conformity to DIN EN 14509, General type approval Z-10.4-583 (penetration-free PV mounting), PPA Europe EPD according to ISO 14025/EN 15804+A2, DGNB membership certificate, Third-party monitoring of insulation values (λ = 0.024 W/m·K)
- Industries
- Industrial construction, Commercial construction, Lightweight steel construction, Photovoltaics, Sound protection/acoustics, Sports sponsorship/hall construction
- 01
Coil galvanizing/strip galvanizing (Z275) by steel mills
- 02
Strip coating (coil coating) of the steel face sheets
- 03
Continuous production of the sandwich panels (facing, core formation)
- 04
Profiling of the face sheets (micro-lining, special profiles)
- 05
Production of accessory parts (trim profiles, trapezoidal and corrugated
- 06
Packaging with protective film
- 07
Delivery ready for installation to the construction site (up to 25 m)
Materials and Coatings
Galvanized steel
Galvanized steel sheet to DIN EN 10346 for face sheets of sandwich wall panels
Steel sheet
Galvanized steel grades to EN 10346 for steel face sheets with organic coating
Stainless steel
Stainless steel version for perforated and non-perforated face sheets with high corrosion protection (RC5)
Aluminium (anodized)
Anodized aluminium face sheets for corrosion-resistant acoustic panels
AluZinc
AluZinc coating as an alternative to galvanized steel face sheets
Aluminium extruded profile
Aluminium extruded profiles to EN 755-9 for pilaster strips with 6,000 mm delivery length
Polyurethane rigid foam
CFC- and HCFC-free polyurethane insulating core to EN 13165 with λ = 0.024 W/m·K
Mineral wool
Mineral wool insulating core (stone or glass wool) to EN 13162 for sound protection and fire panels
Locations

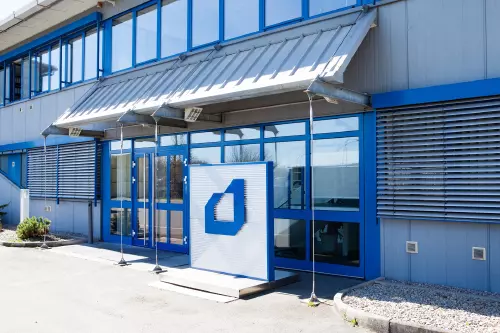

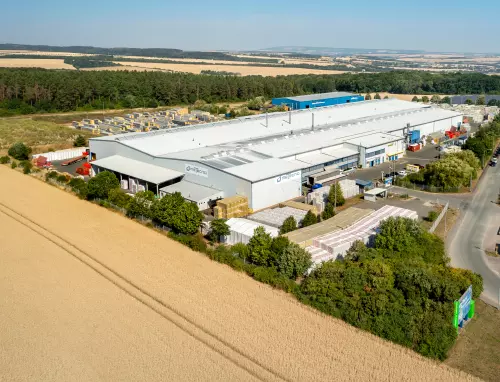

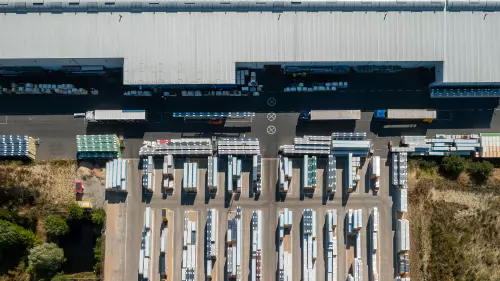

Blankenhain
DEHeadquarters and production
- Lot size
- from 84 linear metres (pilaster strips)
- Materials
- Steel, stainless steel, aluminium, PIR/PUR, mineral wool
- Continuous sandwich panel production line
- Strip coating plant/coil coating
- Profiling machines for trapezoidal and corrugated profiles

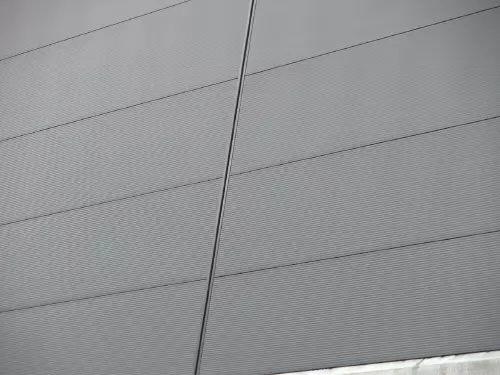

- Systems for pilaster strip production (aluminium extruded profiles, powder coating)
Products and Components

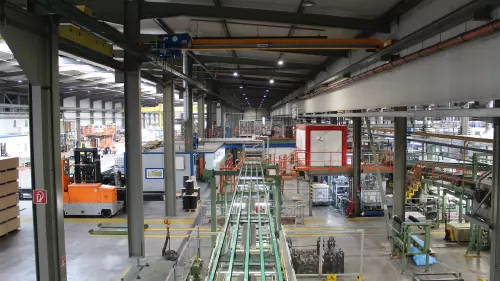

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Manufacture of sandwich panels (continuous production process, sandwich construction)Plastics | – | 25 m | – | – | galvanized steel S320 GD + Z275, polyurethane rigid foam (PIR/PUR), mineral wool |
| Coating of steel face sheets (strip coating/coil coating)Surface | – | – | – | – | galvanized steel |
| Manufacture of trapezoidal profiles (38/333/1000)Forming | – | 15,000 mm | – | – | galvanized, coated steel |
| Manufacture of corrugated profiles (20/125/875)Forming | – | 7,500 mm | – | – | galvanized, coated steel |

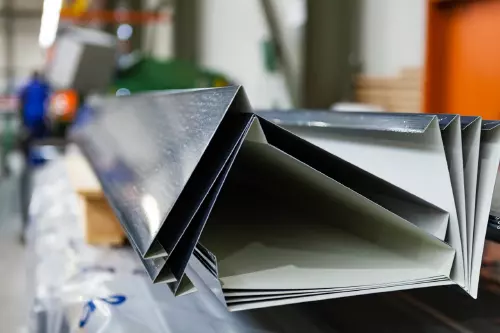

| Manufacture of trim profilesForming | – | 6,000 mm | – | – | galvanized, coated steel |
| Manufacture of aluminium pilaster strips (extruded profiles)Forming | – | 6,000 mm | – | 84 linear metres | aluminium EN AW-6060 T66 |
| Powder coating of pilaster stripsSurface | – | – | – | – | aluminium |
Additional services
Quality and Approvals
The sandwich panels are manufactured in accordance with DIN EN 14509 with an EC certificate of conformity (0769-CPR-VAS-00420) and CE marking. The insulation values are regularly monitored by third parties; EPDs according to ISO 14025 and EN 15804 are available for the insulating cores.
| Evidence | Blankenhain |
|---|---|
| EC certificate of conformity to DIN EN 14509 | |
| General type approval Z-10.4-583 (penetration-free PV mounting) | |
| PPA Europe EPD according to ISO 14025/EN 15804+A2 | |
| DGNB membership certificate | |
| Third-party monitoring of insulation values (λ = 0.024 W/m·K) |
