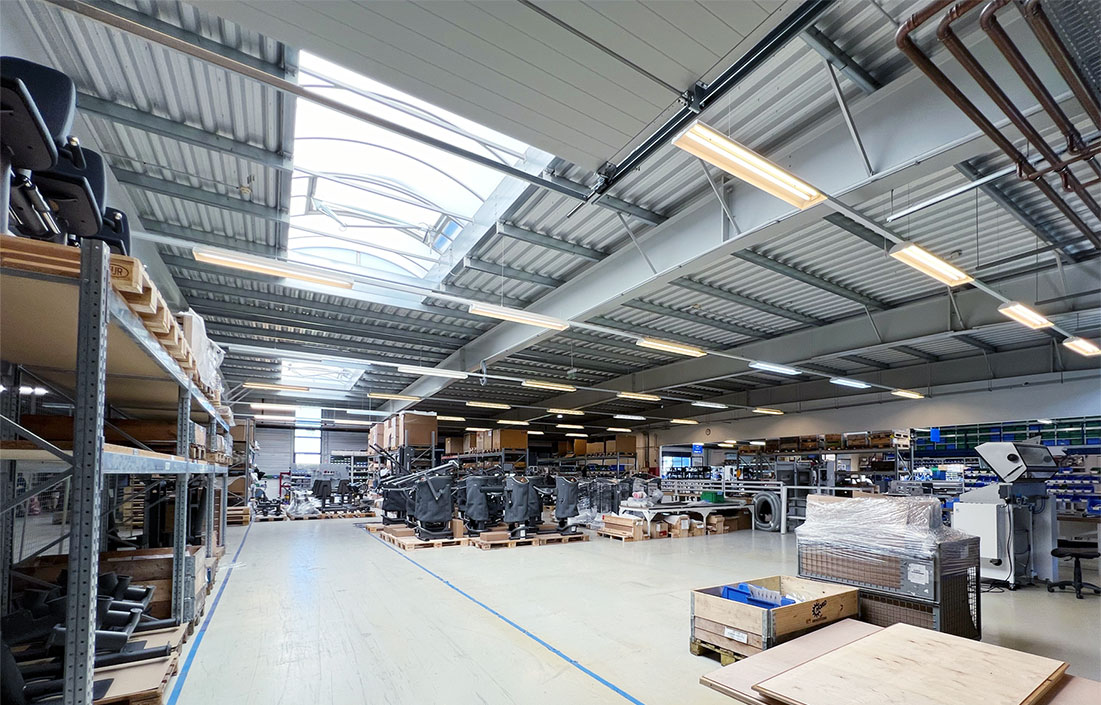

Series production of individual parts, assemblies and complete machines from sheet metal and CNC machining, including surface treatment and assembly.
Mey Maschinenbau Prien GmbH & Co. KG
Prien am Chiemsee (DE) · Győr (HU) · Nyúl (HU) · Düsseldorf (DE, sales office)New on Amplifa
About Mey Maschinenbau Prien
Mey Maschinenbau Prien has specialised since 1963 in series production of individual parts, mechanical and mechatronic assemblies as well as complete machines. The company manufactures with a high level of vertical integration: CNC machining on 7-axis turn-mill centres and 5-axis milling centres, sheet metal working with punch/laser cutting and bending, joining technology including robotic welding, and surface technology such as powder coating and anodising. The portfolio is complemented by cable assembly, control cabinet construction, jig and fixture building, 3D printing for prototypes, and assembly including acceptance testing and end-customer packaging. Customers receive assemblies or machines with a single order number from one source, in lot sizes of 50 to 5,000 units. Materials processed include aluminium, steel, stainless steels and copper. The main plant in Prien am Chiemsee (8,000 m²) covers project initiation, design and series ramp-up; economical series production takes place in Győr, and series assembly with worldwide shipping since 2004 in Nyúl (Hungary). Customers include, among others, BigRep GmbH and TREVENTUS Mechatronics GmbH.
- Site
- Prien am Chiemsee
- Processes
- CNC turning and milling (7-axis turn-mill centres, 5-axis milling centres with pallet changer), Punch/laser cutting, Laser cutting, Fibre laser cutting, VQC sheet metal inspection, Bending (press brake LVD ToolCell with automatic tool change and angle measurement), Deburring on wide-belt grinding machines (Grindingmaster), Manual welding (MIG/MAG/TIG)
- Materials
- Aluminium, Steel, Stainless steels, Copper, Stainless steel, Powder coating, Anodising, Phosphating
- Certificates
- DIN EN ISO (quality management, certification to DIN EN ISO), DIN 2303 Class Q1/Q2 - BK1 to BK4 (welding qualification), DIN EN ISO 3834-2 (welding qualification), DIN EN ISO (Quality Management), DIN 2303 Class Q1/Q2 – BK1 to BK4, DIN EN ISO 3834-2
- Founded
- 1963
- Employees
- 250+
- Industries
- OEM products for various industries, Mechanical engineering, 3D printing / start-ups, Start-ups (e.g. 3D printing)
- 01
Project management
- 02
Design (SolidWorks)
- 03

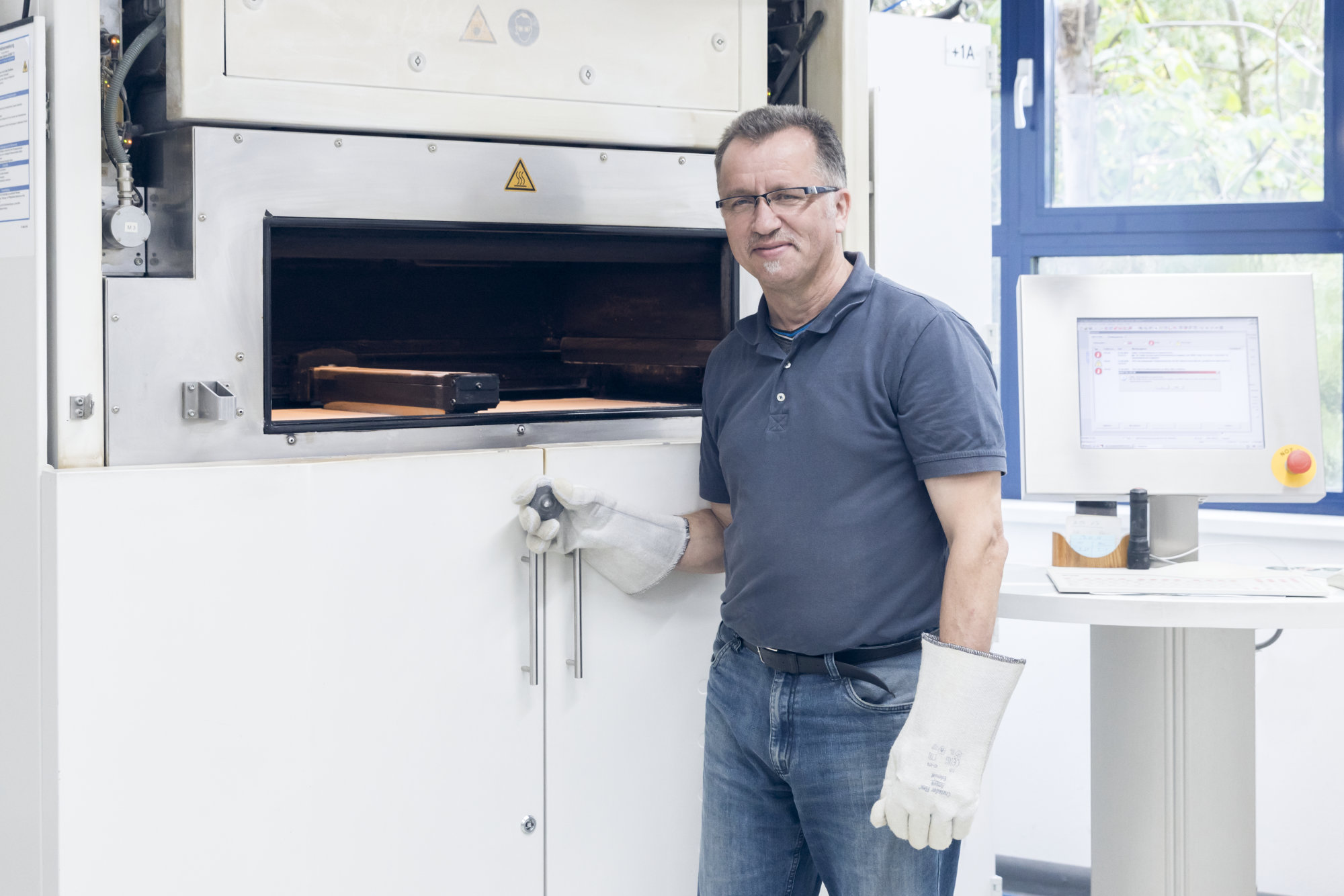

Prototype building incl. 3D printing
- 04
CNC machining
- 05
Sheet metal working
- 06
Joining technology
- 07
Surface technology
- 08
Assembly incl. acceptance testing
- 09
Service and worldwide shipping
Materials & Processes
Aluminium
Material for CNC machining, sheet metal working and anodising.
Steel
Basis for laser cutting, welded assemblies, galvanising and powder coating.
Stainless steel
For corrosion-resistant parts and assemblies in series production.
Copper
Machinable material for individual parts and assemblies.
Powder coating
Baked-on, durable coating, produced at the Hungarian plant.
Anodising
Surface finishing for aluminium parts.
Phosphating
Pretreatment and corrosion protection for steel parts.
Galvanising
Corrosion protection for steel parts.
Screen printing
Application of logos and lettering onto part surfaces.
3D printing
Various processes for fast and economical prototypes.
Locations

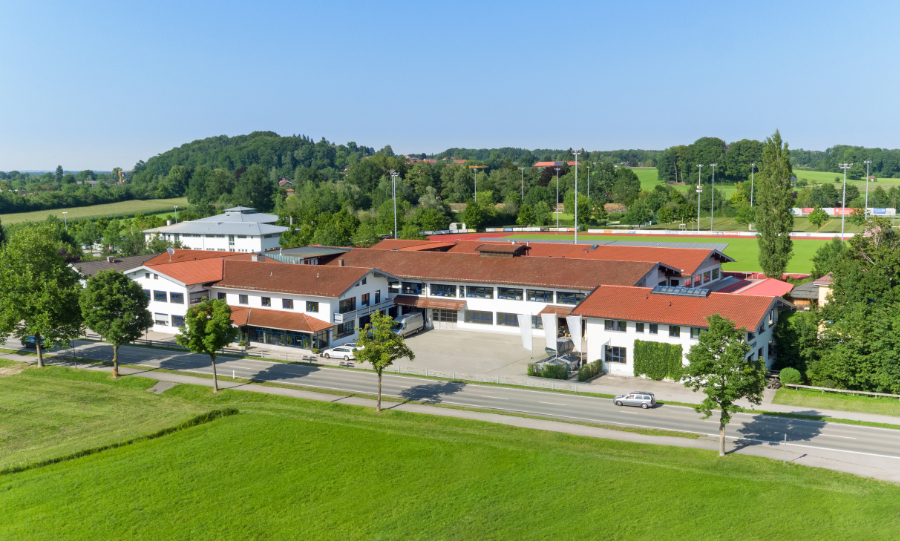

Prien am Chiemsee
DEHeadquarters, main plant: project initiation, pre-series, pre-series assembly, design, series ramp-up
- Lot size
- 50–5,000 units
- Materials
- Aluminium, steel, stainless steel, copper
- 7-axis turn-mill centres
- 5-axis milling centres with pallet changer
- Punch/laser cutting machine (3000 x 1500 mm)
- Laser cutting machine (max. 12 mm steel)
- Fibre laser cutting machine (max. 60 mm steel)
- VQC sheet metal inspection machine
- Wide-belt grinding machine Grindingmaster
- Press brake LVD ToolCell
- Welding robots Yaskawa/Kuka
- High-bay warehouse for sheet metal panels

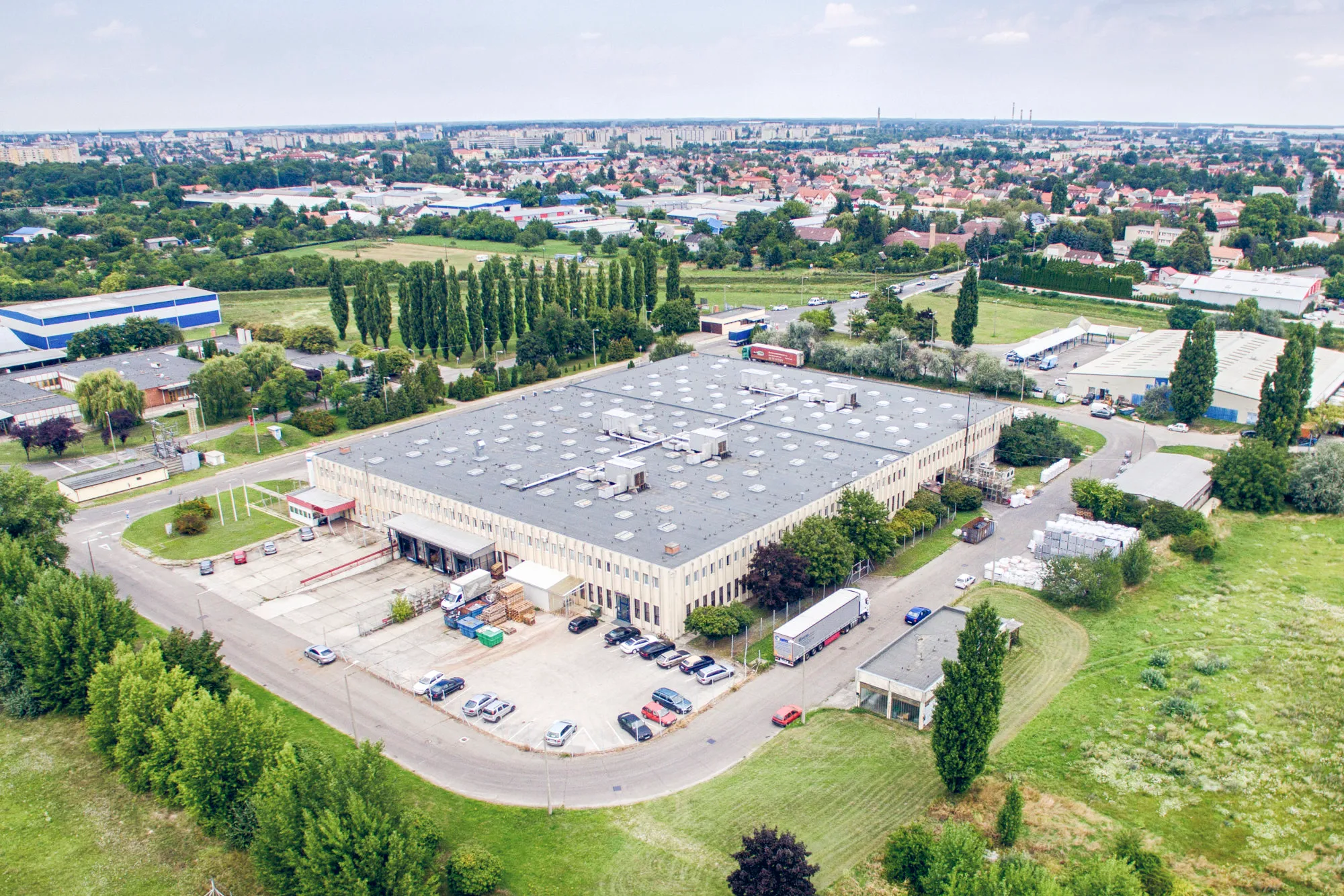

Győr
HUProduction site: economical series production, operational purchasing, powder coating
- Lot size
- 50–5,000 units
- Materials
- Aluminium, steel, stainless steel, copper
- CNC machining
- Powder coating

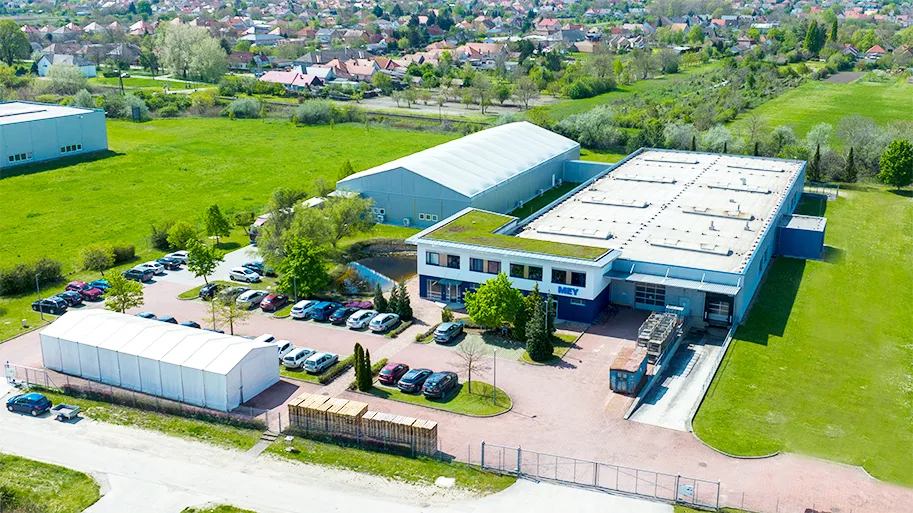

Nyúl
HUProduction and assembly: series assembly, final acceptance, worldwide shipping (since 2004)
- Lot size
- 50–5,000 units
- Materials
- Aluminium, steel, stainless steel, copper

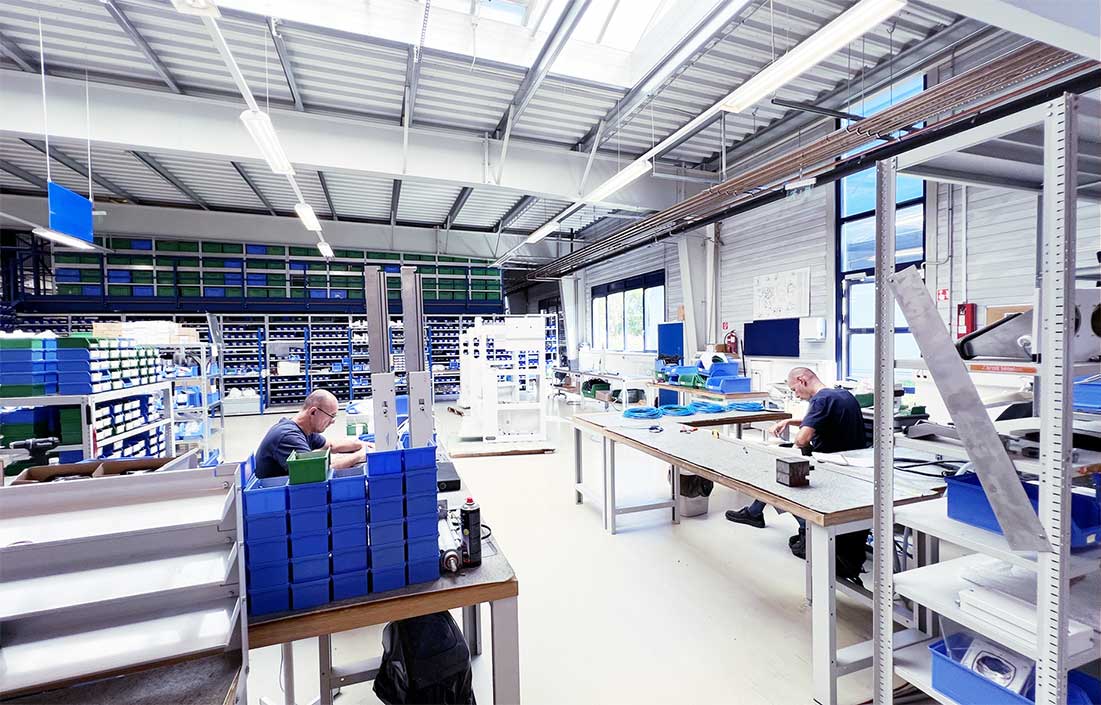

- Series assembly
- Cable assembly
- Control cabinet construction
- Final acceptance
Düsseldorf
DESales office
Parts & Services
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| CNC turning and milling (7-axis turn-mill centres, 5-axis milling centres with pallet changer)Machining | – | – | – | 50 units – 5000 units | Aluminium, Steel, Stainless steels, Copper |
| Punch/laser cuttingMachining | – | 3000 mm × 1500 mm × 6 mm (material thickness) | – | 50 units – 5000 units | Aluminium, Steel, Stainless steels, Copper |
| Laser cuttingMachining | – | 3000 mm × 1500 mm × 12 mm (material thickness steel) | – | 50 units – 5000 units | Aluminium, Steel, Stainless steels, Copper |
| Fibre laser cuttingMachining | – | 3000 mm × 1500 mm × 60 mm (material thickness steel) | – | 50 units – 5000 units | Aluminium, Steel, Stainless steels, Copper |
| VQC sheet metal inspectionInspection | – | – | – | – | Aluminium, Steel, Stainless steels, Copper |
| Bending (press brake LVD ToolCell with automatic tool change and angle measurement)Forming | 3-4 mm (angle measurement) | – | – | 50 units – 5000 units | Aluminium, Steel, Stainless steels, Copper |
| Deburring on wide-belt grinding machines (Grindingmaster)Surface | – | 1380 mm × 80 mm | – | – | Aluminium, Steel, Stainless steels, Copper |
| Manual welding (MIG/MAG/TIG)Joining | – | 3000 mm × 1500 mm × 1500 mm | – | 50 units – 5000 units | Aluminium, Steel, Stainless steels, Copper |
| Robotic welding (Yaskawa/Kuka, MIG/MAG)Joining | – | 2000 mm × 2000 mm × 1500 mm | – | 50 units – 5000 units | Aluminium, Steel, Stainless steels, Copper |
| TIG welding (750x1000x750)Joining | – | 1000 mm × 750 mm × 750 mm | – | – | Aluminium, Steel, Stainless steels, Copper |
| Spot weldingJoining | – | – | – | – | Aluminium, Steel, Stainless steels, Copper |
| Stud weldingJoining | – | – | – | – | Aluminium, Steel, Stainless steels, Copper |
| BondingJoining | – | – | – | – | Aluminium, Steel, Stainless steels, Copper |
| Riveting (Titgemeyer MS 50 – blind rivet nut up to M8 / blind rivets)Joining | – | – | – | – | Aluminium, Steel, Stainless steels, Copper |
| PEM nut insertionJoining | – | – | – | – | Aluminium, Steel, Stainless steels, Copper |
| Grinding of weld seamsSurface | – | – | – | – | Aluminium, Steel, Stainless steels, Copper |
| Manual roll bendingForming | – | – | – | – | Aluminium, Steel, Stainless steels, Copper |
| Eccentric pressesForming | – | – | – | – | Aluminium, Steel, Stainless steels, Copper |
| Powder coating (baking)Surface | – | – | – | – | Aluminium, Steel, Stainless steels, Copper |
| PhosphatingSurface | – | – | – | – | Aluminium, Steel, Stainless steels, Copper |
| AnodisingSurface | – | – | – | – | Aluminium |
| GalvanisingSurface | – | – | – | – | Steel |
| Screen printing (e.g. logos)Surface | – | – | – | – | Aluminium, Steel, Stainless steels, Copper |
| Assembly of machines and assemblies incl. acceptance testing, cable assembly and control cabinetAssembly | – | – | – | 50 units – 5000 units | Aluminium, Steel, Stainless steels, Copper |
| 3D printing (various processes) for prototypesAdditive | – | – | – | 1 unit (prototype) | – |
| Design (Solid Works)Engineering | – | – | – | – | – |
| Jig and fixture buildingEngineering | – | – | – | – | Aluminium, Steel, Stainless steels, Copper |
14 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| 7-axis turn-mill centres | – | – | – | – | Prien am Chiemsee / Hungary |

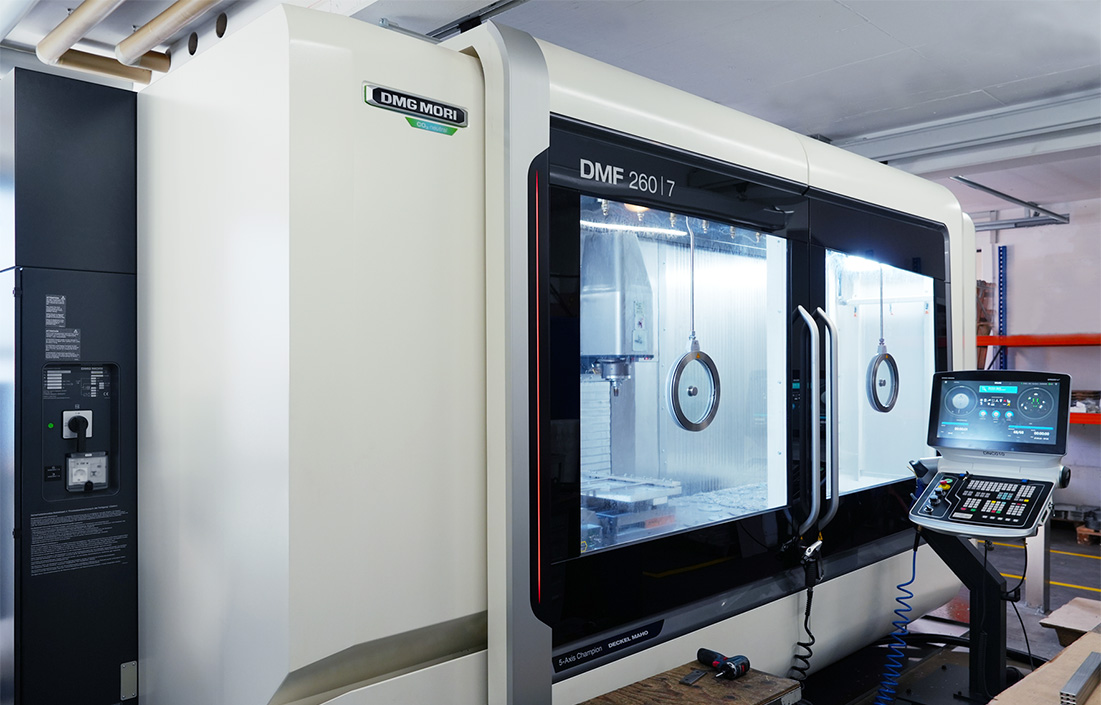

| 5-axis milling centres with pallet changer | – | – | – | – | Prien am Chiemsee / Hungary |
| Punch/laser cutting machine | – | – | 3000 x 1500 mm, material thickness max. 6 mm | – | Prien am Chiemsee / Hungary |
| Laser cutting machine | – | – | 3000 x 1500 mm, material thickness max. 12 mm steel | – | Prien am Chiemsee / Hungary |
| Fibre laser cutting machine | – | – | 3000 x 1500 mm, material thickness max. 60 mm steel | – | Prien am Chiemsee / Hungary |
| VQC sheet metal inspection machine | – | – | – | – | Prien am Chiemsee / Hungary |
| Wide-belt grinding machine (deburring) | Grindingmaster | – | Max. pass width 1380 mm, max. pass height 80 mm | – | Prien am Chiemsee / Hungary |
| Press brake with automatic tool change and angle measurement | LVD ToolCell | – | 3-4 mm (angle measurement) | – | Prien am Chiemsee / Hungary |
| Welding robots | Yaskawa / Kuka | – | MIG/MAG: max. 2000x1500x2000 mm; TIG: 750x1000x750 mm | – | Prien am Chiemsee / Hungary |
| Blind rivet nut setter | Titgemeyer MS 50 | – | up to M8 / blind rivets shank diameter max. 3 mm | – | Prien am Chiemsee / Hungary |
| Eccentric press | – | – | – | – | Prien am Chiemsee / Hungary |
| Manual roll bending machine | – | – | – | – | Prien am Chiemsee / Hungary |
| High-bay warehouse for sheet metal panels | – | – | – | – | Prien am Chiemsee / Hungary |
| Spot welding system | – | – | – | – | Prien am Chiemsee / Hungary |
Additional services
Reference customers
Quality
Quality is ensured by a quality management system certified to DIN EN ISO, optical VQC sheet metal inspection, detailed acceptance tests and welding qualifications according to DIN 2303 Class Q1/Q2 (BK1–BK4) as well as DIN EN ISO 3834-2.
| Evidence | Prien am Chiemsee | Győr | Nyúl |
|---|---|---|---|
| DIN EN ISO (Quality Management) | |||
| DIN 2303 Class Q1/Q2 – BK1 to BK4 | |||
| DIN EN ISO 3834-2 |
History
- 1963
Founding of Mey Maschinenbau Prien; precision manufacturing of OEM products
- 2004
Start of machine assembly at the Nyúl site, Hungary
