Precision mechanics from Switzerland: CNC milling, CNC turning, EDM, grinding, assembly and metrology – from prototype to series production.
MFP SA
Switzerland (headquarters, production) · Morocco (MFP Mena, production since 2024)New on Amplifa
About MFP
MFP SA is a Swiss company specializing in the contract manufacturing of precision parts and mechanical assemblies. Its service portfolio includes CNC milling (3-, 4- and 5-axis), CNC turning with turning diameters from 2 to 200 mm, electrical discharge machining (wire EDM, sinker EDM and small-hole EDM), surface and cylindrical grinding, polishing and tumble finishing, blasting, laser marking, heat and surface treatments via certified partners, as well as the assembly of sub-assemblies. Materials processed include aluminium, stainless steel, titanium, brass and hardened steels. Customers come from the machine tool industry, automation, watchmaking, medical technology and the automotive sector. MFP manufactures individual parts, functional prototypes and series with dimensional inspection and inspection reports on request. Following the acquisition of SAFAG in 2000, the company opened a second production site in Morocco in 2024 through the entity MFP Mena; more than 15 machines are available at the Swiss headquarters.
- Site
- Switzerland (headquarters
- Processes
- CNC milling 3, 4 and 5 axes, CNC turning (with or without milling re-chucking), Swiss turning, Wire EDM, Sinker EDM, Small-hole EDM, Surface grinding, Cylindrical grinding
- Materials
- Aluminium, Stainless steel, Titanium, Brass, Hardened materials (for EDM), Hardened steel
- Certificates
- Dimensional inspection & metrology, Inspection report on request, ISO 9001
- Industries
- Machine tool industry, Automation, Watchmaking industry, Medical technology, Automotive, Machine tool industry
- 01
Prototype development
- 02

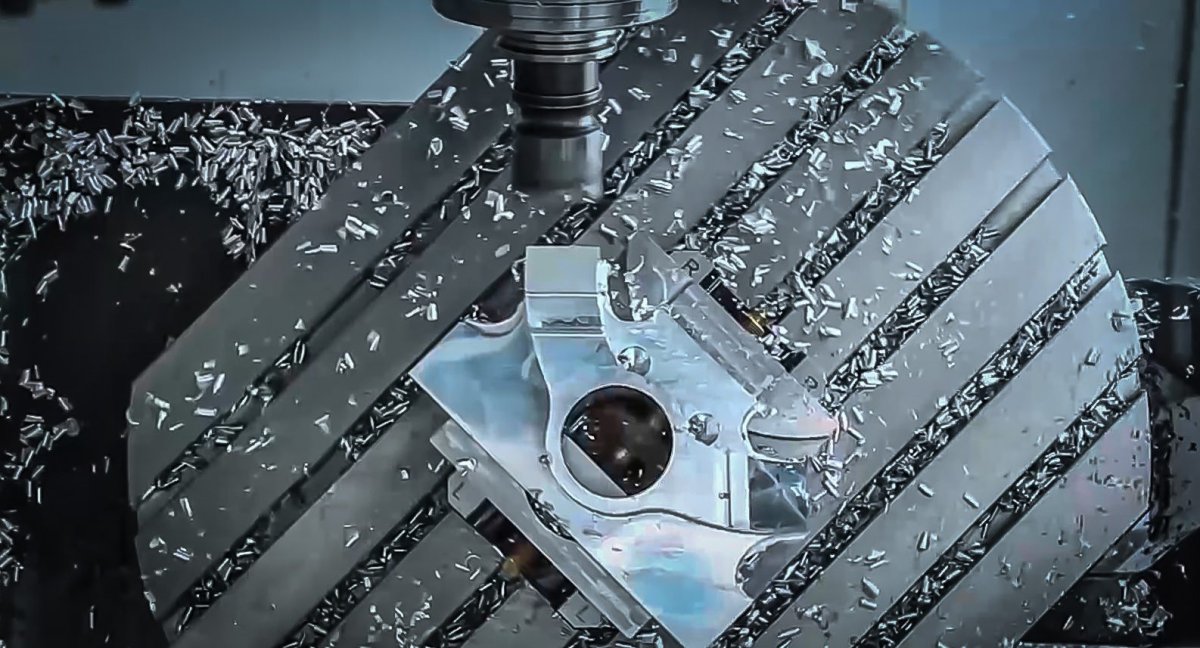

CNC milling 3/4/5-axis
- 03

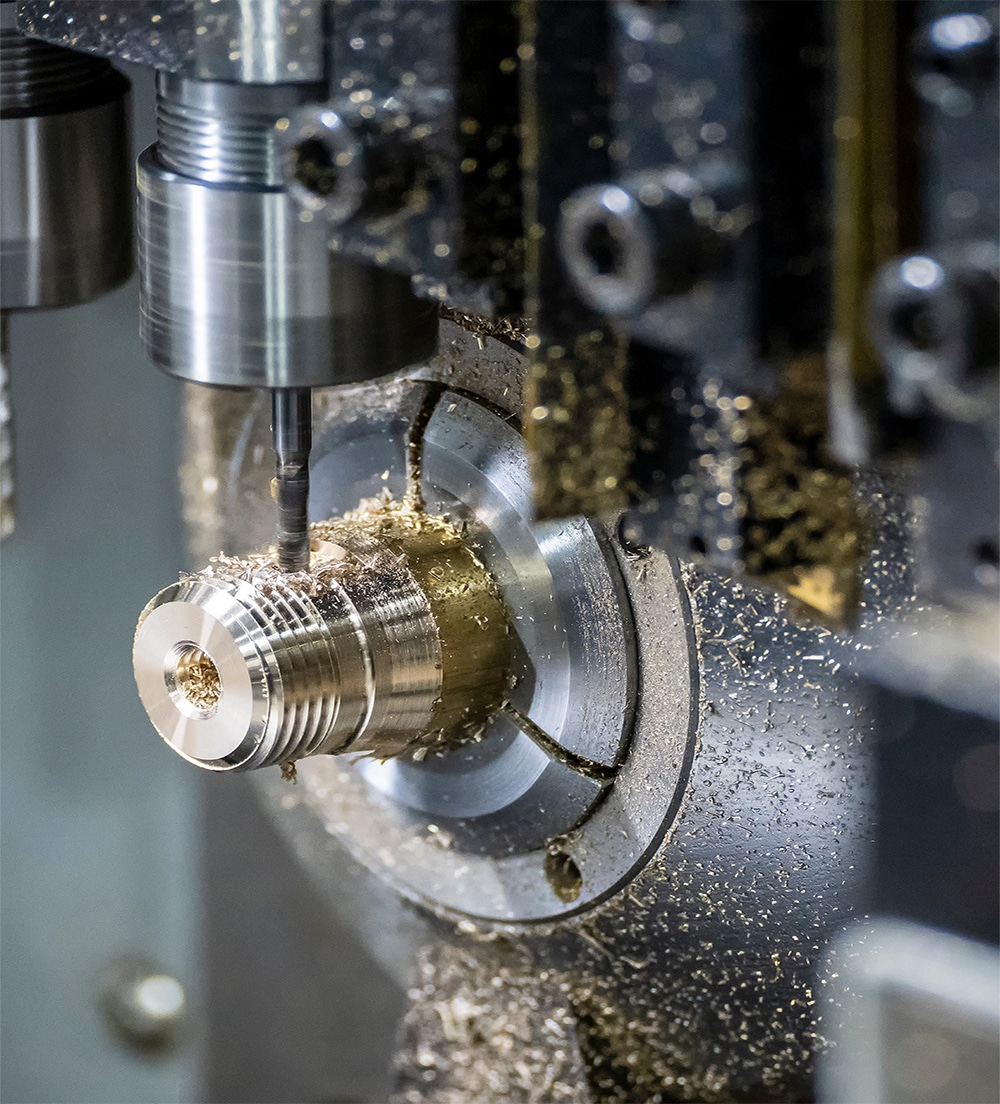

CNC turning & turn-mill machining
- 04

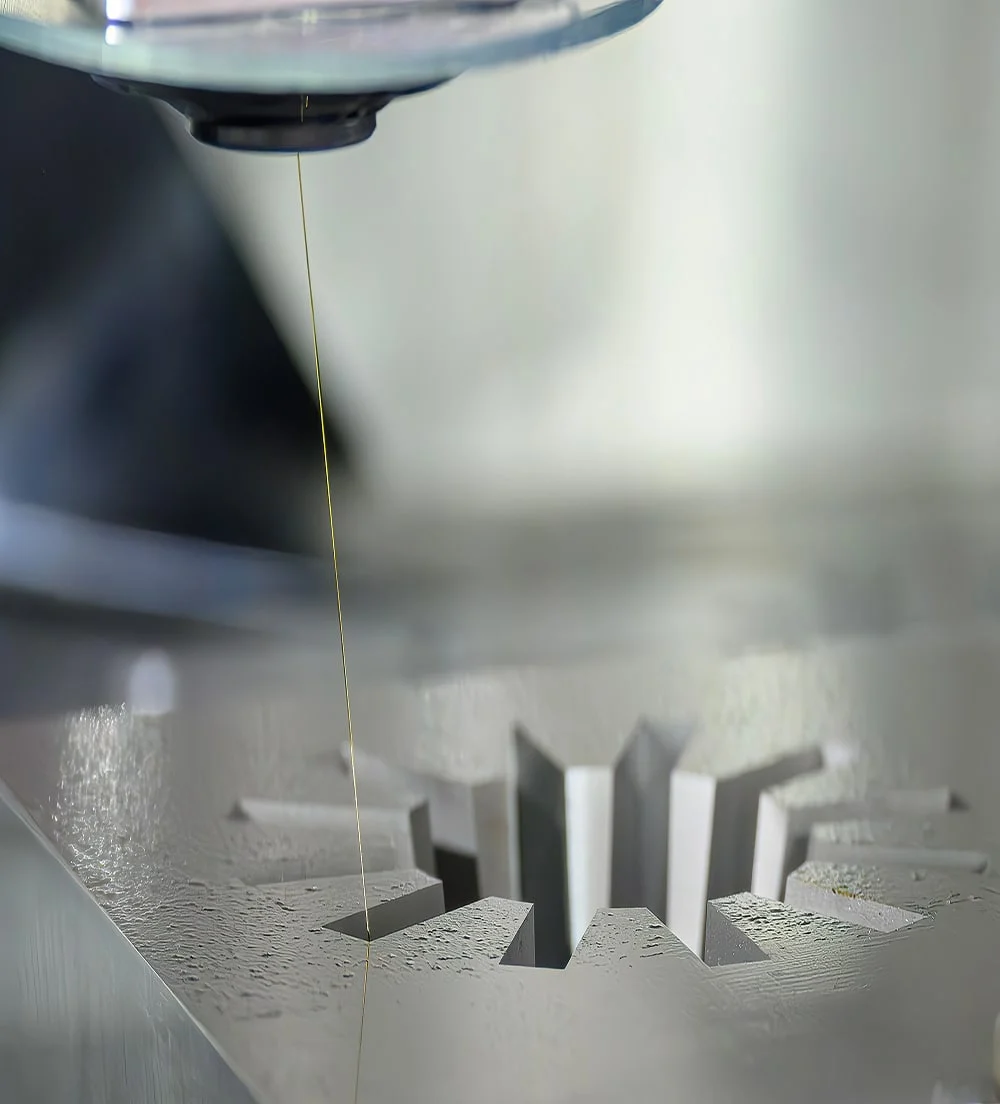

Wire and sinker EDM
- 05

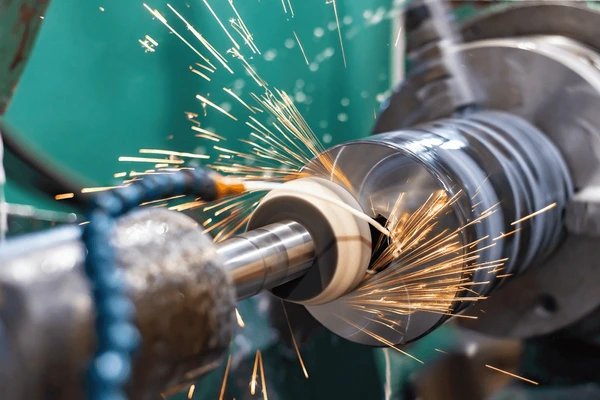

Grinding, polishing, tumble finishing
- 06
Blasting, cleaning, laser marking
- 07
Heat/surface treatment (partner)
- 08
Assembly of sub-assemblies
- 09
Dimensional inspection & inspection report
Materials & Processes
Aluminium
Main material for milled components from prototype to series production.
Stainless steel
For precise, corrosion-resistant components in CNC milling.
Titanium
For demanding parts, e.g. in medical technology and automotive.
Brass
For precisely fitting components, among others in the watchmaking industry.
Hardened steel
For EDM, including hard-to-machine hardened materials.
Sites
Headquarters Switzerland
CHMain production site with more than 15 machines; sales office active in Switzerland
- Lot size
- Single part to series
- Materials
- Aluminium, stainless steel, titanium, brass, hardened steel
MFP Mena (Morocco)
MAProduction site, since 2024 through the entity MFP Mena

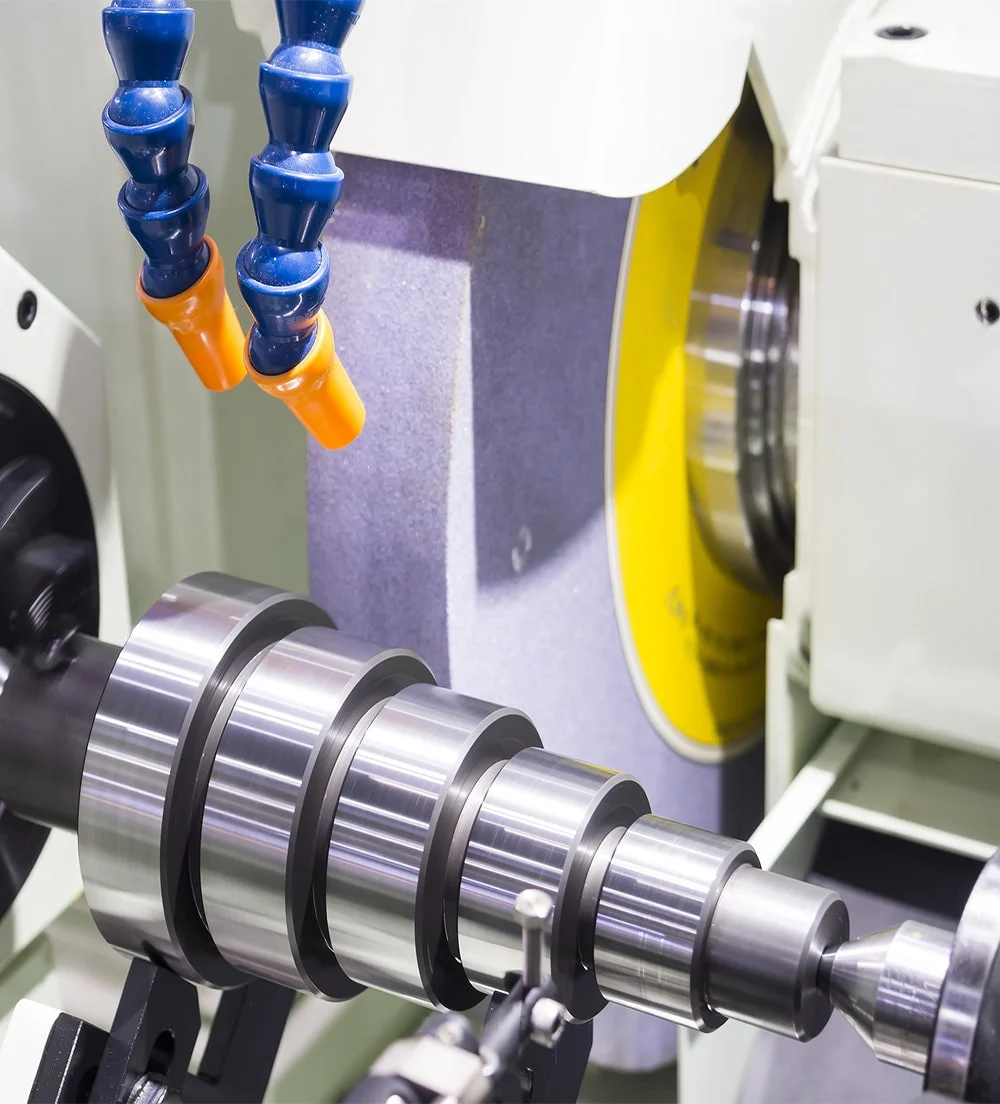

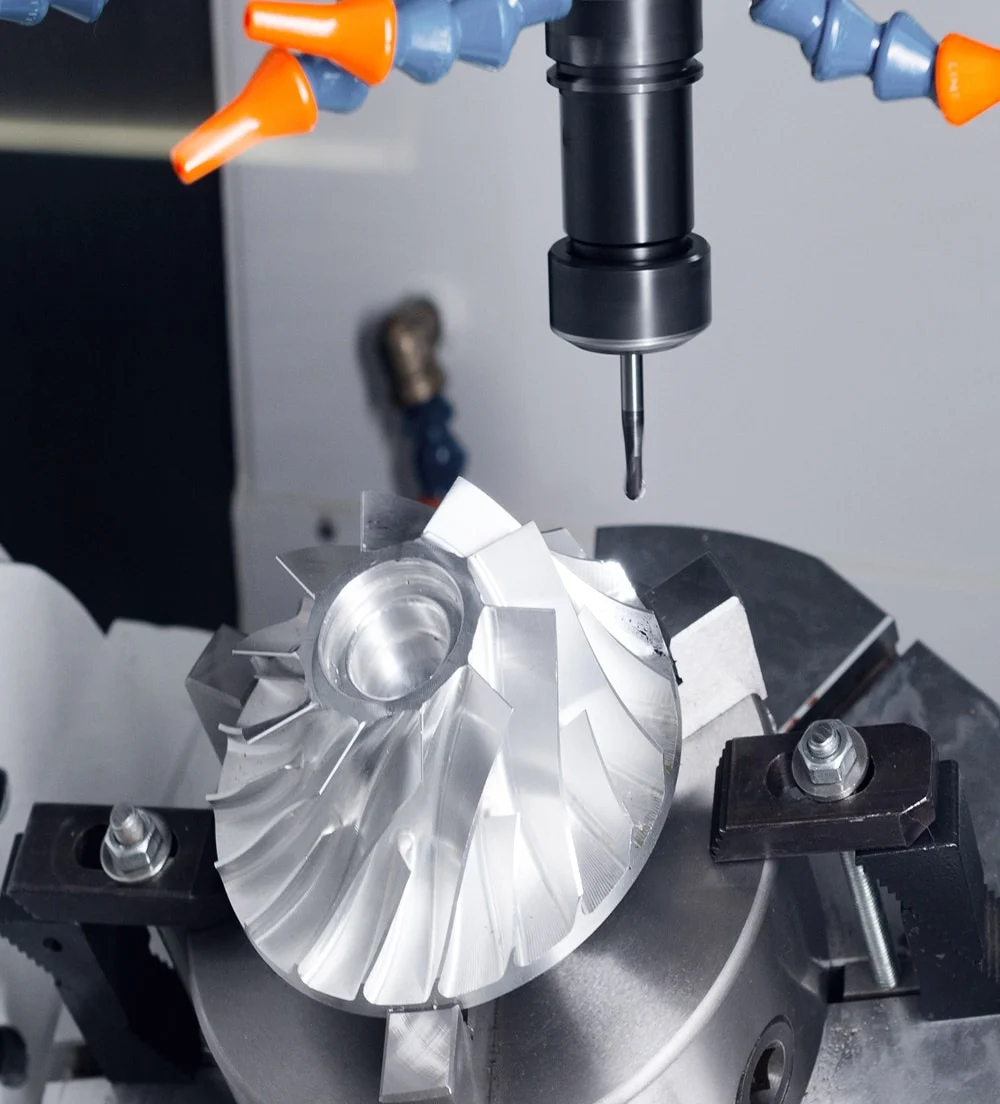

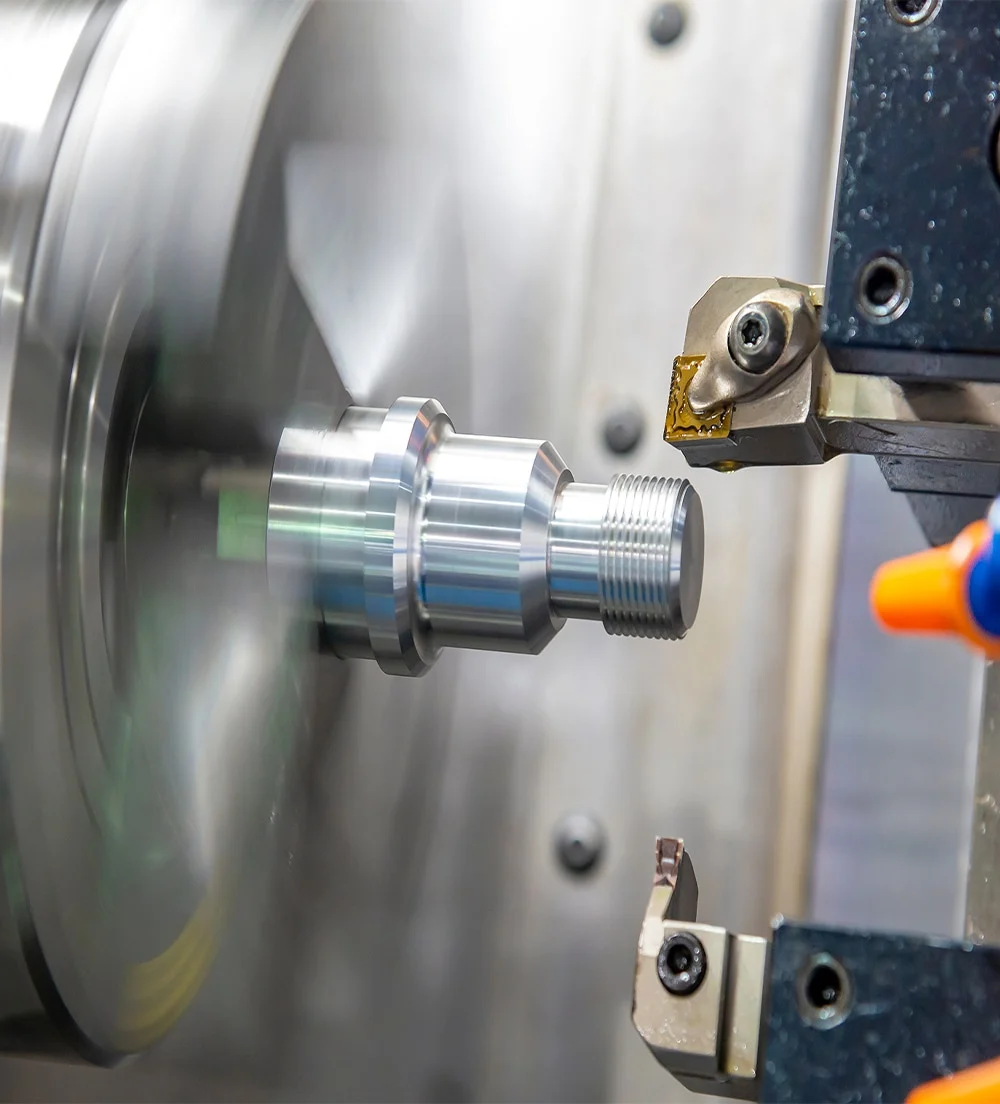

Reference Parts

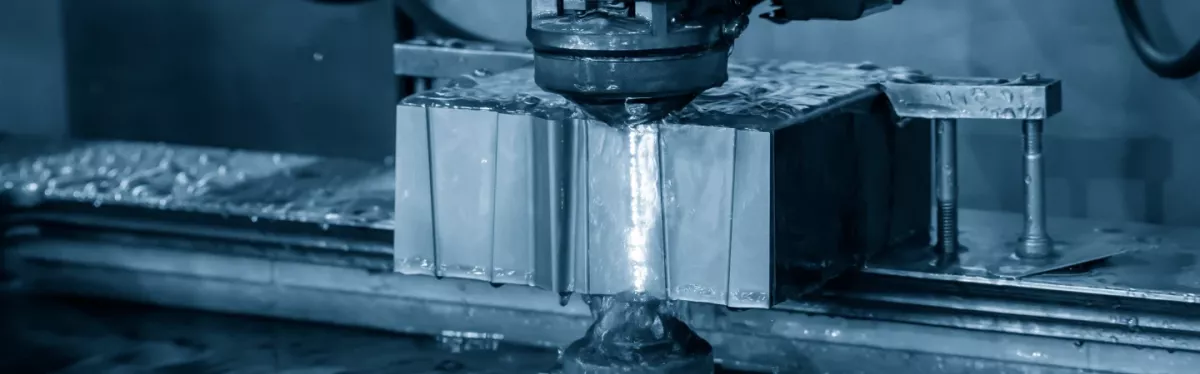

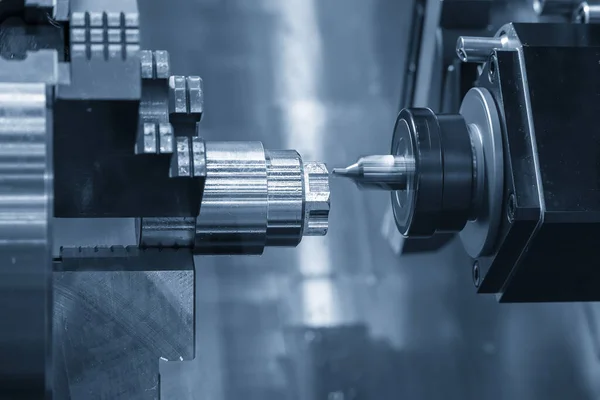

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| CNC milling 3, 4 and 5 axesMachining | – | – | – | 1 piece / prototype – Series | Aluminium, Stainless steel, Titanium, Brass |
| CNC turning (with or without milling re-chucking)Machining | – | Ø 200 mm | – | 1 – Series | – |
| Swiss turningMachining | – | 60 mm × Ø 25 mm | – | – | – |
| Wire EDMMachining | – | – | – | – | Hardened steel |
| Sinker EDMMachining | Ra 0.08 | 820 mm × 250 mm | – | – | – |
| Small-hole EDMMachining | – | 400 mm | – | – | – |
| Surface grindingMachining | – | 2000 mm × 750 mm × 550 mm | – | – | – |
| Cylindrical grindingMachining | – | – | – | – | – |
| PolishingSurface | – | – | – | – | – |
| Tumble finishingSurface | – | – | – | – | – |
| Heat treatment (via partners)Heat treatment | – | – | – | – | – |
| Surface treatments: anodizing, nickel plating, DLC (via partners)Surface | – | – | – | – | Aluminium |
| BlastingSurface | – | – | – | – | – |
| Laser markingSurface | – | – | – | – | – |
| Assembly of mechanical sub-assembliesAssembly | – | – | – | – | – |
| Dimensional inspection / metrology (inspection report on request)Testing | – | – | – | – | – |
| Rapid prototyping / single parts / small and medium seriesEngineering | – | – | – | 1 | – |
26 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| 5-axis machining center | Haas UMC-750 | 2 | X 762 × Y 508 × Z 508 mm | – | Main site |
| 5-axis machining center | Haas UMC-400SS | 1 | 432 × 279 × 330 mm | – | Main site |
| 4-axis machining center | Haas VF-6SS | 1 | 1626 × 813 × 762 mm | – | Main site |
| 4-axis machining center | Haas VF-2 | 2 | 762 × 406 × 508 mm | – | Main site |
| Turning center (dual-spindle, driven tools) | Haas DS-30Y | 1 | Chuck Ø533 mm / Bar Ø76 mm | – | Main site |
| CNC lathe | Haas ST-10 | 1 | Chuck Ø419 mm / Bar Ø44 mm | – | Main site |
| Swiss-type lathe | Haas CL-1 | 1 | 305 × 203 mm, Chuck Ø126 / Bar Ø25 mm | – | Main site |
| Swiss-type lathe | Tornos Micro 7 | 1 | Ø 7 mm max × 60 mm | – | Main site |
| Wire EDM | Sodick VL400Q | 1 | 400 × 300 × 220 mm, min wire Ø 0.1 mm | – | Main site |
| Wire EDM | AgieCharmilles CUT E 600 | 1 | 600 × 400 × 350 mm, min wire Ø 0.1 mm | – | Main site |
| Wire EDM | Sodick AQ55L | 1 | 550 × 400 × 350 mm, integrated C axis | – | Main site |
| Sinker EDM | AgieCharmilles FORM 2000 VHP | 1 | 400 × 300 × 350 mm, max workpiece 820 × 580 × 250 mm, Ra 0.08 | – | Main site |
| Small-hole EDM | AgieCharmilles DRILL 300 | 1 | 600 × 400 mm, min Ø 0.1 mm, max depth 400 mm | – | Main site |
| Conventional lathe | Schaublin Tour 102 | 4 | – | – | Main site |
| Conventional lathe | Schaublin Tour 135 | 2 | – | – | Main site |
| Conventional milling machine | Aciera F3 | 2 | – | – | Main site |
| Surface grinding machine | ELB-SCHLIFF SWDE 20 NPC | 1 | 2000 × 750 × 550 mm | – | Main site |
| Surface grinding machine | Jung JE 525-P | 1 | 660 × 385 × 225 mm | – | Main site |
| Cylindrical grinding machine | Studer S22 | 1 | 310 × 100 × 850 mm | – | Main site |
| Coordinate measuring machine (CMM) | Hexagon Global Lite | 1 | – | – | Main site |
| Optical inspection | Hexagon Optiv Classic | – | – | – | Main site |
| Profile projector | Mitutoyo PJ-300 | 1 | – | – | Main site |
| Surface roughness tester | Mitutoyo SJ-210 | 1 | – | – | Main site |
| Blasting station | Guyson Euroblast 6 | 1 | – | – | Main site |
| Washing station | MecWash AquaBlast | 1 | – | – | Main site |
| Laser marking | Technifor LW1 | 1 | – | – | Main site |
Additional services
Quality & Metrology

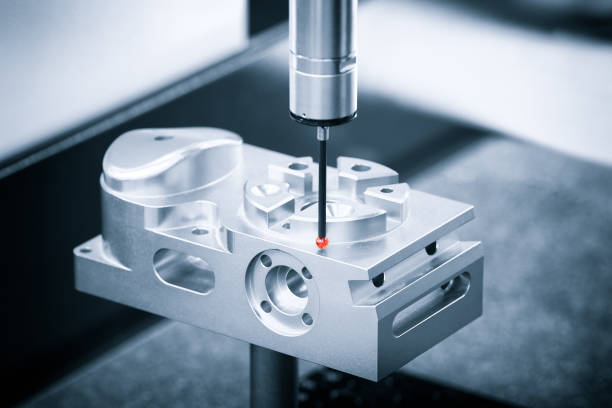

Every project undergoes systematic dimensional inspection on high-precision metrology equipment (Hexagon Global Lite CMM, Optiv Classic, Mitutoyo PJ-300, SJ-210); an inspection report is issued on request.
| Evidence | Headquarters Switzerland |
|---|---|
| Dimensional inspection & metrology | |
| Inspection report on request | |
| ISO 9001 |
History
- 2000
Acquisition of the company SAFAG including production shop.
- 2024
Opening of a production site in Morocco through the entity MFP Mena.
