Manufacturing supplier of busbar tubes, metal semi-finished products and cables made of copper and aluminium for the electrical power distribution industry

MG Handel AG

15745 Wildau · Headquarters, warehouse, wire and cable production, processing centreNew on Amplifa

AGLegal form (HRB 18906, Amtsgericht Potsdam)

1.500 t p.a.

up to 27 mMaximum tube length of busbar tubes

up to 1,000 mm²Cross-section of AL1 aluminium cables

WildauLocation near Berlin

About MG Handel AG

MG Handel AG, based in Wildau near Berlin, is a manufacturing supplier and metal trading company for metal semi-finished products, busbar tubes, overhead line cables, earthing cables and wires made of copper and aluminium. Starting from classic semi-finished product trading, the company has developed into a specialised manufacturing partner for the electrical power distribution industry. In cooperation with various aluminium works, around 1,500 tonnes of busbar tubes are produced annually, with tube dimensions up to 27 metres produced on large extrusion presses. In its own processing centre in Wildau, the tubes are bent in-plane and in 3D, pre-tensioned, fitted with welded flanges and equipped with damping cables – following the philosophy of "fit for purpose", the pre-assembled busbar tube is delivered ready for installation. In its own production, MG Handel AG also manufactures Cu earthing cables to DIN 48201 in all dimensions as well as AL1 aluminium cables up to 1,000 mm² and aluminium/steel cables. Customers include Siemens, ABB, Alstom Grid, GE Grid, transmission system operators such as Amprion and TenneT as well as power companies such as Eon, RWE and EnBW.

Site: Wildau
Processes: Cable production of copper earthing cables bare soft/hard and tinned to DIN 48201, Cable production of AL1 aluminium cables, Cable production of aluminium/steel cables (AL1/ST1A, AL3/ST1A), Tube bending of busbar tubes in-plane and in 3D, Processing: attaching welded flanges to tubes, installing damping cables, pre-tensioning of tubes, Mobile welding and cutting work on construction sites (certified welders), Customer-specific further processing of semi-finished products up to installation of the finished, Manufacturing/processing of busbar tubes on large presses (tube dimensions up to 27 m)
Materials: E-AlMgSi0,5 F22 (bendable), E-AlMgSi0,5 F10 (bendable), Aluminium, Copper (E-Cu), Brass, Bronze (incl. cast bronze), Grey cast iron, Tool steel
Certificates: Certified welders (construction site welding work), Processing according to guidelines of the power companies
Industries: Electrical power distribution industry, Energy industry (transmission system operators, power companies), Industry and trades (metal semi-finished products)

01
02
03
Bending of tubes in-plane and in 3D
04
05
Pre-assembly ready for installation ("fit for purpose")
06
07
Cable production of Cu earthing cables, AL1 and aluminium/steel cables in own

Materials and Products

E-AlMgSi0,5 F22

E-AlMgSi0,5 F22 (bendable)

Stocked alloy for busbar tubes and E-Al flat bars, bendable.

E-AlMgSi0,5 F10

E-AlMgSi0,5 F10 (bendable)

Bendable alloy for busbar tubes in various dimensions.

E-Cu

Copper (E-Cu)

Cu earthing cables bare soft/hard and tinned to DIN 48201 as well as E-Cu flat bars bare and tinned.

AL1

Aluminium cables type AL1

Aluminium overhead line cables up to 1,000 mm² cross-section, manufactured in own production.

AL1/ST1A

Aluminium/steel cables (AL1/ST1A, AL3/ST1A)

Aluminium/steel cables to DIN 50182 for overhead lines, including damping cables.

Brass

Sheets, plates, bars and tubes in various dimensions.

Bronze

Bronze incl. cast bronze

Sheets, strips and cast bronze for electrical engineering applications.

Grey cast iron

Semi-finished products and components for electrical power transmission.

Stahl

Tool steel, heat-resistant steel, stainless steel

Bars, sheets and tubes including special steels and "exotics".

Industrial plastics

Industrial plastics and perforated sheets complement the product range.

Locations

Wildau

Headquarters, warehouse, wire and cable production, processing centre

Part weight / size: Tubes up to 27 m in length
Lot size: Small quantities at short notice, large orders via cooperations
Materials: Aluminium (E-AlMgSi0,5 F22/F10), copper, brass, bronze, steel

Processing centre (pre-tensioning, welded flanges, damping cables)
Cable manufacturing facilities (Cu earthing cables, AL1 up to 1000 mm², aluminium/steel cables)
Aluminium extrusion presses in cooperation with aluminium works

Products and Components

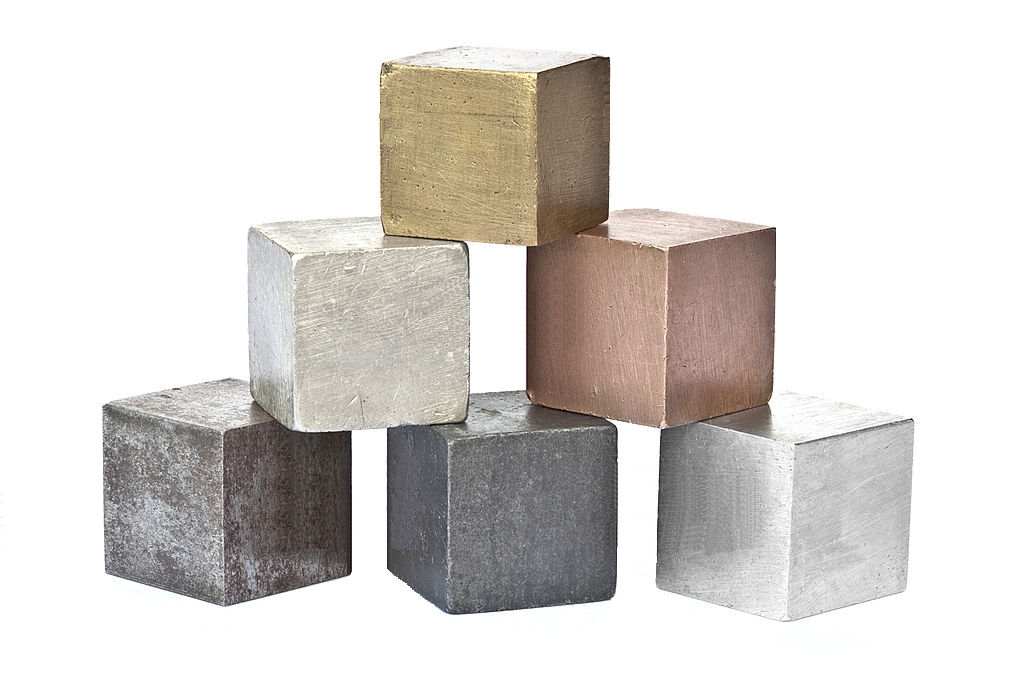

**Busbar tube (E-Al, bent, pre-assembled)**Extrusion, bending, processing · Electrical power distribution industry

**Cu earthing cable**Cable production · Energy industry

**Aluminium/steel overhead line cable (AL1/ST1A)**Cable production · Power transmission

Inside the production

MG Handel AG – metal semi-finished products and busbar tubes

Cable and semi-finished product production in Wildau

Industries

Electrical power distribution industryEnergy industry (transmission system operators, power companies)Industry and trades (metal semi-finished products)

Processes & technical limits

Processes	Tolerance	Max. part	Weight	Lot size	Materials
Cable production of copper earthing cables bare soft/hard and tinned to DIN 48201Forming	–	–	–	–	Copper
Cable production of AL1 aluminium cablesForming	–	–	up to 1000 mm² cross-section	–	Aluminium
Cable production of aluminium/steel cables (AL1/ST1A, AL3/ST1A)Forming	–	–	–	–	Aluminium, Steel
Tube bending of busbar tubes in-plane and in 3DForming	–	–	–	also smaller quantities very quickly	E-AlMgSi0,5 F22, E-AlMgSi0,5 F10
Processing: attaching welded flanges to tubes, installing damping cables, pre-tensioning of tubesJoining	–	–	–	–	Aluminium
Mobile welding and cutting work on construction sites (certified welders)Joining	–	–	–	–	Aluminium
Customer-specific further processing of semi-finished products up to installation of the finishedAssembly	–	–	–	–	Aluminium, Copper, Brass, Bronze, Steel, Grey cast iron
Manufacturing/processing of busbar tubes on large presses (tube dimensions up to 27 m)Forming	–	27 meters	–	–	E-AlMgSi0,5 F22, E-AlMgSi0,5 F10

3 Anlagen & Maschinen

Machine	Manufacturer / model	Quantity	Working area	Year built	Site
Aluminium extrusion presses (large presses for busbar tubes up to 27 m)	–	–	–	–	Wildau / cooperating aluminium works
Processing centre (pre-tensioning of tubes, attaching welded flanges, installing damping cables)	–	–	–	–	Wildau
Cable manufacturing facilities (Cu earthing cables, AL1 cables up to 1000 mm², aluminium/steel	–	–	–	–	Wildau

Additional services

Customer-specific further processing of semi-finished products up to installation of the finishedBending of tubes (in-plane and 3D)Attachment of welded flanges as consignment itemsInstallation of damping cablesPre-tensioning of tubes in the processing centreMobile welding and cutting work on construction sites by certified weldersPre-assembly of busbar tubes ("fit for purpose")Rapid production of small quantitiesSupply of "exotics" and special steelProcurement via exclusive cooperations with international manufacturers for major projects

Reference customers

Siemens AGABB MannheimAlstom GridGE GridGE PowerSAG GmbHOmexom EbehakoOmexom GA DresdenActenium GmbHEonEdisRWEEnBWVattenfall / 50HertzAmprion AGTennet AGMitnetzMiebach Dortmund

Quality

The processing of busbar tubes is carried out in accordance with the guidelines of the power companies; mobile welding and cutting work on construction sites is performed by certified welders.

Evidence	Wildau
Certified welders (construction site welding work)
Processing according to guidelines of the power companies
