Plastics engineering, tool and mould making, and machine and plant engineering in Niederstetten.
MHZ Hachtel GmbH & Co. KG – Kunststofftechnik
NiederstettenNew on Amplifa
About MHZ-Kunststofftechnik
MHZ Hachtel GmbH & Co. KG was founded in 1930 and is known as a manufacturer of custom-made visual and sun protection systems. In the late 1950s, company founder Wilhelm Hachtel invented the plastic curtain track, which for the first time combined plastic and wood in a single product. At the technology center of the corporate group in Niederstetten, the MHZ-Kunststofftechnik sales division offers companies from various industries customized services and production from idea to realization: development, design and engineering using networked CAD/CAM systems, injection molding and extrusion production of thermoplastics, tool and mould making, machine and fixture engineering, as well as assembly and machining of aluminium profiles. Tool and mould making covers 2K injection molds, assembly tools, spindle extraction tools as well as pre-series and prototype tools up to a mold size of 500 x 500 mm. Machining is performed on a modern CNC machine fleet from HERMLE, MAHO, Deckel, CHARMILLES, EXERON, Geibel + Hotz, WEILER and CINCOM, supported by wire and sinker EDM, grinding and one-off production.
- Site
- Niederstetten
- Processes
- Development, Design & Engineering, Plastics production: injection molding, Plastics production: extrusion, Tool and mould making, Machine, plant and fixture engineering, Single and group assembly of plastic components, Assembly and machining of aluminium profiles, Manufacture of stamping tools
- Materials
- Plastics, Thermoplastics, Aluminium, Metals, Aluminium profiles
- Certificates
- DIN EN ISO 9001
- Founded
- 1930
- Industries
- Sun protection / window decoration, Plastics processing, Industrial companies of all sectors, Industrial companies of all sectors (credited)
- 01

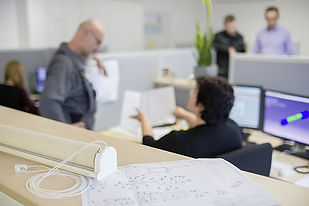

Development, Design & Engineering (CAD/CAM)
- 02

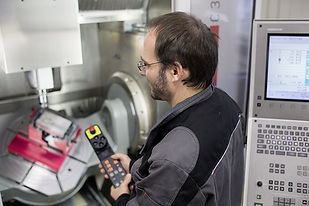

Tool and Mould Making
- 03

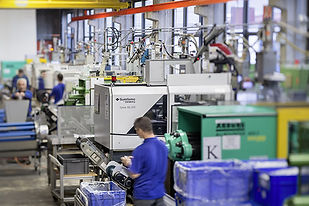

Injection Molding
- 04

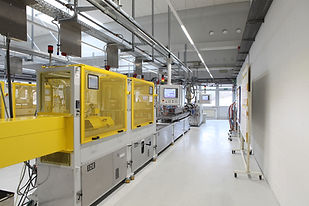

Extrusion
- 05

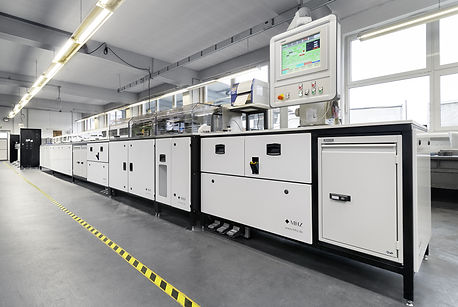

Machine, Plant and Fixture Engineering
- 06
Assembly and Final Assembly
- 07
Quality Management
Materials and Processes
Plastics
Base material of production, including for sun protection systems and plastic components.
Thermoplastics
Processing in injection molding and on modern extrusion lines with inline machining.
Aluminium
Assembly and machining of aluminium profiles.
Metals
Automated machining of metals according to customer specifications in machine and plant engineering.
Locations

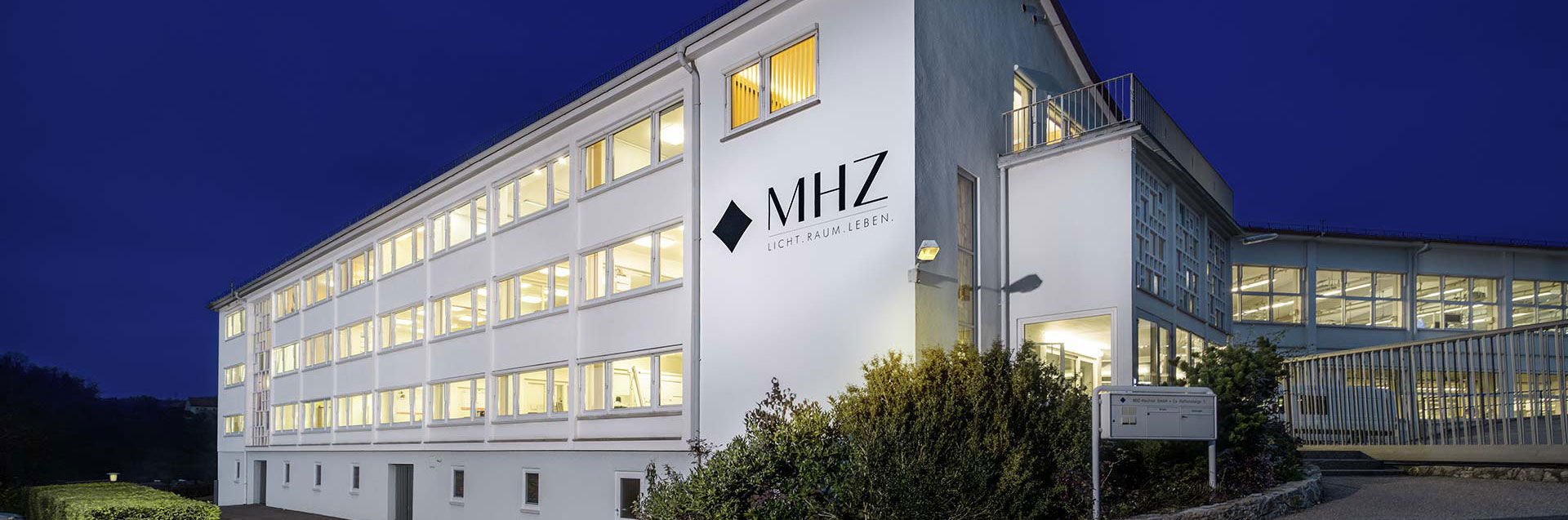

Niederstetten
DETechnology center: plastics engineering, component manufacturing and assembly
- Part weight / size
- Tool sizes up to 500 x 500 mm
- Materials
- Plastics, Thermoplastics, Aluminium, Metals
- HERMLE C30 5-axis milling machine (650 x 600 x 500 mm)
- HERMLE C600V 3-axis milling machine (600 x 450 x 450 mm)
- HERMLE UWF900E 3-axis milling machine (600 x 400 x 420 mm)
- MAHO MH800E 3-axis milling machine (800 x 600 x 500 mm)
- Deckel FP5 3-axis milling machine (710 x 600 x 500 mm)
- CHARMILLES CUT300mS wire EDM machine
- EXERON EDM312MF30 sinker EDM machine
- Geibel + Hotz FS60AC-SA surface grinding machine
- WEILER E35 lathe
- WEILER E35/950 lathe
- WEILER Condor 2 lathe
- CINCOM M32 12-axis CNC Swiss-type automatic lathe
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Development, Design & EngineeringEngineering | – | – | – | – | Plastics |
| Plastics production: injection moldingPlastics | – | – | – | – | Thermoplastics |
| Plastics production: extrusionPlastics | – | – | – | – | Thermoplastics |
| Tool and mould makingMachining | – | 500 mm × 500 mm | – | – | – |
| Machine, plant and fixture engineeringAssembly | – | – | – | – | Plastics, Metal, Aluminium |
| Single and group assembly of plastic componentsAssembly | – | – | – | – | Plastics |
| Assembly and machining of aluminium profilesMachining | – | – | – | – | Aluminium |
| Manufacture of stamping toolsForming | – | – | – | – | – |
| TurningMachining | – | – | – | – | – |
| MillingMachining | – | – | – | – | – |
| GrindingMachining | – | – | – | – | – |
| Manufacture of 2K injection moldsMachining | – | 500 mm × 500 mm | – | – | – |
| Manufacture of assembly toolsMachining | – | – | – | – | – |
| Manufacture of spindle extraction toolsMachining | – | – | – | – | – |
| Pre-series and prototype toolsMachining | – | – | – | – | – |
| Quality ManagementTesting | – | – | – | – | – |
12 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| 5-axis milling machine | HERMLE C30 | – | 650 x 600 x 500 mm | – | Niederstetten |
| 3-axis milling machine | HERMLE C600V | – | 600 x 450 x 450 mm | – | Niederstetten |
| 3-axis milling machine | HERMLE UWF900E | – | 600 x 400 x 420 mm | – | Niederstetten |
| 3-axis milling machine | MAHO MH800E | – | 800 x 600 x 500 mm | – | Niederstetten |
| 3-axis milling machine | Deckel FP5 | – | 710 x 600 x 500 mm | – | Niederstetten |
| Wire EDM machine | CHARMILLES CUT300mS | – | 550 x 350 x 400 mm | – | Niederstetten |
| Sinker EDM machine | EXERON EDM312MF30 | – | 550 x 350 x 400 mm | – | Niederstetten |
| Surface grinding machine | Geibel + Hotz FS60AC-SA | – | 600 x 400 mm | – | Niederstetten |
| Lathe (cycle-controlled) | WEILER E35 | – | – | – | Niederstetten |
| Lathe (cycle-controlled) | WEILER E35/950 | – | – | – | Niederstetten |
| 12-axis CNC Swiss-type automatic lathe | CINCOM M32 | – | – | – | Niederstetten |
| Lathe | WEILER Condor 2 | – | – | – | Niederstetten |
Additional services
Quality
Quality assurance is performed via a certified quality management system according to DIN EN ISO 9001, which extends from development through the entire production process to shipping.
| Evidence | Niederstetten |
|---|---|
| DIN EN ISO 9001 |
History
- 1930
Founding of MHZ Hachtel (sun protection, window decoration).
- Ende der
Company founder Wilhelm Hachtel invents the plastic curtain track, which for the first time combines plastic and wood in a single product.
