Inspection and identification systems for seamless traceability in goods receipt and production.
MODI Modular Digits GmbH
WiehlNew on Amplifa
About MODI Modular Digits
MODI Modular Digits GmbH, based in Wiehl, has specialized in identification solutions and process optimization for over 30 years, particularly for the electronics and pharmaceutical industries. The company develops and manufactures goods receipt systems (WES V5), code reading systems (IBox), pallet scanning systems (PalletTrace), inspection solutions (PackTrace, TopScan PRO) as well as a balancing unit for pharmaceutical production. Complete hardware and software development as well as system engineering are carried out in-house in Germany, enabling customer-specific integration with ERP, MES and WMS systems. All products are modular in design and cover 100% traceability of batch, lot and date code data from goods receipt to goods dispatch. In addition, MODI offers biometric systems for commercial and government applications as well as training courses and workshops in its own Technology Center (MODI TRACE Arena). As European Master Distributor, MODI represents the reel storage systems of its partner INOVAXE.
- Site
- Wiehl
- Processes
- PackTrace – integrated control/inspection (details not specified), Goods receipt systems (WES V5), 100% traceability, Machine vision / inspection solutions, Code reading systems (IBox), PalletTrace / PackTrace, Balancing unit for the pharmaceutical industry, In-house hardware and software development
- Materials
- Goods receipt system, Scanning station, Inline code reading system, Pallet scanning system, Inspection and control system, Pharma balancing unit, Machine vision technology, Robot system
- Industries
- Electronics industry, Pharmaceutical industry
- 01
In-house hardware and software development
- 02
System engineering and manufacturing in Germany
- 03
Commissioning and integration into ERP/MES/WMS
- 04
Training and support
Products & Technologies

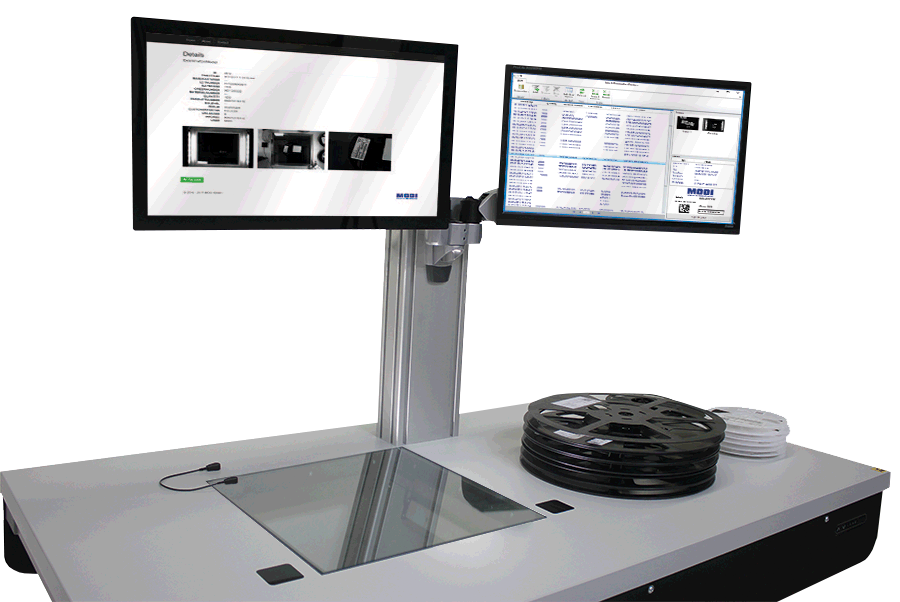

Goods receipt system
Captures all labels with a single image, AI-supported OCR, reel measurement and interfaces to ERP/MES/WMS.
Scanning station
Captures both sides of a component reel simultaneously, autofocus up to 20 cm height, measurement of reel thickness.

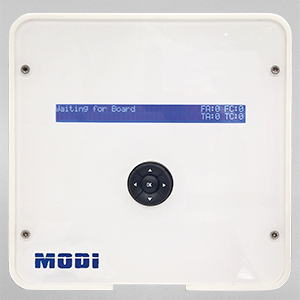

Inline code reading system
Link between code scanner and traceability system with SMEMA/Hermes connection for every conveyor line.

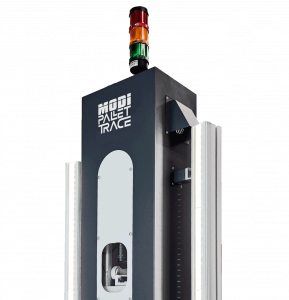

Pallet scanning system
Patented technology scans an area of 220 cm height and 120 cm width from 160 cm distance, optionally with OCV inspection.
Inspection and control system
Intelligent control for inspection tasks beyond pure scanning.

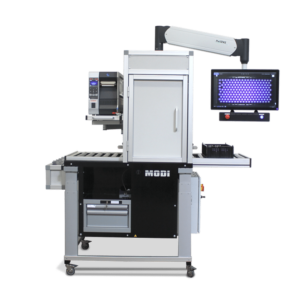

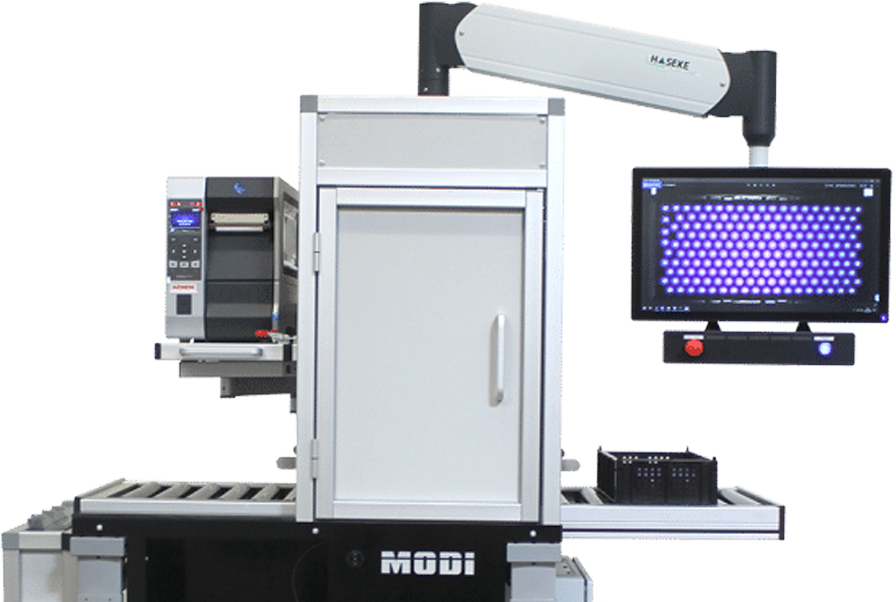

Pharma balancing unit
Balances products during production and records samples during media fills in the pharmaceutical industry.

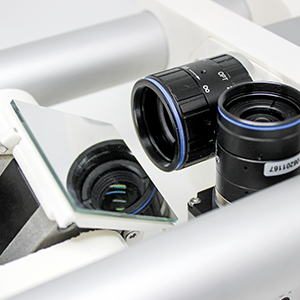

Machine vision technology
High-resolution camera with zoom lens and motorized deflection mirror for object capture.

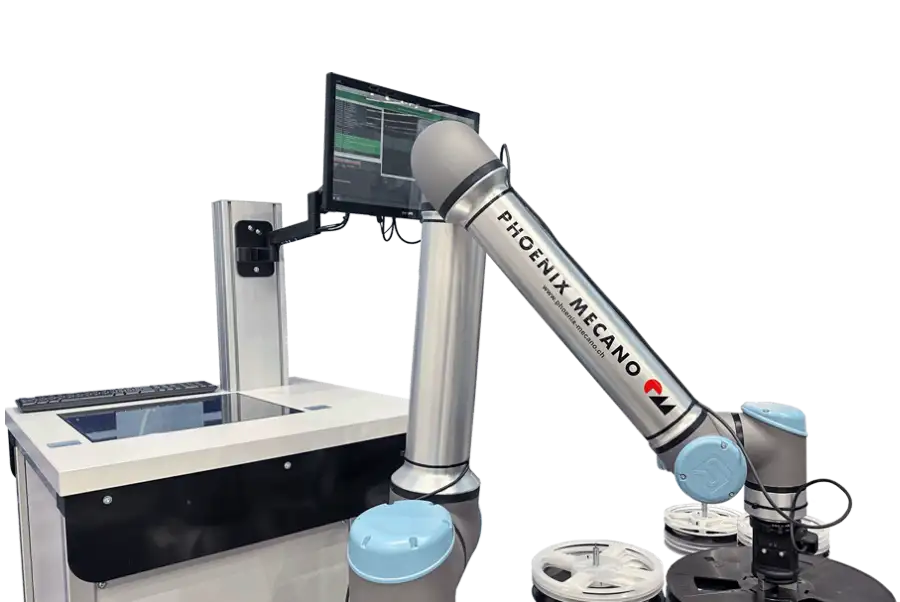

Robot system
Automates goods receipt inspection and can be docked to any MODI goods receipt system.
Locations
Wiehl
DEHeadquarters / Technology Center, manufacturing and development
- WES V5 goods receipt system
- TopScan PRO scanning station
- IBox code reading system
- PalletTrace pallet scanner
- Robo WES robot system
Systems & Equipment
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Inspection | – | – | – | – | – |
| Inspection | – | – | – | – | – |
| Inspection | – | – | – | – | – |
| Inspection | – | – | – | – | – |
| Inspection | – | 220 cm (scan area height) × 120 cm (scan area width) × 160 cm (distance) | – | – | – |
| Inspection | – | 20 cm (autofocus) | – | – | – |
| PackTrace – integrated control/inspection (details not specified)Inspection | – | – | – | – | – |
| Engineering | – | – | – | – | – |
8 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Goods receipt scanner / goods receipt system | MODI Modular Digits WES V5 | – | – | – | Manufacturing in Germany (An der Höhe 20, 51674 Wiehl) |
| Scanning station | MODI Modular Digits TopScanPRO | – | Autofocus up to 20 cm height; simultaneous capture of both sides of a component reel | – | – |
| Pallet scanning system | MODI Modular Digits PalletTrace | – | Scan area 220 cm height × 120 cm width from 160 cm distance | – | – |
| Inline code reading system | MODI Modular Digits IBOX | – | Connections: SMEMA/Hermes, RS232, TCP/IP, 6x Digital IN, 6x Digital OUT | – | – |
| Balancing unit (pharma) | MODI Modular Digits | – | – | – | – |
| Robot system for automated goods receipt inspection | MODI / Phoenix Mecano (combination) | – | Can be docked/integrated with any MODI goods receipt system | 2023/2024 | – |
| Smart reel storage system | INOVAXE RACK SR-SERIES (e.g. SR200) | – | Up to 560 7-inch reels, 320 13-inch or 320 15-inch reels; can be coupled in series | – | Partner product (DiVis Trace as European Master Distributor) |
| PackTrace (inspection/control system) | MODI Modular Digits PackTrace | – | – | – | – |
Additional services
History
Founded and over 30 years of experience as a specialist in identification solutions and process optimization
- 2023
Presentation of the V5 goods receipt system at SMTConnect in Nuremberg and productronica in Munich
- 2024
Cooperation news with INOVAXE; DiVis Trace as European Master Distributor for INOVAXE
