Second-life battery storage made from EV high-voltage batteries, developed and manufactured in Switzerland.
modual AG
SwitzerlandNew on Amplifa
About modual
modual AG develops and manufactures modular battery storage systems in Switzerland for private households, agriculture, commercial and industrial applications. At its core is the second-life strategy: high-quality batteries from electric vehicles get a second life as stationary storage. Every battery cell undergoes rigorous testing before being installed in a storage unit. The company develops hardware and software entirely in-house – from circuit boards to cloud AI – including its own battery management system (BMS) that monitors every cell. The product range includes AC and DC storage systems (Series Basic, 11.5–46 kWh), AC sets with Solis hybrid inverter, and the Series Pro AC all-in-one wall-mounted storage unit (35–210 kWh usable) based on complete EV high-voltage battery packs. Applications include self-consumption optimization, peak shaving, grid services, ZEV/vZEV billing, off-grid island networks, e-mobility and backup power. Distribution in Switzerland is handled by the distributors Krannich Solar and Otto Fischer.
- Site
- Switzerland
- Processes
- Manufacturing and production of battery storage systems (Swiss-made, development and production in, Second-life battery reconditioning: testing of every battery cell and integration into stationary, In-house development of battery management system (BMS) with cell-level monitoring, In-house development of hardware and software (circuit boards to cloud AI), predictive maintenance, AC battery storage (Series Basic AC, AC-coupled, compatible with all inverters), DC battery storage (Series Basic DC, DC-coupled to PV generator), AC set (DC storage incl. Solis hybrid inverter, backup-power capable, generator input), Series Pro AC all-in-one wall-mounted storage (made from EV high-voltage batteries, 35-210 kWh
- Materials
- LiFePo (LFP), Lithium Ion (LFP), Second-life battery cells from electric vehicles (EV batteries), Second-life battery cells from electric vehicles
- Certificates
- Product approvals Series Pro: VDE-AR-N 4105, IEC/EN 62109-2, EN 50549-1, CE, VDE-AR-N 4105, IEC/EN 62109-2, EN 50549-1, CE
- Employees
- approx. 20 (team
- Industries
- Private households, Agriculture, Commercial, Industry, Energy consulting/planning, Electrical installation
- 01
Sourcing of used EV batteries
- 02
Cell testing and reconditioning
- 03
Hardware/software development (BMS, cloud AI)
- 04
Final assembly of the storage systems
- 05
Remote maintenance and predictive maintenance
Battery Technology & Processes
LiFePo (LFP)
Lithium iron phosphate cells as the battery technology of all Series Basic and Pro storage systems.
Second-life battery cells from electric vehicles
Used, tested EV cells and complete high-voltage battery packs as the base material for stationary storage.
Locations
Switzerland
CHDevelopment, production and support
- Part weight / size
- up to 2400 kg (Series Pro 210)
- Lot size
- Single units to small series
- Materials
- LFP, second-life EV batteries
- Final assembly of battery storage systems
- Cell testing and inspection technology
- In-house BMS (hardware & software)
Products
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Manufacturing and production of battery storage systems (Swiss-made, development and production inAssembly | – | – | 2400 kg (Series Pro 210) | – | LiFePo (LFP), Lithium Ion (LFP), Second-life battery cells from electric cars |
| Second-life battery reconditioning: testing of every battery cell and integration into stationaryTesting | – | – | – | – | Second-life battery cells (EV batteries), LiFePo (LFP) |
| In-house development of battery management system (BMS) with cell-level monitoringEngineering | – | – | – | – | – |
| In-house development of hardware and software (circuit boards to cloud AI), predictive maintenanceEngineering | – | – | – | – | – |

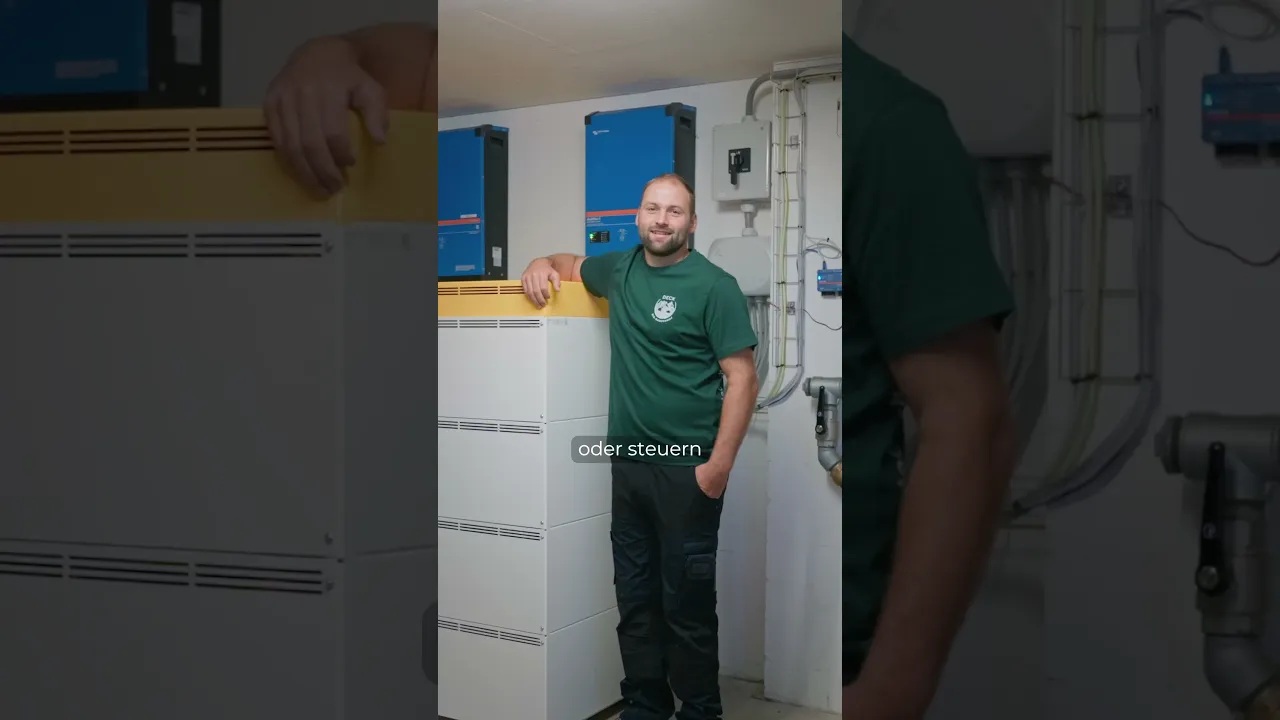

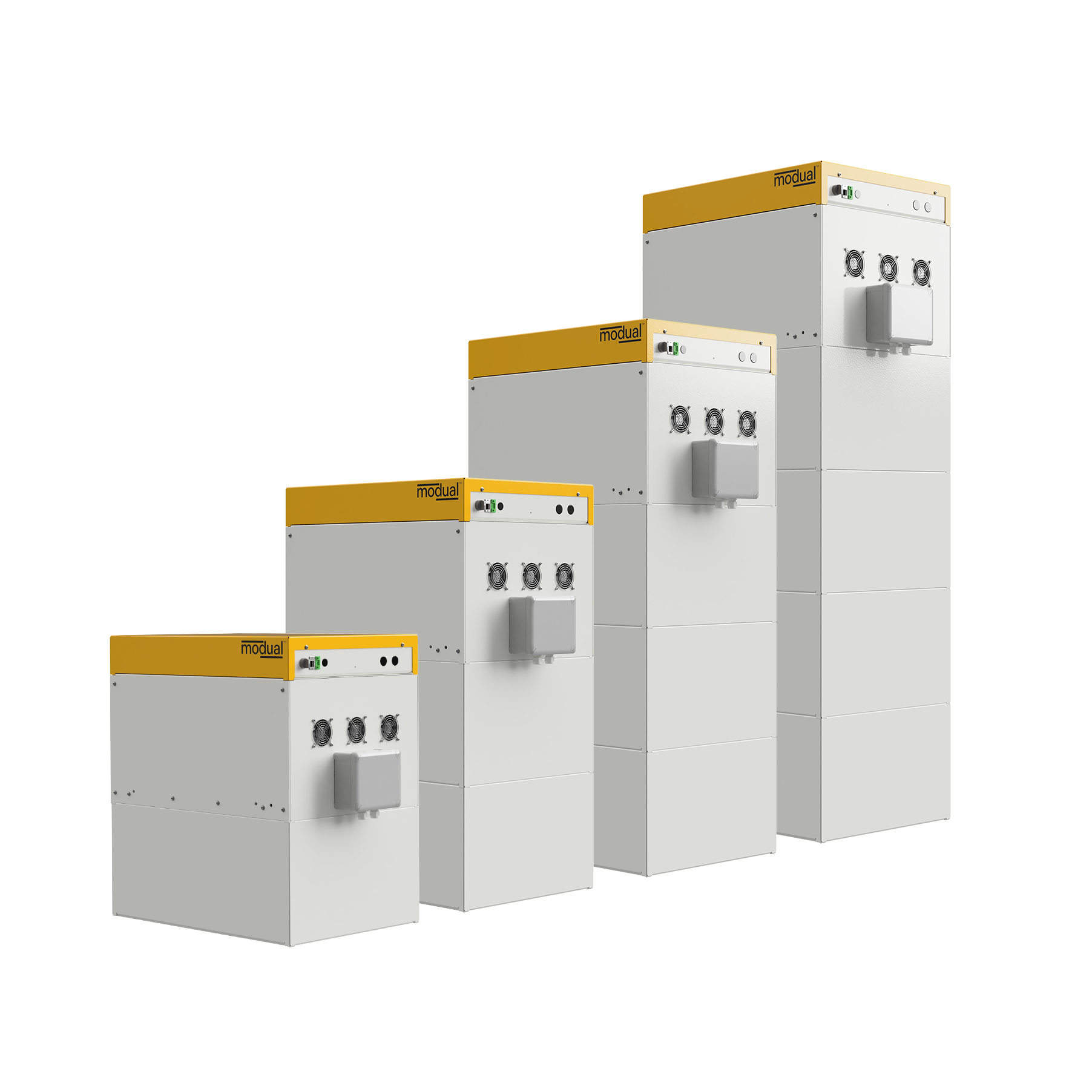

| AC battery storage (Series Basic AC, AC-coupled, compatible with all inverters)Assembly | – | 550 mm × 1849 mm | 200 kg – 500 kg | – | LiFePo (LFP) |
| DC battery storage (Series Basic DC, DC-coupled to PV generator)Assembly | – | 550 mm × 1463 mm | 115 kg – 415 kg | – | LiFePo (LFP) |
| AC set (DC storage incl. Solis hybrid inverter, backup-power capable, generator input)Assembly | – | 550 mm × 1463 mm | 115 kg – 415 kg | – | LiFePo (LFP) |

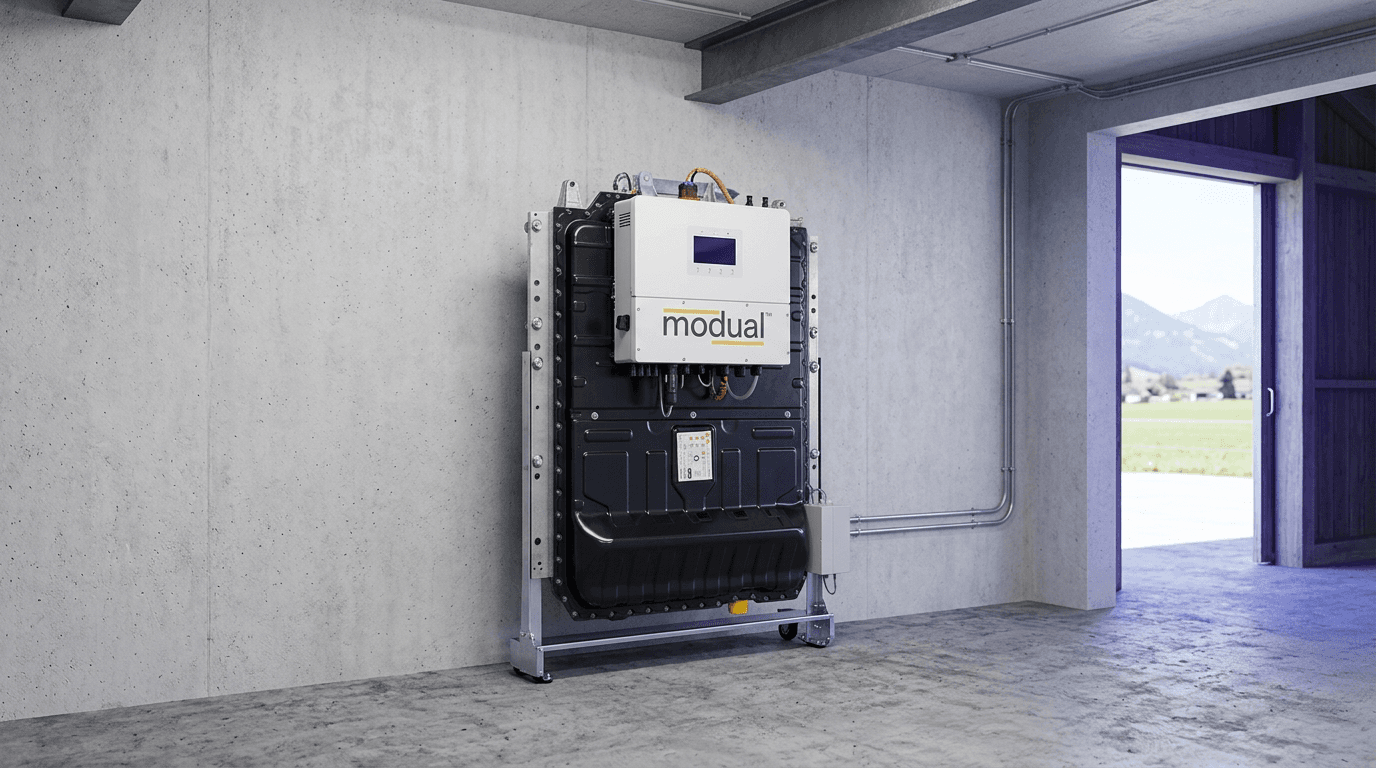

| Series Pro AC all-in-one wall-mounted storage (made from EV high-voltage batteries, 35-210 kWhAssembly | – | 1200 mm × 1700 mm | 400 kg – 2400 kg | – | Lithium Ion (LFP), EV high-voltage batteries (second life) |
| Battery storage applications: self-consumption optimization, peak shaving, grid servicesEngineering | – | – | – | – | – |
| Smart remote support / remote maintenance of storage systemsTesting | – | – | – | – | – |
1 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Battery storage production (manufacturing/final assembly of second-life storage systems) | modual | – | – | – | Switzerland |
Additional services
Reference customers
Quality & Approvals
Every second-life battery cell undergoes rigorous testing and is monitored at cell level by the in-house developed BMS; AI-based predictive maintenance and smart remote maintenance provide additional safeguards. The products carry approvals under VDE-AR-N 4105, IEC/EN 62109-2, EN 50549-1 and CE, with a 10-year warranty.
| Evidence | Switzerland |
|---|---|
| VDE-AR-N 4105 | |
| IEC/EN 62109-2 | |
| EN 50549-1 | |
| CE |
