Manufacturing of textile finishing machinery as well as contract manufacturing in sheet metal working, welding and assembly in St. Stefan, Carinthia.
MONTEX Maschinenfabrik – Zweigniederlassung der A. Monforts Textilmaschinen GmbH & Co. KG
St. Stefan, Carinthia (AT)New on Amplifa
About MONTEX
MONTEX Maschinenfabrik in St. Stefan (Carinthia, Austria) has been a branch of A. Monforts Textilmaschinen GmbH & Co. KG in Mönchengladbach since 2016. At this site, textile finishing machines such as tenter frames, coating units, dyeing machines, padders and compacting machines are developed and produced for the international market. In addition to its own machine building, the company offers contract manufacturing: sheet metal working by CNC laser cutting and nibbling (steel up to 8 mm, stainless steel up to 6 mm, sheet format up to 4000 × 1500 mm), bending on a CNC press brake with 320 t of bending force and 4 m length, MAG, MIG, TIG and stud welding as well as machining by turning (up to Ø 300 mm) and milling (travel range 500 × 400 mm). The offering is rounded off by the assembly of subassemblies and complete machines, design for manufacture, and surface treatment (wet painting, powder coating, galvanizing) via partner companies. MONTEX manufactures subassemblies and components for customers from industries including packaging machinery, printing and envelope machines, hygiene products, the tobacco industry, tooling and thermoforming machines, glass processing and wire grid welding machines.
- Site
- St. Stefan
- Processes
- Sheet metal working / CNC laser cutting and nibbling (combined), CNC nibbling, Bending (CNC press brake, 320 t bending force, 4 m bending length), MAG welding, MIG welding, TIG welding, Stud welding, Turning (machine tool RNC5, turning range diameter up to 300 mm)
- Materials
- Steel, Stainless Steel, Aluminium
- Founded
- 1968
- Industries
- Textile Finishing, Packaging Machinery, Printing and Envelope Machines, Hygiene Products, Tobacco Industry, Tooling and Thermoforming Machines
- 01
Design for Manufacture
- 02
CNC Laser Cutting/Nibbling
- 03
Bending
- 04
Welding
- 05
Machining (Turning, Milling)
- 06
Surface Treatment (Partner Companies)
- 07
Assembly
Materials and Processes
Steel
Sheet metal working up to 8 mm in laser cutting; MAG and stud welding; galvanizing via partner companies.
Stainless Steel
Laser cutting up to 6 mm sheet thickness as well as TIG welding applications.
Aluminium
MIG and TIG welding processes for subassemblies.
Location
St. Stefan
ATManufacturing of textile finishing machines and contract manufacturing
- Materials
- Steel, stainless steel, aluminium

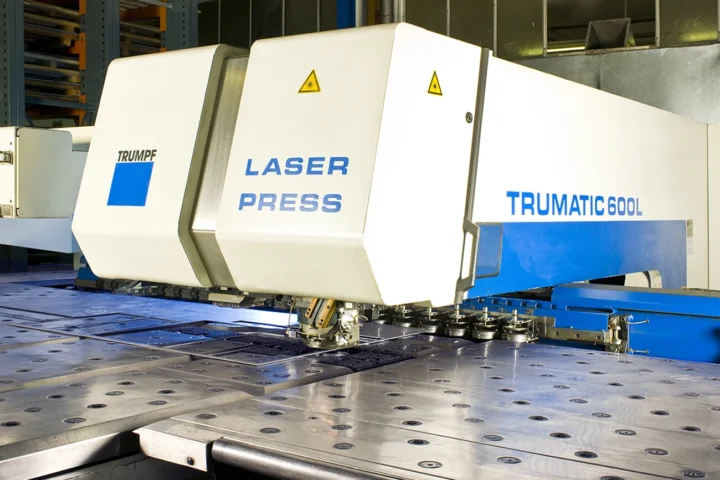

- Combined CNC laser cutting and nibbling machine (4000 × 1500 mm), automatic loading and unloading

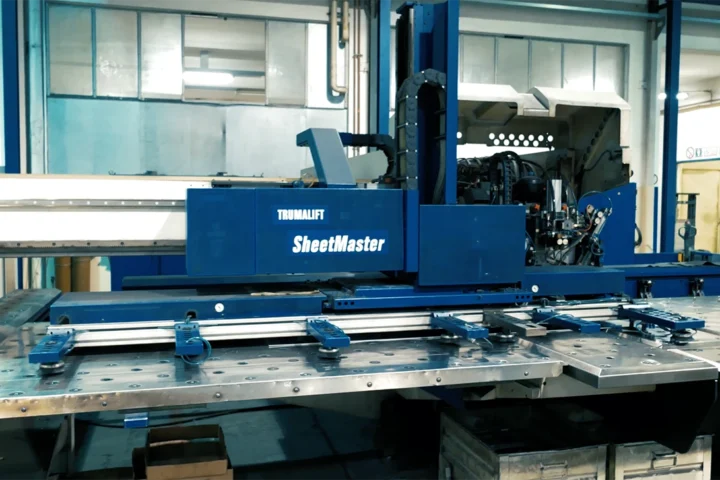

- CNC nibbling machine (3000 × 1500 mm), automatic loading and unloading

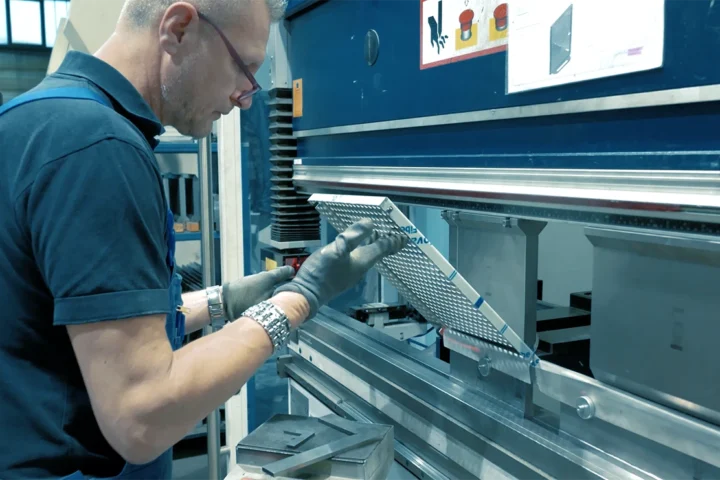

- CNC press brake 320 t, 4 m bending length
- Lathe RNC5 (turning range Ø up to 300 mm)
- Milling machine/machining centre VMC 2016L (500 × 400 mm)

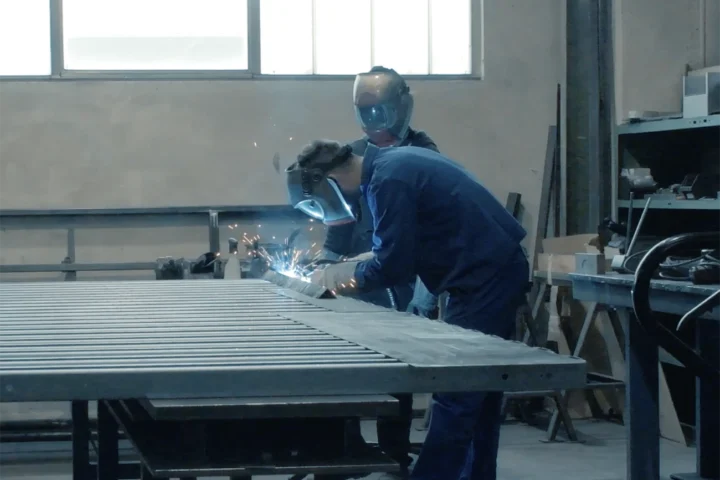

- MAG, MIG, TIG and stud welding equipment

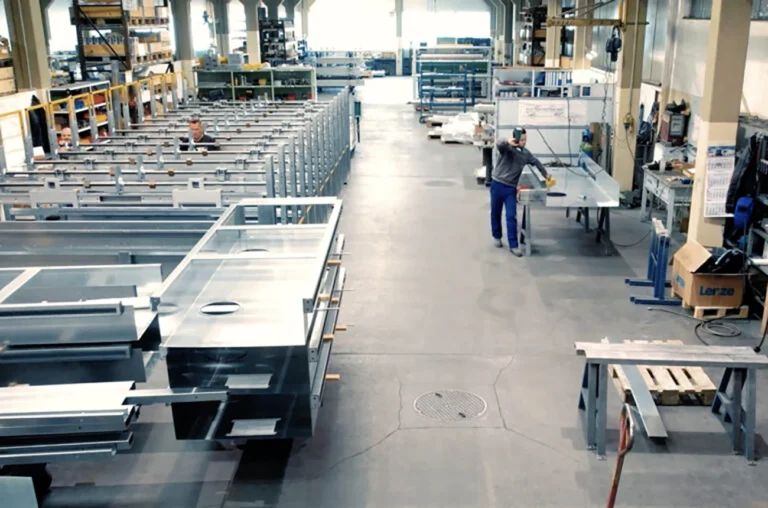

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Sheet metal working / CNC laser cutting and nibbling (combined)Forming | – | 4000 mm × 1500 mm | – | – | Steel, Stainless Steel |
| CNC nibblingForming | – | 3000 mm × 1500 mm | – | – | Sheet up to 4 mm |
| Bending (CNC press brake, 320 t bending force, 4 m bending length)Forming | – | 4 m | – | – | Sheet |
| MAG weldingJoining | – | – | – | – | Steel |
| MIG weldingJoining | – | – | – | – | Steel, Aluminium |
| TIG weldingJoining | – | – | – | – | Steel, Stainless Steel, Aluminium |
| Stud weldingJoining | – | – | – | – | Steel |
| Turning (machine tool RNC5, turning range diameter up to 300 mm)Machining | – | – | – | – | Metal |
| Milling (VMC 2016L, travel range 500 x 400 mm)Machining | – | 500 mm × 400 mm | – | – | Metal |
| Assembly of subassemblies and complete machinesAssembly | – | – | – | – | – |
| Wet painting (via partner companies)Surface | – | – | – | – | Metal |
| Powder coating (via partner companies)Surface | – | – | – | – | Metal |
| Galvanizing (via partner companies)Surface | – | – | – | – | Steel |
| Design for manufacture of sheet metal parts / design supportEngineering | – | – | – | – | – |
5 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Combined CNC laser cutting and nibbling machine | – | – | 4000 × 1500 mm | – | St. Stefan, Austria |
| CNC nibbling machine | – | – | 3000 × 1500 mm | – | St. Stefan, Austria |
| CNC press brake | – | – | – | – | St. Stefan, Austria |
| Lathe (machine tool RNC5) | RNC5 | – | Turning range diameter up to 300 mm | – | St. Stefan, Austria |
| Milling machine / machining centre | VMC 2016L | – | 500 x 400 mm | – | St. Stefan, Austria |
Additional services
History
- 1968
Start of textile machinery production at the St. Stefan site, Carinthia (Austria).
- 1982
The company was renamed MONTEX-Maschinenfabrik.
- 2016
MONTEX becomes a branch of A. Monforts Textilmaschinen GmbH & Co. KG in Mönchengladbach, Germany.
