Manufacture of vibrators, vibration motors, vibration beams and vibration tables for concrete and bulk materials technology
Mooser-Schwingungstechnik GmbH
Puchheim near MunichNew on Amplifa
About Mooser-Schwingungstechnik
Mooser-Schwingungstechnik GmbH in Puchheim near Munich has been developing and manufacturing vibration technology equipment for over 50 years, in particular for concrete compaction. The portfolio comprises high-frequency external vibrators (EHF series), high-frequency internal vibrators in 42V and 230V versions (HJ/HJU), pneumatic internal vibrators (VF), formwork vibrators such as the pneumatic external vibrator VR56K and the electric formwork vibrator VE2/2 BS, electronic frequency converters (FR/FRS), three-phase and DC vibration motors (VE series), frequency converters for vibration motors, vibration tables, the patented concrete pre-compactor as well as patented, vibration-damped profile vibration beams and a modular vibration beam system up to 25 m working width made of self-supporting aluminium truss construction. Housings of the vibration motors are made from aluminium gravity die casting; vibration beams are custom-designed and manufactured from aluminium and steel. Fields of application include precast concrete, in-situ concrete, tunnel, bridge and industrial hall construction as well as bulk material applications such as silo discharge, screening plants and concrete pumps. Reference projects include the Rosenstein tunnel in Stuttgart, the Erdinger Ringschluss, the Oberau tunnel and the noise protection gallery in Germering/Gilching, among others as a partner of Peri and Leonhard Weiß.
- Site
- Puchheim
- Processes
- Concrete compaction of precast elements (high-frequency external vibrators), Concrete compaction of in-situ concrete (high-frequency internal vibrators 42V), Concrete compaction with high-frequency internal vibrators with integrated converter 230V, Concrete compaction with pneumatic internal vibrators (VF series), Concrete pre-compaction / de-airing (pre-compactor in the concrete hose), Formwork vibrators / pneumatic external vibrator VR56K for formwork systems (Peri), Profile vibration beams for tunnel construction and special geometries (vibration-damped, individual, Modular vibration beam system (aluminium truss construction, bend points +/-5%, levelling to DIN
- Materials
- Concrete / fresh concrete, Aluminium (truss construction of vibration beams), Aluminium gravity die casting (vibration motor housings), Steel (steel formwork), Vulkulan caps (internal vibrators), Aluminium, Aluminium gravity die casting, Steel
- Industries
- Construction industry, Precast concrete, Tunnel construction, Bridge construction, Industrial hall construction, Bulk materials/Silo discharge
- 01
Individual consulting
- 02
Project planning
- 03
Design
- 04
Manufacturing
- 05
Delivery
Materials and Processes
Aluminium
Self-supporting truss construction of the vibration beam modules
Aluminium gravity die casting
Housings of the EHF high-frequency vibration motors, robust and designed for continuous operation
Steel
Construction material for vibration beams and applications on steel formwork
Vulkulan
Caps on internal vibrators prevent the transfer of vibrations to reinforcement or formwork
Location
Puchheim
DEHeadquarters with development, design and manufacturing
- Materials
- Aluminium, steel, plastic
- Manufacture of vibration motor housings in aluminium gravity die casting
- Design and manufacture of custom profile vibration beams
- Assembly of internal and external vibrators
Products
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Concrete compaction of precast elements (high-frequency external vibrators)Forming | – | – | – | – | Concrete, Steel formwork |
| Concrete compaction of in-situ concrete (high-frequency internal vibrators 42V)Forming | – | – | – | – | Fresh concrete |
| Concrete compaction with high-frequency internal vibrators with integrated converter 230VForming | – | – | – | – | Fresh concrete |
| Concrete compaction with pneumatic internal vibrators (VF series)Forming | – | – | – | – | Fresh concrete |
| Concrete pre-compaction / de-airing (pre-compactor in the concrete hose)Forming | – | – | – | – | Fresh concrete |

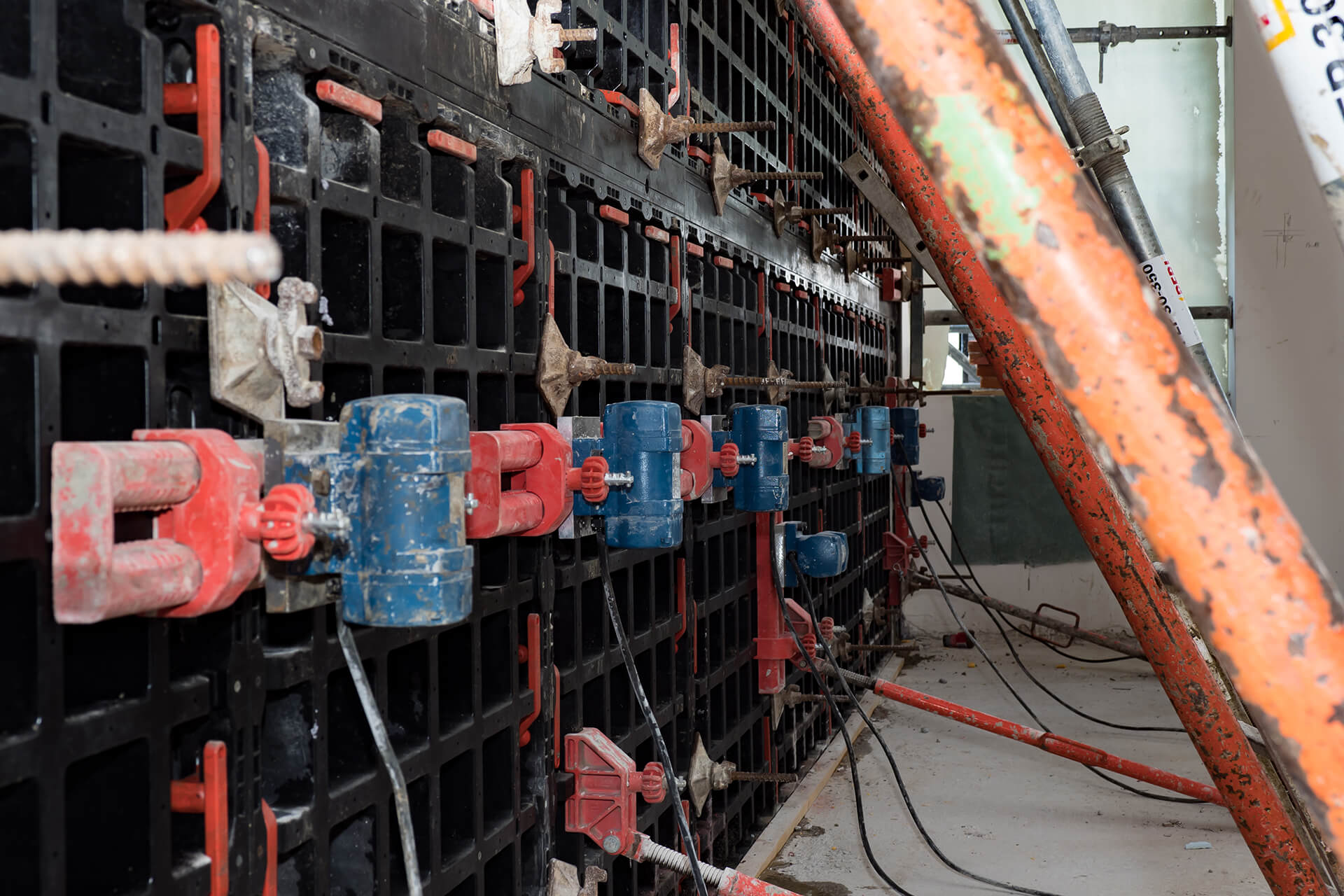

| Formwork vibrators / pneumatic external vibrator VR56K for formwork systems (Peri)Forming | – | – | – | – | Concrete |
| Profile vibration beams for tunnel construction and special geometries (vibration-damped, individualForming | – | Frame segments up to 25 m working width | – | – | Aluminium, Concrete |
| Modular vibration beam system (aluminium truss construction, bend points +/-5%, levelling to DINForming | Bend points at frame joints up to +/- 5% | 25m | – | – | Aluminium |
| Compaction of bulk materials, moulding sand, silo container discharge, conveying troughs, screeningForming | – | – | – | – | Sand, Bulk material |
| Generation of linear centrifugal force with frequency converter + vibration motorForming | – | – | – | – | – |
| Design and manufacture of custom vibration beams / project planningEngineering | – | – | – | – | Aluminium, Steel |
15 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|

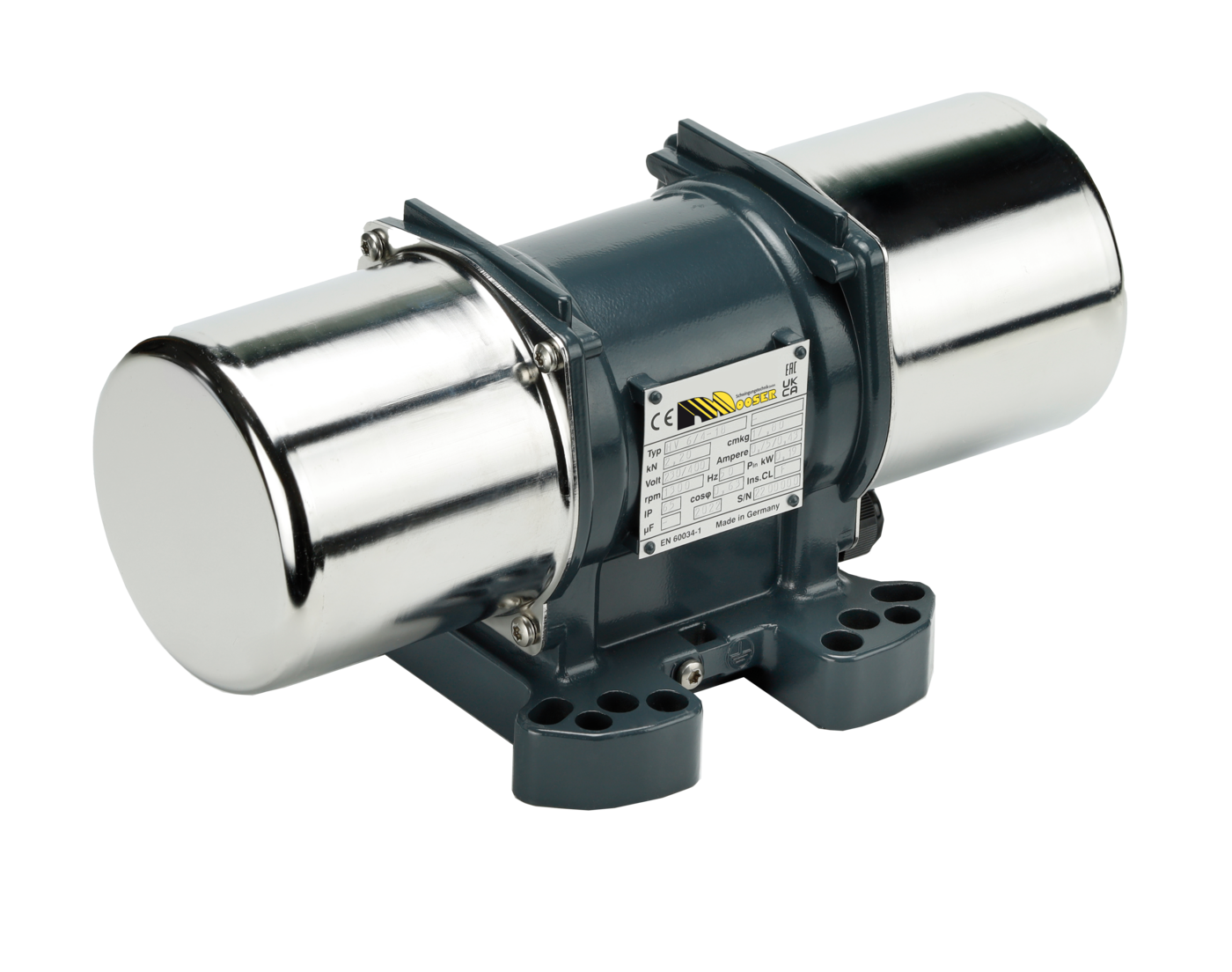

| High-frequency external vibrator (electric) | Mooser EHF2, EHF6/4, EHF8, EHF15 | – | 6000 rpm; centrifugal force 3520-20000 N; 42V/100V/250V; 320-1200 W; 5.9-17 kg | – | Puchheim |

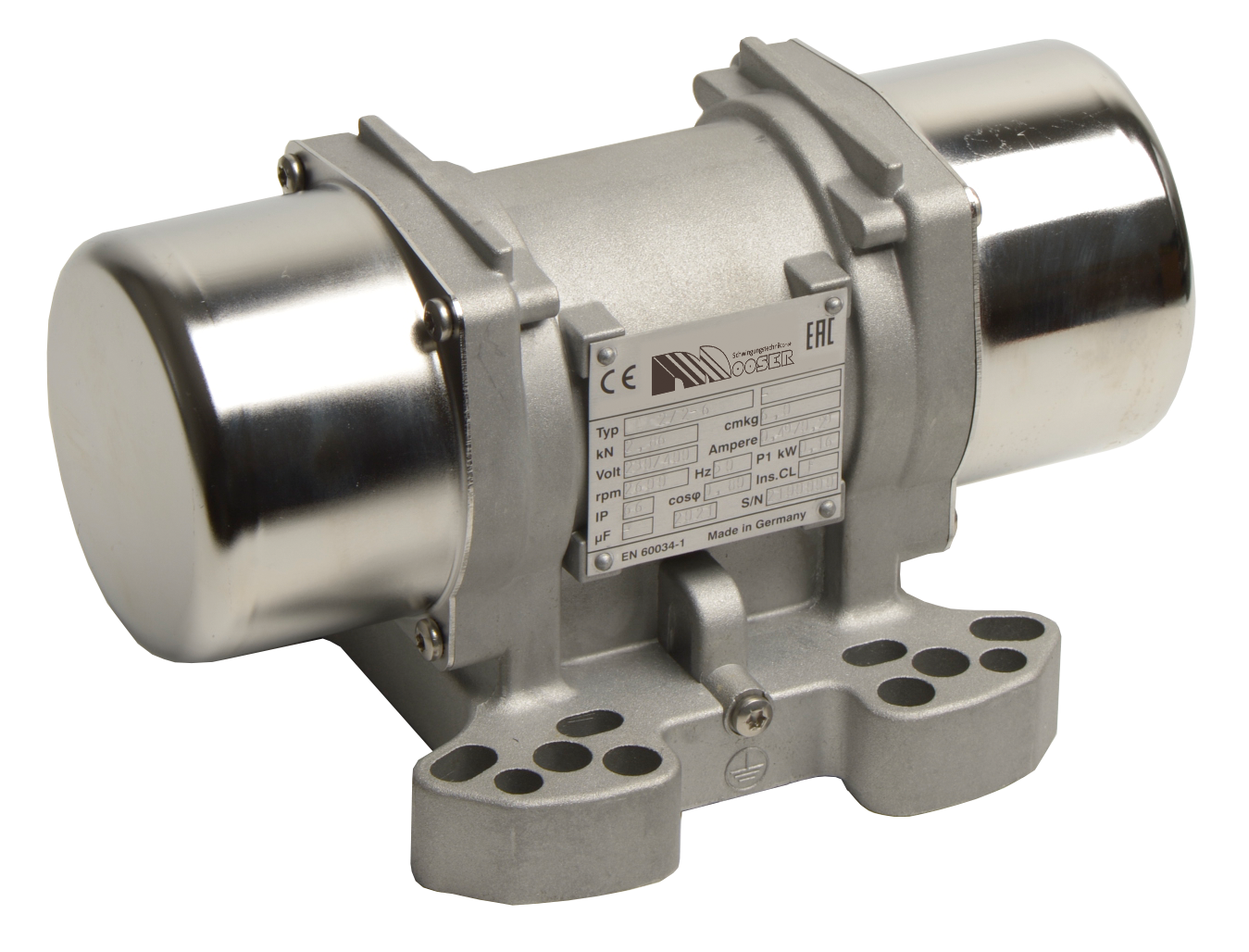

| High-frequency vibration motor EHF 2 | Mooser EHF 2/2, EHF 2/4 | – | 6000 rpm, 3520 N, 100/200 Hz, IP66, thermal class F, housing in aluminium gravity die casting | – | Puchheim |

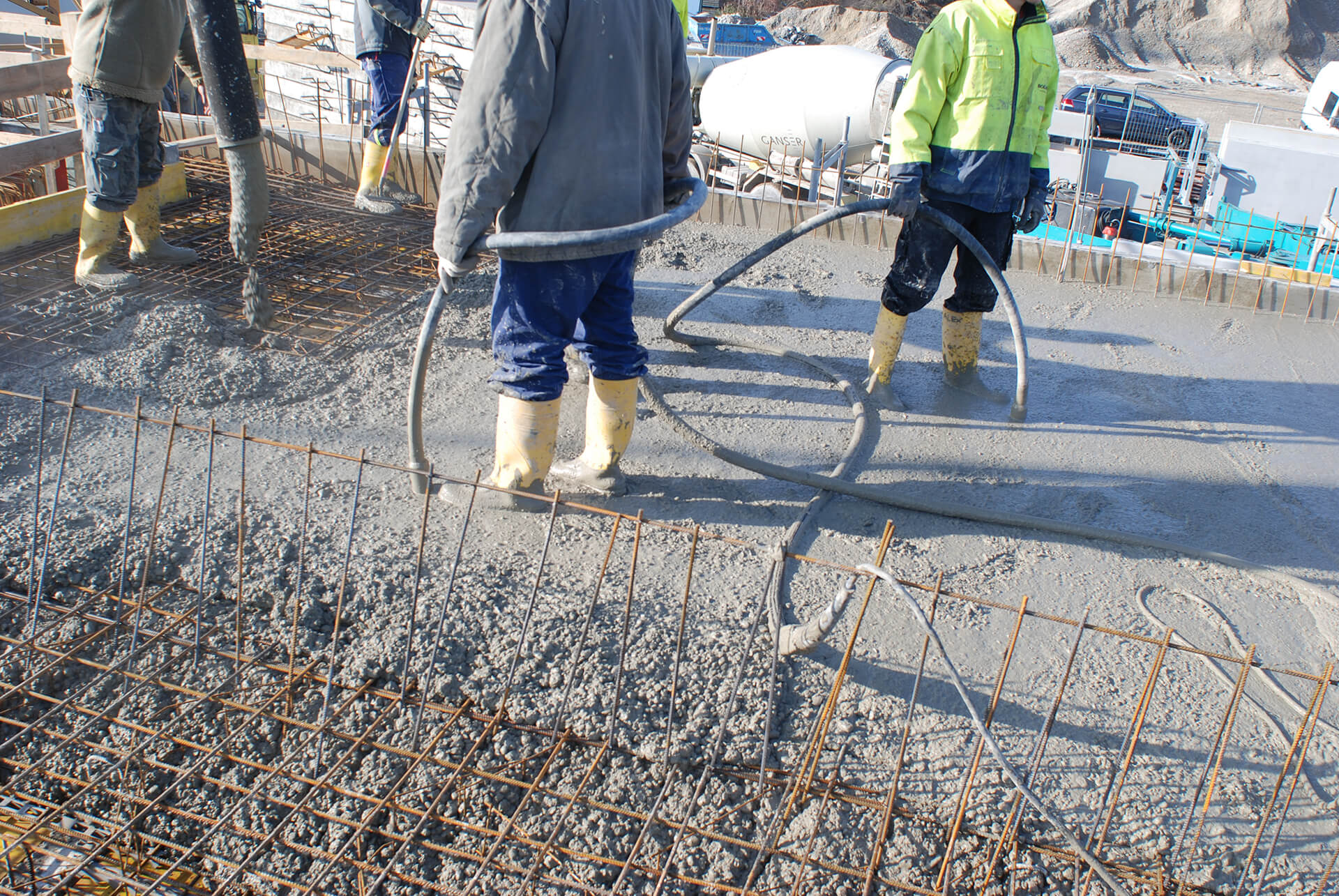

| High-frequency internal vibrator 42V (electric) | Mooser HJ38, HJ50, HJ59, HJ65 | – | Poker diameter 38-65 mm | – | Puchheim |
| High-frequency internal vibrator with integrated converter 230V | Mooser HJU38, HJU50, HJU59, HJU65 (website: HJU38-HJU70 in the PDF) | – | Poker diameter 38-70 mm; centrifugal force 1500-7330 N; 13,500-12,000 rpm; hose length 7 m; | – | Puchheim |

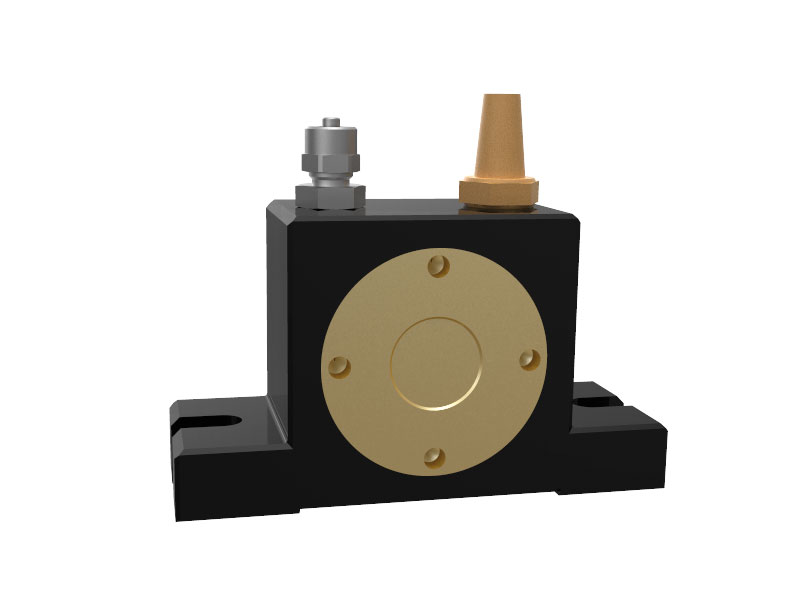

| Pneumatic internal vibrator | Mooser VF40, VF50, VF60, VF80 | – | Poker diameter 40-80 mm; centrifugal force 2712-15829 N; 11000-22000 rpm; 6 bar | – | Puchheim |
| Pneumatic external vibrator / formwork vibrator | Mooser VR56K | – | – | – | Puchheim |
| Electric formwork vibrator | Mooser VE2/2 BS | – | – | – | Puchheim |
| Electronic frequency converter | Mooser FR 1,8; FR 2,5; FRS 2,5; FRS 3,6; FRS 5,3; FRS-R 5,3 | – | Output 42V/50Hz; 1.8-5.3 kVA; 16-31 kg | – | Puchheim |

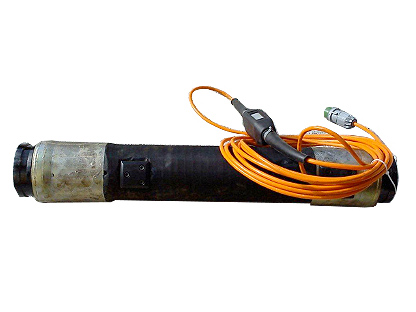

| Concrete pre-compactor (patented) | Mooser Vorverdichter | – | 12000 rpm, 1350 N, 42V/200Hz, hose lengths 3/4 m | – | Puchheim |

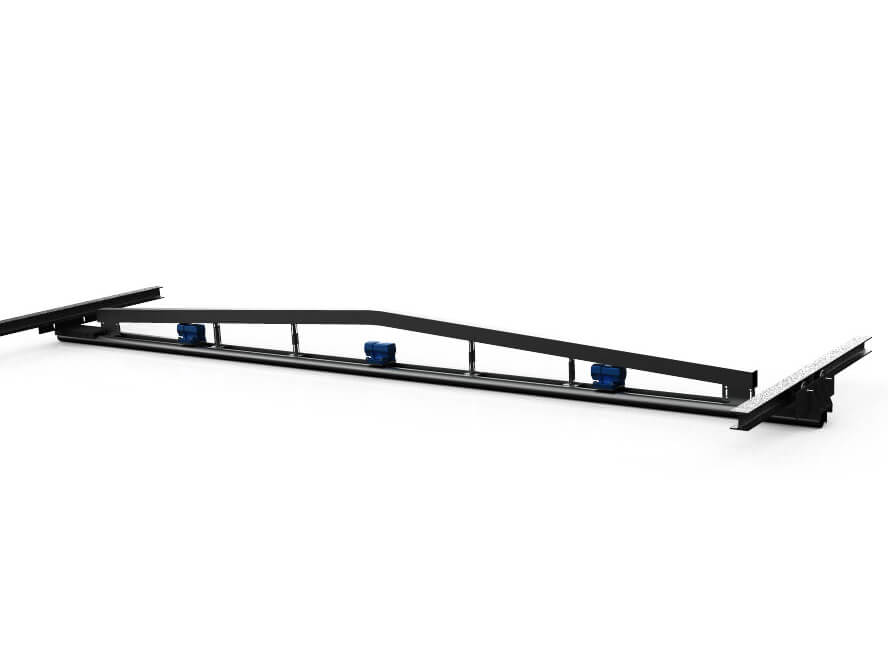

| Profile vibration beam (vibration-damped, custom) | Mooser Profil-Rüttelbohlen | – | individually designed, adjustable axis and height, a wide variety of radii possible | – | Puchheim |
| Modular vibration beam system | Mooser Rüttelbohlen Baukasten | – | Working width up to 25 m; self-supporting aluminium truss construction | – | Puchheim |
| DC vibration motor | Mooser VE 2GL-12; VE 2GL-24; VE 2GL-24 reinforced | – | 3000 rpm; 1100-1980 N; 12V/24V; 72-96 W; 4.8-5.4 kg | – | Puchheim |

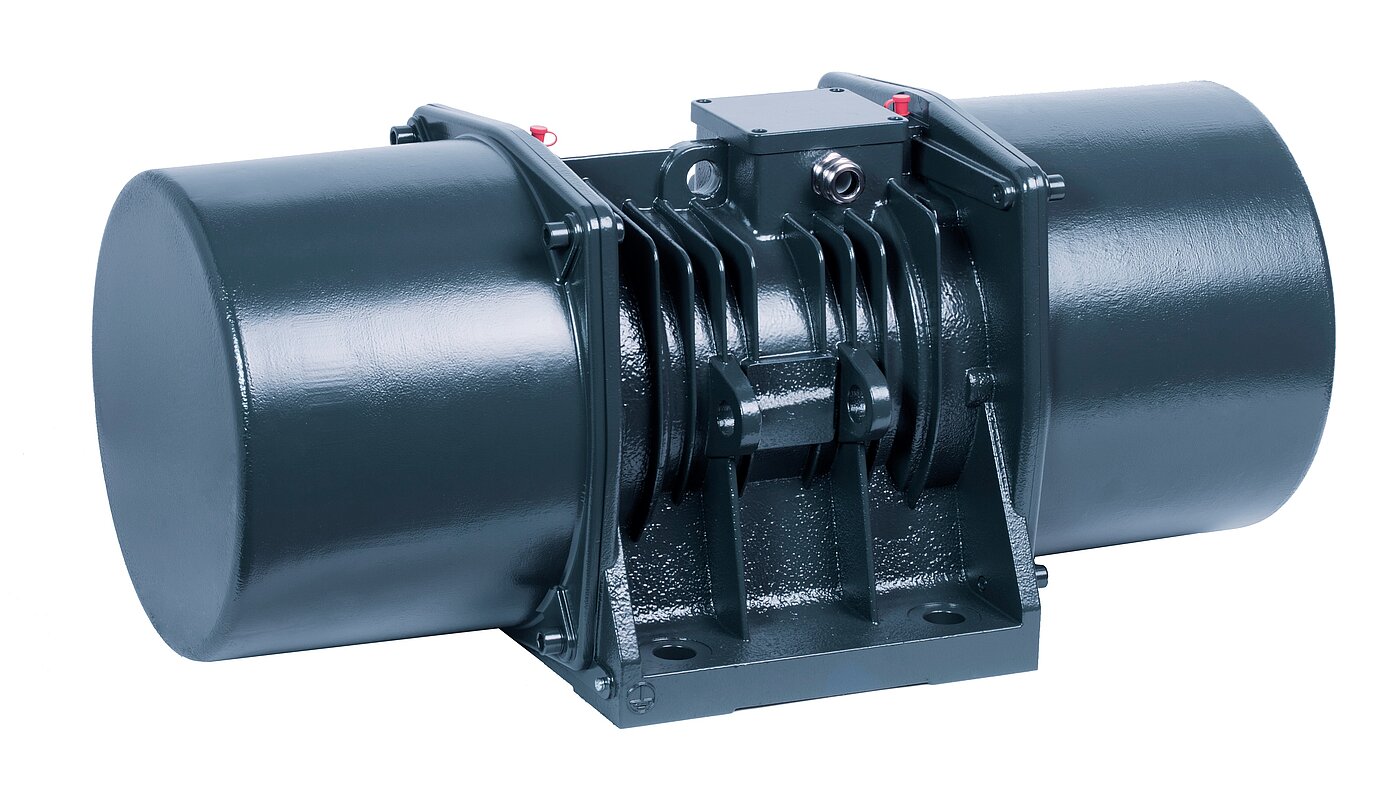

| Three-phase vibration motor (unbalance motor) | Mooser VE 0,4; VE 40; VE 130; series VE 2, VE 6, VE 8, VE 12, VE 15, VE 30, VE 55, | – | – | – | Puchheim |
| Frequency converter for vibration motors | Mooser SR 2; SR 15; SR 30; SR 55 | – | for VE/EHF vibration motor series; weight 3.15-28 kg | – | Puchheim |

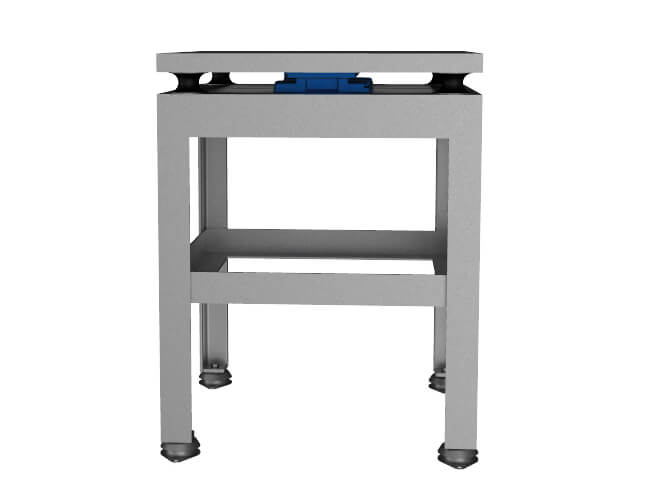

| Vibration tables | Mooser | – | – | – | Puchheim |
Additional services
Reference customers
History
Over 50 years of experience in vibration technology according to the company
