Develops and manufactures measuring systems for in-line process monitoring and control in industrial multiphase flows – Swiss made since 1995.
MSE Meili AG – Multiphase Systems Engineering
Schaffhausen (Switzerland) · Sales partner SimPop, Shanghai (China)New on Amplifa
Specialist for multiphase flow measurement technology

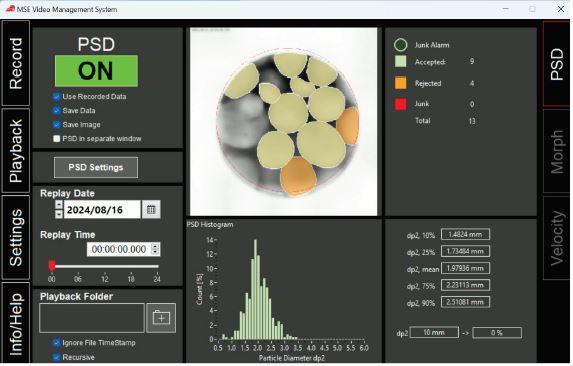

MSE Meili is a Swiss manufacturer specialized in multiphase flow measurement technology. The company develops and manufactures measuring systems for in-line process monitoring and control, ranging from in-line determination of solids concentration and velocity to live video endoscopy with real-time image analysis (particle size distribution, morphology, velocity). The Labasys® product family comprises Process Scope (industrial process endoscope with sapphire windows and 1.4404/1.4435 stainless steel tip), Control Ex and Control Ex 'Bulk-Flow' as well as the R&D system Labasys® 100; additionally, the Turntable Feeder MTF is offered. The systems are designed for high pressures (≤ 42 bar / max. 65 bar), temperatures (-50 to 100 °C / max. 150 °C) and hazardous areas (ATEX/IECEx, Zones 1/21 and 2/22). Applications range from large-scale plants, pilot plants and research – from oil & gas and polyolefin processes to power generation, chemicals, steel and cement to pulp & paper, food and pharma. Products are complemented by 1:1 calibration with the product sample, on-site measuring campaigns, customization, commissioning, training and maintenance.
- Site
- CH-8200 Schaffhausen
- Processes
- Labasys® 100 – measuring system for industrial and lab R&D, MSE Turntable Feeder (MTF), Customization of measuring systems, Installation & Commissioning, Training of customer personnel, Maintenance services, Test and Custom Measurements, Calibration Services (1:1 calibration with product sample)
- Materials
- Chromium-nickel steel (wetted parts of Labasys Process Scope tip), Aluminum anodized (instrument body), Chromium-nickel steel, Anodized aluminum, Sapphire window
- Certificates
- ATEX/IECEx II 2/3 GD pzc op is IIC T4 Gb/Gc, IP 67, CE
- Founded
- 1995
- Industries
- Oil & Gas (refineries, FCC cracking), Chemical industry, Polyolefin (PP/PE), Power generation (CFB, nuclear energy), Steel, Cement/Ceramics
- 01
Development & Engineering
- 02
Manufacturing with partner companies
- 03
Assembly by instrument specialists
- 04
1:1 calibration with product sample
- 05
Installation & Commissioning
- 06
Training, maintenance & measuring service
Materials & Processes
Chromium-nickel steel
Wetted parts of the Labasys Process Scope tip are corrosion-resistant for harsh process environments.
Anodized aluminum
Robust instrument housing with Ex-P control unit for protection of the electronics.
Sapphire window
Front window of the tip without electronics, pressure-tight with double sealing barrier even in case of breakage.
Locations
Schaffhausen
CHHeadquarters: office & workshop (development, assembly, calibration)
- Part weight / size
- Instrument approx. 10 kg (LPS standard model)
- Lot size
- Customer-specific single units and small series
- Materials
- Stainless steel 1.4404/1.4435, anodized aluminum, sapphire
- Labasys® Process Scope manufacturing & assembly
- Calibration unit for gas/solids suspensions
- Labasys® 100 measuring systems
Products & Systems
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Testing | – | – | – | – | – |
| Testing | – | – | – | – | – |
| Testing | – | – | – | – | – |
| Labasys® 100 – measuring system for industrial and lab R&DTesting | – | – | – | – | – |

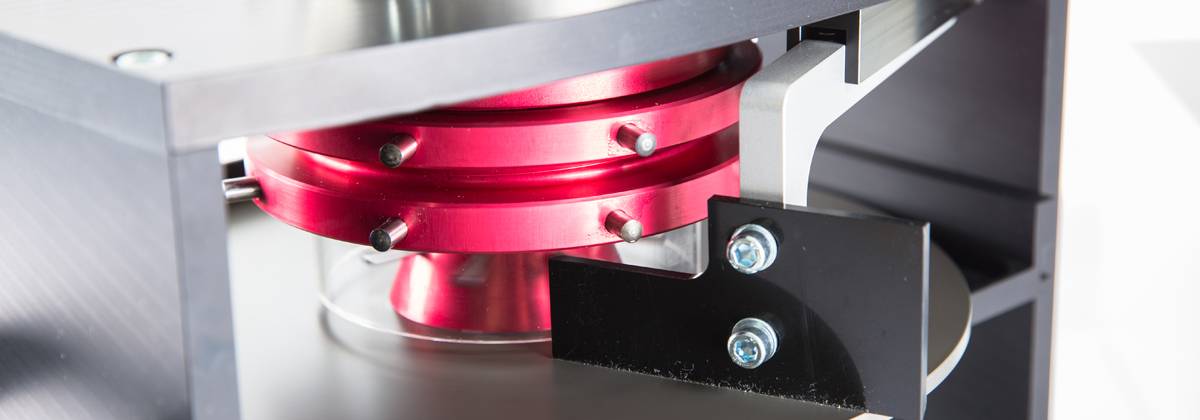

| MSE Turntable Feeder (MTF)Engineering | – | – | – | – | – |
| Testing | – | – | – | – | – |
| Testing | – | – | – | – | – |
| Engineering | – | – | – | – | – |
| Engineering | – | – | – | – | – |
6 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|

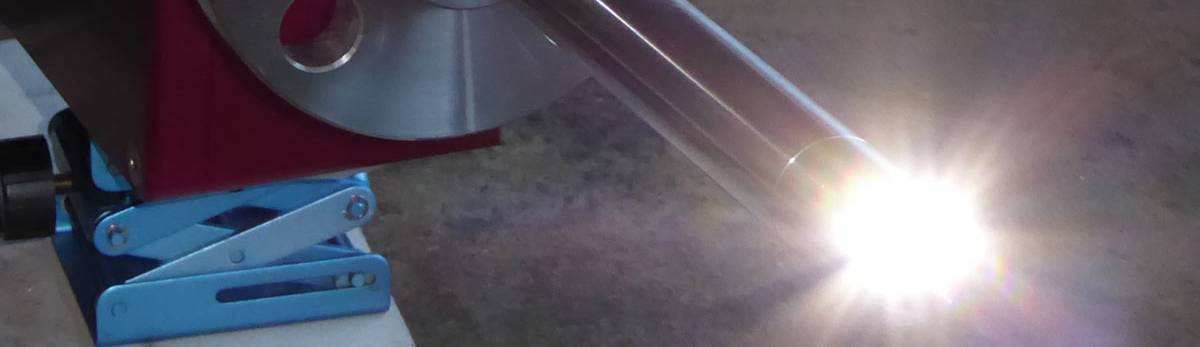

| Labasys® Process Scope – Industrial Process Endoscope measuring system | MSE Meili Labasys® Process Scope | – | – | – | Schaffhausen |

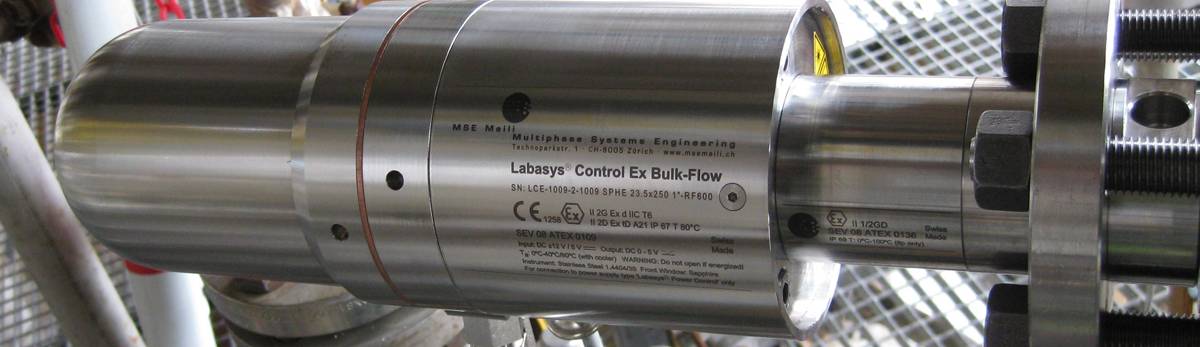

| In-line measuring system for solids concentration and velocity | MSE Meili Labasys® Control Ex | – | – | – | – |
| In-line measuring system for bulk solids velocity | MSE Meili Labasys® Control Ex 'Bulk-Flow' | – | – | – | – |

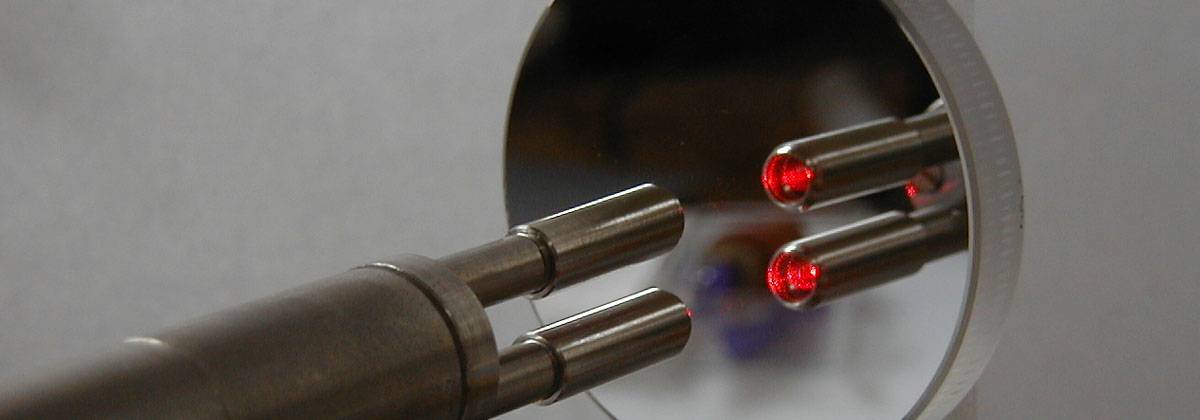

| Measuring system for industrial and lab R&D | MSE Meili Labasys® 100 | – | – | – | – |
| Turntable Feeder | MSE Meili MTF | – | – | – | – |
| Calibration unit for gas/solids suspension (dispersion, dosing, fluidization tests) | MSE Meili | – | – | – | Schaffhausen |
Additional services
Reference customers
Quality & Calibration

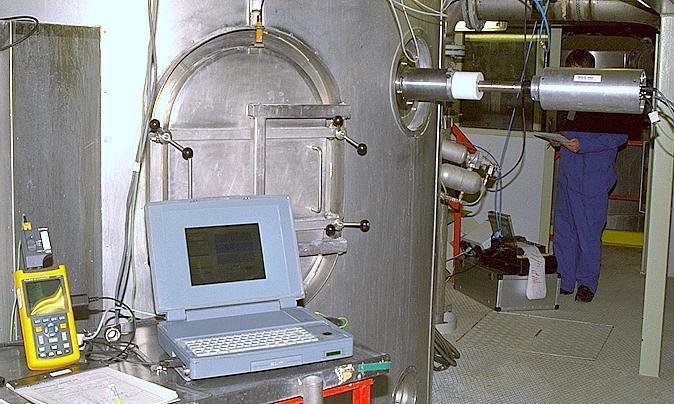

The measuring systems are customized, inspected fully assembled and calibrated 1:1 with the customer's product sample in the in-house calibration module on homogeneous gas/solids suspension; the calibration curve is derived from this. Complete on-site measuring campaigns comprise test planning, custom-made installation spools, data acquisition, analysis and reporting.
| Evidence | Schaffhausen |
|---|---|
| ATEX/IECEx II 2/3 GD pzc op is IIC T4 Gb/Gc, IP 67, CE |
History
- 1995
Foundation of MSE Meili (Multiphase Systems Engineering) by Dr. Reto T. Meili as a spin-off of ETH Zurich; location Technopark Zurich
- 2011

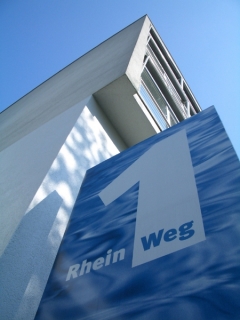

Relocation to Schaffhausen, Rheinweg 1 (office & workshop)
- 2017
Regula Meili (MSc physics ETH, Executive MBA Univ. of St. Gallen) joined MSE Meili
- 2024
Factsheet Labasys Process Scope (© 2024 MSE Meili AG)
- 2025
30th company anniversary; patents for Labasys Process Scope granted in Europe, China and the USA (October 2025)
- 2026
Order from SHCCIG Yulin Chemical Co., Ltd. for Labasys Control Ex 'Bulk-Flow' for the China Coal Yulin 300 KTA Spherizone Plant project (April 2026)
