Development of test equipment and measurement systems for power electronics, including characterization and lifetime testing.
MSPM Power GmbH
Herzogenaurach, DENew on Amplifa
About MSPM Power
MSPM Power GmbH, based in Herzogenaurach, is an engineering and testing company specialized in power electronics. The company develops and manufactures power square-wave generators and test systems, including the TTG510 series (50–500 kHz, up to 4 kW), the TTG1000SiC (10–150 kHz, up to 1000 V, 11 kW, SiC technology), the three-phase variant TTG520:3 SiC, rectifier modules of the PCK series, as well as complete test stations such as PowerTower 11, the High Voltage Cycle Material Tester HVCMT and the capacitor test station CPT2022. The services include hardware architecture and design, schematic and layout development, electrical, thermal and magnetic simulation, characterization of transformers, chokes, core materials and power capacitors, test bench automation, Digital Power, hands-on training courses, and endurance tests, for example a 1000 h continuous run at 105 °C in the OvenMeasurementStation OMS100. In addition, development-accompanying HV tests (AC and DC 250 V to 6 kV), insulation measurements up to 5 kV DC and PE measurements (25 A AC) are offered, and test systems are available for rent. Customers come from power electronics, e-mobility, aviation and automotive, both domestically and internationally. Approximately 400 sqm of offices, laboratory and manufacturing space are available.
- Site
- Herzogenaurach
- Processes
- Development (hardware architecture, hardware design, schematic and layout, design review), Electrical, thermal and magnetic simulation, Characterization / customer-specific measurements on transformers and chokes (e.g. core losses), Development-accompanying HV tests (AC&DC 250V to 6kV), insulation measurements (up to 5kV DC), PE, Endurance test / lifetime test (e.g. transformers 1000 h continuous run at 105 °C ambient with, Endurance test with HVCMT (High Voltage Cycle Material Tester): sine 100...5000Vp, square wave, Capacitor testing with CPT2022 test station: 10...200kHz sine signal, 10...200Arms, THD < 0.1%, Loss determination of core materials, saturation limits, parasitic capacitances, inductive
- Materials
- Silicon carbide (SiC), Copper, Silicon
- Certificates
- Development-accompanying HV tests (AC&DC 250V–6kV), Insulation measurements (up to 5kV DC), PE measurements (25A AC), Endurance test / lifetime test (OMS100), ISO 9001
- Founded
- 2013
- Employees
- 6 employees
- Industries
- Power electronics, E-mobility, Aviation, Automotive
- 01
Feasibility studies & technology assessment
- 02
Hardware architecture & hardware design (schematic/layout)
- 03
Simulation (electrical, thermal, magnetic)
- 04
Device manufacturing & assembly of test systems
- 05
Characterization & HV testing
- 06
Endurance test & lifetime test
- 07
Report creation & follow-up support
Technologies & Materials
Silicon carbide (SiC)
Semiconductor technology used in the power square-wave generators TTG1000SiC and TTG520:3 SiC.
Copper
Subject of thermal simulations and material of power-electronic assemblies.
Silicon
Subject of thermal simulations (silicon on an insulating layer with copper).
Locations
Herzogenaurach
DEOffices, laboratory, manufacturing
- Lot size
- Prototype to small series (device manufacturing)
- Materials
- SiC, copper, silicon

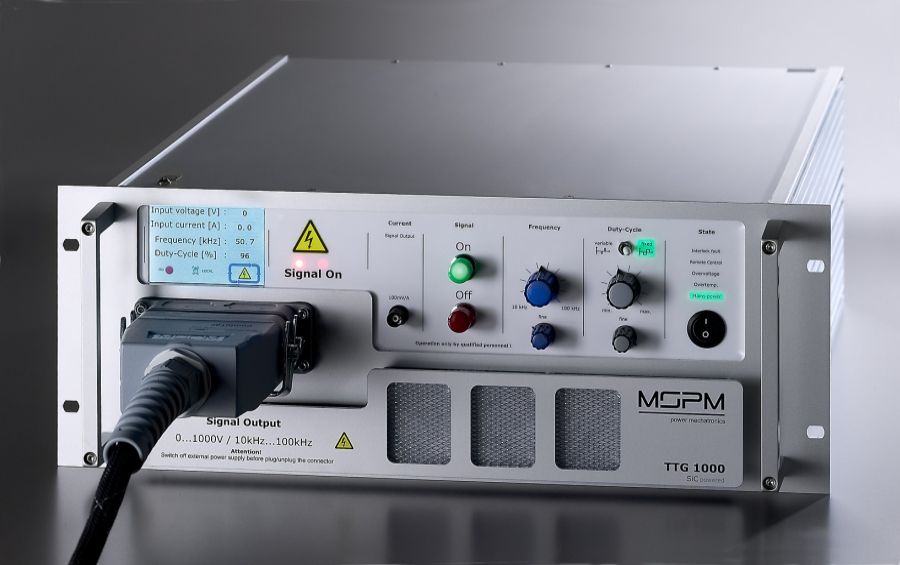

- TTG1000SiC power square-wave generator (10–150 kHz, 0–1000 V, 11 kW)
- TTG510 (50–500 kHz, 0–500 V, max. 4 kW)
- TTG520:3 SiC (3-phase, ±500 V, 11 kW)
- HVCMT High Voltage Cycle Material Tester (100–5000 Vp)

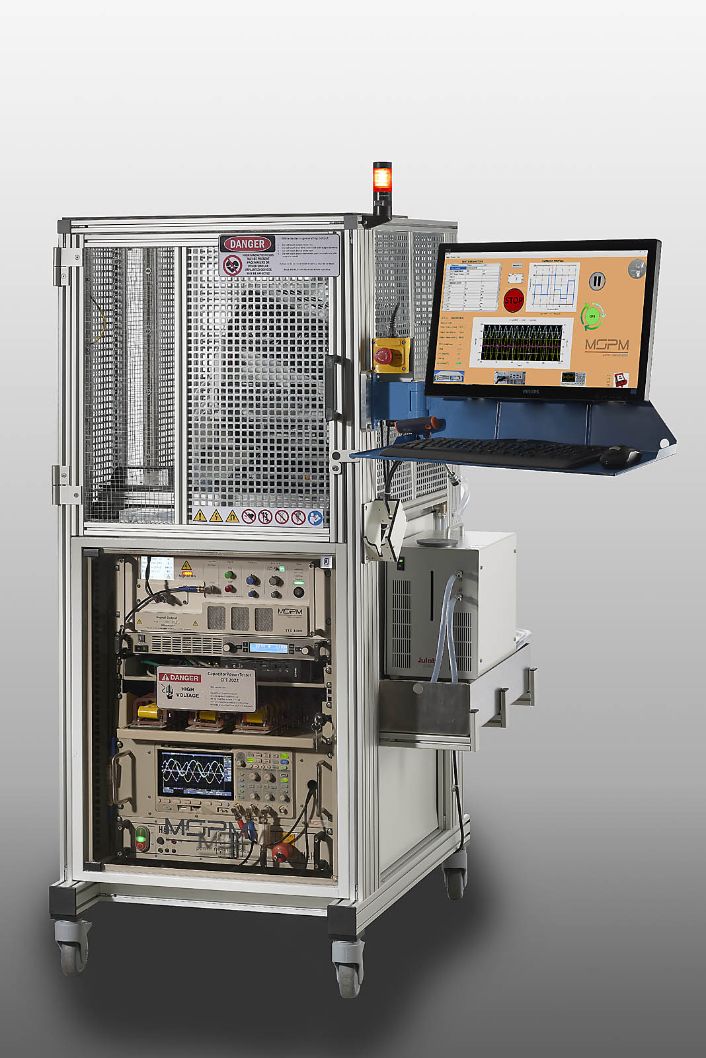

- CPT2022 test station for power capacitors (10–200 kHz, 10–200 Arms)
- OMS100 OvenMeasurementStation for lifetime tests

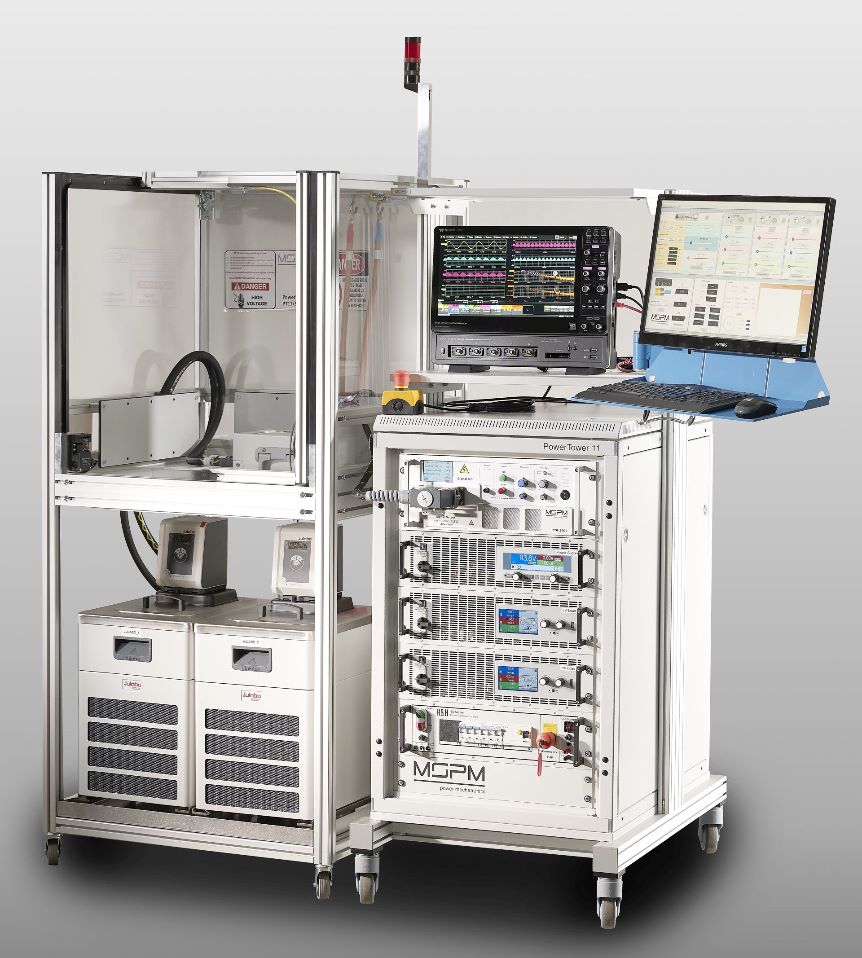

- PowerTower 11 fully equipped test station (12-bit HD oscilloscope, 15 kW power supply, HV/LV loads)
- PCK-HV rectifier module (up to 1000 V, 20 A, max. 3 kW)
Devices & Products
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Development (hardware architecture, hardware design, schematic and layout, design review)Engineering | – | – | – | – | – |
| Electrical, thermal and magnetic simulationEngineering | – | – | – | – | – |
| Characterization / customer-specific measurements on transformers and chokes (e.g. core losses)Testing | – | – | – | – | Transformers, Chokes, Core materials |
| Development-accompanying HV tests (AC&DC 250V to 6kV), insulation measurements (up to 5kV DC), PETesting | – | – | – | – | – |
| Endurance test / lifetime test (e.g. transformers 1000 h continuous run at 105 °C ambient withTesting | – | – | – | – | Transformers |
| Endurance test with HVCMT (High Voltage Cycle Material Tester): sine 100...5000Vp, square waveTesting | – | – | – | – | Core materials |
| Capacitor testing with CPT2022 test station: 10...200kHz sine signal, 10...200Arms, THD < 0.1%Testing | – | – | – | – | Power capacitors |
| Loss determination of core materials, saturation limits, parasitic capacitances, inductiveTesting | – | – | – | – | Core materials, inductive components |
8 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Power square-wave generator TTG1000SiC (10kHz-150kHz/450kHz, 0-1000V, 11kW, max. 50App/100A) | MSPM Power TTG1000SiC | – | – | 2016 (Entw | Herzogenaurach |
| Power square-wave generator TTG510 (50-500kHz, 0-500V, max. 4kW) | MSPM Power TTG510-500/500 or TTG510-500/250 | – | – | 2014 (Entw | Herzogenaurach |
| Power square-wave generator TTG520:3 SiC (3-phase, +/-500V, 11kW, 50...200kHz) | MSPM Power TTG520:3 SiC | – | – | – | Herzogenaurach |
| High Voltage Cycle Material Tester HVCMT (sine 100...5000Vp, square wave 300...5000Vp, | MSPM Power HVCMT | – | – | – | Herzogenaurach |
| Test station for power capacitors CPT2022 (10...200kHz, 10...200Arms, water-cooled) | MSPM Power CPT2022 | – | – | 2022 | Herzogenaurach |
| OvenMeasurementStation OMS100 for lifetime tests (e.g. 105 °C ambient, 1000 h continuous run) | MSPM Power OMS100 | – | – | – | Herzogenaurach |
| fully equipped test station PowerTower 11 (12-bit HD oscilloscope, 15kW 1000V power supply, | MSPM Power PowerTower 11 | – | – | – | Herzogenaurach |
| Rectifier module PCK-HV (input up to 1000V, 20A continuous, max. 3kW, up to 300kHz, water-cooled) | MSPM Power PCK 403HV | – | – | – | Herzogenaurach |
Additional services
Quality & Testing
Testing is carried out on in-house measurement and test systems, including HV tests (AC and DC 250 V to 6 kV), insulation measurements up to 5 kV DC, PE measurements (25 A AC), automated core loss measurements, and lifetime tests in the OvenMeasurementStation OMS100.
| Evidence | Herzogenaurach |
|---|---|
| Development-accompanying HV tests (AC&DC 250V–6kV) | |
| Insulation measurements (up to 5kV DC) | |
| PE measurements (25A AC) | |
| Endurance test / lifetime test (OMS100) | |
| ISO 9001 |
History
- 2009
Martin Saliternig and Peter Maisel each found their own engineering office.
- 2010
Development and successful deployment of the transformer test device TTG500.
- 2013
Company founded as MSPM Power UG through the merger of the two engineering offices.
- 2014
Development of the digital successor TTG510.
- 2015
Conversion into MSPM Power GmbH; Carlos Vasquez becomes a shareholder.
- 2016
Development of the TTG1000SiC and entry into SiC technology.
- 2018
Move to new premises in Herzogenaurach with approx. 400 sqm for offices, laboratory and manufacturing.
