Design, development and construction of fiber laser, CO2 and UV laser systems for engraving and marking, including automation
MSW Lasertechnik GmbH
SpeyerNew on Amplifa
About MSW Lasertechnik
MSW Lasertechnik GmbH, based in Speyer, designs, develops and builds laser machines for engraving and marking. The portfolio includes fiber lasers in 2D and 3D versions, CO2 lasers for engraving and cutting, and UV lasers – from a compact desktop unit for mobile use through industrial marking systems for large workpieces to partially and fully automated laser systems with pallet feeding. The systems are suitable for marking metals such as steel, stainless steel, aluminum, copper, titanium, brass or precious metals, for galvanized and painted surfaces as well as for ceramics, plastics, wood, glass, leather and textiles. In addition to standard machines, the company offers custom builds, laser accessories such as protective enclosures, extraction, rotation axes and cross slides, sample production as well as service, repair and commissioning. Typical fields of application include mechanical engineering, toolmaking, the automotive industry, the packaging industry, medical technology and the promotional products industry. From the Speyer location, international collaboration spans several continents; demonstrations are available in the company's own showroom or on site at the customer.
- Site
- Speyer
- Processes
- Fiber laser engraving and marking (2D), 3D fiber laser engraving (laser texturing, surface structuring, erosion structures), CO2 laser engraving and cutting, Fully automated laser marking with pallet feeding, UV laser marking and engraving, Design, development and construction of laser machines / custom builds, Design and development of laser machines, Custom builds
- Materials
- Steel, Stainless steel, Aluminum, Copper, Nickel, Chrome, Titanium, Magnesium
- Industries
- Mechanical engineering, Toolmaking, Automotive industry, Packaging industry, Medical technology, Promotional products industry
- 01
Design and development
- 02
Construction of the laser machines
- 03
Commissioning
- 04
Service and repair
- 05
Laser accessories and automation
Materials and Processes
Fiber laser (2D/3D)
Marks and engraves metals, carbide, graphite, ceramics and plastics with marking fields up to 210 × 210 mm.

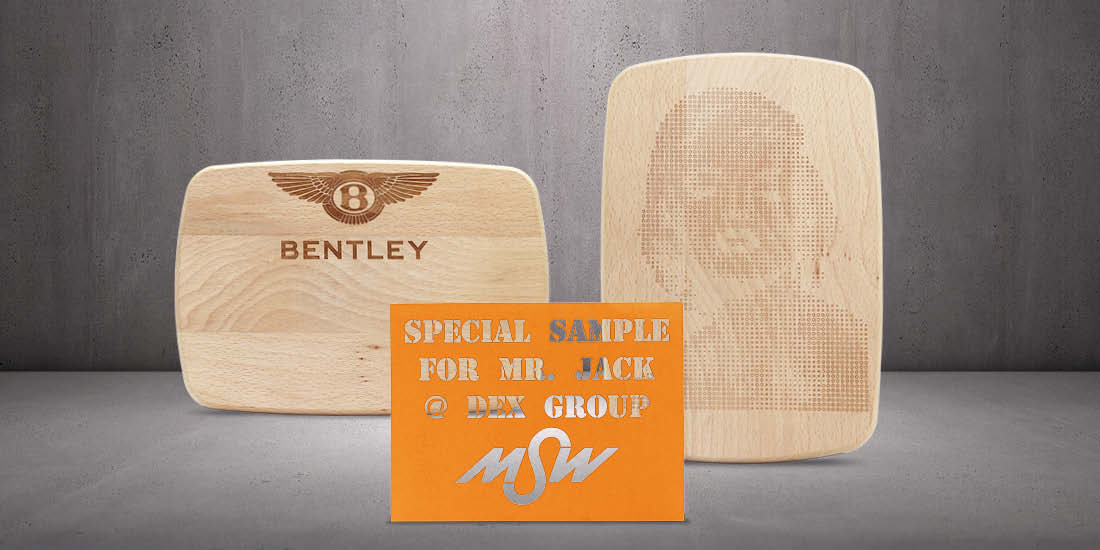

CO2 laser engraving and cutting
Processes wood, glass, leather, acrylic, paper, plastics, silicone and textiles.
UV laser
For marking and engraving of sensitive surfaces.
Fully automated laser systems
Fully automated 3D fiber laser with pallet feeding for series marking, e.g. of ballpoint pens.
Locations
Speyer
DEDevelopment, construction, commissioning, showroom
- Multimarker 3D fiber laser marker

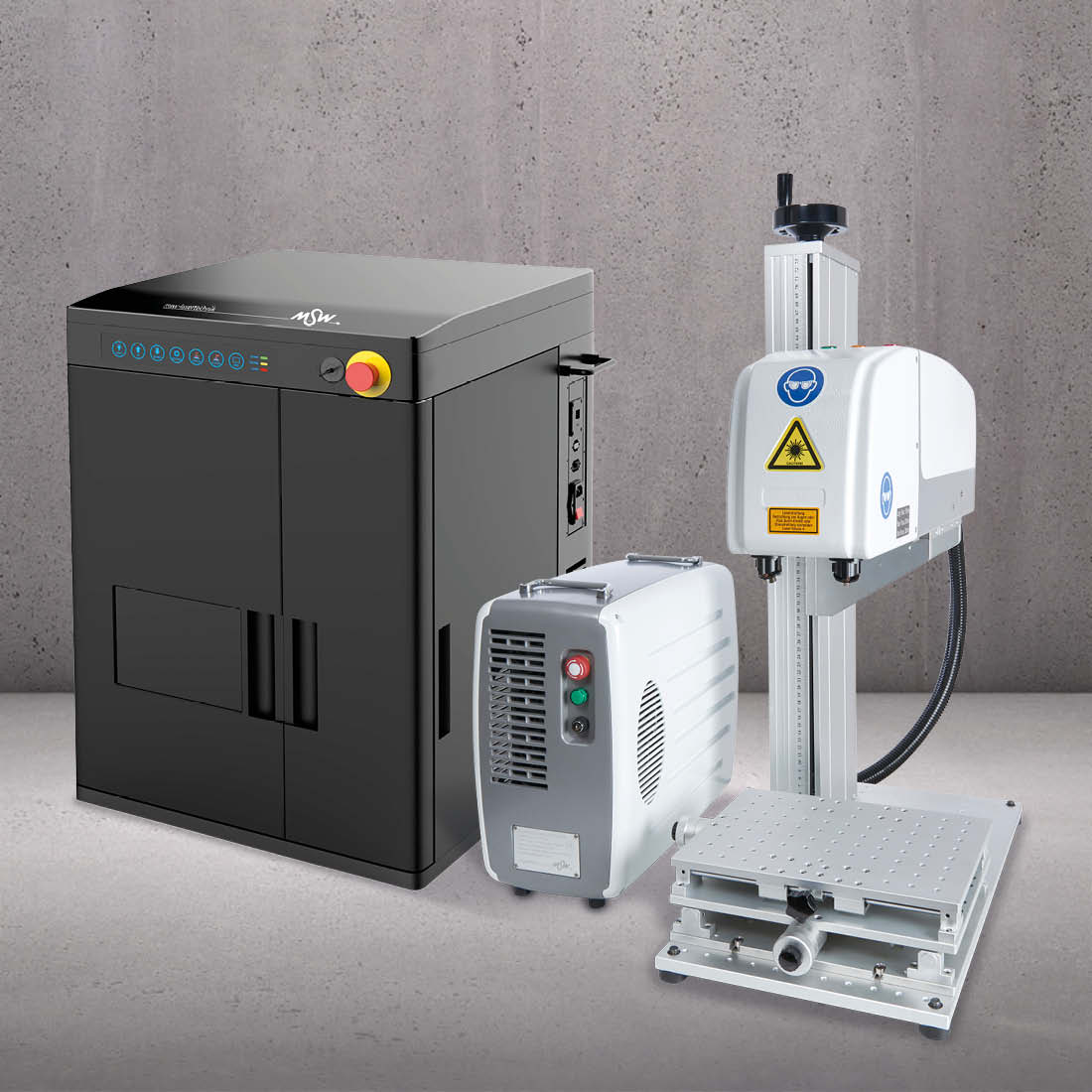

- 3D Laserbox / 3D Laserbox Compact

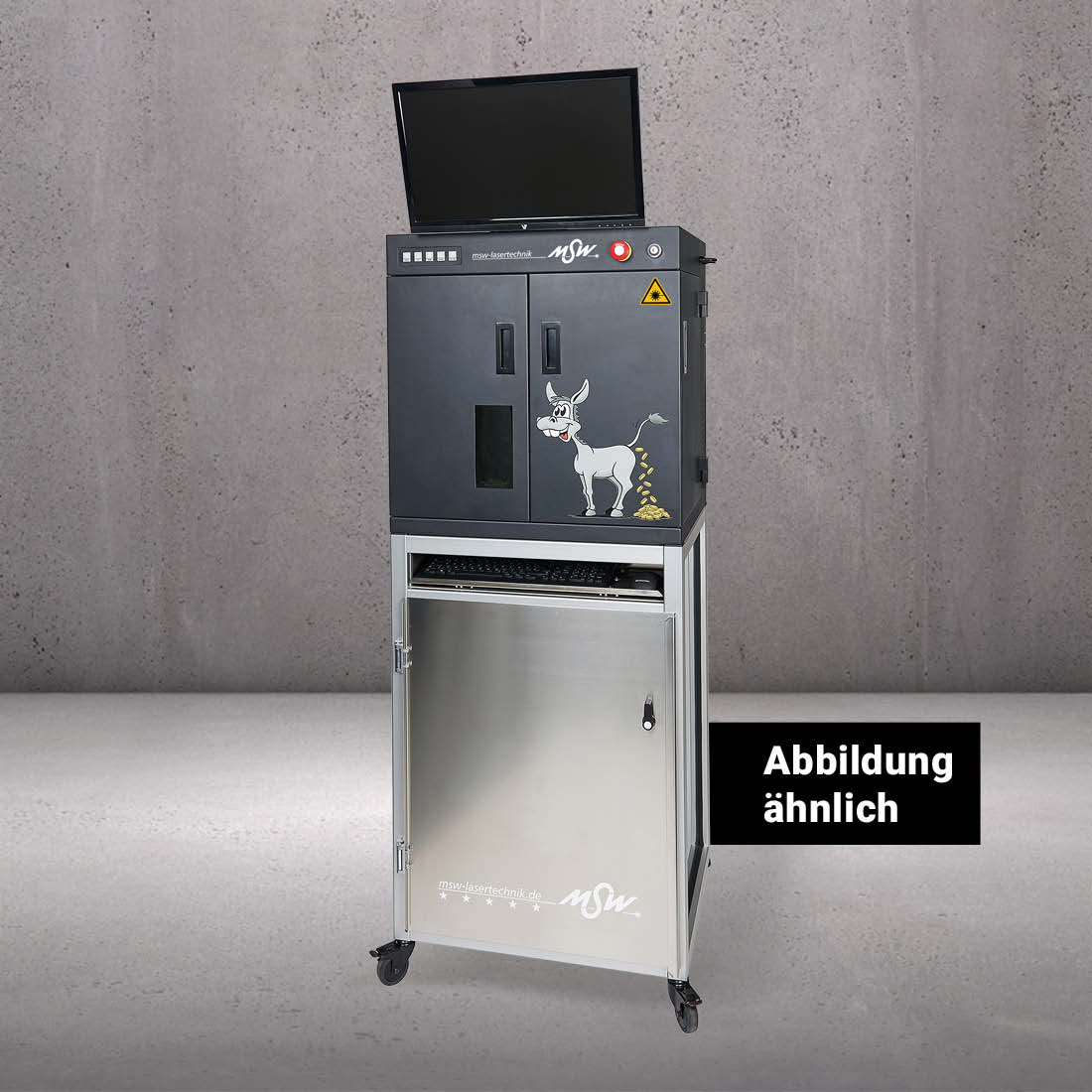

- Goldesel marking laser

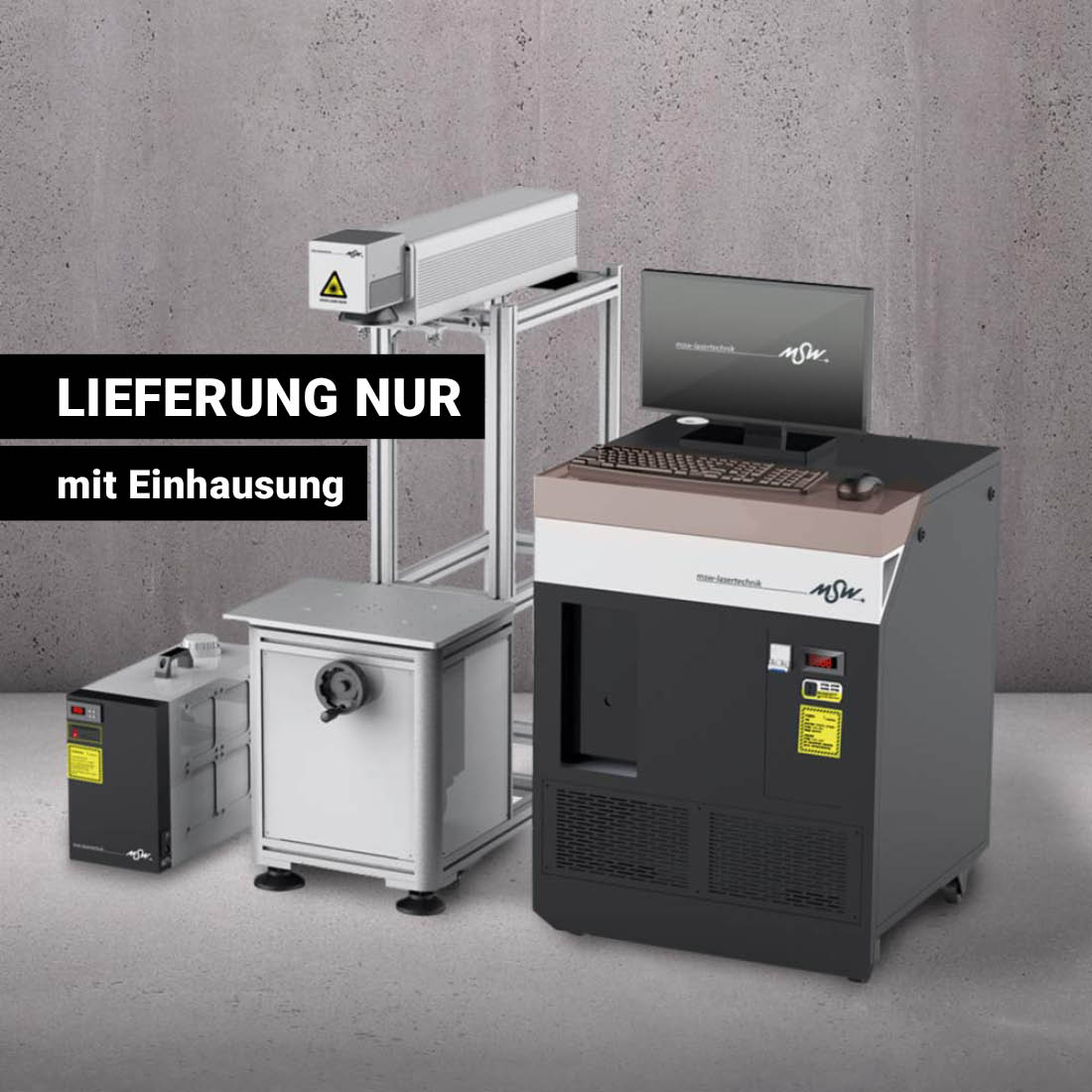

- CO2 laser engraving machine

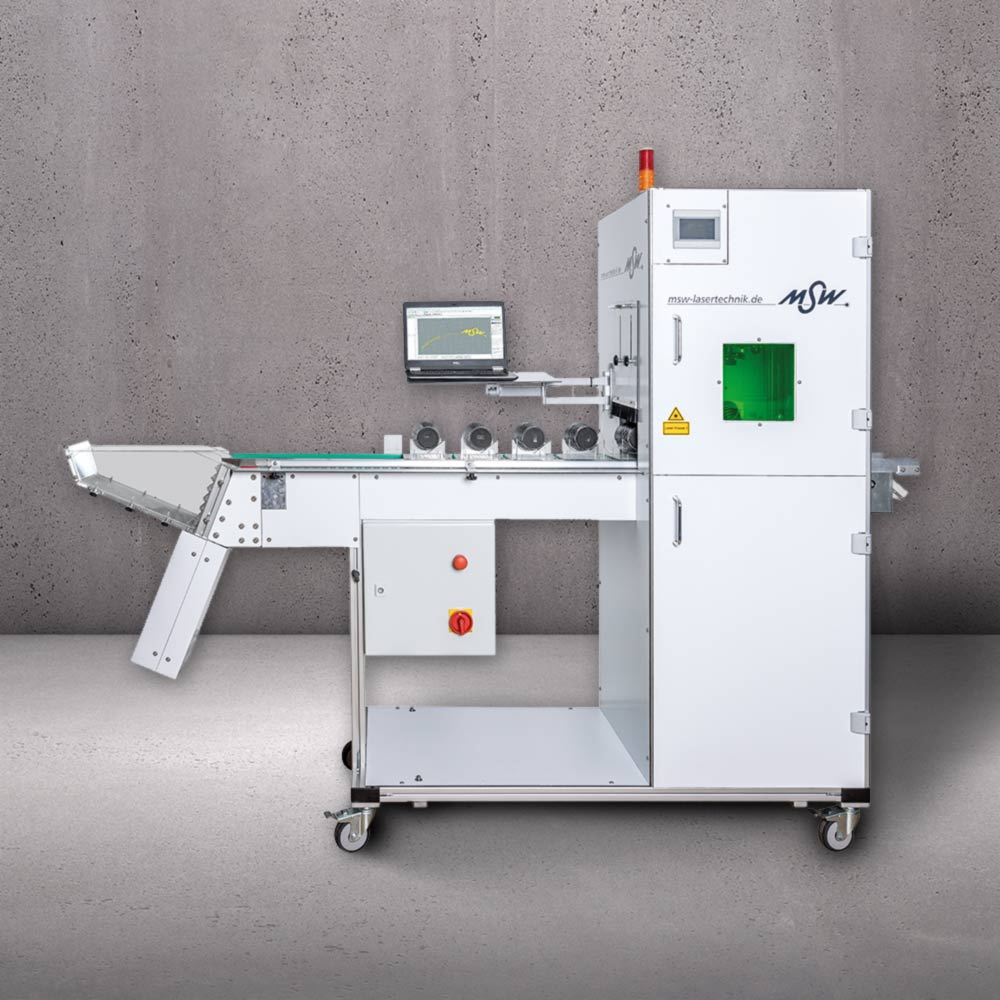

- Fully automated 3D fiber laser with pallet feeding
- Fiber laser Blueline
- Fiber laser Leanline
- Laserbox Desktop
Components and Applications
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Fiber laser engraving and marking (2D)Surface | – | Marking field 150 × 150 mm | – | Quantity from 1 – Series production | Steel, Stainless steel, Aluminum, Copper, Nickel, Chrome, Titanium, Magnesium, Gold, Silver, Platinum, Brass, Bronze, galvanized and painted surfaces, Ceramics, Plastics |
| 3D fiber laser engraving (laser texturing, surface structuring, erosion structures)Surface | – | Marking field 150 × 150 mm | – | – | Steel, Stainless steel, Aluminum, Copper, Titanium, Carbide, Graphite, Brass, Ceramics, Plastics |
| CO2 laser engraving and cuttingSurface | – | Marking field 200 × 200 mm | – | – | Wood, Glass, Leather, Acrylic/Plexiglass, Paper, Plastics, Silicone, Textiles, Aluminum |
| Fully automated laser marking with pallet feedingSurface | – | Marking field 150 × 150 mm (fiber) | – | – | Plastic (e.g. ballpoint pens), Metals |
| UV laser marking and engravingSurface | – | – | – | – | – |
| Design, development and construction of laser machines / custom buildsEngineering | – | – | – | – | – |
8 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|

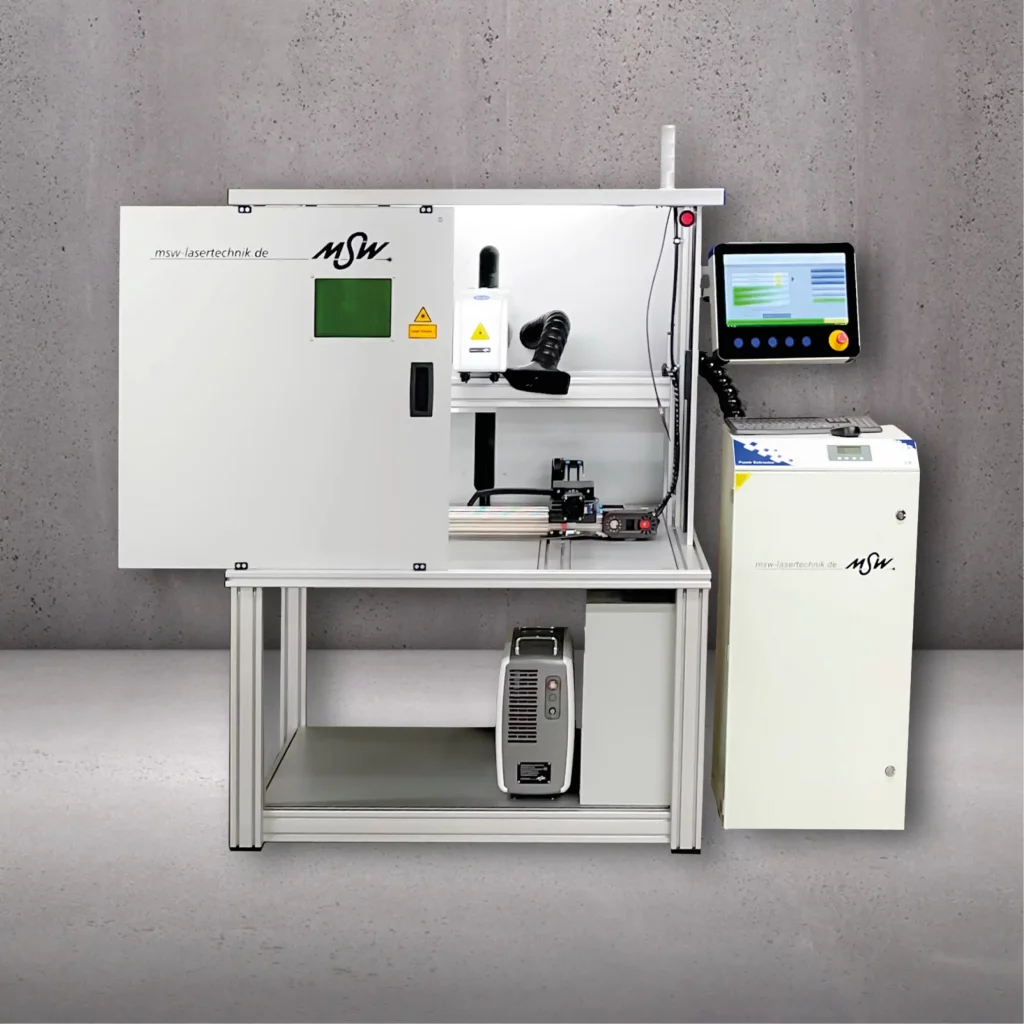

| 3D fiber laser marker (Laserbeschrifter Multimarker, movable work table 500 × 500 mm) | MSW Lasertechnik Multimarker | – | Marking field 150 × 150 mm (fiber), travel 500 × 500 mm; fiber sources JPT/IPG/Raycus/Trumpf | – | Speyer |

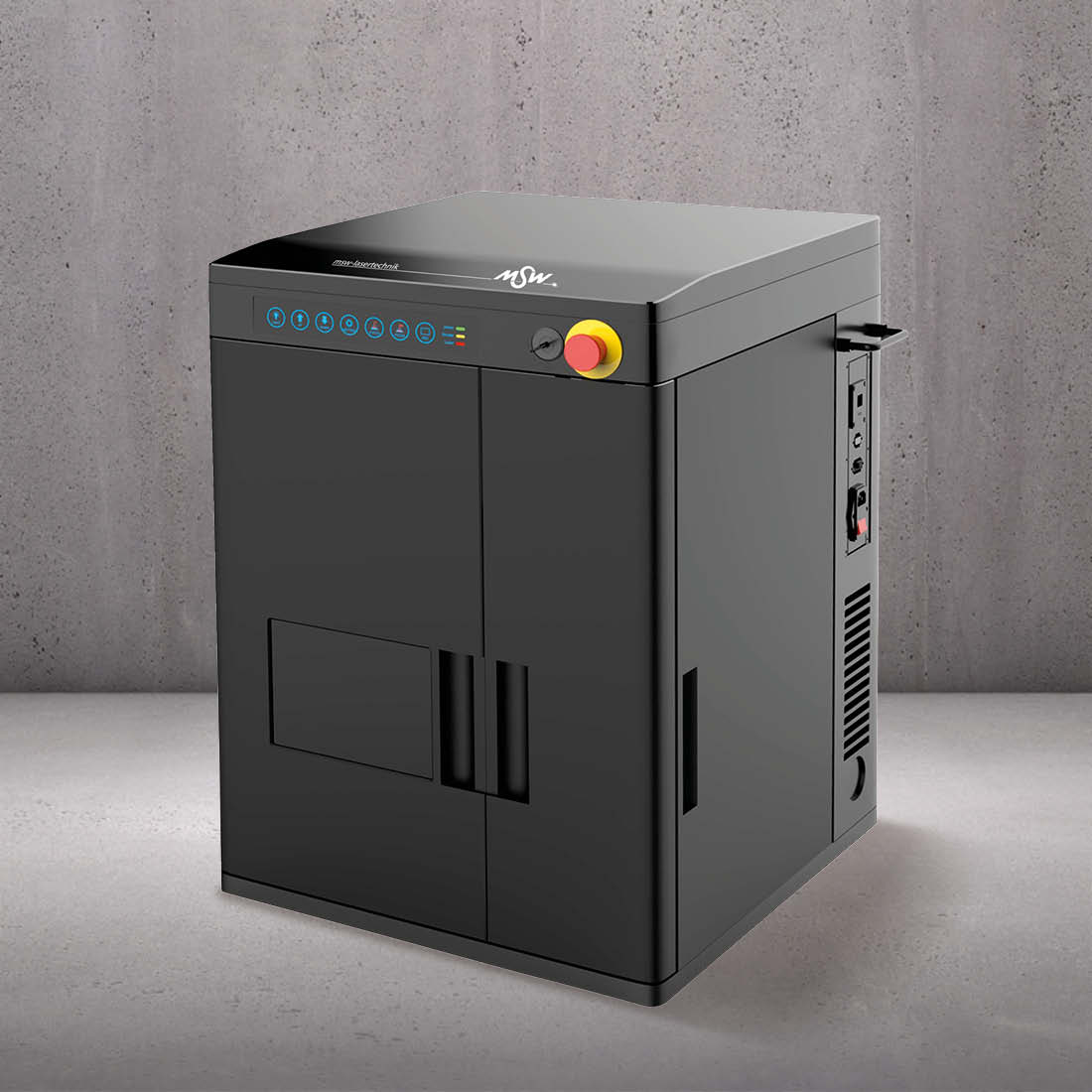

| 3D fiber laser engraving machine | MSW Lasertechnik 3D Laserbox / 3D Laserbox Compact | – | Marking field 150 × 150 mm; fiber sources JPT/IPG/Raycus/Trumpf (SPI) 20–60 W | – | Speyer |

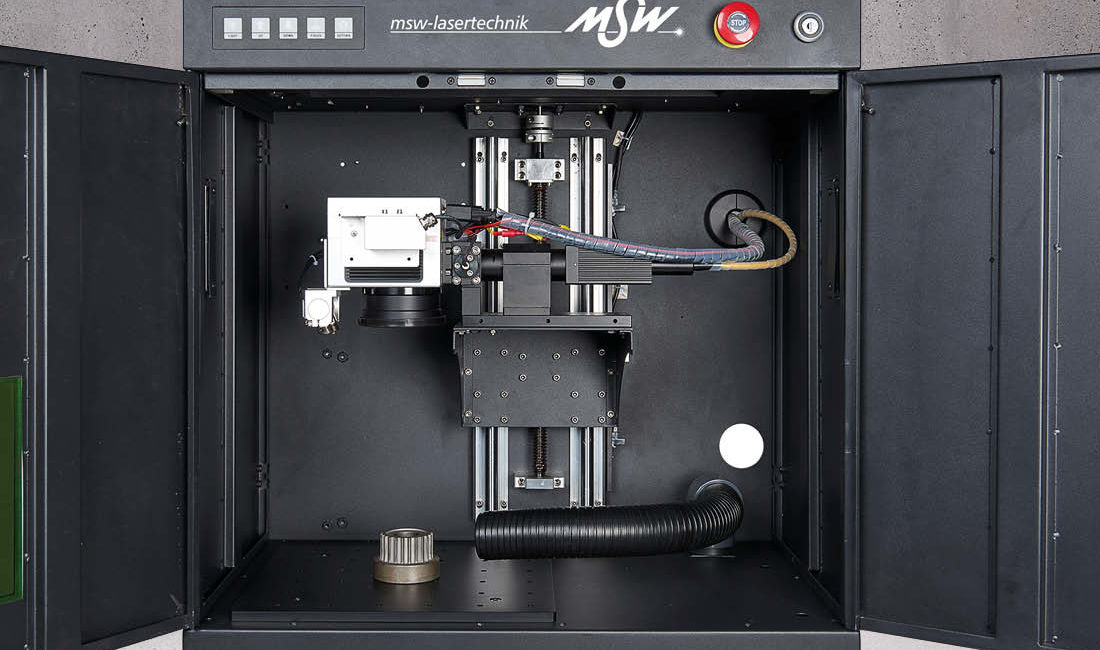

| Compact laser marker (Class 1 marking laser, mobile) | MSW Lasertechnik Goldesel / Beschrifter Kompakt | – | Marking field 150 × 150 mm; fiber sources 20–60 W | – | Speyer |
| CO2 laser engraving machine | MSW Lasertechnik | – | Marking field 200 × 200 mm; CO2 sources Synrad/Davi 30–100 W | – | Speyer |
| Fully automated 3D fiber laser with pallet feeding | MSW Lasertechnik Laser Automatisierung | – | Marking field 150 × 150 mm (fiber) / 200 × 200 mm (CO2) | – | Speyer |
| Metal fiber laser for large workpieces | MSW Lasertechnik Fiber laser Blueline | – | Marking field 70 × 70 / 110 × 110 / 150 × 150 / 210 × 210 mm; fiber sources 20–100 W | – | Speyer |
| Compact fiber laser marker for industry (2D) | MSW Lasertechnik Fiber laser Leanline | – | Marking field 100 × 100 mm; fiber sources 20–60 W | – | Speyer |
| Desktop fiber laser for mobile use | MSW Lasertechnik Laserbox | – | Marking field 100 × 100 mm; fiber sources JPT/Raycus 20/30 W | – | Speyer |
Additional services
History
- 2008
Commissioning of the first laser
- 2010
Switch to fiber laser systems
- 2011
Team growth (Paula)
- 2018
Move to new premises in Speyer
- 2021
Expansion of the service portfolio to include partially and fully automated laser systems
