Brand production from Laichingen: joinery manufacturing for trade fair construction, interior fitting-out and hygiene airlock fittings with CNC and lacquering technology
Mühlich GmbH & Co. KG
LaichingenNew on Amplifa
About Mühlich
Mühlich GmbH & Co. KG is an owner-managed, medium-sized company with industrial joinery manufacturing in Laichingen. The company produces semi-finished parts, hygiene airlock fittings, wall construction and elements for brand presentation and staging, in particular for trade fair stands, exhibitions and events. The value chain includes planning and CAD design with AutoCAD, project planning and work preparation, 3- and 5-axis CNC machining, edge processing, pressing of decors, lacquering as well as packaging and logistics up to loading. Work is carried out mainly with wood and wood-based materials such as chipboard, furniture board, multiplex and MDF panels, and also with acrylic glass, glass, steel and aluminium. Customers include, among others, Arburg, Fjords, Süddekor, Obaku and Warema. More than 35 permanent employees work on the 15,000 m² company premises with 6,000 m² of hall space; the main machines come from the HOMAG and SCM groups in combination with a fully automated panel storage system.
- Site
- Laichingen
- Processes
- Cutting of panel materials (horizontal cutting system), Edge processing and edge coating (through-feed process, groove milling, filling, cleaning), 3-axis CNC nesting routing (puzzle router, freeform surfaces and contours), 5-axis CNC machining (drilling, milling, sawing, miter cuts), 5-axis nesting system (nesting machining, storage loading), Final assembly of elements at the bench (vacuum press, biscuit jointers, panel saws, sanding, Lacquering (fully equipped paint shop, PC-controlled paint mixing system, halogen drying system), Edge gluing with EVA hot-melt adhesive and PU glue
- Materials
- Wood, Acrylic glass, Glass, Chipboard (raw and coated), Furniture board, Multiplex panel, MDF panel, IMI slate on MDF carrier panel
- Certificates
- ISO 9001, ISO 14001
- Employees
- > 35
- Industries
- Trade fair construction, Commercial interior fitting-out, Hygiene areas / personnel airlocks, Events and exhibitions, Brand presentation, Hygiene areas/personnel airlocks
- 01

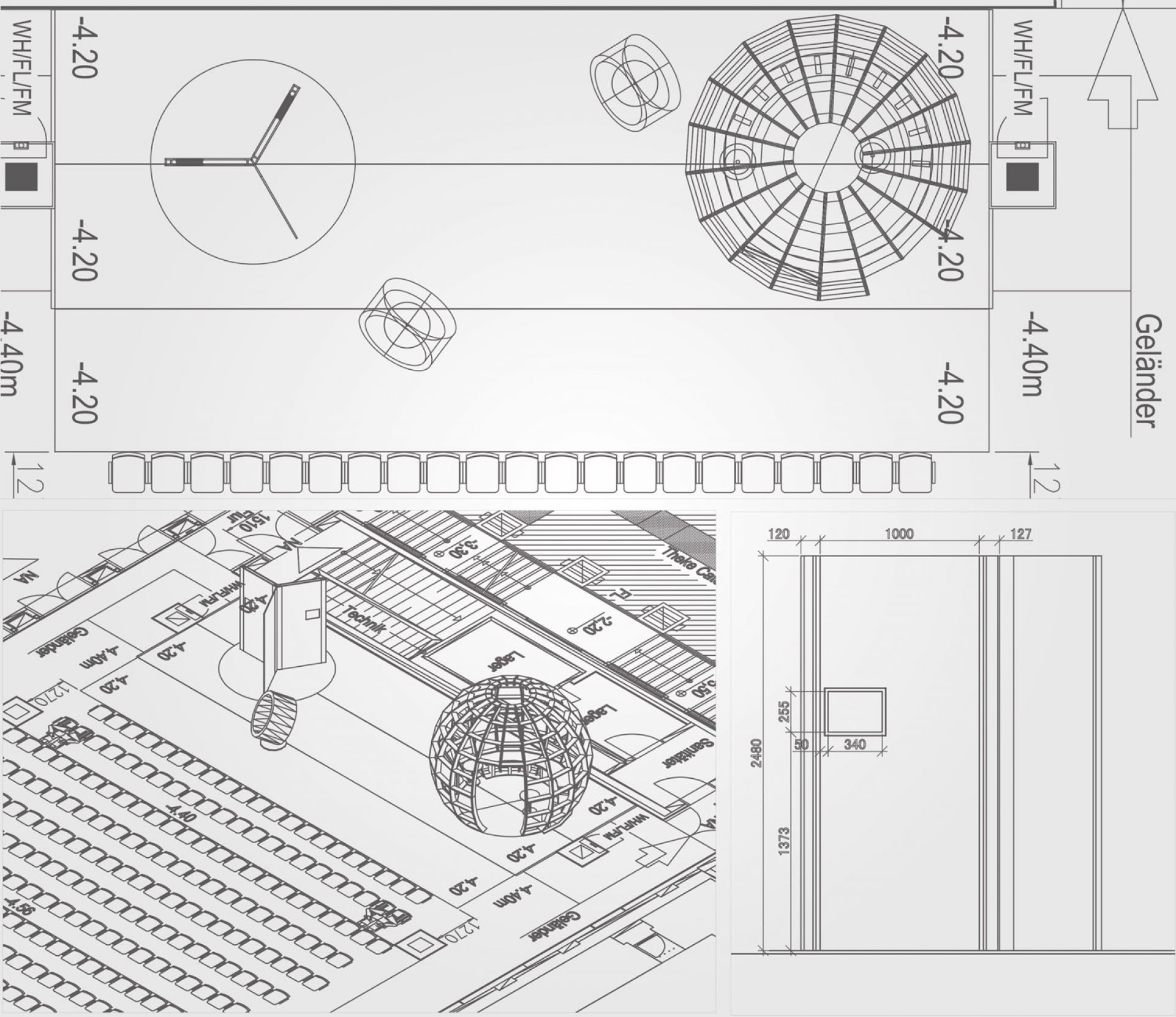

Planning and CAD design (AutoCAD)
- 02
Project planning and work preparation
- 03
Fully automated panel storage and cutting of panel materials
- 04
3- and 5-axis CNC machining
- 05
Edge processing and pressing
- 06

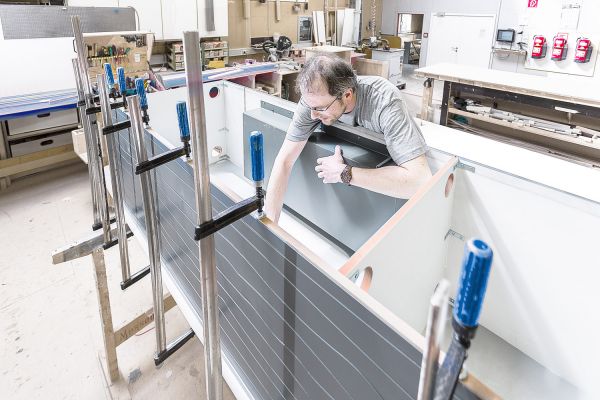

Bench assembly / final assembly
- 07
Surface treatment and lacquering
- 08

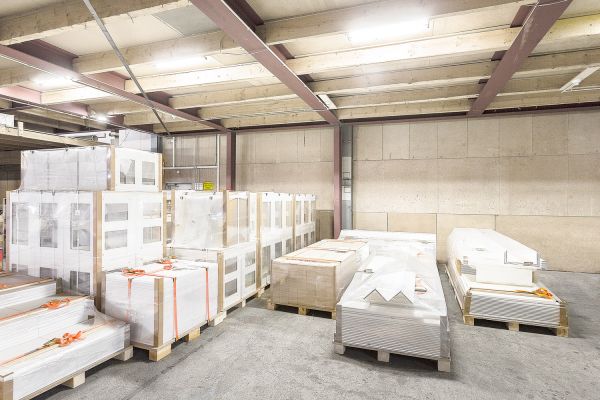

Packaging, storage and shipping
Materials & Processes
Wood & Wood-Based Materials
Chipboard, furniture board, multiplex, MDF and Birkoplex panels, Kerto, veneers and glued laminated wood form the core material for wall construction, furniture and trade fair elements.
Acrylic Glass

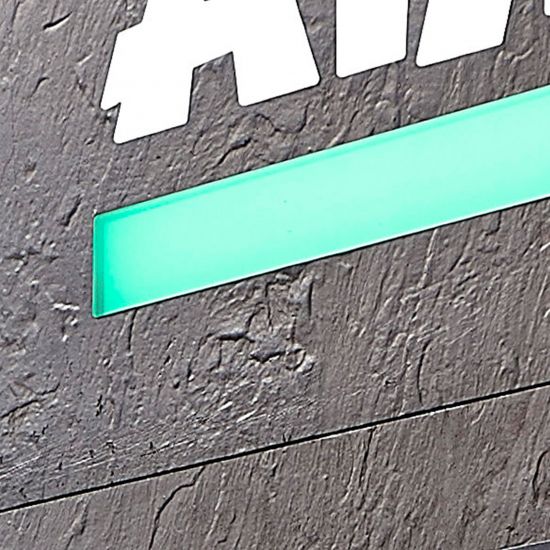

Is milled out, backlit with LED technology and used for logo lettering and design elements.
Glass
Material for project solutions in brand presentation and interior fitting-out.
Steel

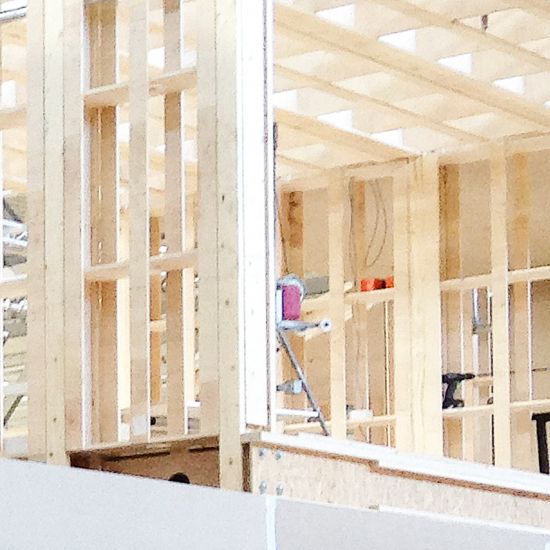

Used in wall construction and for load-bearing structures, e.g. in the Fjords project including structural verification.
Aluminium

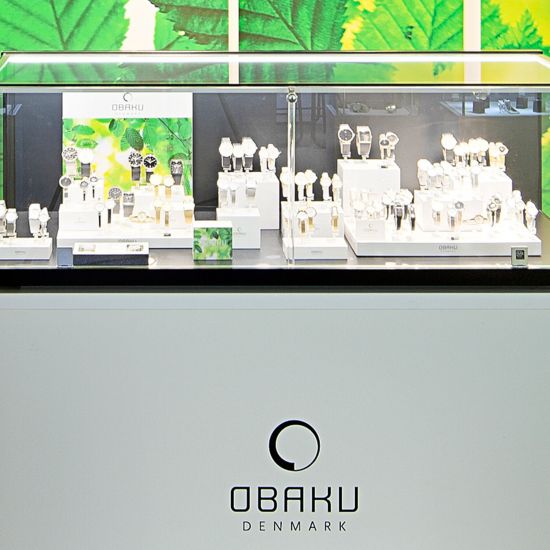

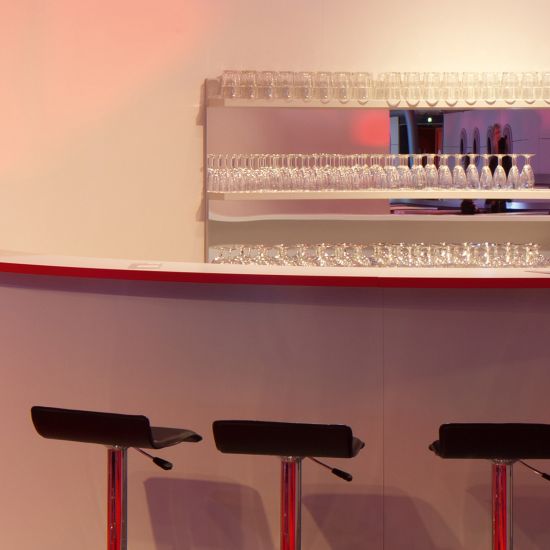

Used for product presenters and interior fitting-out components, e.g. in the Warema project.

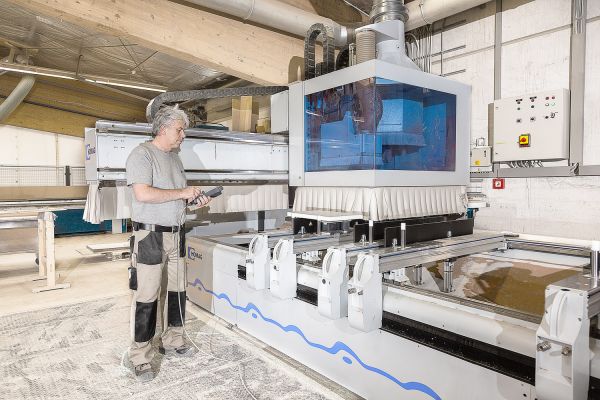

3- and 5-axis CNC machining
Nesting routers with matrix table and 5-axis machining centre with saw aggregate for freeform surfaces, drilling, milling and sawing work.

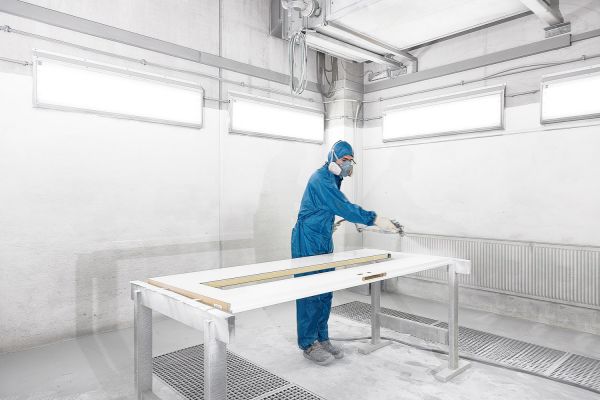

Lacquering
PC-controlled paint mixing system and 6 x 12 m paint hall with halogen drying system for almost all colors and gloss levels.

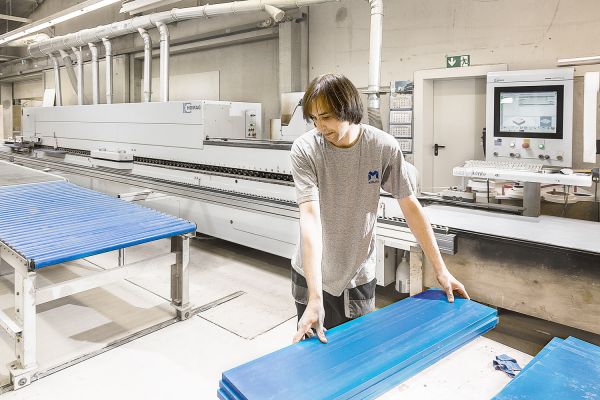

Edge Processing
Through-feed edging up to 4100 x 1300 mm with groove milling, filling, cleaning as well as gluing with EVA hot-melt adhesive and PU glue.
Locations

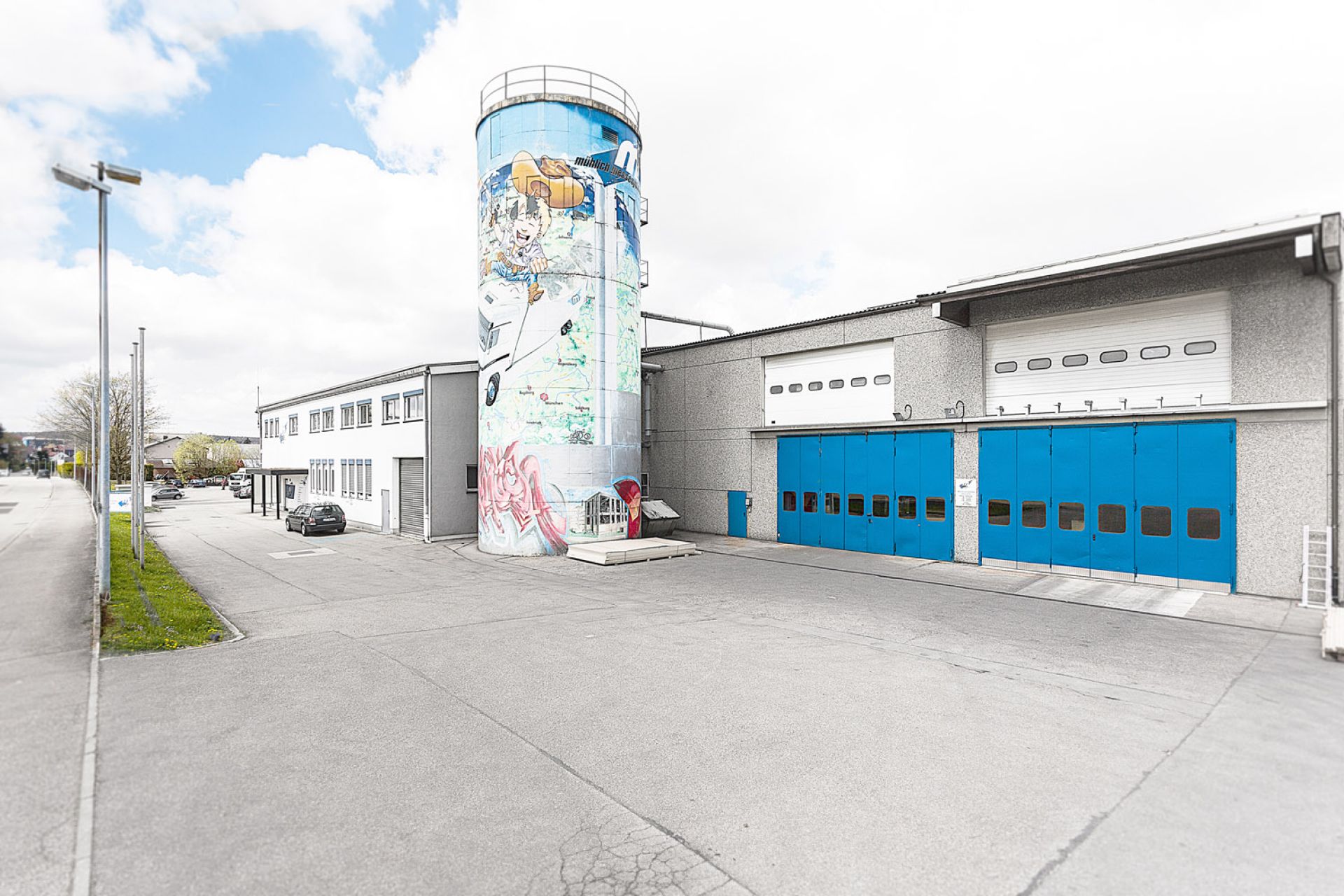

Laichingen
DEProduction, storage and administration
- Lot size
- Single parts to small series
- Materials
- Wood, wood-based materials, acrylic glass, glass, steel, aluminium

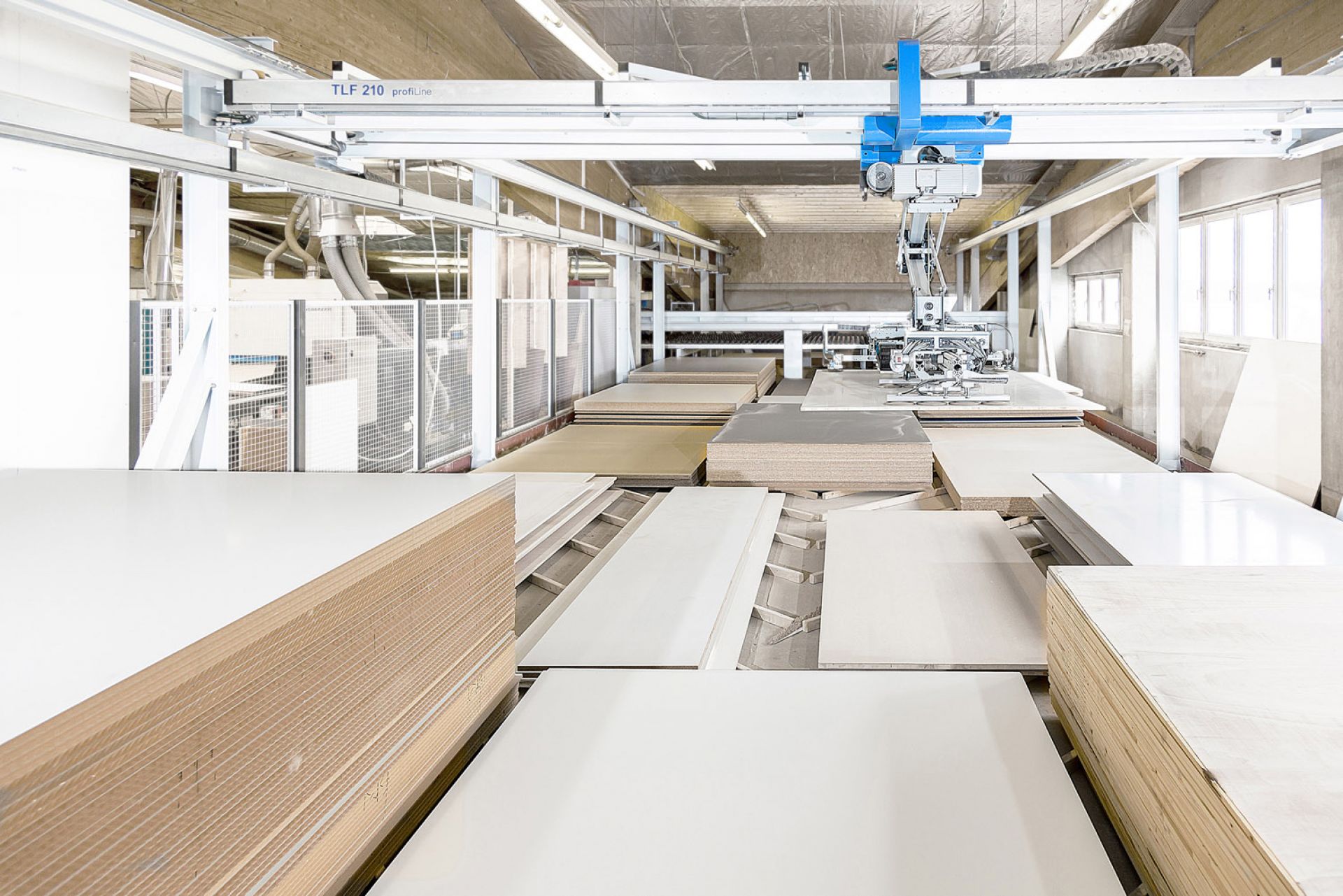

- Fully automated NC-controlled panel storage system (Bargstedt)

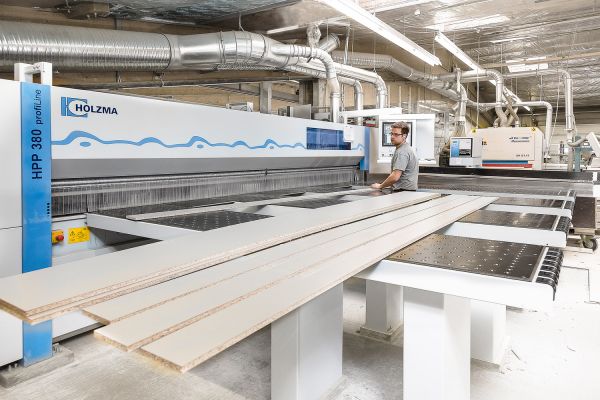

- Horizontal cutting system
- 5-axis nesting system
- 3-axis CNC puzzle router with matrix table
- 5-axis CNC machining centre with saw aggregate
- Edge processing machine with return feed and manipulator
- PC-controlled paint mixing system
- Paint hall 6 x 12 m with halogen drying system
- Vacuum press
- Biscuit jointer
- Panel saws
- Sanding machines
- Self-driving packaging robot (stretch film wrapper)
- 4-way forklift (rail-capable)
- Electric pallet truck
Components & Services
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Cutting of panel materials (horizontal cutting system)Machining | – | – | – | – | Chipboard, MDF, Furniture board, Multiplex, Plywood, Acrylic glass |
| Edge processing and edge coating (through-feed process, groove milling, filling, cleaning)Surface | – | 4100 mm × 1300 mm | – | – | Wood-based panels |
| 3-axis CNC nesting routing (puzzle router, freeform surfaces and contours)Machining | – | – | – | – | Panel materials, Acrylic glass |
| 5-axis CNC machining (drilling, milling, sawing, miter cuts)Machining | – | – | – | – | Wood-based panels |
| 5-axis nesting system (nesting machining, storage loading)Machining | – | – | – | – | Panel materials |
| Final assembly of elements at the bench (vacuum press, biscuit jointers, panel saws, sandingAssembly | – | – | – | Single parts – Small series | Wood, Wood-based materials |
| Lacquering (fully equipped paint shop, PC-controlled paint mixing system, halogen drying system)Surface | – | 12 m × 6 m × 4 m | – | – | Wood, Wood-based materials, Acrylic glass |
| Edge gluing with EVA hot-melt adhesive and PU glueJoining | – | – | – | – | Wood-based panels |

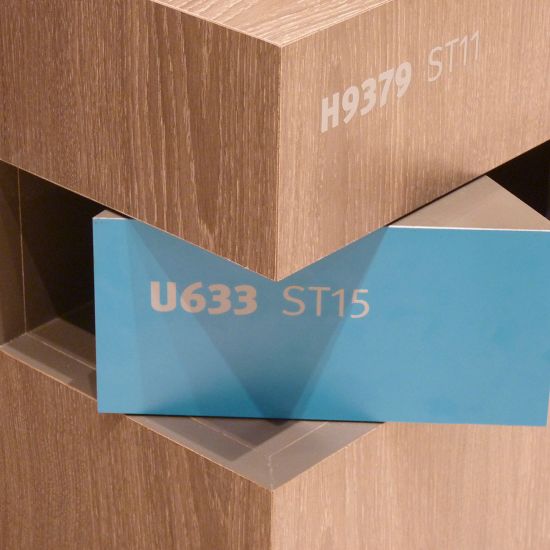

| Pressing of decors onto substrate materialJoining | – | – | – | – | Laboratory ware/decors, Substrate material |
| Planning, design and work preparation with AutoCAD, data generation with postprocessorEngineering | – | – | – | – | – |
| Storage and logistics of customer material, packaging (robotic stretch wrapper), loading up toAssembly | – | 5 m | – | – | – |
15 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Fully automated NC-controlled panel storage system | Bargstedt | 1 | – | – | Laichingen |
| Horizontal cutting system (linked with storage system) | – | 1 | – | – | Laichingen |
| 5-axis nesting system (CNC) | – | 1 | – | – | Laichingen |
| 3-axis CNC puzzle router (nesting router) with matrix table | – | 1 | – | – | Laichingen |
| 5-axis CNC machining centre (with saw aggregate) | – | 1 | – | – | Laichingen |
| Edge processing machine (through-feed, with return feed and manipulator) | – | 1 | Workpieces up to 4100x1300 mm | – | Laichingen |
| PC-controlled paint mixing system | – | 1 | – | – | Laichingen |
| Paint hall with halogen drying system | – | 1 | 6 x 12 m, 4 m high | – | Laichingen |
| Vacuum press (bench area) | – | – | – | – | Laichingen |
| Biscuit jointer (bench area) | – | – | – | – | Laichingen |
| Panel saws (bench area) | – | – | – | – | Laichingen |
| Various sanding machines (bench area) | – | – | – | – | Laichingen |
| Self-driving packaging robot (stretch film wrapper) | – | 1 | – | – | Laichingen |
| 4-way forklift (rail-capable) | – | – | – | – | Laichingen |
| Electric pallet truck | – | – | – | – | Laichingen |
Additional services
Reference customers
Quality
Production is carried out with industrial processes: cut parts are labeled according to drawings and remain traceable until final assembly; projects are accompanied by structural verification. Certifications are not stated on the website.
| Evidence | Laichingen |
|---|---|
| ISO 9001 | |
| ISO 14001 |
