Contract manufacturing of PCB assembly (PCBA) and custom electronic subassemblies
Multiplex SA
Courgenay (Jura), SwitzerlandNew on Amplifa
About Multiplex SA
Multiplex SA is an electronics manufacturing services (EMS) company founded in 1987 and based in Courgenay in the canton of Jura, Switzerland. As a supplier, the company manufactures electronic assemblies: PCB assembly (PCBA) in SMD and THT technology, electronic testing of the boards, as well as assembly and integration of custom subassemblies. In addition, Multiplex handles the purchasing and logistics of electronic components. Production capacity comprises around 180,000 boards per year, over 28 million placed components per year and an IPC capacity of 47,000 CPH across more than 300 different products. Customer industries include industrial equipment, energy, automation, telecommunications, radio control and medical devices. Production is ESD-compliant; quality assurance includes 3D AOI inspection of all boards to IPC standards, pre-series inspections prior to THT soldering and visual final inspection up to product release.
- Site
- Courgenay
- Processes
- Electronic board assembly (PCBA, incl. THT soldering and assembly), Testing of boards/subassemblies (electronic testing), Integration of electronic subassemblies (assembly of subassemblies), 3D AOI inspection (automated optical inspection of all boards to IPC standards), Pre-series inspection of THT components prior to soldering, Final inspection (visual inspection up to product release), Purchasing and logistics (procurement and logistics of electronic components), Methods engineering/production process development (digitalized processes, ESD-compliant production)
- Materials
- SMD assembly, THT assembly and soldering, Printed circuit boards (PCBA)
- Certificates
- IPC A-610
- Founded
- 1987
- Industries
- Industrial equipment, Energy sector, Automation, Telecommunications, Radio control, Medical devices
- 01
Purchasing and logistics of electronic components
- 02
Process development by the methods engineering department
- 03
PCB assembly (SMD/THT)
- 04
Pre-series inspection prior to THT soldering
- 05
3D AOI inspection of all boards
- 06
Testing of boards and subassemblies
- 07
Assembly/integration of subassemblies
- 08
Visual final inspection up to product release
Processes and Procedures
SMD assembly
Surface mounting of electronic components on printed circuit boards.
THT assembly and soldering
Through-hole components including pre-series inspection prior to THT soldering.
Printed circuit boards (PCBA)
Processing and assembly of customer-specific printed circuit boards.
Locations

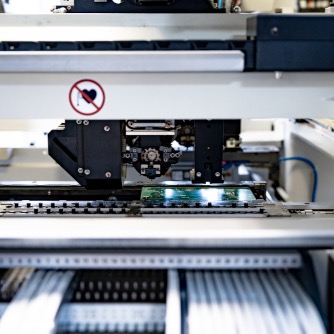

Courgenay
CHHeadquarters and production
- Lot size
- 180,000 boards/year, 300+ different products
- Materials
- Printed circuit boards (PCBA), SMD and THT components
- 3D AOI inspection system
- ESD-compliant production facilities
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Electronic board assembly (PCBA, incl. THT soldering and assembly)Assembly | – | – | – | 180'000 boards/year; 28 Mio. | Printed circuit boards (PCBA), electronic components (including through-hole THT |
| Testing of boards/subassemblies (electronic testing)Inspection | – | – | – | – | – |
| Integration of electronic subassemblies (assembly of subassemblies)Assembly | – | – | – | – | – |
| 3D AOI inspection (automated optical inspection of all boards to IPC standards)Inspection | – | – | – | all boards | – |
| Pre-series inspection of THT components prior to solderingInspection | – | – | – | – | – |
| Final inspection (visual inspection up to product release)Inspection | – | – | – | – | – |
| Purchasing and logistics (procurement and logistics of electronic components)Engineering | – | – | – | 300+ different products | – |
| Methods engineering/production process development (digitalized processes, ESD-compliant production)Engineering | – | – | – | – | – |
1 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| 3D AOI inspection system (automated optical inspection) | – | – | – | – | Courgenay, Switzerland |
Additional services
History
- 1987
Founding of Multiplex SA in the canton of Jura, Switzerland
- 2023
More than 36 years of experience in PCB assembly
