CNC-milled, turned and ground precision parts to customer drawing, from one-off parts to small series
Nagel Maschinenbau
NorderstedtNew on Amplifa
About us
Nagel Maschinenbau is a family-owned company based in Norderstedt near Hamburg that has been operating as a supplier to the B2B industry since 1987. The company manufactures CNC-milled, turned and ground components to customer specifications and dimensions from all commercially available metals such as steel, aluminium, copper, bronze and brass as well as from plastics. On approximately 700 m² of production floor space, 14 CNC machining centres and 3 conventional machine tools are available; machinable component dimensions range up to 3000 mm in X and 600 mm in Y and Z. The service portfolio includes, in addition to machining, assembly manufacturing, jig and apparatus construction, procurement and further processing of sheet metal parts, assembly into functional systems, and design using CAD/CAM systems such as SolidWorks and Mastercam. In addition, prototypes and small series with quantities from 1 to 1000 are produced, and no longer available spare parts are remanufactured. External services such as coating, anodising, galvanic zinc plating, painting as well as heat treatments such as case hardening and vacuum hardening complete the offering.
- Site
- Norderstedt
- Processes
- CNC milling, Turning (CNC), Grinding, Marking, Measuring, Design CAD/CAM, Assembly of prefabricated components and parts into functional systems or products, Assembly manufacturing
- Materials
- Steel, Aluminium, Copper, Bronze, Brass, Plastics, CNC milling, CNC turning
- Certificates
- DIN EN ISO 9001:2015
- Founded
- 1987
- Industries
- Optical industry, Aircraft construction, Medical technology, Food technology, Shipbuilding
- 01
Design CAD/CAM (SolidWorks, Mastercam)
- 02
CNC milling
- 03
CNC turning
- 04
Grinding
- 05
Marking
- 06
Assembly manufacturing and assembly
- 07
External surface and heat treatments (coating, anodising, zinc plating,
- 08
Measuring/inspection
Materials and processes

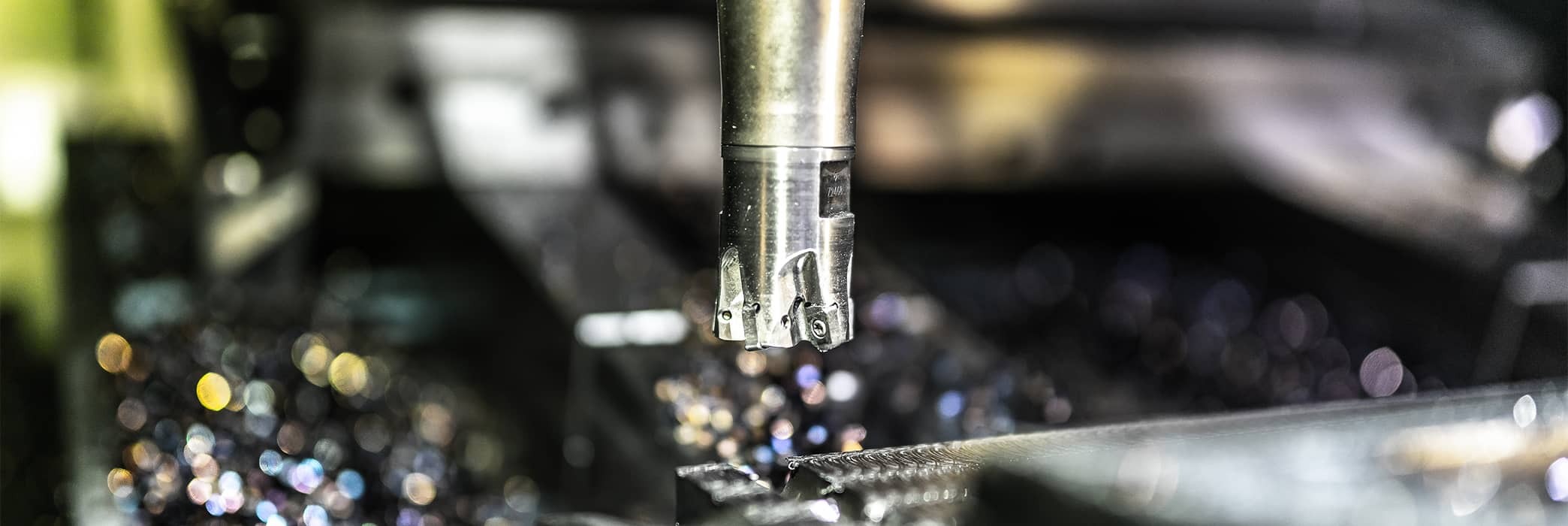

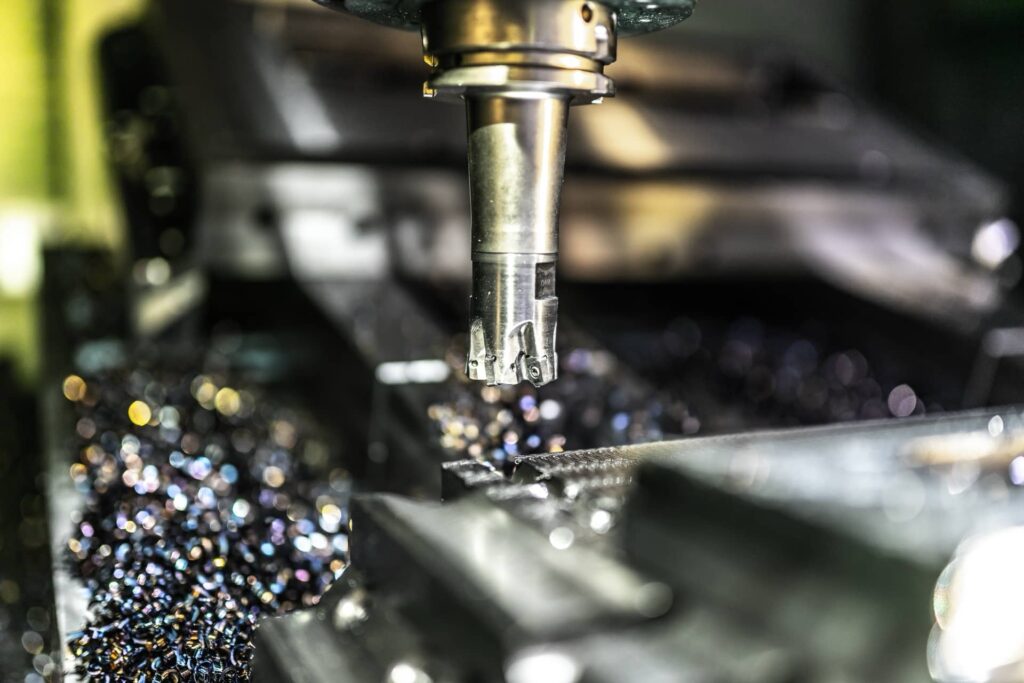

CNC milling
Manufacture of components to drawing with component dimensions up to X 3000 mm, Y 600 mm, Z 600 mm and quantities from 1 to 1000.

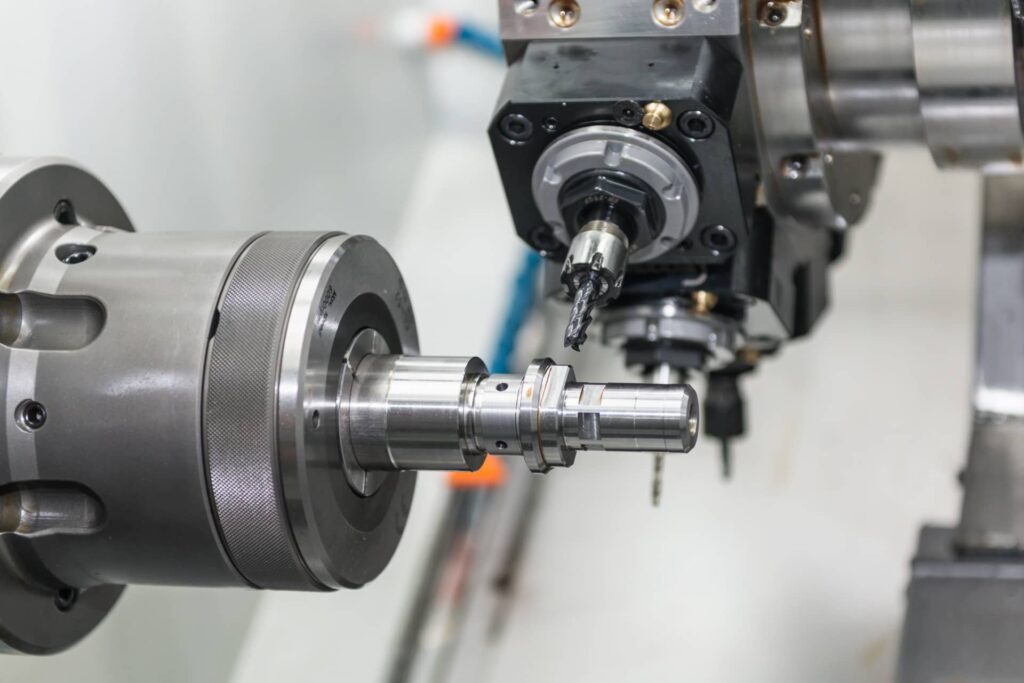

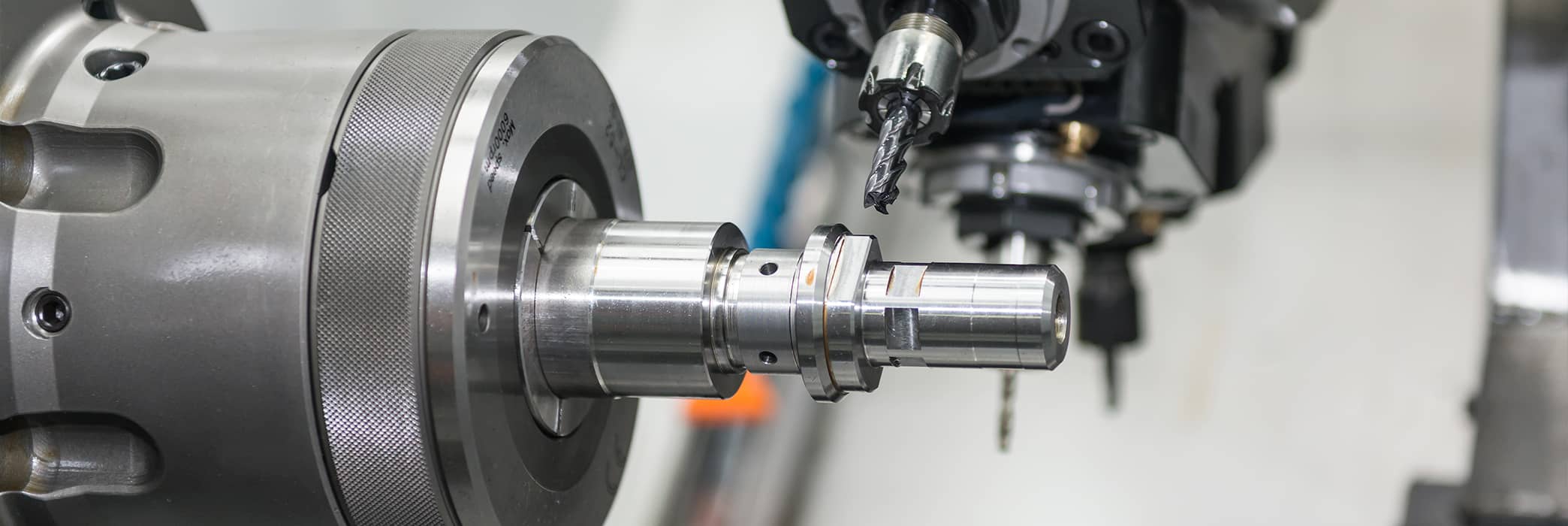

CNC turning
Turned parts to customer drawing for prototypes and small series.

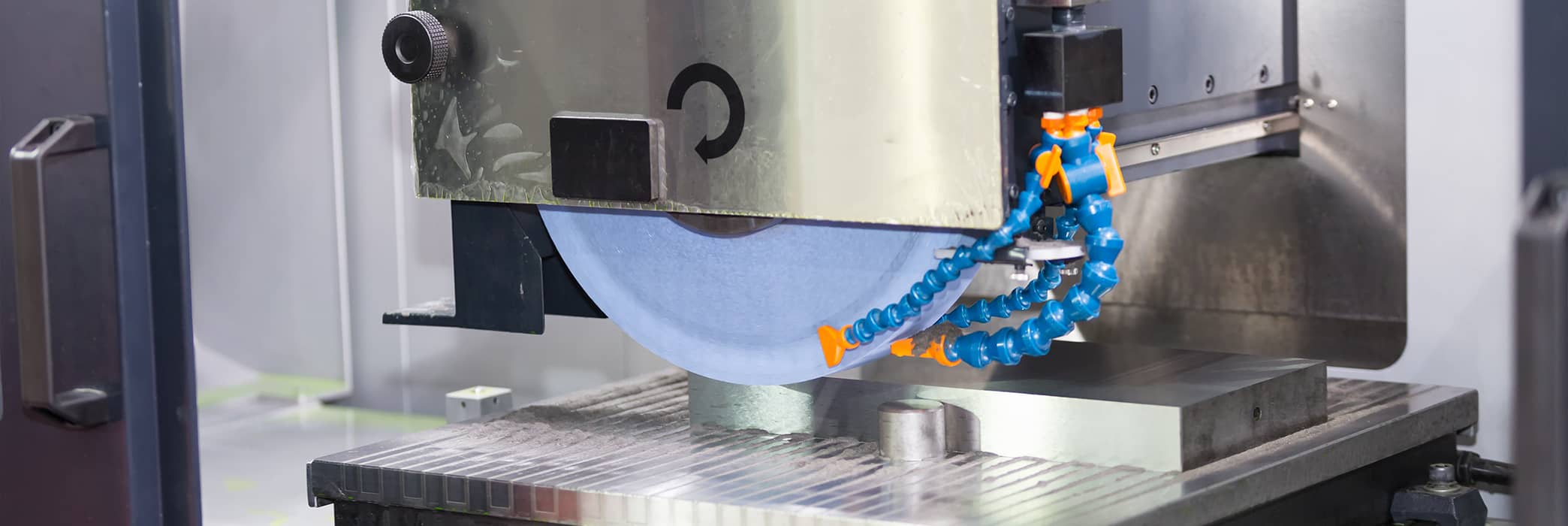

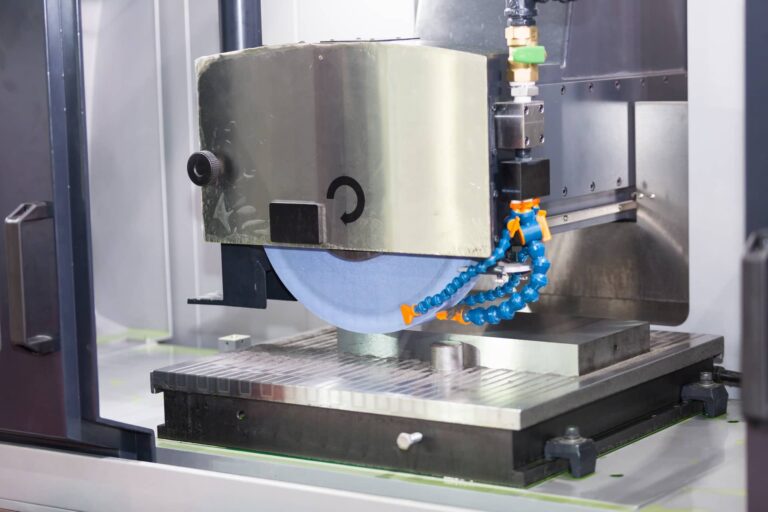

Grinding
Grinding operations for high product and surface quality.
Design CAD/CAM (SolidWorks, Mastercam)
Design and programming of even complex components with SolidWorks and Mastercam.
Assembly manufacturing and assembly
Assembly of prefabricated components and parts into functional systems or products.
Sheet metal working / sheet metal constructions
Procurement and further processing of sheet metal parts.
Jig and apparatus construction
Manufacture of jigs and apparatus to customer specification.
Spare parts manufacturing
Production of no longer available spare parts as required.
Locations
Norderstedt
DEProduction and administration
- Part weight / size
- Components up to 3000 × 600 × 600 mm
- Lot size
- Single parts, prototypes, small series 1–1000 units
- Materials
- Steel, aluminium, copper, bronze, brass, plastics
- 14 CNC machining centres
- 3 conventional machine tools
Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| CNC millingMachining | – | 600 mm × 600 mm | – | 1 – 1000 | Steel, Aluminium, Copper, Bronze, Brass, Plastics |
| Turning (CNC)Machining | – | – | – | 1 – 1000 | Steel, Aluminium, Copper, Bronze, Brass, Plastics |
| GrindingMachining | – | – | – | – | Steel, Aluminium, Copper, Bronze, Brass, Plastics |
| MarkingSurface | – | – | – | – | – |
| MeasuringInspection | – | – | – | – | – |
| Design CAD/CAMEngineering | – | – | – | – | – |
| Assembly of prefabricated components and parts into functional systems or productsAssembly | – | 3000 mm × 600 mm × 600 mm | – | 1 – 1000 | – |
| Assembly manufacturingAssembly | – | 3000 mm × 600 mm × 600 mm | – | 1 – 1000 | – |
| Jig and apparatus constructionEngineering | – | 3000 mm × 600 mm × 600 mm | – | – | – |
| Procurement & further processing of sheet metal parts / sheet metal working / sheet metalForming | – | 3000 mm × 600 mm × 600 mm | – | – | – |
| Coating, anodising, galvanic zinc plating, painting (external services)Surface | – | – | – | – | – |
| Case hardening and vacuum hardening (external heat treatments)Heat treatment | – | – | – | – | – |
| Manufacture of no longer available spare parts / single-part productionMachining | – | 3000 mm × 600 mm × 600 mm | – | 1 – 1 | Steel, Aluminium, Copper, Bronze, Brass, Plastics |
2 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| CNC machining centre | – | 14 | Component dimensions X = 3000 mm, Y = 600 mm, Z = 600 mm | – | Norderstedt |
| Conventional machine tools | – | 3 | – | – | Norderstedt |
Additional services
Quality
Nagel Maschinenbau is certified to DIN EN ISO 9001:2015 and produces components “Made in Germany”.
| Evidence | Norderstedt |
|---|---|
| DIN EN ISO 9001:2015 |
History
- 1987
Founded by Klaus Nagel as a one-man business in Langenhorn (Tapen Valvo Park).
- 2001
Move to a neighbouring building due to continuous growth.
- 2005
Relocation to Norderstedt; headcount rose from six to 15.
- 2016
Timo Nagel took over the company completely.
