Toolmaking for plastic injection moulds and die casting dies including prototyping and part production
Navitas Tooling
Shenzhen (CN) · Dongguan (CN) · Ningbo/Beilun (CN)New on Amplifa
About Navitas Tooling
Navitas Tooling is a tool manufacturer with toolrooms in Shenzhen and Dongguan (plastic injection moulds) as well as in Beilun, Ningbo (die casting dies) in China. The company offers integrated services along the entire tool chain: prototyping, toolmaking, tool optimization and part production. In the injection moulding area, standard, overmolding and 2K, precision and connector, insert, gas assist, LSR, thermoset and multi-cavity moulds with machine tonnages of 20 to 2800 t are built; in the die casting area, vacuum, squeeze, giga, structural and temperature-controlled dies as well as magnesium and insert-part dies at 120 to 9000 t. The team of toolmakers and engineers supports customers from the automotive, electrical engineering, electronics, medical technology, household appliances, office automation, packaging and construction machinery sectors with weekly project reporting.
- Site
- Shenzhen
- Processes
- Plastic Injection Moulds, Standard Plastic Injection Moulds, Over Moulds & 2K Moulds, Precision Moulds & Connector Moulds, Insert Moulds, Gas Assist Moulds, Liquid Silicone Rubber (LSR) Moulds, Thermoset Moulds
- Materials
- Magnesium, CI (cast iron), Steel, Liquid Silicone Rubber (LSR), Thermoset, Two-component plastic, Cast iron (CI)
- Certificates
- Zero-defect policy
- Industries
- Automotive, Electrical engineering, Electronics, Medical technology, Household appliances, Office Automation
- 01
Prototyping
- 02

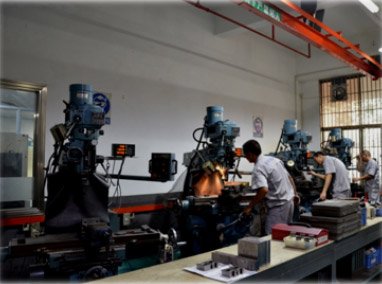

Toolmaking
- 03
Tool optimization
- 04
Part production
Materials & Processes
Liquid Silicone Rubber (LSR)
Moulds for liquid silicone moulded parts, e.g. for medical and electrical applications.
Thermoset
Moulds for processing thermoset plastics.
Two-component plastic
Overmolding and 2K moulds for multi-component parts.
Magnesium
Die casting dies specially for magnesium alloys.
Cast iron (CI)
Tool inserts and dies made of cast iron for die casting.
Steel
Tool steel for mould inserts and steel/CI insert dies.
Locations

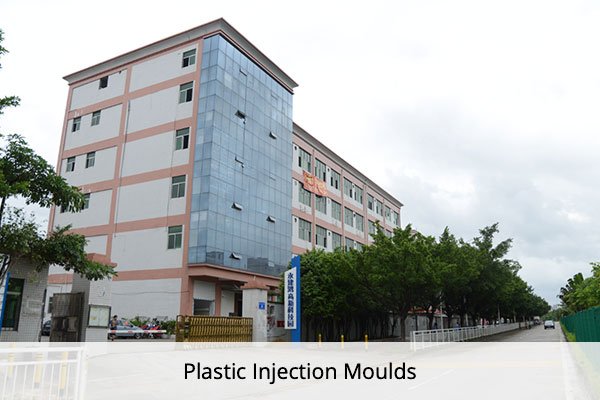

Shenzhen
CNToolroom plastic injection moulds
- Part weight / size
- Mould weight up to 25 t
- Materials
- Plastic, LSR, thermoset
- Injection moulding machines 20–2800 t

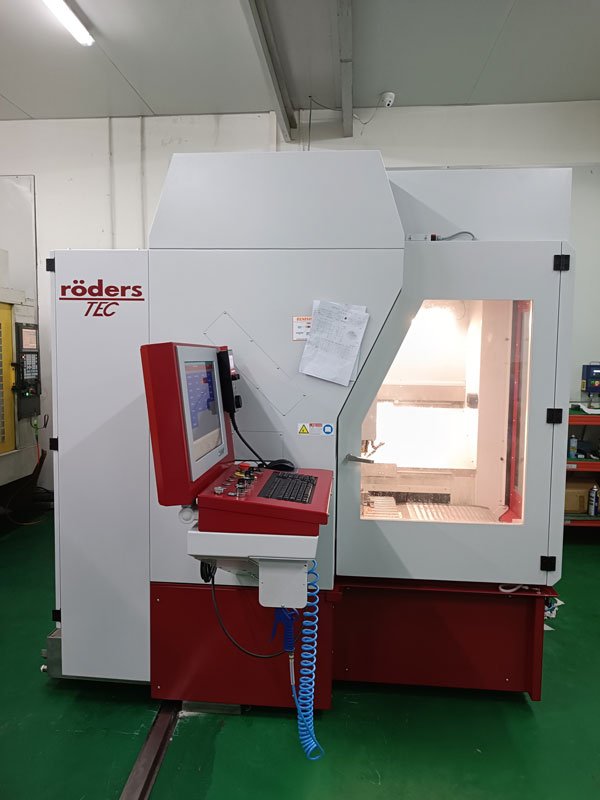

- Modern machine tools
- CAD/CAM design software

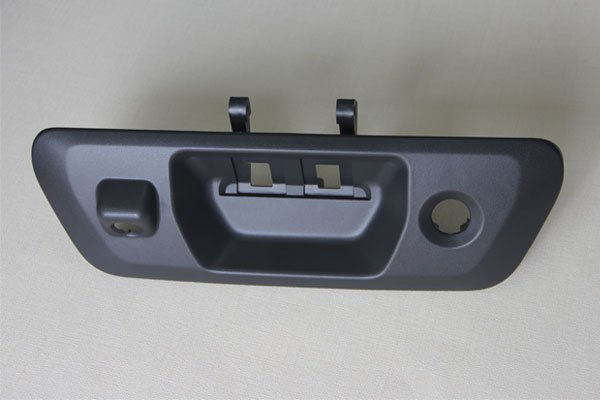

Dongguan
CNToolroom plastic injection moulds
- Part weight / size
- Mould weight up to 25 t
- Materials
- Plastic, LSR, thermoset
- Injection moulding machines 20–2800 t
- Modern machine tools
- CAD/CAM design software

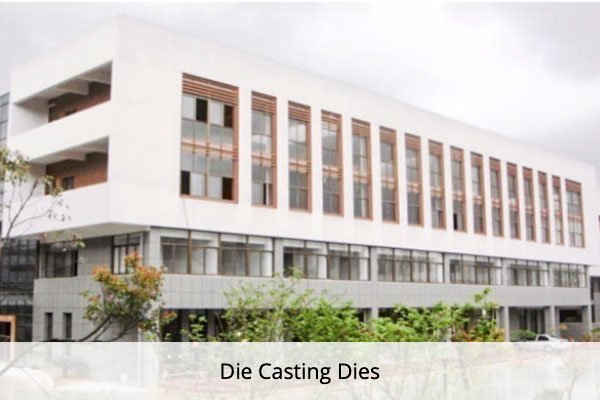

Ningbo (Beilun)
CNToolroom die casting dies
- Part weight / size
- Tool weight up to 45 t
- Materials
- Aluminium casting, magnesium, cast iron, steel
- Die casting machines 120–9000 t
- Modern machine tools
- CAD/CAM design software
Parts & Tools

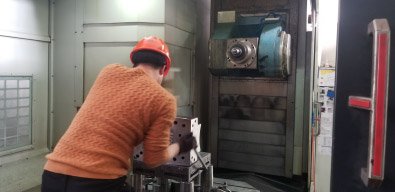

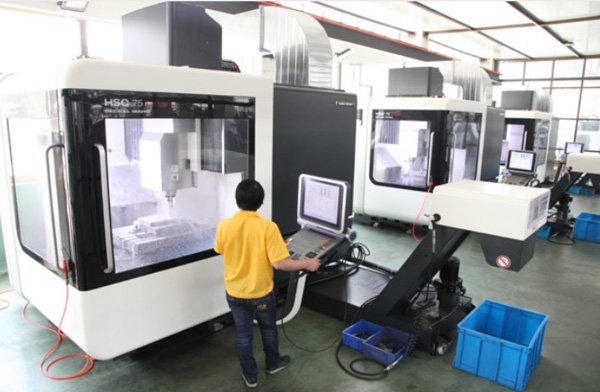

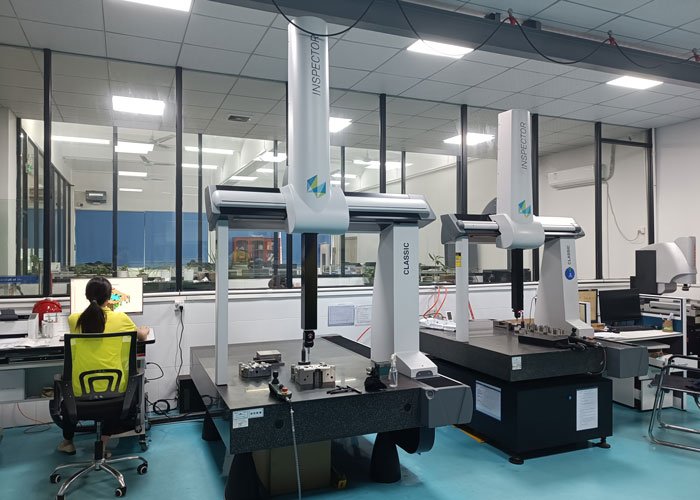

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|

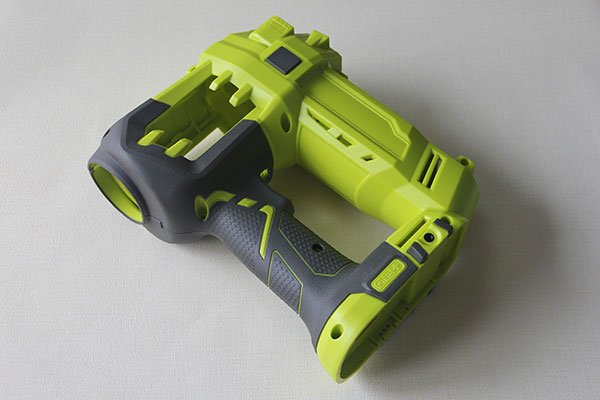

| Plastic Injection MouldsPlastics | – | – | 25 t (Mould weight) | – | – |
| Standard Plastic Injection MouldsPlastics | – | – | – | – | – |
| Over Moulds & 2K MouldsPlastics | – | – | – | – | Plastic (two-component) |

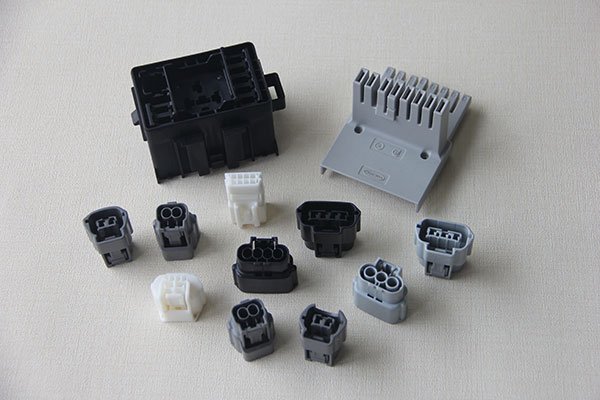

| Precision Moulds & Connector MouldsPlastics | – | – | – | – | – |
| Insert MouldsPlastics | – | – | – | – | – |
| Gas Assist MouldsPlastics | – | – | – | – | – |
| Liquid Silicone Rubber (LSR) MouldsPlastics | – | – | – | – | Liquid Silicone Rubber (LSR) |
| Thermoset MouldsPlastics | – | – | – | – | Thermoset |

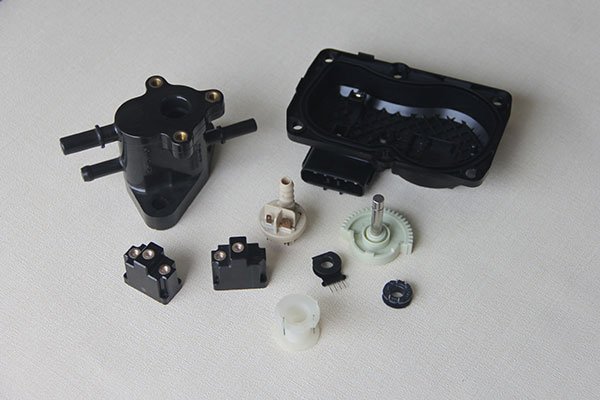

| Multi-cavity MouldsPlastics | – | – | – | – | – |

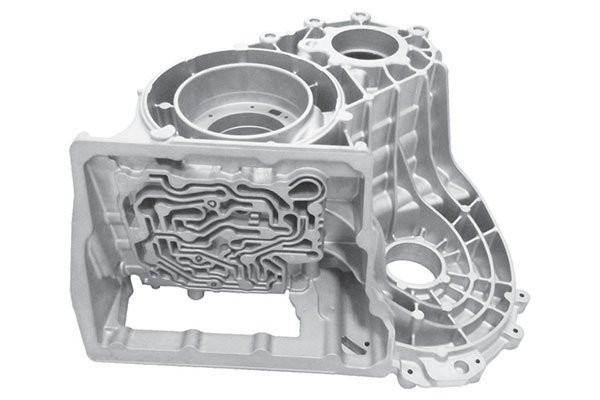

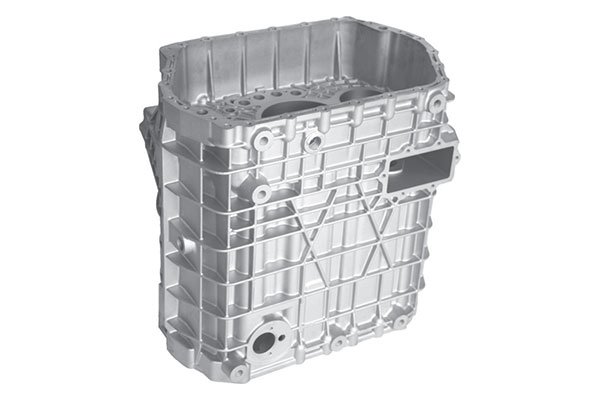

| High Pressure Die Casting DiesCasting | – | – | 45 t (Die weight) | – | – |

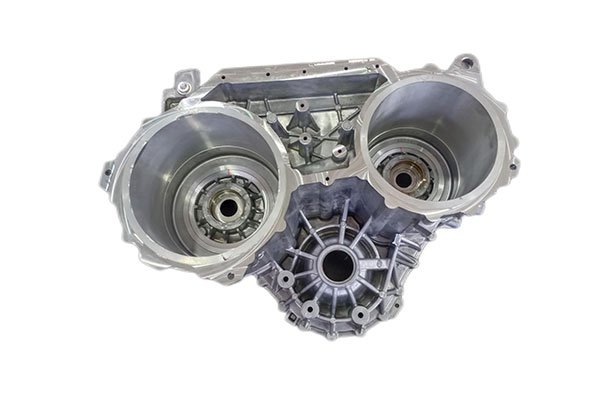

| Vacuum diesCasting | – | – | – | – | – |
| Squeeze diesCasting | – | – | – | – | – |

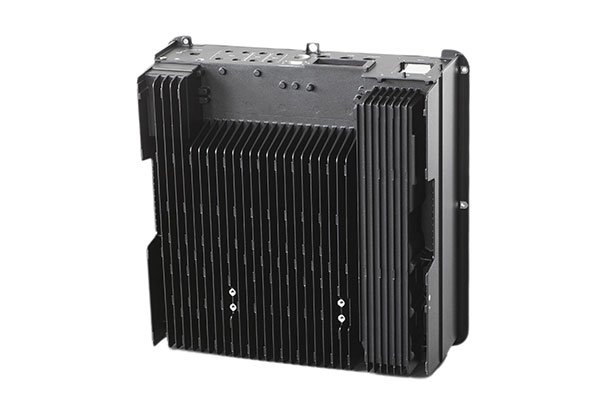

| Giga diesCasting | – | – | – | – | – |
| Structural DiesCasting | – | – | – | – | – |
| Temperature controlled diesCasting | – | – | – | – | – |
| Magnesium diesCasting | – | – | – | – | Magnesium |
| CI/Steel inserts diesCasting | – | – | – | – | CI (cast iron), Steel |
| Multicavity diesCasting | – | – | – | – | – |
| PrototypingEngineering | – | – | – | – | – |
| Tool optimizationEngineering | – | – | – | – | – |
| Part productionPlastics | – | – | – | – | – |
2 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Injection moulding machines (Injection Moulding) | – | – | Tonnage 20T to 2800T | – | Shenzhen / Dongguan |
| Die casting machines (Die Casting) | – | – | Tonnage 120T to 9000T | – | Beilun, Ningbo |
Additional services
Quality
Navitas pursues a zero-defect policy with systems and controls that meet the highest industry standards. Tools are fully optimized with regard to workmanship, part quality and cycle time before delivery and made production-ready.
| Evidence | Shenzhen | Dongguan | Ningbo (Beilun) |
|---|---|---|---|
| Zero-defect policy |
History
Over 20 years of industry experience in the development of tools and parts for European, American and Asian manufacturers
