Develops and manufactures automation systems for workpiece handling, marking and automatic cleaning in CNC machine tools.
NC-Automation GmbH
Kempten (Allgäu)New on Amplifa
About NC-Automation
NC-Automation GmbH was founded in 1998 in Kempten in the Allgäu region and specialises in flexible partial and full automation in machining. The company develops and designs automatic tools for use in CNC machine tools: cleaning tools of the CleanStar and CleanJet families remove chips from workpieces, fixtures, machine tables and the machine interior using coolant, oil or compressed air in a pressure range of 5 to 120 bar. The automatic marking tool WriteStar creates permanent markings by roll engraving through material compaction and displacement in materials up to 60 HRC, including steel, stainless steel (V4A), titanium, plastic and graphite. In addition, NC-Automation offers handling solutions for workpieces, monitoring systems such as CleanStar-control, as well as consulting, maintenance and repair. Customers come from the machine tool industry, mechanical engineering, medical technology, printing machinery and the automotive industry; references include, among others, ABB, Bosch, ZF, Hermle and Festo.
- Site
- Kempten
- Processes
- Machine tool automation (partial and full automation in machining), Workpiece handling, Cleaning of bores (> 8 mm through holes, partly blind holes) with CleanJet, Consulting and sales, Development and design, Maintenance and repair, Partial and full automation in machining, Machine tool automation
- Materials
- Steel, Stainless steel (V4A), Titanium, Plastic, Graphite
- Founded
- 1998
- Industries
- Machine tool construction, Machining/mechanical engineering, Medical technology, Printing machinery construction, Automotive, Energy/plant engineering
- 01
Consulting and sales
- 02
Development and design
- 03
Manufacture of the automation, marking and cleaning tools
- 04
Integration into CNC machine tools
- 05
Maintenance and repair
Materials & Processes
Steel

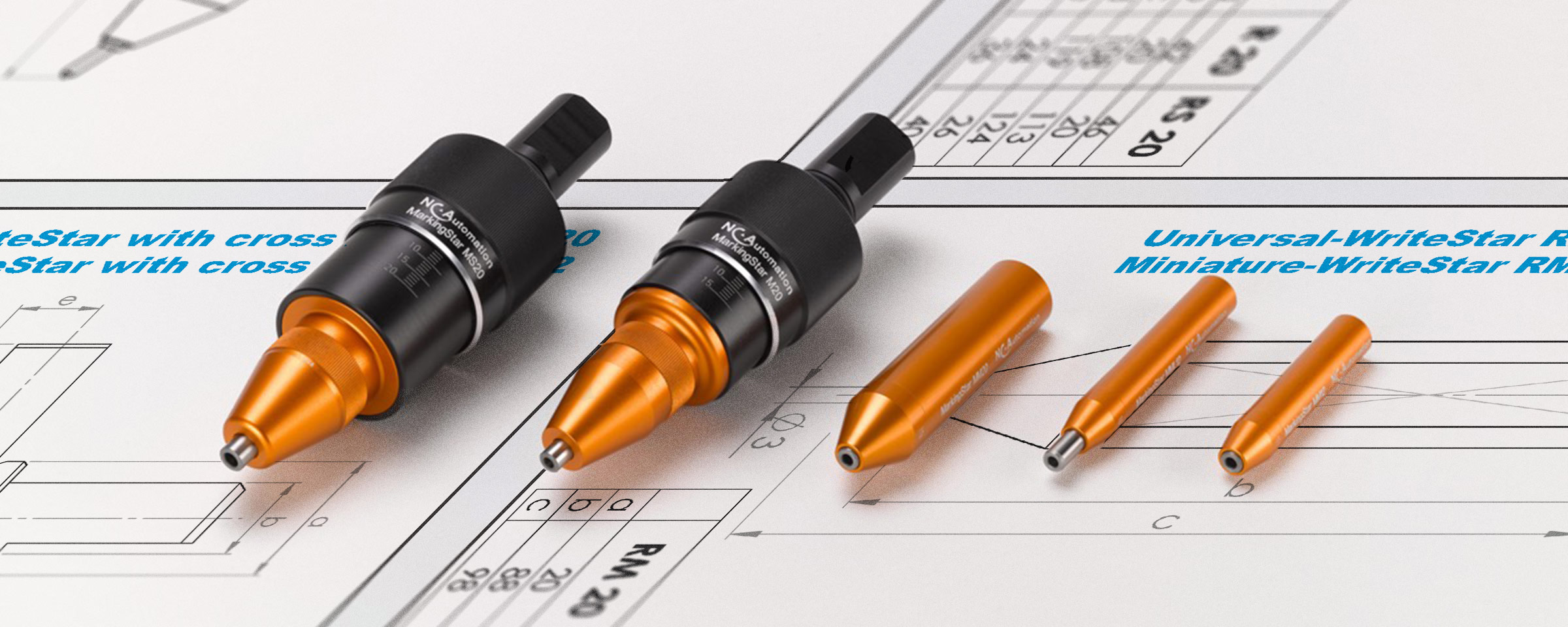

Can be permanently marked with WriteStar up to 60 HRC by roll engraving.
Stainless steel (V4A)
Marking of tough and hard materials such as V4A with special styli (Series 120).
Titanium
Engraved marking is also possible in titanium without surface damage.
Plastic
Marking in plastic with styli of Series 60.
Graphite
Processing through compaction and displacement instead of material removal.
Locations
Kempten
DEHeadquarters with development, design, sales and service
- CleanStar (CS-UV, CS-HV, CS-UH-50, CS-UH-120)
- CleanJet (CJ30–CJ250, bore cleaning CJ-6/16-100, CJ-8/16-140, CJ-10/16-180)
- WriteStar (R20, RS20, RM20, RM12, RP20, RQ20)
- CleanStar-control
- CleanCase ordering system
Products & Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Machine tool automation (partial and full automation in machining)Engineering | – | – | – | – | – |

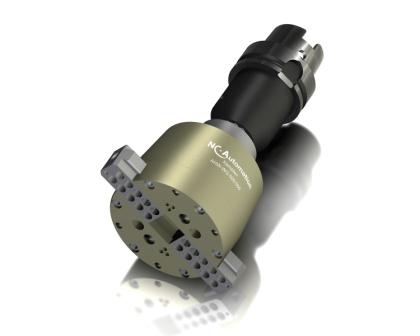

| Workpiece handlingAssembly | – | – | – | – | – |
| Surface | – | – | – | – | Steel, Titanium, Plastic, Graphite, Stainless steel (V4A) |
| Surface | – | – | – | – | – |
| Cleaning of bores (> 8 mm through holes, partly blind holes) with CleanJetSurface | – | – | – | – | – |
6 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|

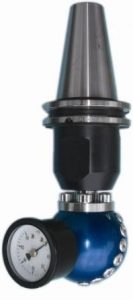

| Automatic cleaning tool CleanStar (rotating nozzle arrangement) | NC-Automation CleanStar (CS-UV, CS-HV, CS-UH-50, CS-UH-120, versions with pressure gauge) | – | Working range up to 360°, pressure range 5–120 bar, 5–100 rpm | – | Kempten |

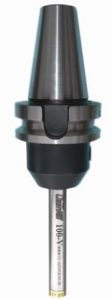

| Automatic cleaning tool CleanJet (cleaning tool for NC milling machines) | NC-Automation CleanJet (CJ30–CJ250 with nozzles UD40–UD55, RD40–RD50) | – | Liquid pressure 5–120 bar, gas 5–10 bar, 30–400 rpm | – | Kempten |
| CleanJet for bores (cleaning tool for bores > 8 mm) | NC-Automation CJ-6/16-100-UD5, CJ-8/16-140-UD5, CJ-10/16-180-UD5 | – | Coolant pressure 5–120 bar, air 5–20 bar, 30–400 rpm | – | Kempten |

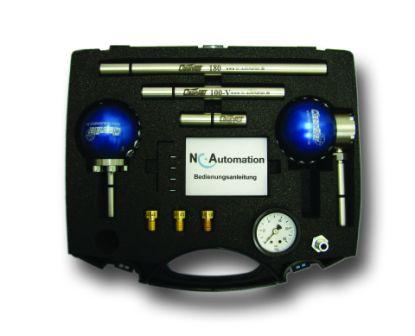

| CleanCase (assortment/ordering system for cleaning tools) | NC-Automation CleanCase | – | – | – | Kempten |

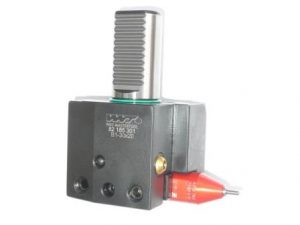

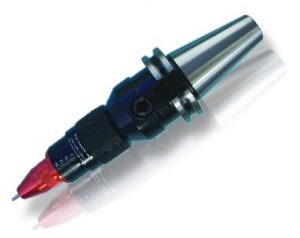

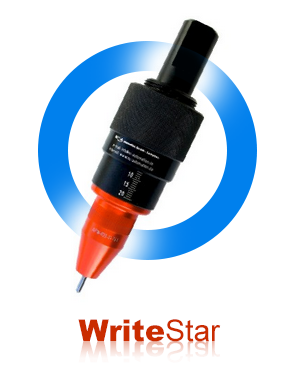

| Automatic marking tool WriteStar (roll engraving marking tool) | NC-Automation R20, RS20, RM20, RM12, RP20, RQ20 (RQ12) | – | – | – | Kempten |
| CleanStar-control (monitoring system for pump, filter and supply line) | NC-Automation CleanStar-control | – | – | – | Kempten |
Additional services
Reference customers
History
- 1998
Founded in Kempten (Allgäu), approximately 130 km from Munich and 30 km from the Austrian border.
