Planning, distribution and installation of heat pumps, ground collector baskets and deep geothermal projects
NDEWG GmbH
Lingen (Ems) · BerlinNew on Amplifa
About NDEWG GmbH
NDEWG GmbH (Norddeutsche Erdwärme Gewinnungsgesellschaft), headquartered in Lingen (Ems) with a location in Berlin, specialises in the utilisation of geothermal energy. In the field of shallow geothermal energy, the company plans, distributes and installs brine-water heat pumps from 1 to 600 kW (cascade) as well as air-source heat pumps from 1 to 18 kW, which are BAFA-certified. In addition, ground collector baskets from the manufacturer BetaTherm and matching manifold systems are offered, along with their installation including connection technology and layer-by-layer compaction. In the field of deep geothermal energy, NDEWG develops projects from site selection through exploration licences, drilling expertise and project planning to financing, plant construction and operation; the company also builds base-load-capable district heating networks. The heat extracted is used for heating, cooling, greenhouses, process heat as well as for geosolar drying plants (wood pellets, sewage sludge, digestate) and thermophilic wet fermentation. Customers include residential and commercial construction, municipalities and municipal utilities, industry and agriculture.
- Site
- Lingen (Ems)
- Processes
- Planning and design of geothermal systems (ground collector baskets, heat pumps), Installation and commissioning of above-ground geothermal systems, Installation of ground collector baskets including connection technology (manifold connection,, Production of ground collector baskets and manifold systems, Geosolar drying of moist materials (wood pellets, sewage sludge, digestate), Thermophilic wet fermentation (organic and food waste, approx. 55 °C), Supply/design of brine-water heat pumps (1–600 kW cascade, COP 4.5–5.0, BAFA certified), Supply/design of air-source heat pumps (1–18 kW, refrigerant propane, up to 70 °C flow temperature)
- Materials
- PE 100 RC pipe (support strip with retaining loop), Propane (natural refrigerant), Wood pellets, Sewage sludge, Digestate from biogas plants, PE 100 RC pipe
- Certificates
- BAFA certification (heat pumps)
- Industries
- Residential and commercial construction, Municipalities / municipal utilities, Industry (process heat), Agriculture (greenhouses, drying, biogas), Energy supply / heat transition
- 01
Consultation and needs analysis
- 02
Planning and system design
- 03
Preparation of quotations
- 04
Delivery of heat pumps, ground collector baskets and manifold systems
- 05
Installation and connection of the system
- 06
Commissioning and ongoing operation
Materials and Processes
PE 100 RC pipe
Pipe material of the ground collector baskets with support strip and retaining loop
Propane (natural refrigerant)
Refrigerant of the ecoAir+ air-source heat pumps
Locations
Lingen (Ems)
DEHeadquarters

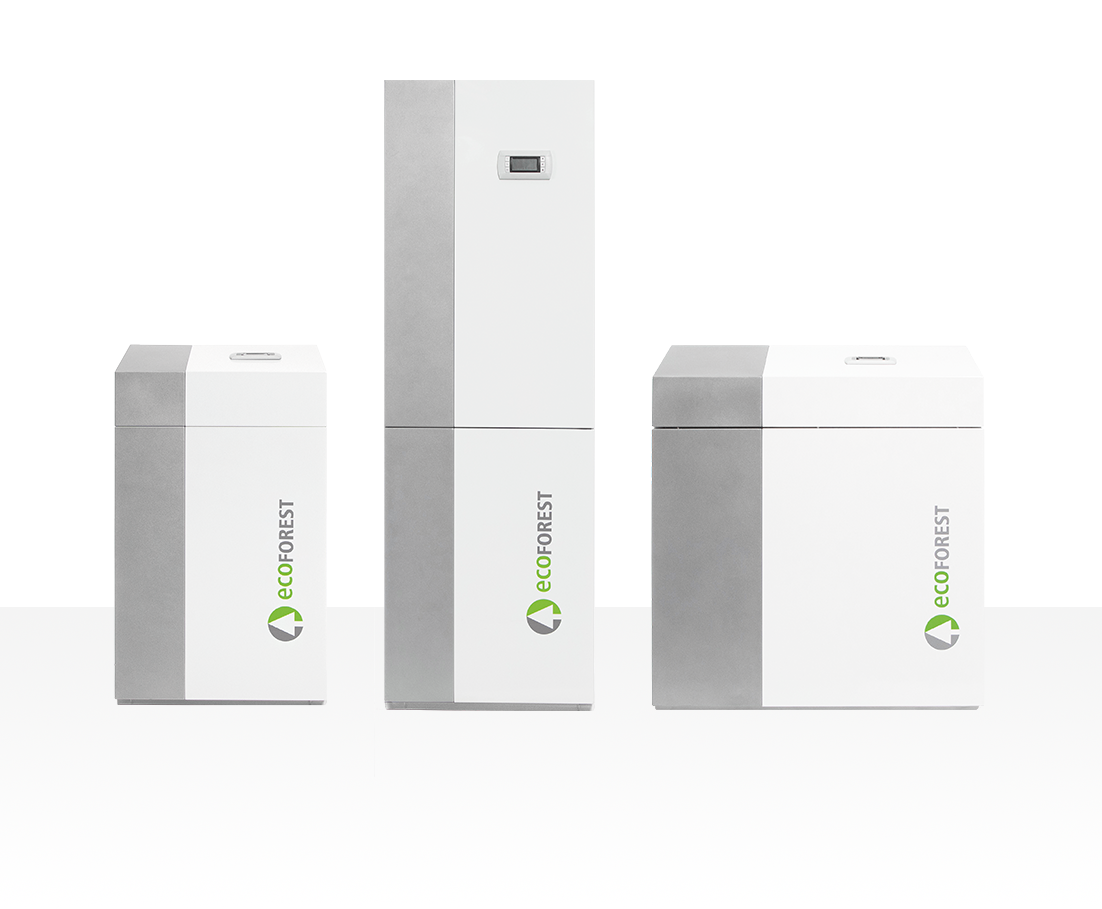

- Brine-water heat pumps ecoforest (1–100 kW, cascade up to 600 kW, COP 4.5–5.0)

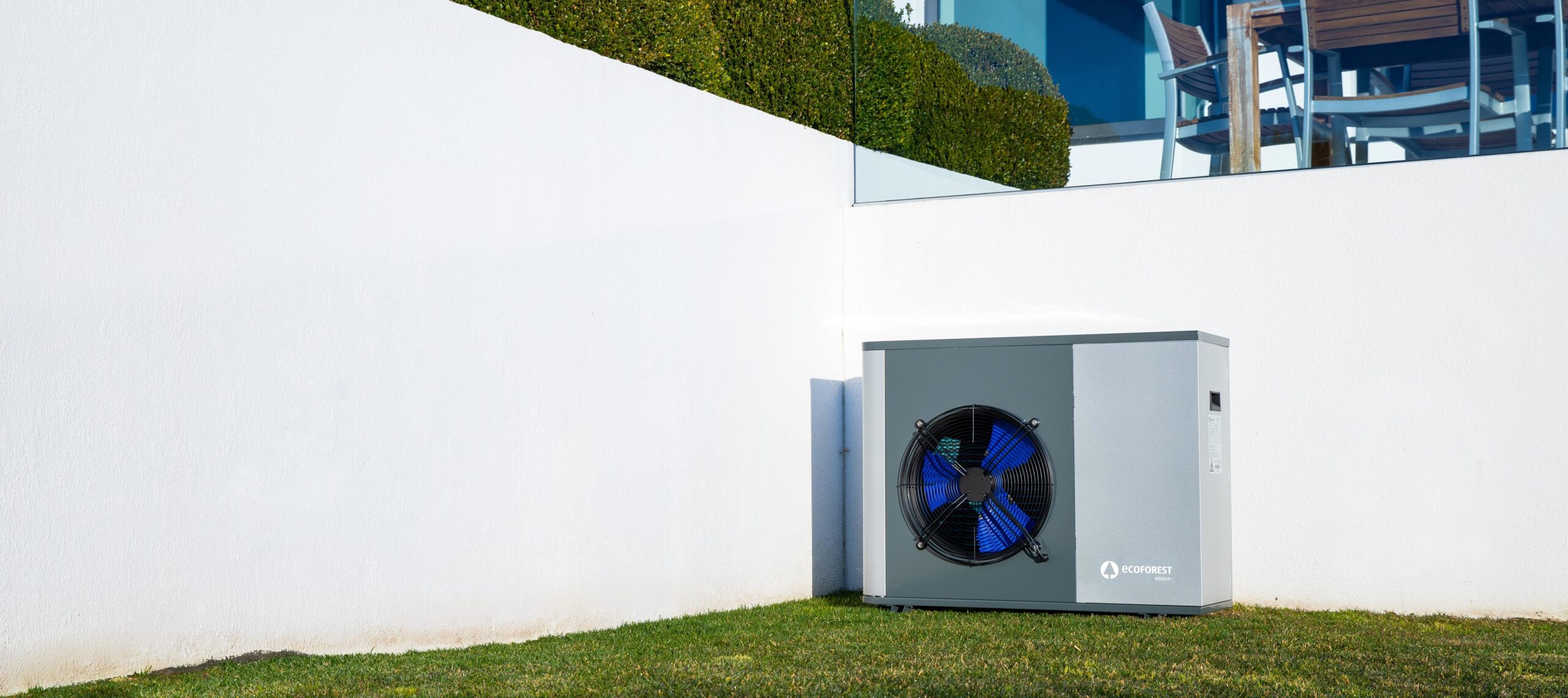

- Air-source heat pumps ecoAir+ (1–18 kW, propane, up to 70 °C flow temperature)
- Buffer and hot water tanks
Berlin
DELocation
Products and Systems
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Planning and design of geothermal systems (ground collector baskets, heat pumps)Engineering | – | – | – | – | – |
| Installation and commissioning of above-ground geothermal systemsAssembly | – | – | – | – | – |
| Installation of ground collector baskets including connection technology (manifold connection,Assembly | – | – | – | – | – |
| Production of ground collector baskets and manifold systemsJoining | – | – | – | – | PE 100 RC pipe |
| Geosolar drying of moist materials (wood pellets, sewage sludge, digestate)Heat treatment | – | – | – | – | Wood pellets, Sewage sludge, Digestate |
| Thermophilic wet fermentation (organic and food waste, approx. 55 °C)Heat treatment | – | – | – | – | Organic and food waste |
| Supply/design of brine-water heat pumps (1–600 kW cascade, COP 4.5–5.0, BAFA certified)Assembly | – | – | – | – | – |
| Supply/design of air-source heat pumps (1–18 kW, refrigerant propane, up to 70 °C flow temperature)Assembly | – | – | – | – | Propane (refrigerant) |
5 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Brine-water heat pump (ecoforest) | ecoforest | – | Power 1–100 kW (cascade up to 600 kW), COP 4.5–5.0 | – | Lingen / Berlin |
| Air-source heat pump ecoAir+ (inverter-controlled, refrigerant propane) | ecoforest ecoAir+ | – | Power 1–18 kW (up to 70 °C flow temperature, heating output 17–100 %) | – | Lingen / Berlin |

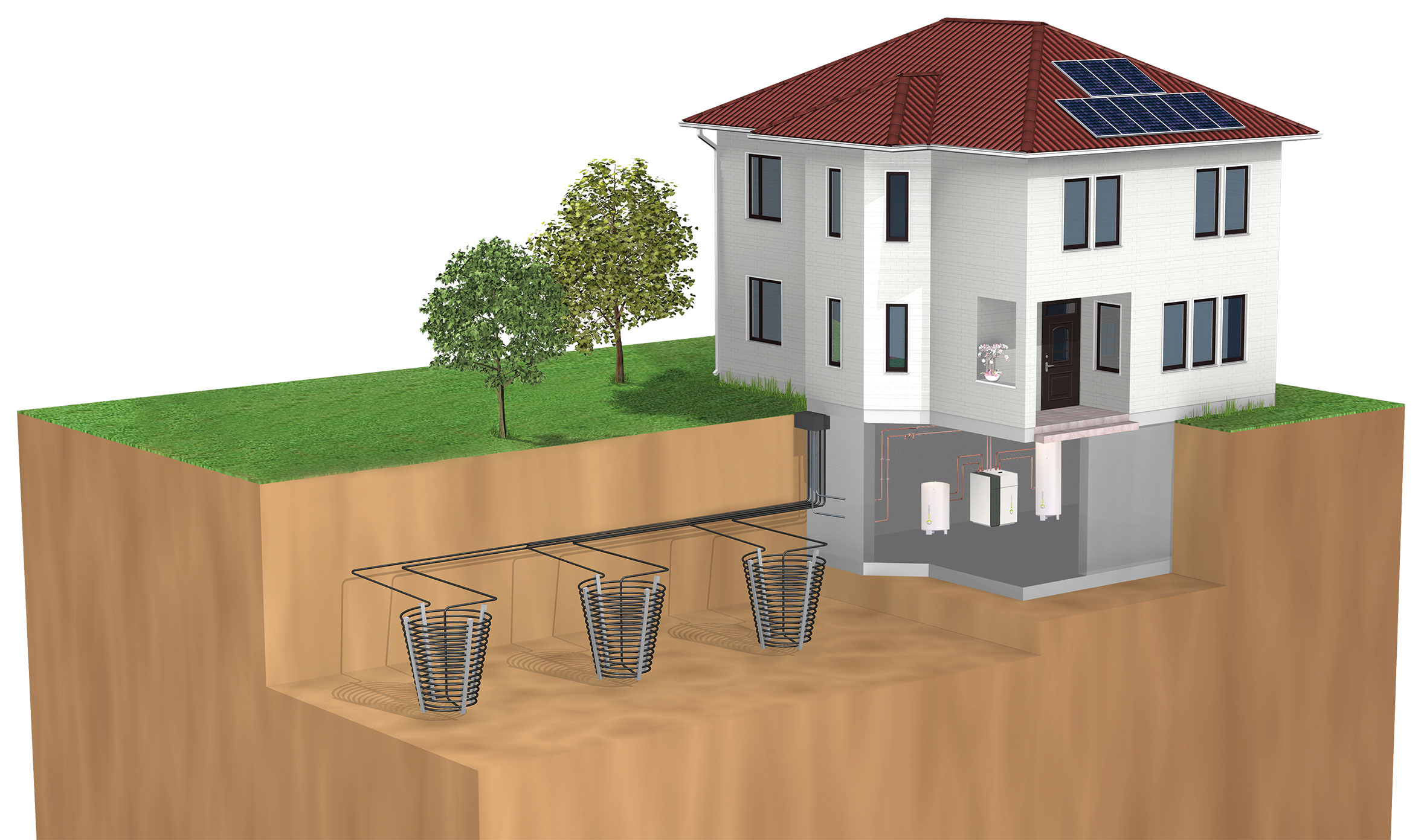

| Ground collector basket Eco (pipe metres 200 m, basket volume 8.1 m³, heat transfer medium 108 L) | BetaTherm GmbH & Co. KG Erdwärmekorb Eco | – | 2.7 m × 7 m, extraction capacity 1.6–2.0 kW | – | Wangen im Allgäu (manufacturing site) |
| Ground collector basket Maxi (pipe metres 150 m, basket volume 6.1 m³, heat transfer medium 84 L) | BetaTherm GmbH & Co. KG Erdwärmekorb Maxi | – | 2.4 m × 6 m (28 m), extraction capacity 1.1–1.5 kW | – | Wangen im Allgäu (manufacturing site) |
| Buffer & hot water tanks (developed for ecoforest heat pumps) | ecoforest | – | – | – | Lingen / Berlin |
Additional services
Quality
The heat pumps offered are BAFA-certified and listed. No further certificates are documented.
| Evidence | Lingen (Ems) |
|---|---|
| BAFA certification (heat pumps) |
History
- 2005
The partner BetaTherm has been on the market as a manufacturer of ground collector baskets; since then, over 30,000 baskets have been produced at the manufacturing site in Wangen.
- 2023
Special print of NDEWG in EEK Energy on the portfolio approach for deep geothermal projects (June 2023)
- 2025
NDEWG is awarded the geothermal licences "Burgwedel" and "Lingen II" by the LBEG (March 2025)
