Development and highly automated manufacturing of electric and mechatronic drive components from 10 W to 150 kW.
NIDEC MOTORS & ACTUATORS (GERMANY) GmbH
Bietigheim-Bissingen (Main Plant/European Headquarters) · Spain (Production) · Poland (Production)New on Amplifa
Company
NIDEC MOTORS & ACTUATORS (GERMANY) GmbH (NMA) develops and manufactures electric and mechatronic drive components for the automotive market as well as industrial applications. The range extends from micro drives for actuators and pumps at 10 W to electric traction motors with 150 kW. The focus is on Body/Comfort, Brakes and Steering, Powertrain, Thermal Management and Electromobility; in the industrial segment, brushless motors are offered for medical technology, building services, household appliances, HVAC and transport systems. Production is highly automated and integrates key processes such as laser welding, automated stator manufacturing with a high copper fill factor, test rig construction, collaborative robots and automated guided vehicles. The main plant and European headquarters are located in Bietigheim-Bissingen; two further production sites are located in Spain and Poland. Since 2007, the company founded in 1923 has belonged to Japan's NIDEC Corporation.
- Site
- Bietigheim-Bissingen
- Processes
- Manufacturing of electric and mechatronic drive components (motors 10W to 150kW), Laser welding (key process in production), Automated stator manufacturing (radial insertion of round wire slots, high copper fill factor), Vacuum leak testing (100% leak-proof), End-of-line testing for noise and electrical properties at all facilities, Test rig construction (excellent test rig construction as a key process), Sample construction / prototyping, Acoustics and EMC laboratory / EMC testing (CISPR Level 5)
- Materials
- Copper (stator winding), Copper, Permanent magnet rotor, Brushless DC motors
- Certificates
- IATF 16949:2016, ISO 9001, ISO 14001
- Founded
- 1923
- Industries
- , Industry, Medical and Rehabilitation, Building Services, Household Appliances, Heating/Ventilation/Air Conditioning
- 01
Engineering: design, simulation and software development
- 02
Sample construction / prototyping
- 03
Automated stator manufacturing and motor production (laser welding, assembly)
- 04

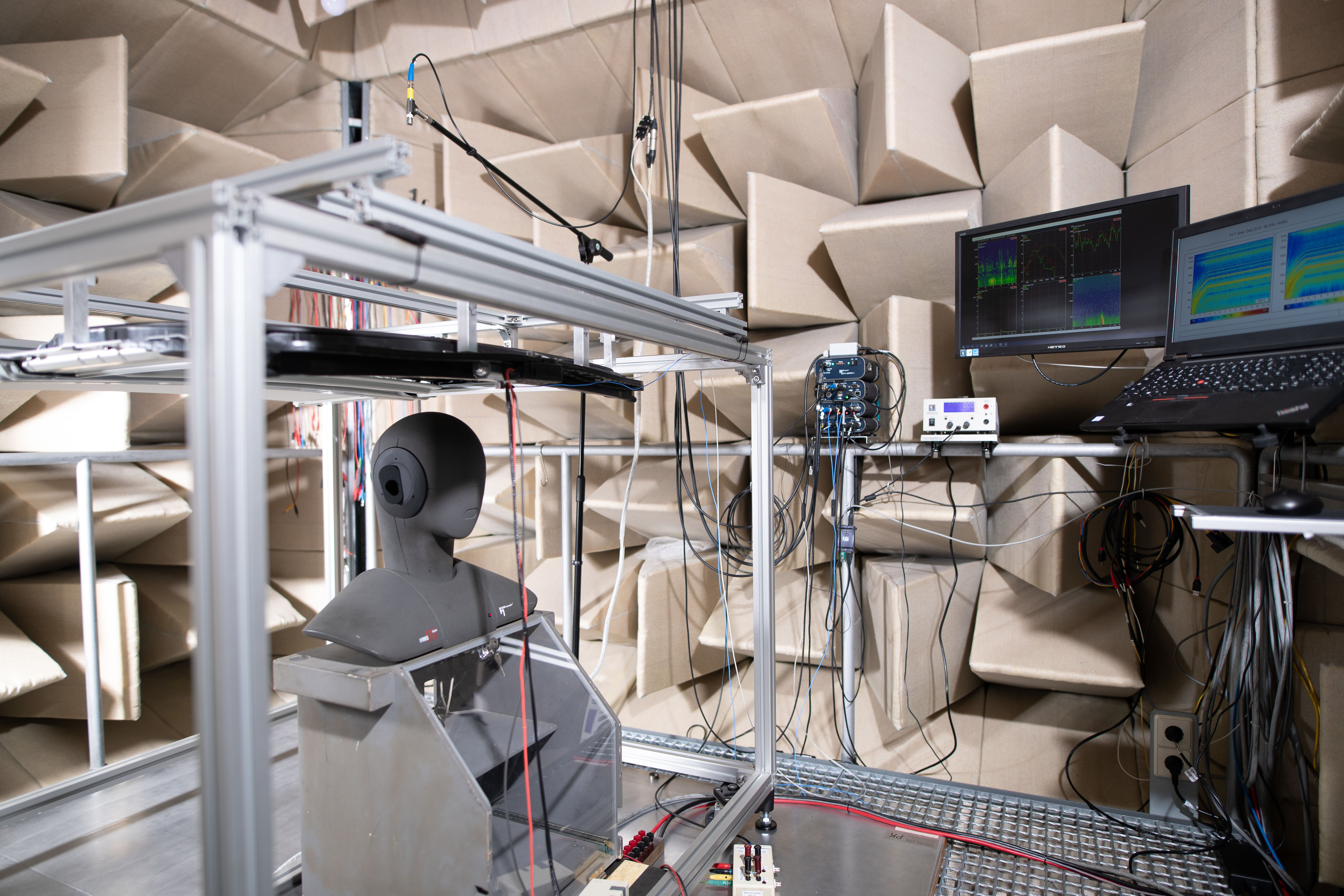

Test rig construction and acoustics/EMC laboratory
- 05
End-of-line testing (noise, electrical properties, vacuum testing)
- 06
Assembly and delivery
Materials and Processes
Copper

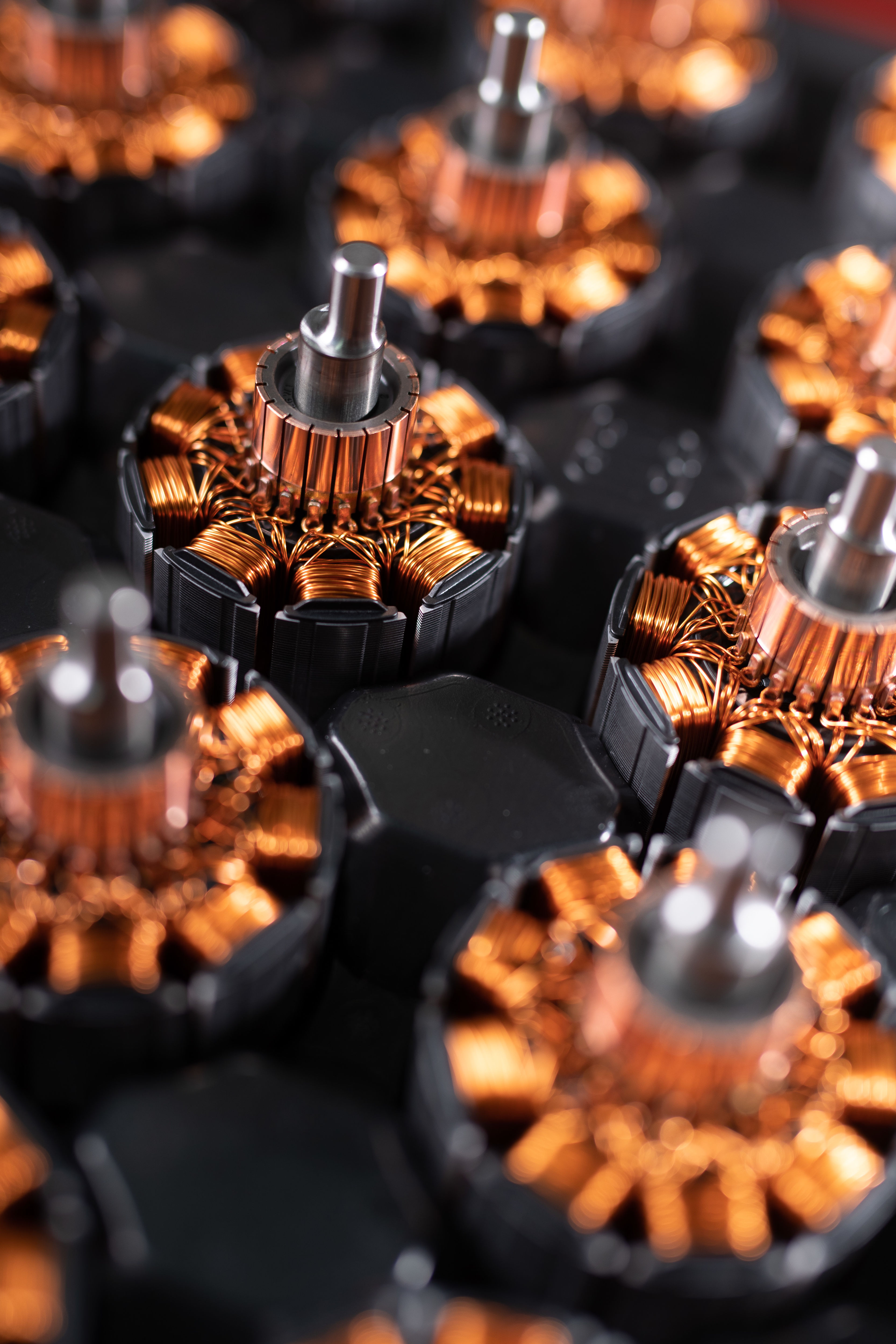

Stator windings with a high copper fill factor achieved by radially inserting round wire slots.
Permanent magnet rotor
Design with permanent magnet rotor for high efficiency in a compact form.
Brushless DC motors

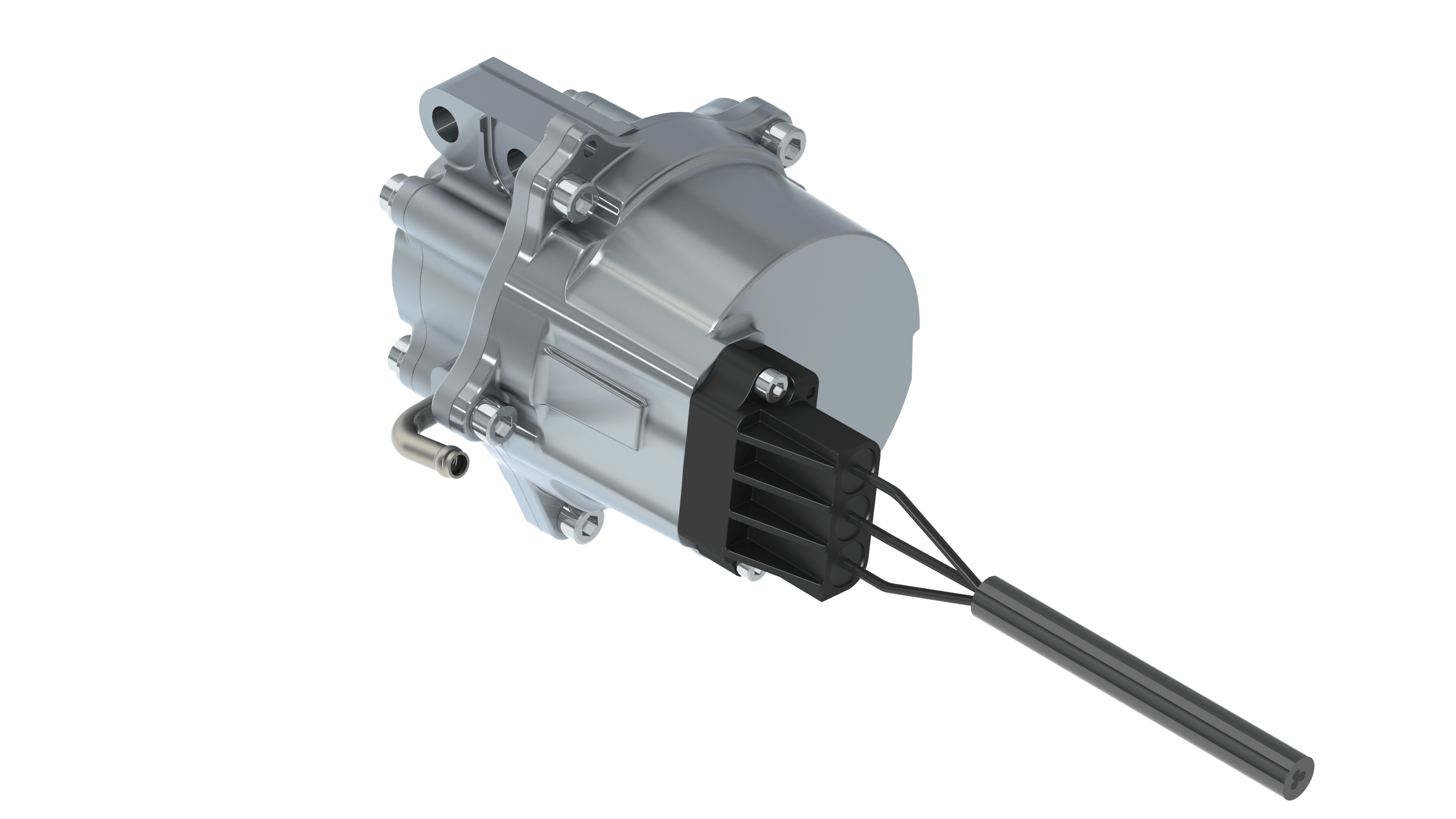

Platform motors 12V/300W to 48V/1500W for drivetrain and motor cooling.
Sites

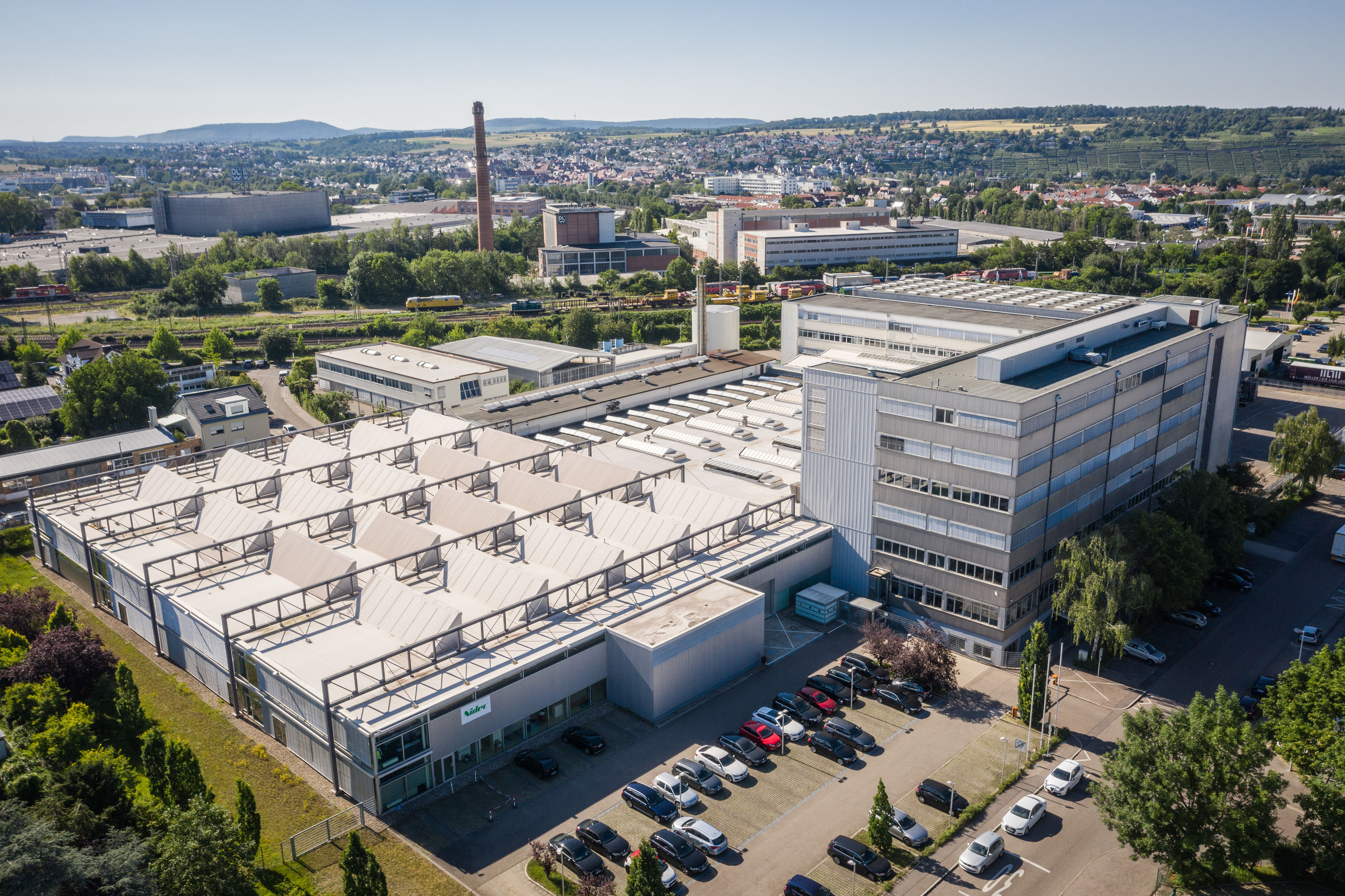

Bietigheim-Bissingen
DEMain Plant / European Headquarters
- Collaborative robots
- Automated guided vehicle system (AGV)
- Machine data acquisition systems
- Test rigs
Spain
ESProduction site
Poland
PLProduction site
Drive Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Manufacturing of electric and mechatronic drive components (motors 10W to 150kW)Assembly | – | – | – | – | Copper |
| Laser welding (key process in production)Joining | – | – | – | – | – |
| Automated stator manufacturing (radial insertion of round wire slots, high copper fill factor)Assembly | – | – | – | – | Copper |
| Vacuum leak testing (100% leak-proof)Testing | – | – | – | – | – |
| End-of-line testing for noise and electrical properties at all facilitiesTesting | – | – | – | – | – |
| Test rig construction (excellent test rig construction as a key process)Testing | – | – | – | – | – |
| Sample construction / prototypingAssembly | – | – | – | – | – |
| Acoustics and EMC laboratory / EMC testing (CISPR Level 5)Testing | – | – | – | – | – |
| Research & development / simulation of complex systems with design softwareEngineering | – | – | – | – | – |
4 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Collaborative robots | – | – | – | – | Bietigheim-Bissingen |
| Automated guided vehicle system (AGV) | – | – | – | – | Bietigheim-Bissingen |
| Machine data acquisition systems | – | – | – | – | Bietigheim-Bissingen |
| Test rigs | – | – | – | – | Bietigheim-Bissingen |
Additional services
Reference customers
Quality
The management system is certified to IATF 16949:2016 and is supported by CAQ and ERP systems. Every product undergoes 100% vacuum leak testing as well as end-of-line testing for noise and electrical properties at all facilities; the acoustics and EMC laboratory performs tests according to CISPR Level 5.
| Evidence | Bietigheim-Bissingen |
|---|---|
| IATF 16949:2016 | |
| ISO 9001 | |
| ISO 14001 |

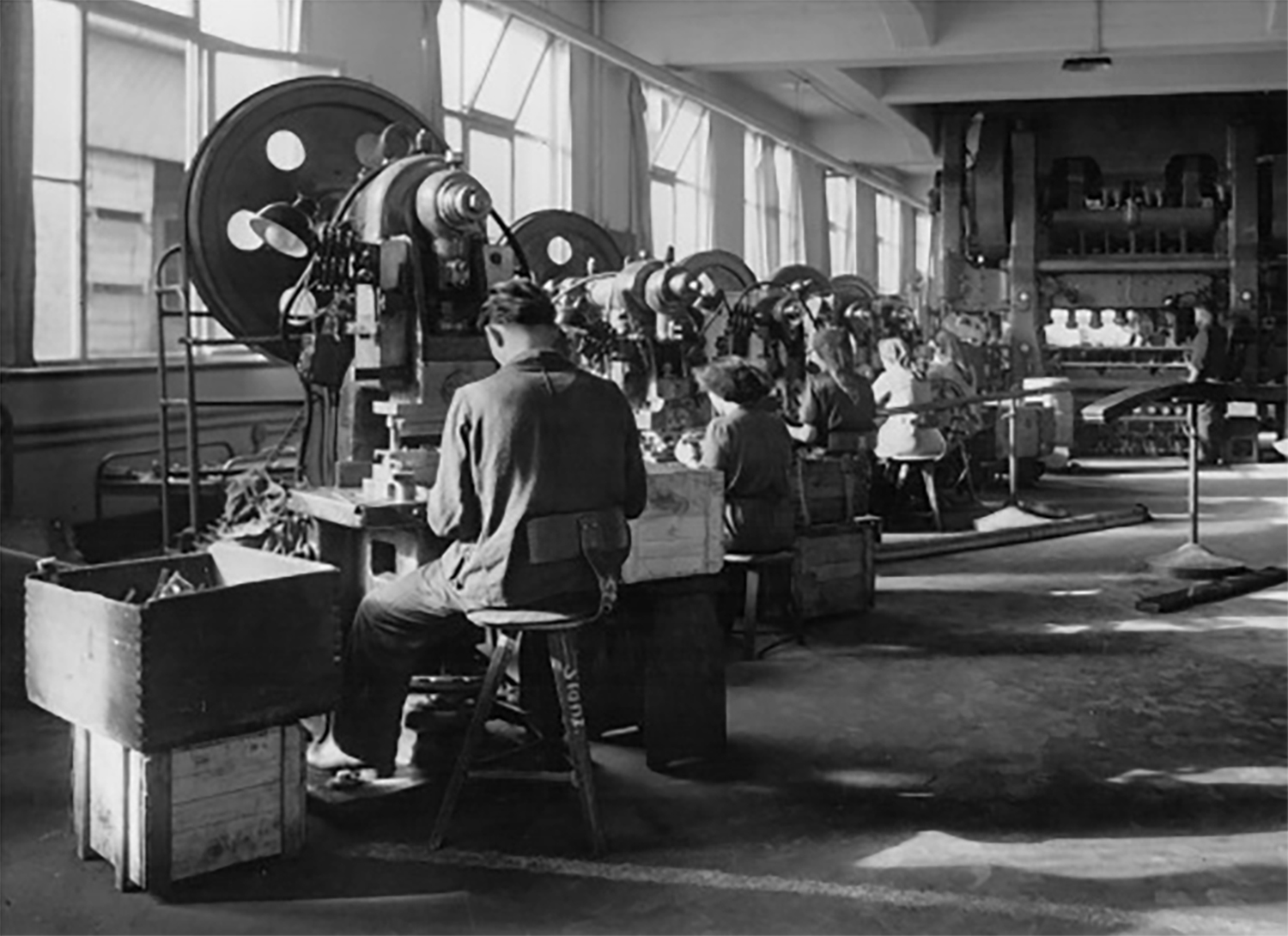

History
- 1923
Company founded; focus on electric vehicle technology with an emphasis on brushed motors.
- 2007
NMA became part of the Japanese NIDEC Corporation group.
