Seals, plastic parts and 3D printing from Hombrechtikon – production to drawing from one-offs to large series.
NT K+D AG
Hombrechtikon (Fabrikweg 10 – headquarters, administration, 3D printing) · Hombrechtikon (Grossacherstrasse 41 – production, warehouse sales, goods receiving)New on Amplifa
About NT K+D AG

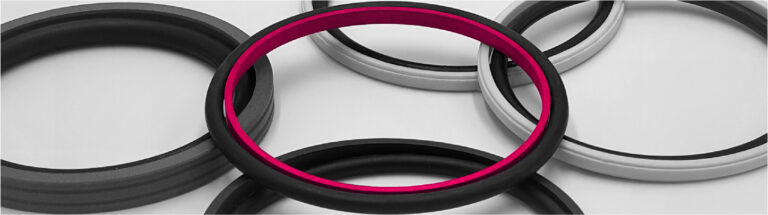

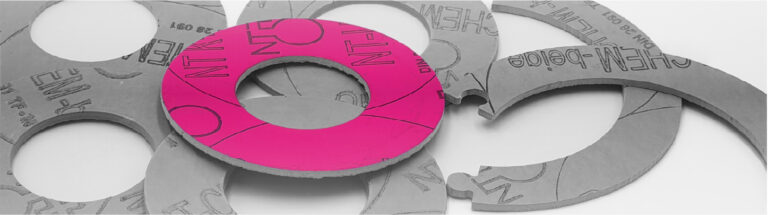

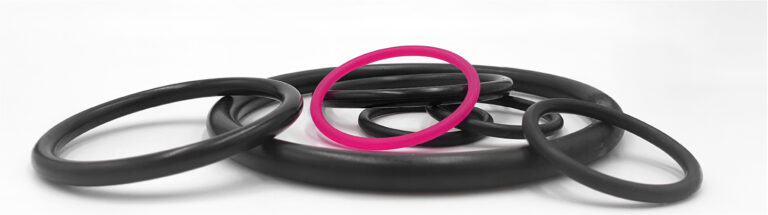

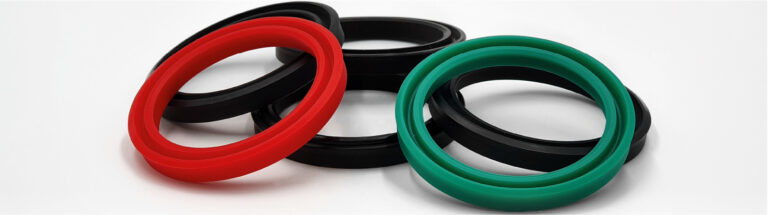

NT K+D AG in Hombrechtikon in the canton of Zurich is a company active in plastics and sealing technology for over 50 years. The company manufactures O-rings, flat gaskets, groove rings, NTH rings, shaft seals, spiral seals, jacketed seals, vulcanized endless rings, packings and turned plastic parts to drawing or sample – from one-offs to large series. The processes include CNC turning and milling, waterjet cutting, die-cut plotting, punching, injection molding of elastomers and thermoplastics, vulcanization of endless rings, fine braiding of packings and additive manufacturing including SLM steel printing in stainless steel 1.4404. Materials processed include PTFE materials, engineering thermoplastics such as PEEK and POM, elastomers such as FPM, NBR, EPDM, MVQ and FFKM as well as own flat gasket materials such as NT-Chem, NT-Flex and NT-Unit. An express service delivers spare parts within 60 minutes at the site or within 24 hours from production. The product range is aimed at power plant construction, chemicals, pharmaceuticals, mechanical engineering, sanitary applications, gas and water supply, food production as well as pneumatics and hydraulics. Production, warehouse sales and goods receiving are located at Grossacherstrasse 41; headquarters, administration and 3D printing at Fabrikweg 10.
- Site
- Hombrechtikon
- Processes
- CNC turning (turned parts from plastics and elastomers), Injection molding (elastomers/rubber and thermoplastics), Waterjet cutting, Die-cut plotting (plotter production), Punching, 3D printing (various additive processes incl. SLM steel printing, SLA/PolyJet, MJF, SLS), 3D scanning (objects up to 3 x 3 x 3 meters, CAD file creation), CAD drawing / design / modeling
- Materials
- PTFE materials (pure, filled, TFM 1600), FPM (fluoroelastomer), NBR (nitrile rubber), EPDM, Silicone / MVQ, FFKM (perfluoroelastomer), PEEK, Stainless steel 1.4404 / 3D-Stainless Steel 316L
- Certificates
- ISO 9001
- Industries
- Power plant construction, Heavy industry, Chemicals, Pharmaceuticals, Sanitary sector, Gas and water supply
- 01
CAD design / 3D scanning
- 02
Waterjet cutting, die-cut plotting, punching
- 03

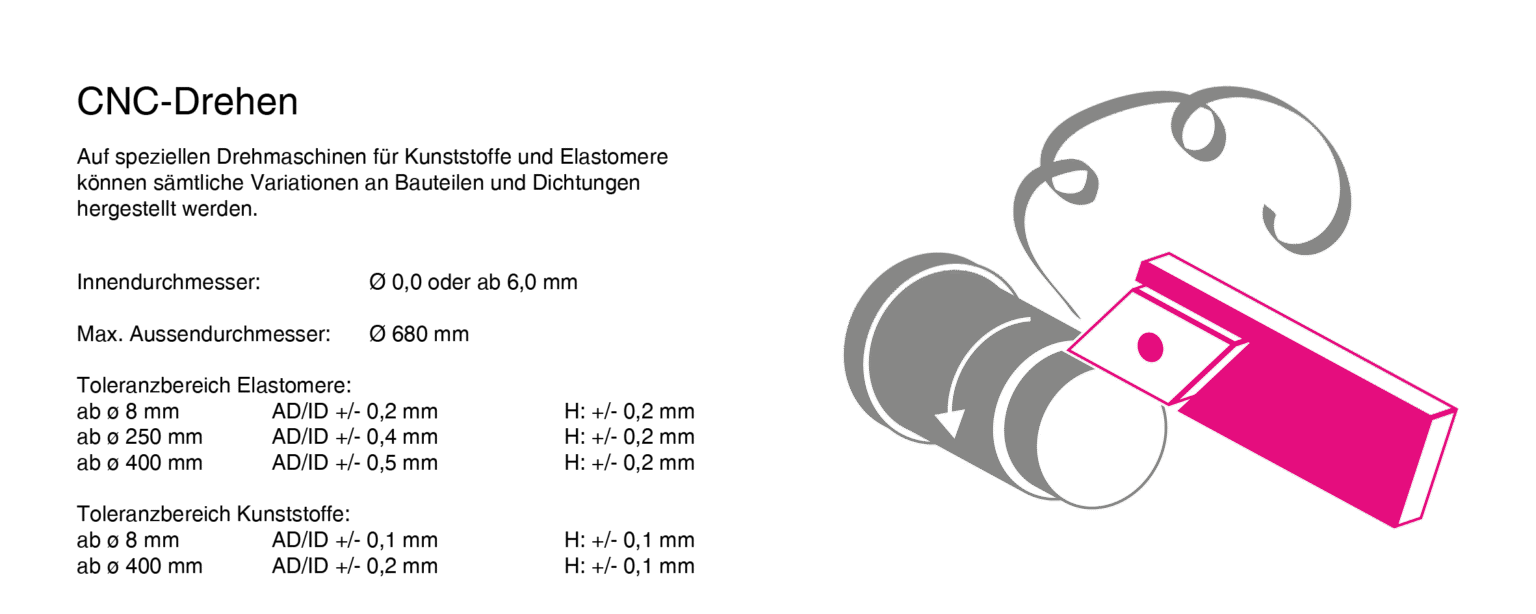

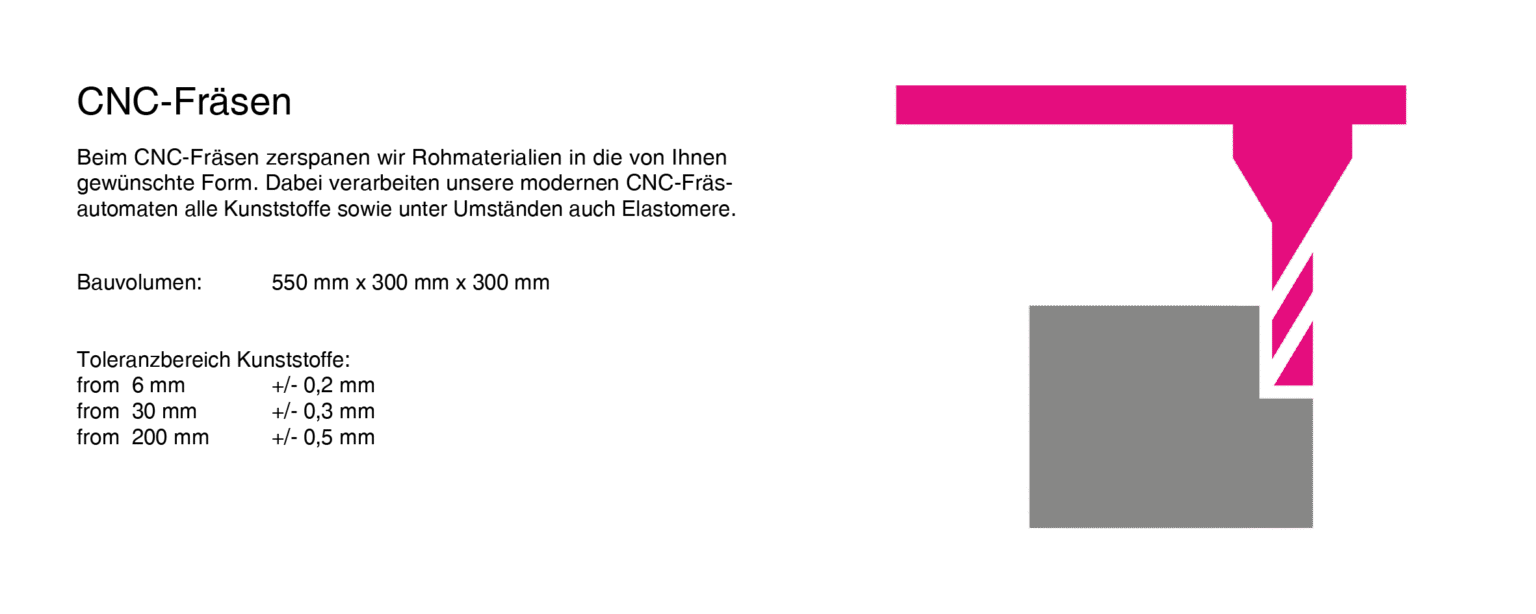

CNC turning and CNC milling
- 04
Injection molding / vulcanization / fine braiding
- 05
3D printing (SLM, SLA/PolyJet, MJF, SLS)
- 06
Assembly and on-site seal welding
- 07
Warehouse management and shipping
Materials and Processes
PTFE materials (pure, filled, TFM 1600)
Chemically universally resistant sealing and construction material, processable by waterjet cutting, plotting, CNC turning/milling and punching.
FPM (fluoroelastomer)
Heat- and chemically resistant elastomer for O-rings and seals in apparatus engineering.
NBR (nitrile rubber)
Oil- and abrasion-resistant elastomer for dynamic and static seals.
EPDM
Water- and steam-resistant elastomer, also available with FDA approval for food and pharmaceutical applications.
Silicone / MVQ
Temperature-resistant elastomer for O-rings, cords and overwhelming foam applications.
FFKM (perfluoroelastomer)
Fully fluorinated elastomer for the highest thermal and chemical requirements.
PEEK
High-temperature thermoplastic for demanding CNC turned parts and 3D printing.
Stainless steel 1.4404 / 3D-Stainless Steel 316L
Material for SLM steel printing in 3D printing.
Polyurethane / Thordon
Material for Welding Connects and plain bearing sealing systems.
Sites
Hombrechtikon – Fabrikweg 10
CHHeadquarters, administration, 3D printing
- 3D printing (SLM, PolyJet, MJF, SLS)
- 3D scanner (up to 3 x 3 x 3 m)
Hombrechtikon – Grossacherstrasse 41
CHProduction, warehouse sales, goods receiving
- Lot size
- One-offs to large series
- Materials
- Elastomers, plastics, fiber materials
- CNC lathes (plastic/elastomer)
- Waterjet cutting machine
- Die-cut plotter
- Punching equipment
- Injection molding machine
- Fine braiding machines
Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| CNC turning (turned parts from plastics and elastomers)Machining | Plastics: from ø 8 mm OD/ID ±0.1 mm / H ±0.1 mm; | 30 mm (height/CNC turning according to × Outer ø max. 680 mm | – | One-offs – Large series | PTFE, Elastomers, Thermoplastics, Thordon, PU |
| Injection molding (elastomers/rubber and thermoplastics)Plastics | – | – | – | – | Elastomer (rubber), Thermoplastic (plastic) |
| Waterjet cuttingMachining | Elastomers H 0.3–5 mm: ±0.2 mm / H ±10–20 %; plastics H | 2500 x 2000 mm (outer) × 2500 x 2000 mm (outer) × Plastic with water up to 8 mm / | – | – | PTFE, Flat materials, Fiber materials, Graphite (not waterjet-suitable according to brochure), Plastics |
| Die-cut plotting (plotter production)Machining | Elastomers H 0.3–3.0 mm: ±0.25 mm / H ±10–20 %; plastics | 1500 x 2000 mm (outer) × 1500 x 2000 mm (outer) × Plastic 0.5 mm / rubber 8 mm | – | – | Elastomers, Plastics, Fiber materials, PTFE, Flat gasket materials |
| PunchingForming | – | Sheet width plotted or × Sheets 1500 x 2000 mm | – | – | Elastomers, Plastics, Fiber soft materials, Non-metallic materials |
| 3D printing (various additive processes incl. SLM steel printing, SLA/PolyJet, MJF, SLS)Additive | – | – | – | – | Stainless steel 1.4404 / 3D-Stainless Steel 316L, PTFE, Resins/PolyJet, PA12 (SLS/MJF), TPU, PEEK, ULTEM/PEI, ABS, PC, PLA, PETG-ESD, PPSU, PSU, PPS, PVDF, PA6, SLM steel printing (1.4404) |
| 3D scanning (objects up to 3 x 3 x 3 meters, CAD file creation)Testing | – | 3 m × 3 m × 3 m | – | – | Capable of solid colors |
| CAD drawing / design / modelingEngineering | – | – | – | – | – |
| Seal welding/assembly on site (Welding Connects made of polyurethane)Assembly | – | no diameter limit according to brochure | – | – | Polyurethane |
| Vulcanization of endless rings from extruded elastomer cordsPlastics | – | – | – | – | Elastomers |
| Production of packing braids with fine braiding machinesJoining | – | – | – | – | – |

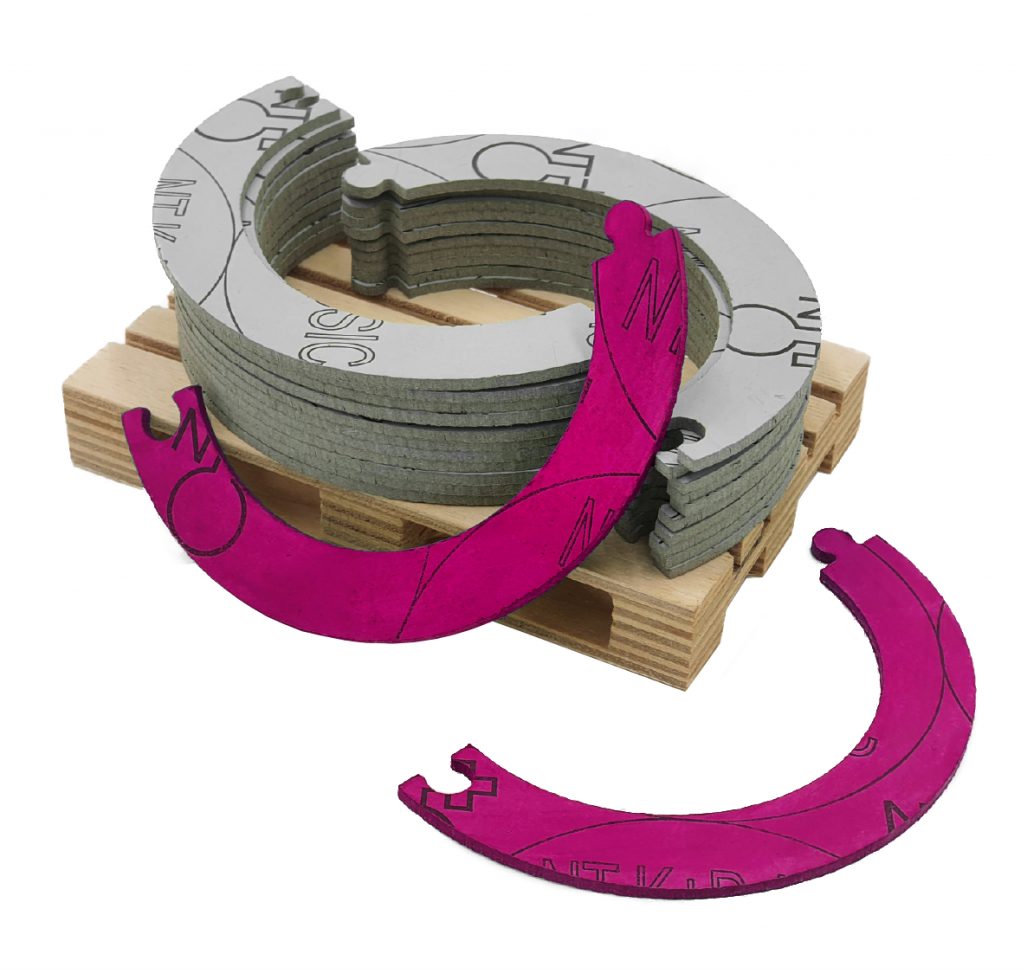

| Manufacture of oversized flat gaskets (up to over 10 m diameter, segmented)Plastics | – | up to over 10 m diameter | – | One-offs – Large series | NT Classic, NT Chem beige/blue, NT Flex, NT Unit, Novapress 850, Novamica, SSTC (Novaphit), FPM, MVQ, NBR, Pure PTFE, ePTFE, Graphite with expanded metal, Rubber |
| Seal production to drawing or sample (one-offs to large series)Plastics | – | – | – | One-offs – Large series | Plastics, Elastomers |
8 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| CNC lathes (turned parts from plastics and elastomers) | – | – | Inner ø max. 650 mm, outer ø max. 680 mm, height max. 30 mm | – | Hombrechtikon |
| Waterjet cutting machine (CNC waterjet) | – | – | Inner max. 1400 x 1400 mm, outer max. 2500 x 2000 mm; height plastic abrasive up to 25 mm, rubber 15 | – | Hombrechtikon |
| Die-cut plotter | – | – | Inner max. 1400 x 1900 mm, outer max. 1500 x 2000 mm; height plastic 0.5 mm, rubber 8 mm | – | Hombrechtikon |
| Punching equipment | – | – | Wall thickness max. 4 mm, inner ø max. 2 mm, outer ø max. 3 mm; height plastic 3 mm, rubber 8 mm | – | Hombrechtikon |
| 3D printing (various processes incl. SLM/PolyJet/MJF/SLS) | – | – | – | – | Hombrechtikon |
| 3D scanner | – | – | Objects up to 3 x 3 x 3 m | – | Hombrechtikon |
| Injection molding machine | – | – | – | – | Hombrechtikon |
| Fine braiding machines | – | – | – | – | Hombrechtikon |
Additional services
Quality
NT K+D AG is certified to ISO 9001 and, using a modern IT system, offers product traceability as well as suitable QM agreements.
| Evidence | Hombrechtikon |
|---|---|
| ISO 9001 |
History
- Über 50 Jahr
More than five decades of experience in elastomers and plastics
