CNC machining, mould and tool making as well as painting and printing of plastic and aluminium enclosures
Odenwälder Kunststoffwerke Gehäusesysteme GmbH – OBT Bearbeitungstechnik
Buchen (Friedrich-List-Straße 3)New on Amplifa
Machining and finishing service for enclosures and technical parts
OBT Machining Technology is a business unit of Odenwälder Kunststoffwerke Gehäusesysteme GmbH based in Buchen (Baden-Württemberg). The company accompanies products from development and design with 3D CAD, via in-house mould and tool making with injection moulding tools for pilot, small and medium series, through to the manufacture of plastic and aluminium parts. The machining service includes CNC milling, thread milling, engraving, drilling, countersinking, sawing and punching as well as EDM with start-hole drilling and wire EDM machines for electrically conductive materials such as steel, copper, brass and aluminium. In the field of surface finishing, painting in customer colours, screen, pad and digital printing in photo quality up to 1800x1800 dpi, decorative films, laser marking and EMC aluminium coating are offered; assembly and kitting including component procurement round off the portfolio. Customers are primarily the electrical and electronics industry as well as medical technology, e.g. the qubeAIRFLOW ventilation sensor enclosure for SKILLQUBE.
- Site
- Buchen
- Processes
- CNC milling, Thread milling, Engraving, Drilling, Countersinking, Sawing, Punching, Start-hole EDM
- Materials
- ABS, ASA+PC, ASA+PC-FR, PC, PA, PA GF, Aluminium, Copper
- Certificates
- 3D touch probes (Renishaw) on all CNC machines, Laser marking water-/wipe-resistant, Wire EDM up to Ra 0.1
- Industries
- Electrical and electronics industry, Medical technology (simulation training, clinical and preclinical care), Enclosure systems for technical devices, Medical technology (clinical and preclinical care/simulation training)
- 01
Development and design (3D CAD)
- 02

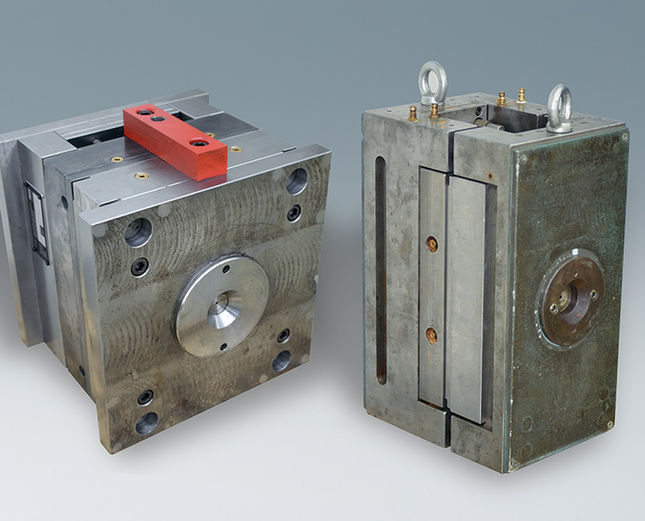

Mould and tool making
- 03
Injection moulding / parts production
- 04

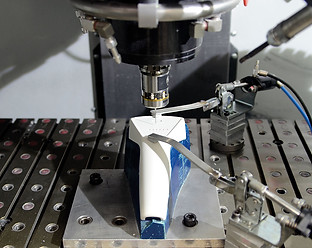

CNC machining and EDM
- 05

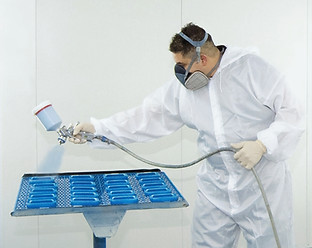

Painting, printing, laser marking, EMC shielding
- 06
Kitting and assembly
Materials and processes
Polycarbonate (PC)
For enclosure parts, suitable for laser marking through a colour change on the surface.
ABS
Standard material for enclosures, well suited to laser marking.
ASA+PC
Weather-resistant blend for enclosure components with laser marking.
ASA+PC-FR
Flame-retardant blend for electronic applications.
Polyamide (PA)
Engineering plastic for functional parts, laser markable.
Glass-fibre reinforced polyamide (PA GF)
Reinforced material for high-stress technical parts.
Aluminium
For CNC machining, laser marking and EMC aluminium coating.
Steel
Electrically conductive, machinable in the EDM process with various hardness levels.
Copper
Conductive material for electrical discharge machining and tooling.
Brass
Material for EDM applications, also used as EDM wire Ø 0.25 mm.
Location
Buchen
DEHeadquarters, machining centre, tool and mould making, injection moulding and finishing
- Part weight / size
- Wire EDM up to 200 kg workpiece weight (max. 700 x 450
- Lot size
- Pilot, small and medium series
- Materials
- Plastics (ABS, PC, PA etc.), aluminium, steel, copper, brass
- CNC milling machines with Renishaw 3D touch probes

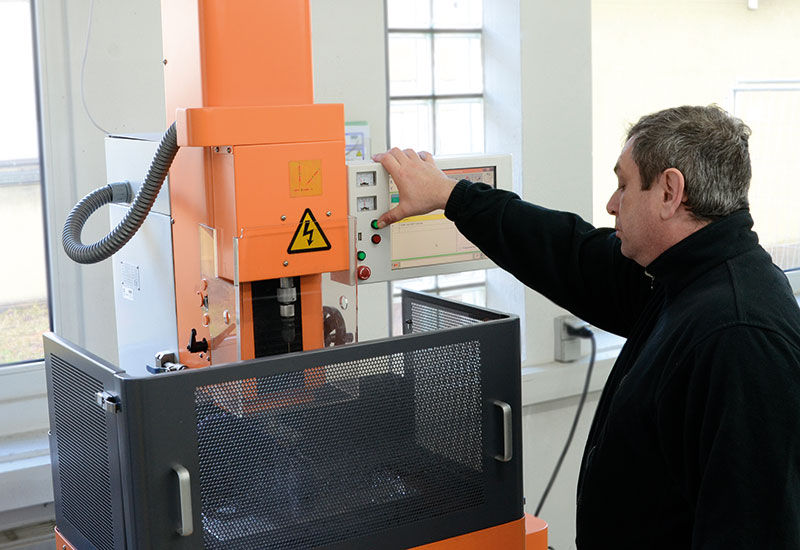

- Start-hole EDM machine GF EDM Drill 20 (workpieces up to 400 x 300 x 200 mm, 300 kg)
- Wire EDM machine AGIE Classic 2 (700 x 450 mm, 200 kg, Ra 0.1)
- Marking laser

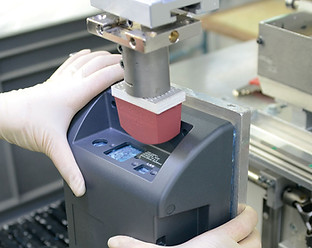

- Pad printing machine
- Injection moulding machines
- Dust extraction/air humidification system
Components and services
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| CNC millingMachining | – | – | – | – | Plastic, Aluminium |
| Thread millingMachining | – | – | – | – | Plastic, Aluminium |
| EngravingMachining | – | – | – | – | Plastic, Aluminium |
| DrillingMachining | – | – | – | – | Plastic, Aluminium |
| CountersinkingMachining | – | – | – | – | Plastic, Aluminium |
| SawingMachining | – | – | – | – | Plastic, Aluminium |
| PunchingForming | – | – | – | – | Plastic, Aluminium |
| Start-hole EDMMachining | – | 400 × 300 × 200 | 300 kg | – | various materials with different |
| Wire EDMMachining | Ra 0.1 | 700 × 450 | 200 kg | – | electrically conductive materials (steel, aluminium, copper, |
| PaintingSurface | – | – | – | – | – |
| Screen printingSurface | – | – | – | – | – |
| Pad printingSurface | – | – | – | – | – |
| Digital printing (printing in photo quality up to 1800x1800 dpi, height difference up to 2.5 mm)Surface | – | – | – | – | – |
| Decorative film finishingSurface | – | – | – | – | – |
| Laser markingSurface | – | – | – | – | ABS, ASA+PC, ASA+PC-FR, PC, PA, PA GF, Aluminium |
| EMC aluminium coating (EMC shielding)Surface | – | – | – | – | – |
| Kitting / assembly work (including component procurement)Assembly | – | – | – | – | – |
| Mould making / manufacture of injection moulding tools for pilot, small and medium seriesTool making | – | – | – | – | – |
| Development and design of product solutions (3D CAD engineering)Engineering | – | – | – | – | Plastic, Aluminium |
6 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Start-hole drilling machine / EDM machine | GF EDM Drill 20 | – | Travel paths 300 x 200 x 300 mm (X/Y/Z); machining of workpieces up to 400 x 300 x 200 mm (L x W x | – | Buchen, Germany |
| Wire EDM machine | Agie Classic 2 | – | Travel paths 350 x 250 x 150 mm (X/Y/Z); max. workpiece size 700 x 450 mm; max. workpiece weight 200 | – | Buchen, Germany |
| CNC milling machines with 3D touch probes | Renishaw (probes) | several | – | – | Buchen, Germany |
| Marking laser | – | – | – | 2024 | Buchen, Germany |
| Pad printing machine | – | – | – | 2024 | Buchen, Germany |
| Injection moulding machines (manufacture of plastic parts within the in-house tool making | – | – | – | – | Buchen, Germany |
Additional services
Reference customers

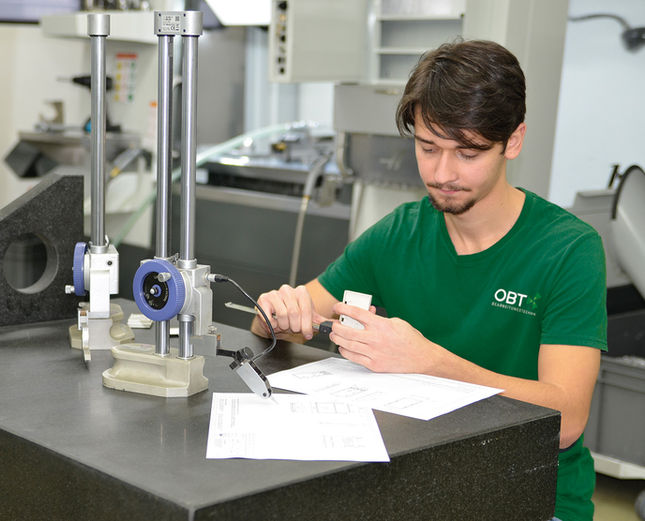

Quality and metrology
The entire CNC machine fleet is equipped with Renishaw 3D touch probes, with which parts are measured in the X, Y and Z directions prior to mechanical reworking. This shortens setup times, reduces scrap and ensures consistent machining quality without expensive clamping fixtures.
| Evidence | Buchen |
|---|---|
| 3D touch probes (Renishaw) on all CNC machines | |
| Laser marking water-/wipe-resistant | |
| Wire EDM up to Ra 0.1 |
Company history
- 2022
Equipping of the entire CNC machine fleet with Renishaw 3D touch probes for shorter setup times and precise measurement.
- 2022
Expansion of the machine fleet with the GF EDM Drill 20 start-hole EDM machine and the AGIE Classic 2 wire EDM machine.
- 2022
Introduction of laser marking for plastic parts and aluminium, including for QR codes and sequential markings.
- 2023
Expansion of the colour spectrum with fluorescent and luminous colours for printing.
- 2024
New marking laser and pad printing machine commissioned.
- 2024
Development of the customised qubeAIRFLOW enclosure solution for the ventilation sensor of SKILLQUBE GmbH.
- 2025
Investment in a dust extraction/air humidification system in the production area.
