OELZE Präzisions-Messzeugfabrik GmbH

About OELZE

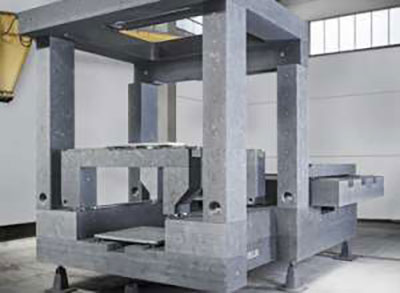

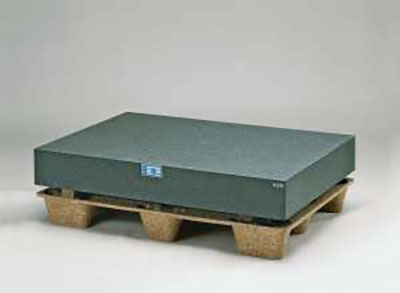

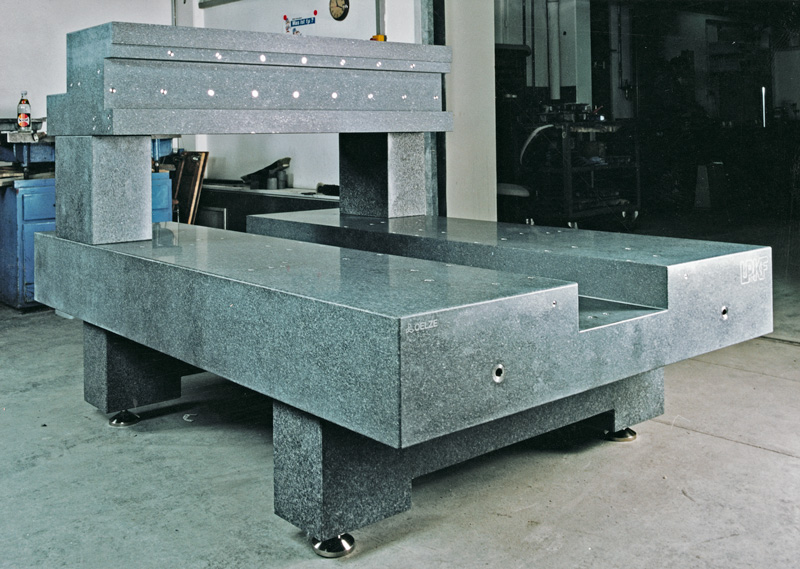

OELZE Präzisions-Messzeugfabrik GmbH from Aschaffenburg manufactures precision measuring instruments and components made from hard rock (granite) as well as from metal. The standard program includes hard rock measuring plates with accessories, measuring straight edges, 90° squares, precision measuring tables, clamping angles and clamping cubes made from grey cast iron as well as prism pairs. In addition, the company realizes special constructions made from granite – base bodies, assemblies and components for precision and special machines, in one example up to 6500 x 2580 x 2600 mm and approx. 17000 kg with mounting surface accuracies below 0.005 mm. Processing includes sawing, grinding of the side surfaces and lapping of the surfaces; tolerances for flatness, parallelism, squareness and roundness are possible from 1.5 μ (grade 000). All measuring plates are delivered with traceable test certificates. In addition, OELZE offers a mobile on-site service for calibration, rework and refurbishment of measuring table plates and hard rock products as well as cleaning and care products. Customers come from mechanical engineering, precision metrology, testing/inspection and assembly and control technology. The family-owned business is run in the 4th generation and trains its employees itself.

Site

Aschaffenburg

Processes

Manufacture of precision measuring instruments made from hard rock (granite): measuring plates,, Special constructions made from granite: base bodies, assemblies and components for precision, Calibration and rework of granite measuring plates, mobile on-site service: refurbishment and, Lapping of hard rock surfaces (measuring plate surface lapped), Grinding of side surfaces (measuring plate side surfaces ground), Manufacture of precision measuring tables made from hard rock and clamping angles/cubes made from, Calibration and rework of granite measuring plates (mobile on-site service), Refurbishment and reworking of measuring table plates

Materials

Granite (hard rock, blue-black), Grey cast iron, Steel (steel inserts, T-slot rails, sheet steel construction), Hard rock (blue-black), Steel / sheet steel, Sawing, Grinding, Lapping

Certificates

Accreditation (formerly DKD) of the calibration laboratory, Accreditation of calibration department (formerly DKD, since 1994), Traceable test certificates

Industries

Mechanical engineering, Precision metrology, Testing/inspection/Laboratories, Assembly and control technology

1. 01

   Purchase of raw granite from long-standing upstream suppliers

2. 02

   Sawing of the underside or blanks

3. 03

   Grinding of the side surfaces

4. 04

   Lapping of the surfaces

5. 05

   Fitting of steel inserts/T-slot rails and accessories

6. 06

   Inspection with traceable test certificate

7. 07

   Calibration/rework incl. mobile on-site service

Materials & Processes

Locations

Aschaffenburg

DE

Headquarters / Production / accredited calibration laboratory

Part weight / size

up to approx. 17,000 kg (special construction);

Lot size

Standard program and custom-made pieces

Materials

Granite (hard rock), grey cast iron, steel

• Calibration department (accredited, formerly DKD)
• Lapping and grinding processing for hard rock
• Mobile on-site calibration equipment

Components & Products

Inside the production

Processes & technical limits

Quality & Accreditation

All measuring plates are delivered with a test certificate that is traceable to national standards. The calibration department has been accredited since 1994 (formerly DKD).

History

1. 1926

   The Oelze family starts in the woodworking machinery segment

2. 1950er

   Establishment of the OELZE name as a manufacturer of precision measuring instruments made from hard rock (granite)

3. 1994

   Accreditation of the calibration department (formerly DKD)

4. Heute

   Family-owned business managed in the 4th generation
