About Oxni
Oxni GmbH, based in Winterthur, is a distributor and consulting provider for electric drive technology and automation. The company distributes components from renowned manufacturers, including permanent-magnet synchronous servomotors (Kollmorgen AKM2G), rotary direct drives and torque motors (CDDR), AC gearmotors, planetary and industrial gearboxes, battery-powered servo drives (VEICHI SD100), servo amplifiers, frequency inverters as well as precision linear actuators with ball screws and linear motors. The portfolio also includes real-time automation software under Windows. The company's own webshop gives machine builders direct access to technical information, availability and prices. In addition, Oxni offers application consulting, drive sizing, parameterization, support and commissioning assistance, as well as guides and a wiki for drive selection. Its customers are found in mechanical engineering, automation, robotics (including mobile robotics AGV/AMR), the packaging and machine tool industries, semiconductor manufacturing and medical technology.
- Site
- Winterthur
- Processes
- Sales of linear technology (precision linear actuators, linear motors), Sales of drive technology (servomotors, direct drives, torque motors, gearmotors), Sales of control technology (servo amplifiers, frequency inverters), Drive sizing and consulting (application consulting, sizing support), Real-time automation software (SHA real-time extension under Windows), Consulting and drive sizing, Support and commissioning assistance, Parameterization
- Materials
- Permanent-Magnet Synchronous Servomotors, Rotary Direct Drives and Torque Motors, AC Gearmotors, Planetary Gearboxes, Spur, Worm, Flat and Bevel Gearboxes, Battery-Powered Servo Drives, Servo Amplifiers, Frequency Inverters
- Employees
- 0-10
- Industries
- Mechanical engineering, Automation, Robotics, Packaging machinery, Machine tools, Semiconductor manufacturing
- 01
Consulting and drive sizing
- 02
Product selection and quotation via webshop
- 03
Parameterization and commissioning support
- 04
Support and documentation (guides, wiki, manuals)
Products and Technologies

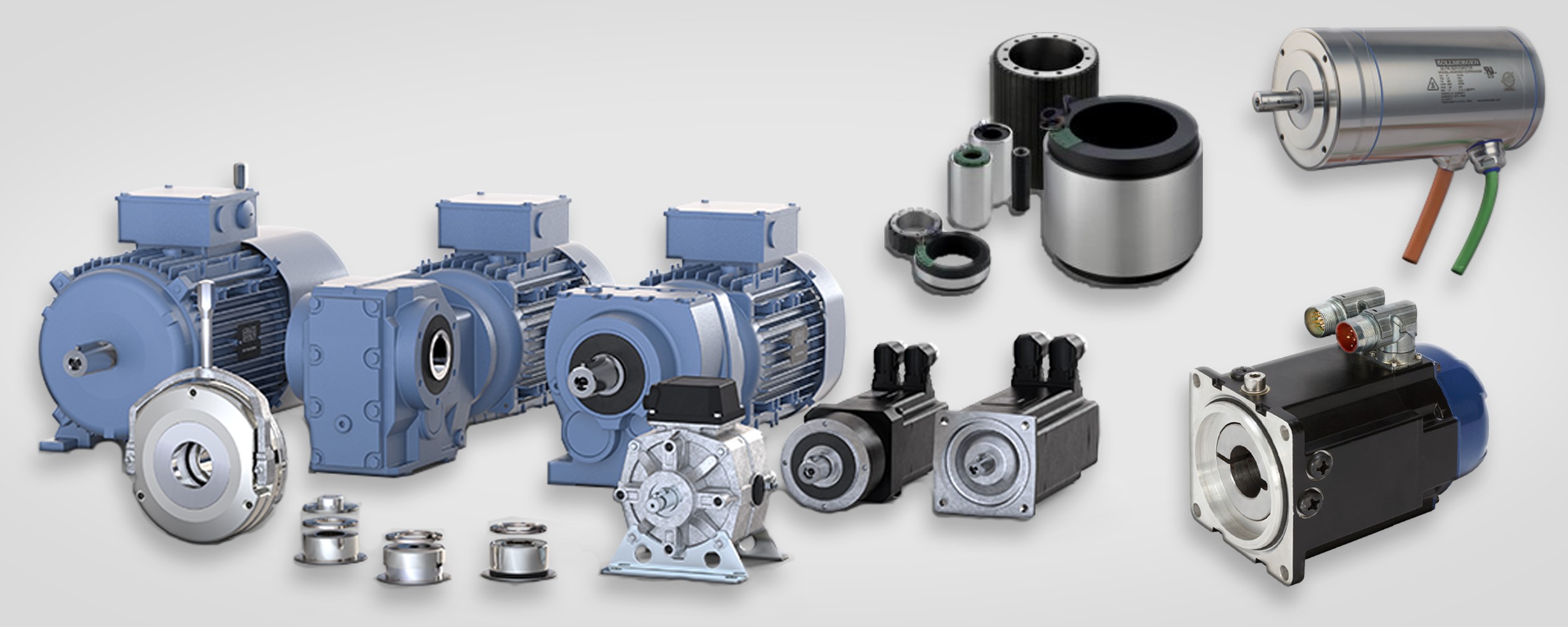

Permanent-Magnet Synchronous Servomotors
Servomotors with standard windings from 24VDC to 480VAC, optionally with FDA hygienically approved surfaces, brakes and protection classes IP65/IP69K.
Rotary Direct Drives and Torque Motors
Gearless direct drives as kit motors or with housing and integrated absolute rotary encoder for rotary tables and handling.
AC Gearmotors
Compact gearmotors with Z1 pinion or intermediate flange, optionally in ATEX versions.
Planetary Gearboxes
Rated torque 11–2'008 Nm, backlash from ≤1 arcmin, efficiency ≥97 %, gear ratios 3–100.
Spur, Worm, Flat and Bevel Gearboxes
Gearbox range for existing motors with gear ratios up to 1:3'000.
Battery-Powered Servo Drives
Servo amplifiers for 24–72 V DC, six sizes 14–80 A rated current, CANopen/EtherCAT/Modbus-RTU, 17-bit absolute encoder.

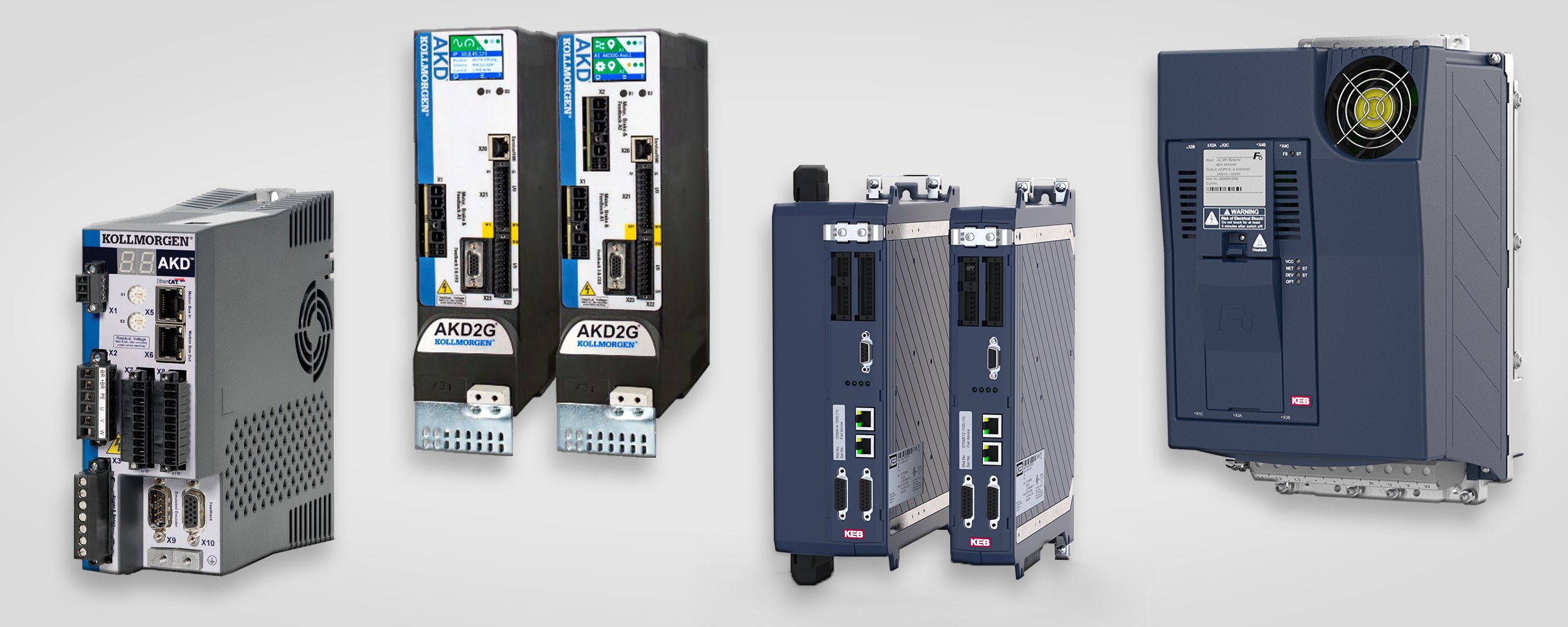

Servo Amplifiers
Drives from 3A to 570A rated output current up to 450 kW with integrated safety functions and decentralized versions.
Frequency Inverters
Inverters up to 450 kW rated power with SLS without encoder for various motor technologies.

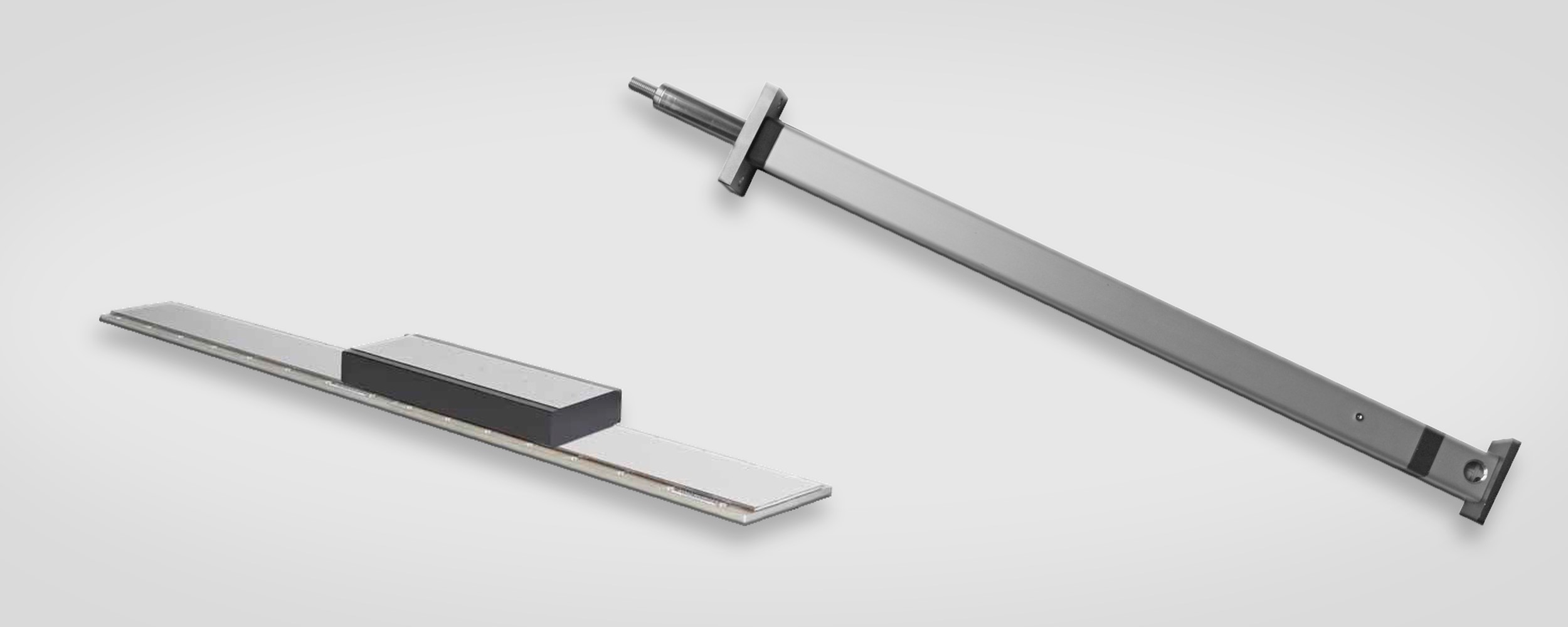

Precision Linear Actuators
Ball screw actuators with 120N–60'000N peak force, up to 8 m/s and repeatability from 0.05 mm.
Linear Motors
Ironless and iron-core versions, some with integrated water cooling, maintenance-free and low-noise.

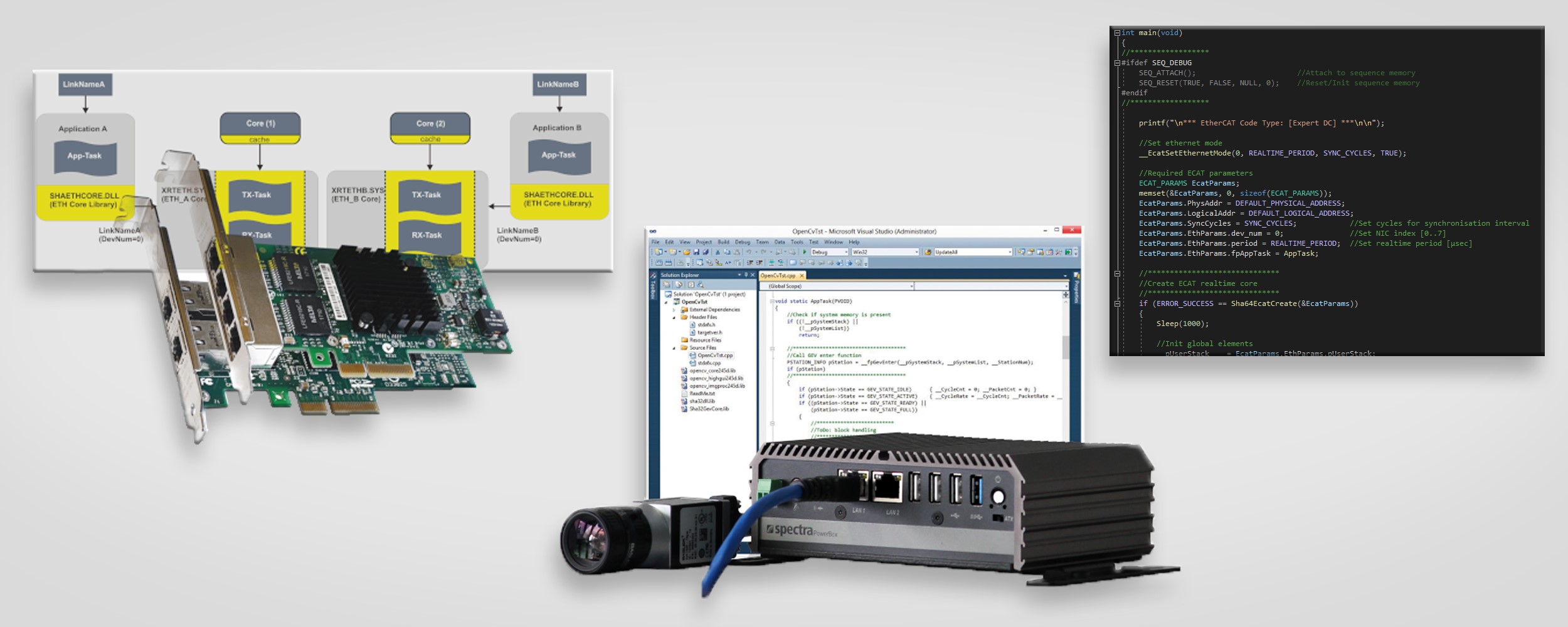

Real-Time Automation Software
Windows real-time extension with jitter < 3 µsec for deterministic control and automation applications.
Site
Winterthur
CHHeadquarters with sales, consulting and shop
- Webshop for drive, control and linear technology
- Technical documentation: guides, wiki, manuals
Product Areas
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Sales of linear technology (precision linear actuators, linear motors)Engineering | Repeatability of 0.05mm or better | From 100mm stroke length | 120N peak force – 60'000N peak force | – | – |
| Sales of drive technology (servomotors, direct drives, torque motors, gearmotors)Engineering | 20 arcseconds accuracy (4 arcminutes with gearbox) | – | 0.18Nm continuous holding torque – 12'800Nm continuous holding torque | – | – |
| Sales of control technology (servo amplifiers, frequency inverters)Engineering | – | – | 3A rated output current | – | – |
| Drive sizing and consulting (application consulting, sizing support)Engineering | – | – | – | – | – |
| Real-time automation software (SHA real-time extension under Windows)Engineering | Jitter < 3µsec | – | – | – | – |
11 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Servomotors (permanent-magnet synchronous servomotors) | Kollmorgen AKM2G series | – | 100W - 45kW rated power, 0.18Nm - 12'800Nm, 0-18'000rpm, 24VDC-480VAC | – | Winterthur |
| Rotary direct drives and torque motors (CDDR Cartridge Direct Drive Rotary) | Kollmorgen CDDR | – | Kit motor or with housing and integrated absolute rotary encoder | – | Winterthur |
| AC gearmotors | – | – | with Z1 pinion or intermediate flange and ASM, ATEX versions | – | Winterthur |
| Planetary gearboxes | GearKo Series 042 to 255 | – | – | – | Winterthur |
| Hollow-shaft rotary tables (TM series) | GearKo TM series | – | Crossed roller bearings, <1 arcmin backlash, ±10 arcsec repeatability | – | Winterthur |
| Servo drives (servo amplifiers, battery-powered) | VEICHI SD100 series | – | – | – | Winterthur |
| Servo amplifiers | – | – | 3A-570A rated output current, up to 450kW, 24VDC-480VAC, single- and multi-axis systems, | – | Winterthur |
| Frequency inverters | – | – | up to 450kW rated power, SLS without encoder, various motor technologies | – | Winterthur |
| Precision linear actuators (ball screws) | – | – | – | – | Winterthur |
| Linear motors | – | – | ironless and iron-core versions, integrated water cooling | – | Winterthur |
| Gearboxes (spur, worm, flat and bevel gearboxes) | – | – | Gear ratios up to 1:3'000 | – | Winterthur |
