Machines and complete lines for the production of tubes, packing, bundling and the processing of plastic closures.
PackSys Global AG
Rüti (CH-8630) · Haldenstein (7023)New on Amplifa
About PackSys Global
PackSys Global AG develops and manufactures machines and complete systems for the packaging industry. The portfolio includes tube machines and complete lines for laminate and extruded tubes, packing machines for packing, unpacking, bundling and palletizing tubes, monoblock aerosol cans and cartridges, as well as slitting and folding machines for plastic closures, including tethered cap technologies and inline inspection systems. The technologies cover the entire process: from side-seam welding of the tube body through tube shoulder forming and closure application to cartoning and palletizing. Customers come from the cosmetics, oral care, medical technology, and food & beverage industries; machines operate in over 90 countries. Founded in 1969, the company has around 300 employees, belongs to the Brückner Group, and is present with its headquarters in Rüti (Canton of Zurich) as well as a site in Haldenstein. A technology center (KREA LAB) with a machine and testing laboratory supports customers in developing new materials and packaging concepts.
- Site
- CH-8630 Rüti
- Processes
- Side-seam welding of laminate tubes (overlap), NEOSeam – side-seam welding without overlap, Co-seaming – welding/bonding thin laminate with a detachable paper layer, Molding of tube shoulders, Molding of tube shoulder and closure in a single molding operation (noSho), Closure application (screwing/pressing on of closures), Tube shoulder sealing (die-cut foil, heat and pressure), Inline inspection of tubes
- Materials
- Laminate (PBL/ABL), Paper, Extruded plastics (PE), Aluminium, PET, PCR (Post Consumer Recycled plastic), Plastic (closures), Cartonboard
- Founded
- 1969
- Employees
- 300
- Industries
- Packaging industry, Cosmetics, Oral Care, Medical technology, Food & Beverage
- 01
Engineering & development
- 02
Manufacturing of machine components
- 03
Assembly of machines and lines
- 04
Testing in the testing laboratory
- 05
Commissioning & integration into customer lines
- 06
Service, retrofits & spare parts
Materials & Processes
Laminate (PBL/ABL)
Processed in tube machines and complete lines for laminate tubes.
Extruded plastics (PE)
Base material for extruded tubes in the Prestige and Focus series.
Aluminium
Processing of aluminium tubes and monoblock aerosol cans in packing machines.
PET
Processing of PET closures in slitting and folding machines.
PCR plastic (Post Consumer Recycled)
Processing of recycled plastics, including in the PCR noSho tube.
Paper
Used in co-seaming and the Detachable Tube with a detachable paper layer.
Cartonboard
Processing of cardboard and plastic cartons in packing and palletizing machines.
Sites
Rüti
CHHeadquarters, development and manufacturing of tube machines, packing machines, slitting and folding machines
- Materials
- Laminate, plastic, cartonboard
- Seamer series (MiniSeamer, SmartSeamer, BeautySeamer, FlexSeamer, SpeedSeamer)
- Prestige series (Prestige 20/30/40/45)
- Mini 300
- Focus series + SHOT

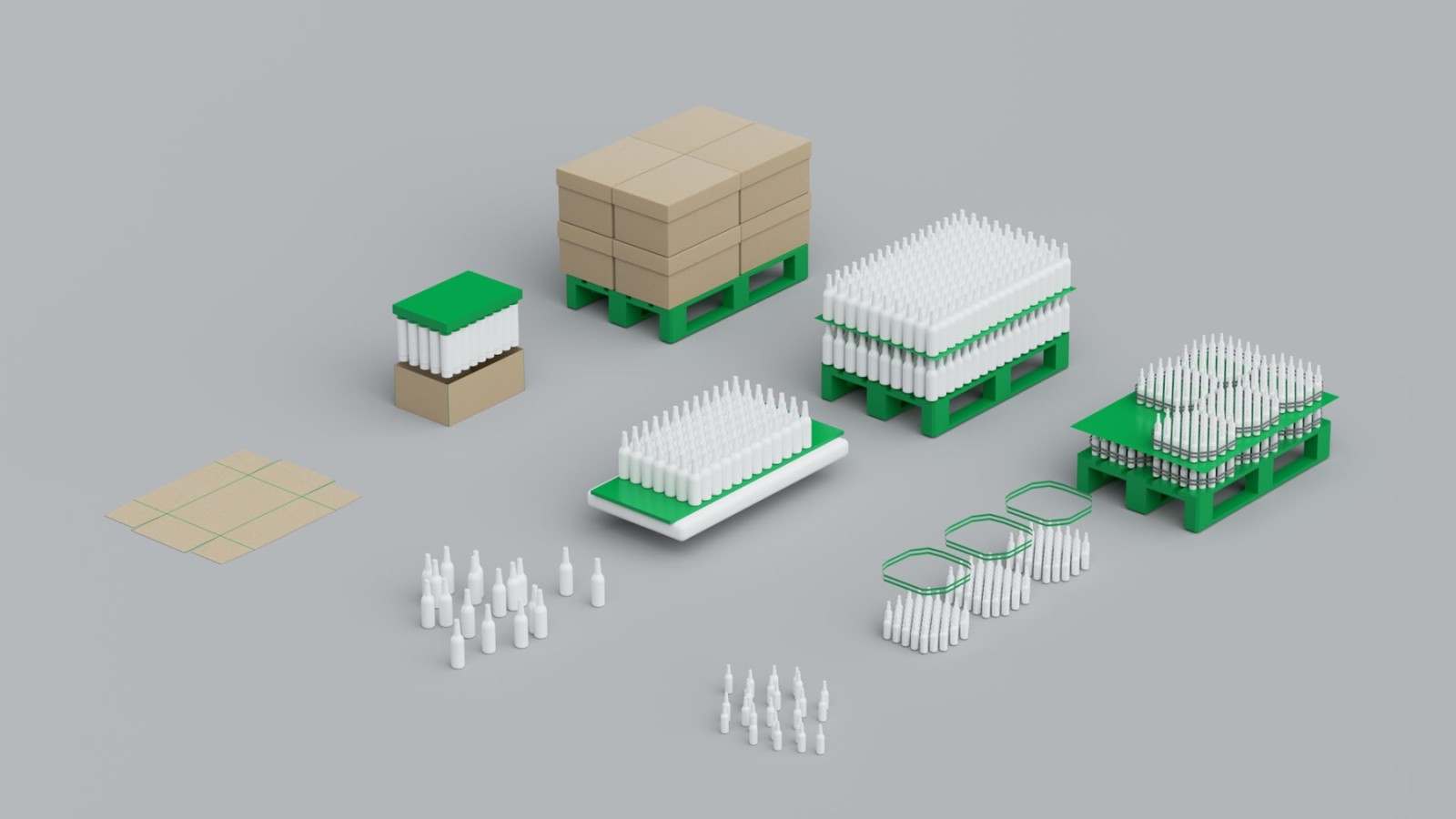

- Master series packing machines (MiniMaster, CoreMaster, AluMaster, FlexMaster, SpeedMaster)
- BoxButler
- LineButler
- MSM, MFM, TEM, TEM plus, TEM max, SPM
- capLAB
- KREA LAB (machine and testing laboratory)

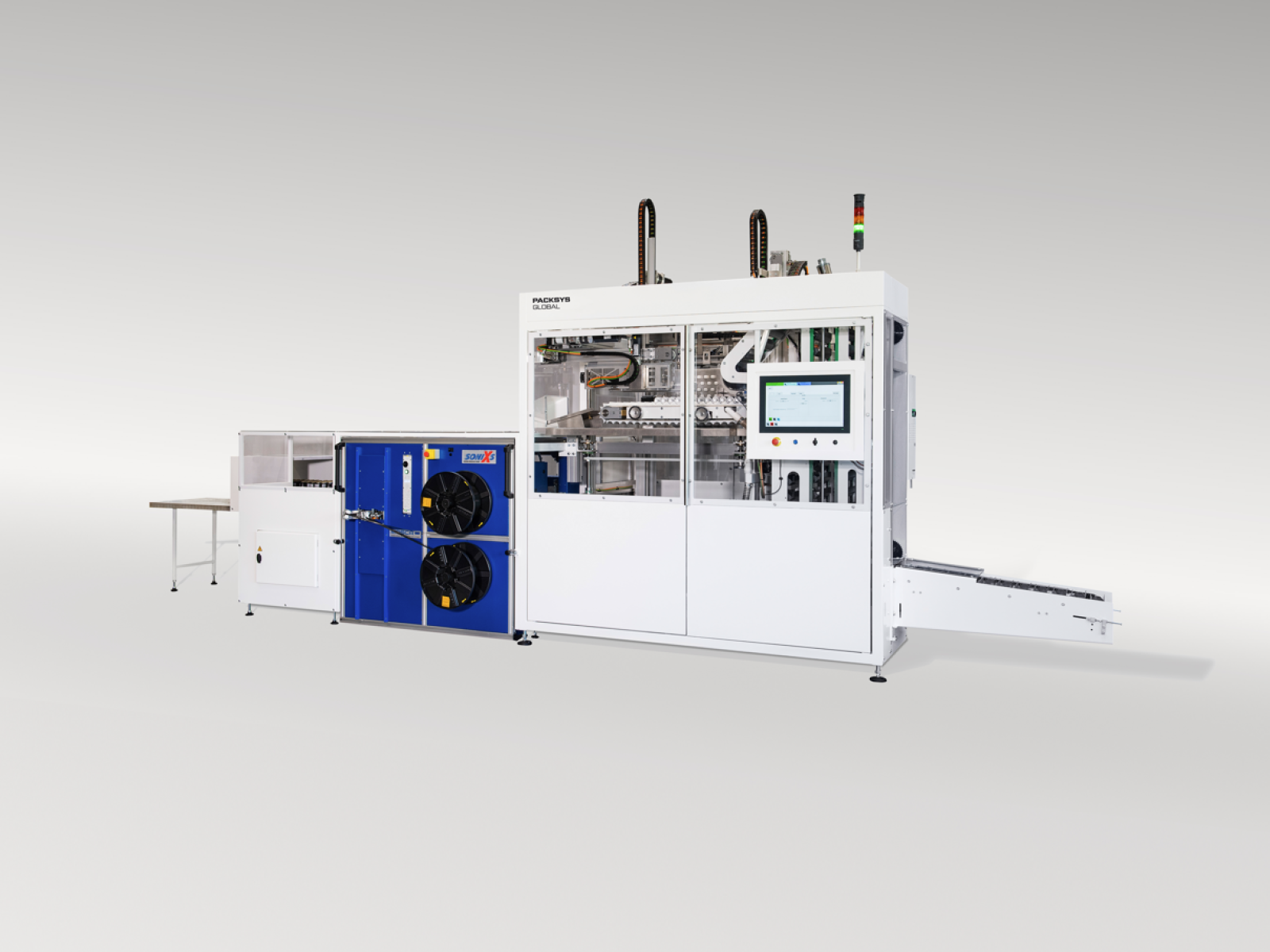

Haldenstein
CHPacking machines site (bundling, palletizing, inspection of cans and cartridges)
- Materials
- Aluminium, plastic
- CanMaster
- CanButler
- CanLAB
- CartridgeMaster
Machines & Systems
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Side-seam welding of laminate tubes (overlap)Joining | – | – | – | – | Laminate |
| NEOSeam – side-seam welding without overlapJoining | – | – | – | – | Laminate |
| Co-seaming – welding/bonding thin laminate with a detachable paper layerJoining | – | – | – | – | Laminate, Paper |
| Molding of tube shouldersPlastics | – | – | – | – | extruded plastics, Laminate |
| Molding of tube shoulder and closure in a single molding operation (noSho)Plastics | – | – | – | – | Plastic, PCR plastic |
| Closure application (screwing/pressing on of closures)Assembly | – | – | – | – | Plastic |
| Tube shoulder sealing (die-cut foil, heat and pressure)Joining | – | – | – | – | Plastic, Laminate |
| Inline inspection of tubesTesting | – | – | – | – | Laminate, extruded plastics |

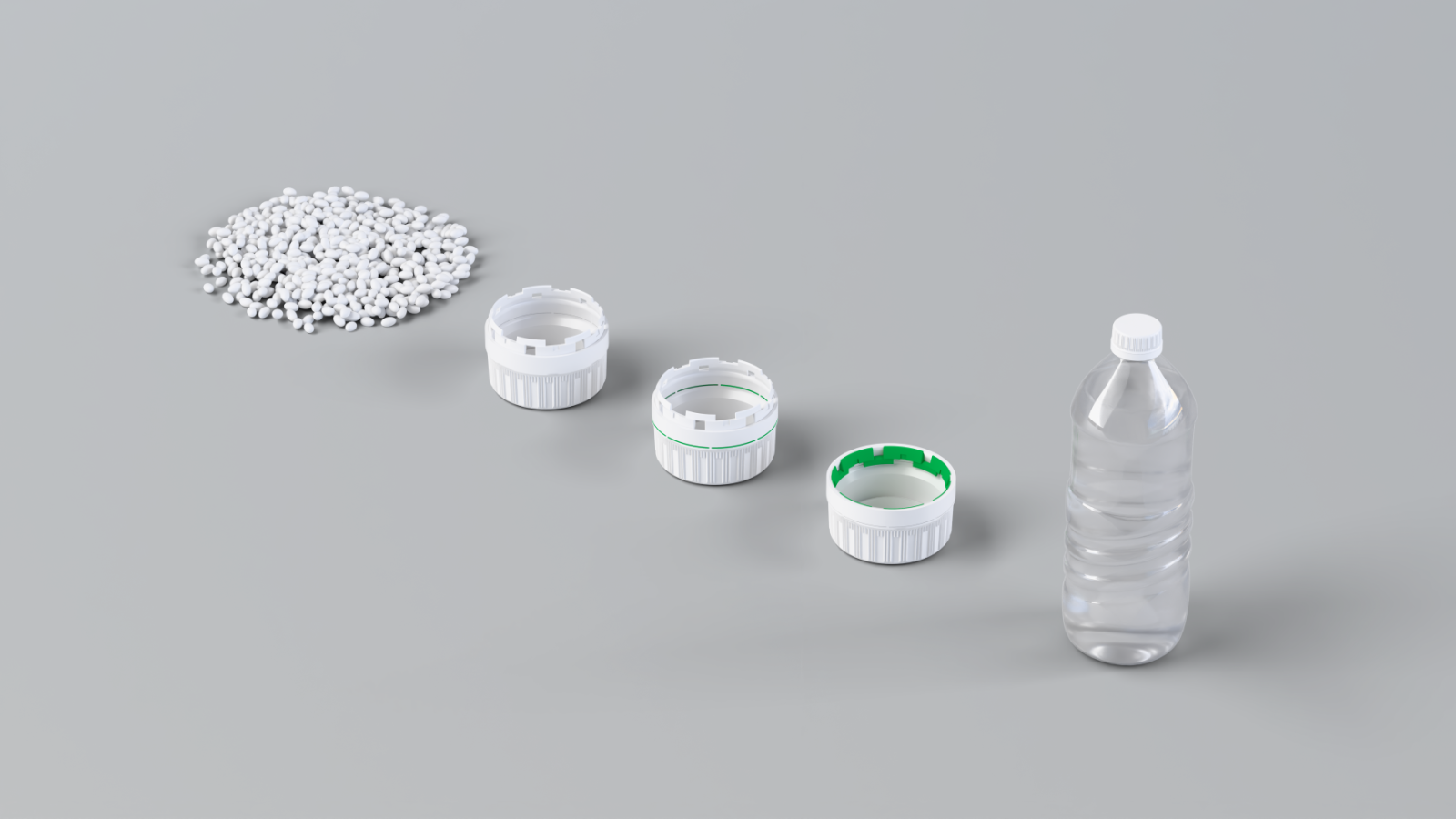

| Slitting of plastic closures (DURASLIT technology)Machining | – | Closure height 8-60mm | – | – | Plastic, PET |
| Folding of plastic closuresForming | – | – | – | – | Plastic |
| Inline inspection of closures (tear-off force, tightness)Testing | – | – | – | – | Plastic |
| Tethered cap slitting (experTether, smarTether, CapCompass)Machining | – | – | – | – | Plastic, PET |
| Packing tubes into cartonsAssembly | – | – | – | – | Cartonboard, Plastic |
| Unpacking tubes from cartonsAssembly | – | – | – | – | Cartonboard, Plastic |
| Bundling of cans (strapping)Assembly | – | 60 – 290mm | – | – | Aluminium, Monoblock aerosol cans |
| Erecting cartonsAssembly | – | – | – | – | Cartonboard, Plastic |

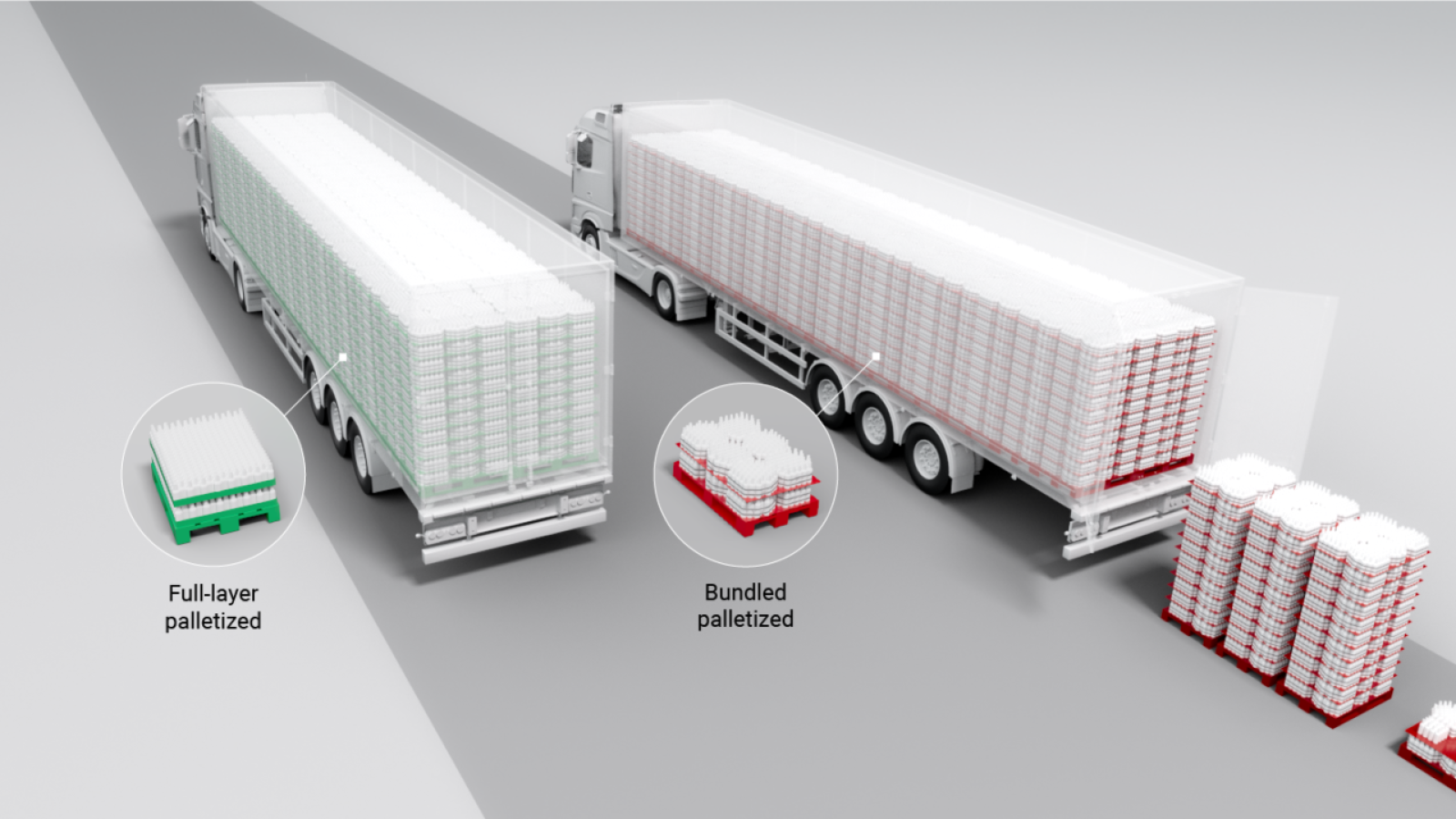

| Palletizing cartons (end-of-line)Assembly | – | 600x430x180mm | – | – | Cartonboard, Plastic |
| Inspection of cansTesting | – | – | – | – | Aluminium |

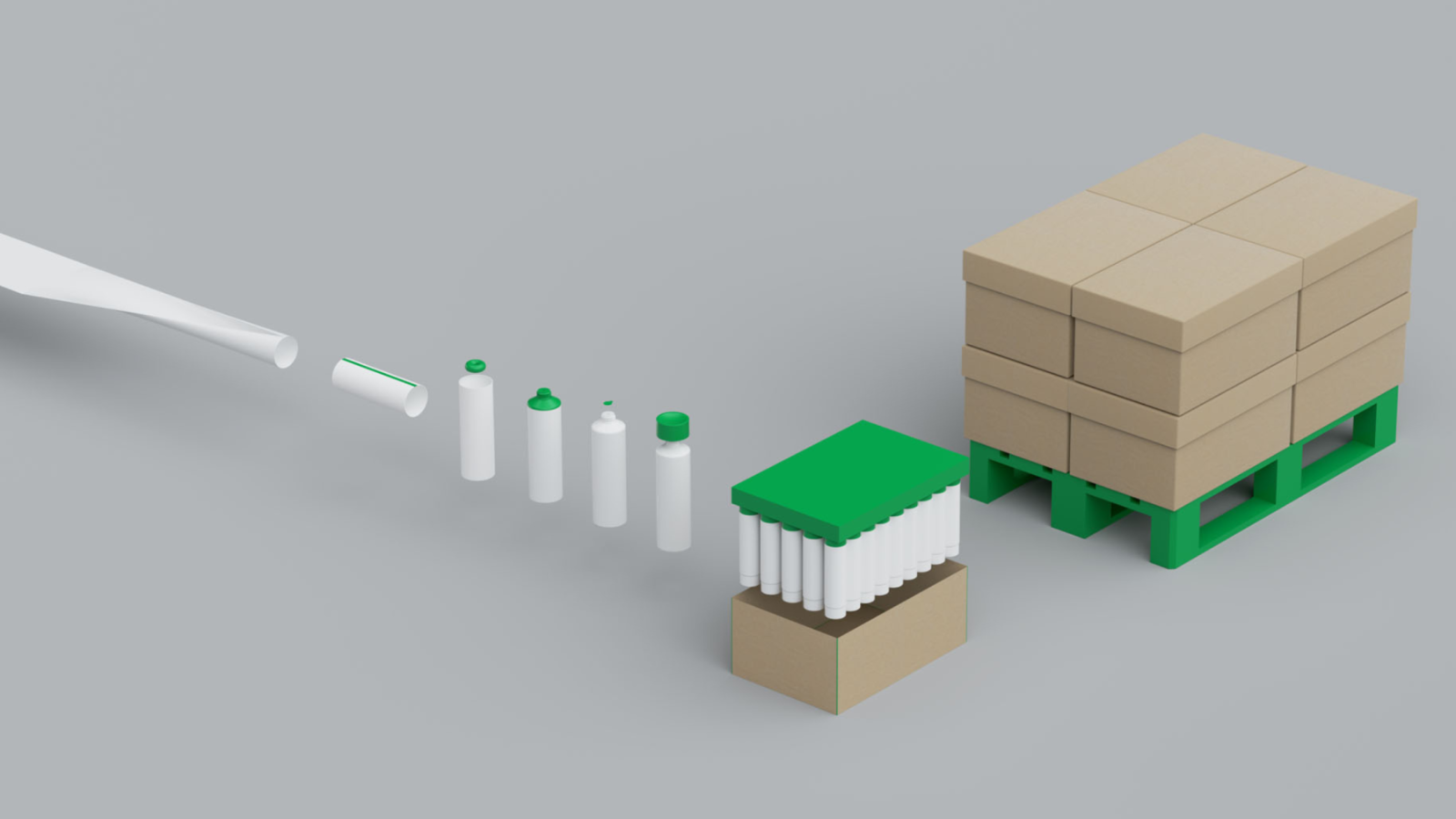

| Tube line: welding of tube body, tube shoulder forming, closure application, packingEngineering | – | – | – | – | Laminate, extruded plastics, Aluminium |
| Retrofit, upgrade and spare parts supplyEngineering | – | – | – | – | – |
| Testing laboratory and machine laboratory tests (KREA LAB)Testing | – | – | – | – | – |
28 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Side-seam welding machine | PackSys Global MiniSeamer | – | – | – | Rüti |
| Side-seam welding machine | PackSys Global SmartSeamer | – | Tube diameter 16-60mm, length 60-220mm | – | Rüti |
| Side-seam welding machine | PackSys Global BeautySeamer | – | Tube diameter 19-63.5mm, length 60-240mm | – | Rüti |
| Side-seam welding machine | PackSys Global FlexSeamer | – | Tube diameter 19-40mm, length 80-200mm | – | Rüti |
| Side-seam welding machine | PackSys Global SpeedSeamer | – | Tube diameter 16-38mm, length 80-200mm | – | Rüti |
| Tube shoulder forming and closure screwing machine | PackSys Global Prestige 20 | – | Tube diameter 13.5-63.5mm, length 50-220mm | – | Rüti |
| Tube shoulder forming and closure screwing machine | PackSys Global Prestige 30 | – | Tube diameter 13.5-63.5mm, length 50-220mm | – | Rüti |
| Tube shoulder forming and closure screwing machine | PackSys Global Prestige 40 | – | Tube diameter 13.5-63.5mm, length 50-220mm | – | Rüti |
| Tube shoulder forming and closure screwing machine | PackSys Global Prestige 45 | – | Tube diameter 13.5-63.5mm, length 50-220mm | – | Rüti |
| Tube shoulder forming and closure screwing machine | PackSys Global Mini 300 | – | Tube diameter 16-22mm, length 60-140mm | – | Rüti |
| Tube shoulder forming and closure screwing machine | PackSys Global Focus 40 | – | Tube diameter 16-50mm, length 60-220mm | – | Rüti |
| Tube shoulder forming and closure screwing machine | PackSys Global Focus 80 | – | Tube diameter 19-40mm, length 80-200mm | – | Rüti |
| Tube shoulder forming and closure screwing machine (line) | PackSys Global SHOT | – | Tube diameter 16-38mm, length 80-200mm | – | Rüti |
| Packing machine (packing tubes) | PackSys Global MiniMaster | – | Tube diameter 10-25mm, carton max 600x400x180mm | – | Rüti |

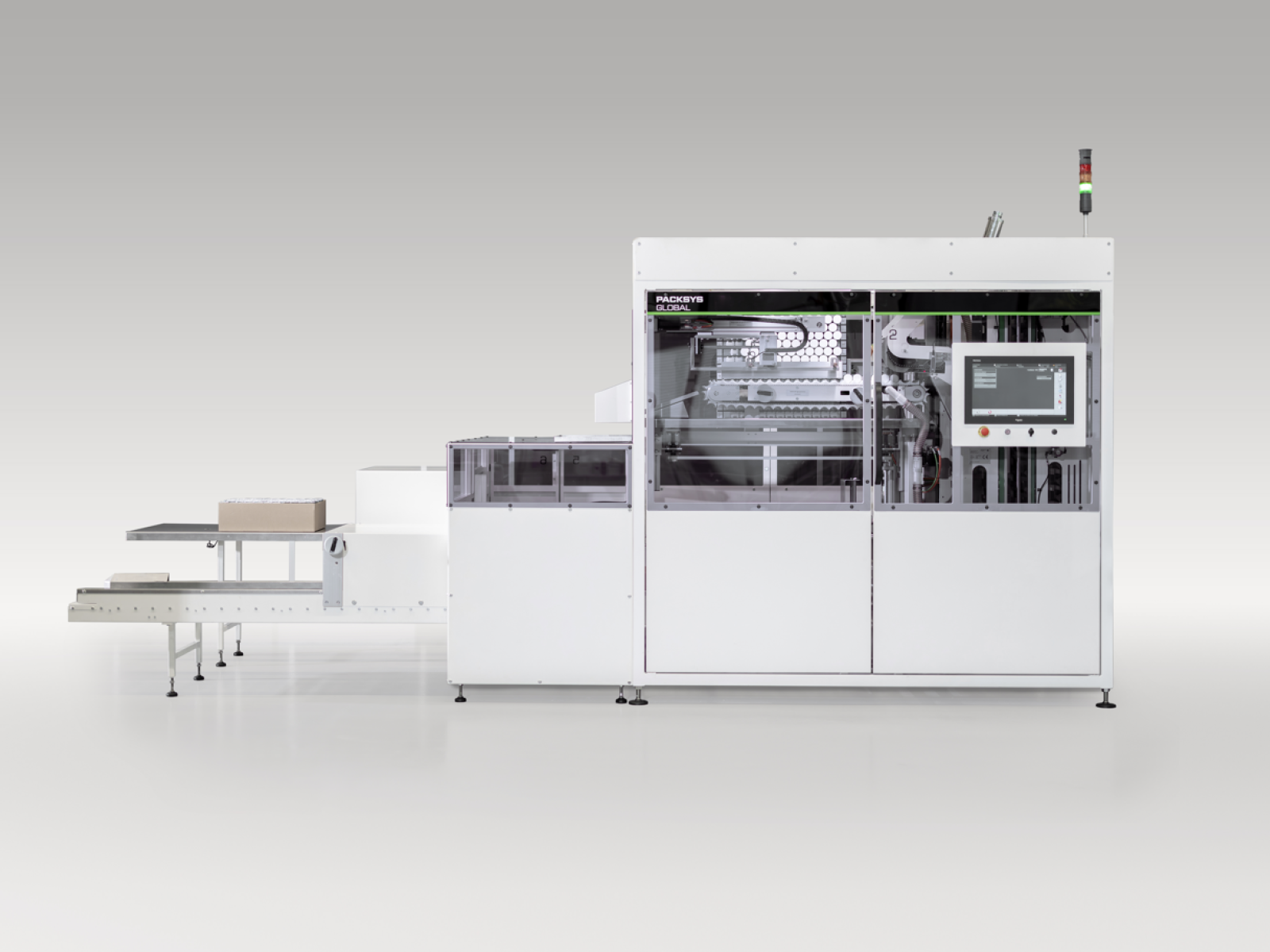

| Packing machine (packing tubes) | PackSys Global CoreMaster | – | Tube diameter 10-60mm, carton max 630x430x230mm | – | Rüti |
| Packing machine (packing tubes) | PackSys Global AluMaster | – | Tube diameter 9.8-50mm, carton max 630x430x230mm | – | Rüti |
| Packing machine (packing tubes) | PackSys Global FlexMaster | – | Tube diameter 10-60mm, carton max 630x430x230mm | – | Rüti |
| High-speed packing machine | PackSys Global SpeedMaster | – | Tube diameter 16-38mm, carton max 600x400x200mm | – | Rüti |

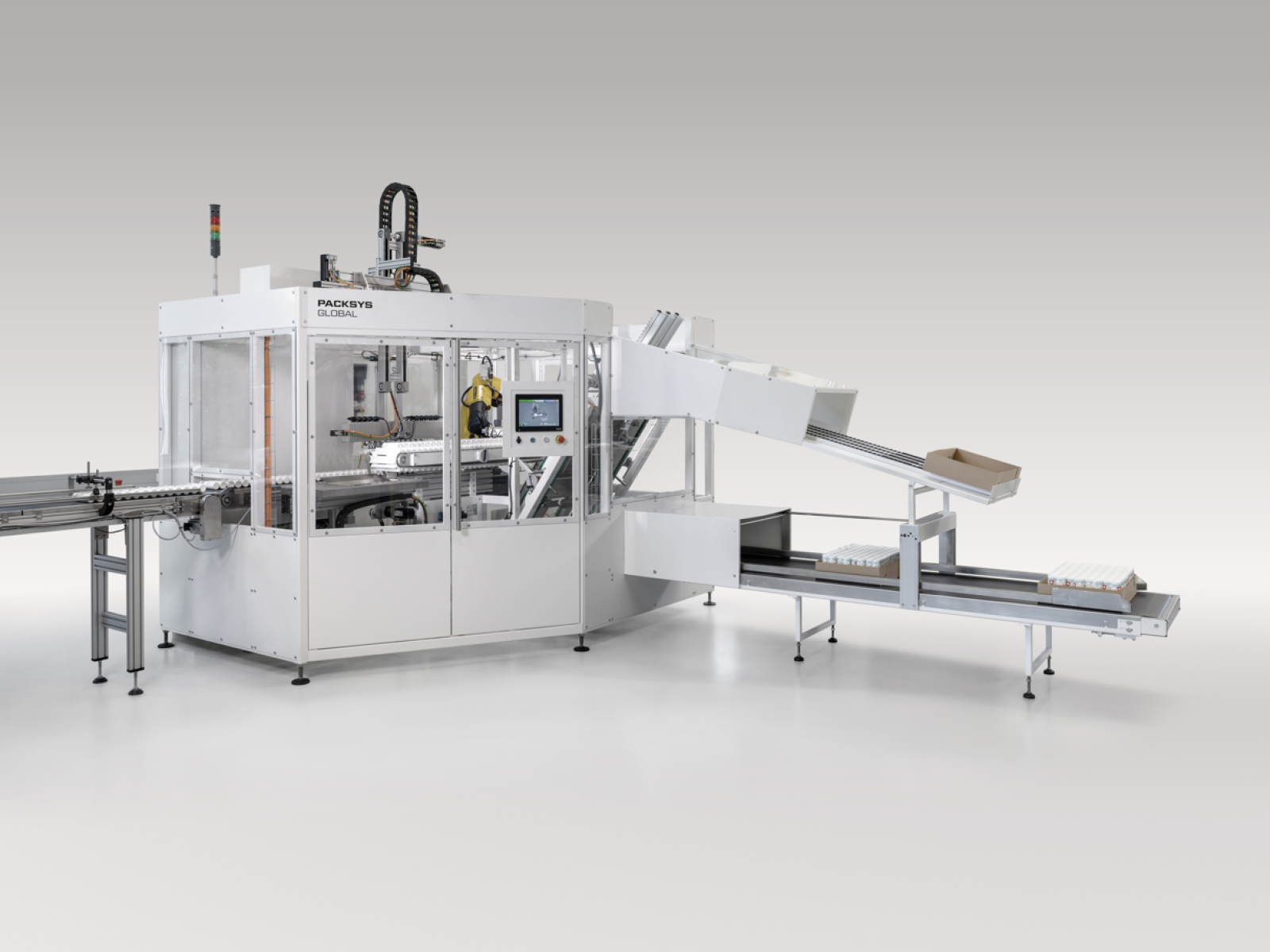

| Unpacking machine | PackSys Global BoxButler | – | Tube diameter 19-60mm, length 100-230mm | – | Rüti |
| Bundling machine | PackSys Global CanMaster | – | Can diameter 30-80mm, can length 60-290mm | – | Haldenstein |

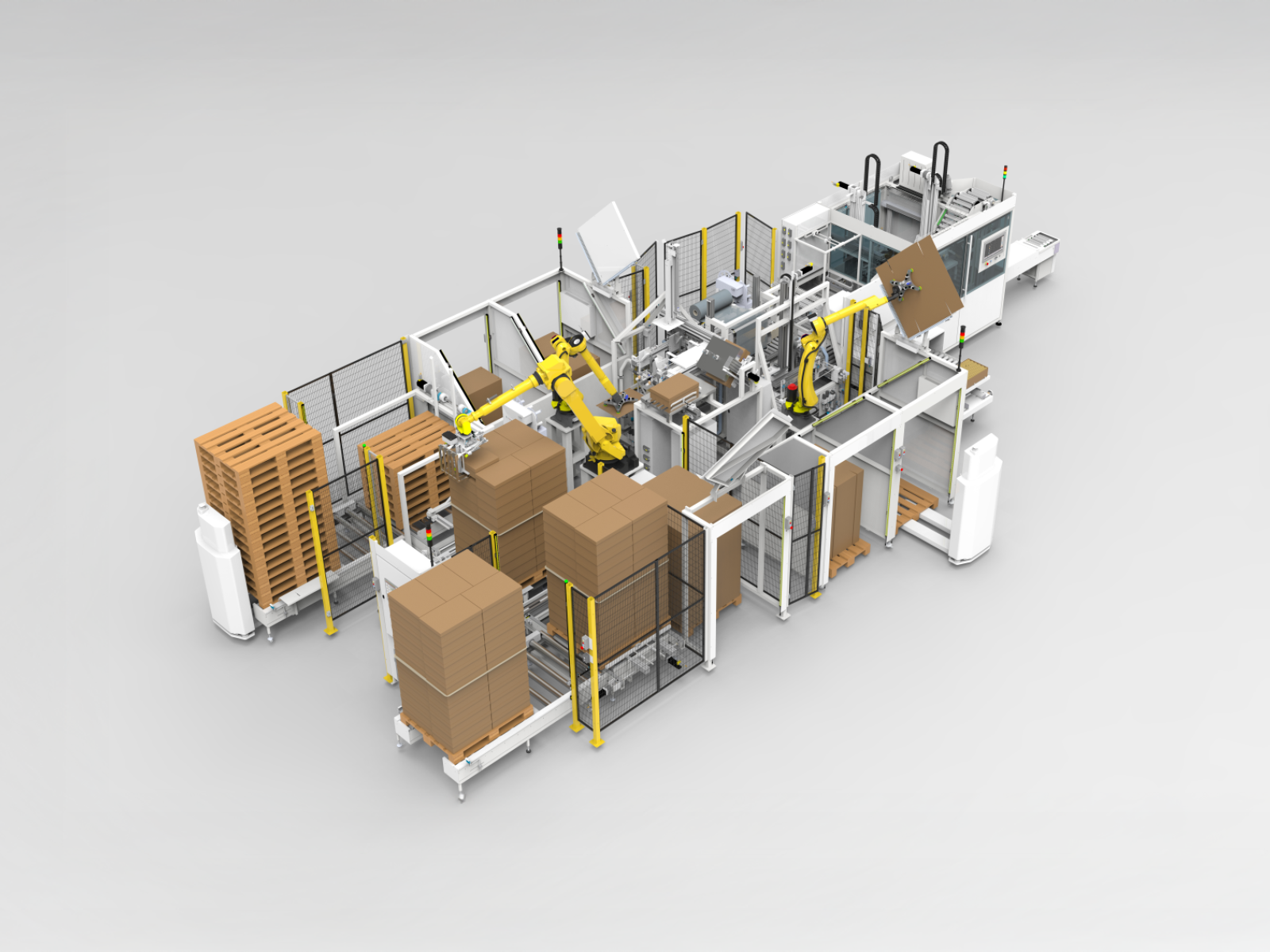

| Palletizing system | PackSys Global LineButler | – | Carton max 600x430x180mm | – | Rüti |
| Slitting machine | PackSys Global MSM | – | Closure 18-90mm | – | Rüti |
| Folding machine | PackSys Global MFM | – | Closure 18-90mm | – | Rüti |
| Slitting and folding machine | PackSys Global TEM | – | Closure 18-90mm | – | Rüti |
| Slitting and folding machine | PackSys Global TEM plus | – | Closure 18-90mm | – | Rüti |
| Slitting and folding machine | PackSys Global TEM max | – | Closure 18-90mm | – | Rüti |
| High-speed slitting machine | PackSys Global SPM | – | Closure 18-90mm | – | Rüti |
| Inline inspection machine | PackSys Global capLAB | – | – | – | Rüti |
Additional services
Reference customers
History
- 1969
Start of development and manufacture of machines and complete systems for the packaging industry.
- 2014
Acquisition of Combitool AG (specialist in laminate and extruded tube machines) and Texa AG (machines for packing and palletizing tubes, aerosol cans and cartridges).
- 2016
Introduction of the SHOT, a laminate tube machine with 500 tubes per minute.
- 2019
Production launch of the Prestige 40 for the cosmetics market.
- 2020–2021
Merger of Combitool AG, Texa AG and Madag Printing Systems AG to form PackSys Global AG.
- 2021
Move into the new headquarters in Rüti; further development of machines for tethered cap technologies.
- 2022
Launch of the digital customer portal smartcube.
- 2023
Introduction of an ultra-lightweight tube (Fuji) and further development of PBL technology for improved recyclability.
- 2024
Cooperation with Origin Materials to develop a production system for PET closures; first use of the roll-folding principle.
- 2025

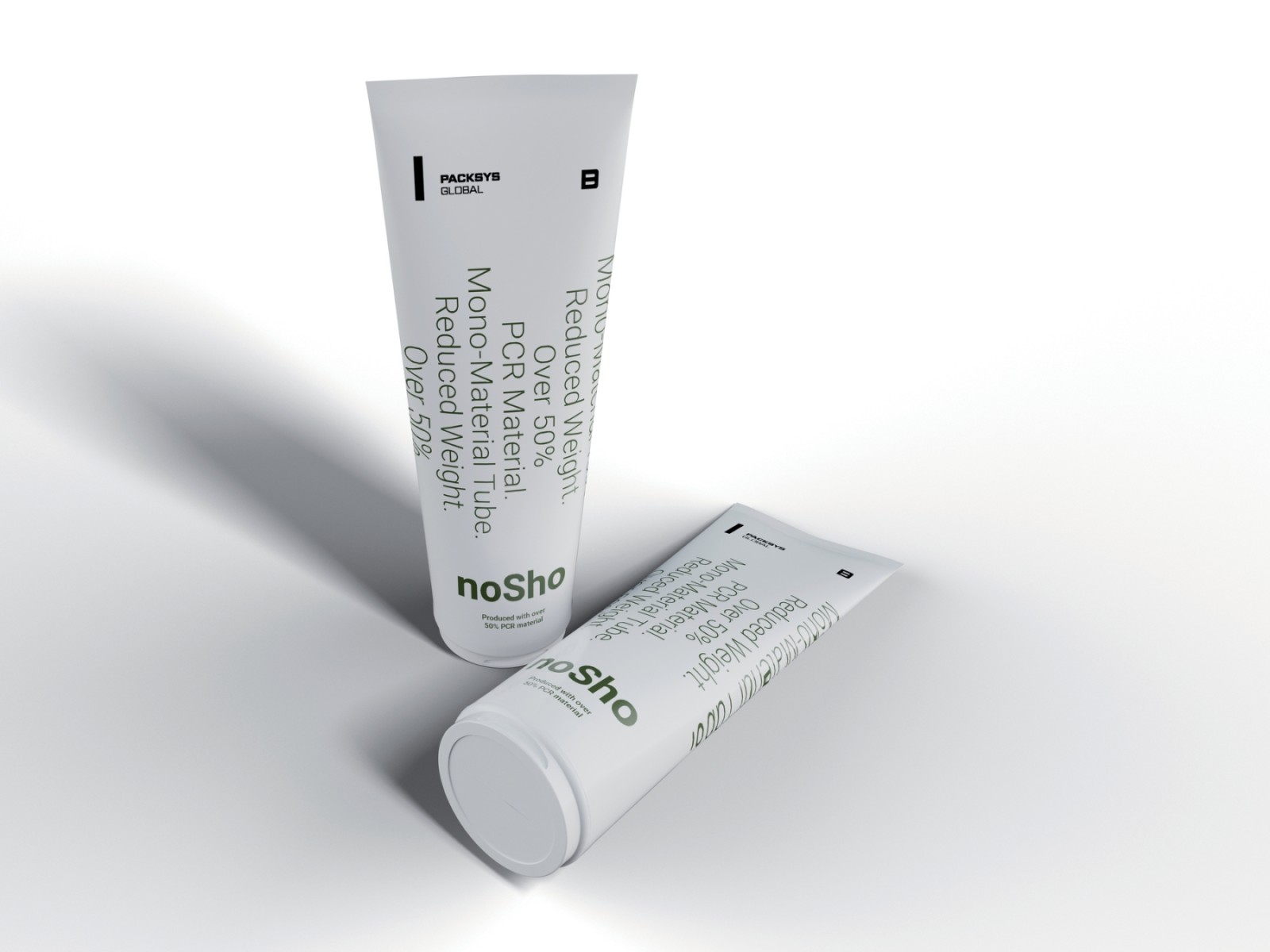

Development of the No-Shoulder tube (noSho), which dispenses with conventional shoulders and closures.
