Planning, manufacturing and installation of stainless steel process plants for the beverage, food, pharmaceutical and cosmetics industries.
PAT GmbH & Co. KG
Kirchheim near MunichNew on Amplifa
Stainless Steel Expertise Since 1998
PAT Process Anlagen Technik is a plant engineering company founded in 1998 and based in Kirchheim near Munich, specialising in the production of stainless steel components and complete process plants for the food and non-food industries. The company, with around 40 employees, plans and realises compact plants, system solutions and individual components – from CIP systems, flash pasteurisation and pasteurisation plants (30–600 hl/h) through blending technology and water deaeration to tank farm, piping and pigging technology as well as dispensing systems for large-scale catering. The value chain includes project planning and engineering including 3D visualisation, automation with Siemens S7 TIA, control cabinet construction, stainless steel installation in-house and on site, as well as orbital welding for hygienic, dead-space-free piping systems. The portfolio is rounded off by energy management with heat recovery, service, commissioning and training. Customers come from breweries, mineral water bottlers, AFG/fruit juice, dairies, spirits and wine production, pharmaceuticals, cosmetics and general industry. Quality is regularly audited in accordance with DIN ISO 9001:2015 by TÜV Süd.
- Site
- Kirchheim bei München
- Processes
- Orbital welding process (stainless steel piping systems, TIG welding), Stainless steel processing (piping construction, valve blocks, gap-free, hygienic, dead-space-free, Plant installation / on-site installation / final assembly of process plants, CIP plants (Cleaning-in-Place, single to multi-line plants, manual to fully automatic, mobile, Flash pasteurisation / pasteurisation (KZE), capacity 30 hl/h to 600 hl/h (hot filling 65–280, Blending technology (batch and inline blending plants, multi-component dosing, mixer blending,, Water deaeration (mixer water deaeration), Tank farm/piping fence and panel technology, pigable piping, pigging systems
- Materials
- Stainless steel, Orbital welding (TIG)
- Certificates
- DIN ISO 9001:2015, ISO 9001
- Founded
- 1998
- Employees
- 40
- Industries
- Breweries, Mineral water bottlers, AFG/Fruit juice, Dairies/cheese dairies, Spirits, Wine
- 01
Plant planning and engineering (incl. 3D visualisation)
- 02
Stainless steel manufacturing and orbital welding
- 03
Control system construction and automation
- 04
In-house and on-site installation
- 05
Commissioning, service and training
Materials and Processes
Stainless steel
Base material of all process plants, corrosion-resistant and processed to hygienic standards.
Orbital welding (TIG)
Automated welding process for precise, gap-free stainless steel piping systems in the pharmaceutical and food industries.

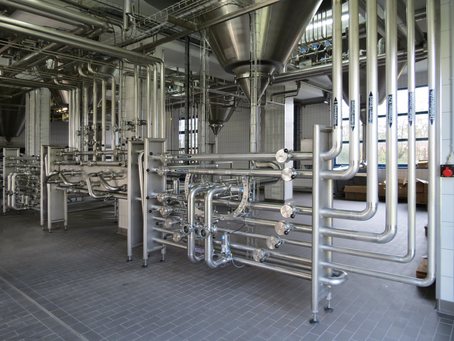

Site
Kirchheim near Munich
DEHeadquarters with engineering, manufacturing, control system construction and installation
- Materials
- Stainless steel
- Mobile CIP hygiene station / CIP compact plant (2021)

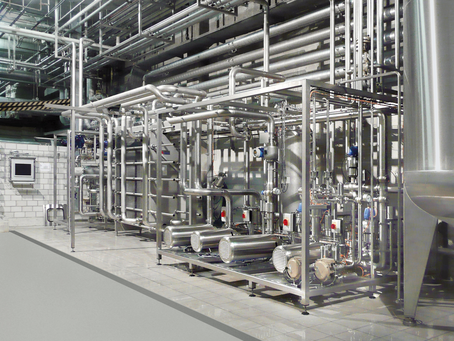

- Flash pasteurisation/pasteurisation plants (30–600 hl/h)
- Blending plants (batch/inline, container station)
- PLC controls Siemens S7 TIA
Plants and Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Orbital welding process (stainless steel piping systems, TIG welding)Joining | – | – | – | – | Stainless steel |
| Stainless steel processing (piping construction, valve blocks, gap-free, hygienic, dead-space-freeInstallation | absolutely smooth surfaces without | – | – | – | Stainless steel |
| Plant installation / on-site installation / final assembly of process plantsInstallation | – | – | – | – | Stainless steel |

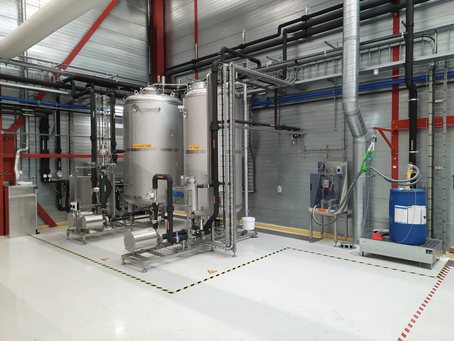

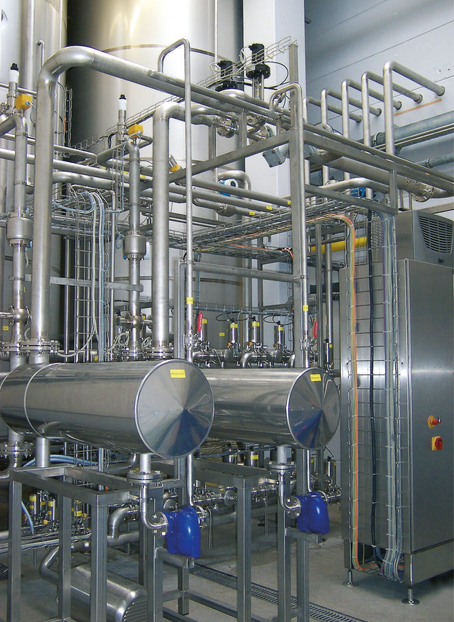

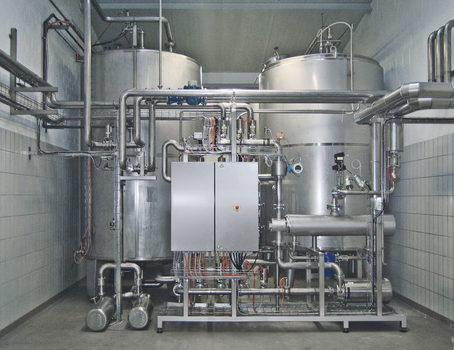

| CIP plants (Cleaning-in-Place, single to multi-line plants, manual to fully automatic, mobileEngineering | – | – | – | – | Stainless steel |

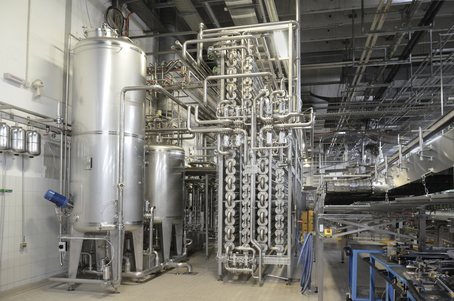

| Flash pasteurisation / pasteurisation (KZE), capacity 30 hl/h to 600 hl/h (hot filling 65–280Engineering | – | – | – | – | Stainless steel |

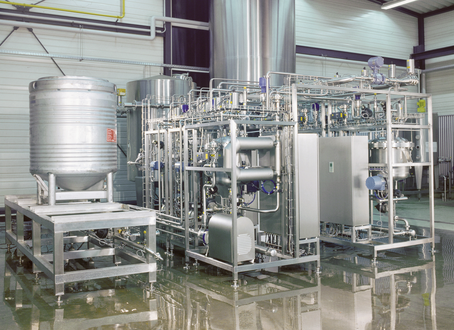

| Blending technology (batch and inline blending plants, multi-component dosing, mixer blending,Engineering | – | – | – | – | Stainless steel |
| Water deaeration (mixer water deaeration)Engineering | – | – | – | – | Stainless steel |

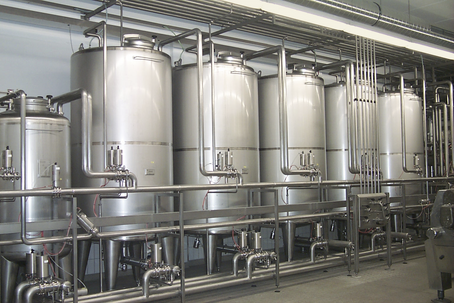

| Tank farm/piping fence and panel technology, pigable piping, pigging systemsEngineering | – | – | – | – | Stainless steel |
| Truck reception plants (leak-free connections, fixed piping)Engineering | – | – | – | – | Stainless steel |

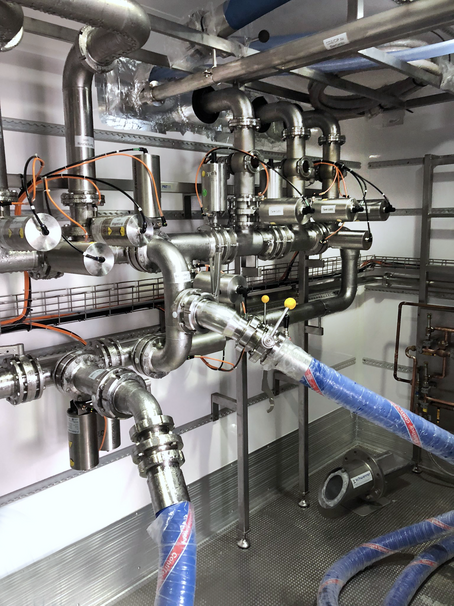

| Dispensing system technology (festival tent/restaurant piping, beer distribution, automated tank andEngineering | – | – | – | – | Stainless steel |
| Automation, control system construction (Siemens S7 TIA, PLC S7), visualisation, batch logging,Engineering | – | – | – | – | – |

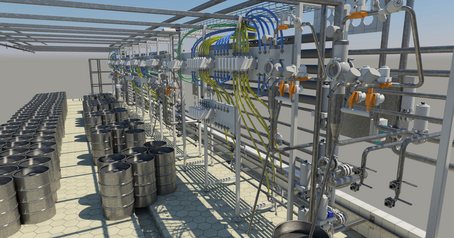

| Project planning and engineering (incl. 3D view/animation), energy management,Engineering | – | – | – | – | – |
| Alcohol reduction (spirits), wine and must KZE, mulled wine blending, standardisation,Engineering | – | – | – | – | Stainless steel |

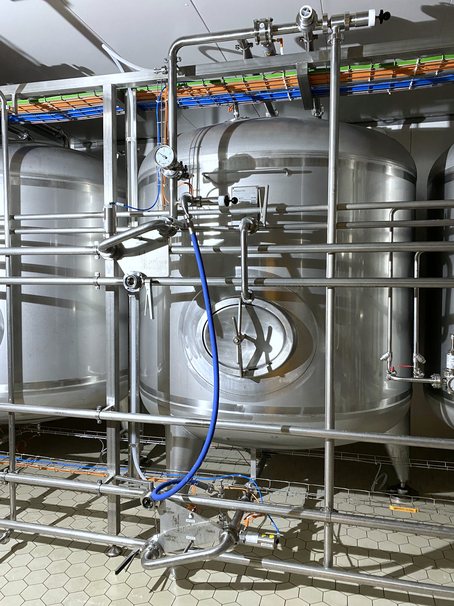

| Sterile tank farm / sterile tank storage, syrup tank farm, alcohol tank farmEngineering | – | – | – | – | Stainless steel |
4 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Mobile CIP hygiene station / CIP compact plant | PAT | – | – | 2021 (erst | – |
| Flash pasteurisation/pasteurisation plant | PAT | – | Capacity 30-600 hl/h (hot filling 65-280 hl/h) | – | – |
| Blending plant (batch/inline, container station) | PAT | – | – | – | – |
| PLC control | Siemens S7 (TIA) | – | – | – | – |
Additional services
Quality
The high standards are regularly audited in accordance with the DIN ISO 9001:2015 certification and confirmed by TÜV Süd. All welders are certified skilled tradesmen; orbital welding is used for pharmaceutical and food applications.
| Evidence | Kirchheim near Munich |
|---|---|
| ISO 9001 |
History
- 1998
Foundation of PAT Process Anlagen Technik, headquarters in Kirchheim near Munich
- 2021
Commissioning of the first mobile CIP compact plant by partner SICHORT Schankanlagen Service
