Manufacturer of drill pipes, jacking rigs, augers and injection technology for mining, tunnelling and infrastructure
PERFORATOR GmbH
Walkenried · ValluhnNew on Amplifa
Drilling technologies for over 30 years
PERFORATOR GmbH, based in Walkenried, is a manufacturer of horizontal and vertical drilling technologies. The product range includes drill pipes and accessories for DTH, rotary, RC, HDD and oil/gas drill pipe (OCTG), jacking rigs, augers, drilling heads and cutting tools as well as 2-component injection pumps for polyurethane and silicate resins. In addition, the company offers HDD locating systems as a distribution partner of Underground Magnetics, along with service and spare parts business, hardfacing/hardbanding, internal coating and friction welding. Manufacturing uses steel, aluminium alloys and antimagnetic stainless steel to API specifications; since 2021, PERFORATOR has been producing with a self-developed automated friction welding machine for drill pipes. The company belongs to the Schmidt Kranz Group and supplies drilling equipment manufacturers such as EPIROC, Sandvik, CAT, Herrenknecht, Ditch Witch and Vermeer worldwide. The quality management system is API and ISO certified and ensures complete material traceability.
- Site
- Walkenried
- Processes
- Friction welding of drill pipes (automated friction welding machine), Hardfacing / hardbanding as wear protection, Manufacturing of drill pipes (DTH, rotary, RC, HDD, OCTG), Manufacturing of augers, drilling heads and cutting tools, Heat treatment, Robotic welding, Injection with polyurethane, Injection with silicate resins
- Materials
- Steel, Aluminium alloys, Antimagnetic stainless steel (RC drill pipes), Upset tube grades E75, X95, G105, S135 (API 5DP), Polyurethane, Silicate resin, Upset tube E75, X95, G105, S135, Antimagnetic stainless steel
- Certificates
- ISO (QMS certified, API and ISO), DCA-Europe membership (Güteschutz Horizontalbohrungen association), QM system certified (API and ISO), DCA-Europe membership
- Founded
- 1993 (PERF
- Industries
- Mining, Tunnelling, Infrastructure, Oil & gas, Water/wastewater, Telecommunications
- 01
Material processing (steel, aluminium, stainless steel)
- 02
Friction welding of drill pipes (automated system)
- 03
Thread manufacturing (API threads)
- 04
Heat treatment
- 05
Hardfacing/hardbanding and internal coating
- 06
Assembly
- 07
Service & spare parts business
Materials and processes
Upset tube E75, X95, G105, S135
Steel grades for OCTG drill pipe according to API specification 5DP in length ranges Range 1 to 3.
Steel
Base material for drill pipes, casing pipes, augers and drilling heads.
Aluminium alloys
For friction-welded thread connectors on thin-walled oil and gas drill pipes.
Antimagnetic stainless steel
Material for RC drill pipes to avoid magnetic interference during surveying.
Polyurethane
Injection resin for sealing, rock consolidation and soil stabilisation.
Silicate resin
Injection medium for consolidation and sealing in mining and tunnelling.
Friction welding
Automated friction welding of drill pipes with consistent quality and short setup times.
Hardfacing/Hardbanding
Wear protection for drill pipes under abrasive soil conditions.
Internal coating
Internal coating TK34-P for oil and gas drill pipes.
Heat treatment
Heat treatment of steel components.
Locations

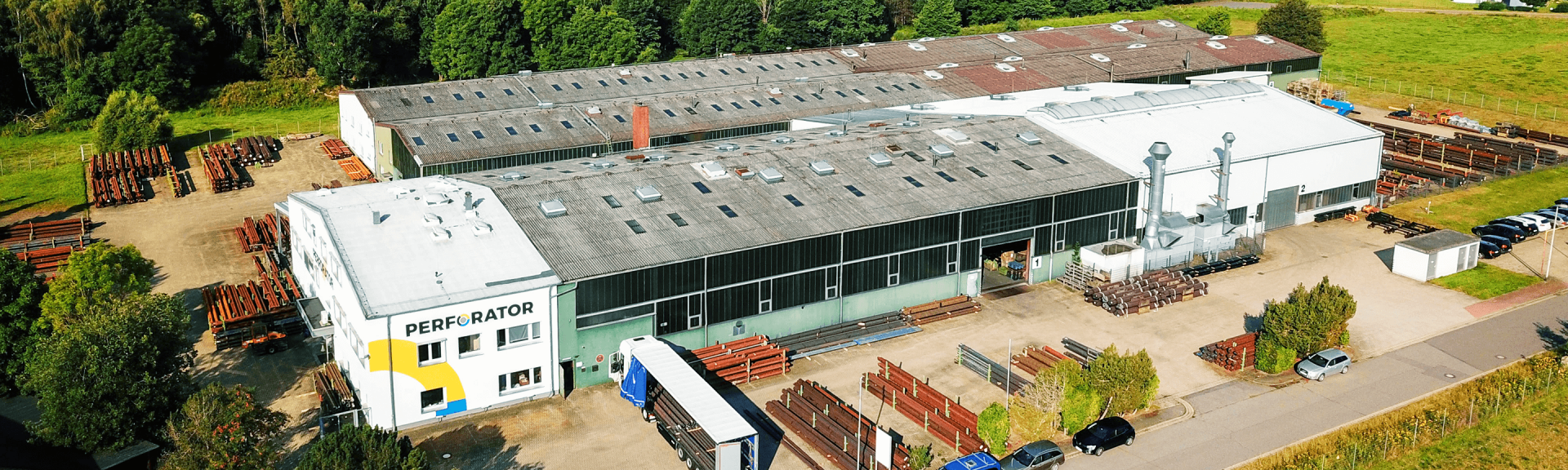

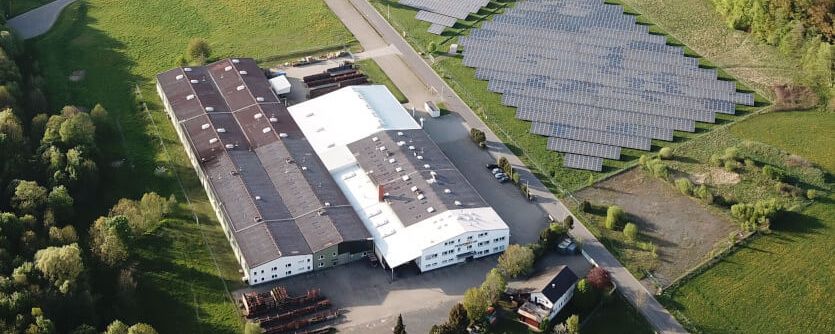

Walkenried
DEHeadquarters and manufacturing: jacking technology, drill pipes, disc cutters, injection technology
- Part weight / size
- Augers up to 1,680 mm diameter
- Materials
- Steel, aluminium alloys, stainless steel
- Automated friction welding machine for drill pipes (in-house development)
- Jacking rig manufacturing
Valluhn
DEMTS Microtunneling Systems (independent company since 2021)
Products
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Friction welding of drill pipes (automated friction welding machine)Joining | – | – | – | – | Steel, Aluminium alloys |
| Hardfacing / hardbanding as wear protectionSurface | – | – | – | – | Steel |
| Manufacturing of drill pipes (DTH, rotary, RC, HDD, OCTG)Joining | – | Drill pipes 27 to 32 feet (Range 1 to × Drill pipes 35 to 300 mm OD, | – | – | Steel, Aluminium alloys, Stainless steel |
| Manufacturing of augers, drilling heads and cutting toolsMachining | – | Auger lengths 0.5 m to 6 m × Auger diameter 28 mm to 1680 mm | – | – | Steel |
| Heat treatmentHeat treatment | – | – | – | – | – |
| Robotic weldingJoining | – | – | – | – | Steel |
| Injection with polyurethaneEngineering | – | – | – | – | Polyurethane |
| Injection with silicate resinsEngineering | – | – | – | – | Silicate resin |
12 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Automated friction welding machine for drill pipes | PERFORATOR (in-house development) | 1 | – | 2021 | Walkenried |
| Jacking rigs | PERFORATOR | – | Casing pipes 406–1,420 mm (RS/RS-HV); PUD up to 1,200 mm, PPS up to 1,520 mm product pipe diameter | – | Walkenried |
| Pneumatic piston injection pump | PERFORATOR S 35 | – | – | – | – |
| Pneumatic piston injection pump | PERFORATOR GSF 35 | – | – | – | – |
| Pneumatic piston injection pump | PERFORATOR DP 40 | – | – | – | – |
| Pneumatic piston injection pump | PERFORATOR GX 45 | – | – | – | – |
| Pneumatic gear injection pump | PERFORATOR PGP | – | Mixing ratio 1:1 to 1:4 | – | – |
| Electric injection pump | PERFORATOR EIP 5 | – | Mixing ratio 1:1 to 1:4, electronic pressure regulation | – | – |
| Universal micro drilling rig | PERFORATOR Taifun | – | – | – | – |

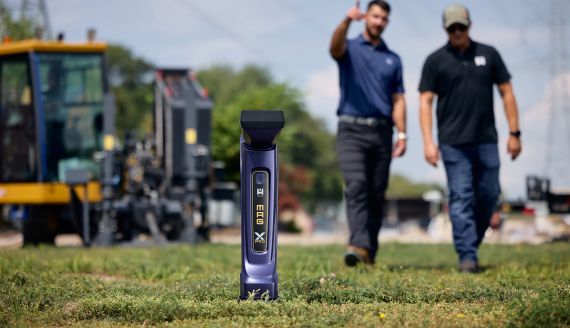

| HDD locating system | Underground Magnetics Mag X GEO | – | GPS accuracy 1–3 cm; system accuracy ±5 %; 16 frequencies 0.325–41 kHz | – | – |
| Drill head sonde (HDD locating) | Underground Magnetics Armor VTX (VTX50 to VTX120) | – | VTX120 up to 120 m depth | – | – |
| Cable locator | Underground Magnetics Nexus Pro | – | – | – | – |
Additional services
Reference customers
Quality
The API and ISO certified quality management system ensures complete material traceability. PERFORATOR is a member of the Drilling Contractors Association (DCA-Europe) within the Güteschutz Horizontalbohrungen association.
| Evidence | Walkenried |
|---|---|
| QM system certified (API and ISO) | |
| DCA-Europe membership |
History
- 1885
Foundation of the Schmidt, Kranz & Co. Nordhausen machine factory, supplier to the Central German potash mining industry
- 1922
Acquisition by Prof. Dr. Karl Glinz, product range extended to include processing plants and hydraulic engineering equipment
- 1945
Foundation of NORMAG Zorge GmbH
- 1980
Relocation of the mining product line to the new Walkenried plant
- 1993
Introduction of the PERFORATOR jacking technology product line
- 2002
PERFORATOR Bohrtechnik established as an independent company under Schmidt, Kranz Holding (Velbert/Langenberg, Glinz family)
- 2004
Foundation of mts Perforator GmbH Microtunnelling Systems in Valluhn
- 2007/08
New production hall and expansion of manufacturing capacities in Walkenried
- 2021
Division into PERFORATOR GmbH and MTS Microtunneling Systems GmbH; first automated friction welding machine for drill pipes (in-house development)
- 2023
Foundation of Perforator X in Australia (joint venture with the OptionX Group)
- 2025
Foundation of Perforator Drilling Solutions Inc., Aldergrove, British Columbia, Canada
- 2026
Foundation of Perforator LLC, Amarillo, Texas, USA
