Specialized balancing of rotors: stationary up to 5000 kg and on-site in operating condition.

Peter Torner GmbH

Nebendahlstrasse 11, 22041 HamburgNew on Amplifa

1976Founded

5 g – 5000 kgComponent weight (stationary balancing)

up to 5.50 mComponent length (diameter up to 2.50 m)

G = 0.4Achievable grade for tools and shafts

We are the balancing professionals

Peter Torner GmbH, based in Hamburg, is a specialized service company for the balancing of rotating components. The company eliminates imbalances in rigid rotors both stationary on its own balancing machines in the workshop (according to DIN ISO 21940-11) and on-site in the installed state (field balancing according to DIN ISO 10816-3). The range extends from small parts from approx. 5 g to balancing bodies of 5000 kg, a length of up to 5.50 m and a diameter of up to 2.50 m. The offer is complemented by machine diagnostics, vibration measurement, crack testing and the dynamic balancing of tools, spindles, shafts and tool holders up to grade G = 0.4. Customers are manufacturers, operators and repairers of technical systems, including from mechanical engineering, aviation and tool and spindle manufacturing. A meaningful balancing report is created for every balancing operation, also in English on request.

Site: Hamburg
Processes: stationary balancing according to DIN ISO 21940-11, field balancing according to DIN ISO 10816-3 (on-site balancing in operating condition), dynamic balancing of tools, spindles, shafts, tool holders (grades up to G = 0.4), machine diagnostics, vibration measurement, crack testing (as part of balancing preparation), repair including balancing (historical, e.g. starter generators for light aircraft), Stationary balancing according to DIN ISO 21940-11
Materials: Stationary balancing, Field balancing, Dynamic balancing of tools and shafts
Certificates: Balancing report per component, Crack testing, Reports in English, ISO 9001
Founded: 1976
Industries: Mechanical engineering, Aviation, Tool and spindle manufacturing, Plant engineering and maintenance, Manufacturers, operators and repairers of technical systems, Aviation (starter generators for light aircraft)

01
Enquiry with photos, drawings or previous balancing reports
02
Coordination and planning of the work
03
Cleaning of the balancing body
04
Crack testing
05
Stationary or field balancing
06
Balancing report (paper or PDF)

Methods and standards

DIN ISO 21940-11

Stationary balancing

Balancing of rigid rotors on the balancing machine in the workshop, for rotors from approx. 5 g to 5000 kg.

DIN ISO 10816-3

Field balancing

On-site balancing in the installed state without disassembly, with no restrictions on diameter, weight and length.

G 0,4

Dynamic balancing of tools and shafts

Balancing of tools, spindles, shafts and tool holders in grades up to G = 0.4.

Location

Hamburg

Workshop and headquarters

Part weight / size: 5 g – 5000 kg
Lot size: Single parts and series production
Materials: Metallic rotors of all kinds

Stationary balancing machines (balancing benches)
Measuring instruments
Mobile balancing device for on-site use

Balancing bodies

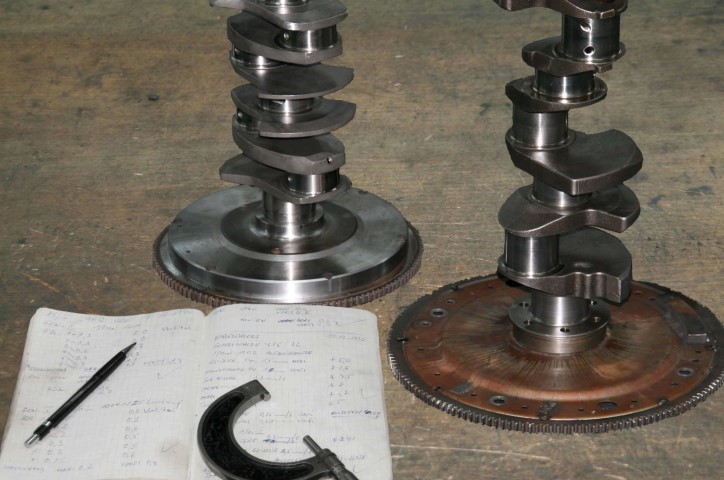

**Crankshaft**Stationary balancing · Mechanical engineering

**Rotor**Stationary balancing · Plant engineering

**On-site balancing**Field balancing · Repair

Inside the production

Balancing appointment at the Hamburg workshop

Industries

Mechanical engineeringAviationTool and spindle manufacturingPlant engineering and maintenanceManufacturers, operators and repairers of technical systemsAviation (starter generators for light aircraft)

Processes & technical limits

Processes	Tolerance	Max. part	Weight	Lot size	Materials
stationary balancing according to DIN ISO 21940-11Testing	–	5.50 m × 2.50 m (max. diameter)	approx. 5g – 5000 kg	–	–
field balancing according to DIN ISO 10816-3 (on-site balancing in operating condition)Testing	–	–	no restrictions with regard to	–	–
dynamic balancing of tools, spindles, shafts, tool holders (grades up to G = 0.4)Testing	–	–	–	–	–
machine diagnosticsTesting	–	–	–	–	–
vibration measurementTesting	–	–	–	–	–
crack testing (as part of balancing preparation)Testing	–	–	–	–	–
repair including balancing (historical, e.g. starter generators for light aircraft)Assembly	–	–	–	–	–

2 Anlagen & Maschinen

Machine	Manufacturer / model	Quantity	Working area	Year built	Site
Balancing bench / balancing machine (stationary balancing)	–	–	rigid rotors approx. 5g – 5000 kg, length up to 5.50 m, max. diameter 2.50 m	–	Workshop Hamburg (Nebendahlstrasse 11)
mobile balancing device (on-site field balancing)	–	–	no restrictions regarding diameter, weight and length of the rotor	–	mobile / at the customer

Additional services

Stationary balancing according to DIN ISO 21940-11Field balancing (on-site in the installed state) according to DIN ISO 10816-3Machine diagnosticsVibration measurementCrack testingBalancing reports (paper/PDF, also in English)Balancing of balancing bodies 5 g – 5000 kg, length up to 5.50 m, diameter up to 2.50 mGrades up to G = 0.4

Quality from A to Z

A meaningful balancing report is created for all balancing work, conventionally on paper or as a PDF, on request also in English and individually adapted. As part of balancing preparation, crack tests are carried out to detect hidden problems in the component at an early stage.

Evidence	Hamburg
Balancing report per component
Crack testing
Reports in English
ISO 9001

History

1976

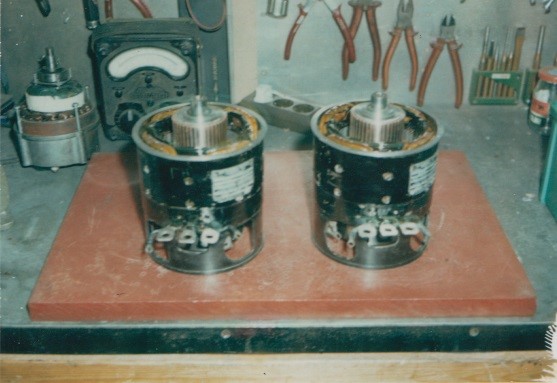

Founded by master electric machine builder Peter Torner in a garage; first order: repair including balancing of starter generators for light aircraft
1993
Exclusive specialization in balancing
1997
Patrick Torner completes his degree in aircraft engineering as a graduate engineer (Dipl. Ing.) and joins the family business; expansion into machine diagnostics and vibration measurement
2005
Renamed Peter Torner GmbH and generational change; significant expansion of the workshop area
