Development and production of cold fog and flushing technology for disinfection, dust suppression and air humidification
Pfalz Tec GmbH
Markersdorf, SaxonyNew on Amplifa
About Pfalz Tec
Pfalz Tec GmbH, based in Markersdorf (Saxony), has been developing and producing systems and devices for cold fog and flushing technology since 2004. The portfolio includes mobile and stationary cold foggers from handheld devices to high-performance systems for spaces up to 15,000 m³, dust suppression and air humidification systems with UV disinfection of the fog water, automatic drinking-line flushing systems for up to six drinking lines as well as modular disinfection systems. The core process is the company's own cold fog process (aerosol technology/ULV), in which compressed air is mixed with liquid media in self-priming two-substance nozzles and distributed as a fine fog; in addition, the impulse flushing process for pipeline cleaning was developed in 2008. Production is carried out in stainless steel (including 1.4305 for nozzles and orifice plates), powder-coated sheet steel (IP65) and chemically resistant plastics such as ABS, PC and HDPE. Fields of application include livestock farming, the food industry, healthcare, laboratories, the textile and recycling industries, tunnel construction as well as transport and logistics; systems are used worldwide. In addition to standard products, the company offers consulting, individual planning, installation, training, maintenance, support and product rental.
- Site
- Markersdorf
- Processes
- Cold fog process (aerosol technology / ULV / dry fogging, fumigation), Impulse flushing process (cleaning of pipelines with water and compressed air pulses), Disinfection (room and surface disinfection via cold fog), Dust suppression and air humidification, Drinking-line flushing (automated impulse flushing of drinking lines, up to 6 lines, dosing, Atomisation of high-viscosity liquids (research project), Crop protection / pest control / odour binding via cold fog, UV disinfection of water
- Materials
- Sheet steel, powder-coated (IP65), Stainless steel (powder-coated, housing/frame), Stainless steel 1.4305 (nozzle, orifice plates, metering nozzles), Chemically resistant plastic, ABS plastic (control housing), PC plastic (media supply), Polycarbonate, glass-fibre reinforced (TIMER housing), HDPE (water and compressed air hoses)
- Founded
- 2004
- Industries
- Agriculture / Livestock farming (poultry farming), Food industry, Healthcare / Hospitals & care facilities, Laboratories and research, Textile industry, Recycling industry / Waste processing
- 01
Consulting and requirements analysis
- 02
Engineering and individual planning
- 03
Production of systems and devices in Markersdorf
- 04
Installation and integration into existing systems
- 05
Training, maintenance and technical support
Materials & Processes
Stainless steel 1.4305
Used for cold fog nozzles, orifice plates and metering nozzles of the dust suppression systems.
Stainless steel, powder-coated
Housings and frames of the cold foggers for durable professional continuous operation.
Sheet steel, powder-coated (IP65)
Housing material of the dust suppression and drinking-line flushing systems for robust industrial use.
ABS plastic
Cladding of the controls of the disinfection system.
Polycarbonate, glass-fibre reinforced
Shatterproof housings of the timer and the media supply.
HDPE
Water and compressed air hoses in the dust suppression systems.
Cold fog process (ULV/dry fogging)
Proprietary aerosol technology with two-substance nozzles for atomising liquid media.
Impulse flushing process
Cleaning of pipelines with water and compressed air pulses against deposits and biofilms.
Ultra-fine fog (UFN)
Process introduced in 2024 for generating an ultra-fine fog.
UV disinfection
Safe water treatment of the fog water in dust suppression and air humidification systems.
Locations
Markersdorf
DEHeadquarters with production and development
- Materials
- Stainless steel, sheet steel, plastic

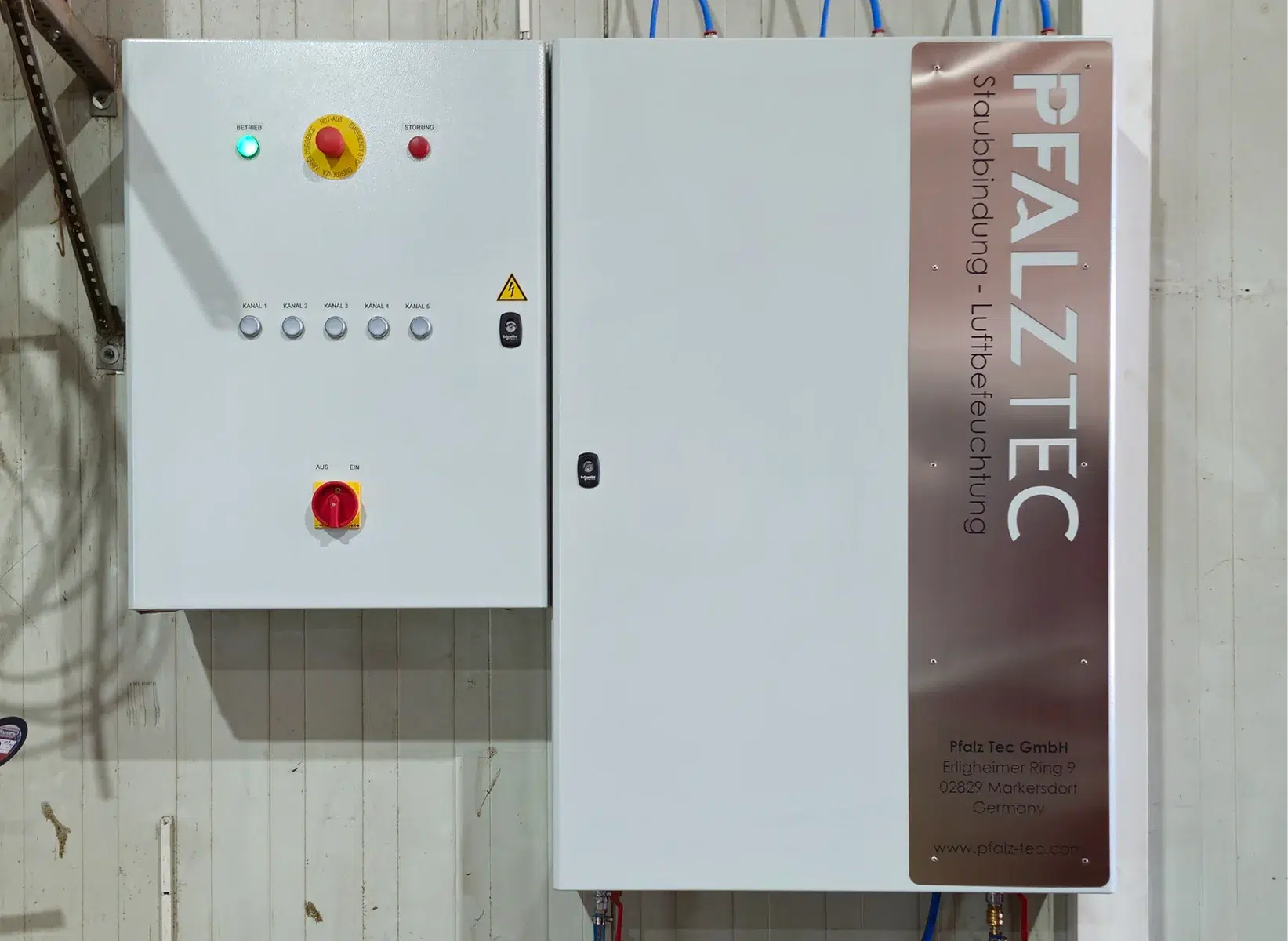

- Dust suppression and air humidification systems (PLC-controlled, UV disinfection)
- Automatic drinking-line flushing

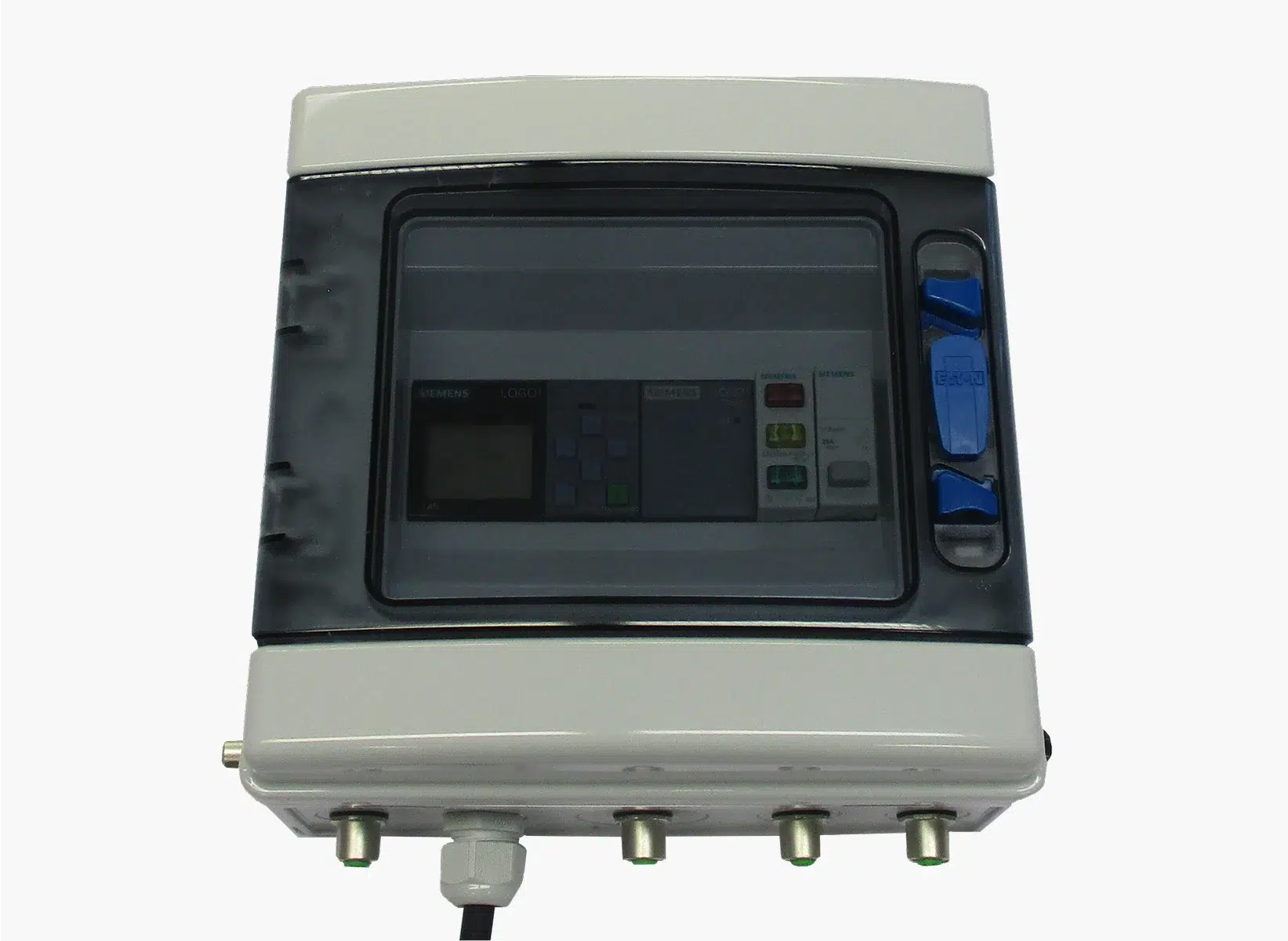

- Disinfection system BASIC
- Cold fogger series (HAND, CAR, MINI, PROFI, AUTOMATIC, POWER)
- Mobile impulse flushing technology HEAWAT mobile
- UFN system
Components & Systems
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Cold fog process (aerosol technology / ULV / dry fogging, fumigation)Surface | – | – | – | – | Disinfectants, liquid media (water-based) |
| Impulse flushing process (cleaning of pipelines with water and compressed air pulses)Surface | – | – | – | – | Water, Compressed air, aqueous cleaning/disinfecting agents |
| Disinfection (room and surface disinfection via cold fog)Surface | – | – | – | – | Disinfectants |
| Dust suppression and air humidificationSurface | – | – | – | – | Water (UV-disinfected fog water) |
| Drinking-line flushing (automated impulse flushing of drinking lines, up to 6 lines, dosingSurface | – | up to 100 m drinking-line length | – | – | Water, Vaccines, dietary supplements etc. (aqueous agents) |
| Atomisation of high-viscosity liquids (research project)Surface | – | – | – | – | high-viscosity liquids |
| Crop protection / pest control / odour binding via cold fogSurface | – | – | – | – | Plant protection products, Active ingredients |
| UV disinfection of waterTesting | – | – | – | – | Water |
| Development and production of custom systems (individual solutions, consulting, planning,Engineering | – | – | – | – | – |
29 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Dust suppression and air humidification system | Pfalz Tec | – | – | – | Markersdorf |

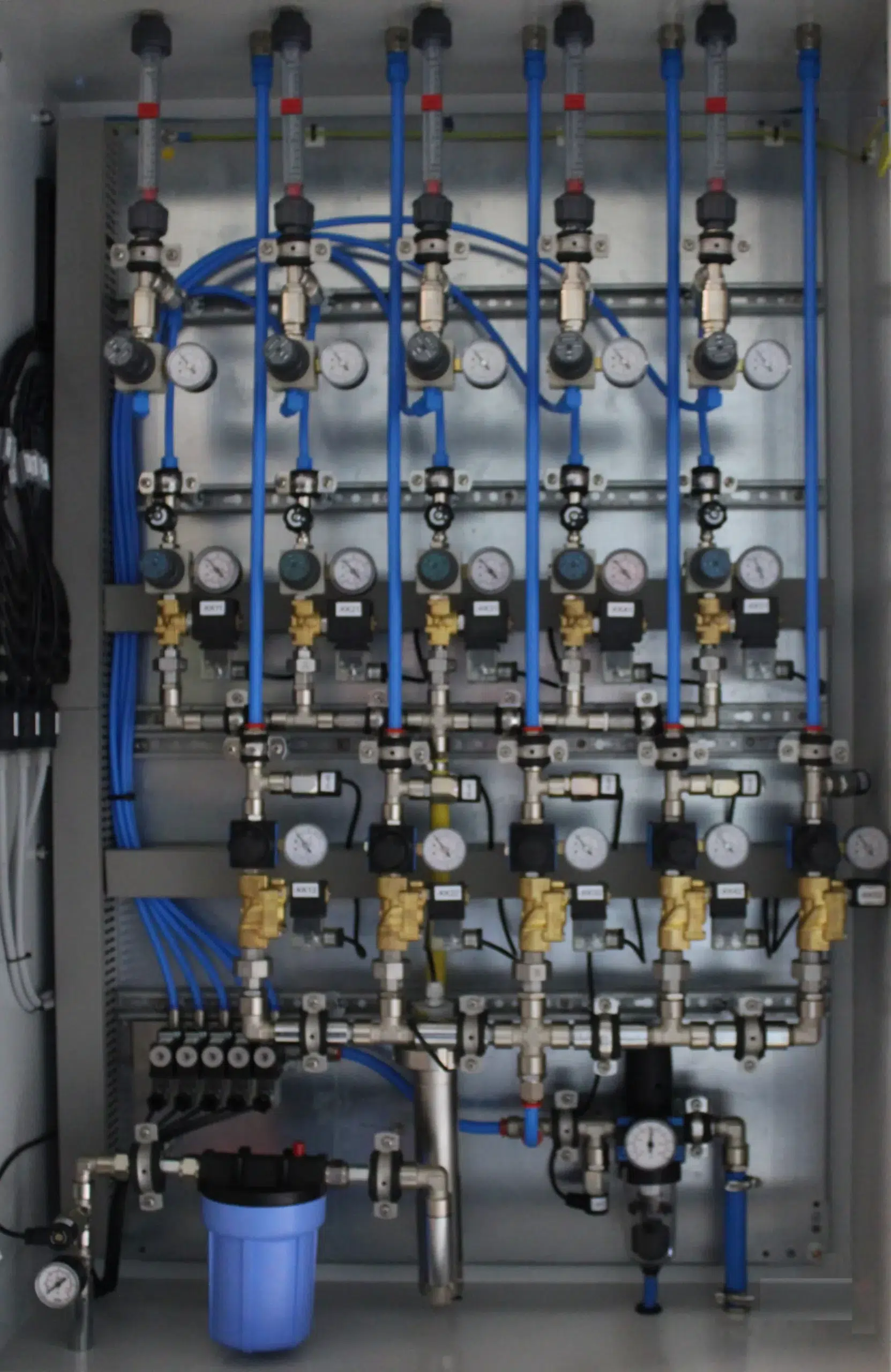

| Dust suppression system 3–5-channel (PLC-controlled, UV disinfection) | Pfalz Tec Dust suppression 3–5-channel | – | max. 5 channels, up to 5 nozzles per channel, 3,000 l/min air at 3 bar | – | Markersdorf |

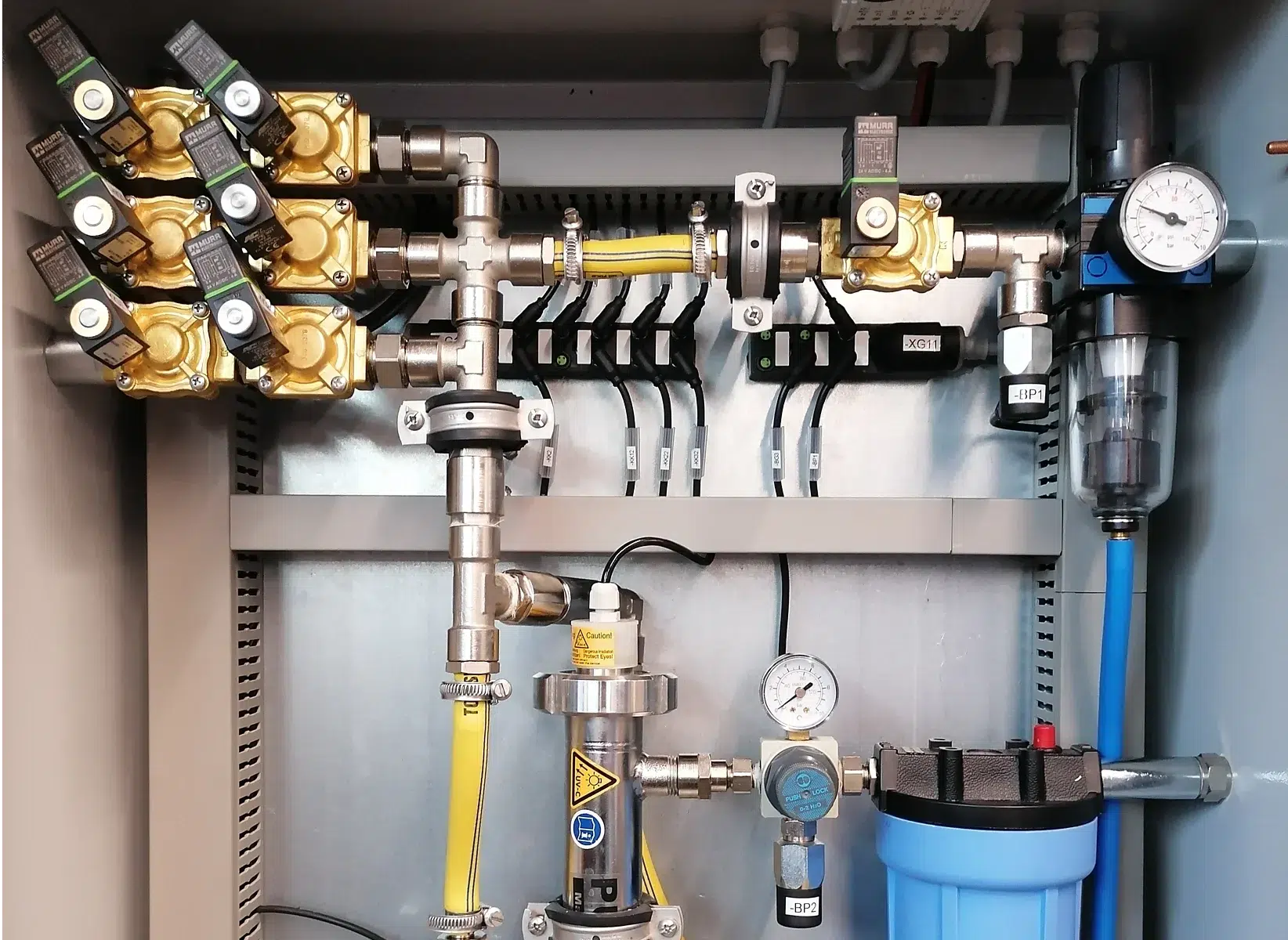

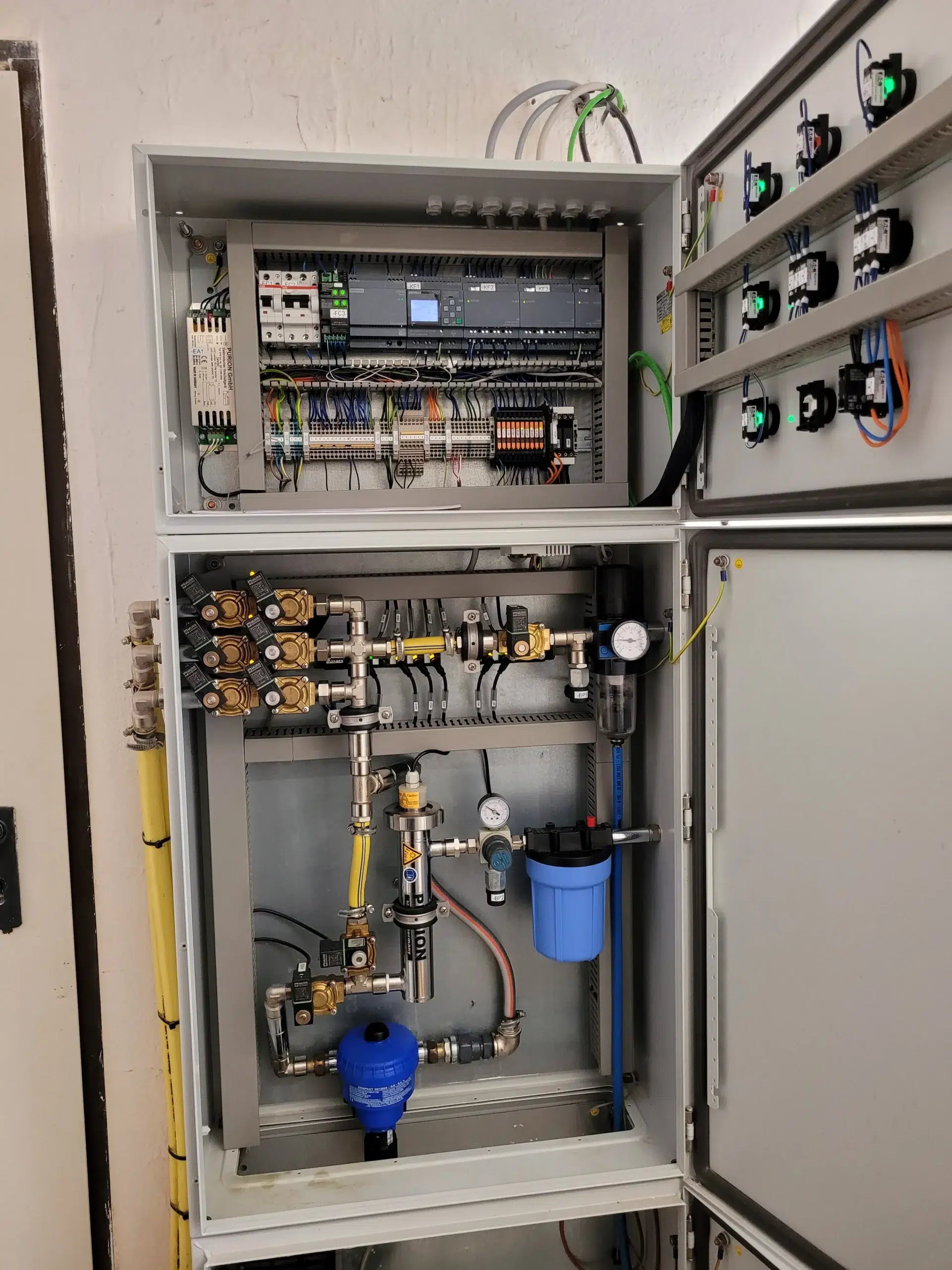

| Drinking-line flushing system (impulse flushing) | Pfalz Tec Automatic drinking-line flushing, item no. 805000017 | – | up to 6 drinking lines, line up to 100 m; H=1900 mm × W=800 mm × D=300 mm, approx. 90 kg | – | Markersdorf |

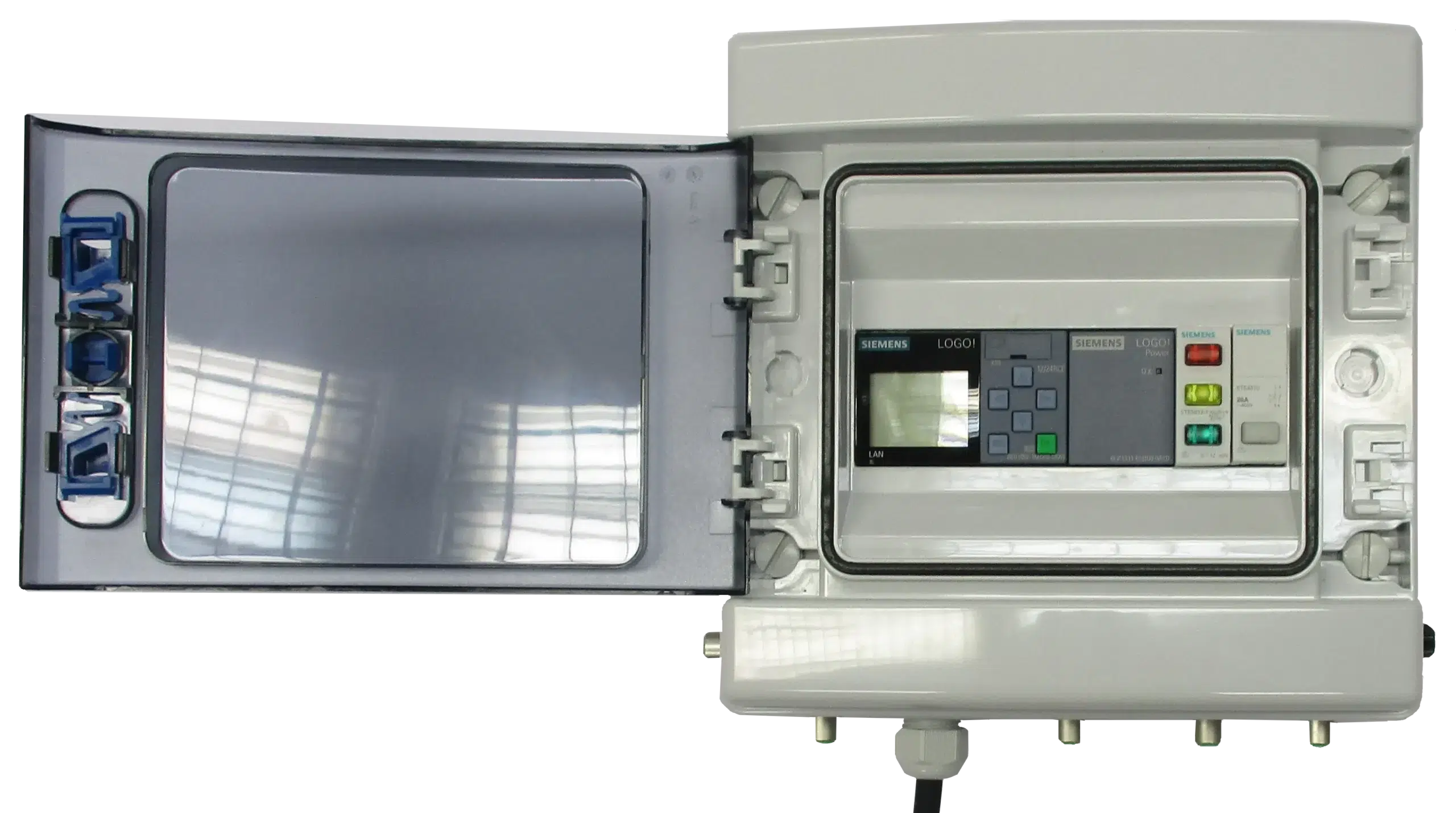

| Disinfection system (BASIC) | Pfalz Tec BASIC, item no. 805000025 | – | 3 channels, up to 4 nozzle heads per channel; control unit 335×231×115 mm, media supply 360×265×165 | – | Markersdorf |
| Cold fogger (handheld device) | Pfalz Tec HAND | – | – | – | Markersdorf |
| Cold fogger | Pfalz Tec CAR Five | – | – | – | Markersdorf |
| Cold fogger (MINI) | Pfalz Tec MINI B5 | – | – | – | Markersdorf |
| Cold fogger (MINI) | Pfalz Tec MINI B10 | – | – | – | Markersdorf |
| Cold fogger (PROFI) | Pfalz Tec PROFI W03 B10 | – | – | – | Markersdorf |
| Dual-head cold fogger (PROFI) | Pfalz Tec PROFI DK W03 B10 | – | – | – | Markersdorf |
| Cold fogger (PROFI) | Pfalz Tec PROFI W06 B10 | – | – | – | Markersdorf |
| Cold fogger (PROFI) | Pfalz Tec PROFI W06 B20 | – | – | – | Markersdorf |
| Dual-head cold fogger (PROFI) | Pfalz Tec PROFI DK W06 B20 | – | – | – | Markersdorf |
| Dual-head cold fogger (PROFI) | Pfalz Tec PROFI DK W06 B60 | – | – | – | Markersdorf |
| Cold fogger with automatic shutdown | Pfalz Tec AUTOMATIC W03 B10 | – | – | – | Markersdorf |
| Dual-head cold fogger, rooms up to 500 m³ | Pfalz Tec AUTOMATIC DK W03 B10, item no. N80171240 | – | 2 × W03 nozzles, 10 l container, 55×23×59 cm, approx. 5.5–9.8 kg, range up to 46 m (6 bar) | – | Markersdorf |
| Cold fogger for large rooms up to 1,000 m³ | Pfalz Tec AUTOMATIC W06 B20, item no. N80200603 | – | W06 nozzle, 20 l container, 46×34×61 cm, approx. 10.3 kg, range up to 55 m (6 bar) | – | Markersdorf |
| Dual-head cold fogger for rooms up to 1,500 m³ | Pfalz Tec AUTOMATIC DK W06 B20, item no. N80161445 | – | 2 × W06 nozzles, 20 l container, 50×35×61 cm, 12.3 kg, range up to 100 m (6 bar) | – | Markersdorf |
| Dual-head cold fogger | Pfalz Tec AUTOMATIC DK W06 B60 | – | – | – | Markersdorf |
| High-performance cold fogger with fan for rooms up to 7,500 m³ | Pfalz Tec POWER 4 W06 B100, item no. N80221914 | – | 4 × W06 nozzles, 100 l container, 125×75×110 cm, approx. 72 kg, fan 0.4 kW up to 7,760 m³/h, | – | Markersdorf |
| High-performance cold fogger with fan for rooms up to 15,000 m³ | Pfalz Tec POWER 7 W06 B100, item no. N80221620 | – | 7 × W06 nozzles, 100 l container, 125×75×110 cm, approx. 72 kg, fan 0.4 kW up to 7,760 m³/h, | – | Markersdorf |
| Container withdrawal nozzle | Pfalz Tec CONTAINER WITHDRAWAL NOZZLE W03 | – | – | – | Markersdorf |
| Nozzle head | Pfalz Tec NOZZLE HEAD W03 DD | – | – | – | Markersdorf |
| Nozzle head | Pfalz Tec NOZZLE HEAD W06 DD | – | – | – | Markersdorf |
| Cold fog nozzle | Pfalz Tec NOZZLE W03 | – | – | – | Markersdorf |
| Cold fog nozzle | Pfalz Tec NOZZLE W06 | – | – | – | Markersdorf |
| Timer for cold foggers | Pfalz Tec TIMER without PR, item no. N55200010 | – | 190×130×90 mm, approx. 1.5 kg | – | Markersdorf |
| Mobile impulse flushing technology (pipeline cleaning) | Pfalz Tec HEAWAT mobile | – | – | – | Markersdorf |
| UFN (ultra-fine fog) system | Pfalz Tec UFN | – | – | 2024 | Markersdorf |
Additional services
Reference customers
History
- 2004
Founded as Pfalz Technik GmbH with the development of its own cold fog process
- 2006
Expansion of the cold fog process with new products and fields of application
- 2008
Development of the impulse flushing process
- 2010
Professional air humidification during the construction of the Jagdberg tunnel
- 2015
Conversion of Pfalz Technik GmbH into Pfalz Tec GmbH
- 2017
Start of a research project on atomisation of high-viscosity liquids
- 2018
New and further development of dust suppression and air humidification systems
- 2019
Research project on the further development of automatic drinking-line flushing
- 2019
Market launch of a modular, automatic disinfection system
- 2020–2022
Use of the cold fog products in hygiene concepts during the Corona pandemic
- 2024
Market launch of a UFN (ultra-fine fog) system
