Filtration specialist for solid/liquid separation: planning, project engineering and plant construction for filtration and water treatment
Pfeffer Filtertechnik
Gingen an der FilsNew on Amplifa
About Pfeffer Filtertechnik
Pfeffer Filtertechnik is a filtration specialist based in Gingen an der Fils (Baden-Württemberg), specialised in water treatment and solid/liquid separation. The sole proprietorship, founded in 1988, develops customised concepts for filtration and water treatment following an in-depth application and problem analysis. The product range includes automatic backwashing disc filters, self-cleaning mesh filters, separator skid systems, endless belt filters, ultrafiltration, reverse osmosis, ion exchange systems and UV disinfection. The services range from consulting on new designs, conversions, optimisation and modernisation of plants, through project engineering, product selection and implementation, to commissioning, installation and after-sales support; test systems can be loaned out. Components from international manufacturers such as AZUD, VAF and BIO-UV are used, with systems made among other things from stainless steel 316L and duplex stainless steel. Customers include companies from the drinking water and food industries, wastewater treatment, the plastics and paper industries, car washes, the mining industry, power plants, public pools, hotels, agriculture, aquaculture and the GrowTech sector.
- Site
- Gingen an der Fils
- Processes
- Mesh filtration, Disc filtration (pressure disc filters, e.g. AZUD HELIX Automatic), Separation (cyclone/separator skid systems, centrifugal separation), Ultrafiltration (hollow fibre membrane modules), Reverse osmosis (AZUD Watertech OSM), Ion exchange / water softening, UV disinfection (UV-C 254 nm, BIO-UV), Odour treatment / air disinfection
- Materials
- Stainless steel 316L, Duplex stainless steel, Plastic (filter discs), Synthetic resin exchange medium (ion exchange resin), Nitrile (seals), Viton (seals), Silicone (seals), EPDM (seals)
- Founded
- 1988
- Industries
- Drinking water/food industry, Wastewater, Car washes/automotive, Plastics industry, Paper/pulp, Public pools
- 01
Application and problem analysis
- 02
Consulting / project engineering and product selection
- 03
Implementation / plant construction
- 04
Commissioning and installation
- 05
After sales / service
Materials & Processes
Stainless steel 316L
Material for filter housings and mesh filters, e.g. in VAF self-cleaning filters
Duplex stainless steel
For highly stressed filter components
Plastic (filter discs)

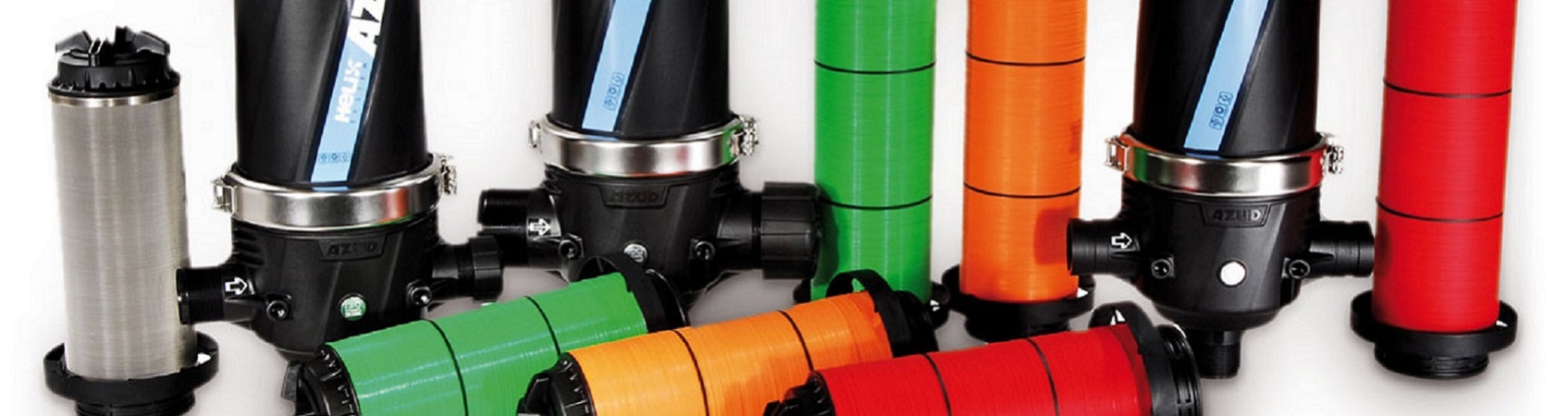

Finely grooved filter discs for pressure disc filters (AZUD HELIX)
Synthetic resin exchange medium
Resin fill of ion exchange systems for water softening
Nitrile (seals)
Sealing material in filter systems
Viton (seals)
Sealing material for higher chemical and thermal requirements
Silicone (seals)
Sealing material in filter systems
EPDM (seals)
Sealing material in filter systems
Locations
Gingen an der Fils
DEHead office; project engineering, plant construction, service, loan of test systems
- Materials
- Stainless steel 316L, duplex stainless steel, plastic, synthetic resin exchange medium
- AZUD HELIX Automatic disc filters (20/50/200 µm, 20 m³/h per element)
- VAF V-Series self-cleaning mesh filters (7.3–1226 m³/h, 10–1500 µm)
- VAF Cooling Tower Filter Skid CTF series (4.5–340 m³/h)
- AZUD Helix separator skid systems (full flow up to 100–150 m³/h)
- AZUD Watertech OSM compact reverse osmosis system
- AZUD WATERTECH compact water treatment systems
- BIO-UV UV sterilisers (UV-C 254 nm)
- Ion exchange systems (e.g. 50 m³/h)
- Pump stations (e.g. 2x60 m³/h)
- Green Line proportional dosing systems
Systems & Equipment
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Mesh filtrationFiltration/Water treatment | – | – | – | – | 316L stainless steel |
| Disc filtration (pressure disc filters, e.g. AZUD HELIX Automatic)Filtration/Water treatment | Filtration fineness 20-200 µm | – | – | – | Plastic (filter discs) |
| Separation (cyclone/separator skid systems, centrifugal separation)Filtration/Water treatment | – | – | – | Full flow up to 100-150 m³/h | – |
| Ultrafiltration (hollow fibre membrane modules)Filtration/Water treatment | Operating range 3-10 bar | – | – | – | – |
| Reverse osmosis (AZUD Watertech OSM)Water treatment | Desalination rate approx. 95-98% | – | – | – | – |
| Ion exchange / water softeningWater treatment | – | – | – | implemented system 50 m³/h | – |
| UV disinfection (UV-C 254 nm, BIO-UV)Water treatment | – | – | – | – | – |
| Odour treatment / air disinfectionWater treatment/Environmental engineering | – | – | – | – | – |
| Plant construction for water recycling systems (e.g. car washes, 75-90% fresh water savings)Engineering/Plant construction | – | – | – | – | – |
| Irrigation systems / drip irrigation (fertigation, QGROW irrigation head)Engineering/Plant construction | – | – | – | – | – |
| Dosing systems (Green Line proportional dosing systems)Engineering/Plant construction | – | – | – | – | – |
| Endless belt filtrationFiltration/Water treatment | – | – | – | – | – |
10 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|

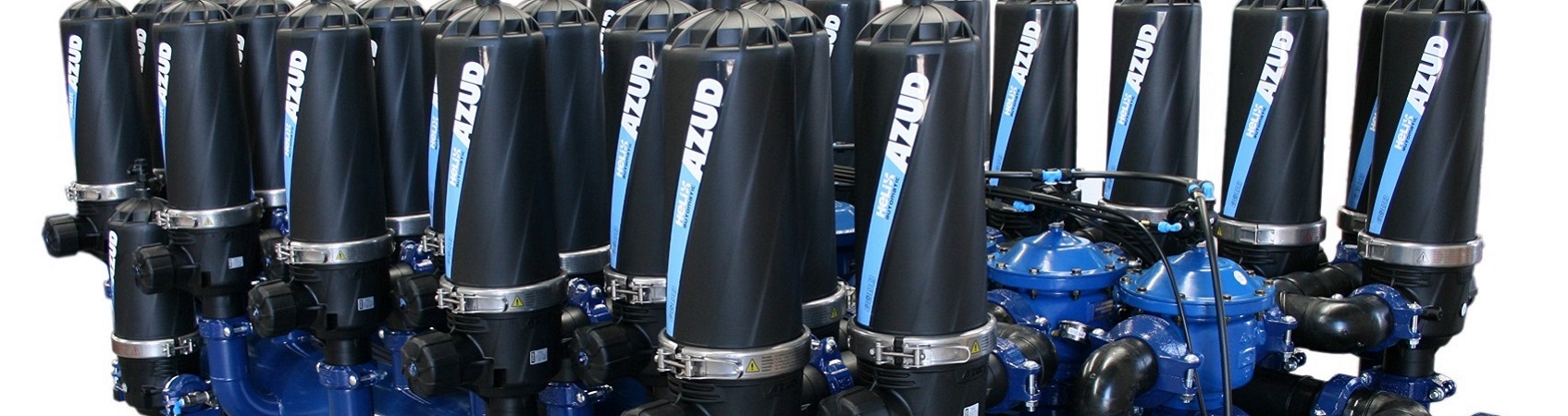

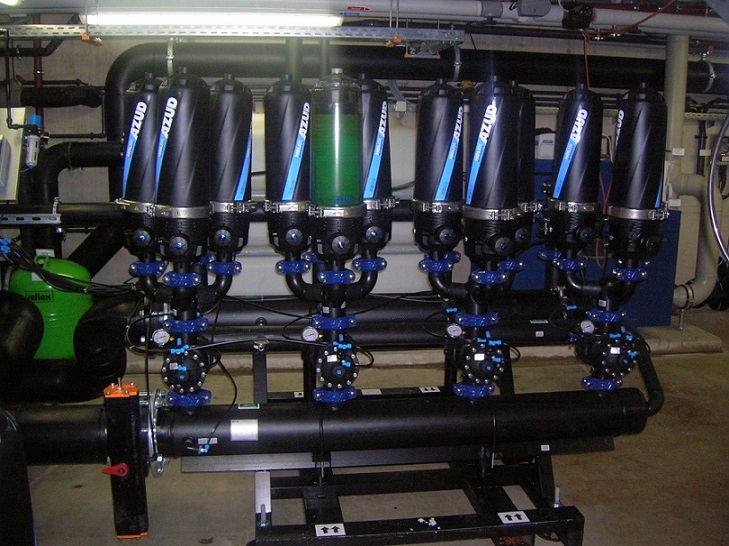

| Automatic disc filter with backwashing | AZUD HELIX Automatic (e.g. 212AA, AIR ASSIST) | – | 20 m³/h per filter element, filtration fineness 20/50/200 µm | – | Gingen/Fils |
| Self-cleaning automatic mesh filter (Hydro-Drive) | VAF (Valve and Filter) V series (V-250 to V-3500, V3) | – | 32-5400 gpm (7.3-1226 m³/h) per filter, 10-1500 µm, max. 150 psi | – | Gingen/Fils |
| Cooling tower filter skid | VAF CTF series (CTF-20 to CTF-80) | – | 4.5-340 m³/h | – | Gingen/Fils |
| Cyclone separator skid system | AZUD Helix Separator | – | Full flow up to 100-150 m³/h; side stream 15-30% above 150 m³/h | – | Gingen/Fils |

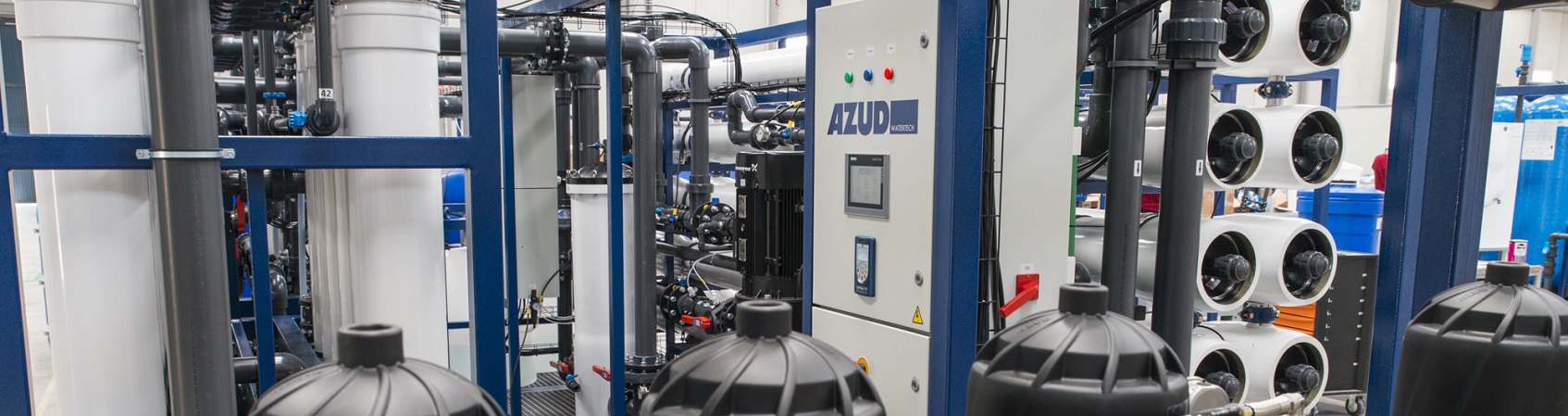

| Compact reverse osmosis system | AZUD Watertech OSM | – | – | – | Gingen/Fils |

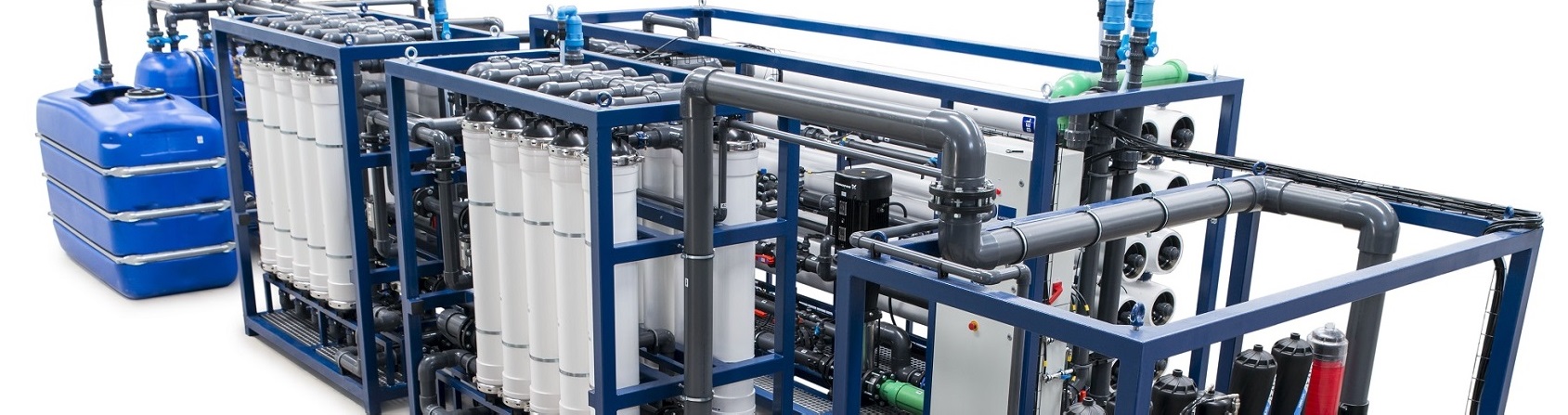

| Compact water treatment system (prefilter + hollow fibre membrane + disinfection) | AZUD WATERTECH (e.g. D1U2) | – | – | – | Gingen/Fils |
| UV steriliser | BIO-UV | – | UV-C 254 nm | – | Gingen/Fils |

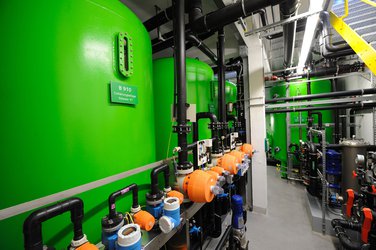

| Ion exchange system (water softening) | – | – | implemented: 50 m³/h | – | Gingen/Fils |

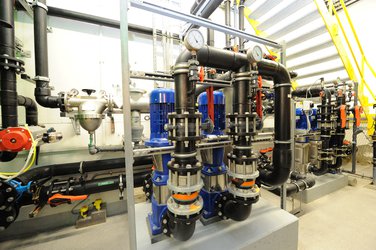

| Pump station | – | – | implemented: 2x60 m³/h | – | Gingen/Fils |
| Proportional dosing system | Green Line | – | – | – | Gingen/Fils |
Additional services
Reference customers
History
- 1988
Founded in June 1988 by Ulrich Pfeffer; initially active in agriculture and aquaculture
- 1999
Increasing activity in the industrial sector
