Rivet, eyelet and snap fastener setting machines plus matching small metal parts such as rivets, eyelets and snap fasteners for the textile, leather and packaging industries
PIROMATIC GmbH
Wangen · Göppingen-Eschenbach · BerlinNew on Amplifa
Joining through technology since 1973
PIROMATIC GmbH is a company specializing in fastening technology, headquartered in Wangen with a branch in Göppingen-Eschenbach. It manufactures riveting machines, eyelet machines, snap fastener setting machines as well as punching and eccentric presses, complemented by matching rivets, eyelets, snap fasteners and other small metal parts. The machines are offered as hand-operated, foot-operated, pneumatic and electromechanical versions, including full automatic machines with automatic feeding for metal and plastic eyelets up to 66 mm diameter as well as electromechanical eccentric presses of the PMN series with punching forces up to 150 kN. The product range is aimed at tarpaulin and textile confectioning, the clothing and leather goods industry, the packaging industry, print finishing and technical applications such as automotive and sheet metal processing. The offering includes consulting, prototype construction, sample production, machine accessories such as punching tools, and — through a network — contract manufacturing and partial confectioning.
- Site
- Wangen
- Processes
- Riveting (fastening of clamps, jeans rivets, logo rivets), Eyelet setting (punching & eyeleting in one operation, full automatic eyelet machine), Setting snap fasteners, Embossing, Punching, Cutting, Prototype construction, Manufacturing / partial confectioning of products
- Materials
- Metal eyelets / plastic eyelets, Metal or plastic small parts, Rivets, eyelets, snap fasteners (small metal parts), Metal small parts, Plastic small parts
- Founded
- 1973
- Industries
- Tarpaulin & textile confectioning, Clothing & textile industry, Leather goods & bag manufacturing, Packaging industry, Print finishing & organizing supplies, Technical applications (automotive, sheet metal processing, electronics)
- 01
Consulting and conception
- 02
Prototype construction
- 03
Machine building and tool manufacturing
- 04
Procurement of small metal parts
- 05
Contract manufacturing via network
- 06
Customer service and exchange service
Materials & Processes
Metal small parts

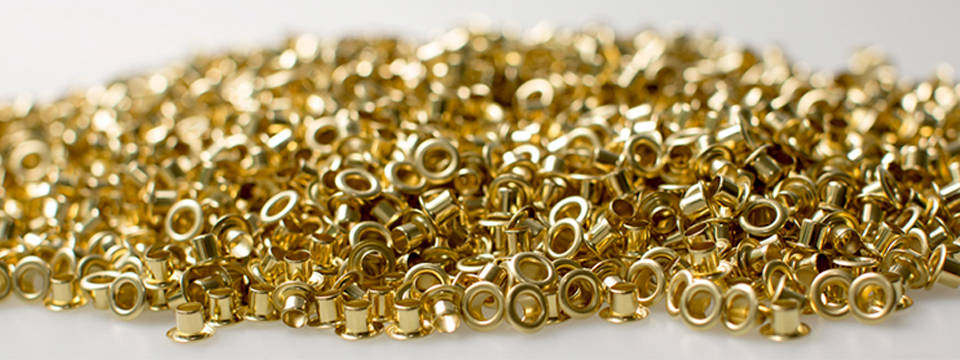

Metal rivets, eyelets and snap fasteners, matching the company's own machines.
Plastic small parts
Metal or plastic eyelets and snap fasteners for textile and tarpaulin processing.
Locations
Wangen
DEHeadquarters / Administration
Eschenbach (Göppingen)
DEBranch & Contact
Berlin
DESales
Products & Machines
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Riveting (fastening of clamps, jeans rivets, logo rivets)Joining | – | – | – | – | Metall, Kunststoff |
| Eyelet setting (punching & eyeleting in one operation, full automatic eyelet machine)Joining | – | – | – | – | Metall, Kunststoff, Textilien, PVC |
| Setting snap fastenersJoining | – | – | – | – | Kunststoff, Metall |
| EmbossingForming | – | – | – | – | – |
| PunchingMachining | – | A4 - A3 | – | Prototypes, small series | – |
| CuttingMachining | – | – | – | – | – |
| Prototype constructionEngineering | – | – | – | – | – |
| Manufacturing / partial confectioning of productsAssembly | – | – | – | – | – |
| Production of rivets with logoJoining | – | – | – | – | Metall |
27 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Full automatic eyelet machine (mobile banner eyelet machine) | PIROMATIC PM Comfort 3 (PM C3) | – | Eyelets 8-12 mm; 60x50 cm, height adjustable | – | – |
| Full automatic machine for metal and plastic eyelets | PIROMATIC PM BTS 2 | – | Eyelets up to 16 mm Ø | – | – |
| Pneumatic eyelet machine | PIROMATIC PM CM 1 | – | Eyelets up to 66 mm Ø | – | – |
| Foot-operated press for eyelets | PIROMATIC PM 22F | – | Eyelets up to 20 mm Ø | – | – |
| Eyelet punching tool | PIROMATIC PM mini for2 | – | Eyelets 12 mm | – | – |
| Full automatic eyelet machine, electropneumatic | PIROMATIC PM Comfort 1 | – | Ø 8-12 mm eyelets | – | – |
| Full automatic eyelet machine, electropneumatic (seated operation) | PIROMATIC PM Comfort 2 | – | Ø 8-12 mm eyelets | – | – |
| Electric full automatic eyelet machine | PIROMATIC OEV2 E | – | Eyelets up to 10 mm, throat depth/working depth 185 mm | – | – |
| Semi-automatic eyelet machine | PIROMATIC OEV1 E | – | Eyelets up to 10 mm | – | – |
| Modular eyelet machine | PIROMATIC OE1 E | – | pneumatic or electric, convertible to riveting machine | – | – |
| Pneumatic universal machine (snap fasteners, eyelets, rivets, punching) | PIROMATIC M OZ P | – | Tool holder top M6, bottom 12.25 mm | – | – |
| Label eyelet automatic machine | PIROMATIC EVA 2 | – | 2 stack feeders | – | – |
| Electric eyelet machine with automatic punching unit | PIROMATIC GOE1 E | – | up to 20 mm Ø, working depths 100, 350, 650 mm | – | – |
| Electric eyelet machine with automatic punching unit | PIROMATIC GOE1-340 E | – | up to 20 mm Ø, 340 mm throat depth | – | – |
| Pneumatic 4-head eyelet machine (fixed eyelet spacing) | PIROMATIC OE1 4F P | – | Fixed eyelet spacing 80 x 80 x 80 mm | – | – |
| Pneumatic 4-head eyelet machine (adjustable) | PIROMATIC OE1 4V P | – | lateral heads adjustable up to 350 mm | – | – |
| Snap fastener setting machine | PIROMATIC D1 E | – | Working depths 160, 260, 500, 850 mm | – | – |
| CNC-controlled full automatic eyelet machine | PIROMATIC GT 2020 | – | Belt, bag & jeans pocket decoration | – | – |
| Automatic riveting machine for two-part rivets | PIROMATIC N2-85E | – | Working depth 85 mm, shank length max. 14 mm, riveting force 5 kN, cycle time 0.35 s | – | – |
| Riveting machine for clamp riveting | PIROMATIC N1 E AUT | – | – | – | – |
| Hand lever punching machine | PIROMATIC PM-F100 | – | Working depth 100 mm, stroke 35-48 mm, approx. 800 kg punching force | – | – |
| Electromechanical eccentric press | PIROMATIC PMN 12 | – | max. punching force 12 kN, fixed stroke 40 mm | – | – |
| Electromechanical eccentric press | PIROMATIC PMN 20 | – | max. pressure 2 t, stroke 7-20-40 mm | – | – |
| Electromechanical eccentric press | PIROMATIC PMN 30 | – | max. pressure 3 t, stroke variable 20-40 mm | – | – |
| Electromechanical eccentric press | PIROMATIC PMN 80 | – | max. pressure 8 t, stroke variable 40-60 mm | – | – |
| Electromechanical eccentric press | PIROMATIC PMN 100 | – | max. pressure 10 t, stroke variable 40-60 mm | – | – |
| Electromechanical eccentric press | PIROMATIC PMN 150 | – | max. pressure 15 t, stroke variable 10-70 mm (6 positions) | – | – |
Additional services
History
- 1973
Foundation of the company PIRO by Messrs. Pintore and Roth; solutions initially for the leather and clothing industry, later renamed PIRO Maschinenbau GmbH and finally PIROMATIC GmbH.
